AEM ElectronicsPart 30-5701Made in US
Product Details
⭐
Key Features

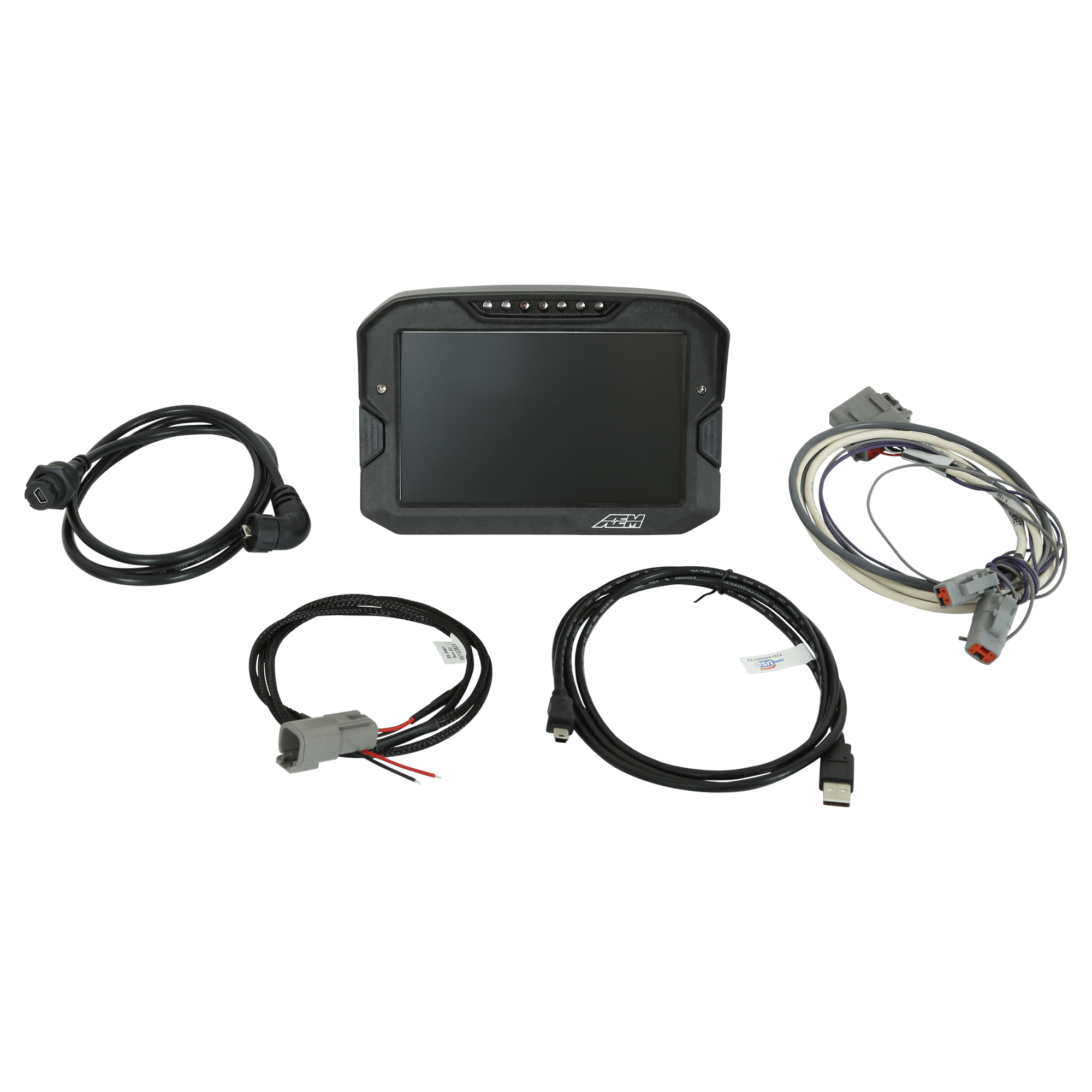

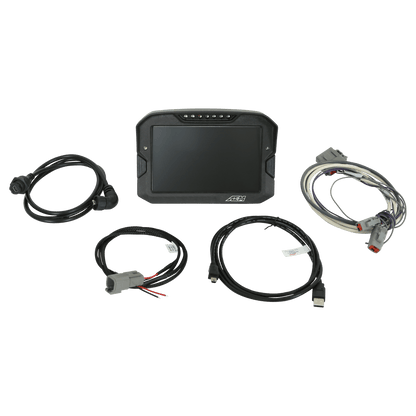

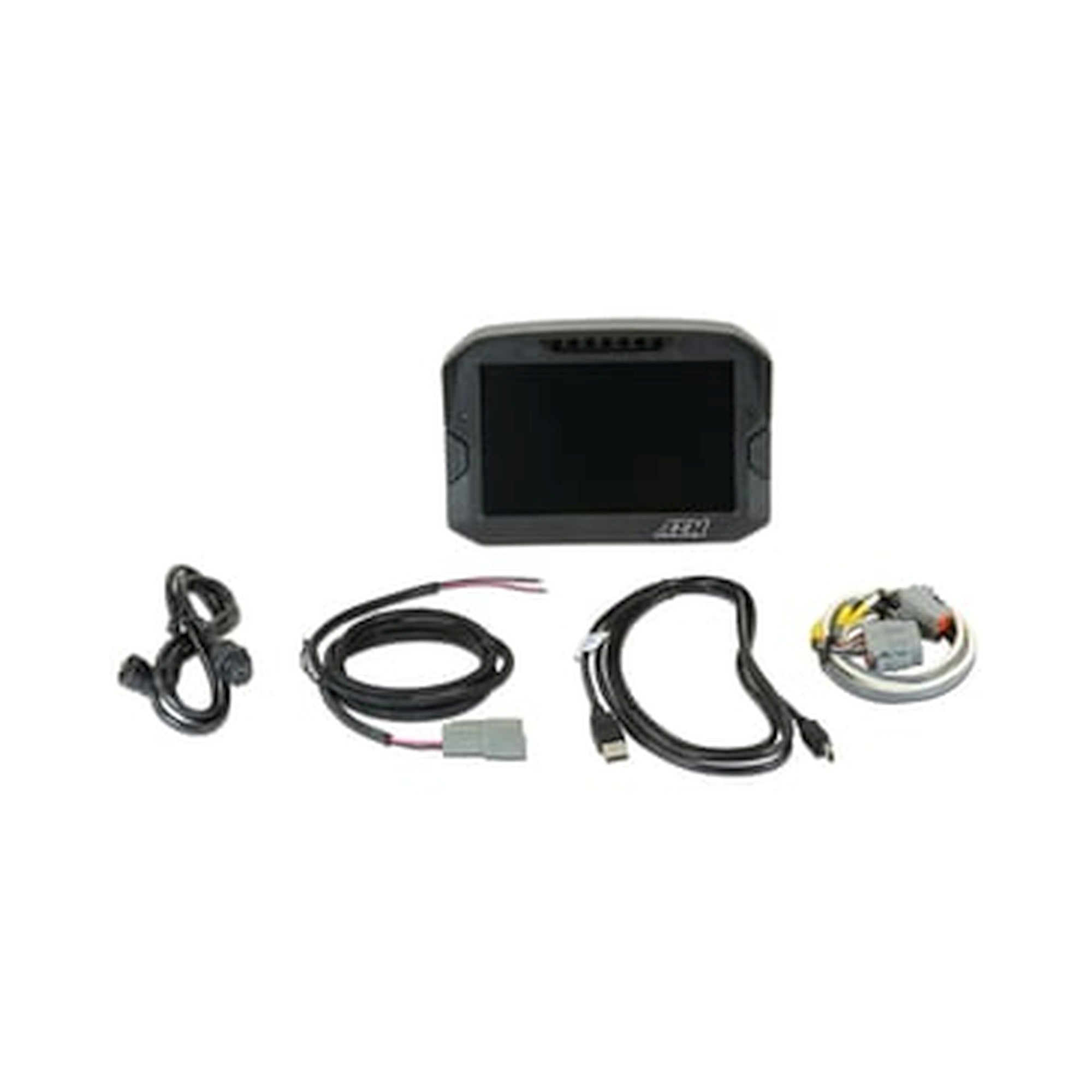

7-inch diagonal screen, carbon fiber enclosure, wiring harness included

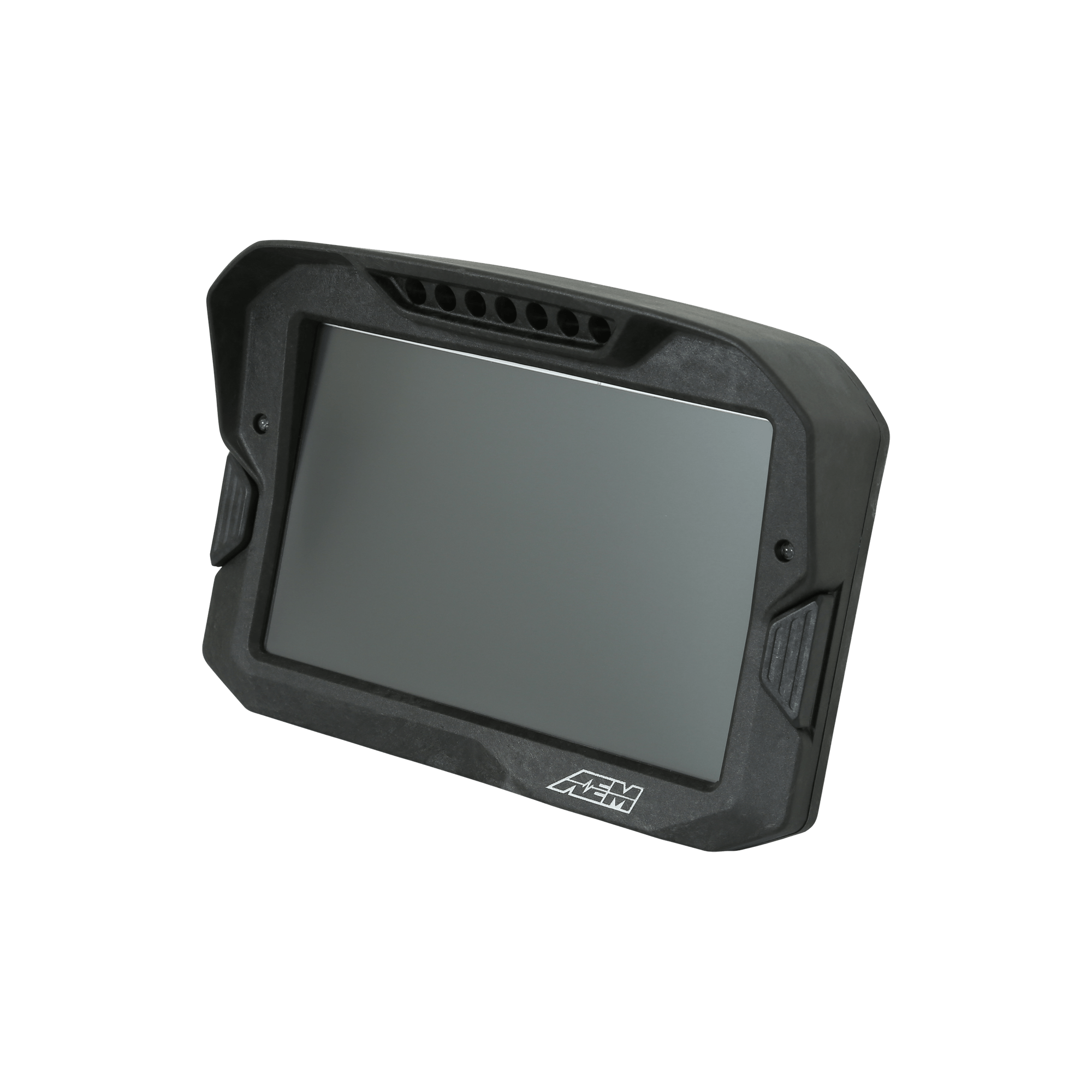

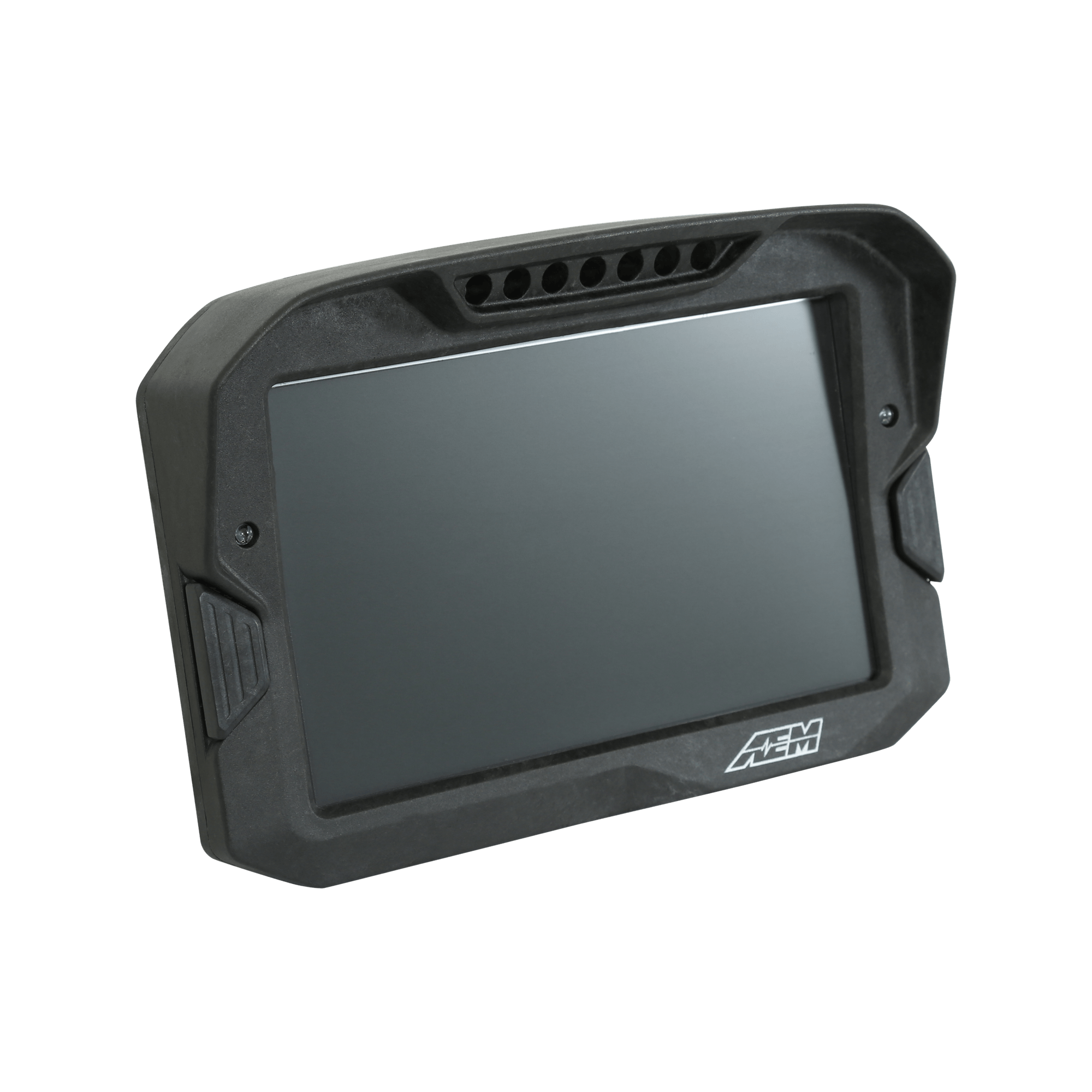

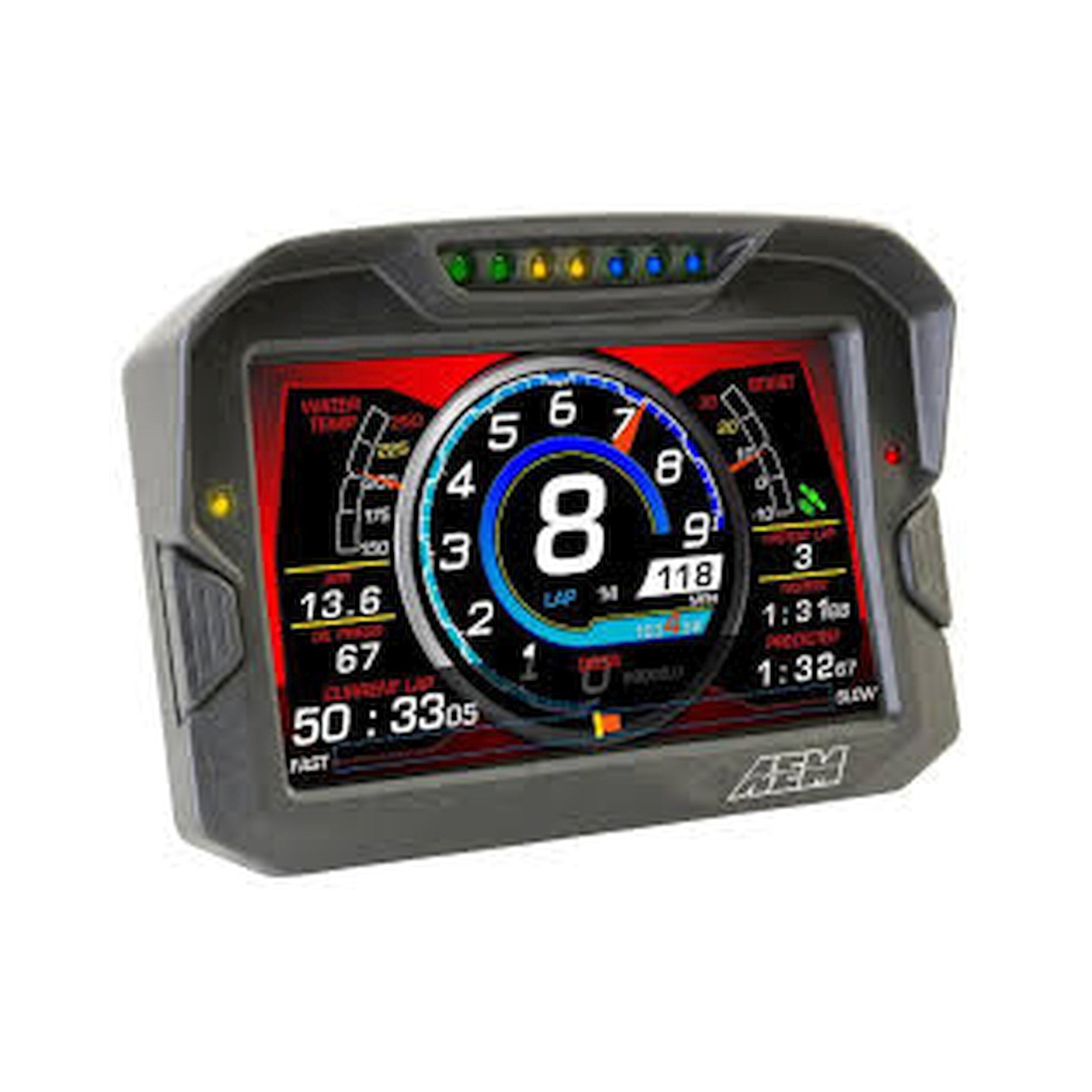

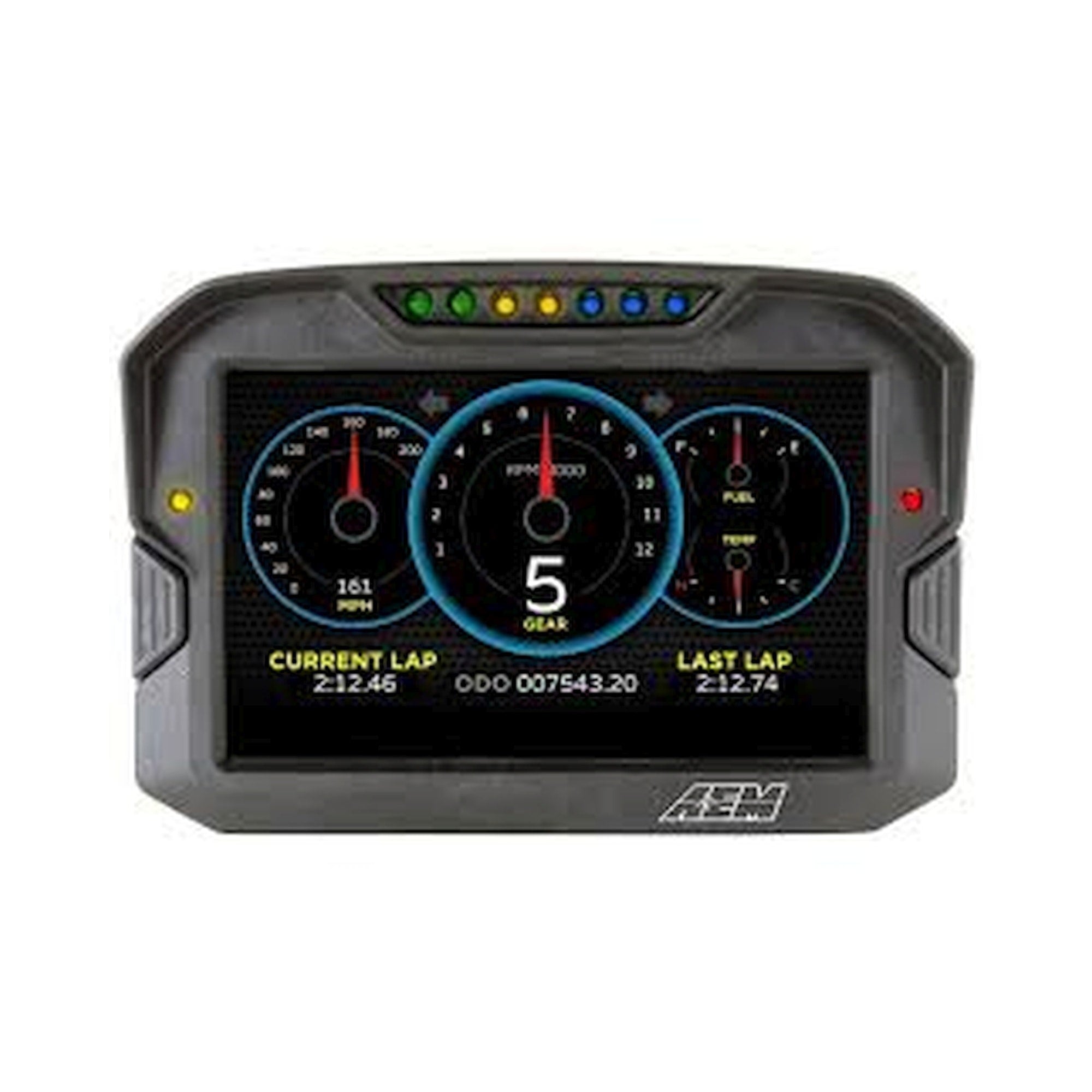

CD-7 Carbon Digital Dash Displays feature a full-color, daylight readable screen surrounded by a tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housing for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. Two large buttons are included on the face of the display, allowing easy page changing and memory resetting even with driving gloves on. These button functions are included in the supplied rear connector, allowing the user to mount remote buttons. Two additional programmable LEDs are located above the toggle buttons on the top of the housing on either side of the integrated LED shift lights.
7-inch diagonal screen, carbon fiber enclosure, wiring harness included
- Install the CD-7 Carbon on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212, sold separately)
- Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
- Free DashDesign Graphics Editor software
- Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
- IP65 water resistance - open cockpit, marine and motorcycle safe
- Layout files interchangeable with all versions of the CD-5 Carbon
- Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
- Add a Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)
- Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
- Rugged, lightweight flow-molded carbon fiber composite enclosure
- Add an 8 Channel K-Type EGT CAN Module for 8 additional temps via AEMnet CAN bus (PN 30-2224, sold separately)
- Odometer function
- 'Headlight-in' connection dims the dash and LEDs during night operation
- Available with or without 200Mb internal logging (up to 1,000Hz/channel)
- Available with or without on-board 20Hz GPS receiver and antenna
- Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
- Full color 7" screen with 800x480 resolution
- Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages
- User supplied graphics can be changed based on channel values (up to the full screen size)
- Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
- Use included page layouts and input your channels and text, or create your own from scratch
- Total display weight of 20.9 oz. / 595 grams
- Wiring interface/harness is identical to the CD-5 Carbon
- Two programmable LEDs
- Convert CAN bus channel values to user-defined text in multiple languages
- Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
- Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
- Accepts channels from two separate user programmable CAN bus connections - works with AEMnet enabled devices and non-AEM 3rd party devices side by side
📖
About this product
7-inch diagonal screen, carbon fiber enclosure, wiring harness included
📋
Product Specifications
Analog Or Digital
Digital
Automotive Item Grade
Performance
Automotive Item Grade
Premium
Brand
AEM
Built-In Buttons
Yes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
CAN Ready
Yes
Category
Gauges and Gauge Accessories
Color
Black Carbon Composite
Country
US
Datalogging
Yes
Depth
3.1
Emission Code
4
Emission Code
5
Enclosure Material
Carbon Fiber
External Buttons Required
No
Gauge Quantity
1
GPS Included
No
Gps
No
Harness Included
Yes
HTS Code
9029204080
Illuminated
Yes
Internal Memory
All
IP Rating
IP65
Logging Speed
1
Logging
Yes
Material
Carbon Fiber Composite
OEM Replacement
No
Part Type
Digital Display
Part Type
Instrument Cluster
Product Type
Dash
Prop 65 Yes/No
Yes
Screen Size
7 Inch Diagonal
Sub Category
Instrument Panel
Terminal Quantity
12
Touchscreen
No
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's 1 Year Warranty
Wire Gauge Measurement
20
Wire Quantity
12
Wiring Harness Included
Yes
Wiring Harness Length
48
🛡️
Warranty & Compliance
Warranty
12 months · Manufacturer's 1 Year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
9029204080
📐
Dimensions & Shipping
Product Dimensions
13.0 × 10.0 × 3.0 in
Shipping Dimensions
13.0 × 10.0 × 3.0 in
Weight
1361 g (1.36 kg)
