AEM ElectronicsPart 30-8408Made in US
Product Details
⭐
Key Features
NOTE: The Unsealed BMS Satellite must be used with an AEM Vehicle Control Unit (VCU) and a BMS Master.
The AEM EV Battery Management System (BMS-18) is comprised of three components: | 1. VCU | 2. BMS-18 Master | 3. BMS-18 Satellite(s) | The BMS is implemented as two different Module types: the BMS Master and the BMS Satellite. Each Module is capable of measuring up to 18 cells and 3 temperatures (thermistors) but the Master also contains the CAN communication interface and J1772 charging specific connections needed for each battery pack. | The VCU communicates with the BMS via the Master Module and all battery packs need at least one Master unit. The Satellites expand the capability of the Master by an additional 18 cells and 3 thermistors per additional Satellite connected. The Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI) that allows additional units to be daisy chained together, adding as many Satellites as necessary for the battery pack configuration. | The VCU is responsible for all BMS control logic. All setup and calibration items can be modified using the AEMCal user interface.

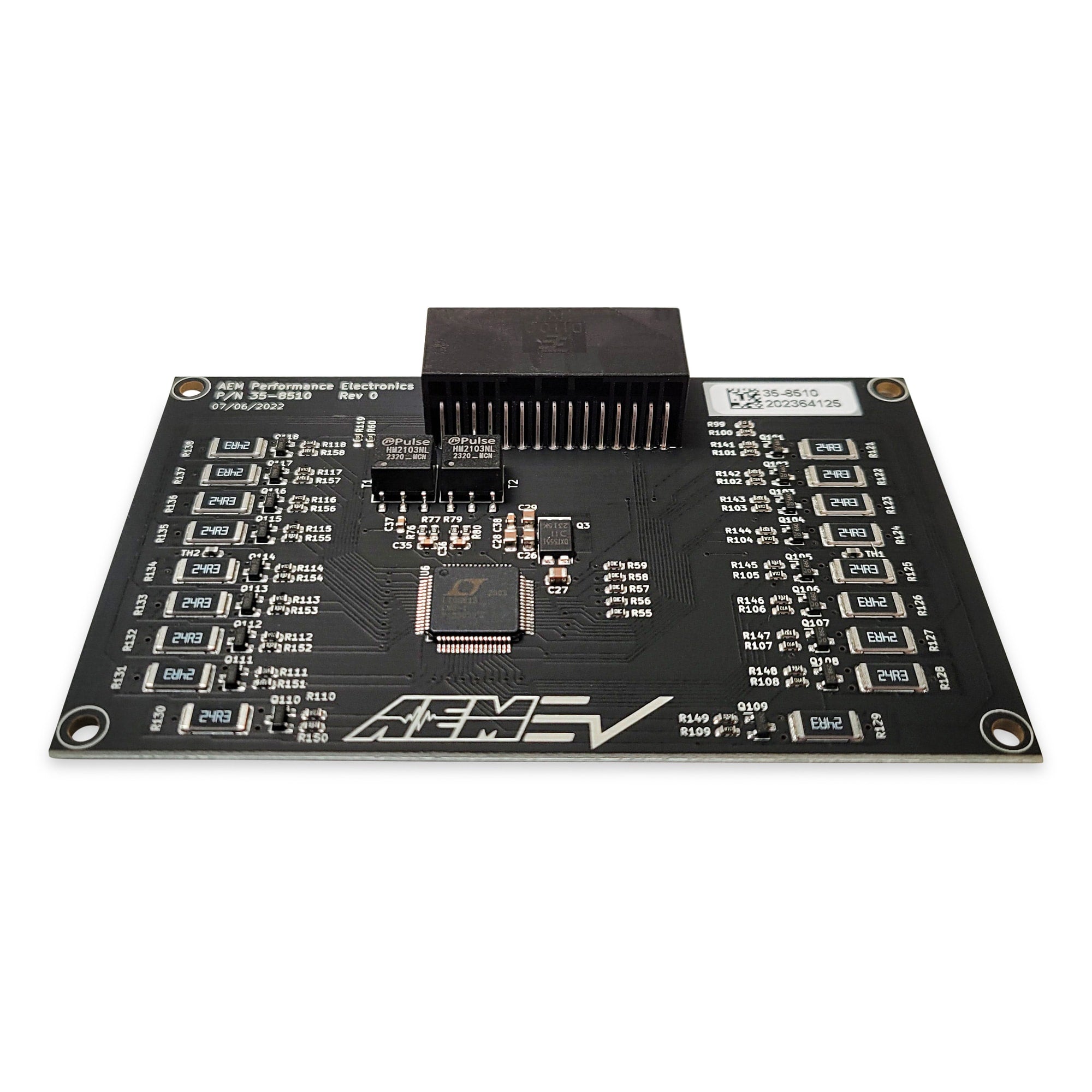

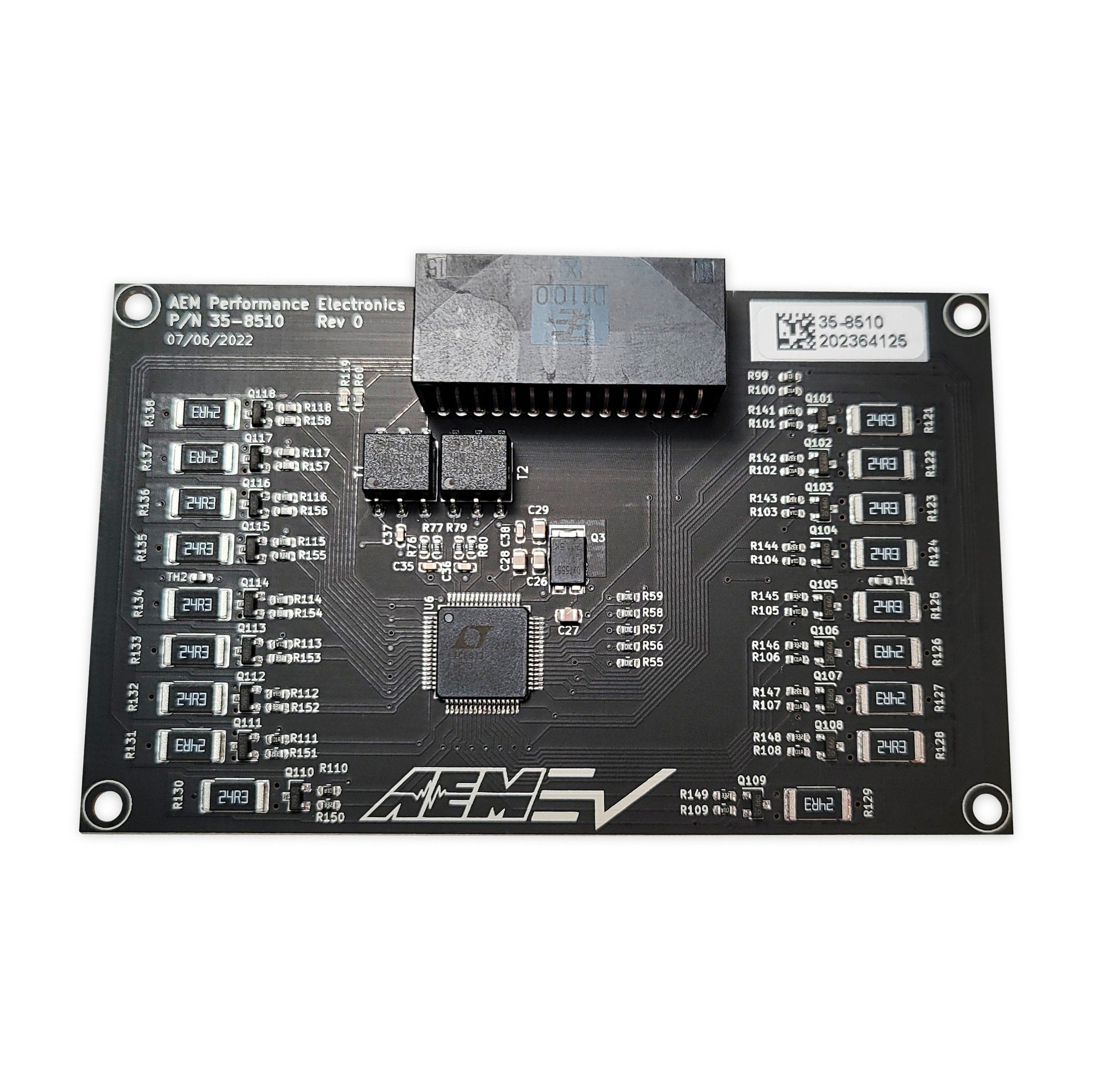

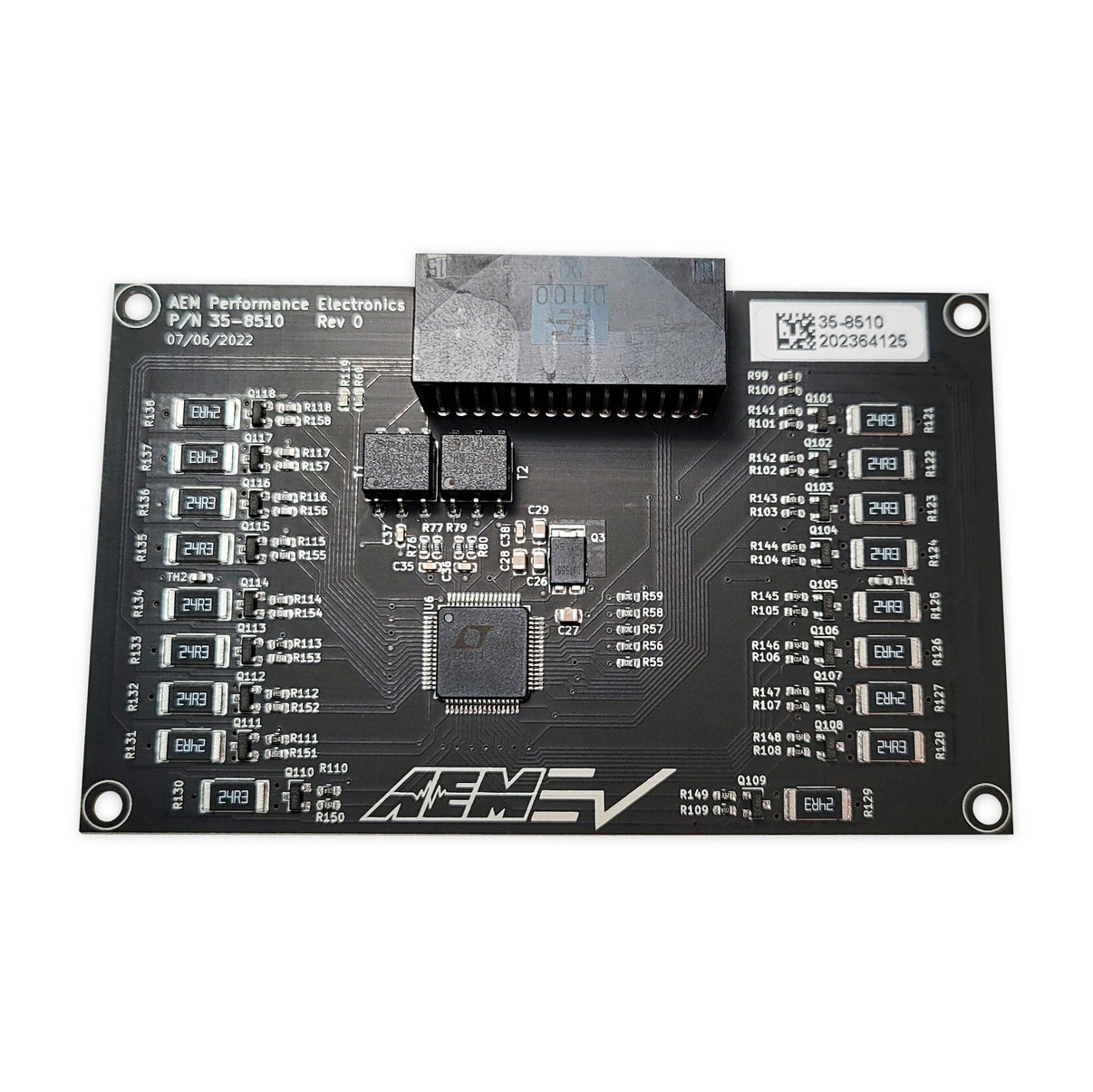

Unsealed BMS Satellite Module for VCU
- Unsealed Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI)
- Unsealed Satellite Modules allow additional units to be daisy chained together to support numerous battery pack configurations
- Unsealed Satellite Modules allows for custom Battery Packs and integration into a sealed module
- Unsealed Satellite modules are Intended for installations into sealed custom battery packs

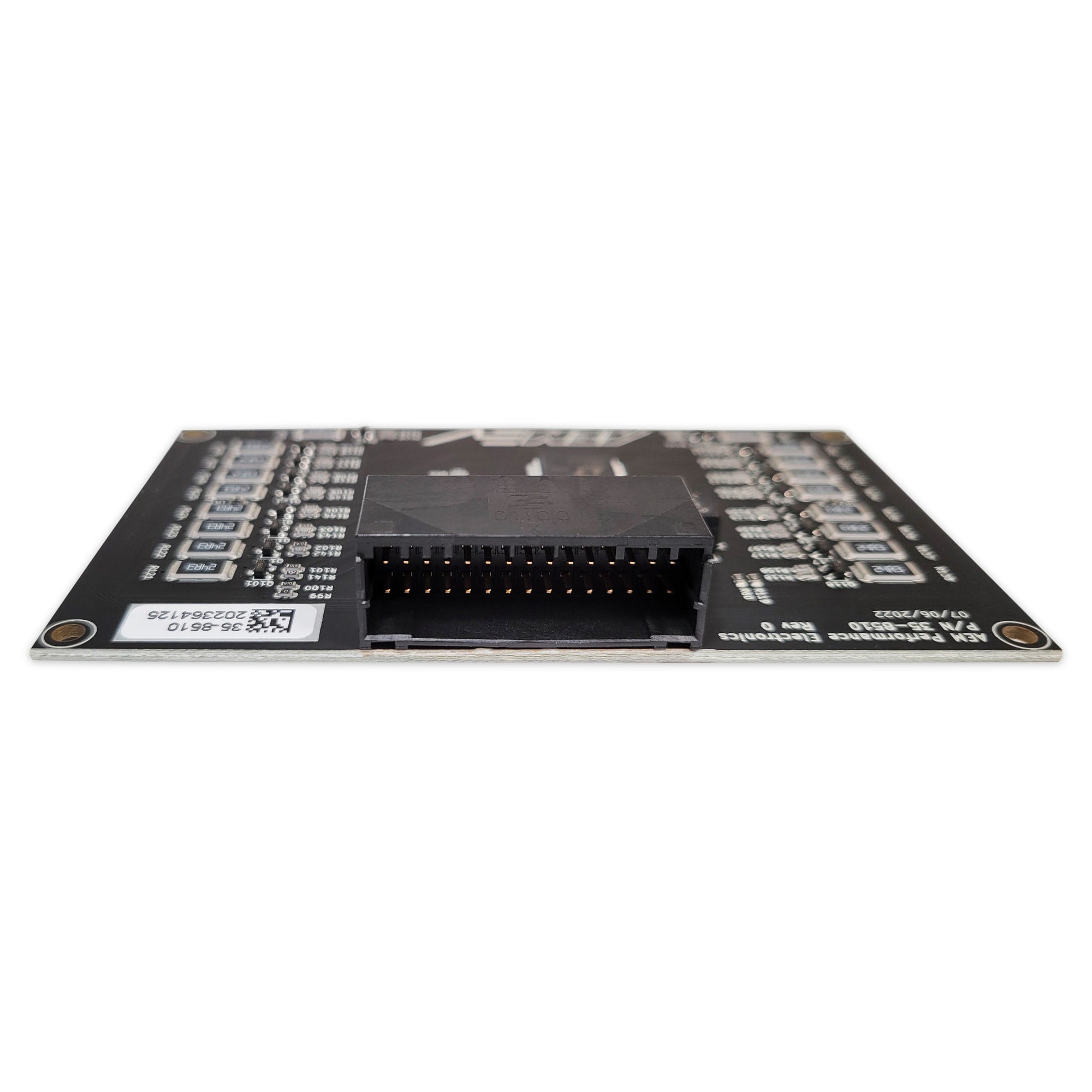

- Low Profile 90 degree connector allows for ease of packaging and service when installed into a sealed battery pack
📖
About this product
Unsealed BMS Satellite Module for VCU
📋
Product Specifications
Brand
AEM
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Electrical
Country
US
Emission Code
4
Emission Code
5
HTS Code
8507908000
Part Type
EV Battery Thermal Management System (BTMS) Coolant Plate Heat Exchanger Chiller
Product Type
BMS Satelite
Prop 65 Yes/No
Yes
Sub Category
Battery and Related Components
Warning
California Proposition 65
Warranty
Manufacturer's 1 Year Warranty
Wiring Pigtail Included
No
🛡️
Warranty & Compliance
Warranty
12 months · Manufacturer's 1 Year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8507908000
📐
Dimensions & Shipping
Product Dimensions
8.0 × 5.5 × 2.8 in
Shipping Dimensions
8.0 × 5.5 × 2.8 in
Weight
181 g (0.18 kg)
