Holley EFIPart 300-679Made in CN
Product Details
⭐
Key Features

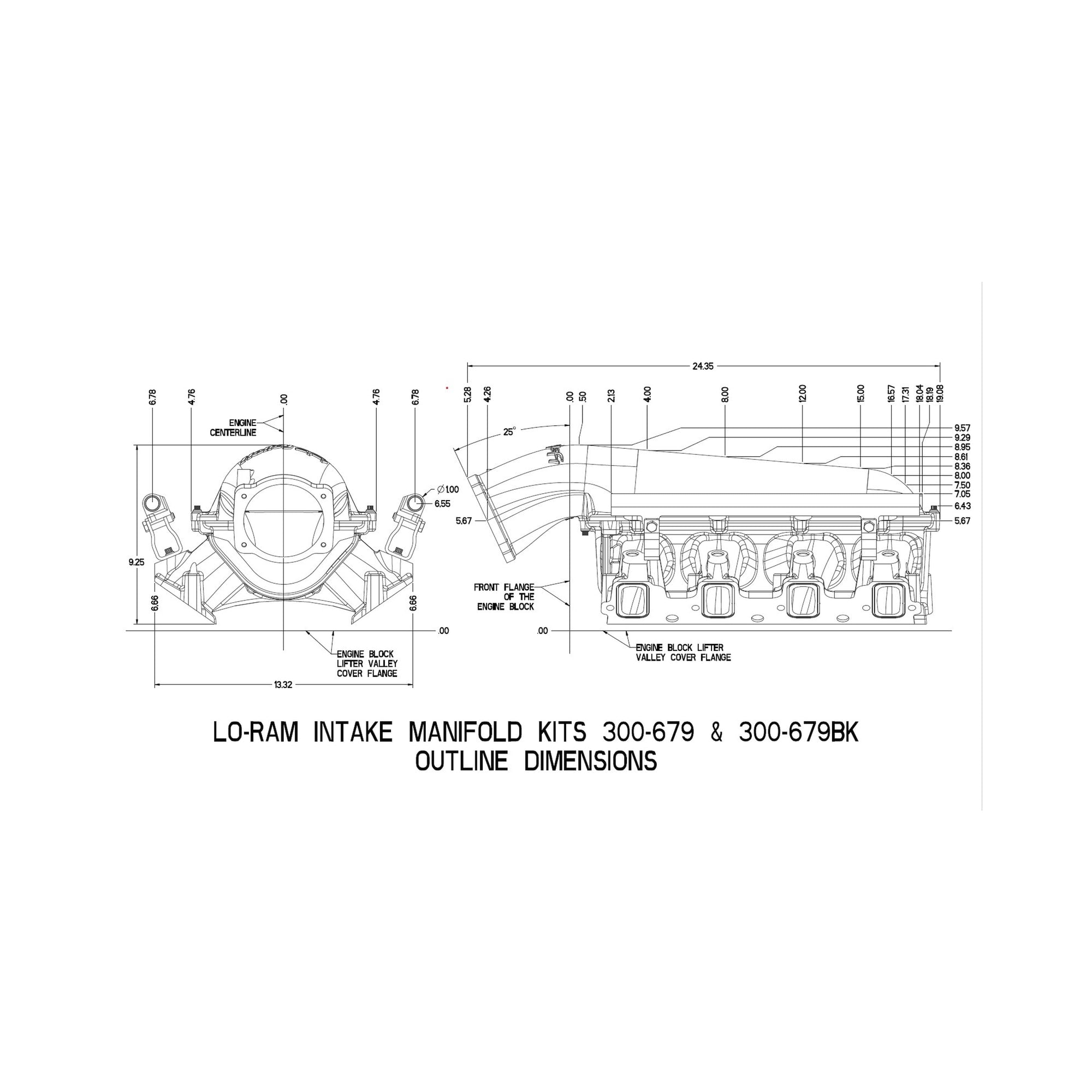

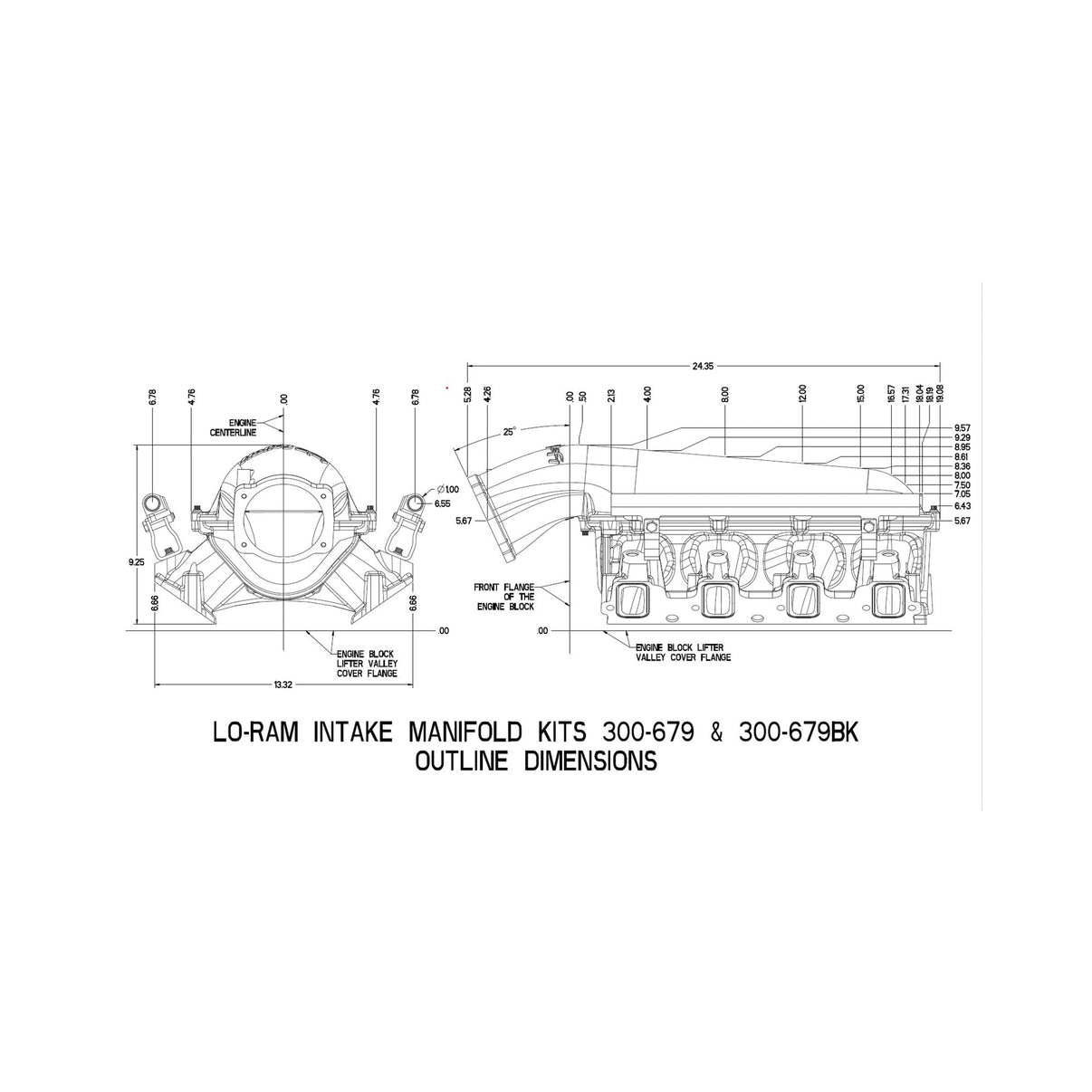

Lo-Ram Base Intake Manifold Plenum Top Mounting Flange Height - 5.67" Total Height: Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum Top - 9.25" (without an intercooler installed) Top-Feed Plenum Configuration w/105mm Long. Mount EFI Plenum
The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped | rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring | intercooler in a top-feed configuration. Additional manifold designs include both single and dual | with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram | intake manifolds are designed for forced induction (supercharged or turbocharged) engine | injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel | ports (8 AN) | manifold is designed with a low height to aid the packaging of a plenum mounted air-to-water | applications and the 105 mm throttle body part number 112-581 or similar models. The base intake

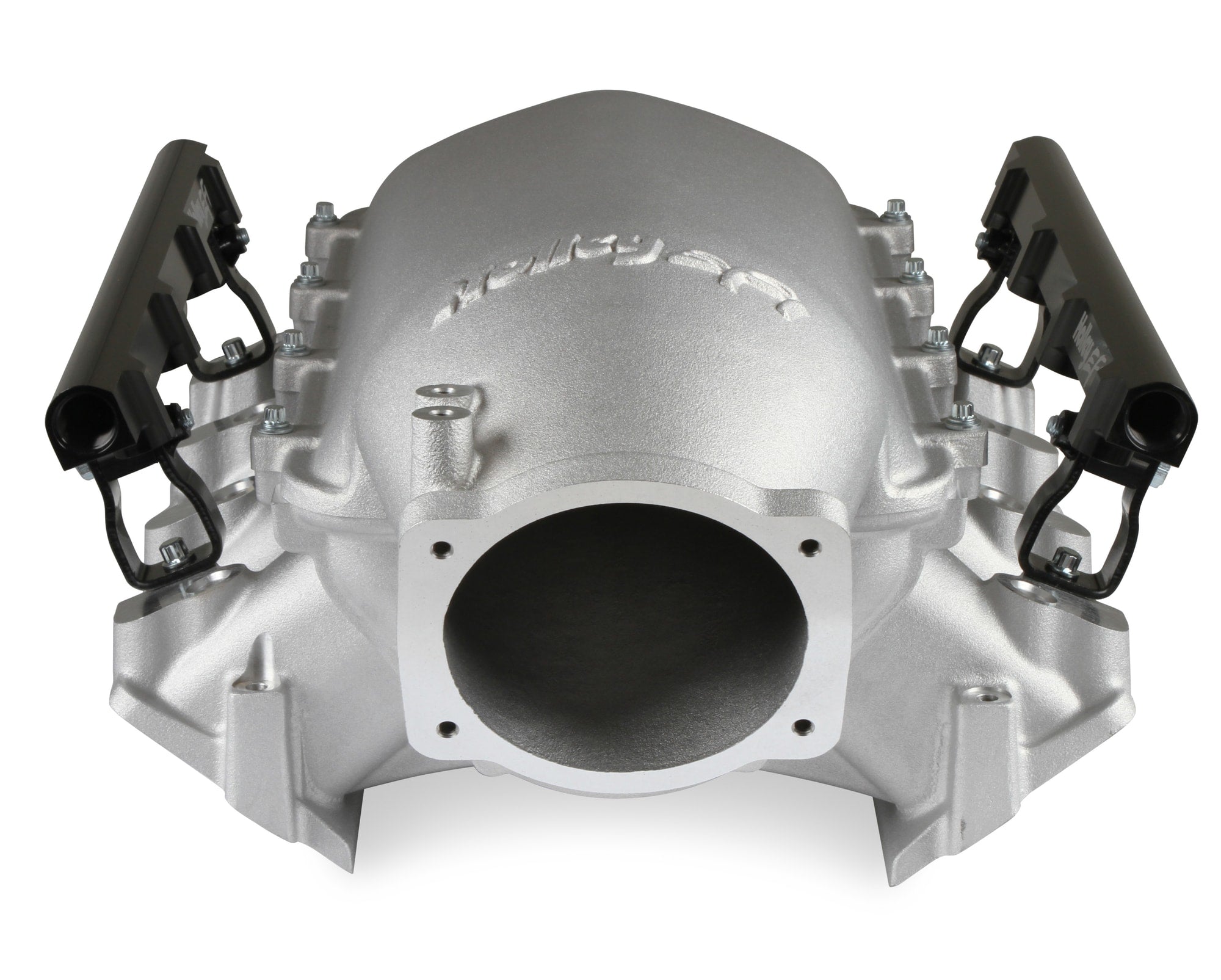

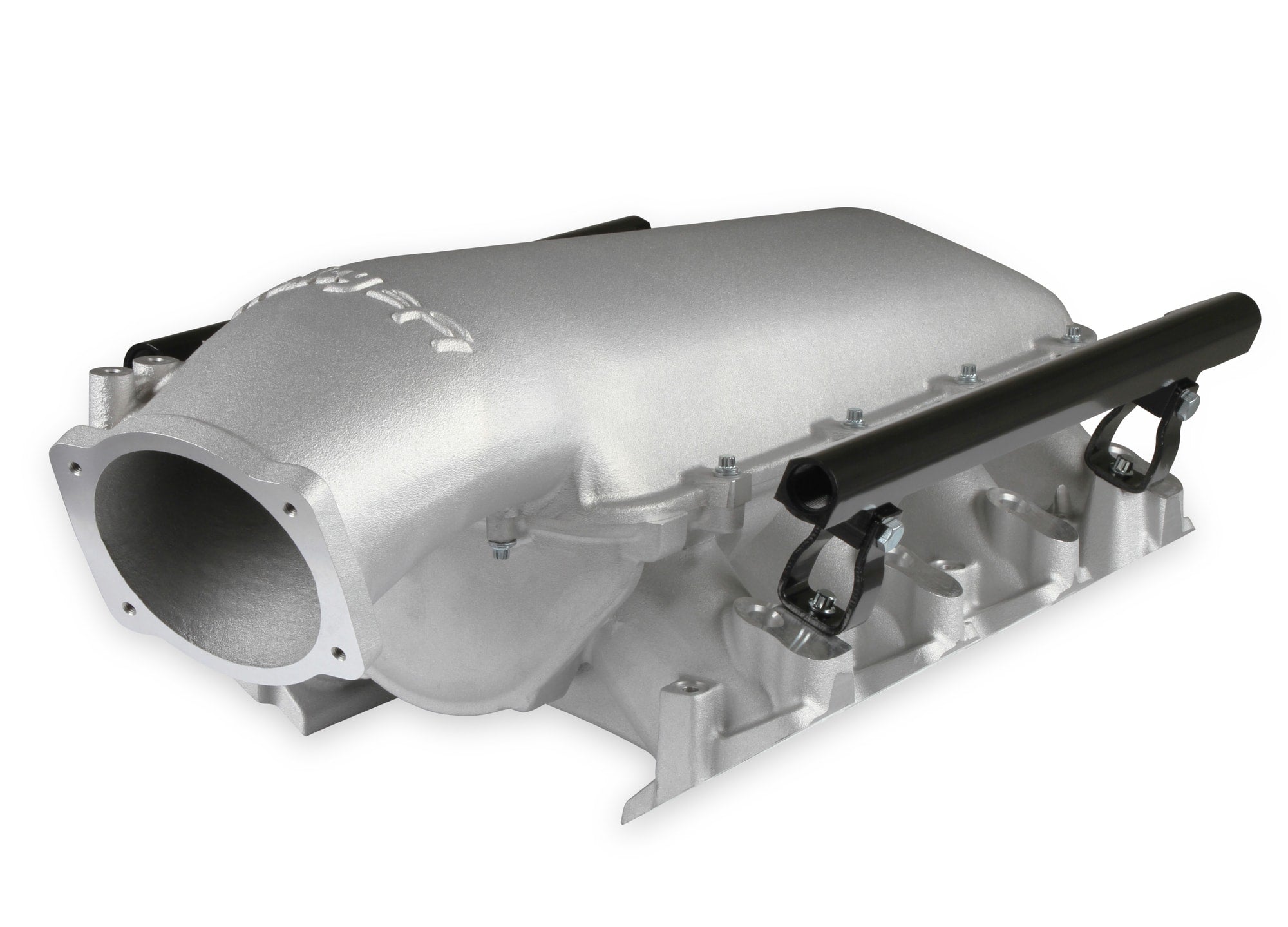

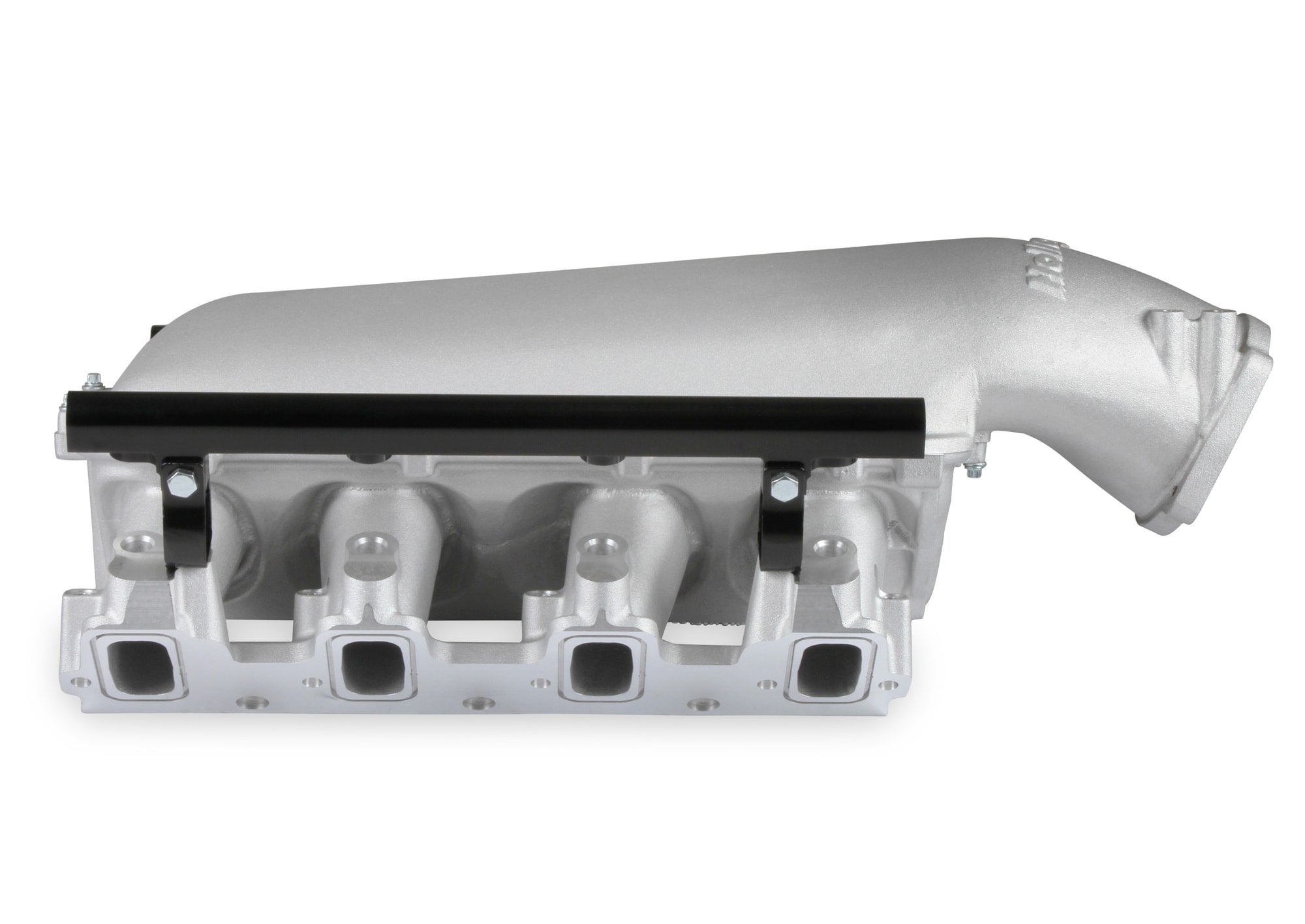

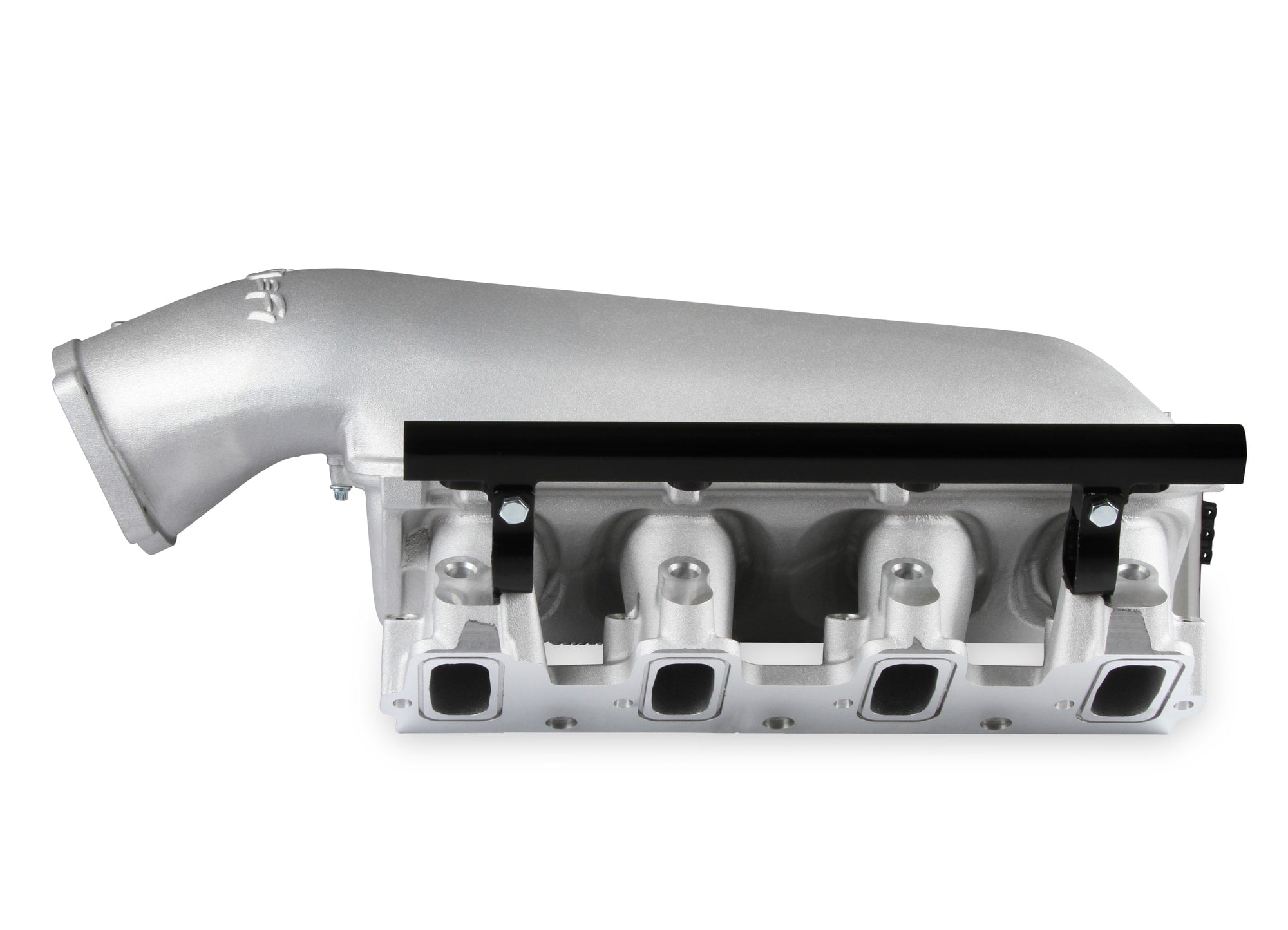

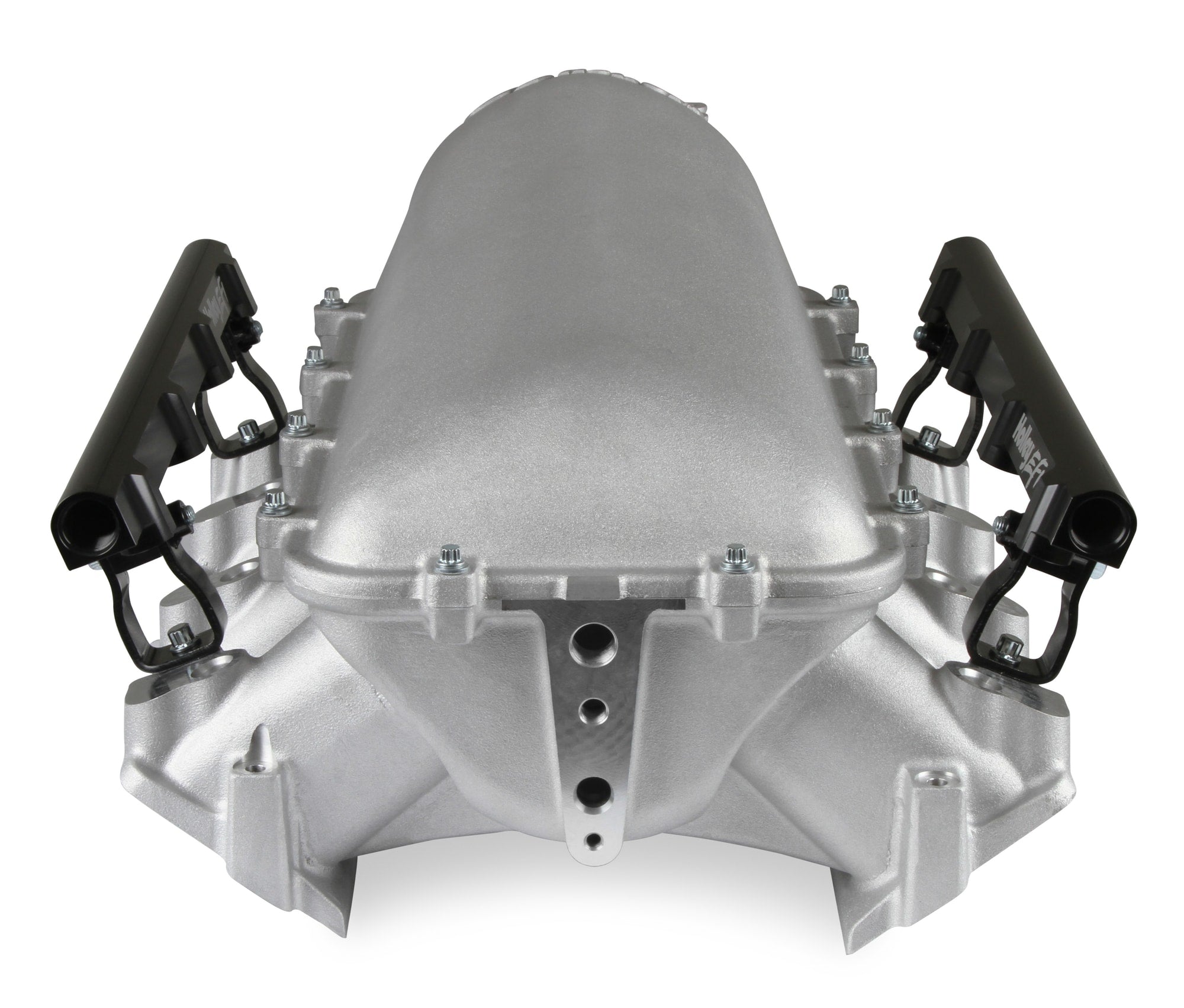

Lo-Ram Manifold Kit - LS3 Top-Feed Single Injector Satin
- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads
- Mounting hardware included with 3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
- Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration or to fit under a stock or mildly modified hood in the front-feed configuration

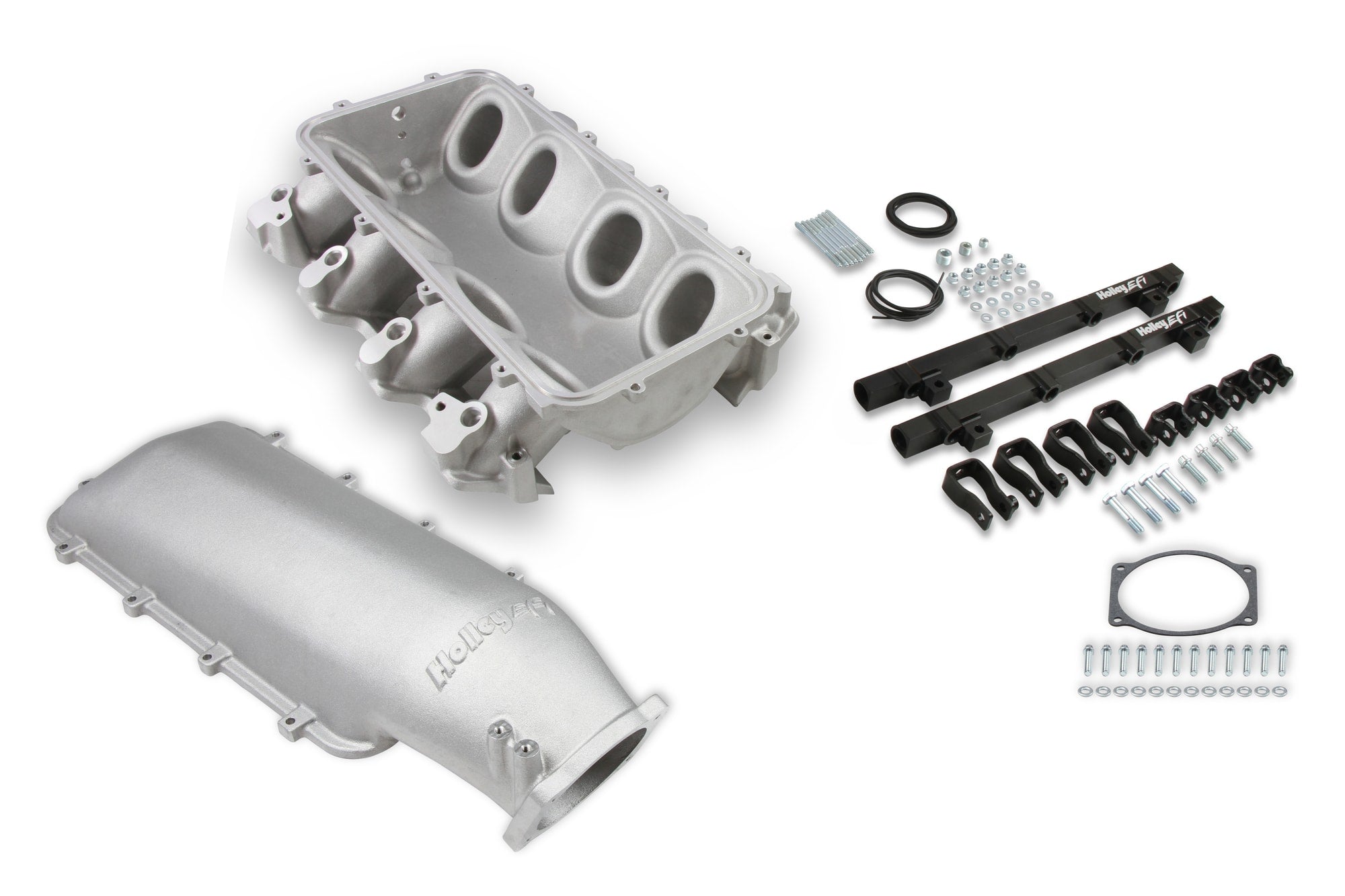

- Modular design allowing the use of the included plenum entry

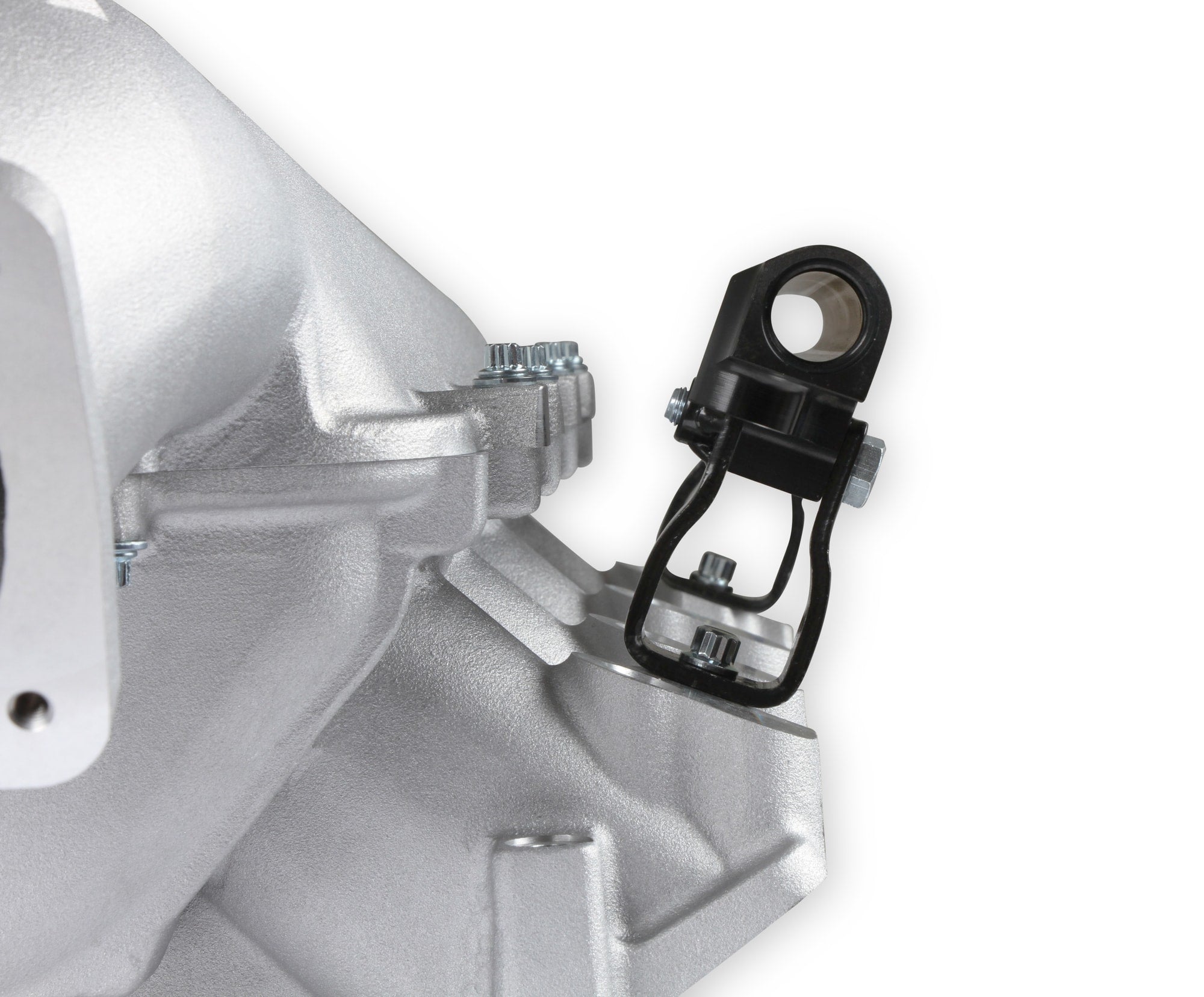

- High volume fuel rails for eight and sixteen injector configurations.
- Designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm
📖
About this product
Lo-Ram Manifold Kit - LS3 Top-Feed Single Injector Satin
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
3500-8000
Brand
Holley EFI
California Proposition 65 Chemical Name
4
Category
Engine
CNC Ported
No
Color
Silver
Construction
Cast
Cylinder Head Port Shape
Rectangle
Deck Height
9.24
EGR Port
No
Emission Code
3
Flange Style
EFI
Front Maximum Height
9.25" without Intercooler
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Injector Quantity
Single
Inlet Location
Top
Intake Port Gasket(s) Included
No
Manifold Type
Lo-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Product Type
Intake Manifold
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
Yes
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
105 MM
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Vacuum Ports
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
24.9 × 15.7 × 15.5 in
Shipping Dimensions
24.9 × 15.7 × 15.5 in
Weight
12882 g (12.88 kg)
