Holley EFIPart 300-683Made in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features

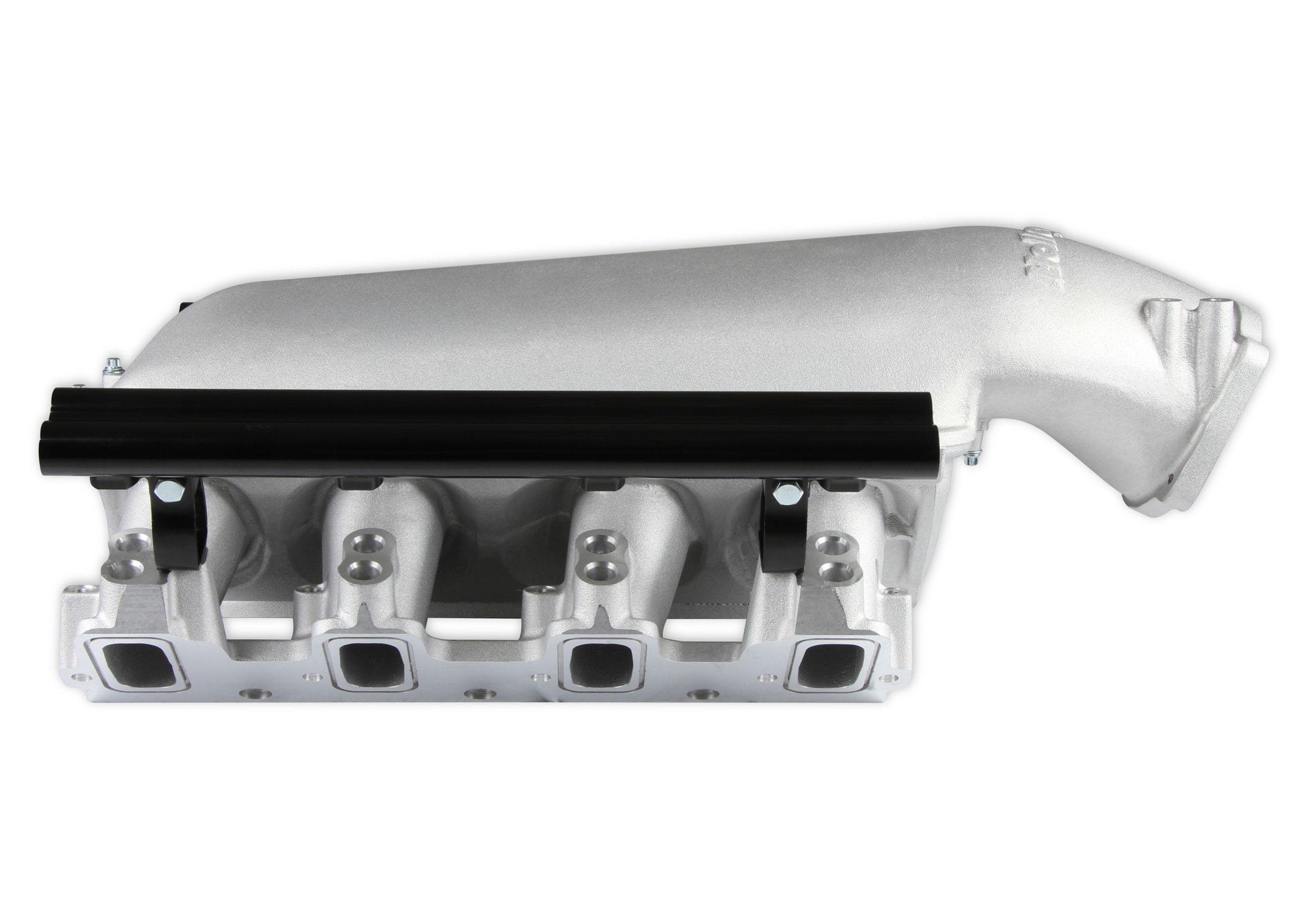

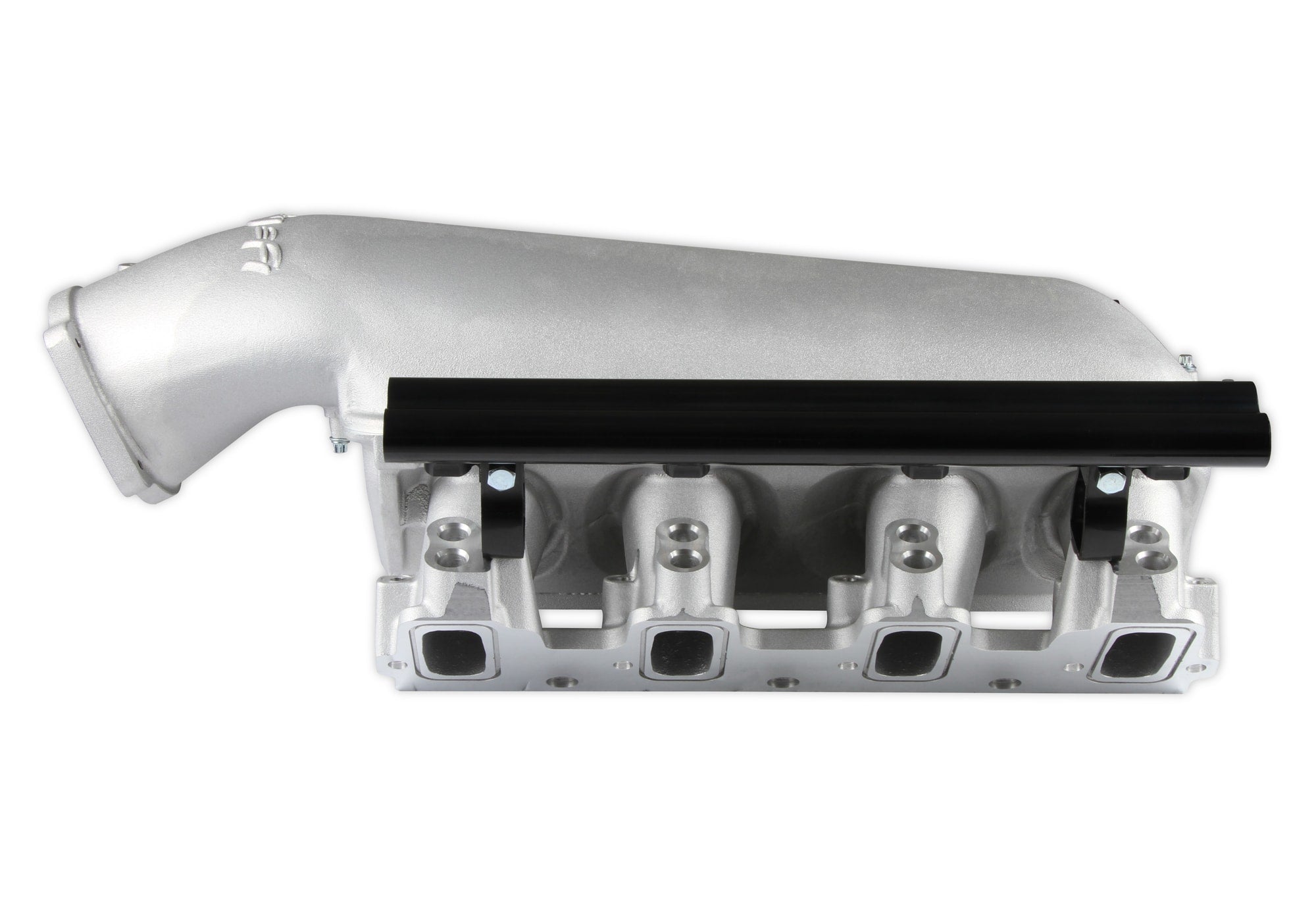

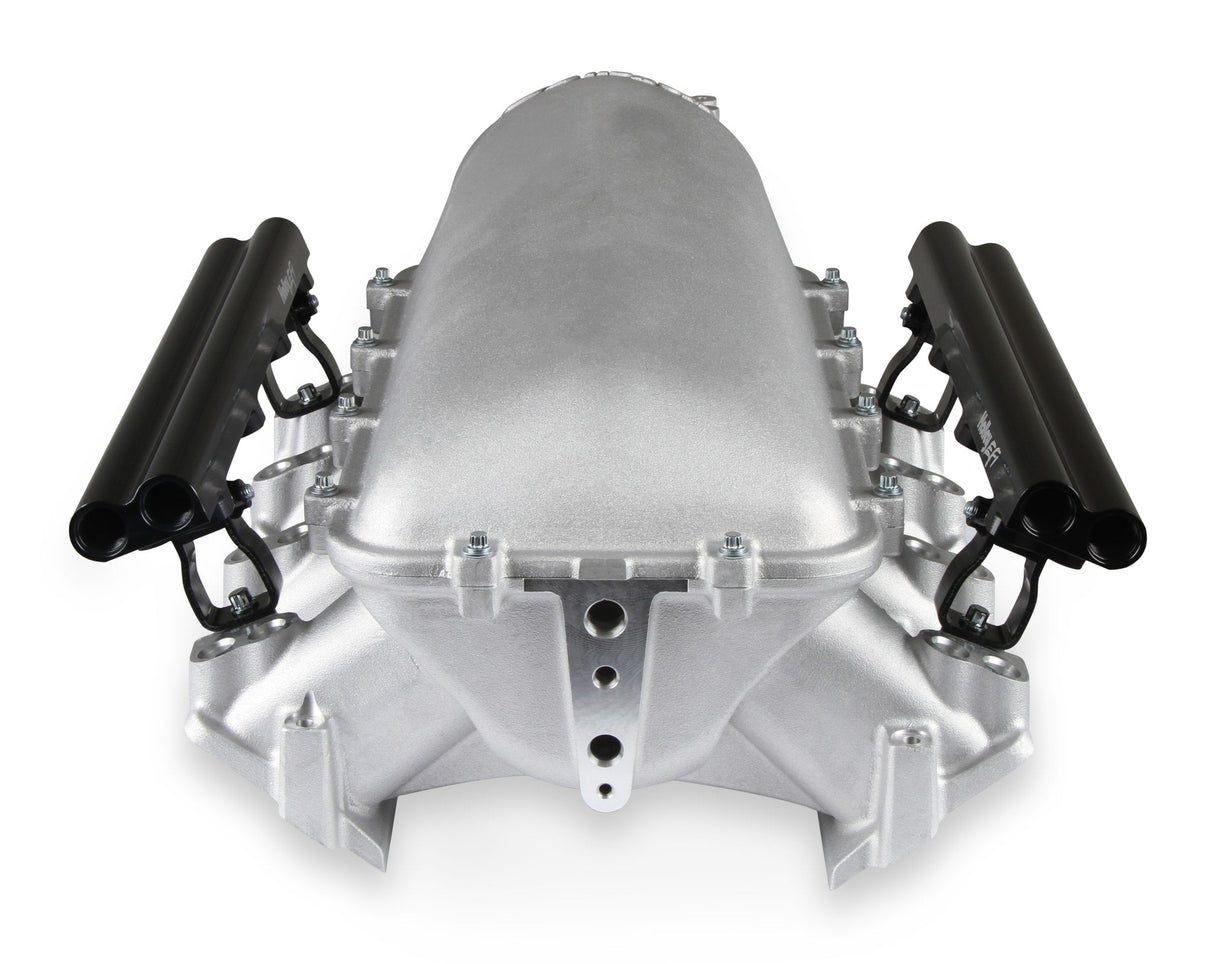

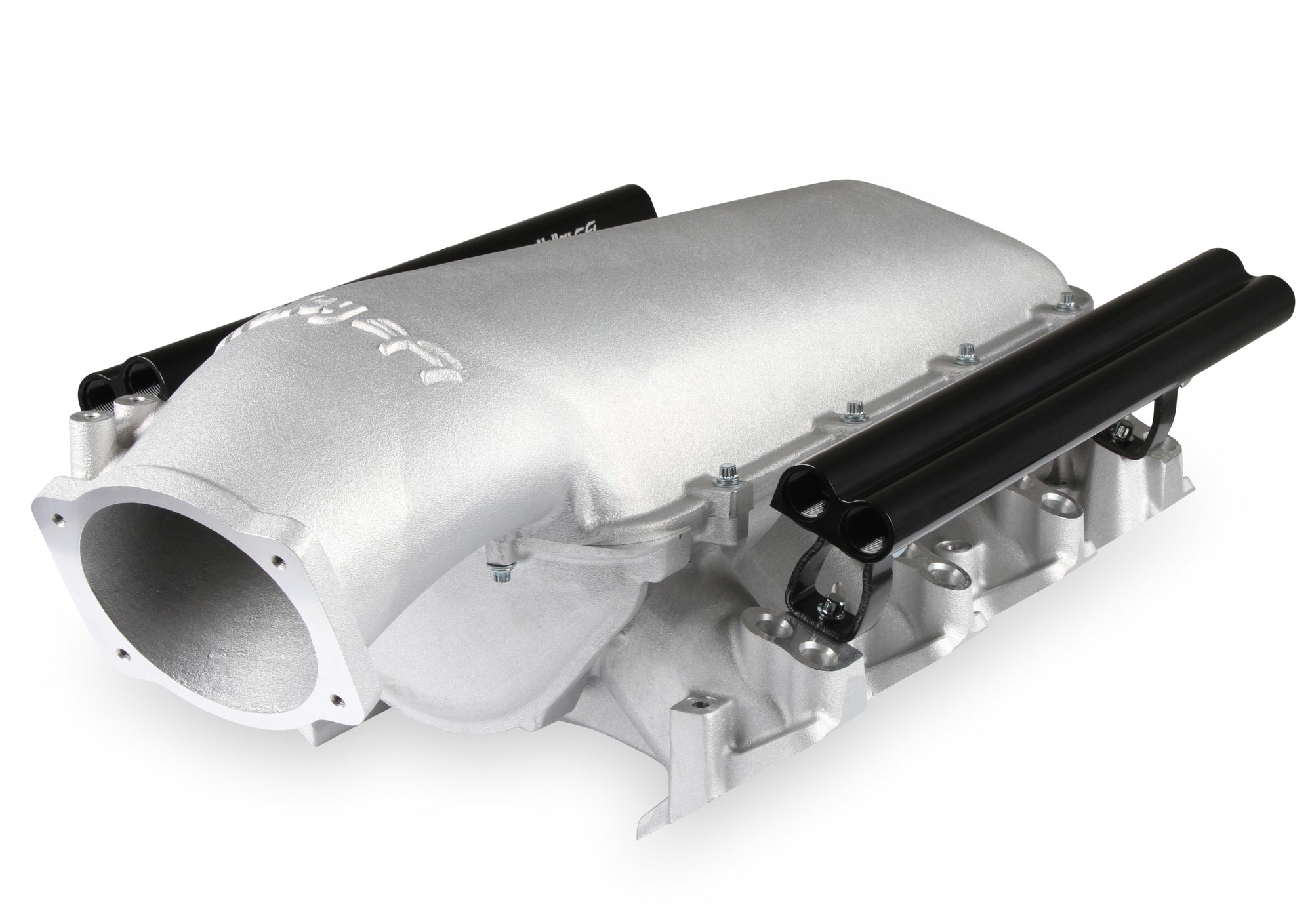

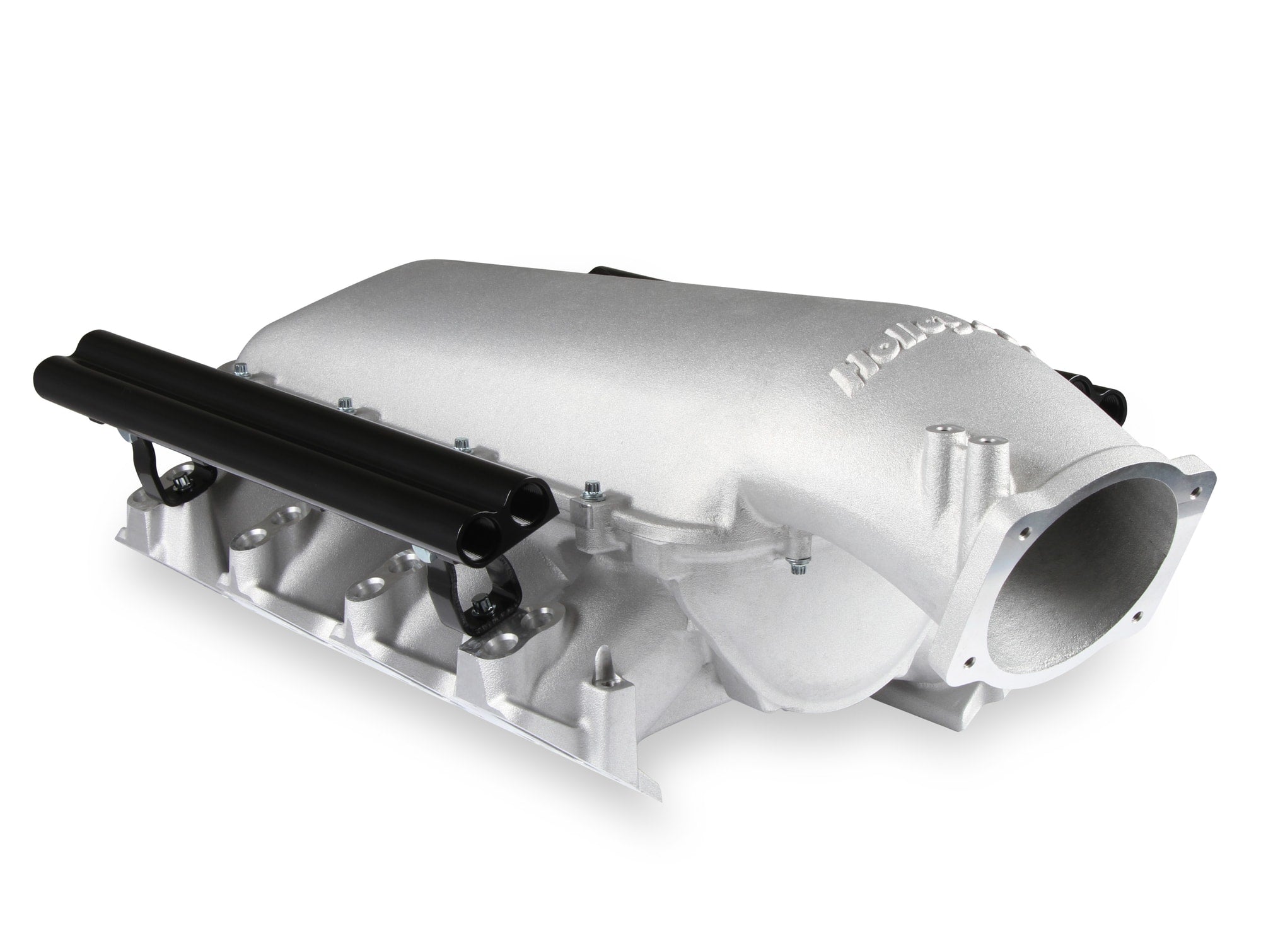

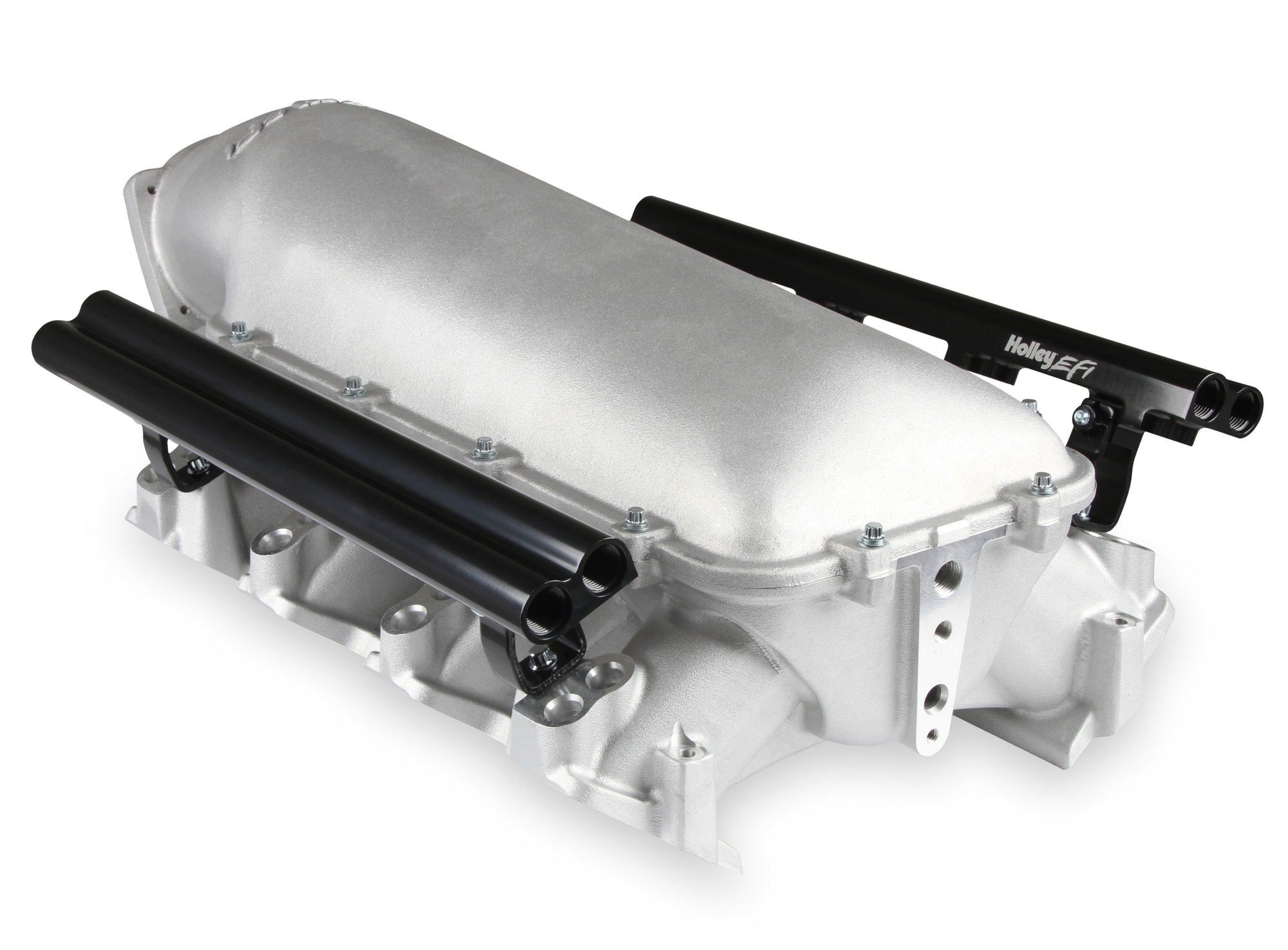

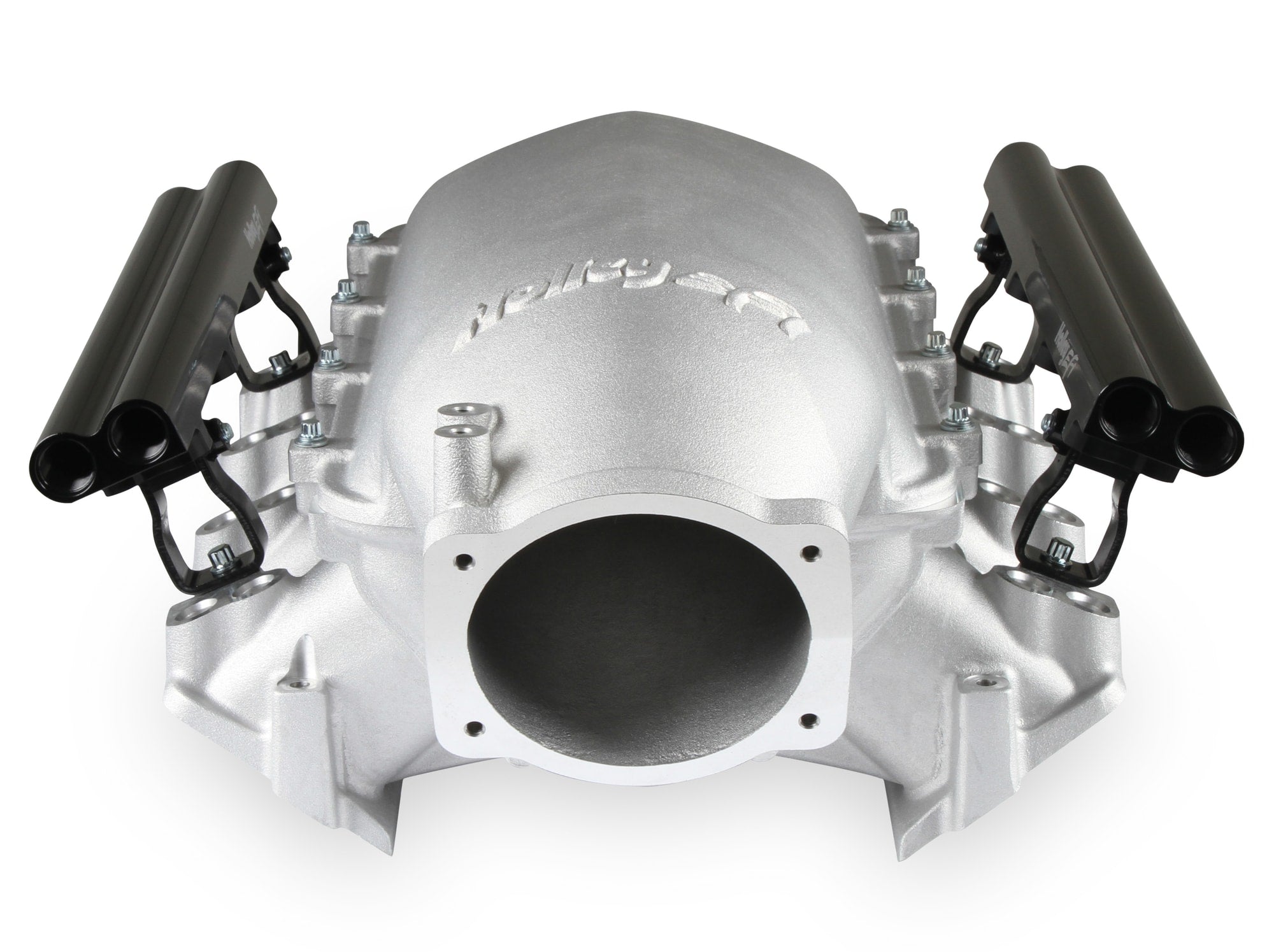

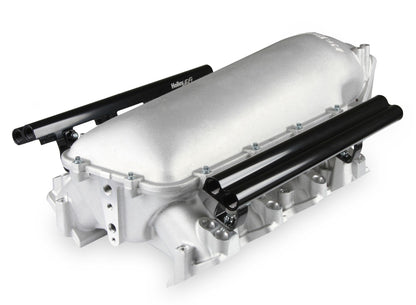

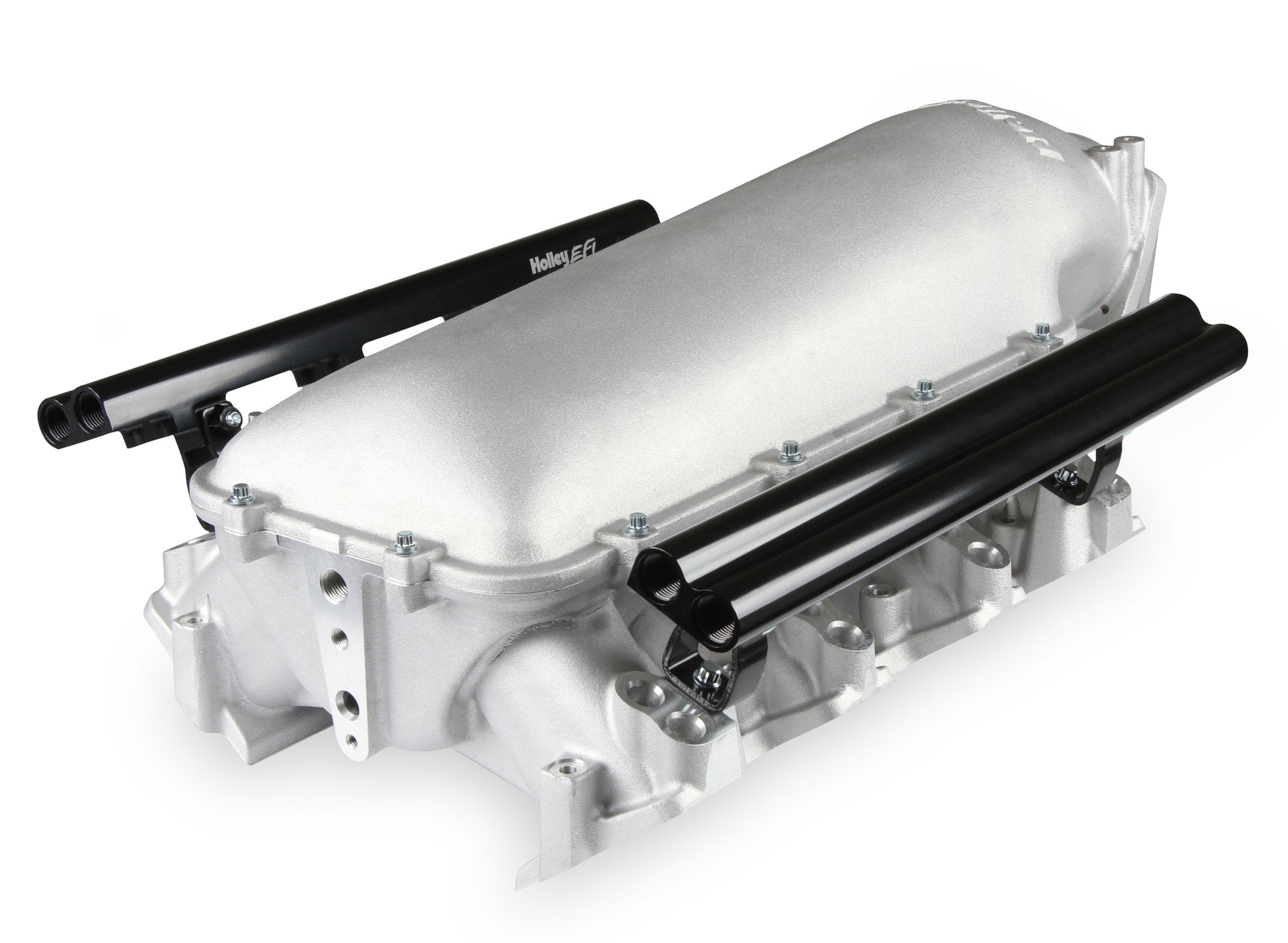

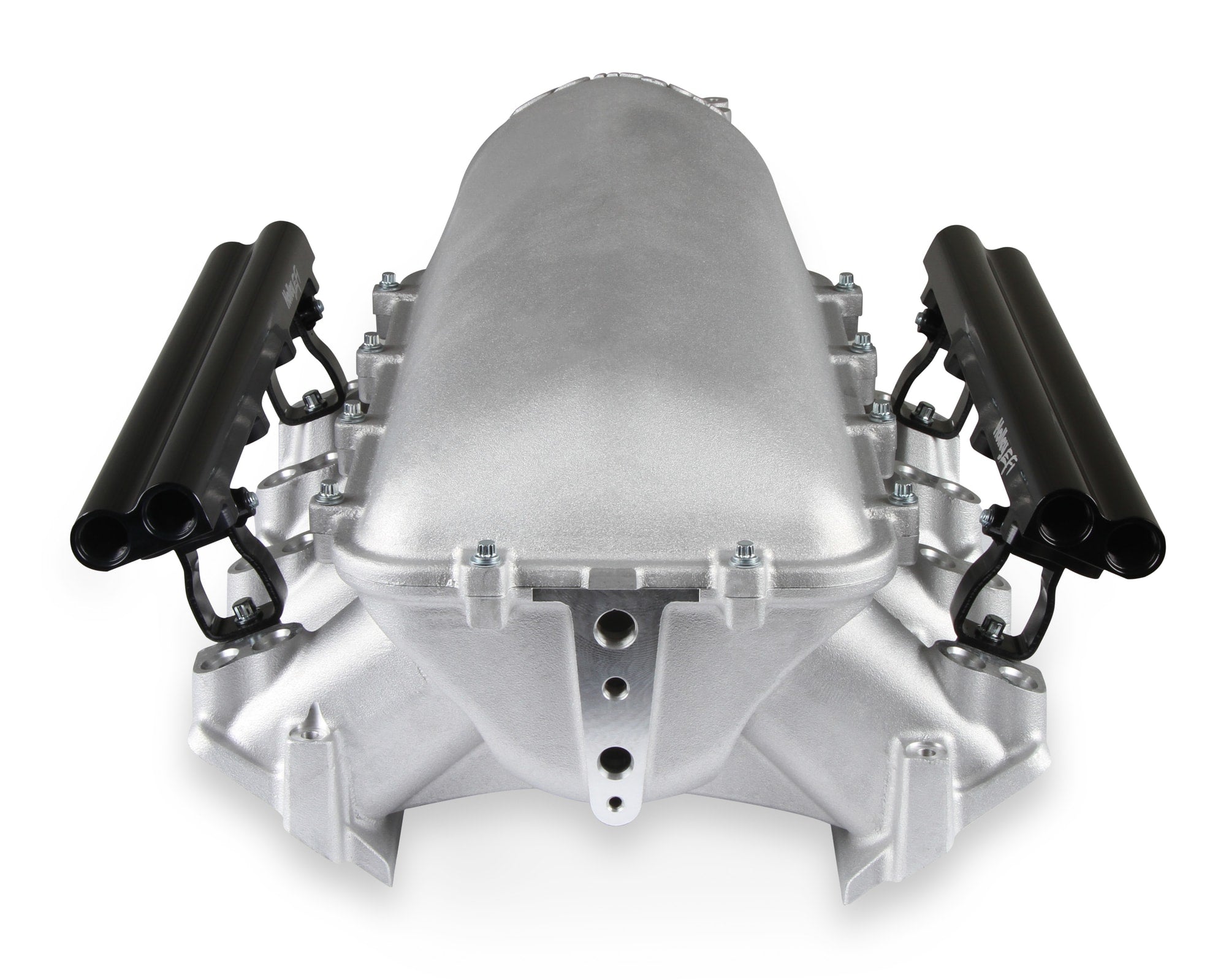

Dual Injector Manifold and Fuel Rails-Satin Finish

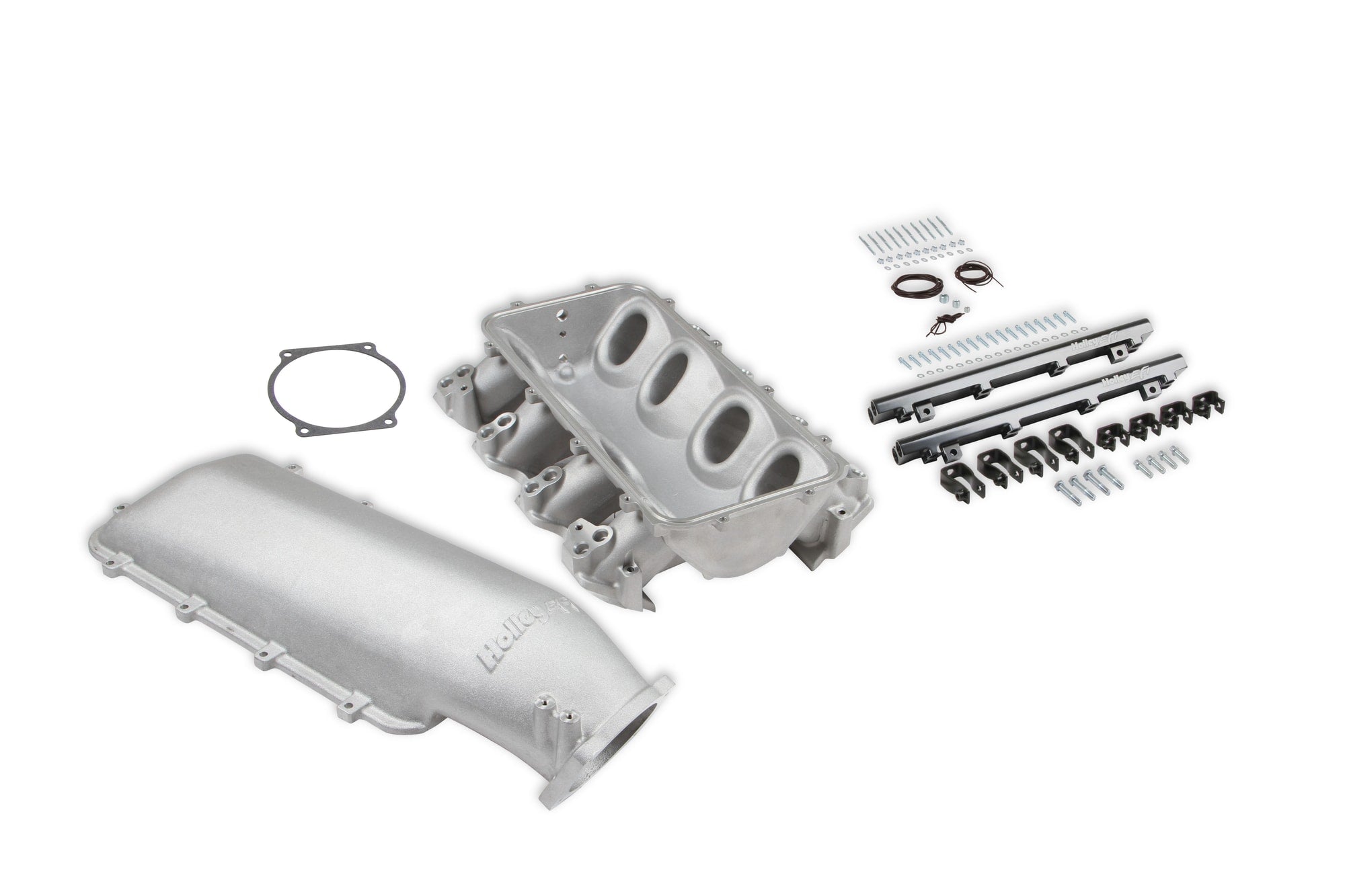

The LS3/L92 Lo-Ram manifolds base intake manifold is designed with a low height to aid | turbocharged) engine applications with peak power at 7000-8000 rpm. | The Holley LS3 Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications and the 105 mm throttle body part number 112-581 or similar models. The base intake manifold is designed with a low height to aid the packaging of a plenum-mounted air-to-water intercooler. Additional manifold designs include both single and dual injector options. Available with both as-cast satin and black power-coat finishes. High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN) | the packaging of a plenum mounted air-to-water intercooler for forced induction (supercharged or
Dual Injector Manifold and Fuel Rails-Satin Finish
- Low height to aid the packaging of a plenum mounted air-to-water intercooler in a top-feed configuration
- Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads

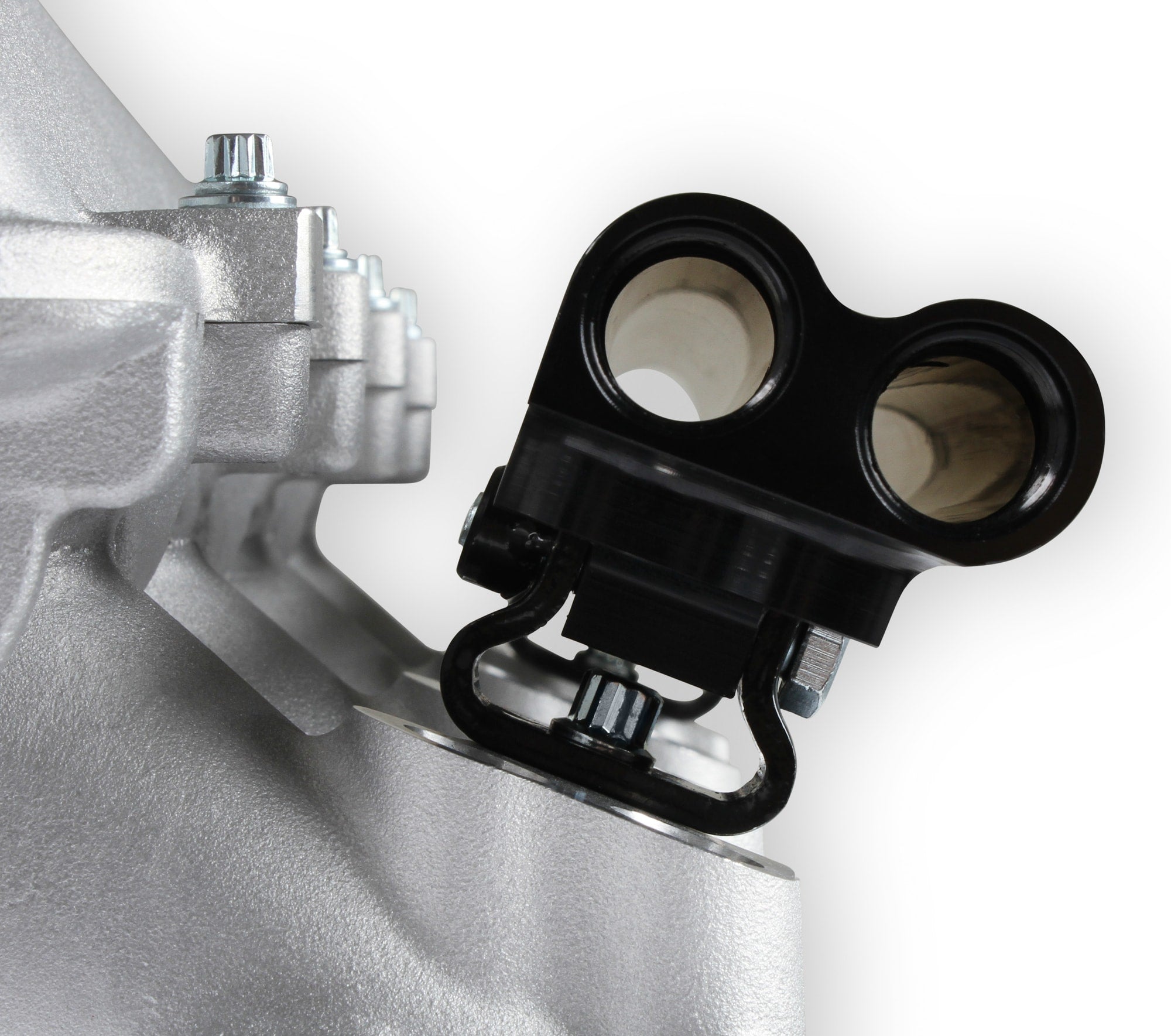

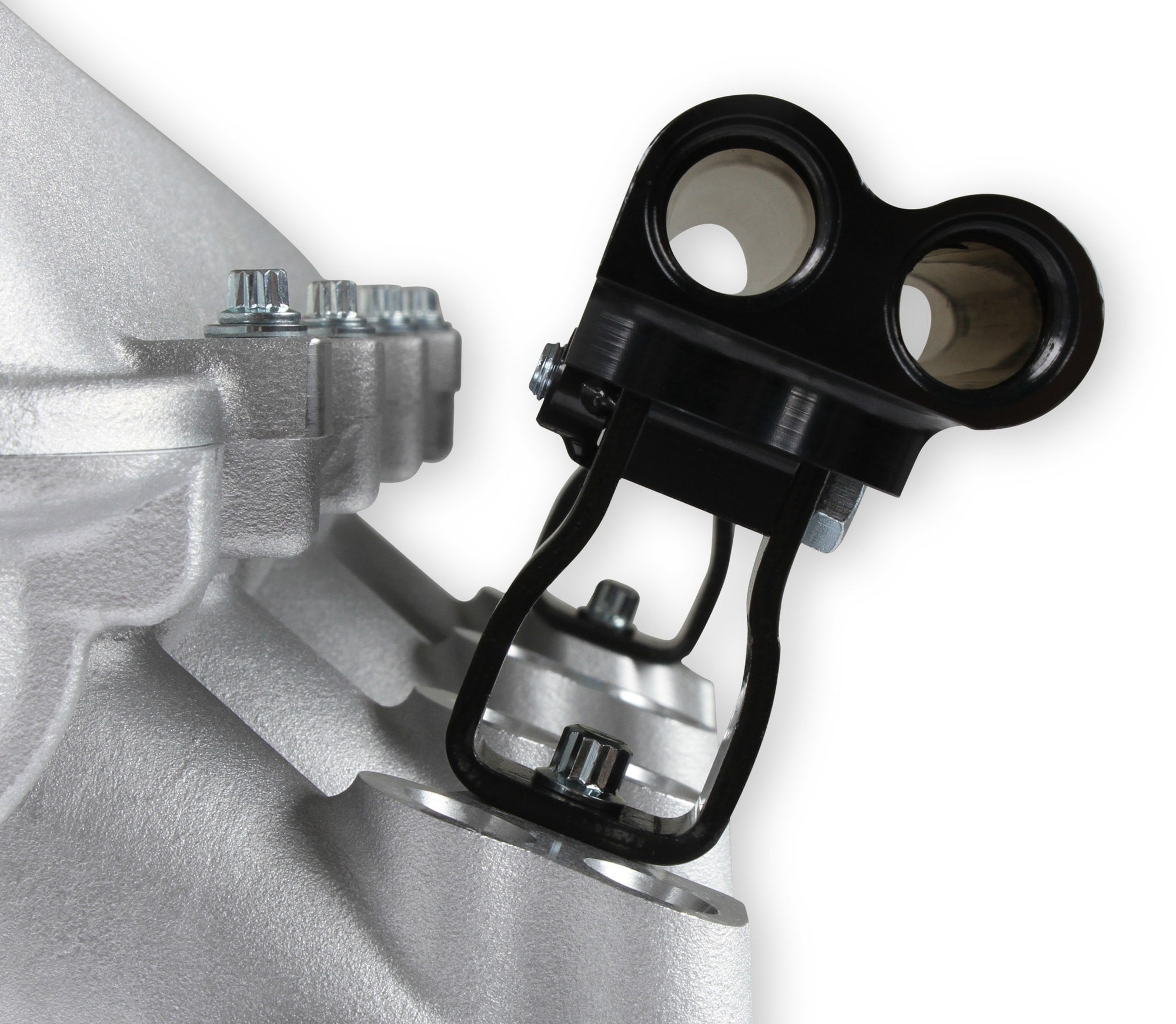

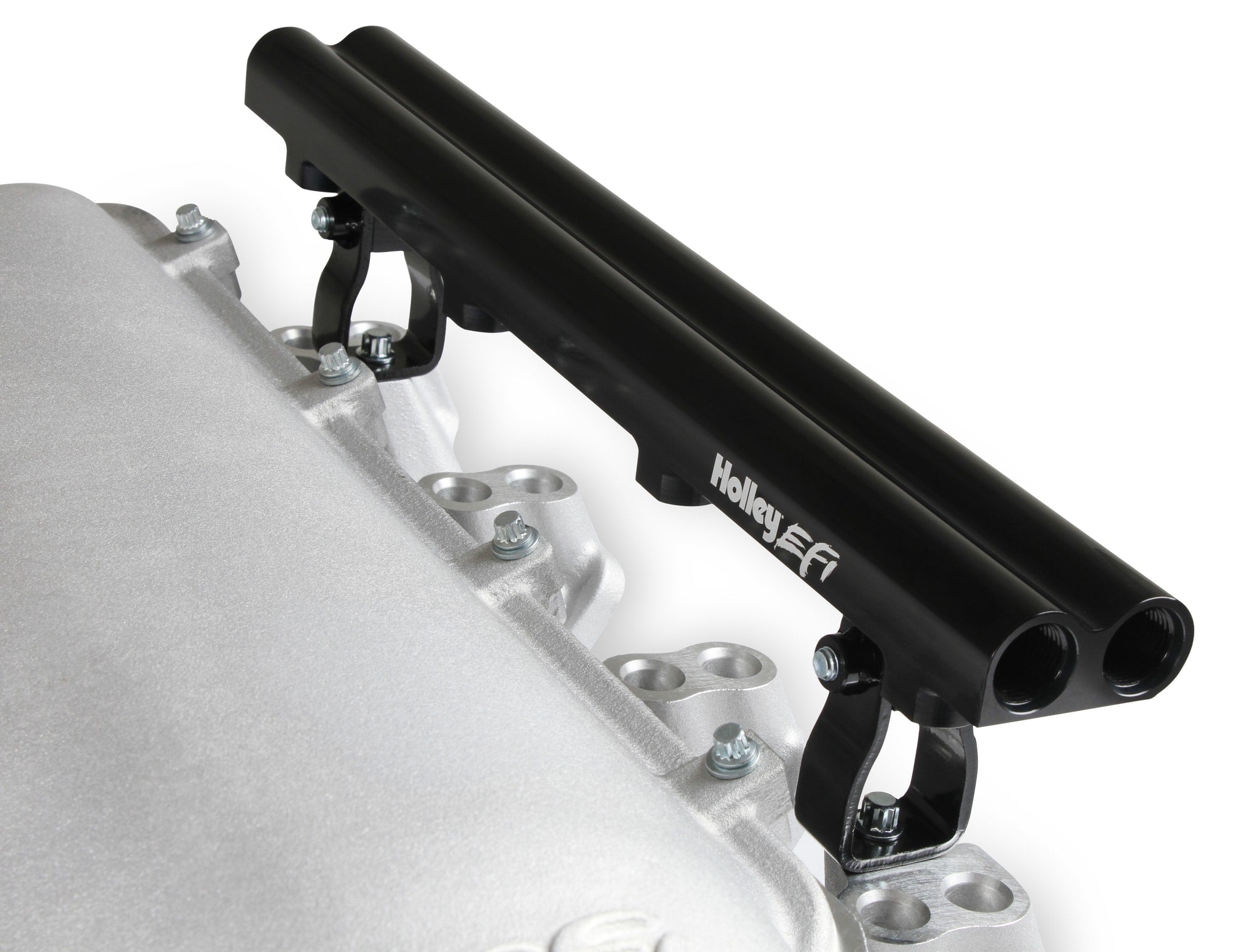

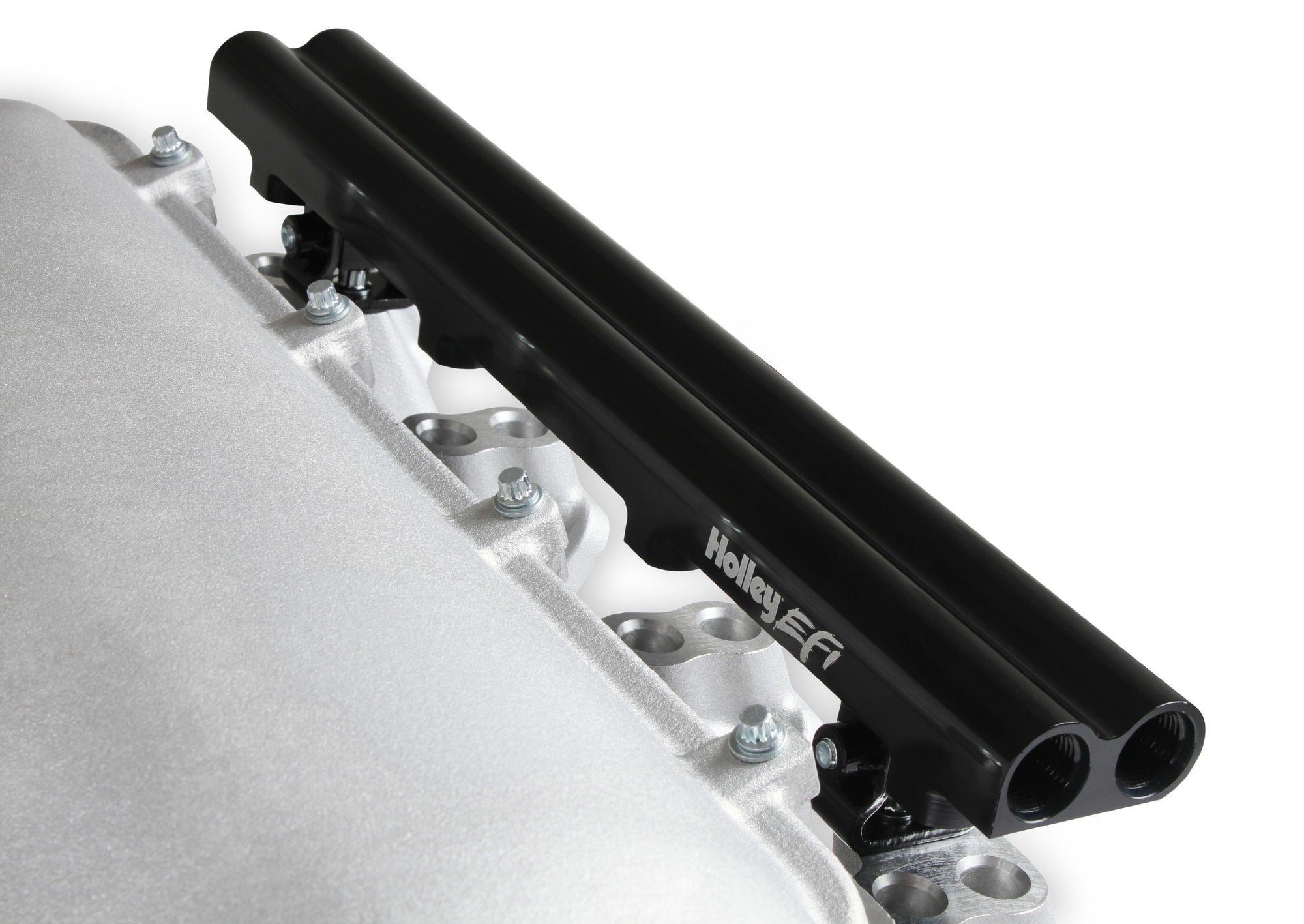

- Dual-injector, separate-passage, high-volume fuel rails with mounting hardware, dual-fuel capable, 8 AN o-ring ports
- Available with both as-cast satin and black power-coat finishes
- High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with3/4-16 O-ring ports (8 AN)and mounting hardware included with 3/4-16 O-ring ports (8 AN)
- Provides best performance for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm, depending on the application
📖
About this product
Dual Injector Manifold and Fuel Rails-Satin Finish
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
3500-8000
Basic Operating RPM Range
3500-8000 RPM
Brand
Holley EFI
California Proposition 65 Chemical Name
4
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
N/A
Category
Engine
CNC Ported
No
Color
Silver
Construction
Cast
Country
CN
Cylinder Head Port Shape
Rectangle
Deck Height
9.24
EGR Port
No
Emission Code
3
Flange Style
N/A
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Grade Type
Performance
HTS Code
8409915085
Injector Quantity
Dual
Inlet Location
Top
Intake Port Gasket(s) Included
No
Manifold Type
Lo-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Product Type
Intake Manifold Base
Prop 65 Yes/No
No
Recommended Use
Forced Induction
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
3500-8000 RPM
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
105 MM
Throttle Body Gasket Included
Yes
Throttle Body Included
No
Vacuum Ports
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
25.0 × 15.7 × 15.5 in
Shipping Dimensions
25.0 × 15.7 × 15.5 in
Weight
15921 g (15.92 kg)
