HolleySKU 300-915Made in CN
Product Details
⭐
Key Features

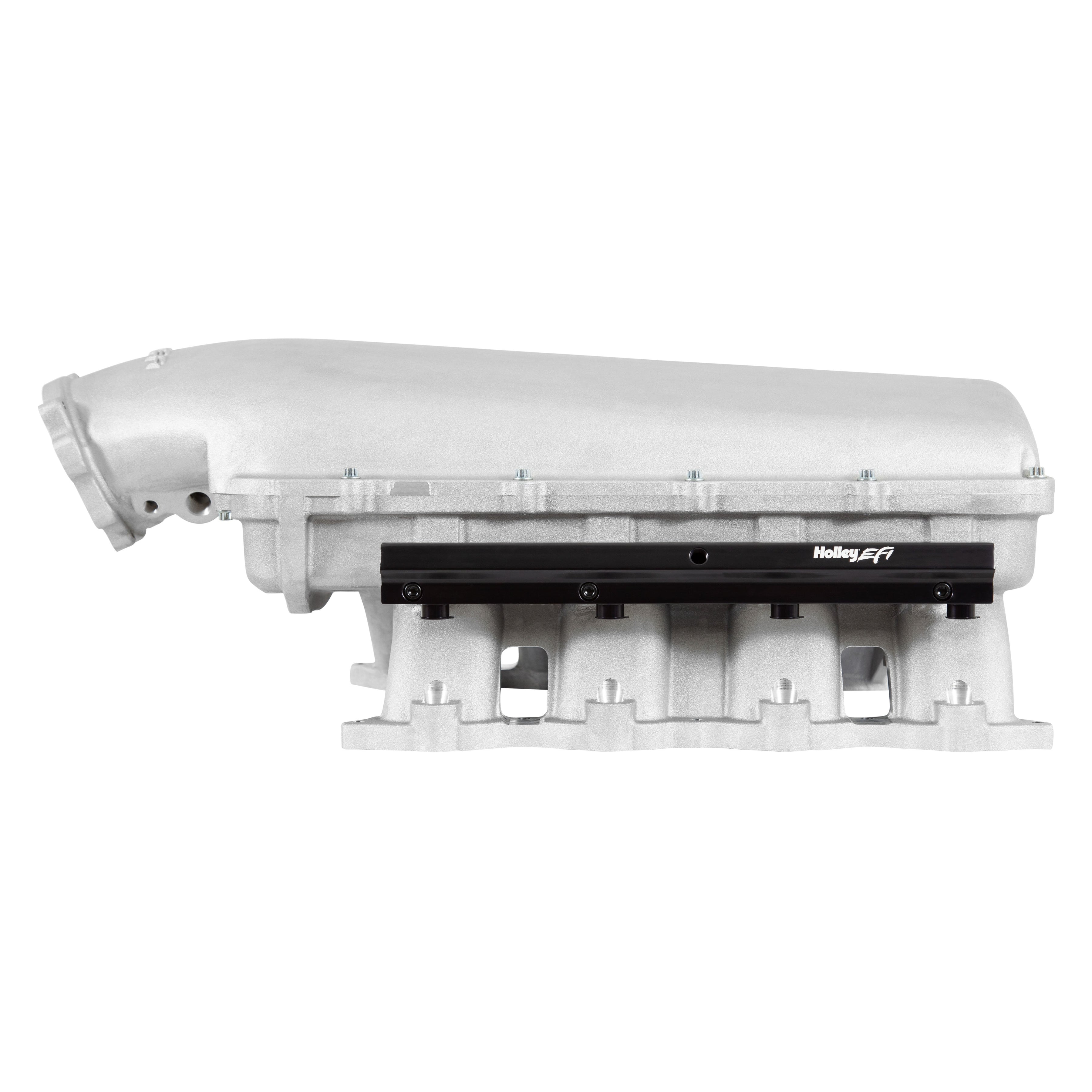

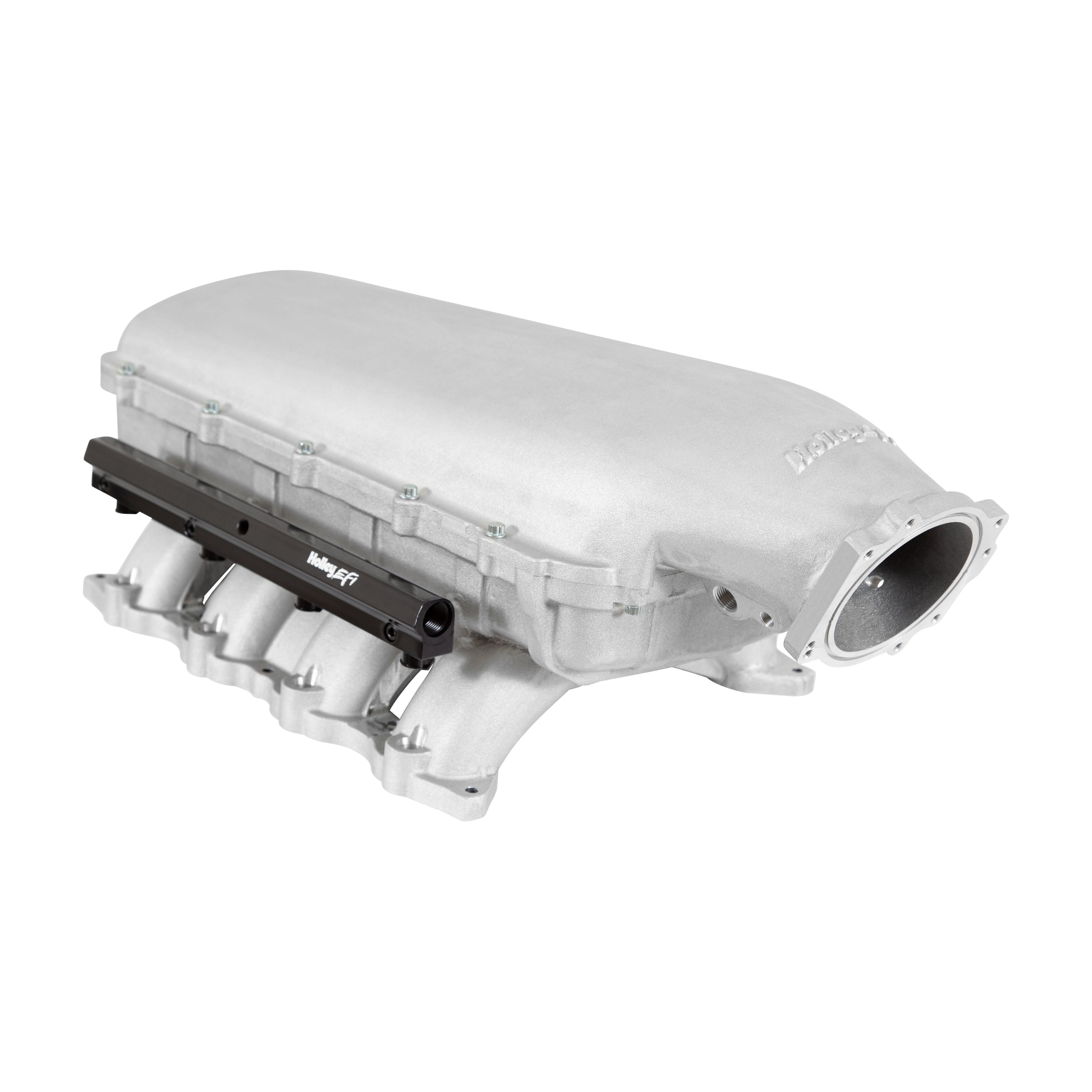

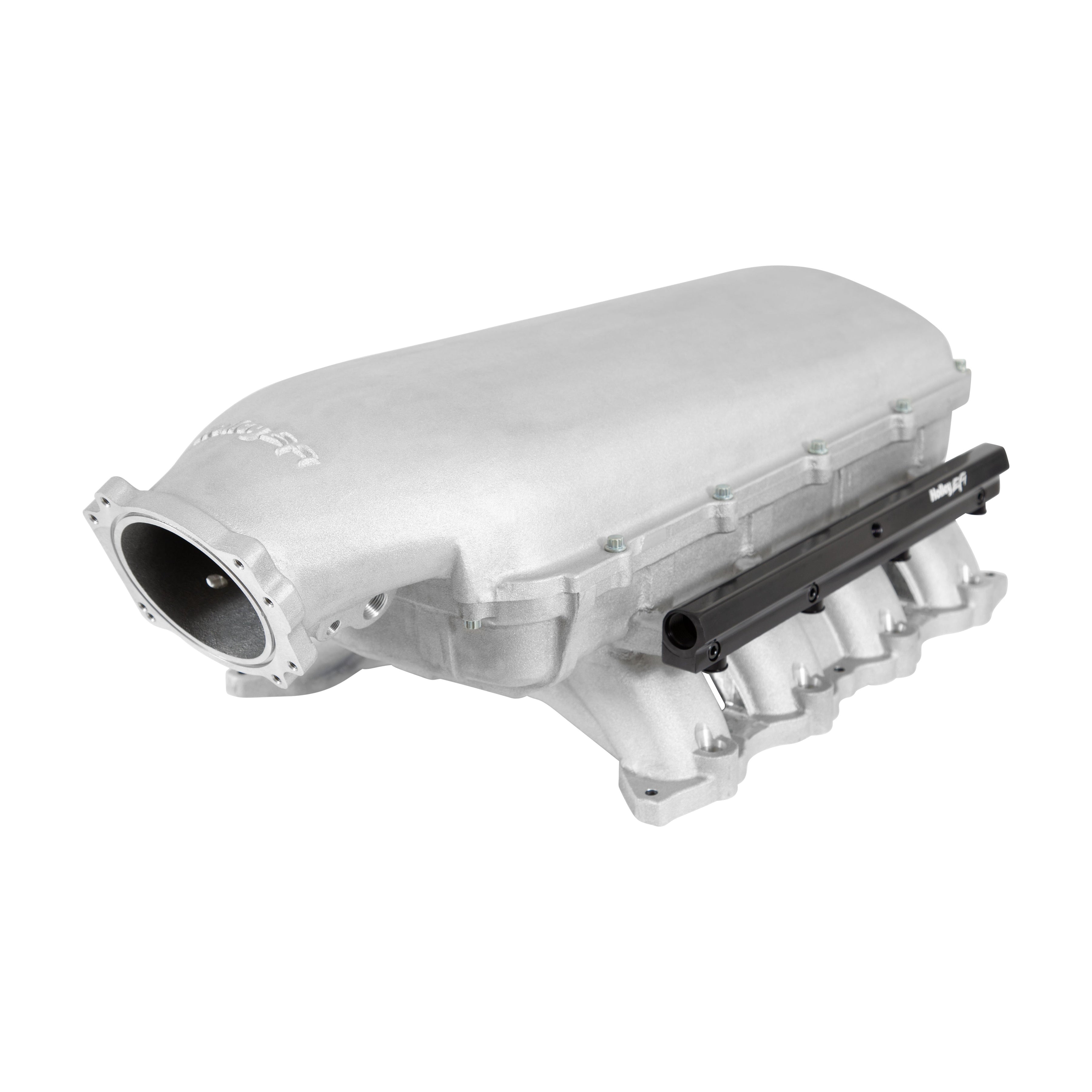

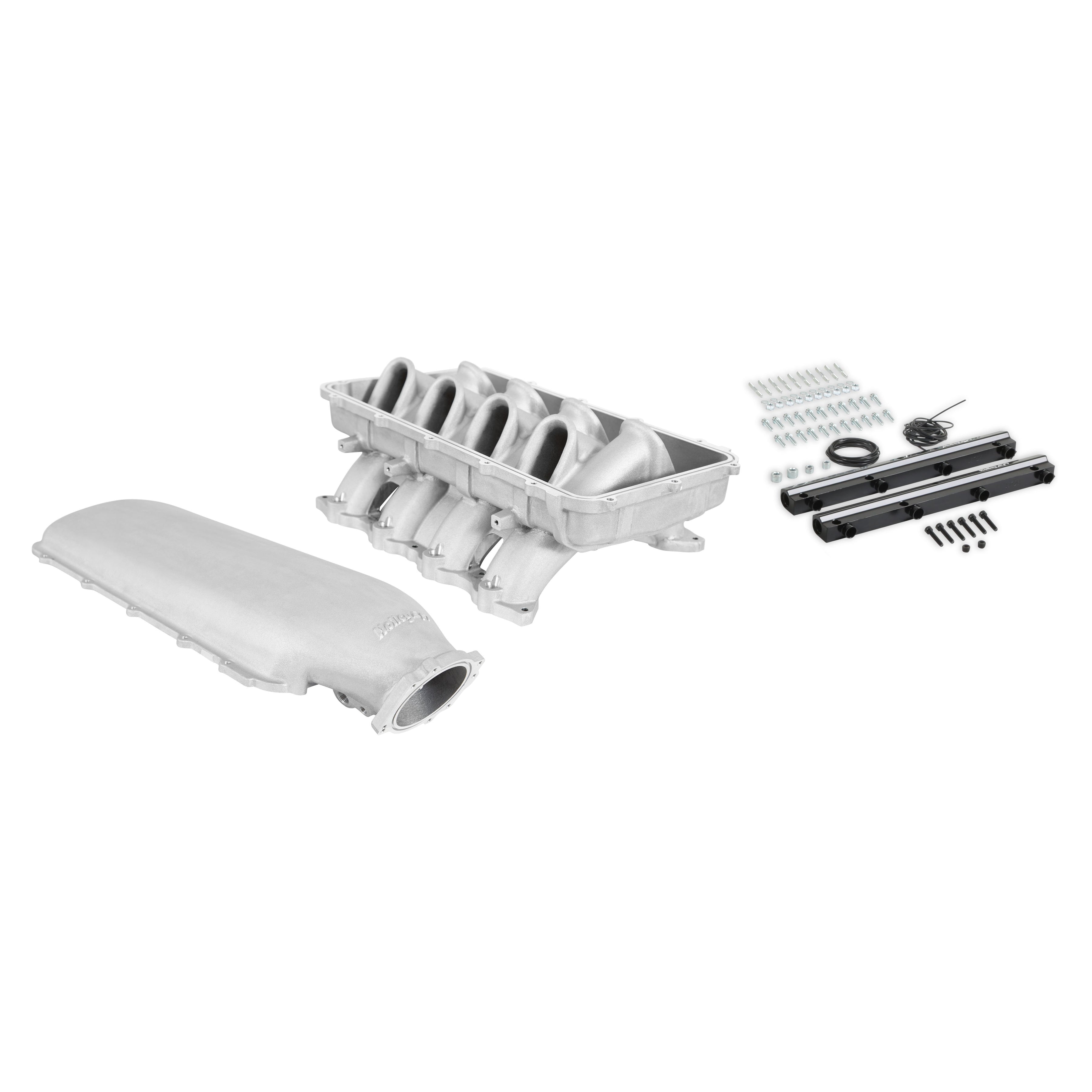

Like the other Coyote Hi-Ram manifold kits, included are fuel rails for use with OEM type fuel injectors and clips, mounting hardware, and O-ring gaskets. Offered in black and natural as-cast finish, both manifolds have a 9.20-inch runner length, ample plenum volume, and are designed to improve the mid to high RPM powerband. The 300-915/BK simplifies the fabrication of inlet piping which is more simply mated to a round throttle body. In combination with the Hi-Ram top-feed plenum flange which accepts plenum mounted intercoolers, 300-915/BK may become the favored Coyote Hi-Ram for forced induction engine builds. Another new Ford Coyote Hi-Ram version is ready for release. 300-915, natural finish, and 300-915BK, black finish, are top-feed plenum Coyote Hi-Ram intake manifold kits with a new plenum top that provides mounting for round throttle bodies. Standard mounting patterns on the throttle body flange with a 93mm flange opening include GT350, GT500, and LS 4-bolt throttle bodies. 2011-2013 GT throttle bodies may be used with the optional 717-18 adaptor.
Hi-Ram / Natural Finish / Coyote Engine
- 300-911 and 300-912 front inlets can be interchanged between round and oval with service parts
- Modular design: accessible runner entries for porting, allows accessories like intercoolers and nitrous plates
- Fuel rails with -8AN ports and dual 1/8 NPT accessory ports for gauges or Gen 3 direct injection fuel line hookup
- Plenum Volumes: 300-910 & 300-915 9.8-liters, 300-911 8.4-liters, 300-912 8.2-liters
- Allows a variety of throttle valves including large monoblade, 2015-20 GT350, 2007-14 GT500, 2019-23 GT500, GM LS 4 bolt, 2011-23 Ford Mustang GT (with optional adapter 717-18)
- As-cast aluminum construction: more durable for boosted applications, can be welded for modifications
- 300-911 and 300-912 Ultra Lo-Ram will fit under stock hood with stock engine mounts in 2015-23 Mustang
- Refined port design with streamlined injector boss for reduced turbulence without loss of flow area
- Two 1/8 NPT ports on all manifolds. Two 3/8 NPT ports on all manifolds, except 300-911 has one
📖
About this product
Hi-Ram / Natural Finish / Coyote Engine
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
5000-8500 RPM
Brand
Holley
Category
Intake Manifolds
CNC Ported
No
Color
Natural
Construction
Cast
Cylinder Head Port Shape
Oval with dimple
Deck Height
8.937 IN
EGR Port
No
Emission Code
4
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Intake Port Gasket(s) Included
Yes
Manifold Type
Hi-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Product Type
Intake Manifold
Removable Runners
No
Removable Top/Lid
Yes
Single Or Dual Plane Type
Single
Throttle Body Bore Diameter
105
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
Yes
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
26.0 × 15.5 × 15.0 in
Shipping Dimensions
26.0 × 15.5 × 15.0 in
Weight
19051 g (19.05 kg)
