Baer Brake SystemsPart 4302541FR✓ Fits 13 vehiclesMade in US
Product Details
⚙️
Vehicle Fitment & Compatibility
13 applicationsView all 13 vehicle applications
Years
Make / Model
Submodel
Engine
1975–1986
Chevrolet C10
1960–1974
Chevrolet C10 Pickup
1967–1986
Chevrolet C10 Suburban
1987
Chevrolet R10
1987–1988
Chevrolet R10 Suburban
1966
GMC 1000
1960–1965
GMC 1000 Series
1975–1978
GMC C15 Suburban
1967–1974
GMC C15/C1500 Pickup
1967–1974
GMC C15/C1500 Suburban
1979–1986
GMC C1500 Suburban
1987–1988
GMC R1500 Suburban
1960–1966
GMC Suburban
No applications match your search.
⭐
Key Features
** Because of the abundance of wheel companies and styles, it is impossible for Baer to guarantee fit of their brake systems into a specific wheel style and/or manufacturer. To verify fitment, we recommend using the template specific to the system you are

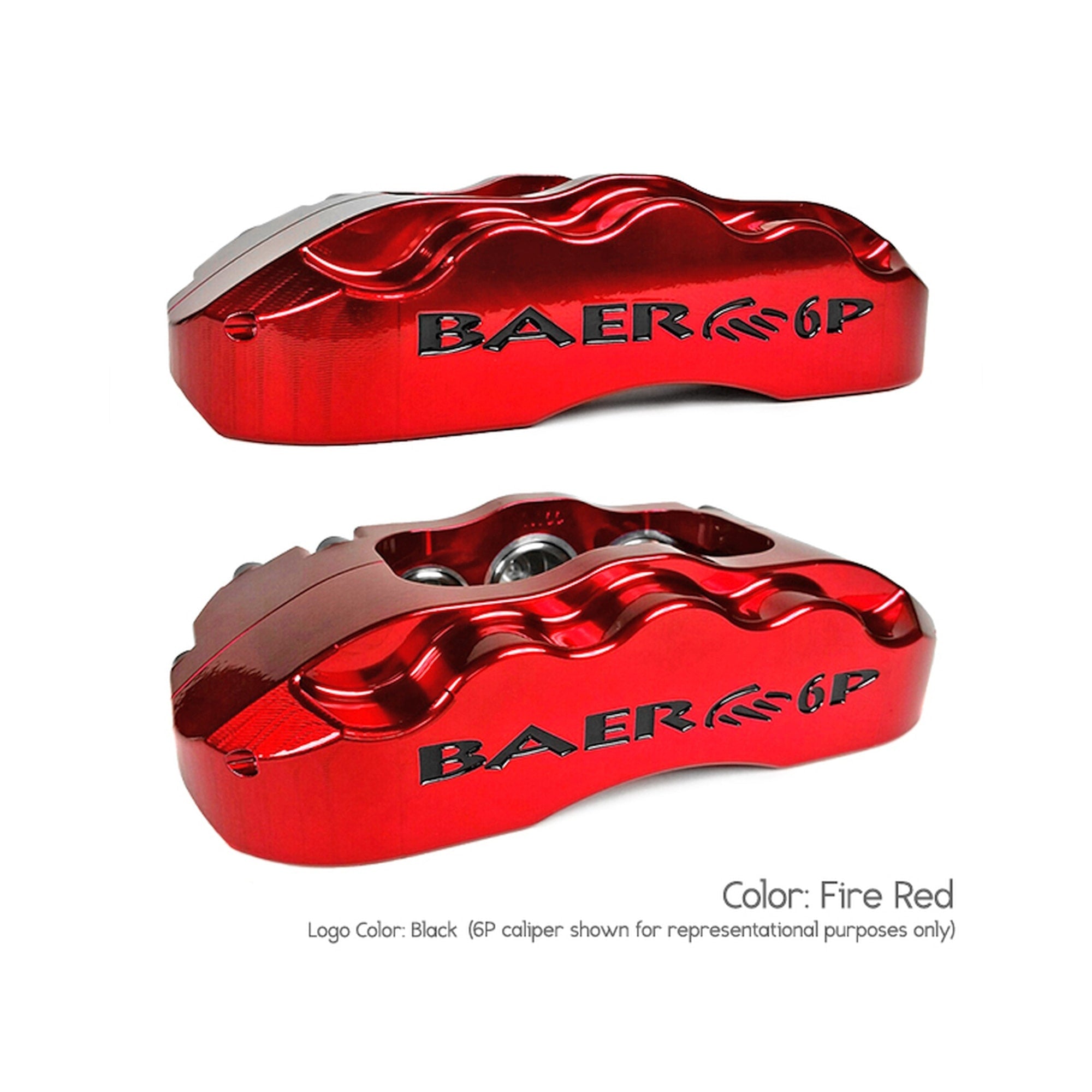

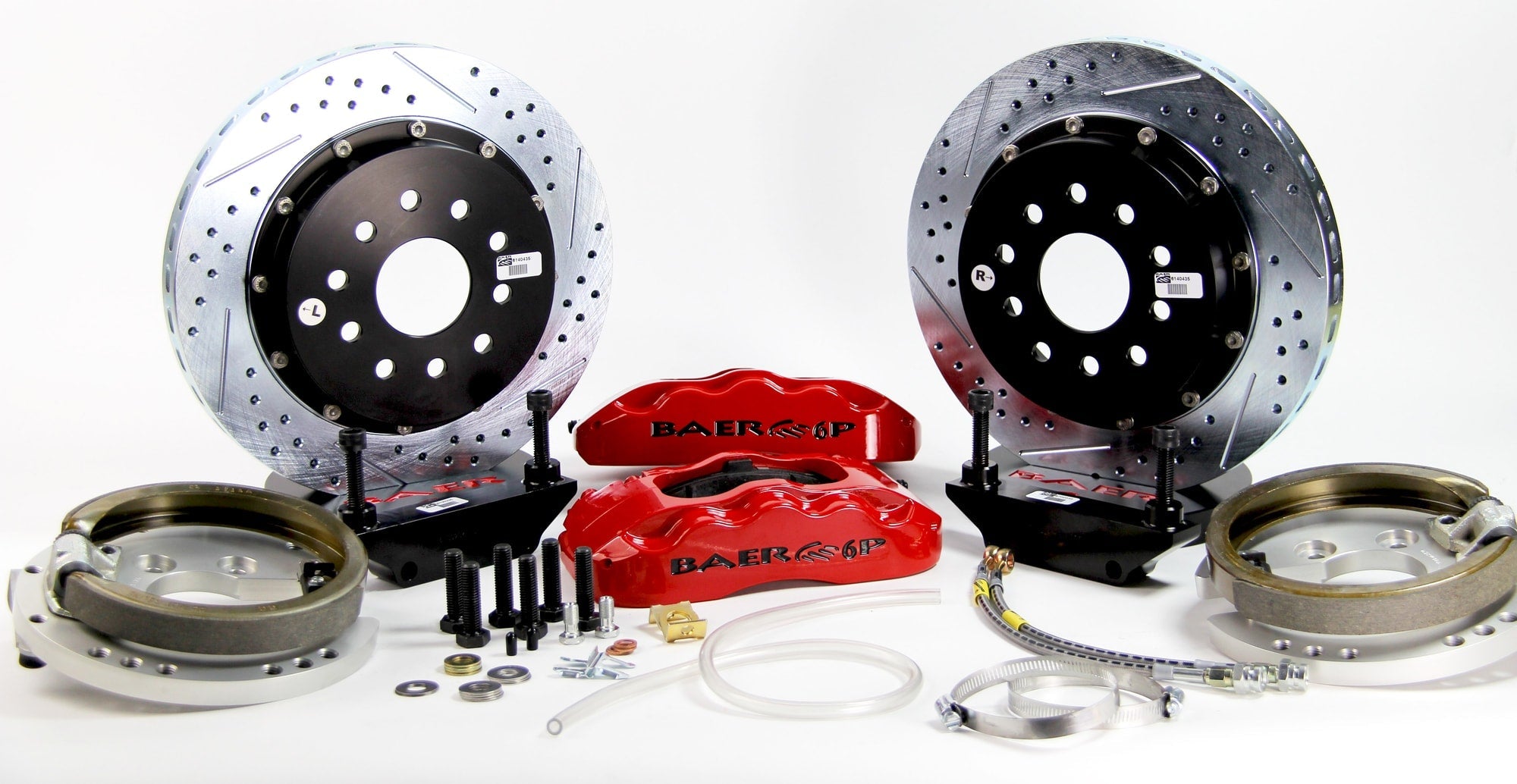

This system features the 6-piston, 6P caliper mounted to a 13", 2 piece slot, drill, zinc plated rotor. The 6P caliper has D.O.T compliant dust and weather seals and uses the popular D0731 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 13” Pro+ fits most 17” or larger wheels.

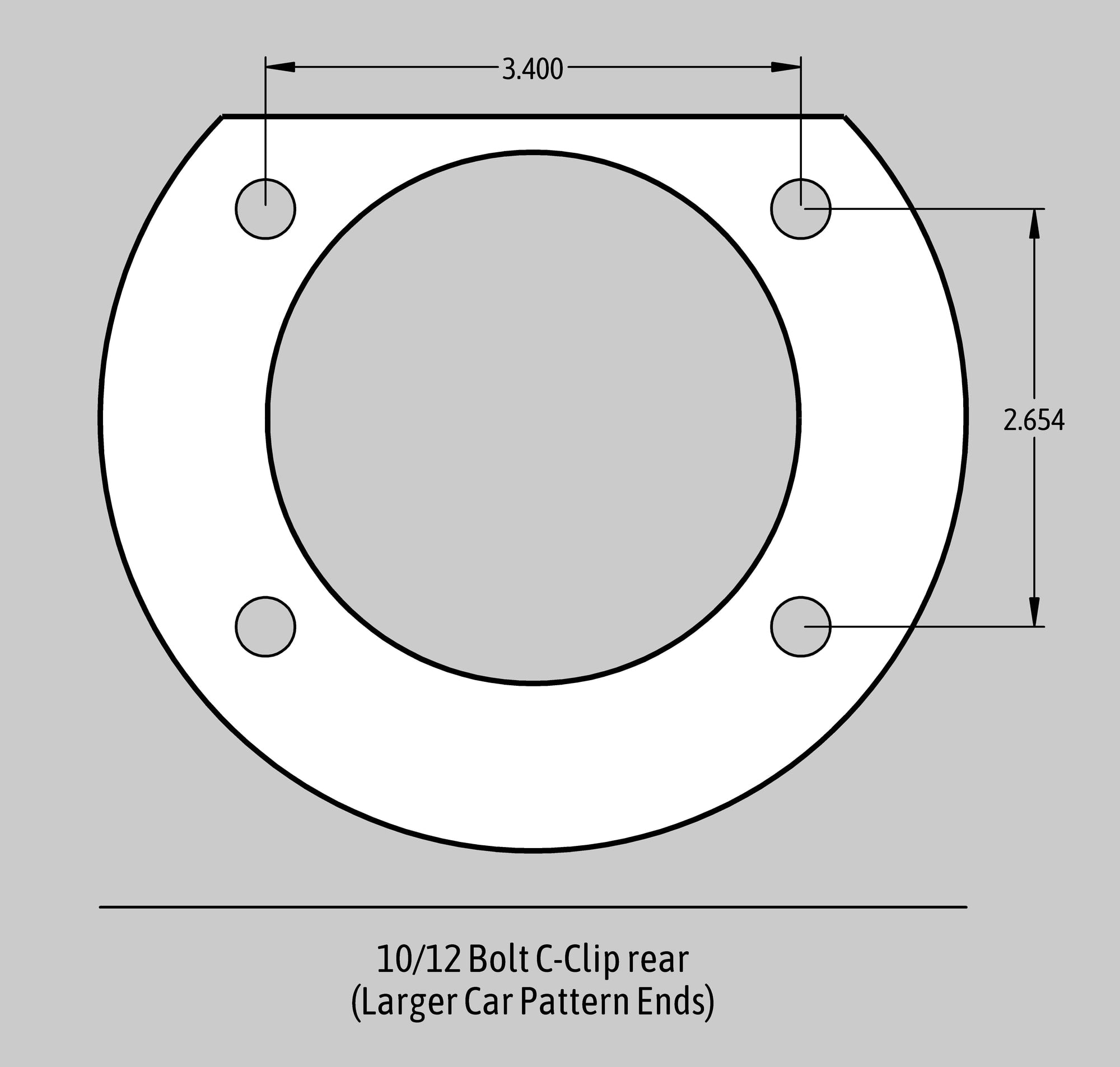

Fits 1960-87 Chevy/GMC C10 2WD Trucks w/OE Large Pattern 10/12 Bolt C-clip (BIH) Housing Ends, 5 Lug (5x5"BC)
- 2-Piece, 6-Piston, 6P Caliper Manufactured in Phoenix, AZ
- CNC Machined from US Sourced Forged or Billet Aluminum
- Powder Coated Finish
- Stainless Steel Pistons, Abutments and Noise Suppression Clips
- Staggered Pistons to Minimize Uneven Pad Wear
- Dual Seals, Dust/Weather & Pressure
- 2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat
📖
About this product
Fits 1960-87 Chevy/GMC C10 2WD Trucks w/OE Large Pattern 10/12 Bolt C-clip (BIH) Housing Ends, 5 Lug (5x5"BC)
📋
Product Specifications
Applications
GM C10 Trucks 60-87
Automotive Item Grade
Performance
Axle
Rear
Brake Hose DOT Approved
Yes
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Caliper Color
Fire Red
Caliper
6P
Category
Brake
Country
US
Disc Brake Caliper (Rear) Piston Quantity
6
Disc Brake Caliper (Rear) Type
Floating
Disc Brake Pad FMSI Number
D0731
Disc Brake Rotor (Rear) Construction
Vented
Disc Brake Rotor (Rear) Outside Diameter
13.000
Emission Code
4
Emission Code
6
Export Description
Brake Components
Fitment Notes
w/OE Large Pattern 10/12 Bolt C-clip (BIH) Housing Ends
Grade Type
Performance
Hose Material
Stainless Steel
Hose Material
Steel Braided
HTS Code
8708305090
Includes Park Brake Cables
No
Includes Park Brake
Yes
Lug Count
5 Lug
Min Wheel Dia (verify Using Template)
17
Part Type
Disc Brake Upgrade Kit
Product Line
13 Inch Pro+
Product Type
13 Inch Pro+ Rear Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 - Short Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
CR
Rotor Thickness
1.100
Rotor Type
2-Piece
Sub Category
Service Kits
Surface Type
Slotted
System Notes
Fits 60-87 GM truck large pattern OE 10/12 Bolt C-clip (BIH) Housing Ends
Template
Q135H
Title
Pro+ Brake System Rear
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Wheel Lug/Bolt Pattern
5x5.00
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708305090
📐
Dimensions & Shipping
Product Dimensions
16.25 × 15.5 × 15.5 in
Shipping Dimensions
16.25 × 15.5 × 15.5 in
Weight
34473 g (34.47 kg)
