Holley EFIPart 522-768xMade in CN
Product Details
⭐
Key Features
Designed for use in setups with a 38mm distance between the o-ring seats on the fuel rail and intake manifold (commonly referred to as an "LS3-Style" injector), this injector features a USCAR connector and 14mm o-rings on both ends. It is an ideal fit for
Terminator X High Impedance Fuel Injectors feature a precision lapped disc valve, high-quality brass windings, and high-temp o-rings. These injectors provide excellent linearity with no discernible "bounce" at low pulse widths as commonly found in other injectors. With a wide variety of fuel flow offerings from 42 lb./hr. to 220 lb./hr. (441 cc/m to 2310 cc/m) you are sure to find an injector that matches your non-emissions controlled application. These high quality fuel injectors can also be used with any ECU that utilize high impedance fuel injector drivers.

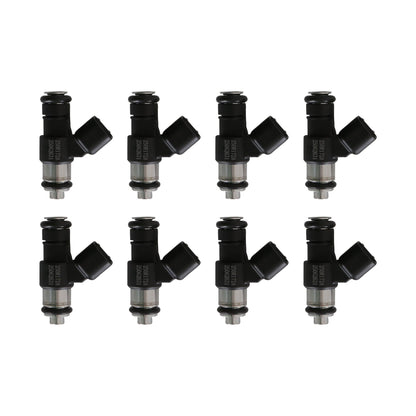

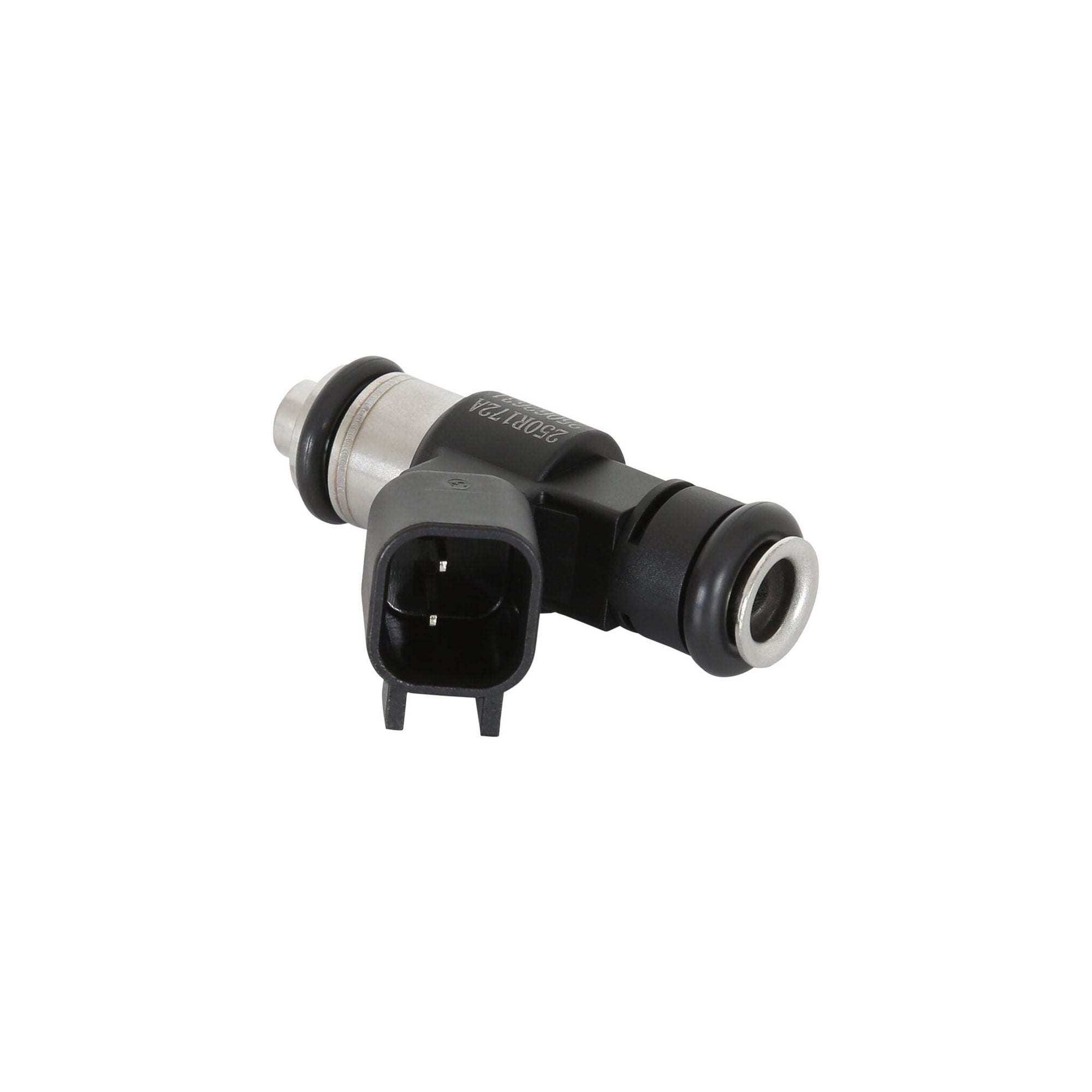

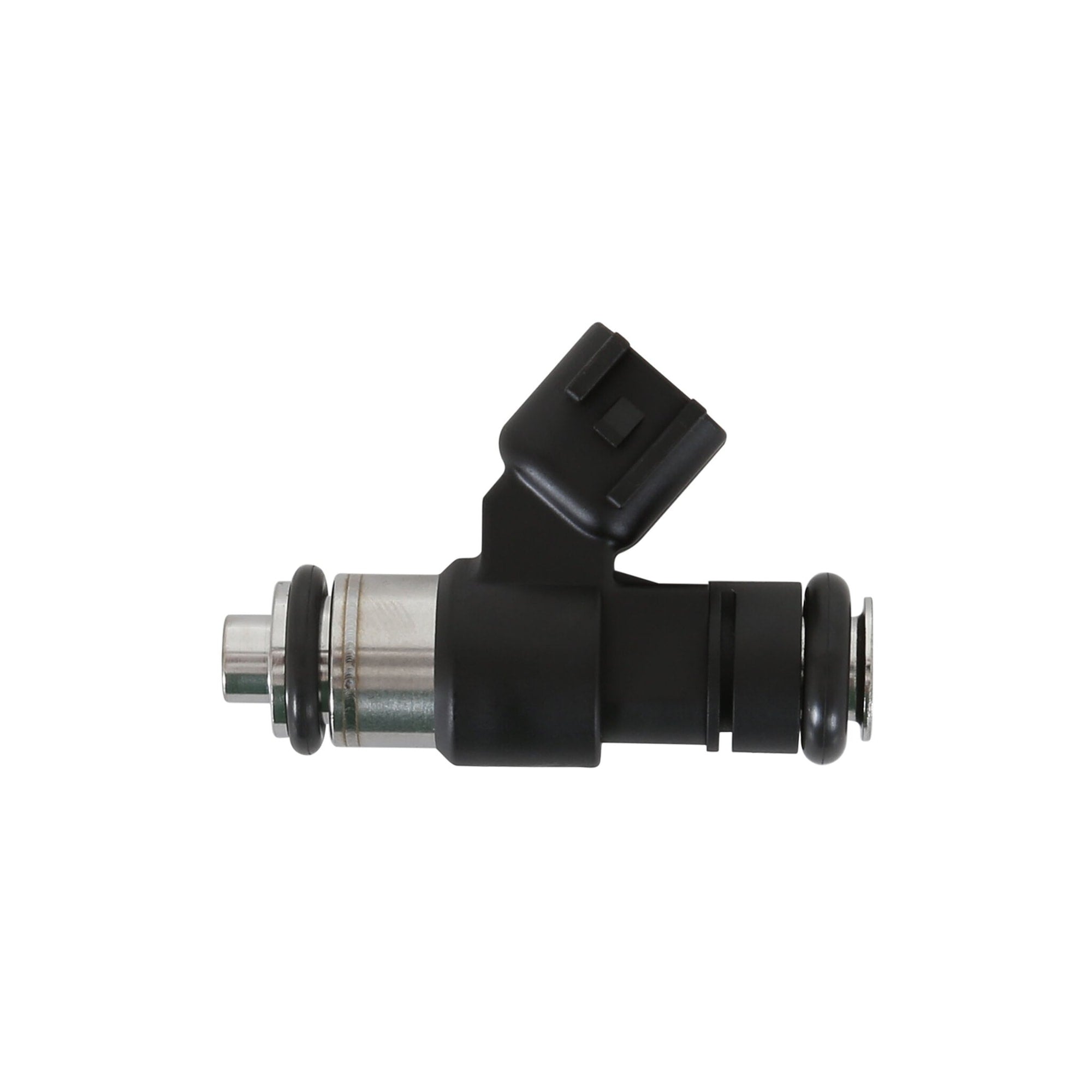

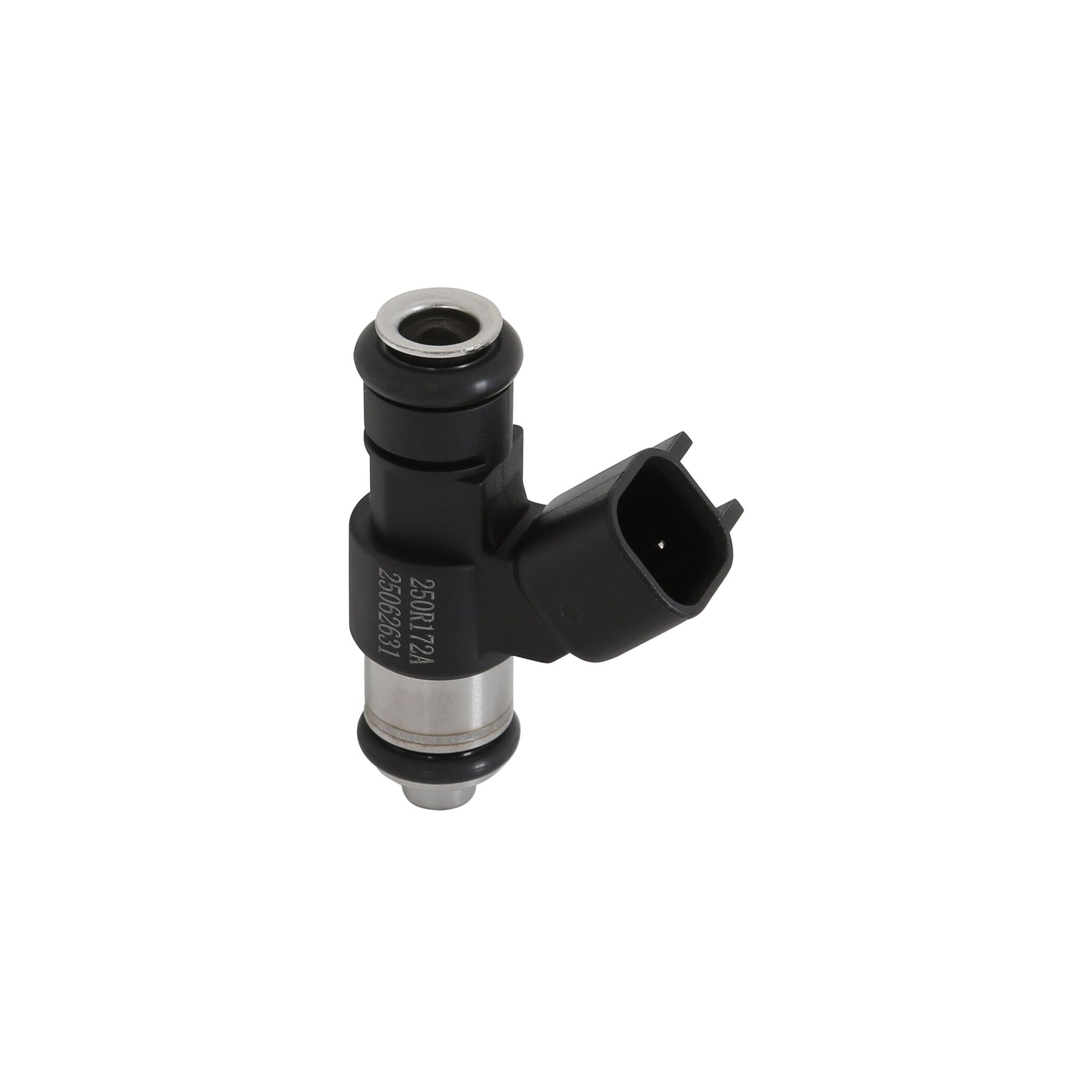

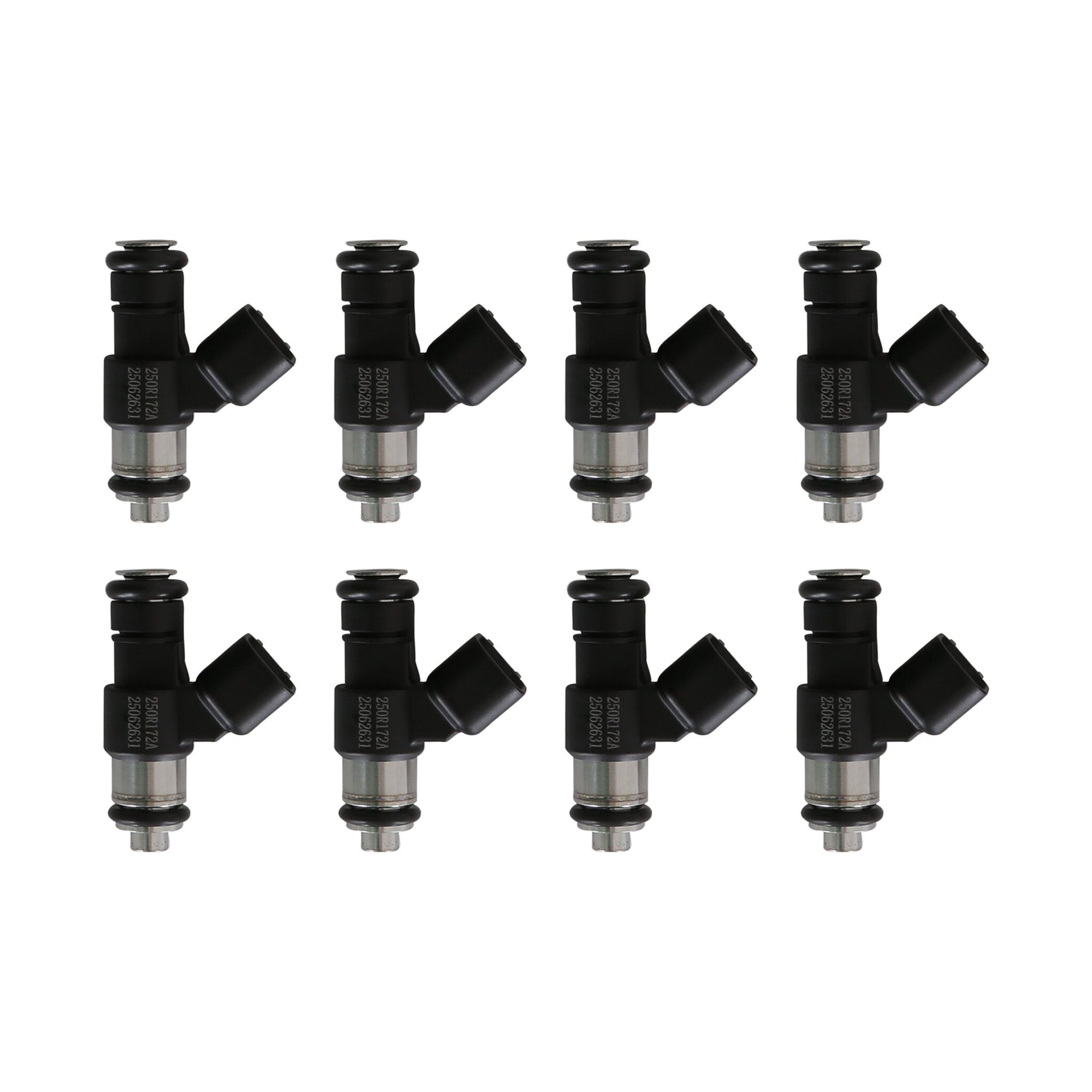

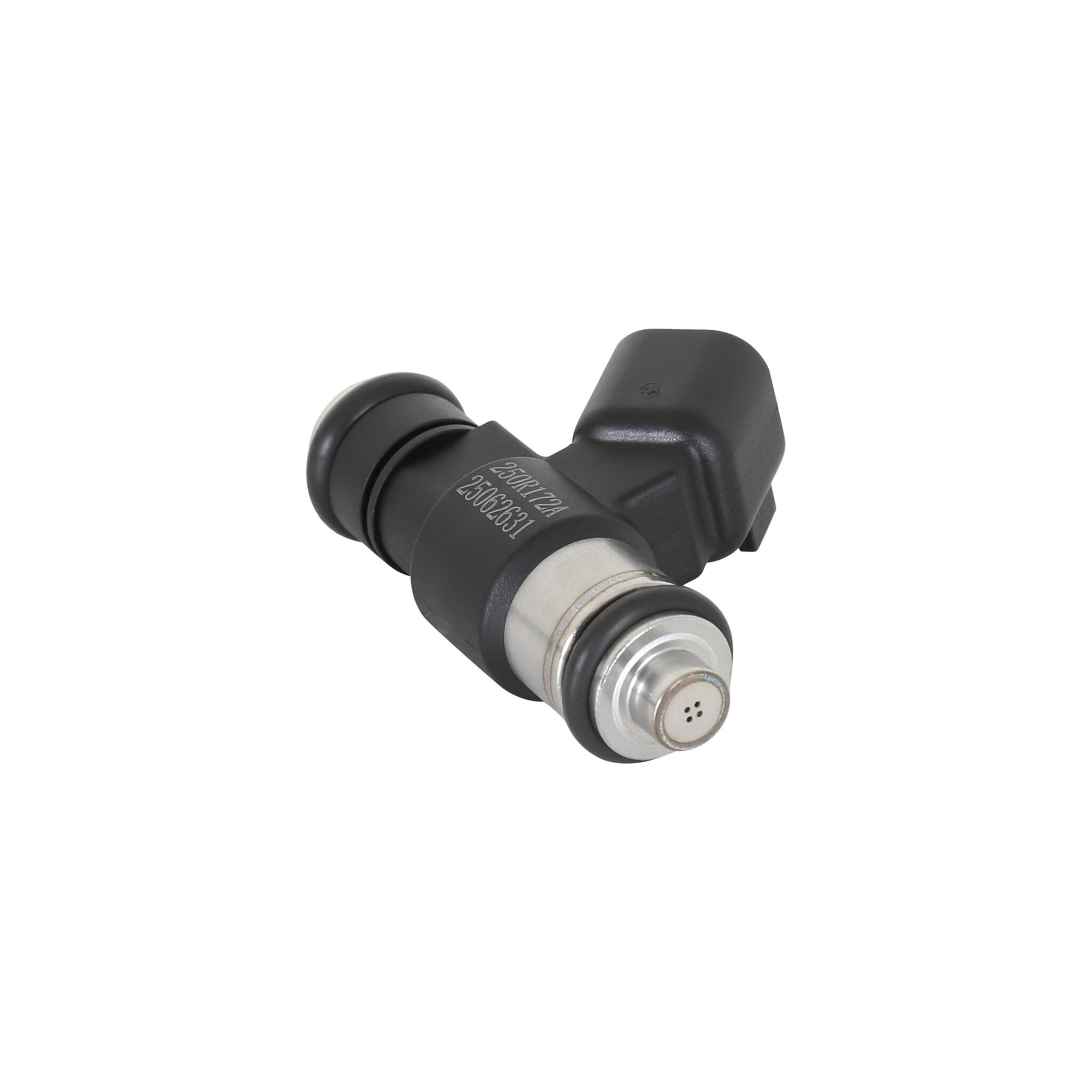

PICO/EV6 - 76 lb/hr - High Impedance
- PICO/EV6 style performance injectors – sold individually or set of 8
- High impedance for use with saturated drivers
- Rated injector flow: 76 lb./hr. at 60 PSI of base fuel pressure
- USCAR injector connector
- 40mm o-ring to o-ring length
📖
About this product
PICO/EV6 - 76 lb/hr - High Impedance
📋
Product Specifications
Automotive Item Grade
Performance
Body Diameter
0.65
Body Length
1.85"
Body Style
EV6
Brand
Holley EFI
California Proposition 65 Chemical Name
4
Category
Air and Fuel Delivery
Color
Black
Connector Series
EV6
Connector Shape
EV6
Country
CN
Emission Code
3
Emission Code
4
Flow Matched
No
Flow Rate
76 4U
Fuel Injection Type
Port
Fuel Type
E-85
Gasket Or Seal Included
Yes
Grade Type
Performance
HTS Code
8409915085
Impedance
High (12.2 Ohm)
Mounting Hardware Included
No
O-Ring Quantity
2 per injector
O-Ring To O-Ring
1.421
Part Type
Fuel Injector
Product Type
Fuel Injector
Prop 65 Yes/No
No
Qty
8
Rated Injector Flow
76 lb/hr
Retainer Clips Included
No
Sub Category
Fuel Injection System and Related Components
Terminal Gender
Female
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
6.7 × 3.4 × 3.2 in
Shipping Dimensions
6.7 × 3.4 × 3.2 in
Weight
249 g (0.25 kg)
