Holley EFIPart 534-283✓ Fits 34 vehiclesMade in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
34 applicationsCompatible Engines
5.0L V8 302ci5.0L V8
Compatible Transmissions
10R8044344X6R80MT82NAAO 6R80NAAO6R80
Application Notes
Black
View all 34 vehicle applications
Years
Make / Model
Submodel
Engine
2011–2021
Ford F-150
5.0L V8 302ci
2011–2021
Ford F-150
5.0L V8 302ci
2011–2021
Ford F-150
5.0L V8 302ci
2011–2021
Ford F-150
5.0L V8 302ci
2011–2021
Ford F-150
5.0L V8 302ci
2011–2014
Ford F-150
5.0L V8 302ci
2011–2014
Ford F-150
5.0L V8 302ci
2011–2014
Ford F-150
5.0L V8 302ci
2016–2021
Ford F-150
5.0L V8 302ci
2018–2021
Ford F-150
5.0L V8
2011–2021
Ford Mustang
5.0L V8 302ci MT82
2011–2018
Ford Mustang
5.0L V8 302ci MT82
2011–2017
Ford Mustang
5.0L V8 302ci 6R80
2011
Ford Mustang
5.0L V8 302ci MT82
2011
Ford Mustang
5.0L V8 302ci NAAO6R80
2012–2013
Ford Mustang
5.0L V8 302ci
2012
Ford Mustang
5.0L V8 302ci 44X
2012
Ford Mustang
5.0L V8 302ci 443
2013–2015
Ford Mustang
5.0L V8 302ci MT82
2013–2015
Ford Mustang
5.0L V8 302ci NAAO 6R80
2015–2021
Ford Mustang
5.0L V8 302ci MT82
2015–2018
Ford Mustang
5.0L V8 302ci MT82
2015–2017
Ford Mustang
5.0L V8 302ci 6R80
2015
Ford Mustang
5.0L V8 302ci MT82
2015
Ford Mustang
5.0L V8 302ci 6R80
2015
Ford Mustang
5.0L V8 302ci 6R80
2016
Ford Mustang
5.0L V8 302ci
2017–2018
Ford Mustang
5.0L V8 302ci MT82
2017
Ford Mustang
5.0L V8 302ci 6R80
2018
Ford Mustang
5.0L V8 302ci 10R80
2018
Ford Mustang
5.0L V8 302ci 10R80
2018
Ford Mustang
5.0L V8 302ci 10R80
2019–2020
Ford Mustang
5.0L V8 302ci
2019–2020
Ford Mustang
5.0L V8 302ci
No applications match your search.
⭐
Key Features
Gauge ports can be used to install fuel press/temp sensor on 2018+GT models with Earls P/N 02112ERL Gauge ports can be used as fuel feed connection with NOS P/N 17015NOS Gauge port can be used to feed DI pump on 2018+ Cars using NOS P/N 17015NOS Rail feed

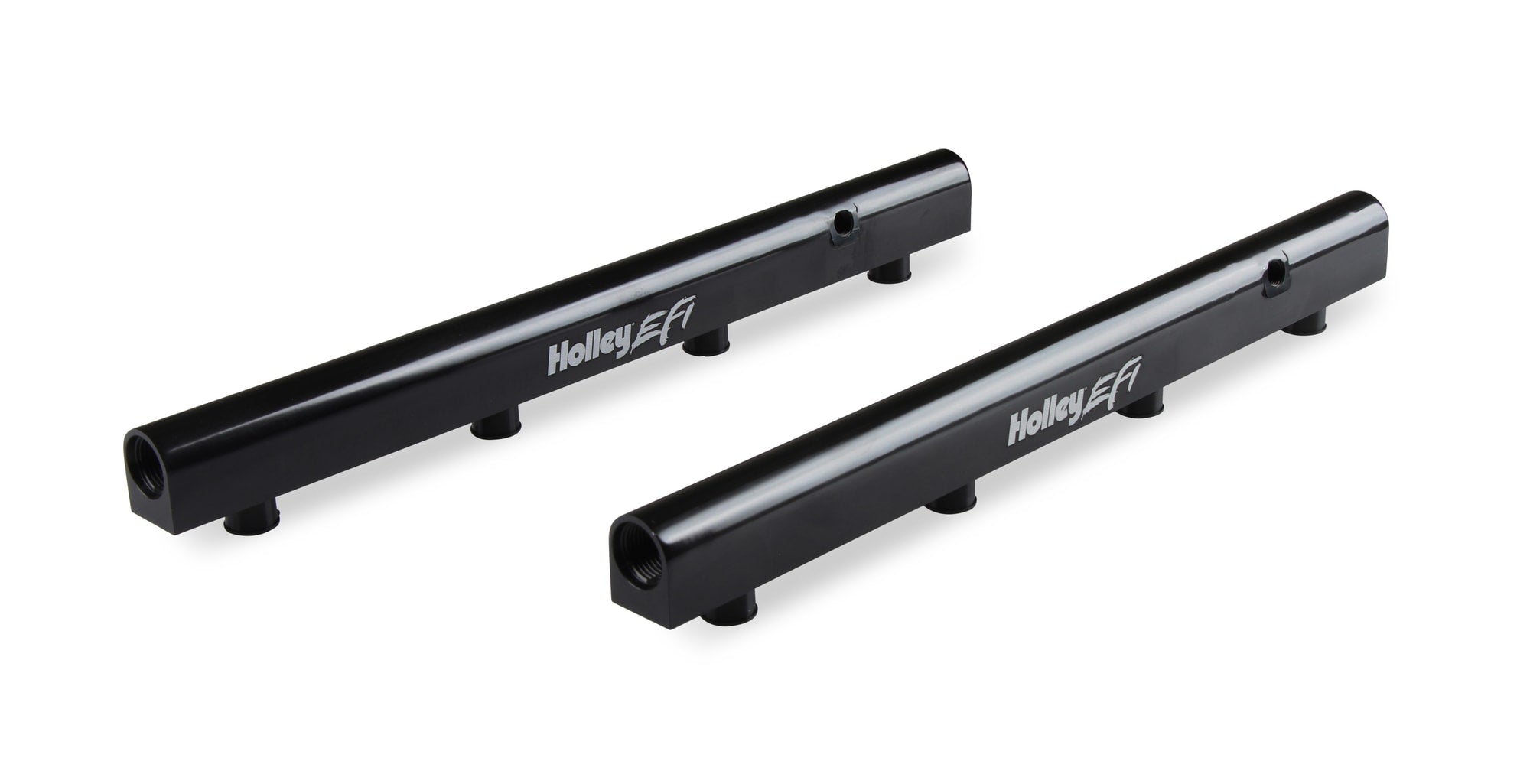

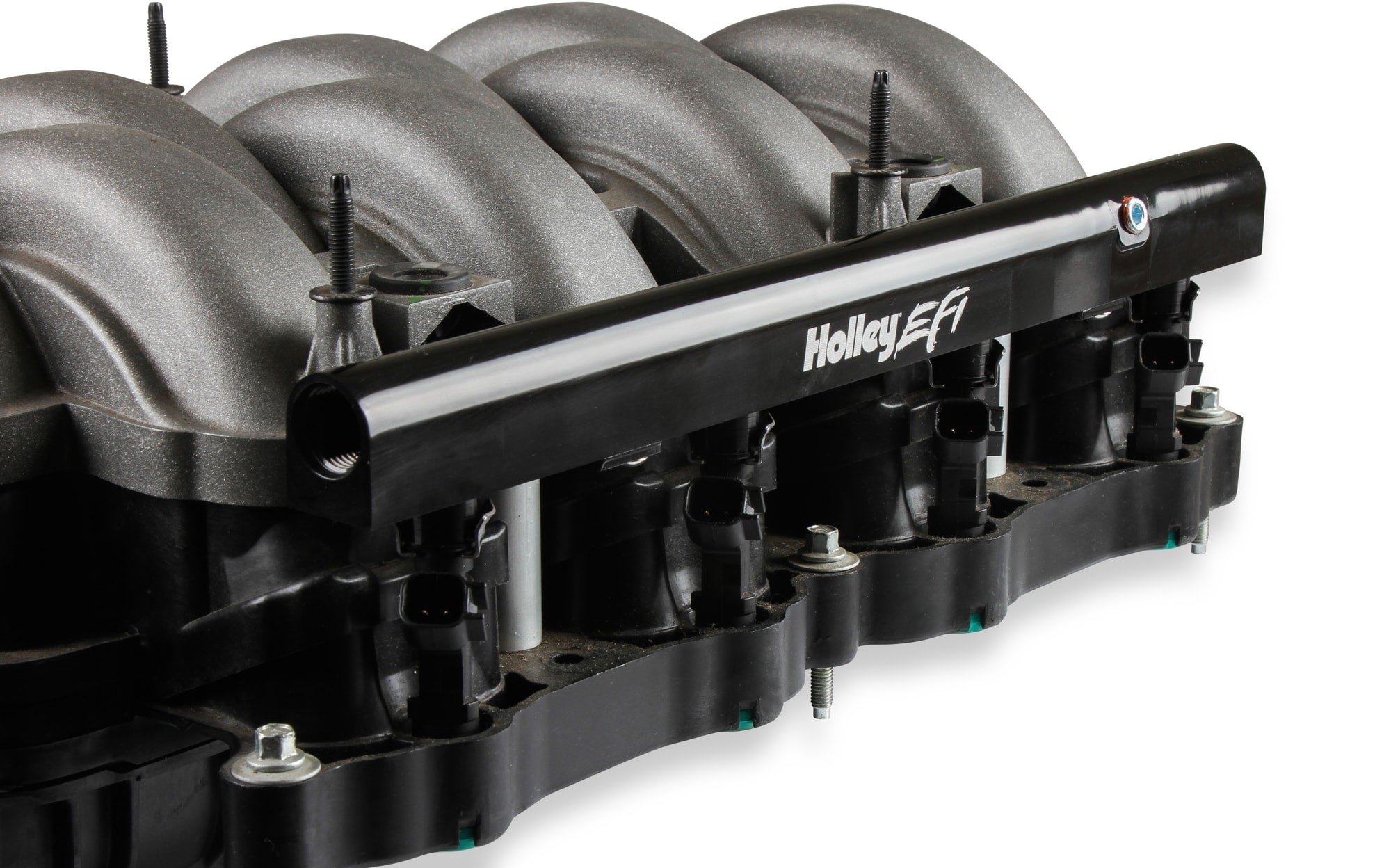

The new Hi-Flow billet fuel rails are a direct fit for all late model, 2011 and newer naturally aspirated Coyote engines (5.0 and 5.2) including Cobra Jet and Boss 302. This also includes the 2018 and newer direct injection engines. The fuel rails feature a 5/8" diameter fuel passage that provides the flow capacity for high horsepower applications. | The black anodized rails have -8 ORB ports on each end and an 1/8" NPT port for a fuel gauge installation if you choose to do so. The rails are designed with the factory injector clip reliefs so that your factory injectors and retaining clips can be reused. The kit includes fuel rails, mounting brackets and required mounting hardware.
2011-2021 Ford Coyote Engines including the 2018-2021 Direct Injected Engines
- All late model, 2011+ naturally aspirated Coyote engines (5.0 and 5.2) including Cobra Jet and Boss 302. Also Including 2018+ DI Cars
- Machined Billet extrusions with laser etched “Holley EFI” Logo
- Injector Clip feature retained so factory injector clips can be re-used. This is important as the clips locate the injector radially for proper injector spray pattern onto valves.
- -8 ORB ports front and back
- 1/8 NPT gauge ports machined directly into rail

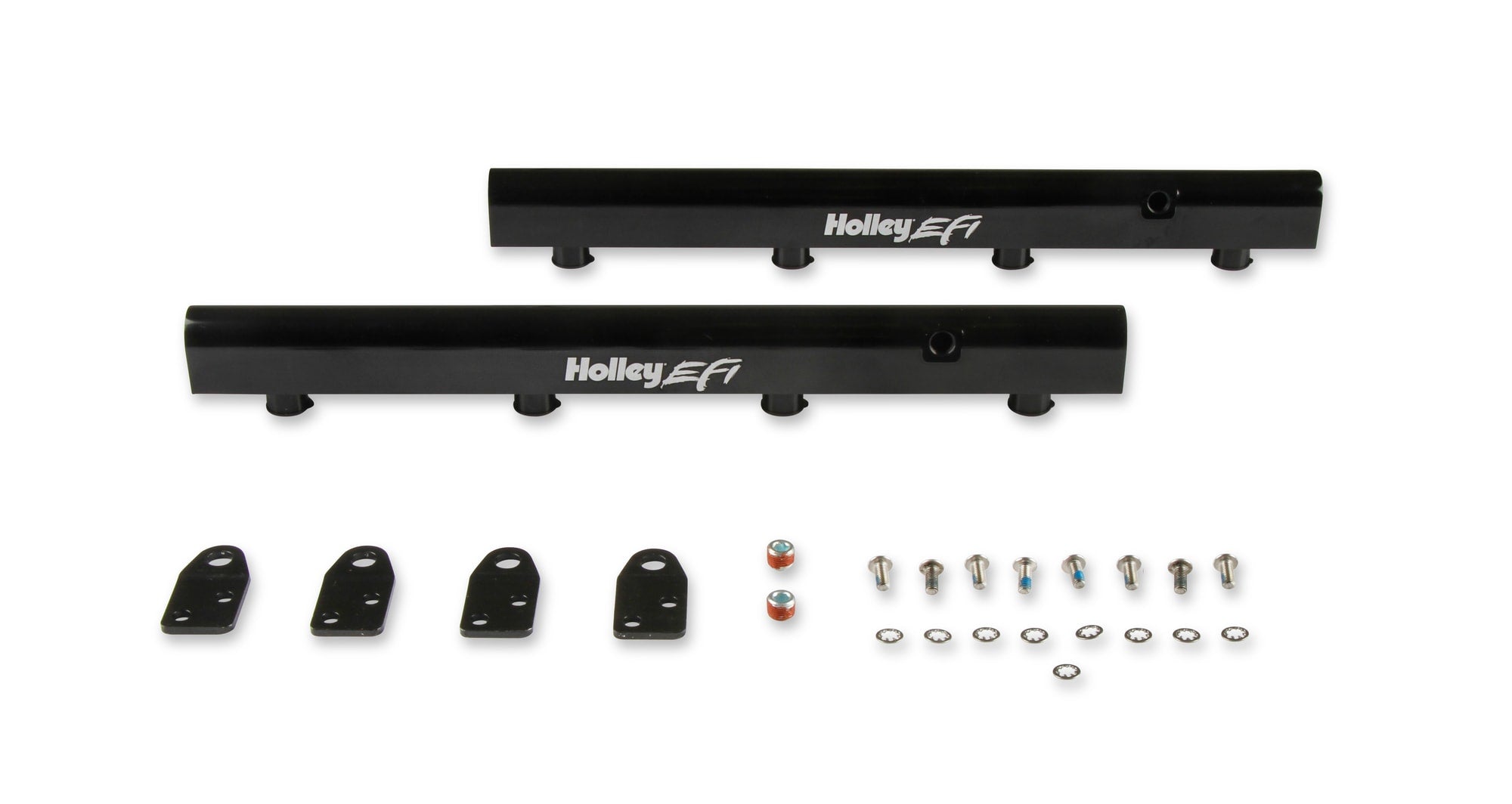

- Mounting brackets and hardware included
📖
About this product
2011-2021 Ford Coyote Engines including the 2018-2021 Direct Injected Engines
📋
Product Specifications
Automotive Item Grade
Performance
Brand
Holley EFI
California Proposition 65 Chemical Name
4
Category
Air and Fuel Delivery
Category
Intake Manifolds
Color
Black
Construction
Aluminum
Country
CN
Emission Code
4
Emission Code
5
Finish
Black
Fittings Included
No
Fuel Injection Type
Port
Fuel Injectors Included
No
Fuel System Type
EFI
Fuel System
EFI
Gasket Or Seal Included
No
Grade Type
Performance
HTS Code
8708998180
Material
Aluminium
Mounting Hardware Included
Yes
Part Type
Fuel Injection Fuel Rail Kit
Product Type
Fuel Rail
Prop 65 Yes/No
No
Rail Color
Black
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
5
HS Code
8708998180
📐
Dimensions & Shipping
Product Dimensions
17.2 × 5.1 × 1.85 in
Shipping Dimensions
17.2 × 5.1 × 1.85 in
Weight
1048 g (1.05 kg)
