Holley EFIPart 550-628Made in US
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
Complete system requirements: Coyote Ti-VCT Control Module 554-145, and the sub-harness for your engine, 2011-2012 Coyote Engines use 558-124, 2013+ Coyote Engines use 558-125. Designed to be used with a cable driven throttle body.
Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.

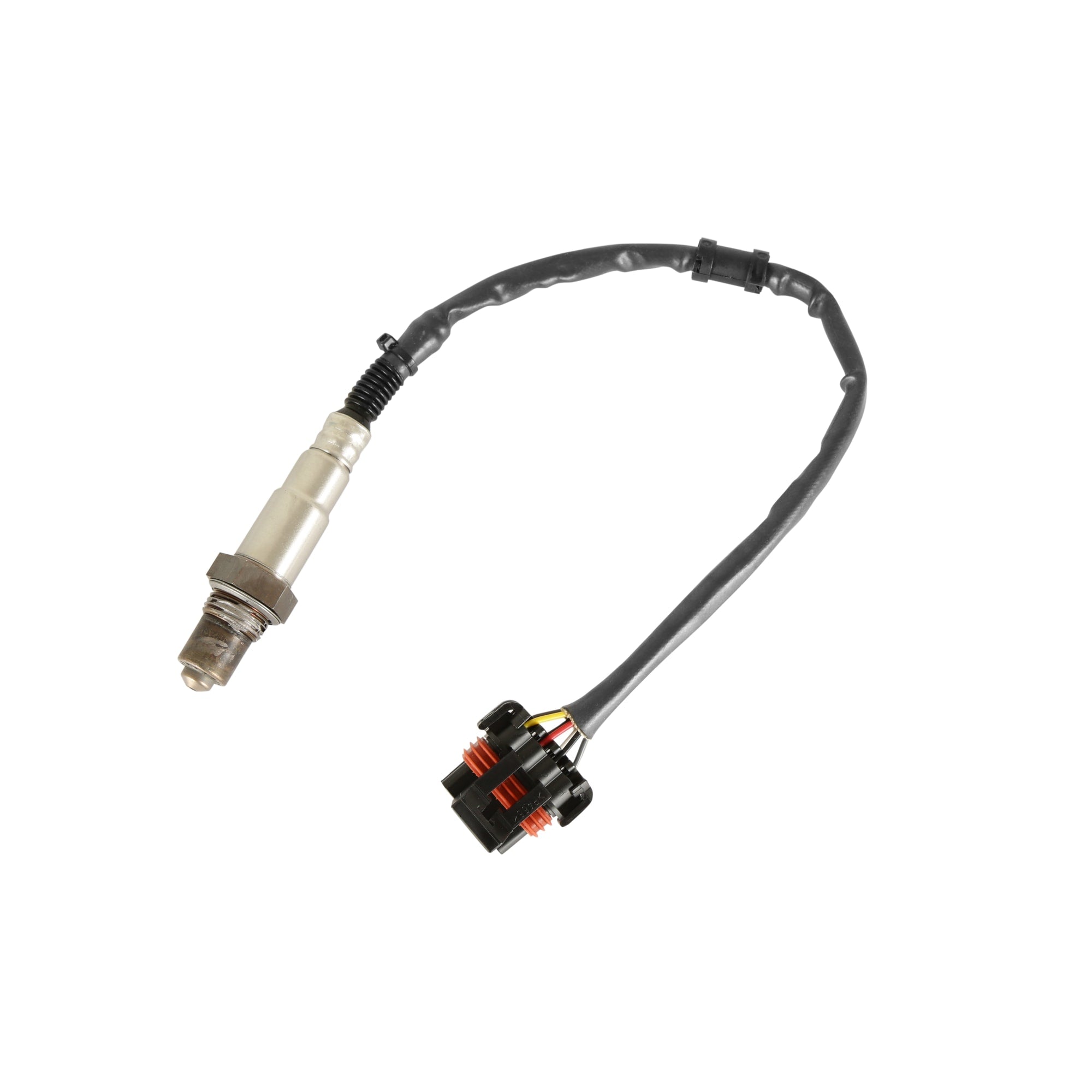

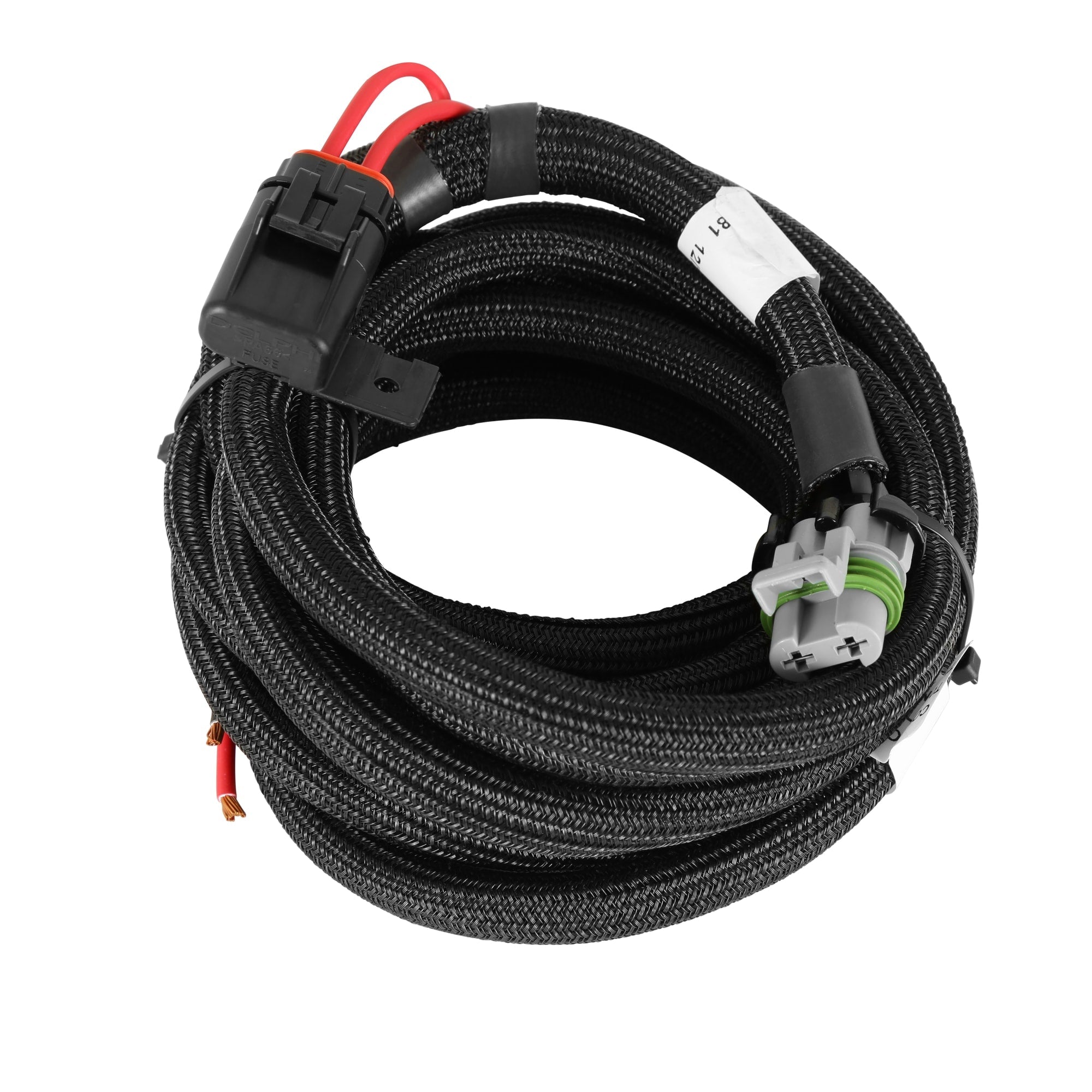

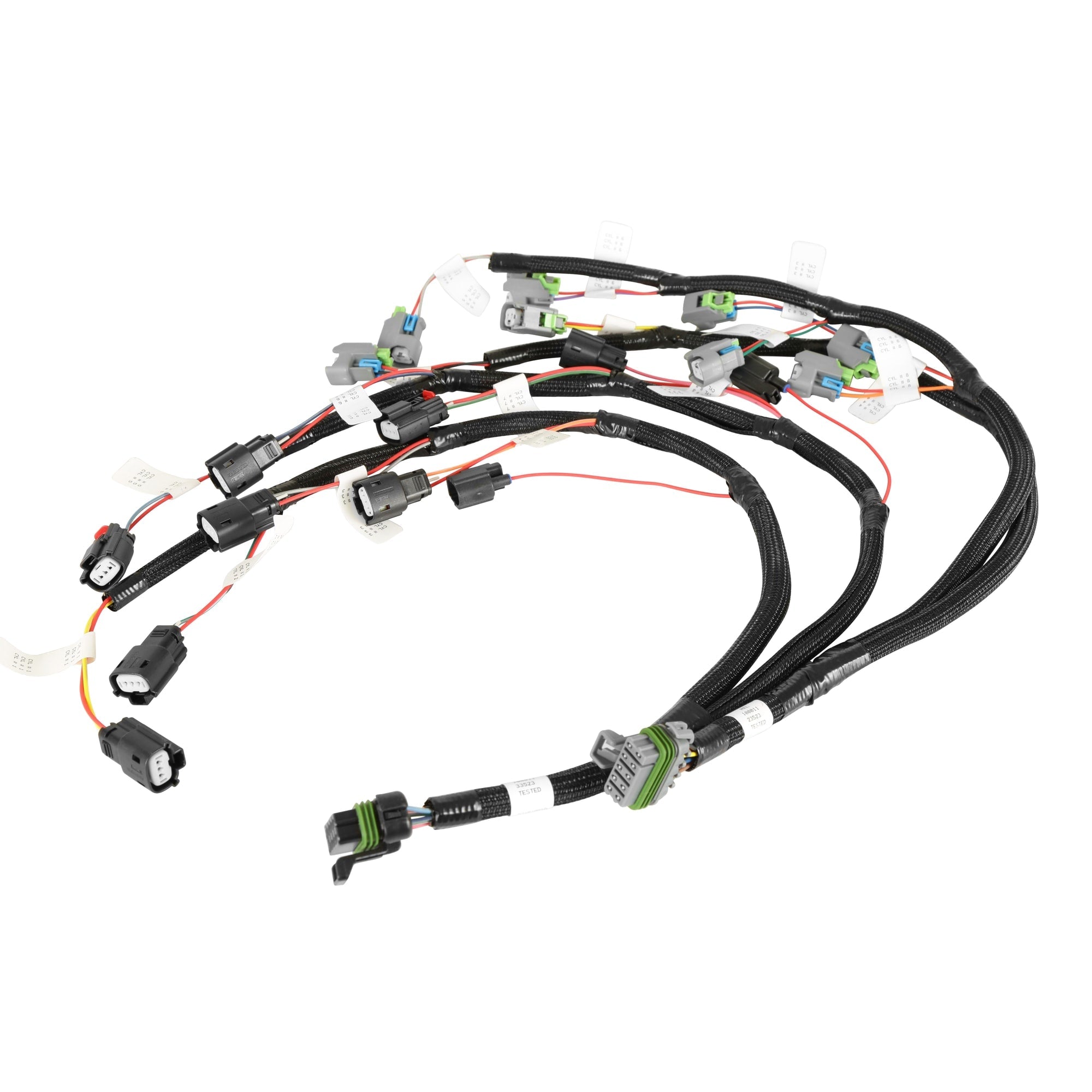

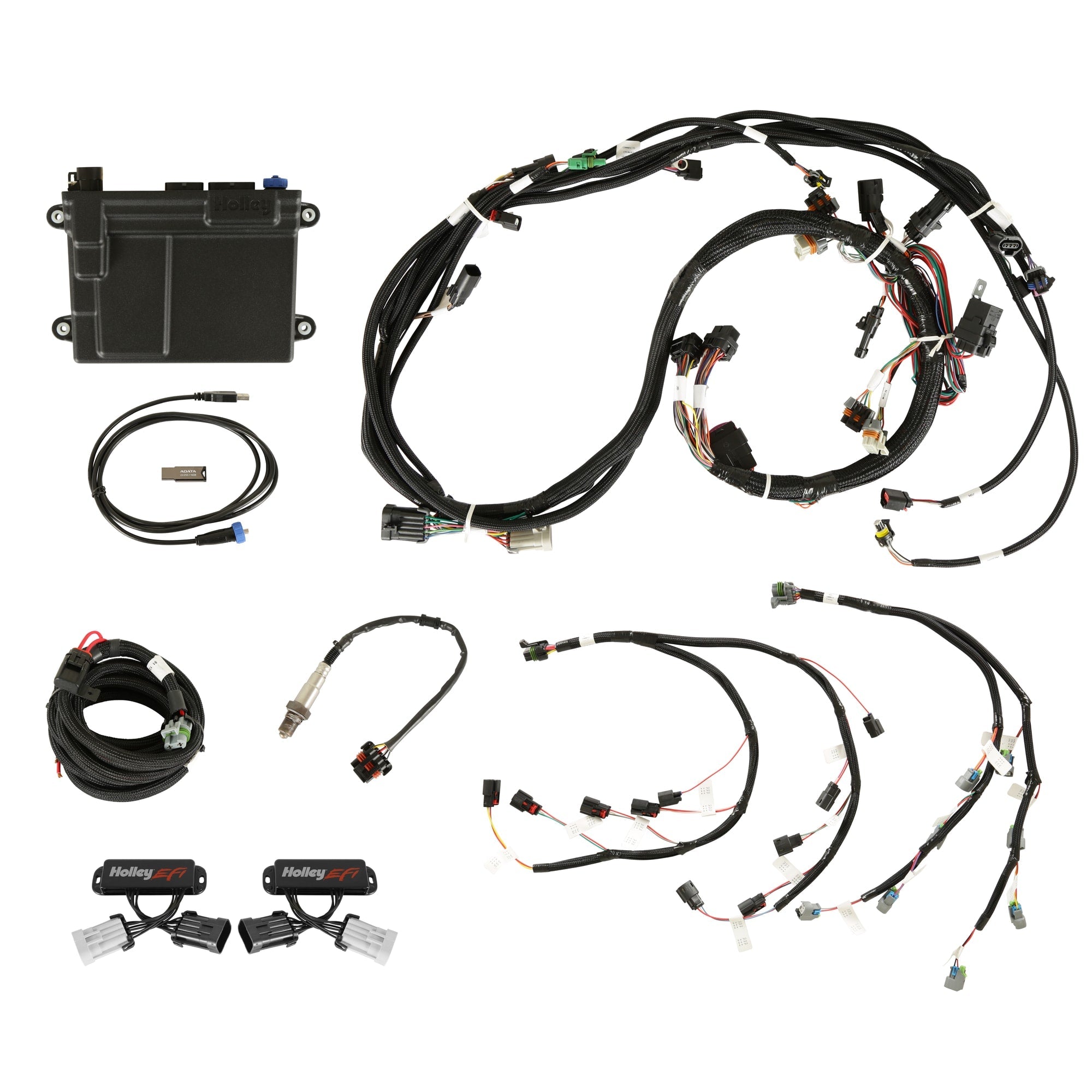

HP EFI ECU with Power Harness, Main Harness, Coil Harness, Injector Harness and Sensors includes Bosch Oxygen Sensor (Does not include Ti-VCT Controller or Harnesses)
- Now supports 2015-2017 Coyote engines
- HP EFI kits available

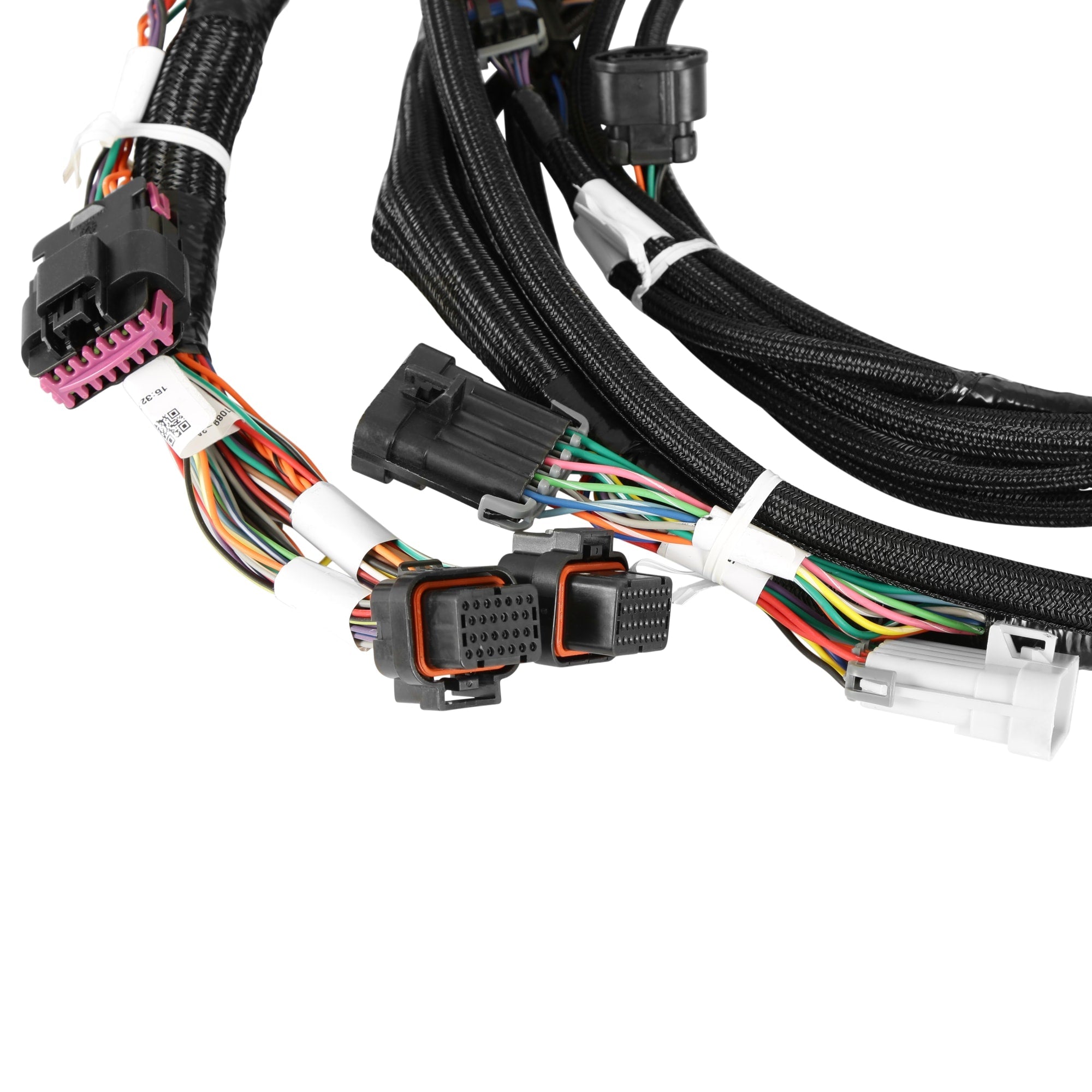

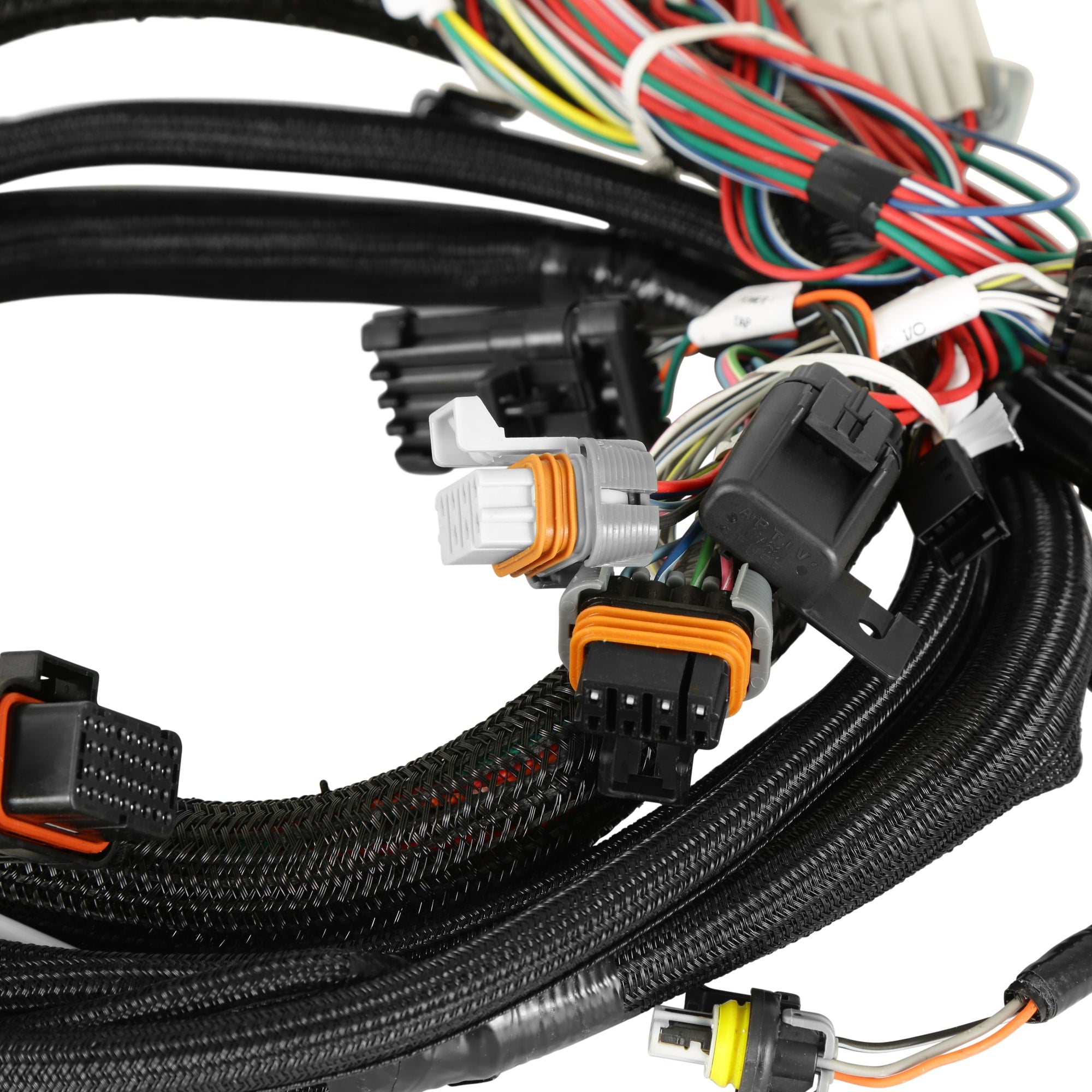

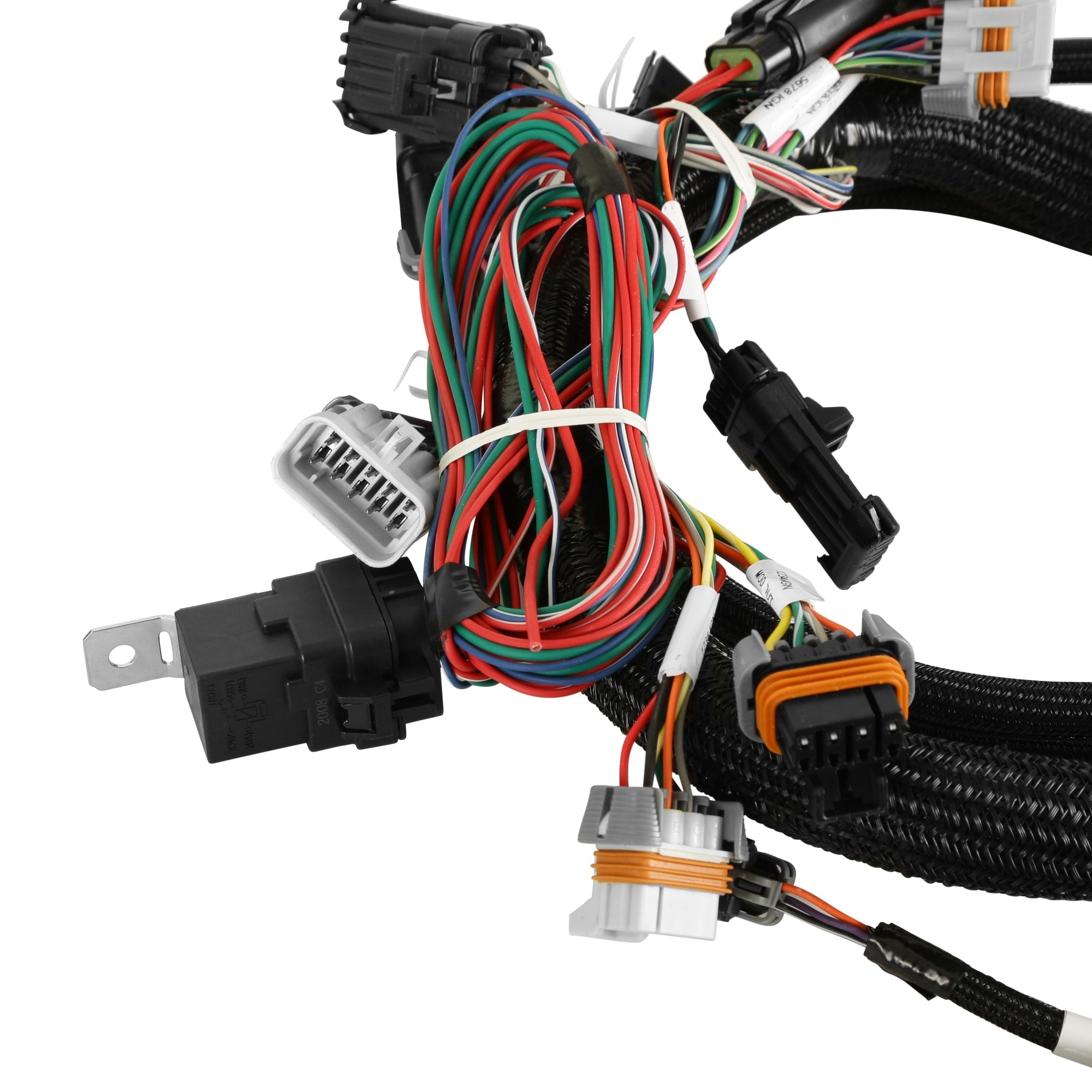

- Plug and Play main harness for 2011-2017 Coyote engines w/ stock cam shafts using stock coils (558- 110)
- Plug and Play main harness for 2011-2017 Coyote engines w/ stock cam shafts using Holley EFI coils (558-122)
- Compatible with HP or Dominator EFI
- Pre-calibrated Ford sensor drop downs in the Holley EFI software
- Ti-VCT Cam control down to 400 RPM
- Commanded timing matched within 1 degree
- User programmable tables enable the end user to fine tune aftermarket Ti-VCT compatible camshafts
- 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
- Integrated stock cam position tables – eliminate tuning guess work, optimal drive-ability and power right out of the box
- Main harnesses come terminated with Ford TPS and IAC connectors, making it easy to convert from a DBW throttle body to a manual throttle body
- Installation of an external MAP sensor is required, we recommend part number 538-13 for N/A applications
- Main Harnesses includes a Power Tap Connector, as a convenient source for power and grounds when adding additional sensors or actuators
- CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
📖
About this product
HP EFI ECU with Power Harness, Main Harness, Coil Harness, Injector Harness and Sensors includes Bosch Oxygen Sensor (Does not include Ti-VCT Controller or Harnesses)
📋
Product Specifications
Automotive Item Grade
Performance
Brand
Holley EFI
California Proposition 65 Chemical Name
20
CAN-BUS Support
Yes
Category
Engine
Country
US
Emission Code
3
Grade Type
Performance
Harness Application
Ford
Harness Type
Ignition
HTS Code
8409915085
Ignition Type
Ford Coyote
Injector Connector
USCAR (EV6)
Mounting Hardware Included
No
Part Type
Engine Control Module (ECM)
Product Type
ECU Assembly
Prop 65 Yes/No
No
Removable PROM
No
Sub Category
Control Modules
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Weight
10.9
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
14.4 × 12.7 × 9.3 in
Shipping Dimensions
14.4 × 12.7 × 9.3 in
Weight
4944 g (4.94 kg)
