Hooker BlackheartPart 8505hkrMade in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
NOTE: Not compatible with 2004-2006 GTO starters/bellhousings Breaking in an engine with ceramic-coated versions of these manifolds will most likely result in damage to the coating and VOID all warranties providing coverage to it. HOOKER™ recommends
For applications or projects where our standard LS swap manifolds (8501HKR, 8502HKR, 8503HKR series) don't quite fit and our "center dump" manifold (8504HKR) exits too far forward, our new "rear dump" cast iron swap manifolds have arrived. These differ in that they exit in a straight-down fashion much like a block hugger header but exit more toward the rear of the engine than our "center dump" manifolds. Cast out of the same Hi-Silicon-Moly Ductile Iron as most of our other lines, it will be tough to find a more durable, streamlined, and quiet exhaust option. Available in natural cast, silver ceramic, or black ceramic finishes, these manifolds are offered with flanges, gaskets, and flange hardware for connecting to our lineup of adapter pipe kits. This not only allows for the easy addition of catalytic converters but also makes it simple to connect to our many exhaust system options.
Multi-Fit - GM Gen III/IV LS Engines - 2.50-in. Outlet
- 2.5-inch outlet diameter offers improved flow for maximum performance from a cast iron exhaust manifold

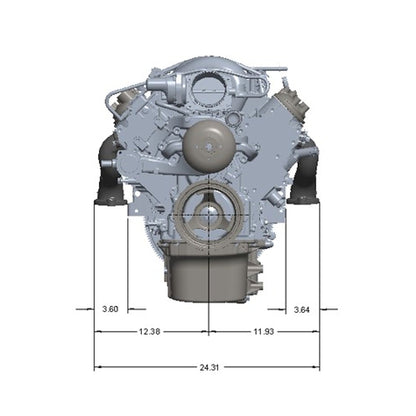

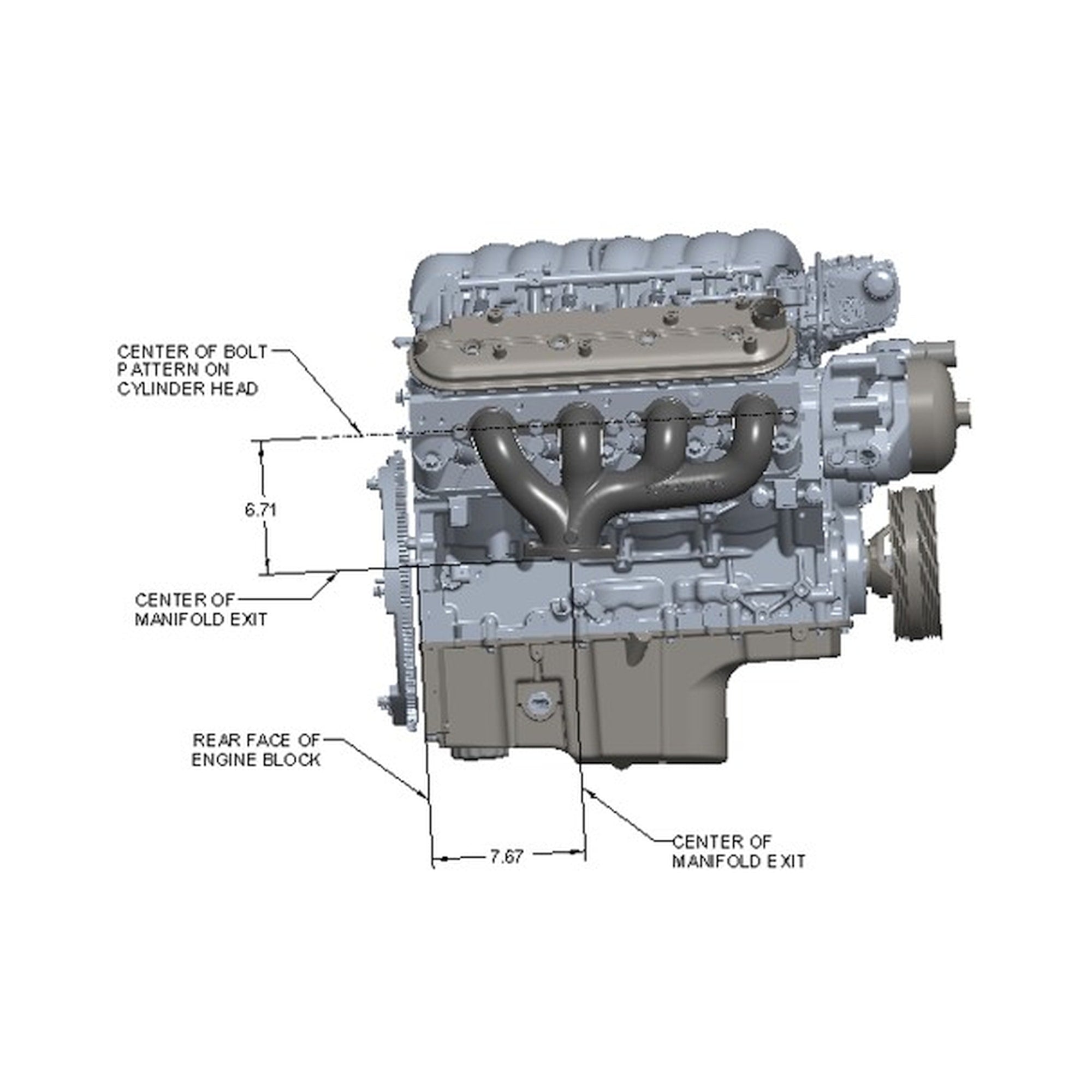

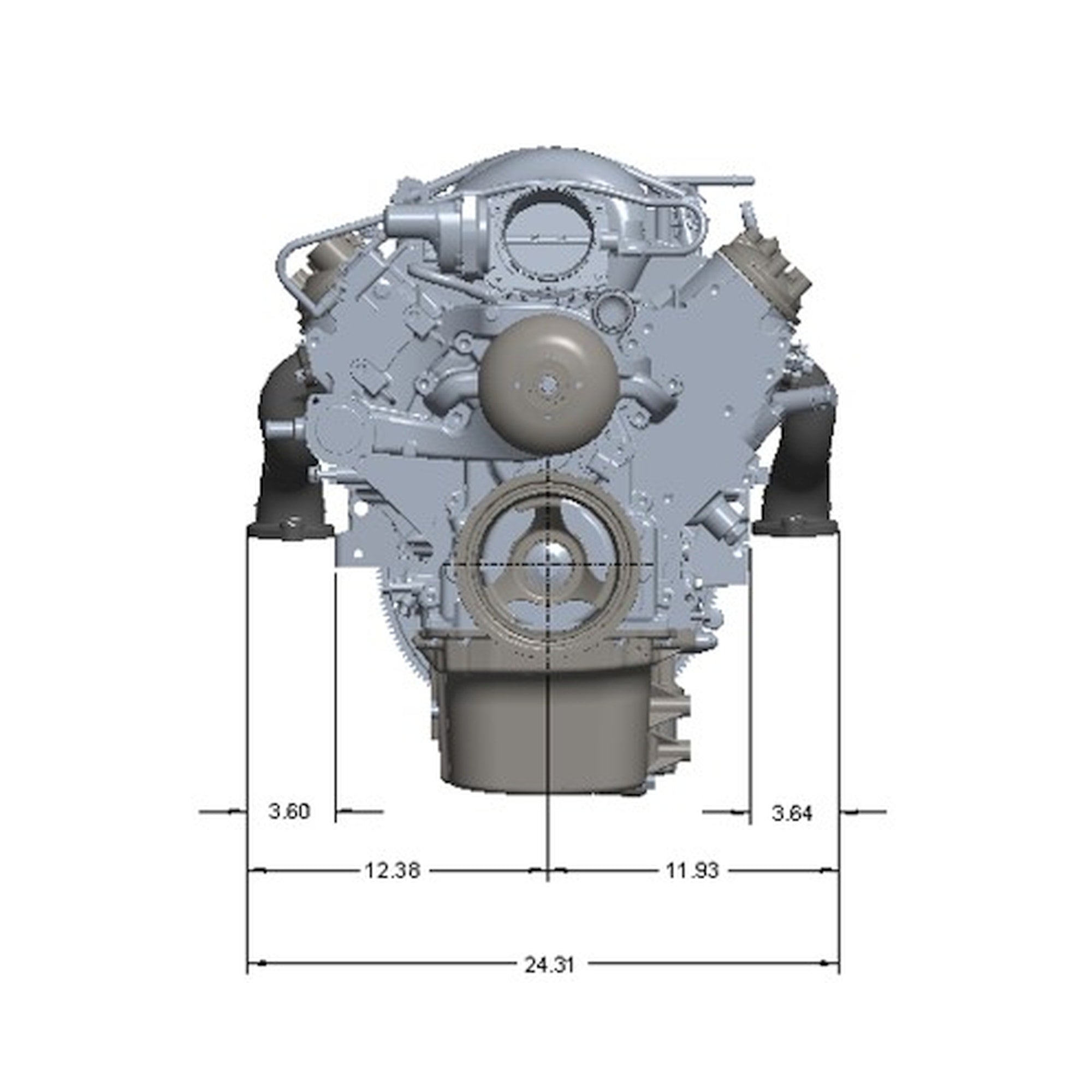

- Tight tuck design that provides an exit between our standard swap manifolds and center dump manifolds (see pictures for diagram and specs)
- Intended for GM LS engine swap applications where durability, quiet operation, and leak-free sealing is desired
- Available in Natural as-cast finish for a factory appearance, silver ceramic, or black ceramic
- Cast from Hi-Silicon-Moly Ductile Iron to provide durability and corrosion resistance
- Perfect complement to Hooker engine swap mount plates and Holley engine swap oil pans

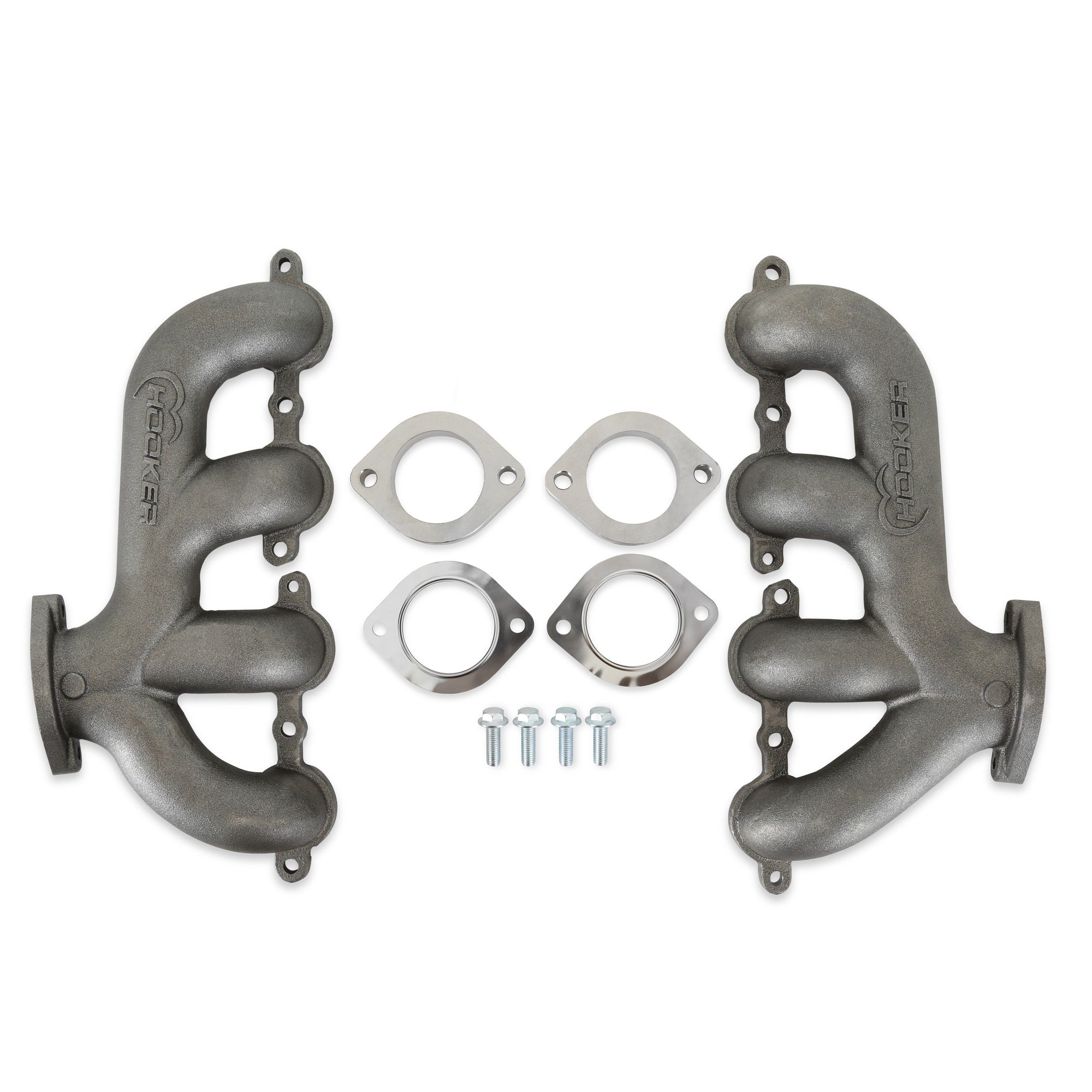

- Hardware included: Nickel plated steel mating flanges, MLS mating flange gaskets, and mating flange hardware
- Similar to SBC driver side manifold (8525HKR) - same exit centerline but raised up 1.36-inches
📖
About this product
Multi-Fit - GM Gen III/IV LS Engines - 2.50-in. Outlet
📋
Product Specifications
Application
Multi-fit
Bolt Size
M8 x 1.25 x 25mm
Brand
Hooker BlackHeart
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Exhaust
Choose Your Part
Manifold
Collector Diameter
2.50 inch
Emission Code
8
Exhaust Manifold Style
Rear Dump
Exhaust Series
Hooker
Finish
Natural
Flange Style
2-Bolt
Header Finish
Natural
Header Style
Manifold
Material
Cast Iron
Part Type
Exhaust Manifold
Primary Tube Dia.
1-3/4 inch
Product Type
Manifold
Prop 65 Yes/No
Yes
Sub Category
Exhaust Manifolds
Subframe
Stock
Tube Material
Cast Iron
Type Of Component
Manifold
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
8
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
20.7 × 12.1 × 9.0 in
Shipping Dimensions
20.7 × 12.1 × 9.0 in
Weight
11725 g (11.73 kg)
