Earl's PerformancePart 961980erlMade in US
Product Details
⭐
Key Features

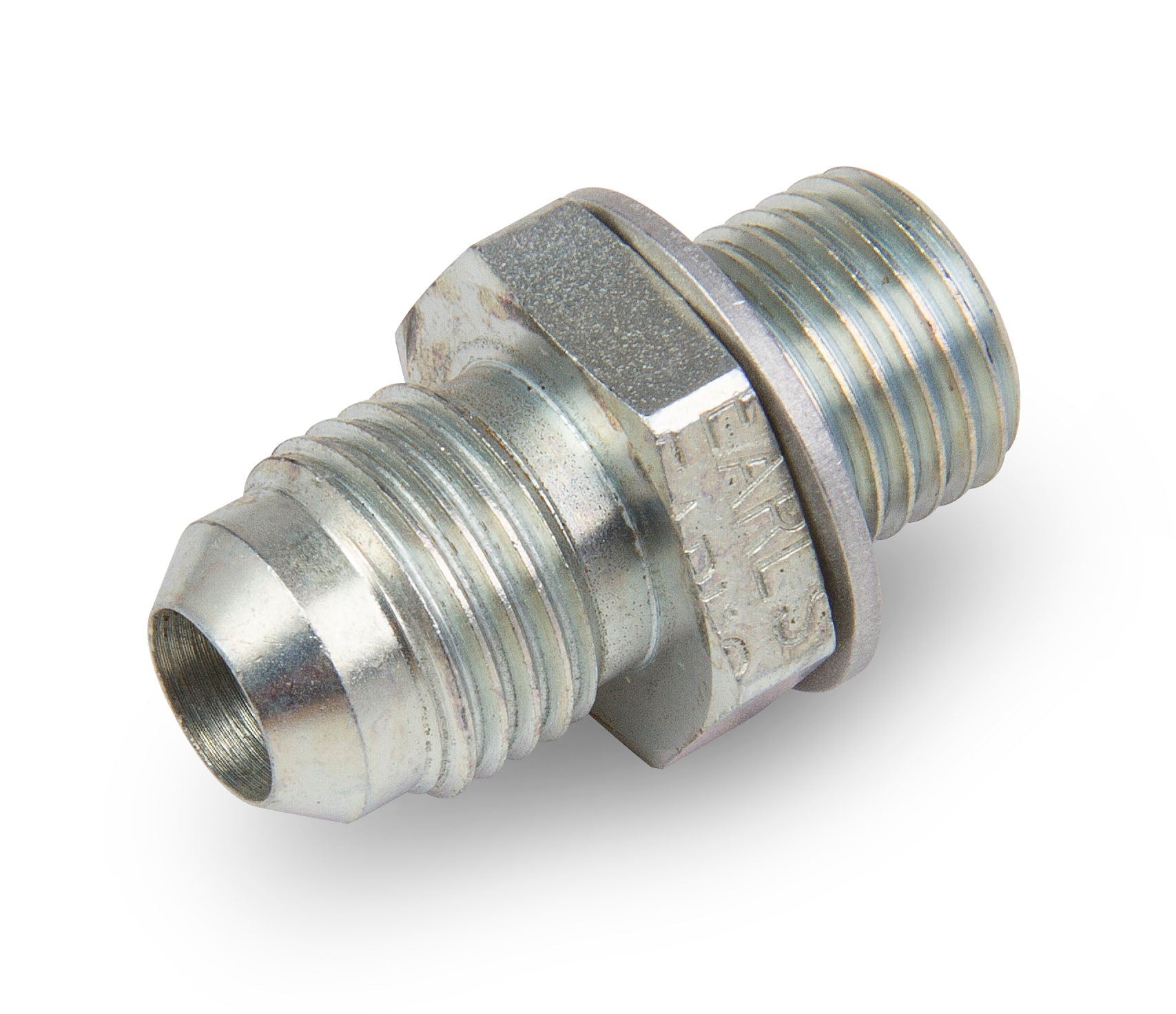

Earls Transmission Adapter, One Adapter w/ Crush Washer, Fits 4L80E (Some 1997 & Later) w/ 1/4-18 threads - Short (Front), Nickel Plated Steel
There are always clearance challenges when doing an engine swap. One of these is routing the transmission cooler lines off the side of the transmission while cleaning the trans tunnel. Earl's makes this easier with their line adapters. Integrating into the GM transmission and adapting to AN lines allows additional clearance and freedom that the original hard lines cannot. Adapters are available for the popular GM Transmissions 4L80E (Fits Transmissions w/ 1/4-18 NPSM Threads Short/Front). Order Two adapters (one short for the front and one long for the rear to match the threads on your transmission). The thread size varies depending on the application.
Earls Transmission Adapter, One Adapter w/ Crush Washer, Fits 4L80E (Some 1997 & Later) w/ 1/4-18 threads - Short (Front), Nickel Plated Steel
- Available for Any Plumbing Situation And Many Custom Applications.
📖
About this product
Earls Transmission Adapter, One Adapter w/ Crush Washer, Fits 4L80E (Some 1997 & Later) w/ 1/4-18 threads - Short (Front), Nickel Plated Steel
📋
Product Specifications
Adapter AN Size ( A )
6 AN MALE
Adapter NPT Size ( B )
1/4-18 NPSM MALE
Adapter Type
Transmission Cooler
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Belts and Cooling
Emission Code
5
Finish
Nickel
Material
Steel
Part Type
Automatic Transmission Oil Cooler End Fitting
Product Type
Transmission Cooler
Prop 65 Yes/No
Yes
Sub Category
Hardware
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
2.95 × 1.3 × 1.0 in
Shipping Dimensions
2.95 × 1.3 × 1.0 in
Weight
45 g (0.05 kg)
