Classic InstrumentsPart AX397YBLF★ Universal fitMade in US
Product Details
⭐
Key Features
Cylinder Head Temperature Gauge,Full Sweep 2 5/8" Diameter
AutoCross Yellow 2 5/8" Full sweep Cylinder Head Temp. gauge, with standard matte-black low step bezel and flat glass lens. See available bezel, lens, and pointer upgrades in the appropriate drop-down menus.
Cylinder Head Temperature Gauge,Full Sweep 2 5/8" Diameter
- Easy to read 2 5/8" size

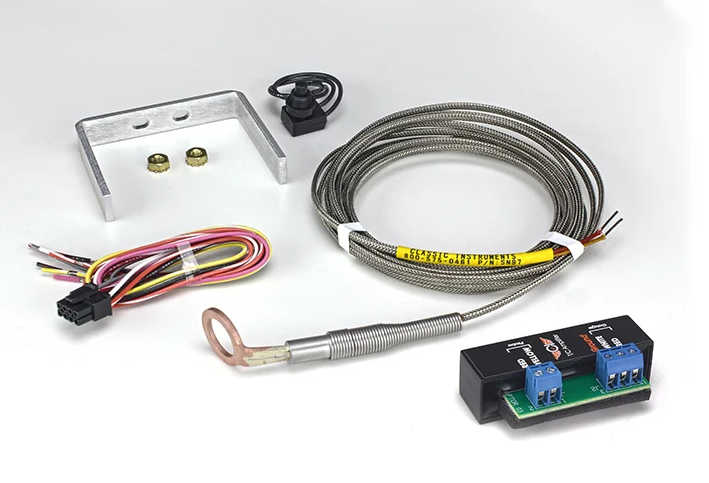

- Type K thermocouple, with 14mm copper lug and 10ft. stainles steel braided wire, included
- Thermocouple amplifier included
- Rugged air core movement for durability
- .5 - 4.5VDC analog datalogging output
- Full sweep provides increased accuracy
- A singleconnection wire harness
- Completely electric
- Push button calibration
- Configurable LED lighting, with choice of Warm White or Cool White lights
- Microprocessor technology for precision
- Integrated red warning light, illuminates entire gauge red when activated
- Warning light output for additional warning indicator lights
📖
About this product
Cylinder Head Temperature Gauge,Full Sweep 2 5/8" Diameter
📋
Product Specifications
Brand
Classic Instruments
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Body
Emission Code
6
Gauge Bezel Color
Matte Black
Gauge Diameter
2 5/8"
Gauge Face Color
Black/Yellow
Gauge Pointer Color
White
Part Type
Engine Cylinder Head Temperature Gauge
Product Type
Gauge
Prop 65 Yes/No
Yes
Sub Category
Instrument Panel
Sweep
Full Sweep
Temperature Range
100-600°F
Warning
California Proposition 65
Warranty
Manufacturer'S 7 Year Warranty
🛡️
Warranty & Compliance
Warranty
7 months · Manufacturer's 7 year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
9029908040
📐
Dimensions & Shipping
Product Dimensions
6.0 × 6.0 × 6.0 in
Shipping Dimensions
6.0 × 6.0 × 6.0 in
Weight
454 g (0.45 kg)
