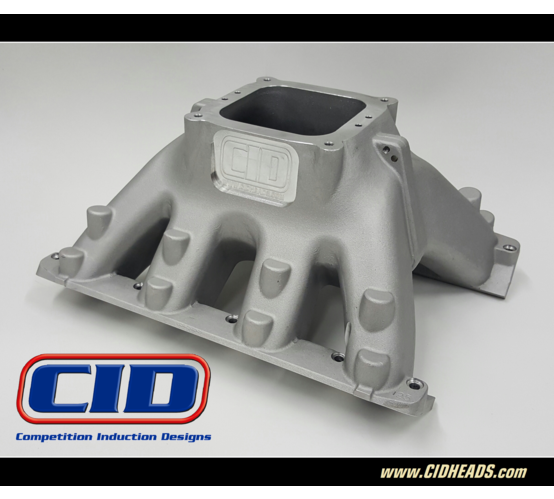

CID INTAKE MANIFOLD - BE 4.0 LS7 - 9.24" DECK - 4500 FLANGE - EFI - CIDBELS71PEFI
The CID Heads BE 4.0 LS7 intake manifold is designed for engine application aiming to make 600+ naturally aspirated horsepower using LS7 cylinder heads with a single plane intake. It has an overall height of 9.5" and unmatched HP producing characteristics amongst all cast single plane 4500 manifolds.
PRODUCT FEATURES AND BENEFITS:
•Fuel injected version comes with fuel rails and CNC fuel rail stands
•Designed for 600+ HP street, race, and marine applications
•Near equal length runners that are 4" in area at the plenum opening with enough material to increase area to 5.5" at plenum
•Designed to fit GM LS7 port openings
•2-piece design allows easy access for porting •Intake Manifold suits a 9.24" deck block
•Made in Ohio, USA
SPECIFICATIONS:
•2-piece version
•Comes with fuel rails and CNC fuel rail stands
•Suits EV1 fuel injectors
•4.0" CSA at plenum end of runner
•9.24" deck height
•4500 flange
•9 1/2" tall. Can be milled down to 9"
📋
Product Specifications
Brand
Competition Induction Designs (CID)
Btr Sku
CIDBELS71PEFI
Finish
NATURAL
Fuel Rails Included
NO
Height
20.000000
Length
24.000000
Manifold Fueling Style
EFI
Manifold Material
CAST ALUMINUM
Manifold Port Style
LS7 - RECTANGLE PORT
Part Type
Intake Manifold
Weight
35.000000
Width
20.000000
