APRPart ic100022✓ Fits 4 vehiclesMade in US
Product Details
⚙️
Vehicle Fitment & Compatibility
4 applicationsCompatible Engines
2.0L L4
View all 4 vehicle applications
Years
Make / Model
Submodel
Engine
2017–2020
Audi A4
2.0L L4
2017–2020
Audi A4 Quattro
2.0L L4
2018–2020
Audi A5 Quattro
2.0L L4
2018–2020
Audi A5 Sportback
2.0L L4
No applications match your search.
⭐
Key Features
Please note, this system does not fit ROW vehicles with the shorter crash bar support brackets.

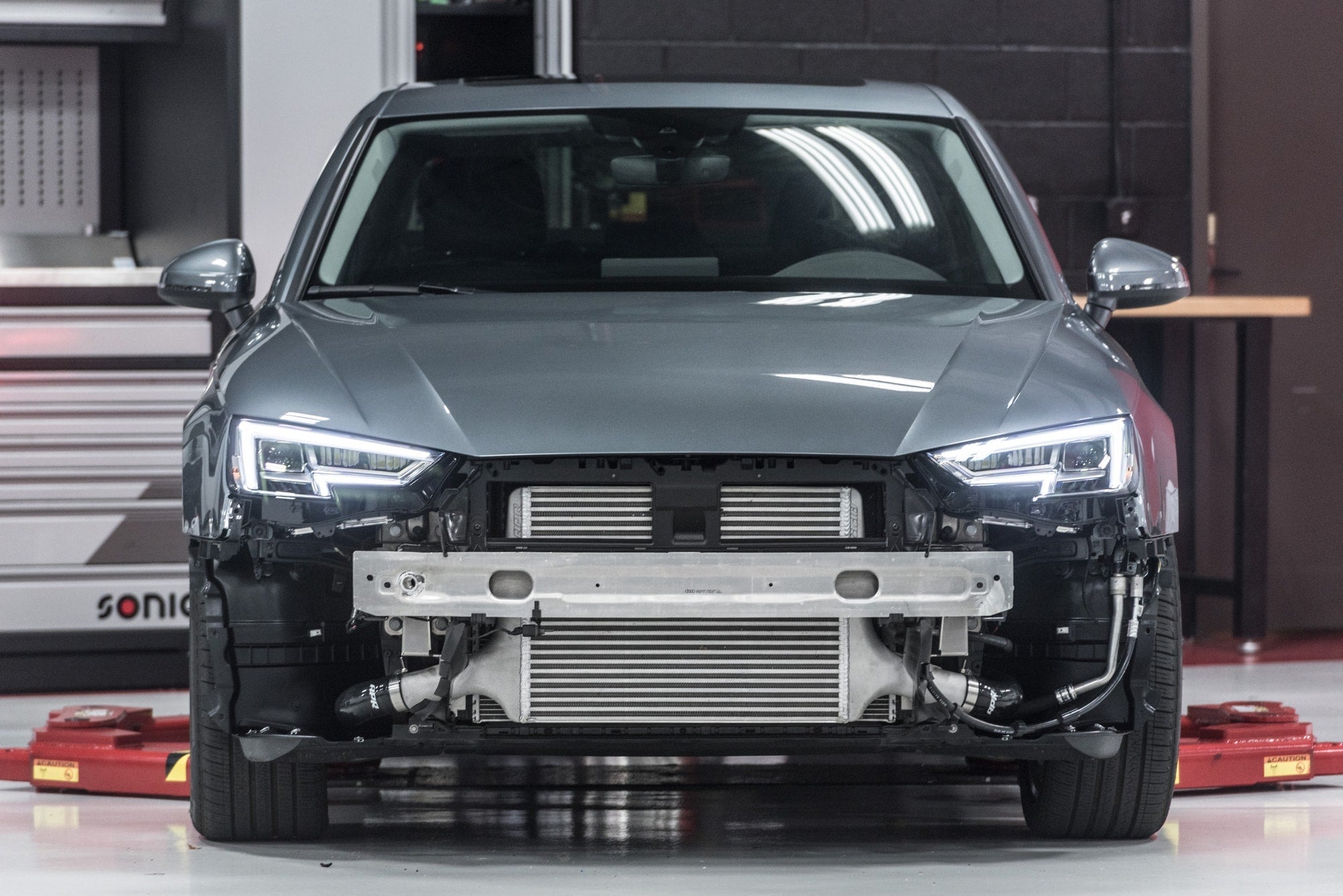

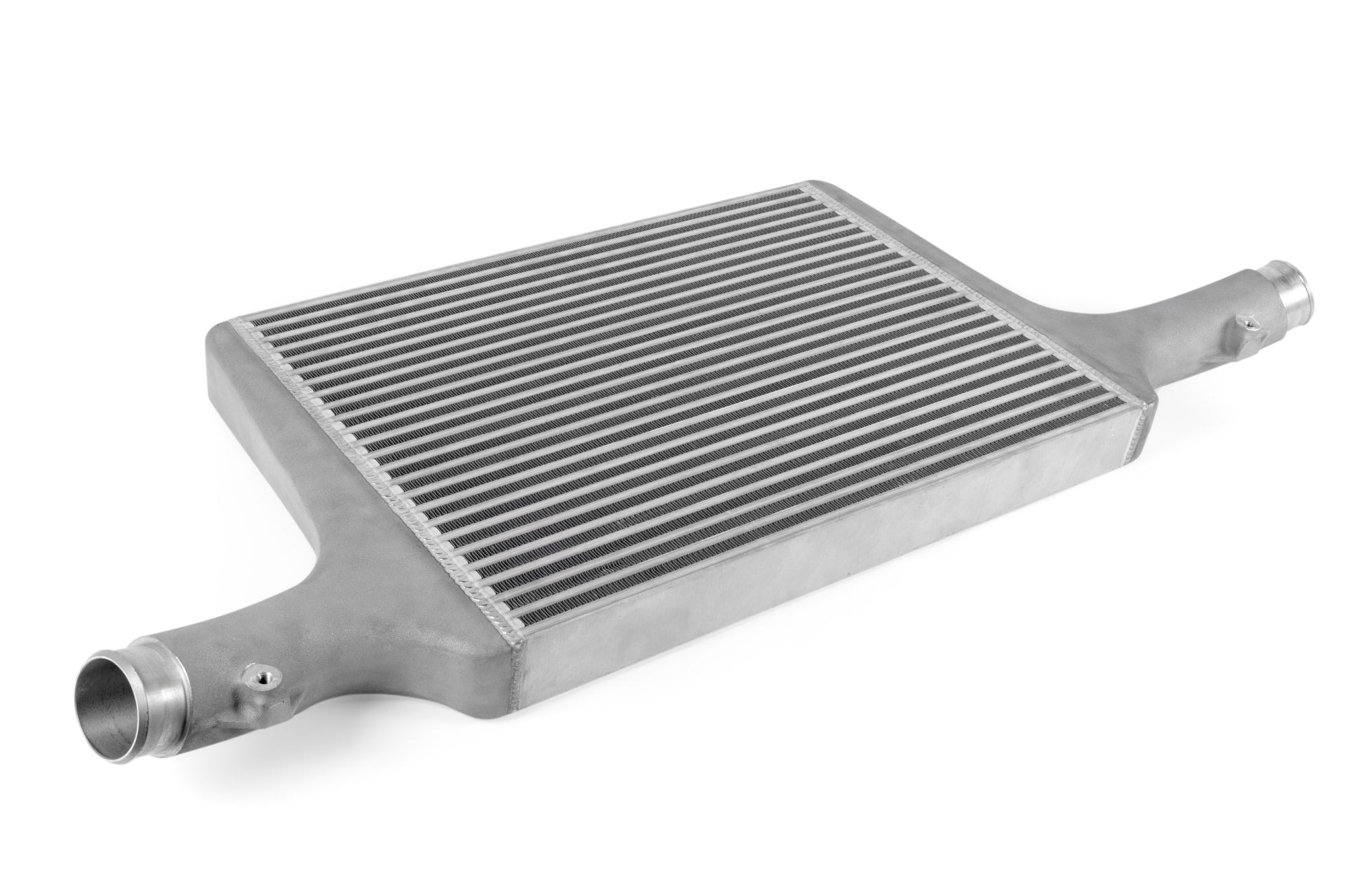

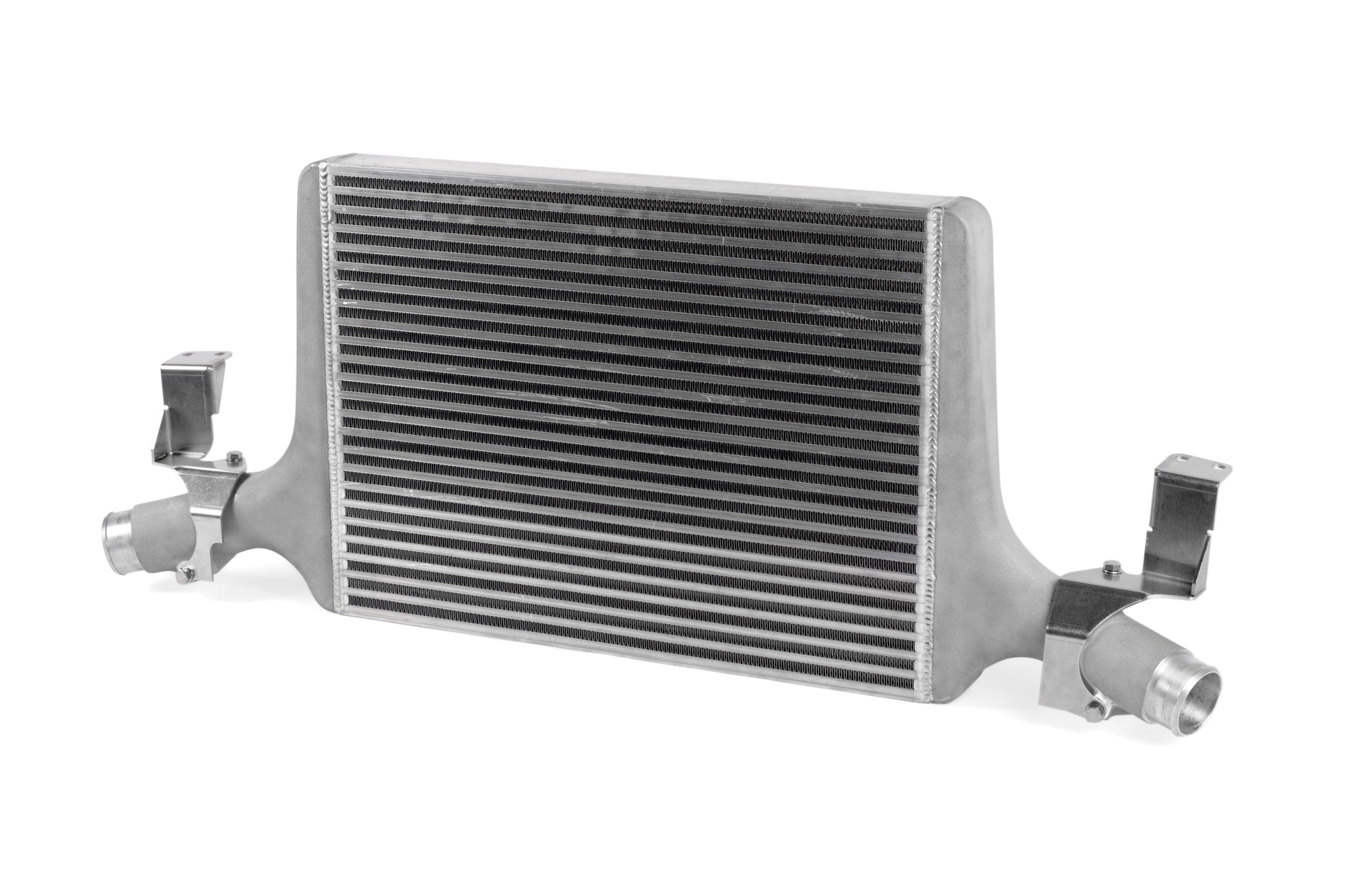

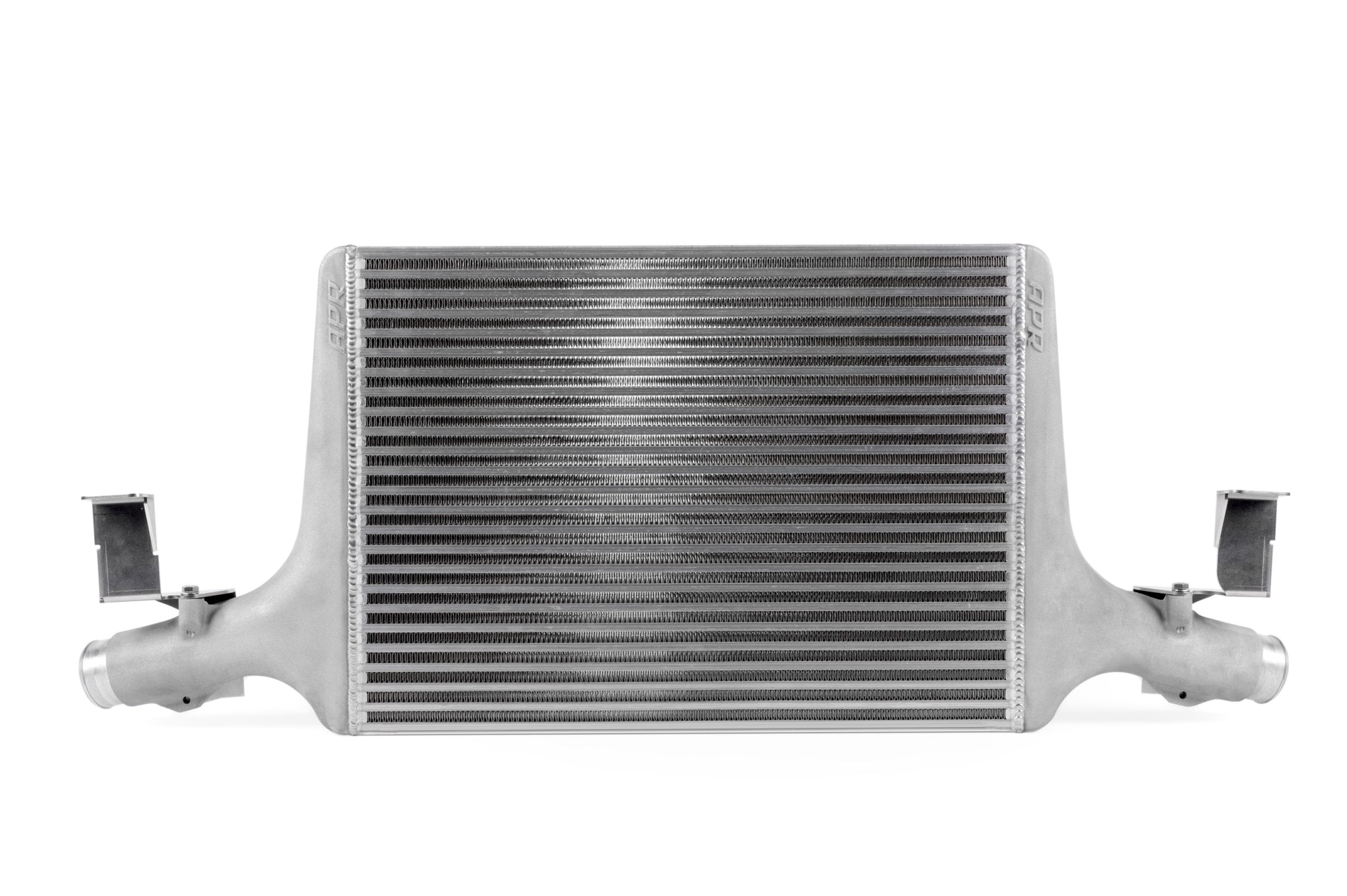

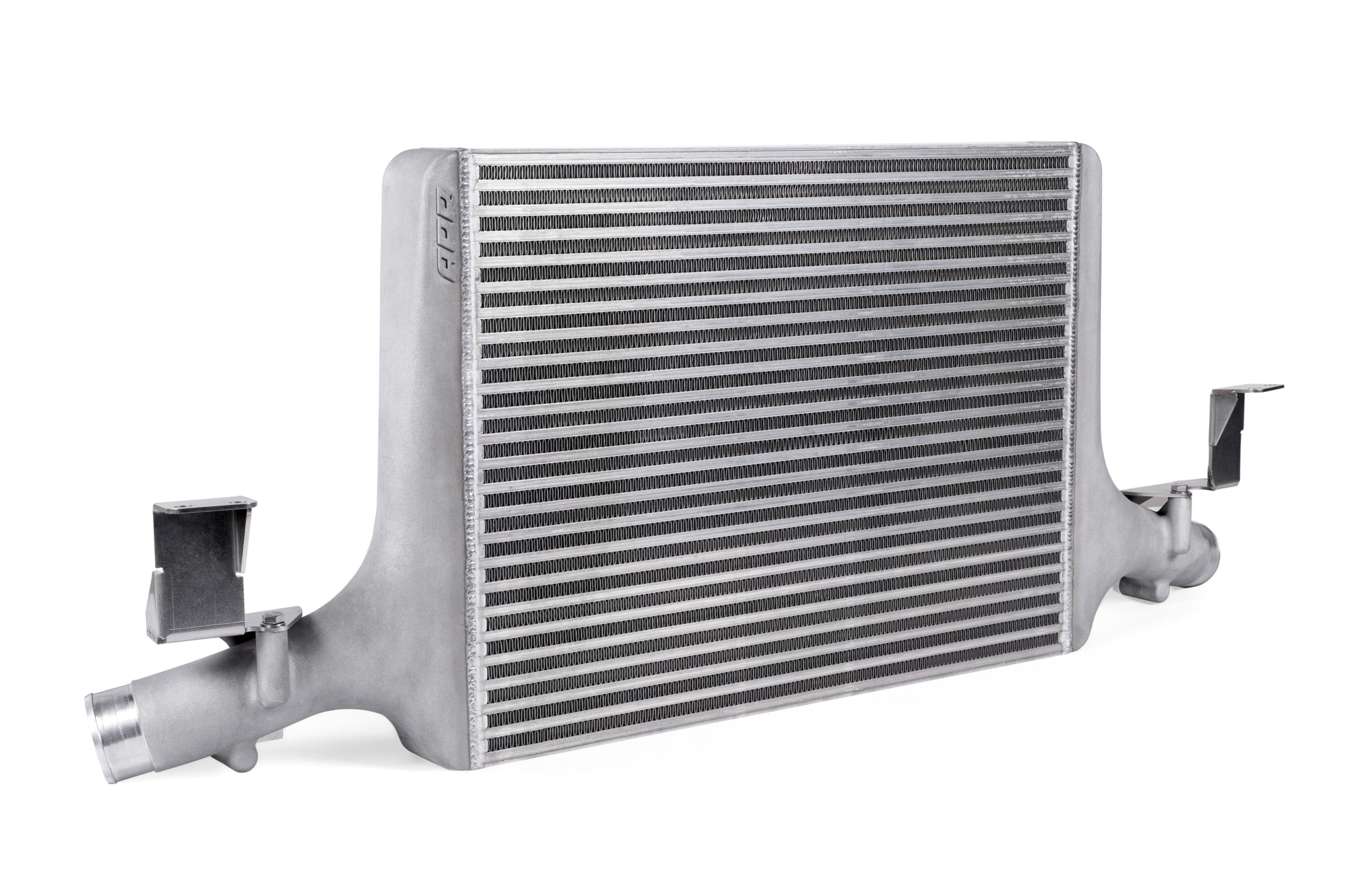

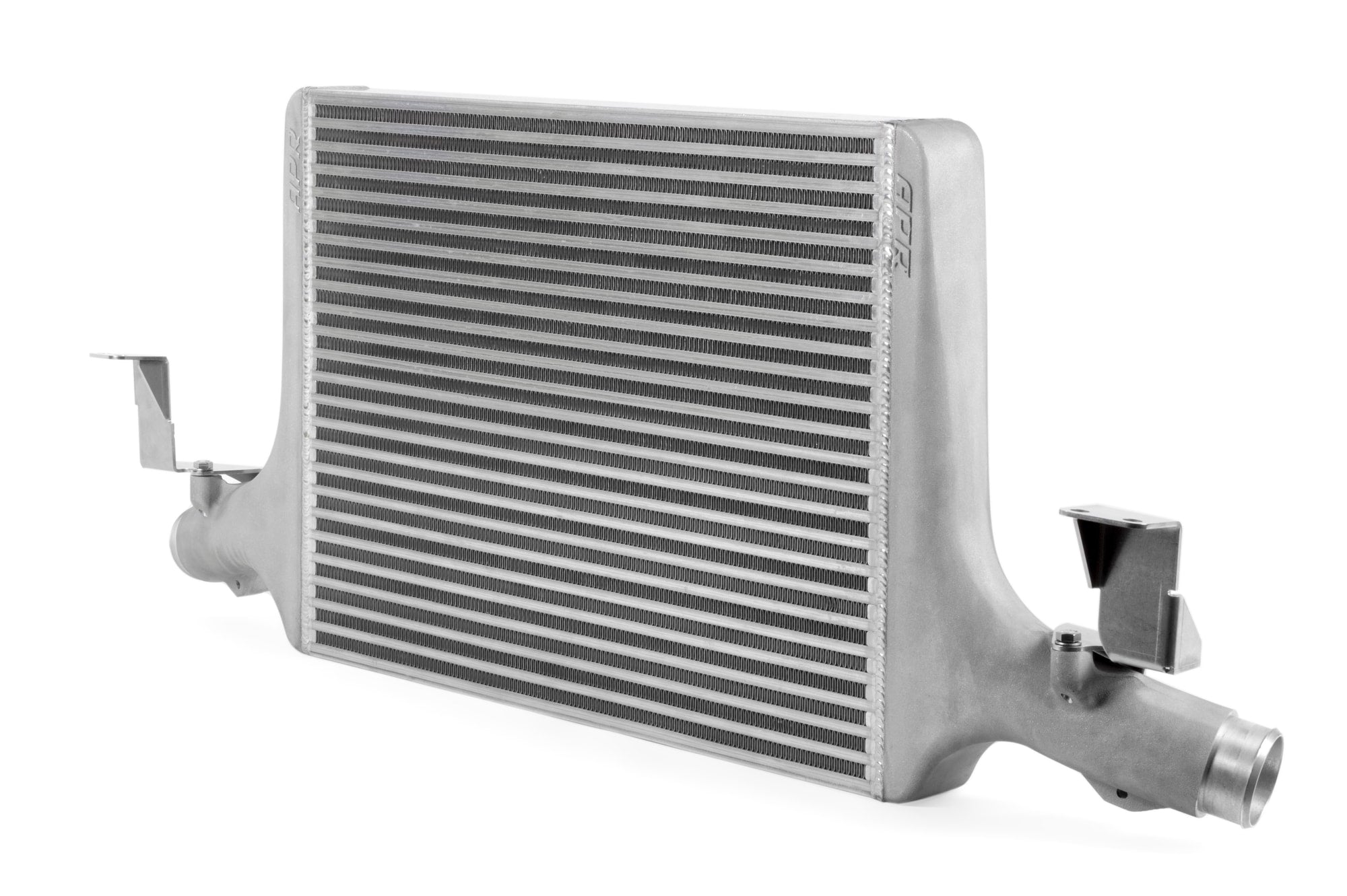

The APR Intercooler System is a massive front mounted upgrade that dramatically reduces intake air temperature (IAT), minimizes heat soak, and provides increased performance! The system is an easy to install, direct bolt-on design, that is recommended at every stage of performance.
Fits Audi A4 17-20, A4 Quattro 17-24, A5 Sportback 18-24
- Dramatically lowers intake air temp (IAT)
- Increases HP while minimizing power-robbing heat soak!
- Retained as high as 45 AWHP compared to the factory system!

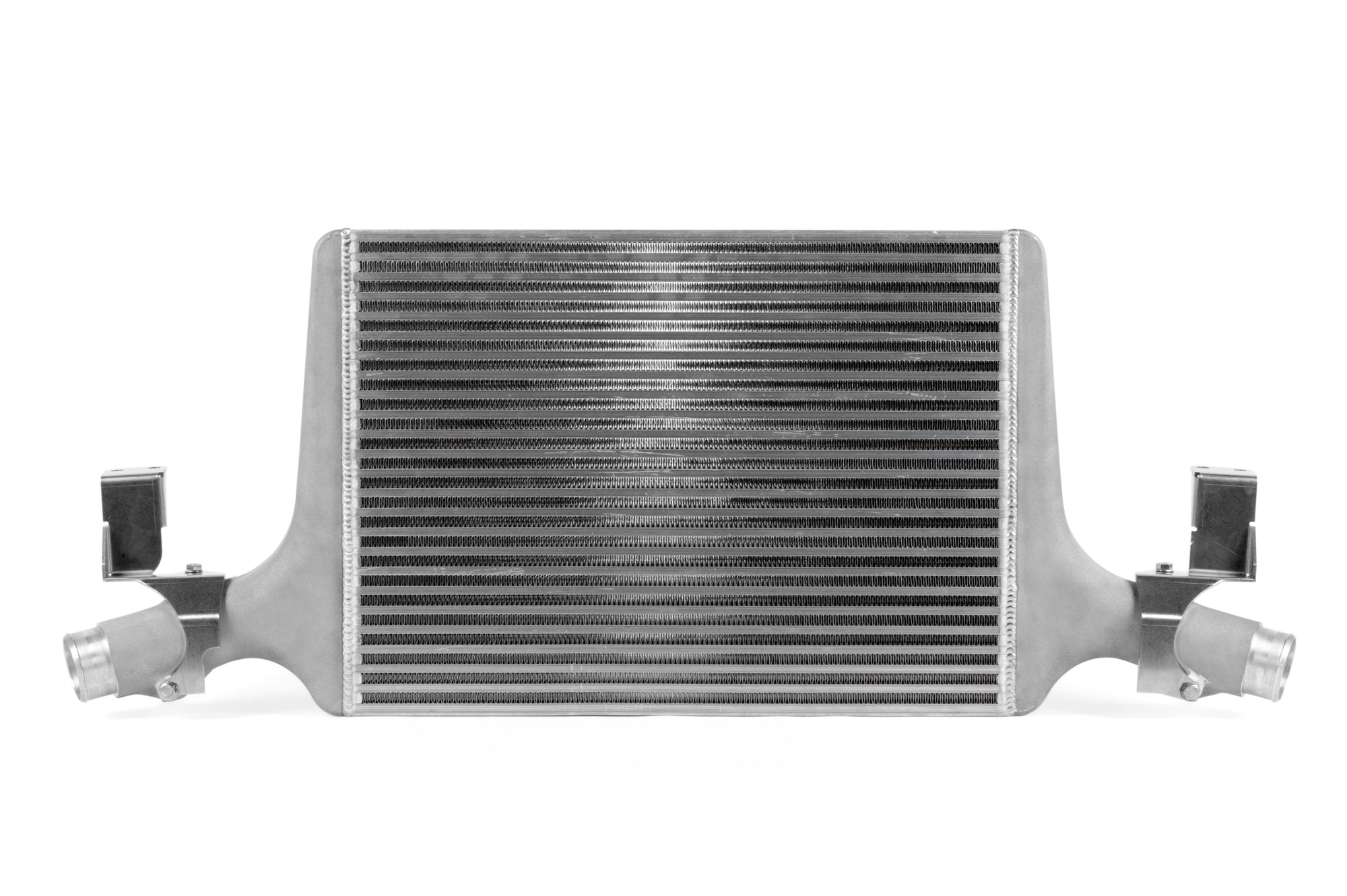

- Massive frontal surface area and core volume
- 3.125" x 5.75" x 28.25" - 162.4 in² front. & 507.62 in³ volume - OEM
- 2.250" x 16.2" x 22.00" - 356.4 in² front. & 801.90 in³ volume - APR
- Highly effective core design

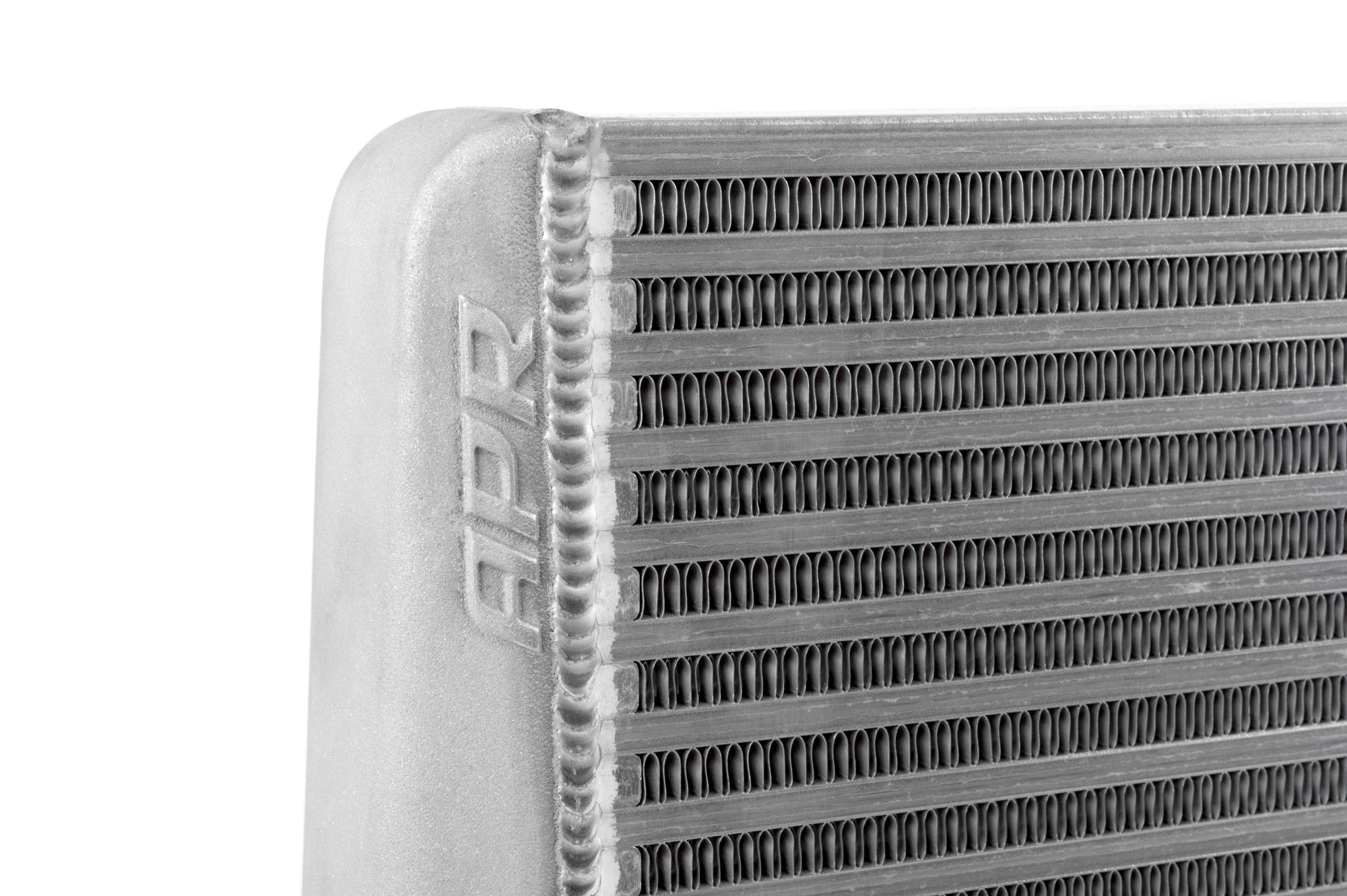

- Bar-and-plate core with staggered and louvered fins.
- Rigorous testing determined core style, fin density, and size.
- Low pressure drop + highly effective cooling = high performance!

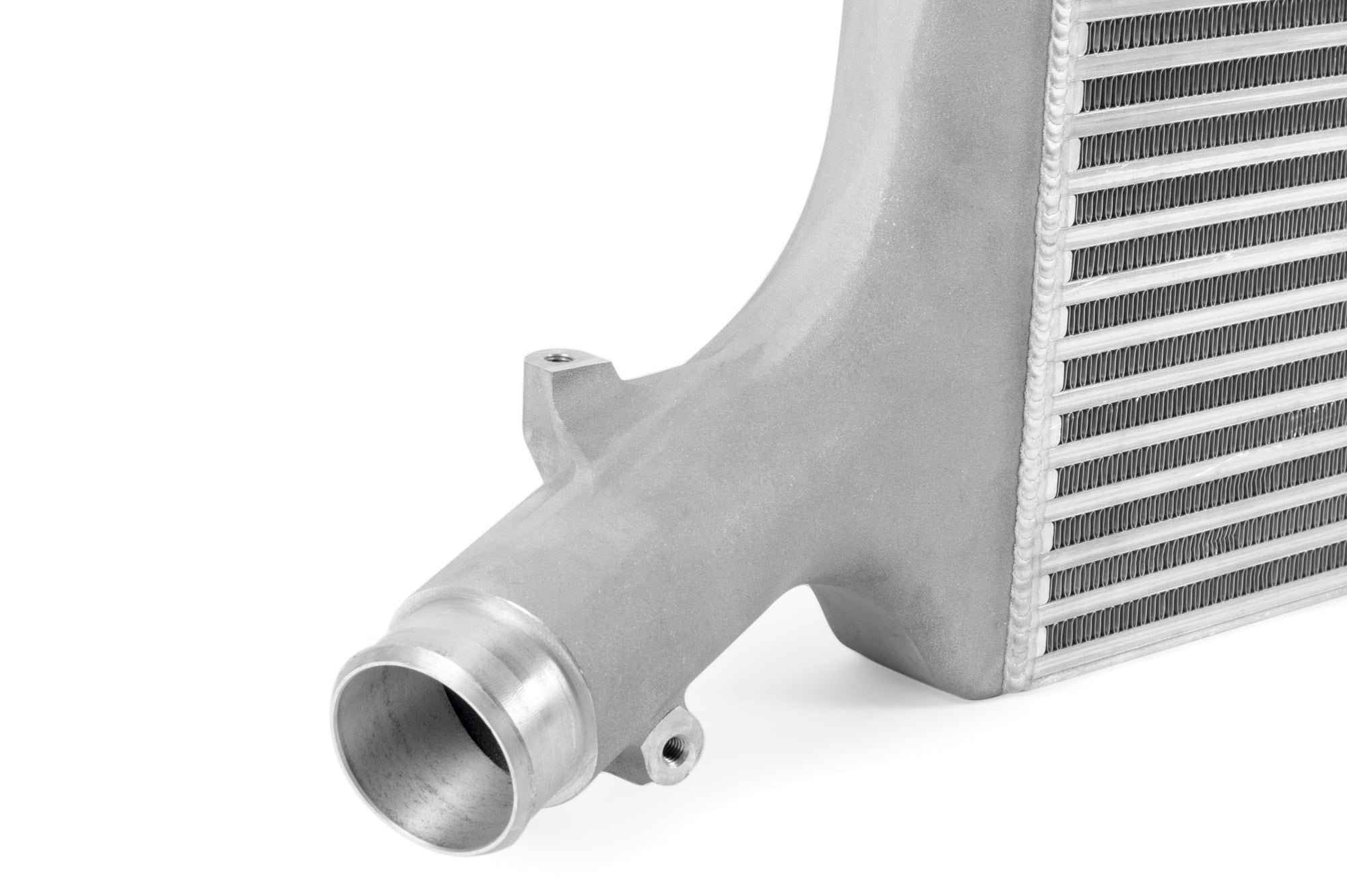

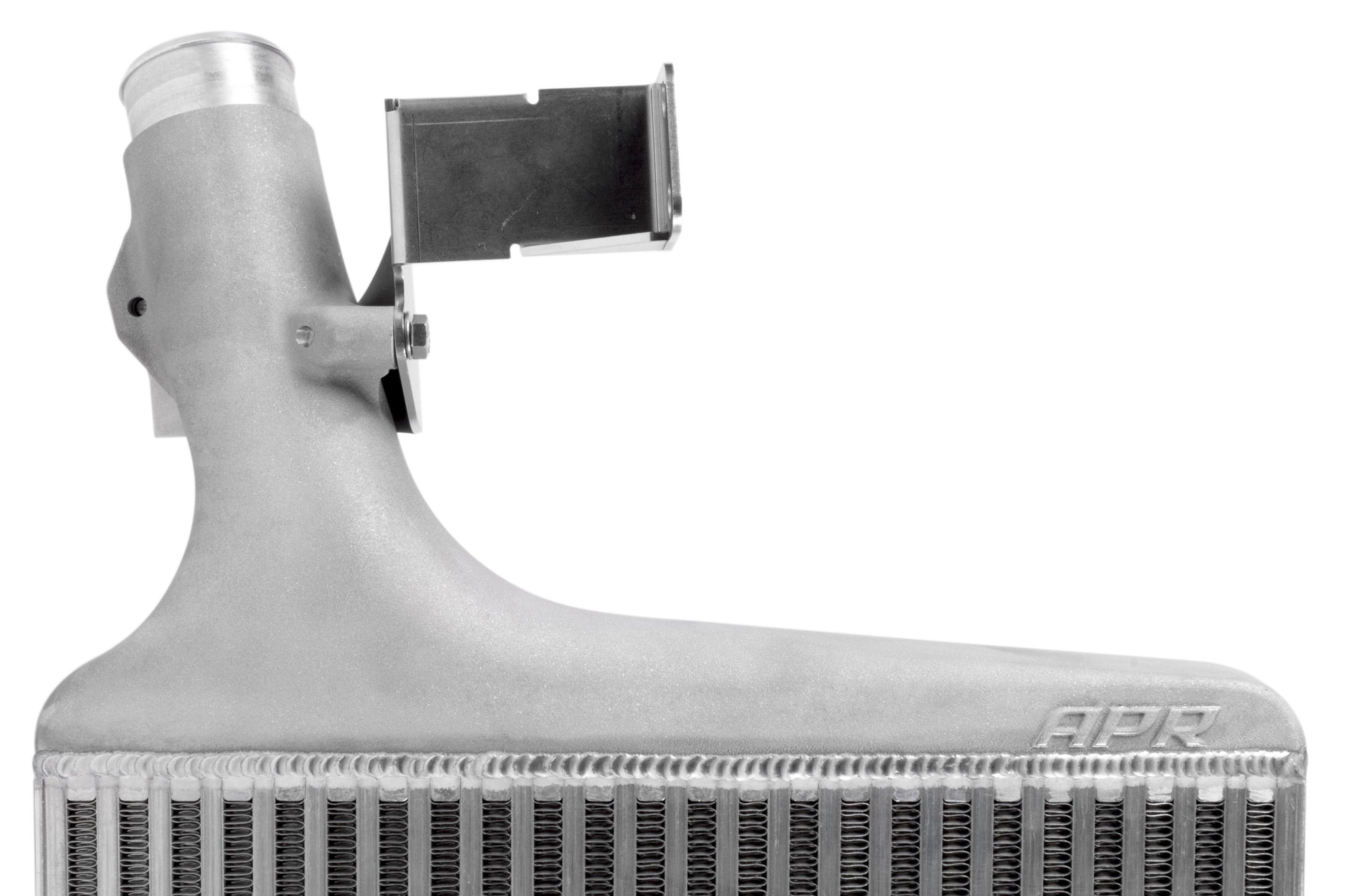

- Smooth cast end tanks
- Engineered for low turbulence/restriction and maximum flow
- Organically shaped to promote airflow across entire core.
- Pressure tested to prevent power robbing boost leaks.

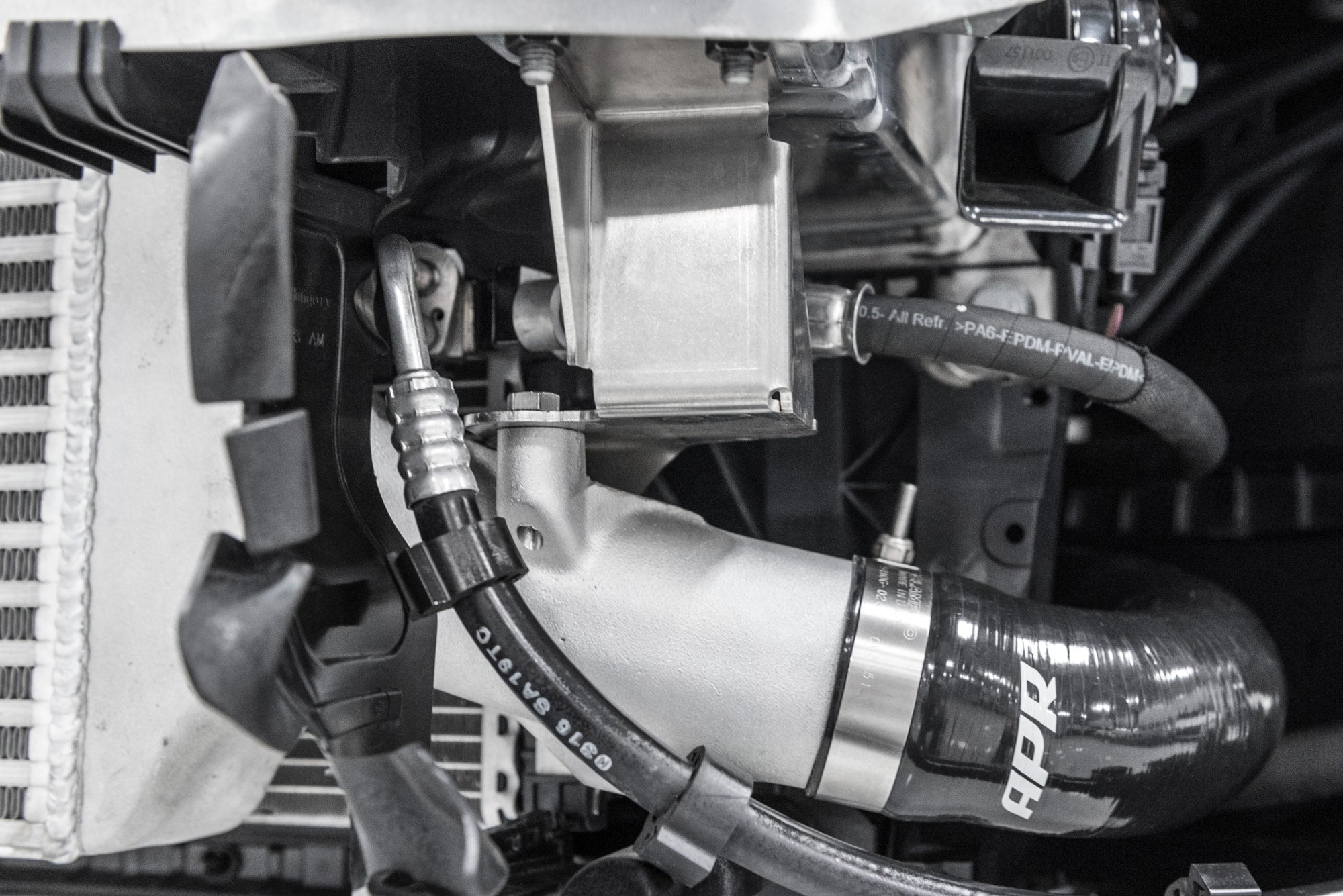

- Silicone inlet and outlet hoses
- Multi-ply silicone design with internal wire reinforcement, fluorosilicone internal protective layer and APR's EZ-Flow stepped design.
- Clampco T-bolt clamps
- Strong, stainless-steel Clampco T-Bolt clamps provide better clamping for increased protection against hose slippage and boost leaks.

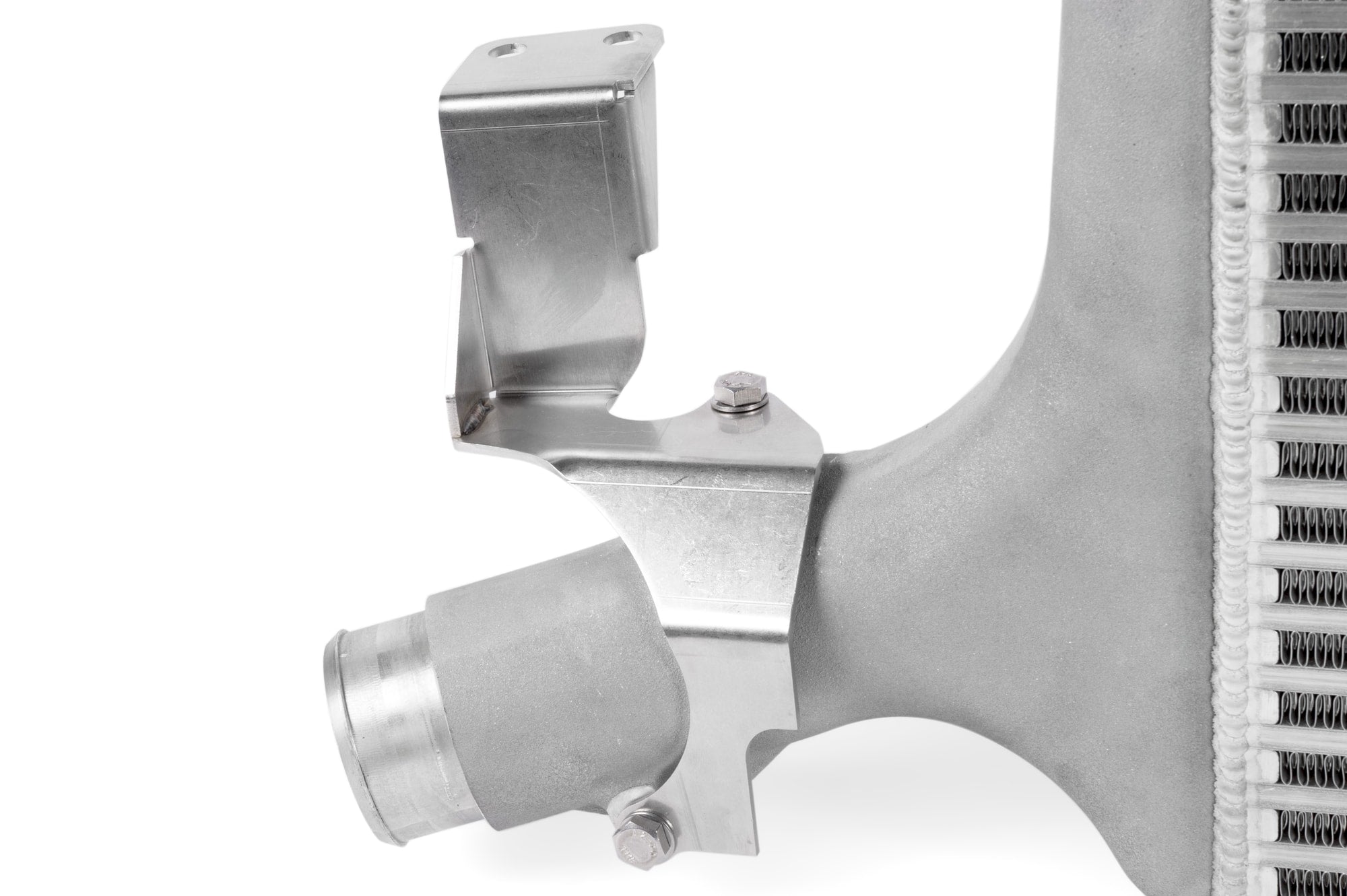

- Billet MAP housing
- Precision CNC-machined for secured sensor placement with an attractive matte-black anodized finish.

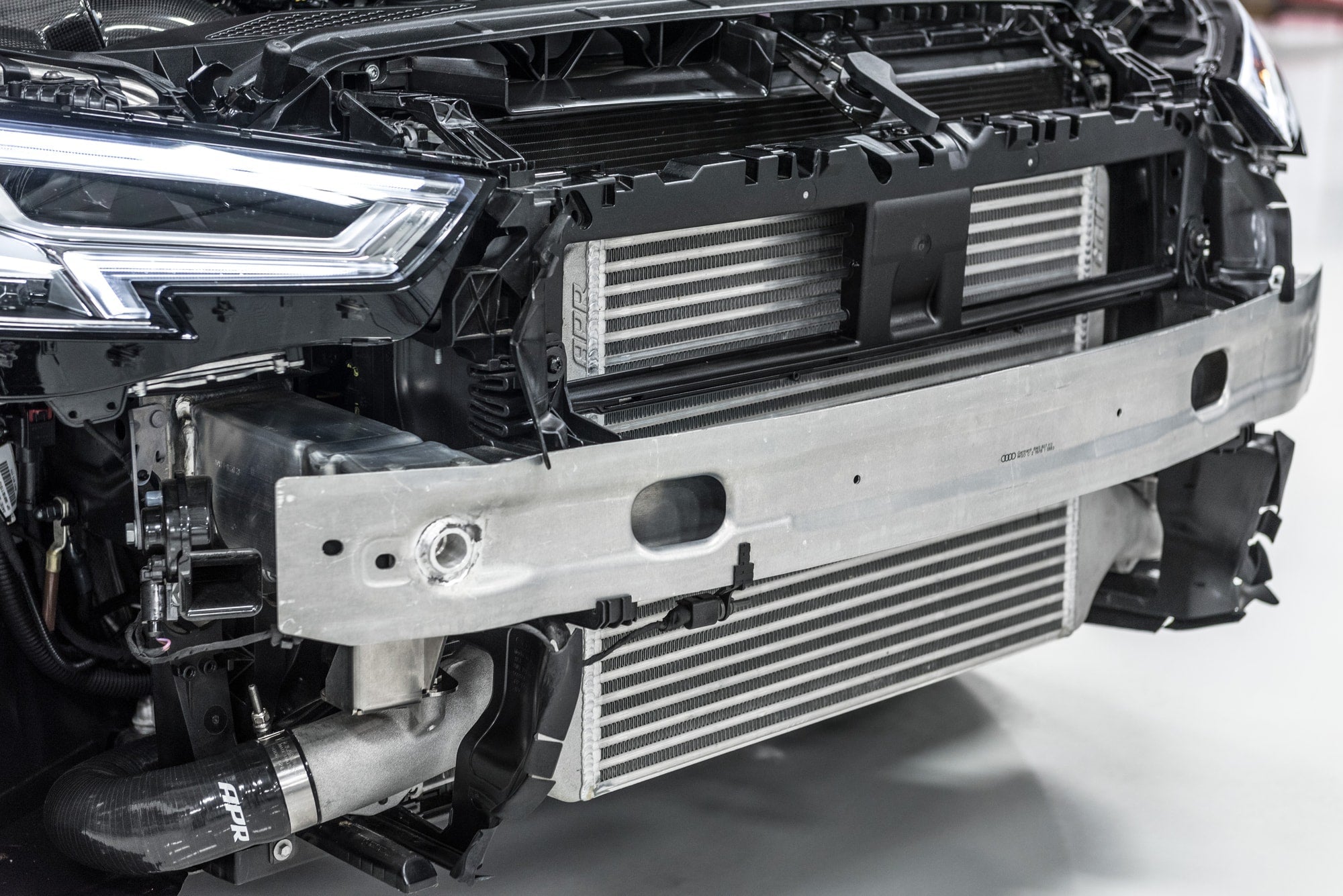

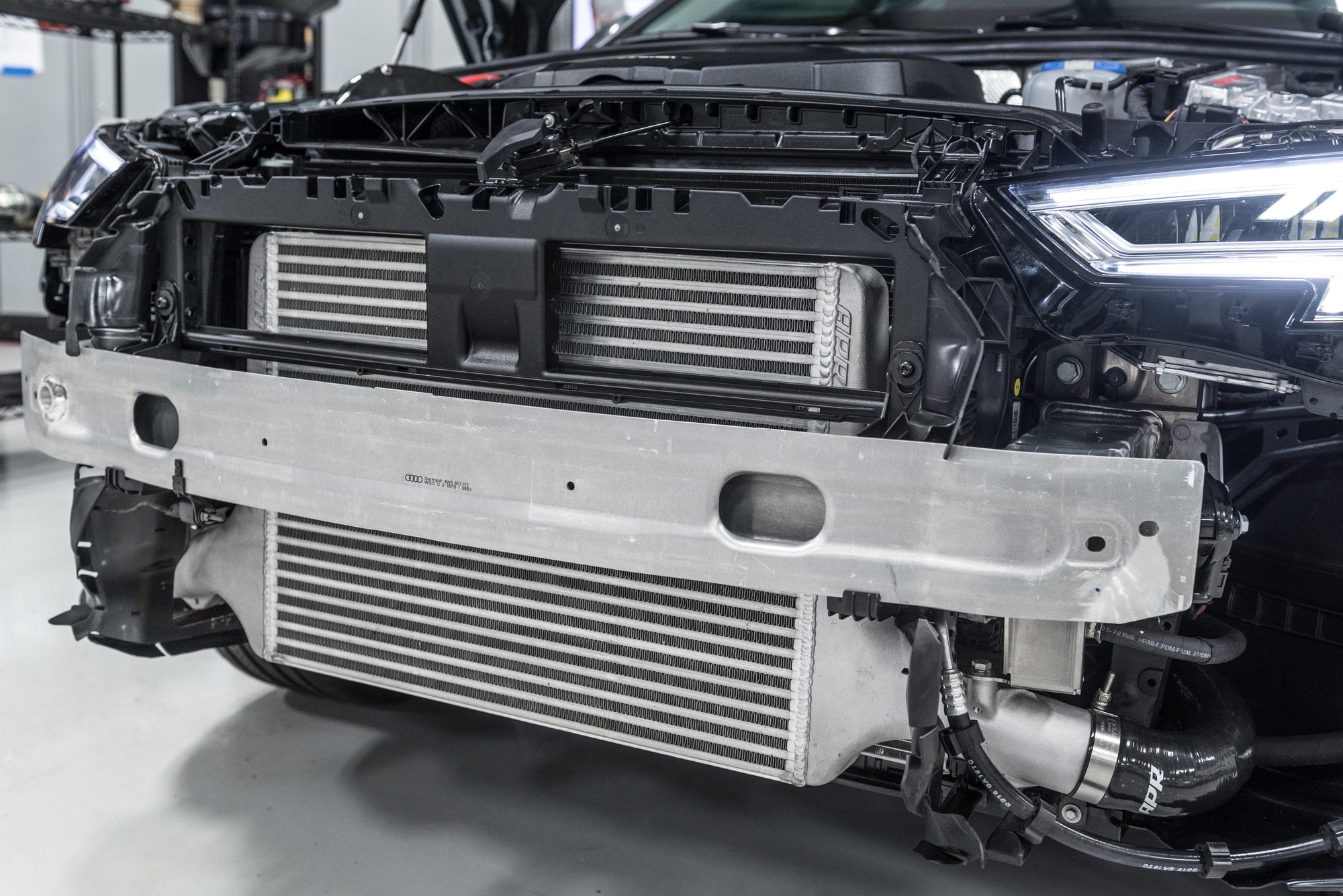

- Easy to install
- Simple bolt-on install with no trimming or drilling necessary!
- Designed by engineers with lasers
- With the best equipment and smartest engineers, it just works!
📖
About this product
Fits Audi A4 17-20, A4 Quattro 17-24, A5 Sportback 18-24
📋
Product Specifications
Brand
APR
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Belts and Cooling
Color
Silver / Natural
Cooler Type
Air to Air
Core Frontal Area
357.50
Core Height
16.25
Core Type
Bar and Plate
Core Volume
804.38
Core Width
2.25
Direct Fit
Yes
Emission Code
7
End Tank Construction
Cast
End Tank Material
356-F Aluminum
Hose Clamp Type
T-Bolt
Hose Type
Silicon
Part Type
Intercooler
Product Type
Intercooler Systems
Prop 65 Yes/No
Yes
Sub Category
Radiators
Version
B9 2.0T (A4/A5)
Warning
California Proposition 65
Welding Type
TIG
🛡️
Warranty & Compliance
Warranty
1 months · Warranted to be free from defects in the materials and workmanship prior to installation
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
7
HS Code
8708917550
📐
Dimensions & Shipping
Product Dimensions
44.6 × 22.1 × 9.3 in
Shipping Dimensions
44.6 × 22.1 × 9.3 in
Weight
18620 g (18.62 kg)
