Baer Brake SystemsPart 4142070FRMade in US
Product Details
⭐
Key Features
Fits Rear Ends w/Dana 60 or Mopar 8-3/4" Car Housing Ends

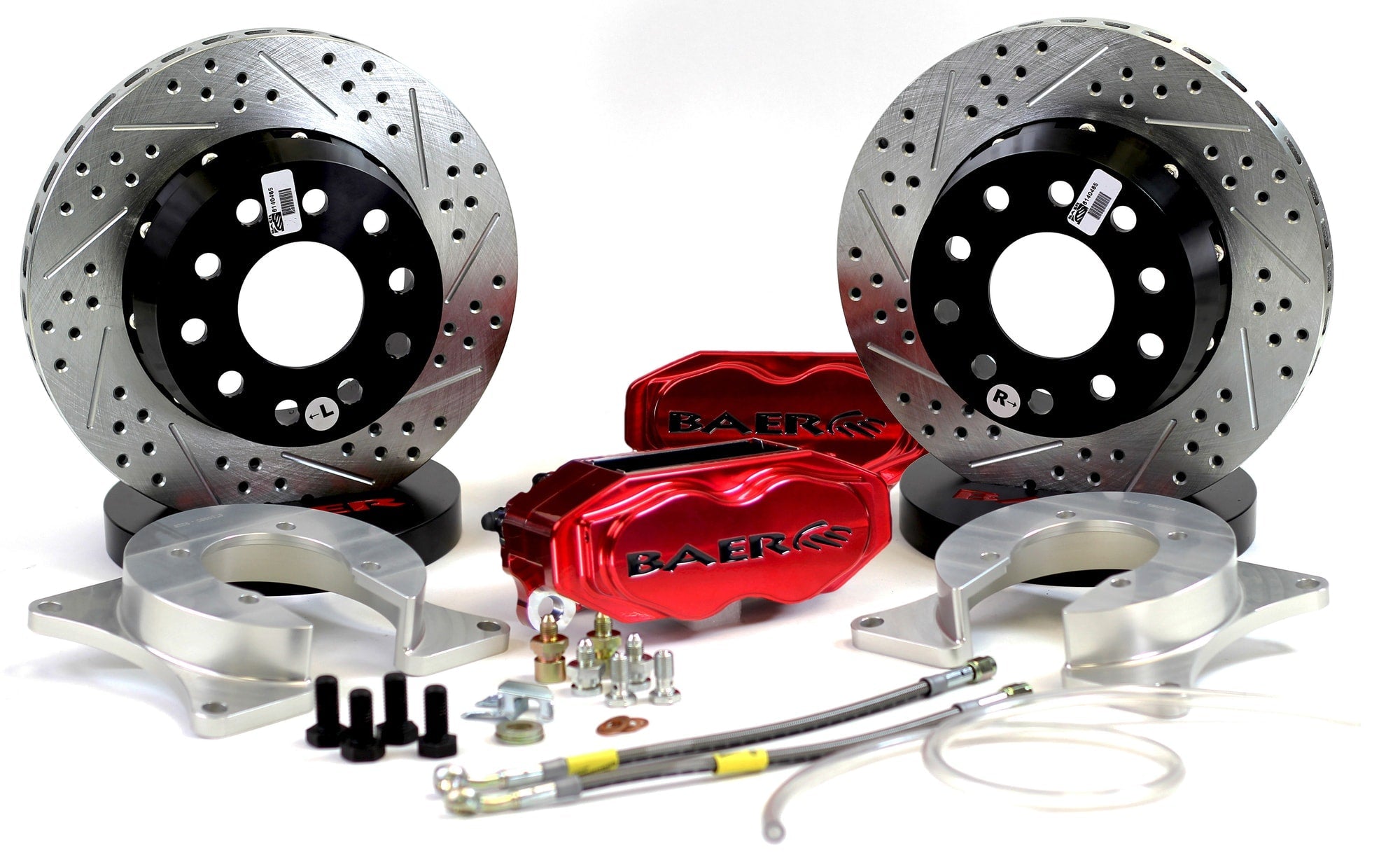

This system features the 4-piston, S4 caliper mounted to a 11" 2 piece slot, drill, zinc plated rotor. The S4 caliper has D.O.T compliant dust and weather seals and uses the popular DR1 or HB100 pad type. With 1.75” pistons, the S4 Deep Stage caliper will offer additional clamping force over the standard S4 caliper. While this usually desired in a drag race application, it may not be ideal for street use. Rotors are pre-assembled with NAS high grade stainless hardware. Mounting brackets and hardware are also included. The SS4+ Deep Stage system is the first drag race system designed specifically for heavy, fast cars that might also see street use. The 11" SS4+ Deep Stage system fits most 15” and larger wheels. *** NOTE: This system was designed for racing only. If used on the street (due to brake bias change) be sure to spend some time to make sure adjusted correctly. ***
Fits Rear Ends w/Dana 60 or Mopar 8-3/4" Car Housing Ends
- All the benefits of our larger brake systems just in a smaller package to fit 15" wheels
- 2-Piece, 4-Piston, S4 Caliper Manufactured in Phoenix, AZ
- Hard Anodized Aluminum Pistons, Stainless Steel Abutments and Noise Suppression Clips
- Powder Coated Finish
- 2-Piece Slot, Drilled, Zinc-Plated Rotor
- Comes Standard with a High Friction Pads Designed for Drag Race Applications
- Billet Aluminum Hats, Drilled for 5/8" Wheel Studs
📖
About this product
Fits Rear Ends w/Dana 60 or Mopar 8-3/4" Car Housing Ends
📋
Product Specifications
Automotive Item Grade
Performance
Axle Flange
Dana 60
Axle
Rear
Brand
Baer Brakes
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Caliper Color
Fire Red
Caliper
S4
Category
Brake
Country
US
Disc Brake Caliper (Rear) Piston Quantity
4
Disc Brake Caliper (Rear) Type
Fixed

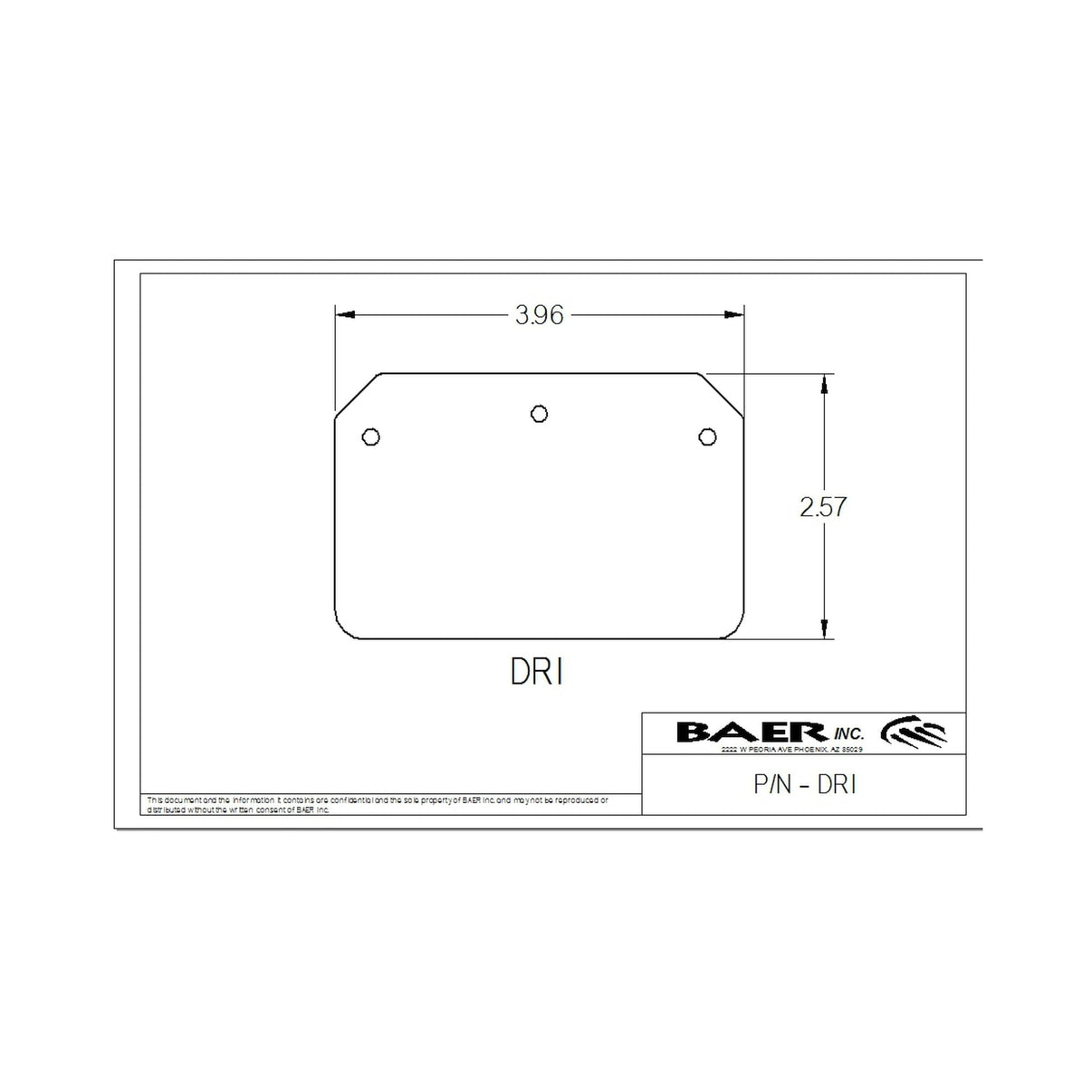

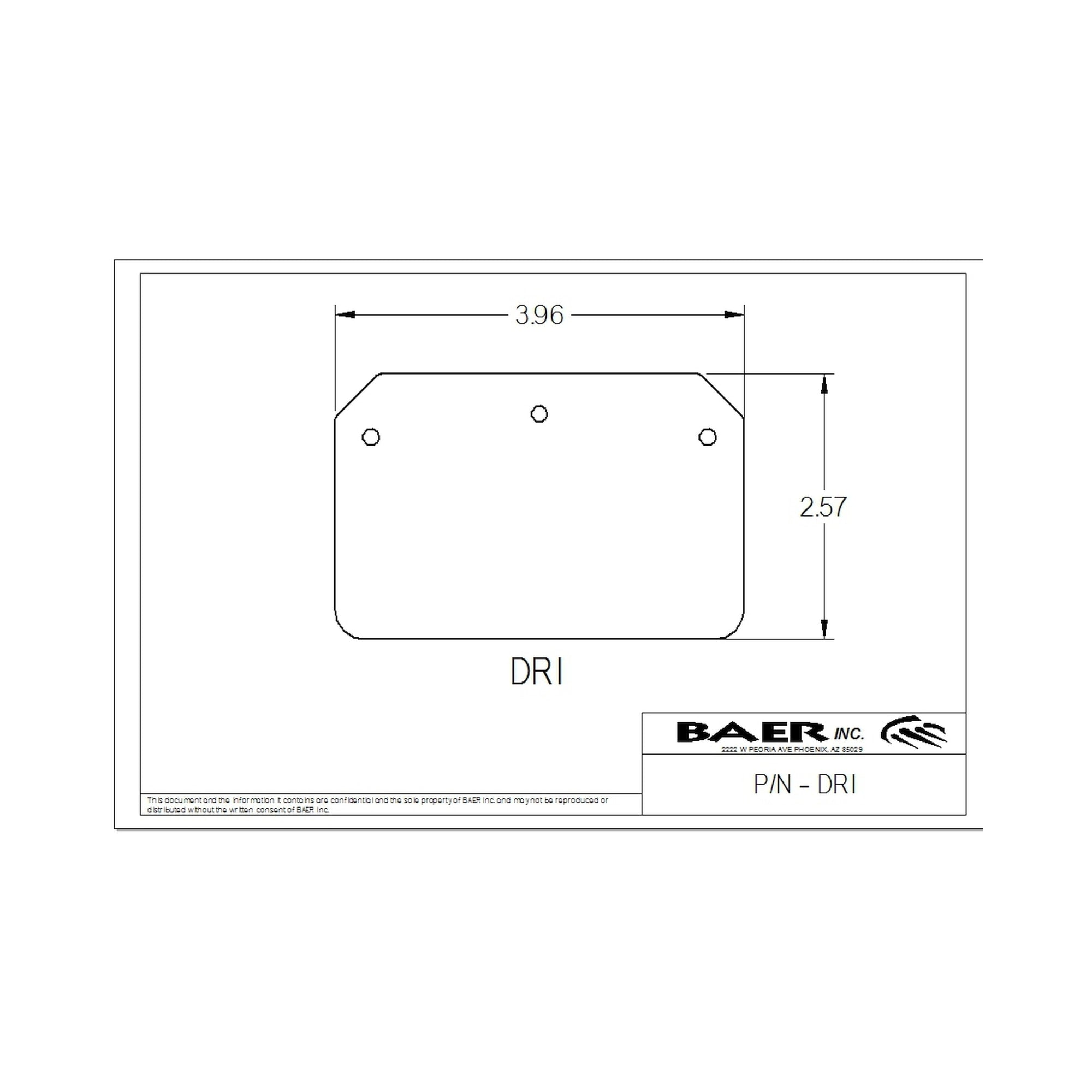

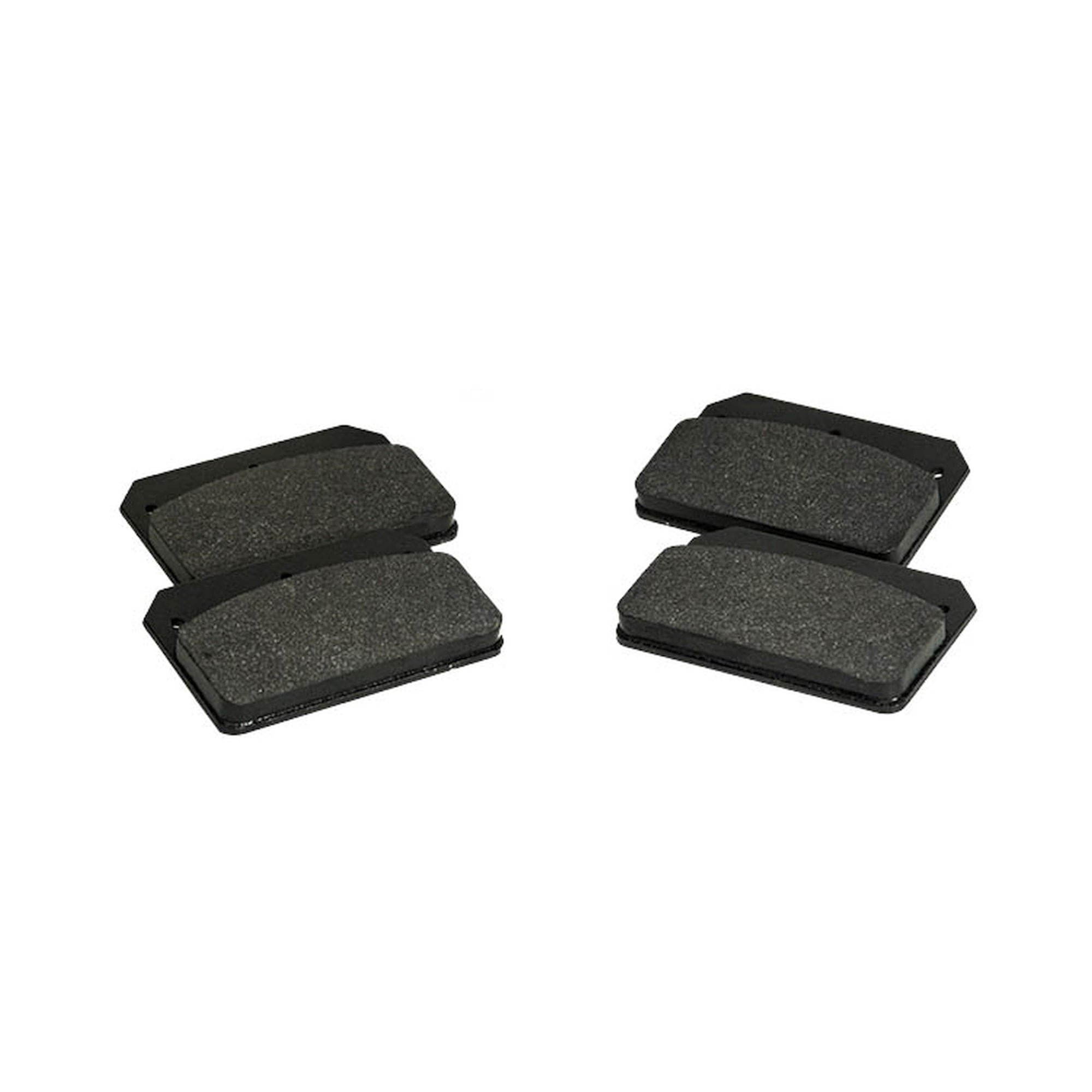

Disc Brake Pad FMSI Number
DR1
Disc Brake Rotor (Rear) Construction
Vented
Disc Brake Rotor (Rear) Outside Diameter
11.000
Emission Code
4
Emission Code
6
Export Description
Brake Components
Fitment Notes
Fits standard and Green Bearing conversions
Friction Material Composition
Semi-metallic
Grade Type
Performance
Hose Material
Hoses Not Included
HTS Code
8708300050
Lug Count
5 Lug
Min Wheel Dia (verify Using Template)
15
Part Type
Disc Brake Upgrade Kit
Product Line
SS4+ Deep Stage Rear
Product Type
11 Inch SS4+ Deep Stage Rear Brake Kit
Prop 65 - Long Label
WARNING
Prop 65 Yes/No
Yes
R Or Cr)
CR
Rotor Thickness
1.020
Rotor Type
2-Piece
Solid Or Vented Type Rotor
Vented
Sub Category
Service Kits
Surface Type
Slotted
System Notes
No Park Brake
Template
S125A
Title
SS4+ Deep Stage Rear
Warning
California Proposition 65
Warranty
Manufacture Limited 1 Year Warranty Warranty
Wheel Lug/Bolt Pattern
5x4.50/5x4.75
🛡️
Warranty & Compliance
Warranty
1 months · Manufacture Limited 1 Year Warranty Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
6
HS Code
8708300050
📐
Dimensions & Shipping
Product Dimensions
15.0 × 15.0 × 8.0 in
Shipping Dimensions
15.0 × 15.0 × 8.0 in
Weight
21772 g (21.77 kg)
