Earl's PerformancePart 216erlMade in SE
Product Details
⭐
Key Features

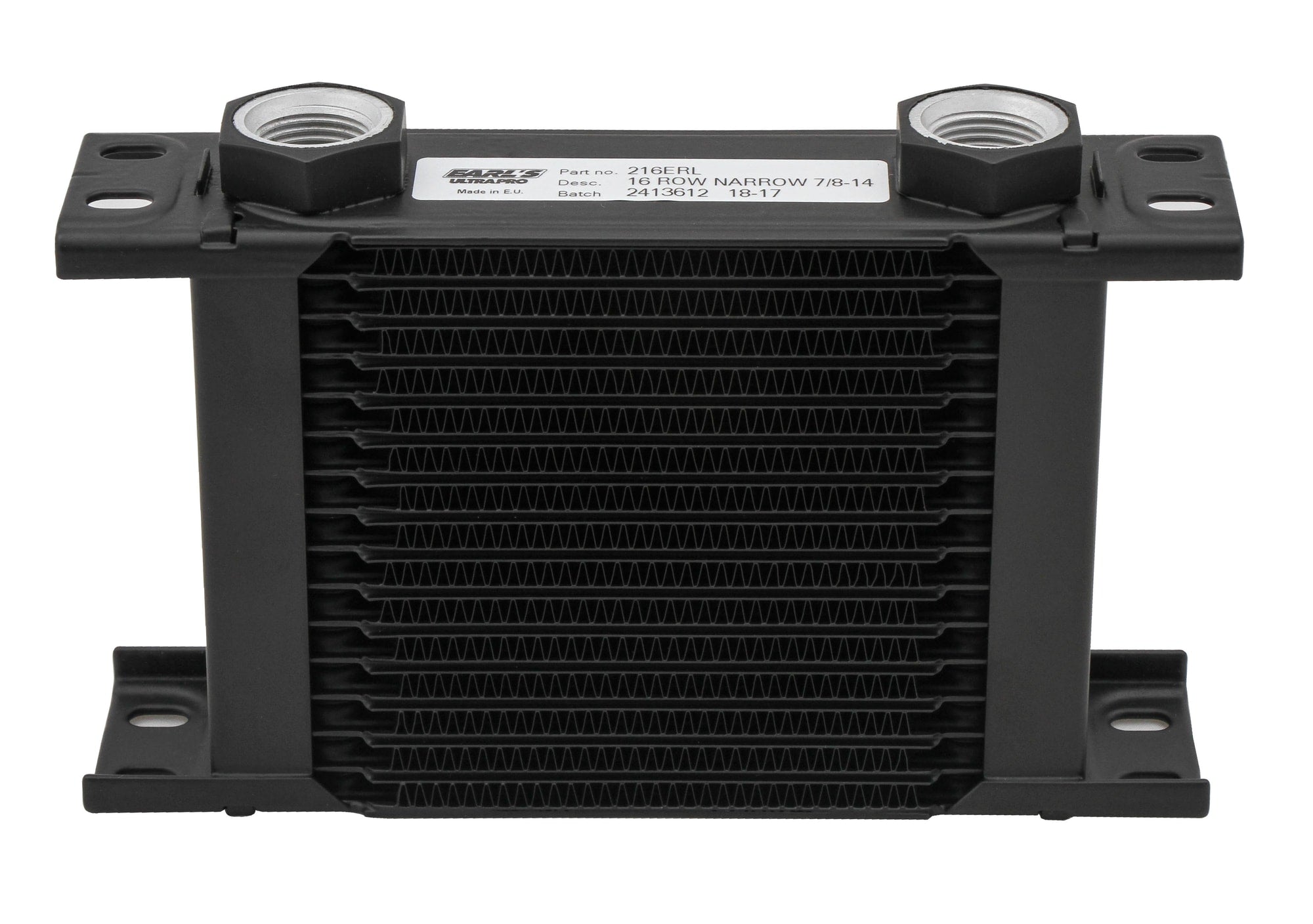

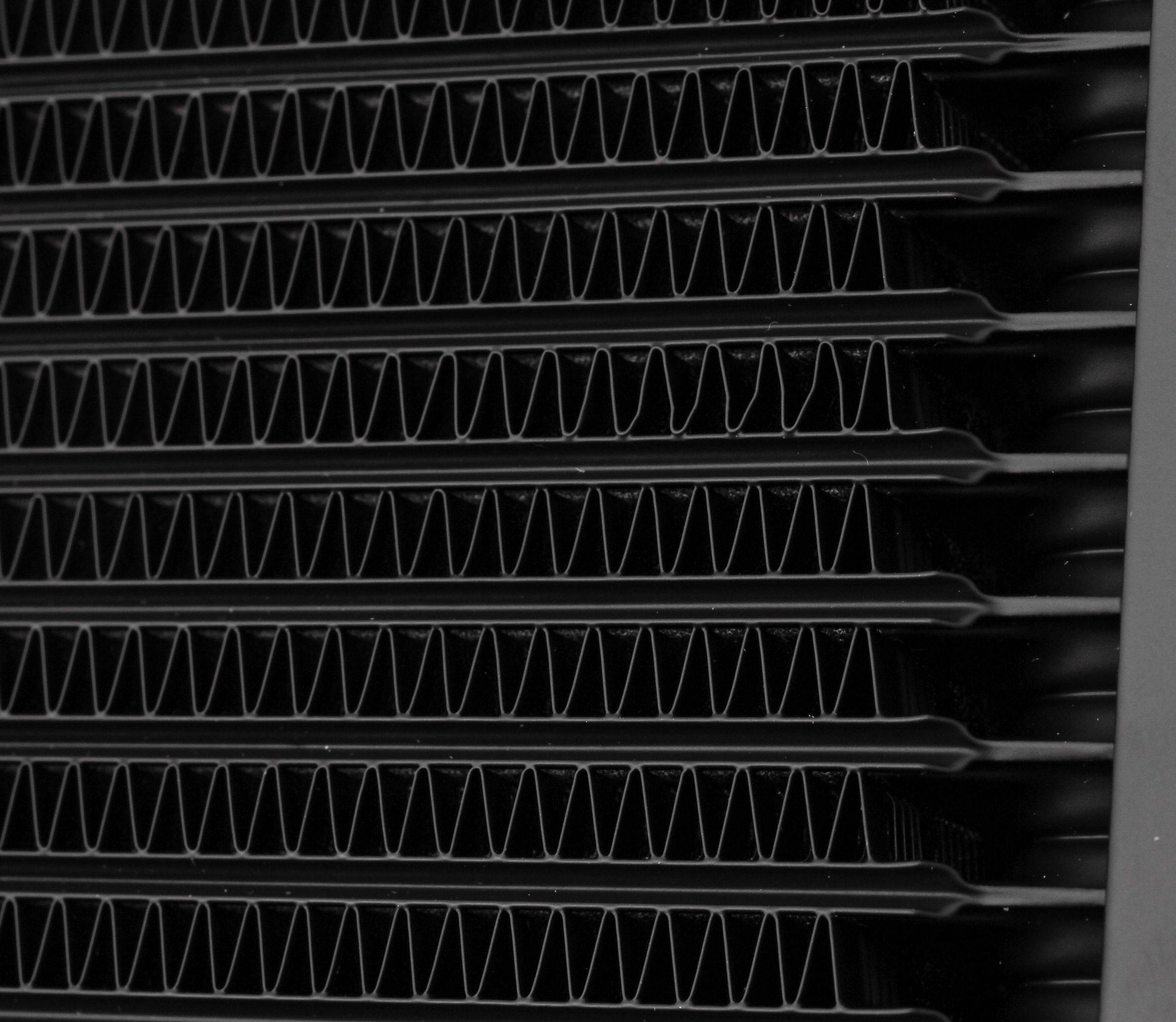

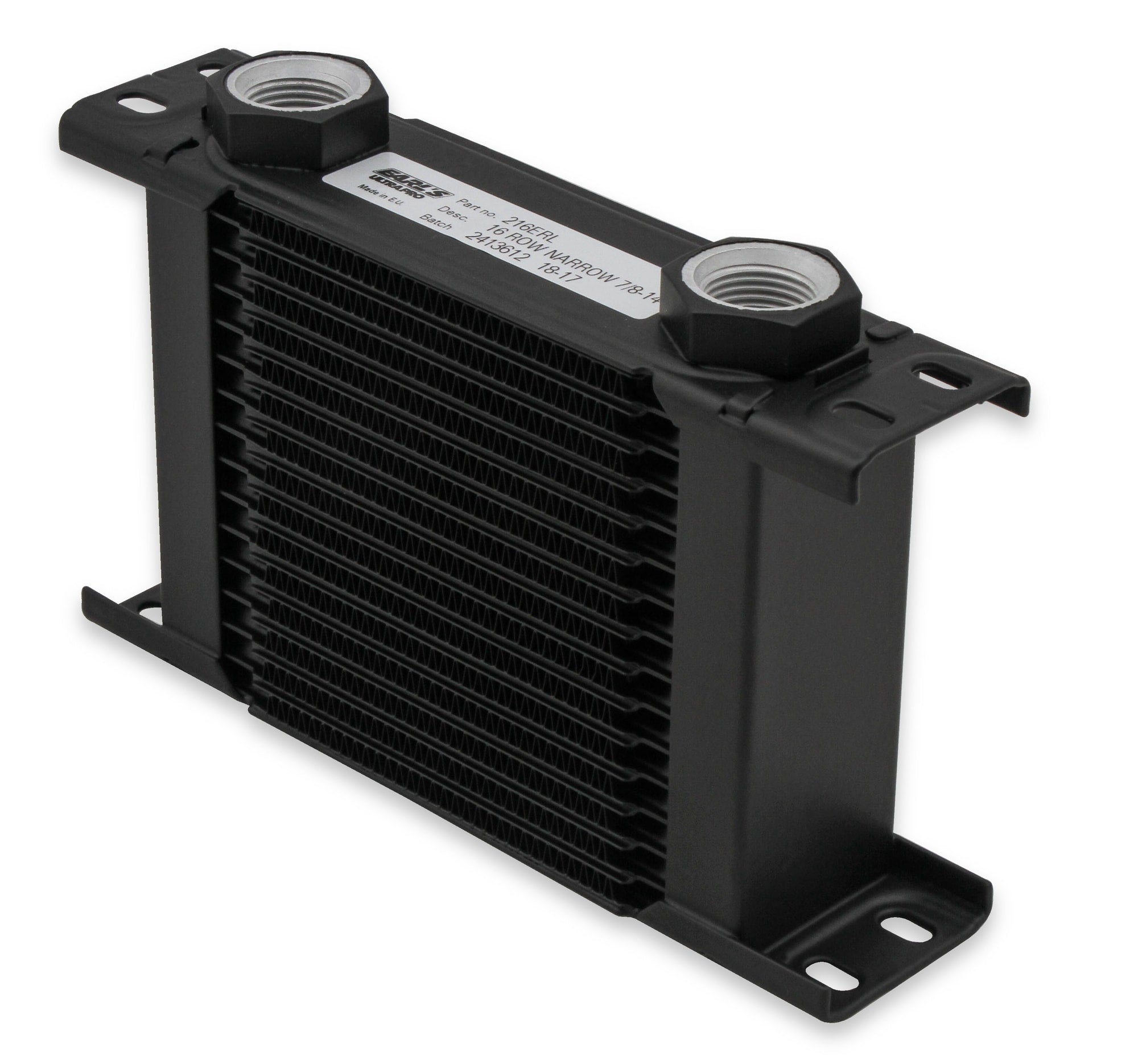

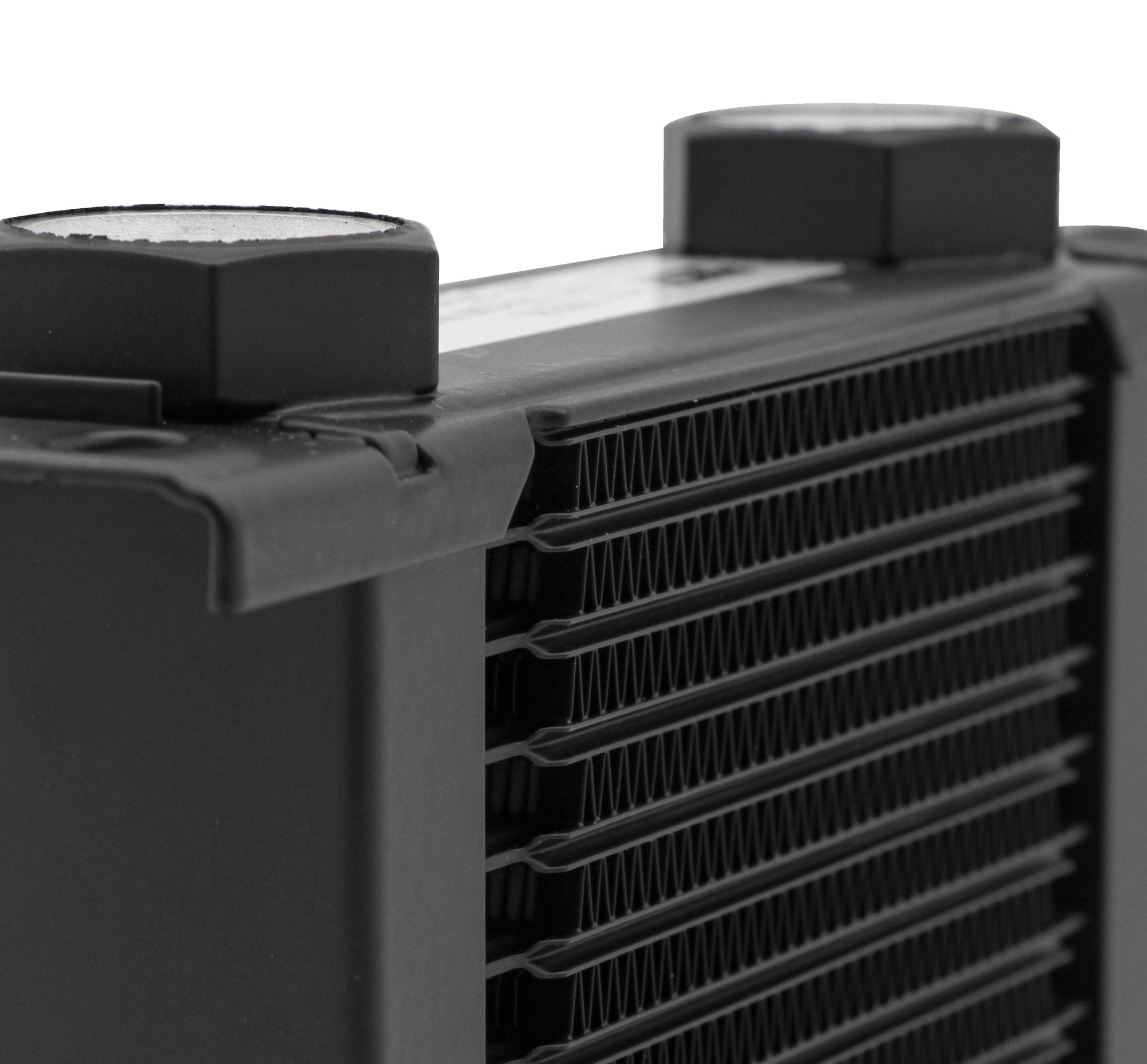

16 Row Oil Cooler Core Black
Earls new premium quality UltraPRO oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These coolers are available in 30 sizes for all applications (i.e. engine oil cooler, transmission cooler, power steering cooler, valve spring cooler, differential / gearbox cooler, etc.). Three fan pack style coolers are now also available w/ a premium cooling fan & shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Earls will also now stock coolers w/ -16 AN male flares brazed on the cooler for applications that require larger ports for additional oil flow. Black Finish.
16 Row Oil Cooler Core Black
- Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers
- Made Using State of the Art Brazing Technology
- Highly Efficient Design w/ Minimal Pressure Drop
- Extremely Durable Lightweight Aluminum Construction w/Black Finish
- (3) Width Options - Narrow 8.25, Wide 12.99 and Extra Wide 15.94 Overall Width
- (10) Height Options - w/ 7 to 60 Rows (2.09 to 18.31 Tall)
- (3) Fan Pack Style Coolers Include the Oil Cooler, Spal Cooling Fan(s) & Shroud

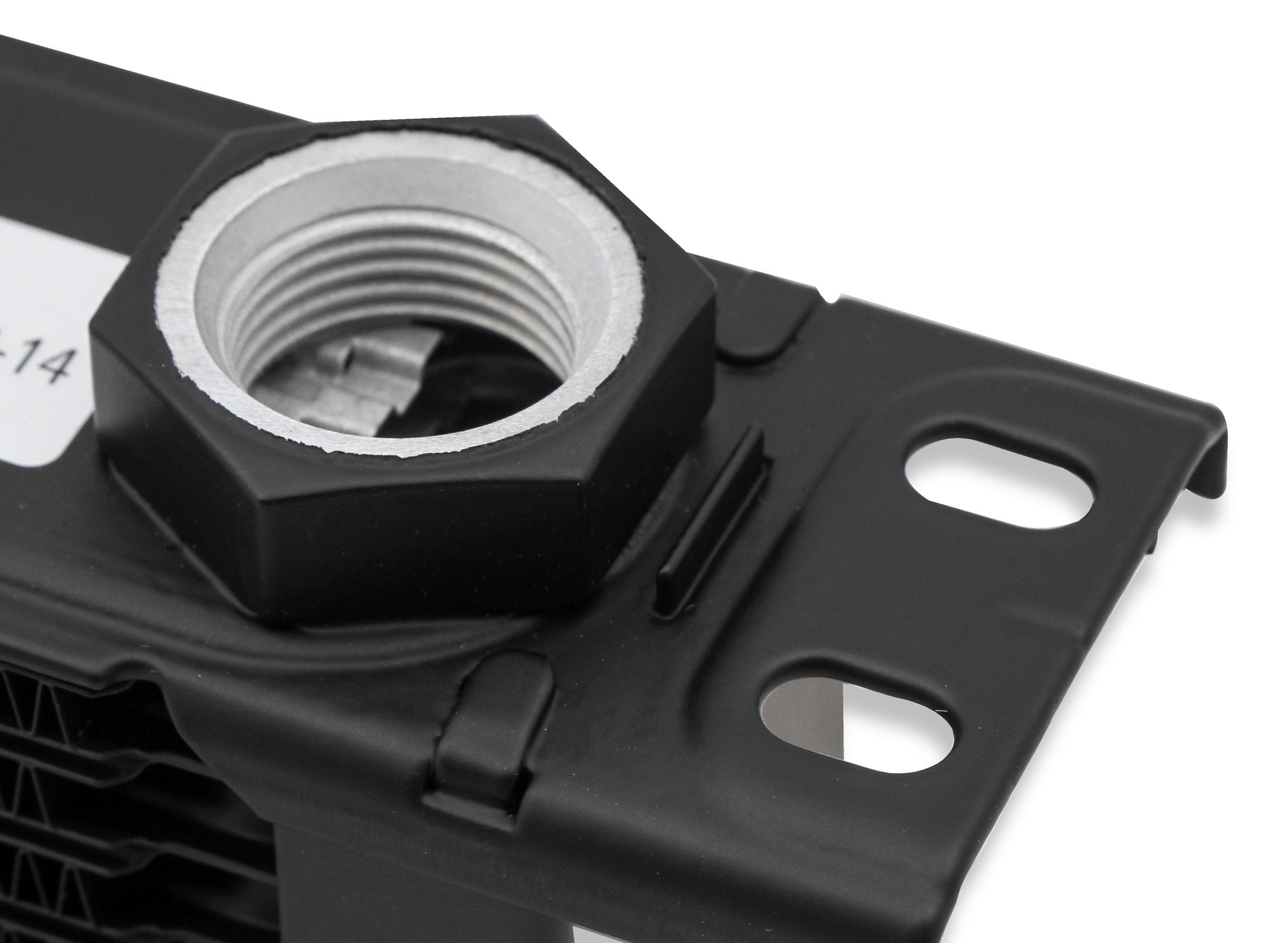

- Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings) or 16 AN Male Ports
- (10) Select Sizes w/ 16 AN Male Ports Will Be Stocked (no longer special order)
- Optional Mounting Brackets – Sold Separately
📖
About this product
16 Row Oil Cooler Core Black
📋
Product Specifications
Application
Differential Cooler
Application
Power Steering Cooler
Application
Transmission Cooler
Application
Valve Spring Cooler
Body Width (Overall)
8.250"
Brackets Included
No
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Cooling
Collection
Suspension & Steering
Collection
Suspension & Steering - Steering Racks & Columns
Construction
Stacked Plate - Brazed
Cooler Fittings Included
No
Cooler Fittings
585106ERL
Cooler Fittings
585108ERL
Cooler Fittings
585110ERL
Cooler Fittings
585112ERL
Cooler Fittings
AT585106ERL
Cooler Fittings
AT585108ERL
Cooler Fittings
AT585110ERL
Cooler Fittings
AT585112ERL
Emission Code
5
Finish
Black
Fitting Centers
4.800"
Height
4.800"
Material
Aluminum
Mounting Bracket Width
7.500"
Mounting Brackets
200ERL
Part Type
Engine Oil Cooler
Port Size
7/8-14 Female (-10 O-Ring Boss)
Product Line
UltraPro
Product Type
Oil Cooler
Prop 65 Yes/No
Yes
Rows
16 Rows
Temperature Range
-40° F to 302° F
Thickness
2.000"
Transmission Fluid BTU Range
9
Volume
.20 Quarts
Warning
California Proposition 65
Weight
1.35 Lbs
Width (less Mounting Ears)
6.438"
Width
Narrow Cooler
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
SE
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
8.7 × 6.7 × 2.3 in
Shipping Dimensions
8.7 × 6.7 × 2.3 in
Weight
635 g (0.64 kg)
