Earl's PerformancePart fp219erlMade in SE
Product Details
⭐
Key Features

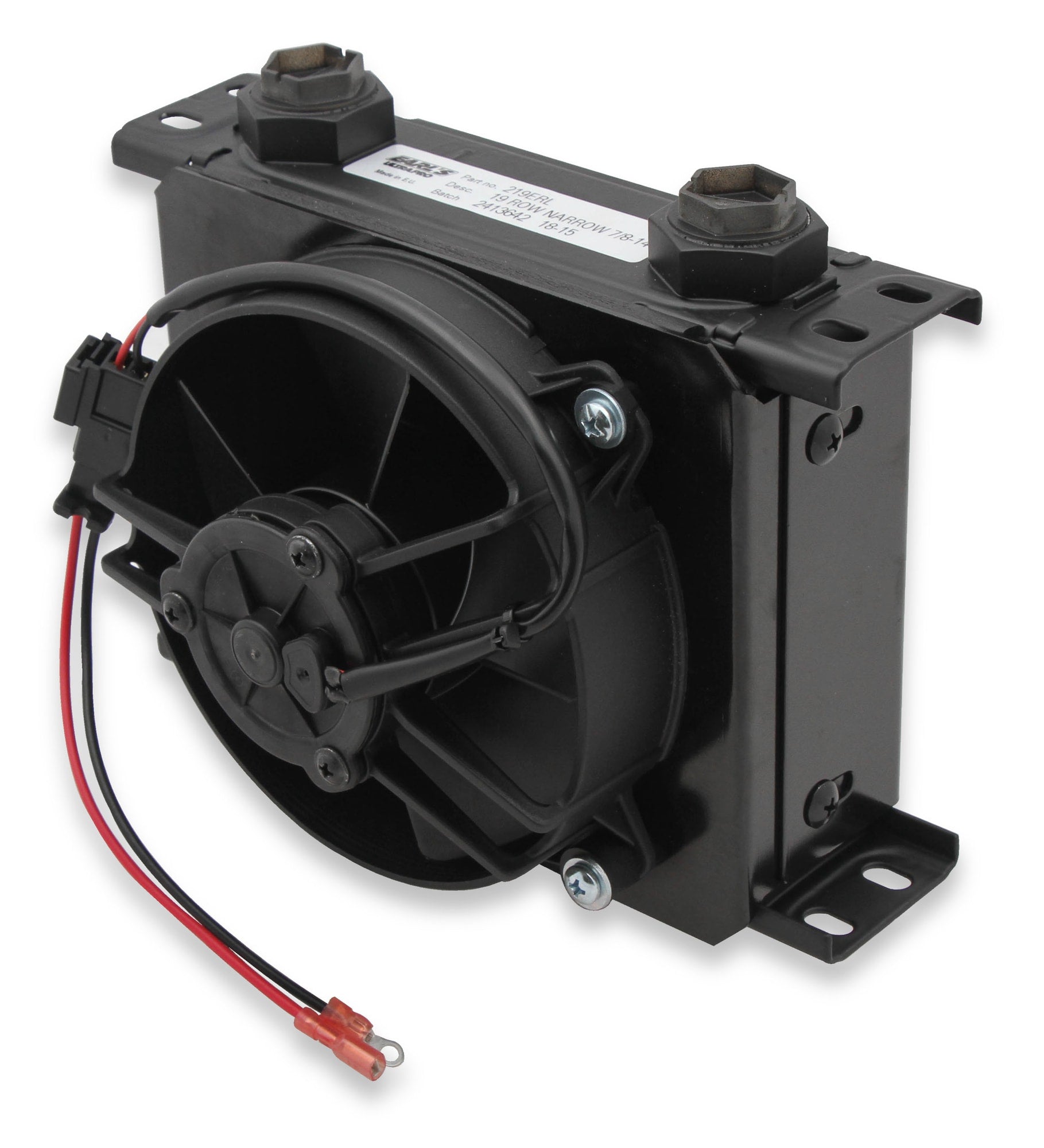

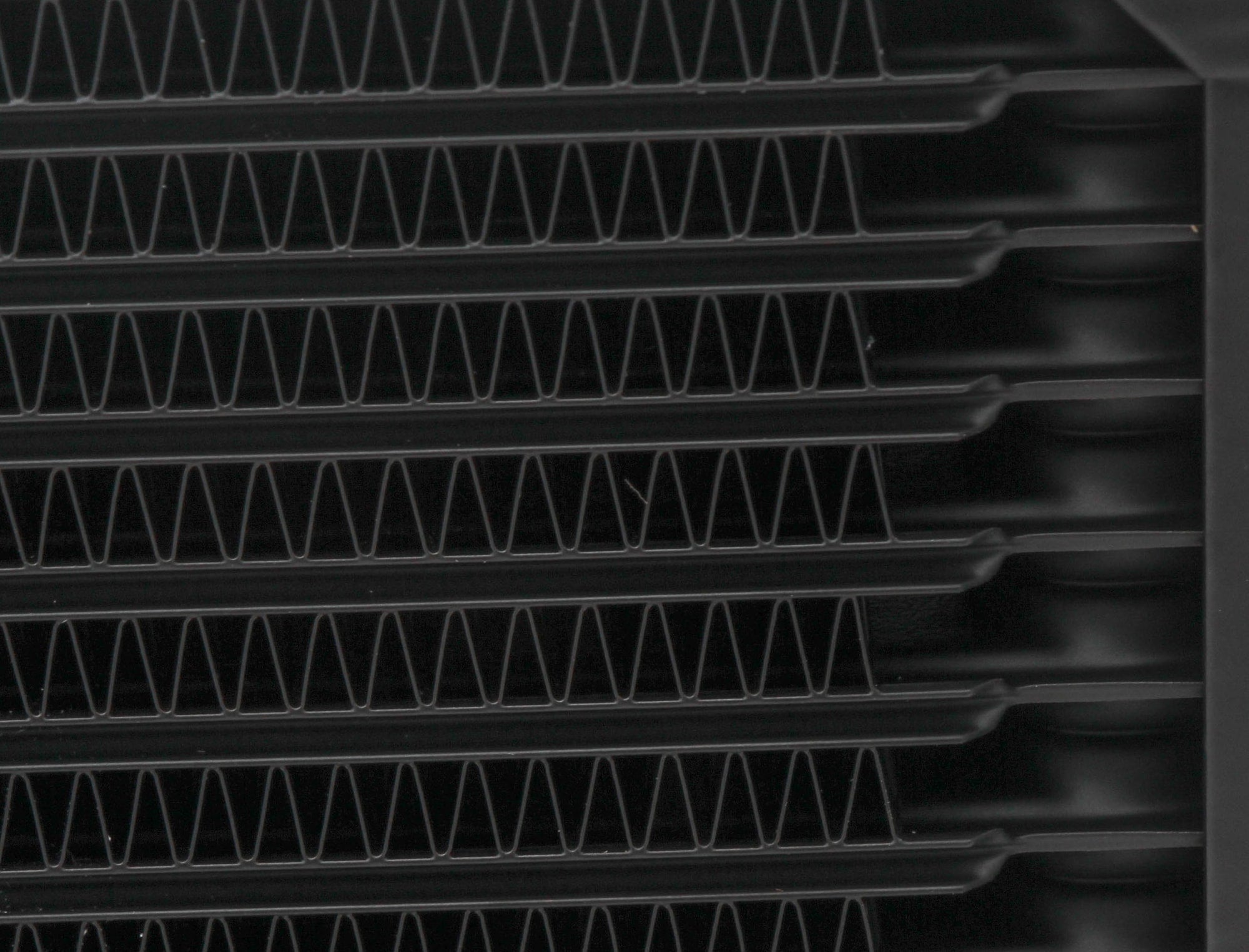

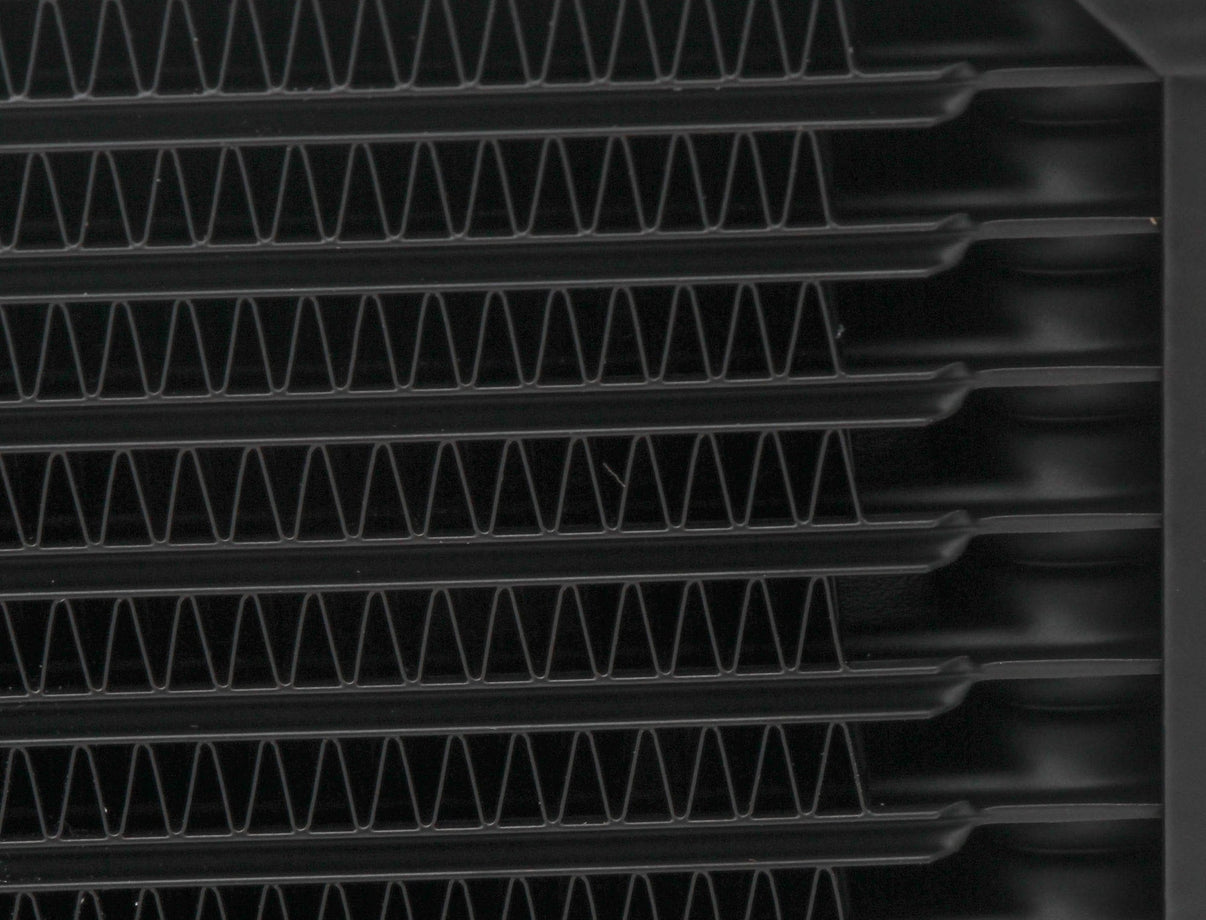

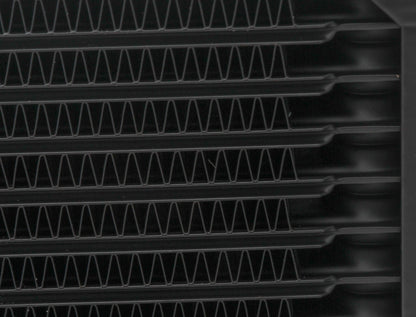

19 Row Oil Cooler and Fan Pack
Earls new premium quality UltraPro oil coolers are ideal for all high performance applications. These aluminum stacked plate style coolers are made using state of the art brazing techniques for a durable and long lasting premium cooler that is highly efficient w/ minimal pressure drop. These fan coolers are available in 3 sizes & feature a premium cooling fan & aluminum shroud. These coolers feature -10 AN O-ring female ports and are used with special ORB cooler fittings (-6 AN, -8 AN, -10 AN, or -12 AN) and AN hose ends. Black Finish.
19 Row Oil Cooler and Fan Pack
- Premium Quality High Performance Stacked Plate Style Aluminum Oil Coolers
- Made Using State of the Art Brazing Technology
- Highly Efficient Design w/ Minimal Pressure Drop
- Extremely Durable Lightweight Aluminum Construction w/Black Finish
- (3) Width Options - Narrow 8.25, Wide 12.99, and Extra Wide 15.94 Overall Width
- (3) Fan Pack Style Coolers Include the Oil Cooler, Spal Cooling Fan(s) & Shroud
- Port Sizes: 10 AN Female Ports (Uses Existing Earls Adapter Fittings)
- Optional Mounting Brackets – Sold Separately
📖
About this product
19 Row Oil Cooler and Fan Pack
📋
Product Specifications
Amp Draw
4.8
Application
Differential Cooler
Application
Engine Oil Cooler
Application
Transmission Cooler
Blade Style
Paddle
Body Width (Overall)
8.250"
Brackets Included
No
Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Belts and Cooling
Construction
Stacked Plate - Brazed
Cooler Fittings Included
No
Cooler Fittings
585106ERL
Cooler Fittings
585108ERL
Cooler Fittings
585110ERL
Cooler Fittings
585112ERL
Cooler Fittings
AT585106ERL
Cooler Fittings
AT585108ERL
Cooler Fittings
AT585110ERL
Cooler Fittings
AT585112ERL
Emission Code
5
Engine HP Range
100-150 HP
Engine Oil BTU Range
13
Fan Diameter
4.800
Fan Style
Puller
Fan Type
Electric
Finish
Black
Fitting Centers
4.800"
Height
5.750"
Material
Aluminum
Max Fan CFM
342
Mounting Bracket Width
7.500"
Mounting Brackets
200ERL
Number Of Blades
5
Part Type
Engine Oil Cooler
Port Size
7/8-14 Female (-10 O-Ring Boss)
Product Line
UltraPro w/ Fan Pack
Product Type
Oil Cooler
Prop 65 Yes/No
Yes
Rows
19 Rows
Shroud Material
Aluminum
Sub Category
Radiators
Temperature Range
-40° F to 302° F
Thickness
5.500"
Transmission Fluid BTU Range
8
Voltage
12V
Volume
.22 Quarts
Warning
California Proposition 65
Weight
3.55 Lbs
Width (less Mounting Ears)
6.438"
Width
Narrow Cooler
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
SE
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
12.0 × 9.2 × 8.9 in
Shipping Dimensions
12.0 × 9.2 × 8.9 in
Weight
1701 g (1.7 kg)
