HolleyPart 241-185Made in CN
Product Details
⭐
Key Features
NOTICE: Natural finish parts are straight from the die cast tooling. These parts are intended to be brush finished, polished, painted, etc. prior to use. These parts will have some visual inconsistencies and tooling marks from the manufacturing process.

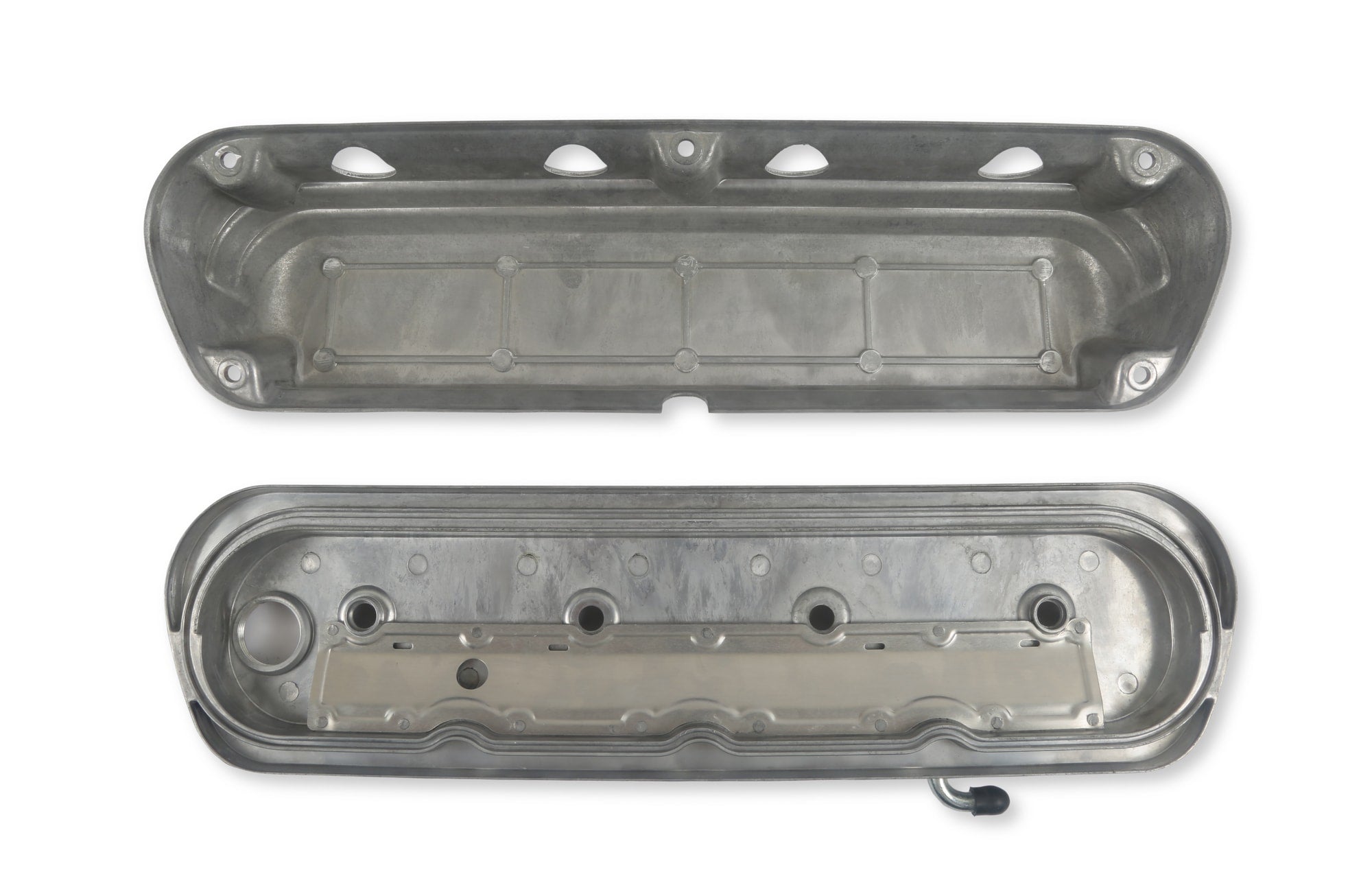

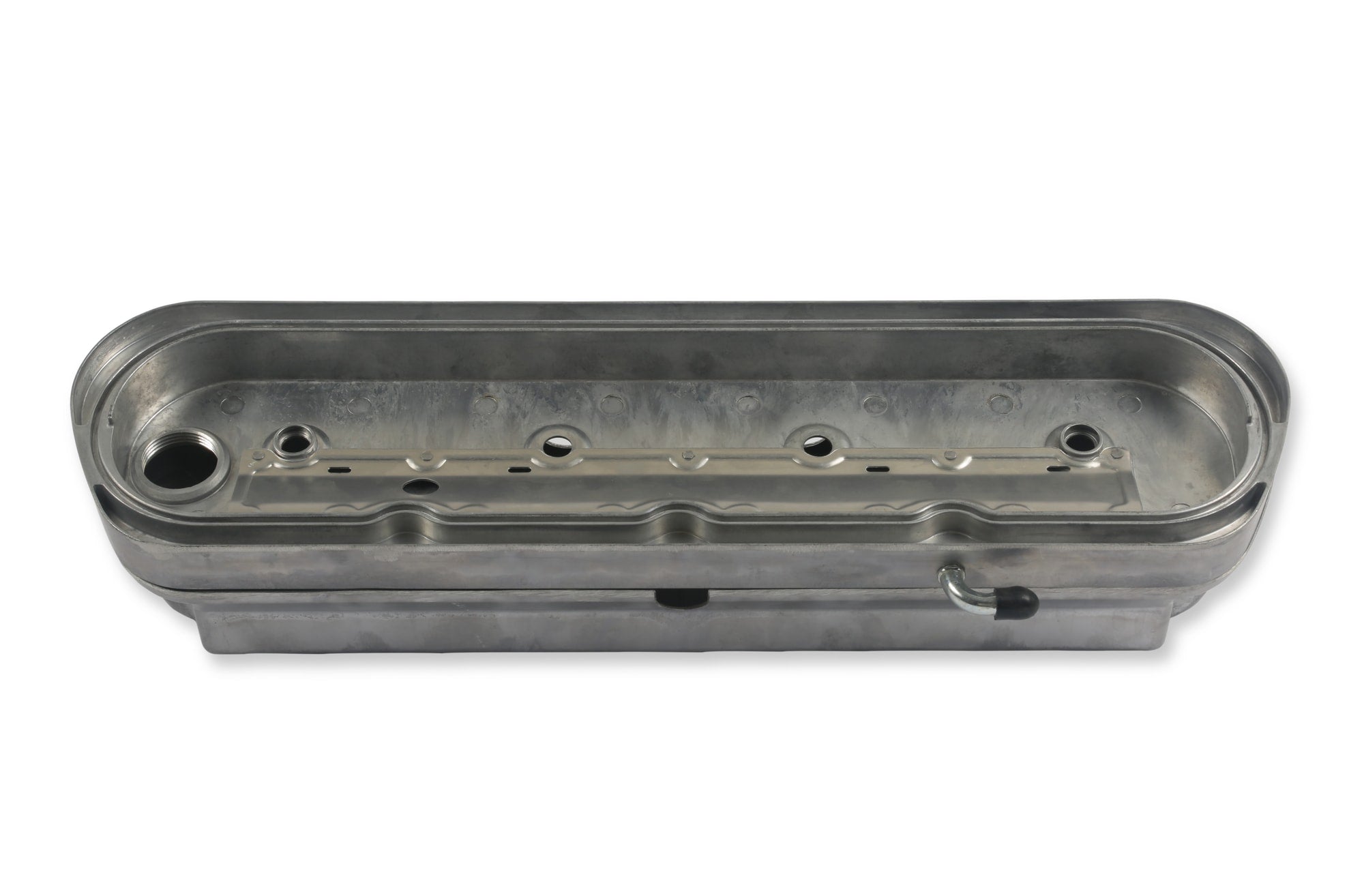

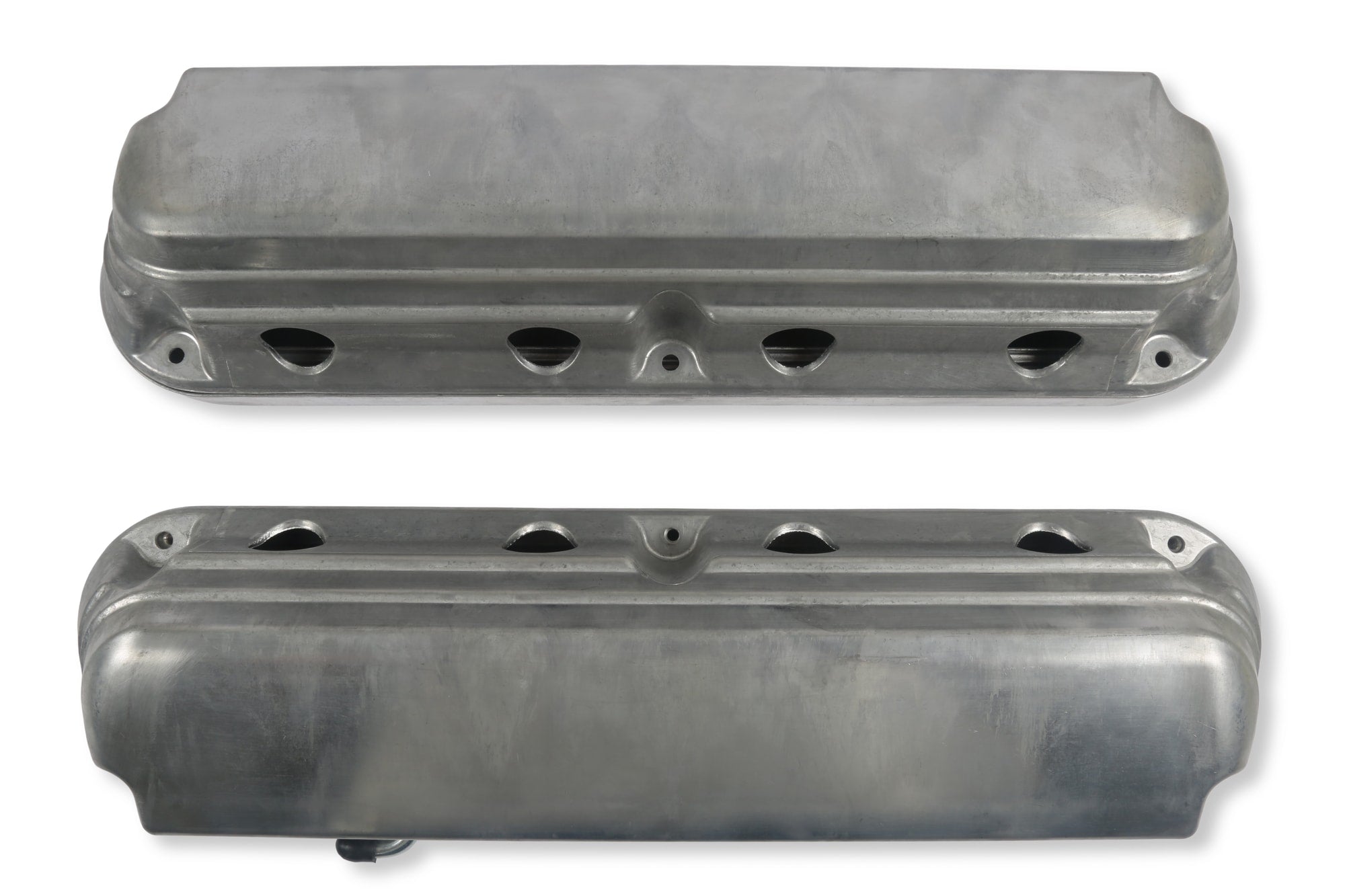

Holley's 2-Piece LS valve covers are a great way to update the look of your LS engine without the use of complicated adapter systems or the hassle of remote coil relocation. These modular LS valve covers feature an OE height, internally baffled LS valve cover base with integrated coil mounts for popular Gen I and Gen V style LS coil bodies, and a Ford style overcover that hides the unsightly LS coils and messy wiring harness - allowing the full performance benefits of coil-on-cover ignition setups without the robotic styling. The coil cover also features cast-in provisions for the spark plug boots and coil wiring harness so no extensions or custom wiring is required. | Each 2-Piece LS valve cover set includes a low-profile billet oil fill cap, hardware and spacers for mounting both versions of LS coil bodies, and dress up hardware and rubber grommets for the coil covers. These modular LS valve covers are available in 3 custom finishes: natural cast, polished, and satin black
Chevrolet Gen III/IV LS - Cast Aluminum - Coil-Mounting Base & Integrated Coil Cover
- Cast aluminum 2-Piece LS valve covers designed to mount and hide both Gen I and Gen V style LS coil bodies
- Retain the performance of factory coil-on-cover ignition without the unsightly styling
- Coil cover features vintage Ford valve cover styling and cast-in wiring provisions
- Base fits LS1, LS2, LS3, LS6 and LS7 engines with clearance for .750” lift cam with stock style rocker arms
- Base features internally baffled ventilation system
- No coil relocation, wire harness extensions, or custom spark plug wires required
- Includes low-profile billet oil fill cap
- Includes all necessary coil mounting provisions and dress-up hardware
📖
About this product
Chevrolet Gen III/IV LS - Cast Aluminum - Coil-Mounting Base & Integrated Coil Cover
📋
Product Specifications
Application
GM LS Engines
Automotive Item Grade
Performance
Baffle Included
Yes
Bolt Pattern
Center Bolt
Brand
Holley
Breather Cap Included
No
Breather(s) Included
No
California Proposition 65 Chemical Name
4
Category
Engine
Coil Mounting Studs
Yes
Coil Options
with Coil Stands
Color
Natural
Construction
Die Cast Aluminum
Design Type
2-Piece LS
Emission Code
3
Emission Code
7
Finish
Natural
Gaskets Included
No
Grade Type
Performance
Gromment(s) Included
No
Grommets Included
No
Hardware Included
Yes
Height
4.125"
Hold Down Tabs Included
No
Logo
None
Material
Cast Aluminum
Mounting Hardware Included
Yes
Oil Fill Cap Included
Yes
Oil Fill
Yes
Oil Filler Cap Included
Yes
Overall Height
4.125
Part Type
Engine Valve Cover Set
Product Type
Valve Cover
Quantity
Pair
Style
Ford
Sub Category
Cylinder Block Components
Type Of Component
Valve Cover
Valve Cover Gasket Included
No
Valvetrain Clearance
.750" lift cam with stock style rocker arms
Warning
California Proposition 65
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
21.6 × 13.2 × 5.4 in
Shipping Dimensions
21.6 × 13.2 × 5.4 in
Weight
7015 g (7.02 kg)
