Product Details
⭐
Overview

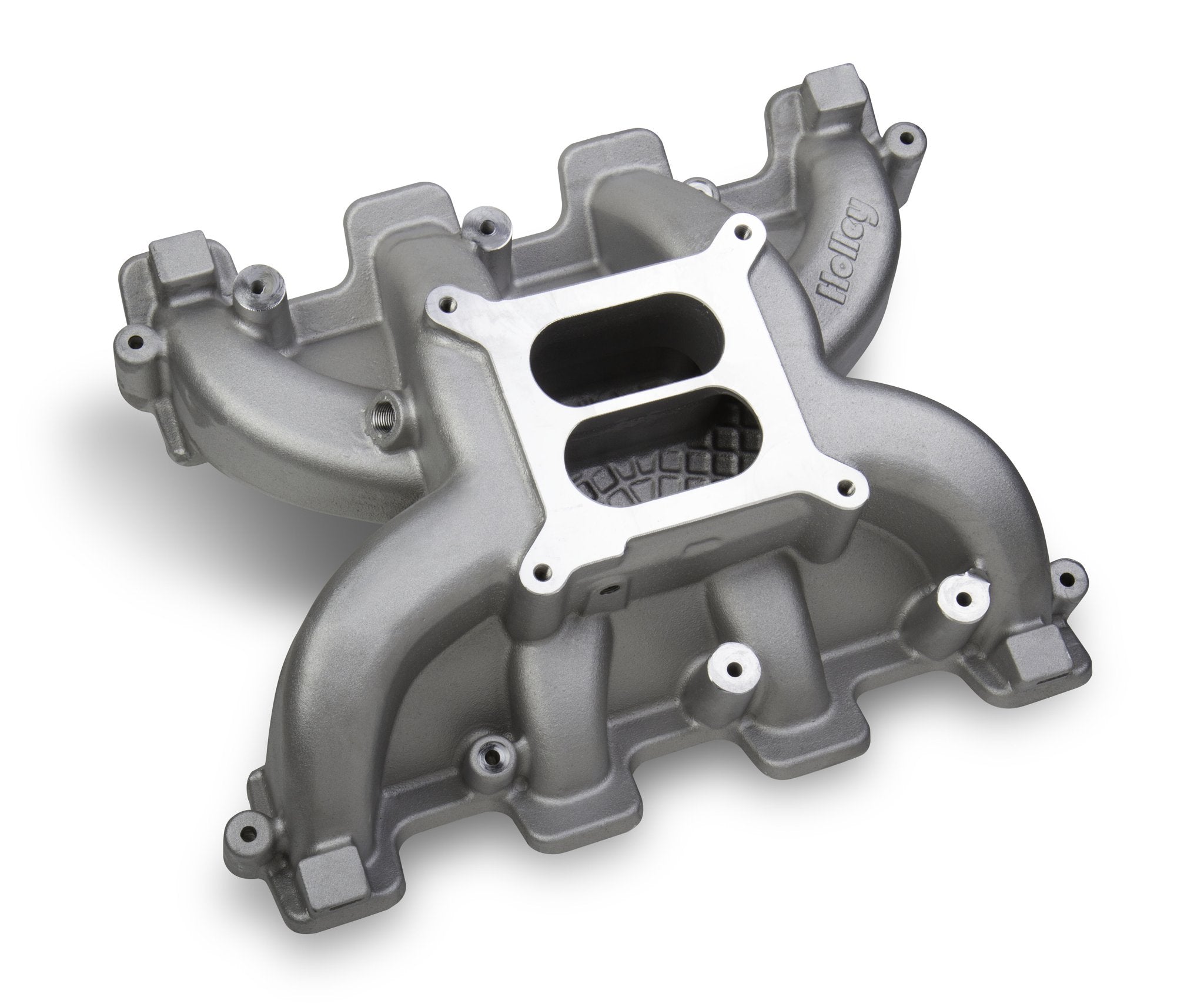

All GM LS Gen III or IV engines equipped with LS1/LS2/LS6 style cathedral port cylinder heads.
- 1500-6500 RPM power band
- 4150 Square bore flange
- Optimized runner layout and constant cross sectional area - broad torque curve, best vehicle performance from 1500-6500 RPM
- Minimum carb flange height means it fits in vehicles with minimal or no hood modifications
- Great for carbureted or throttle body EFI street applications
- Cast aluminum construction and efficient casting design for light weight, consistent wall thicknesses and improved casting quality
- Weighs 15.14 lbs.

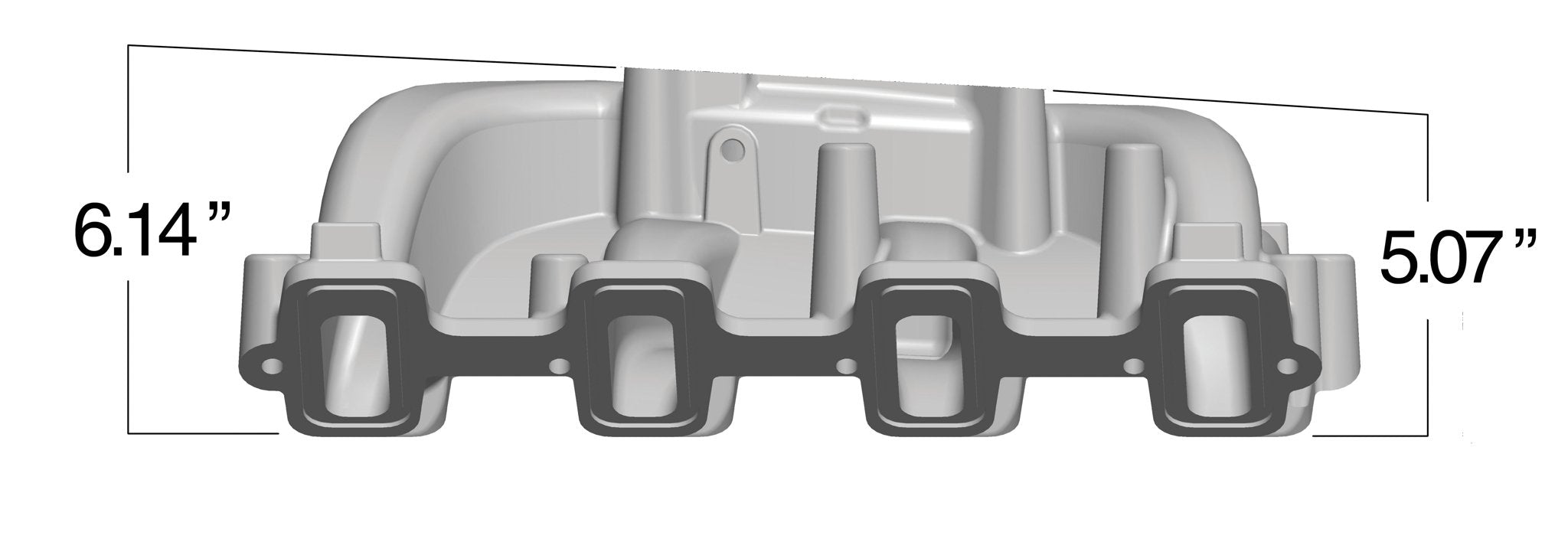

- Height (front) - 5.07" from front lifter valley cover to carb mounting flange
- Height (rear) - 6.14" from rear lifter valley cover to carb mounting flange
- Port size - 2.72" height x 1" wide
- Mounting flange gasket type - O-ring
- Includes Viton® O-rings - Viton® is a registered trademark of DuPont Performance Elastomers
📋
Product Specifications
Basic Operating RPM Range
1500-6500 R3
Brand
Holley
Carburetor Flange
Square/4150
Carburetor Studs Included
No
Construction
Cast
EGR Port
No
Flange Style
4150 Square Bore
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
Carb
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Dual Plane
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Product Type
Intake Manifold
Removable Runners
No
RPM Power Band
1500-6500 RPM
Single Or Dual Plane Type
Single Plane
Throttle Body Included
No
Warranty
Manufacturer's Limited 90 Day Warranty
📐
Dimensions & Shipping
Product Dimensions
— × — × 15.6 in
