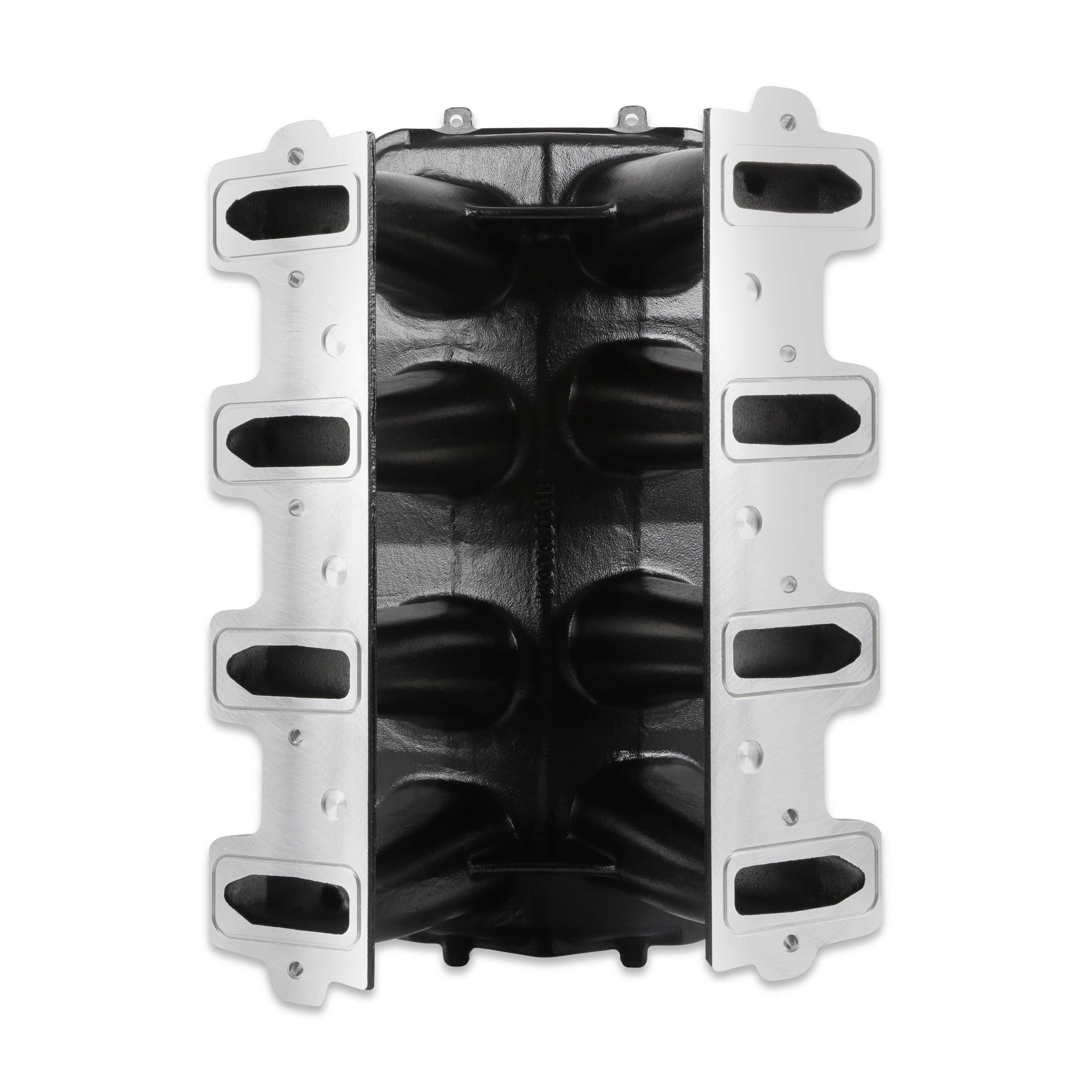

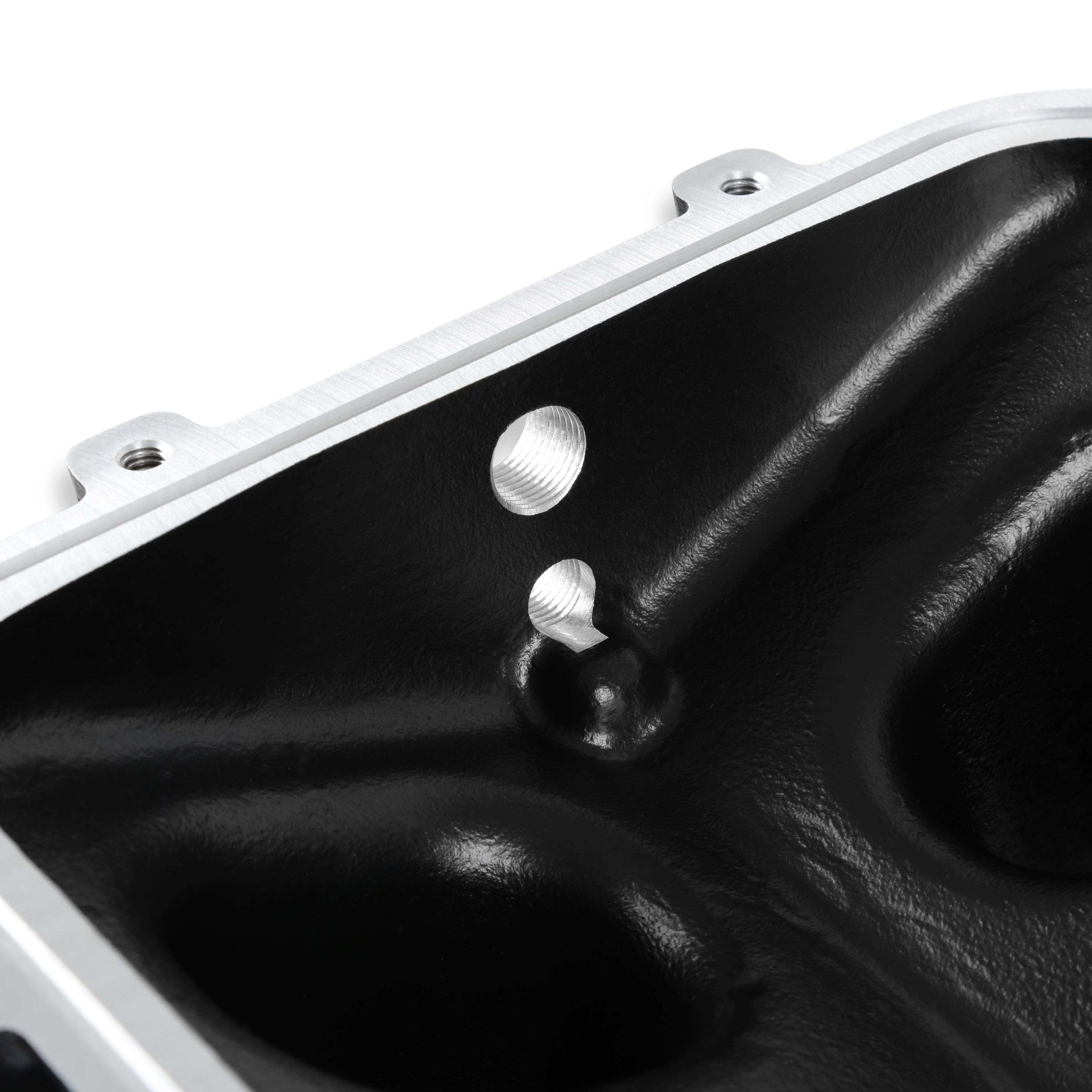

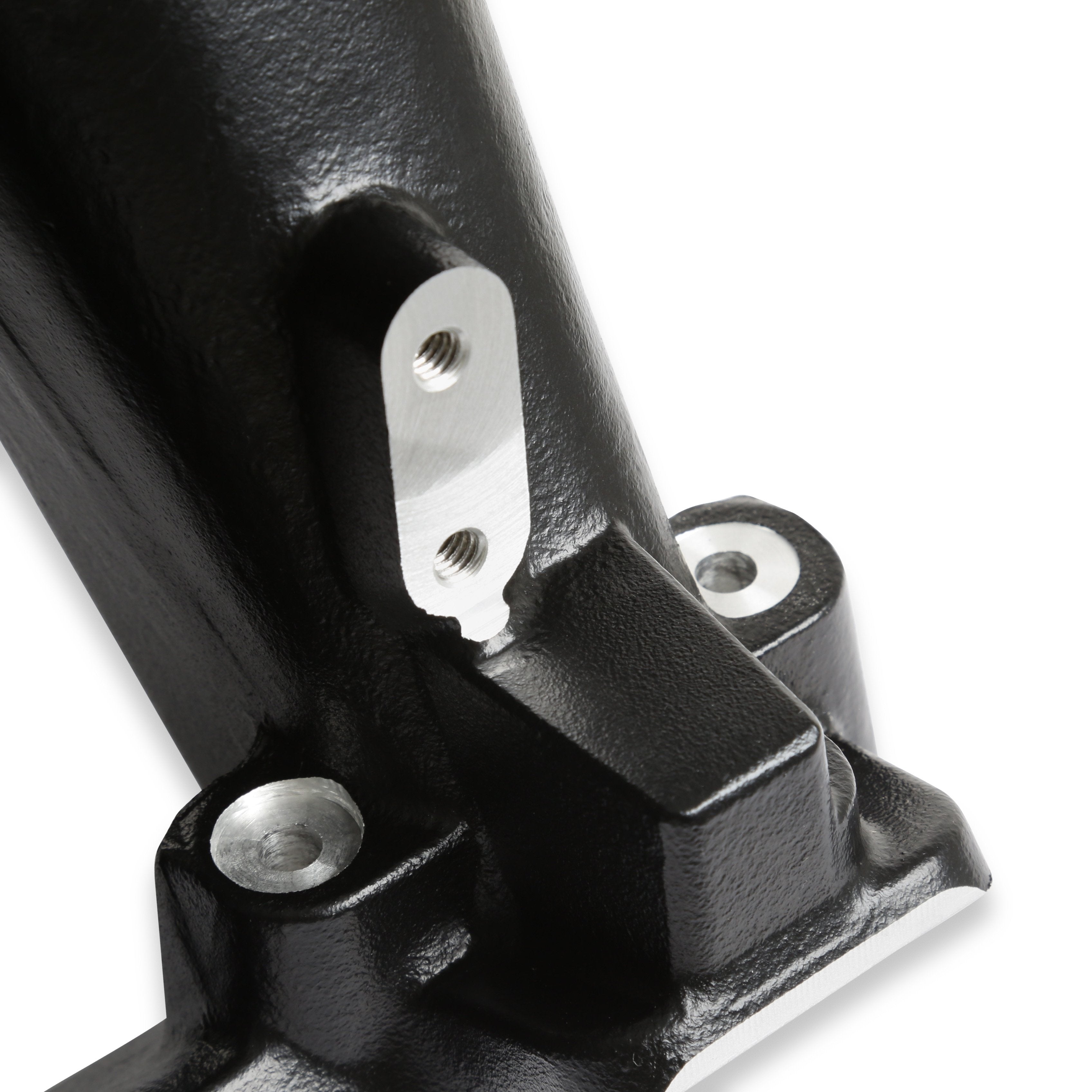

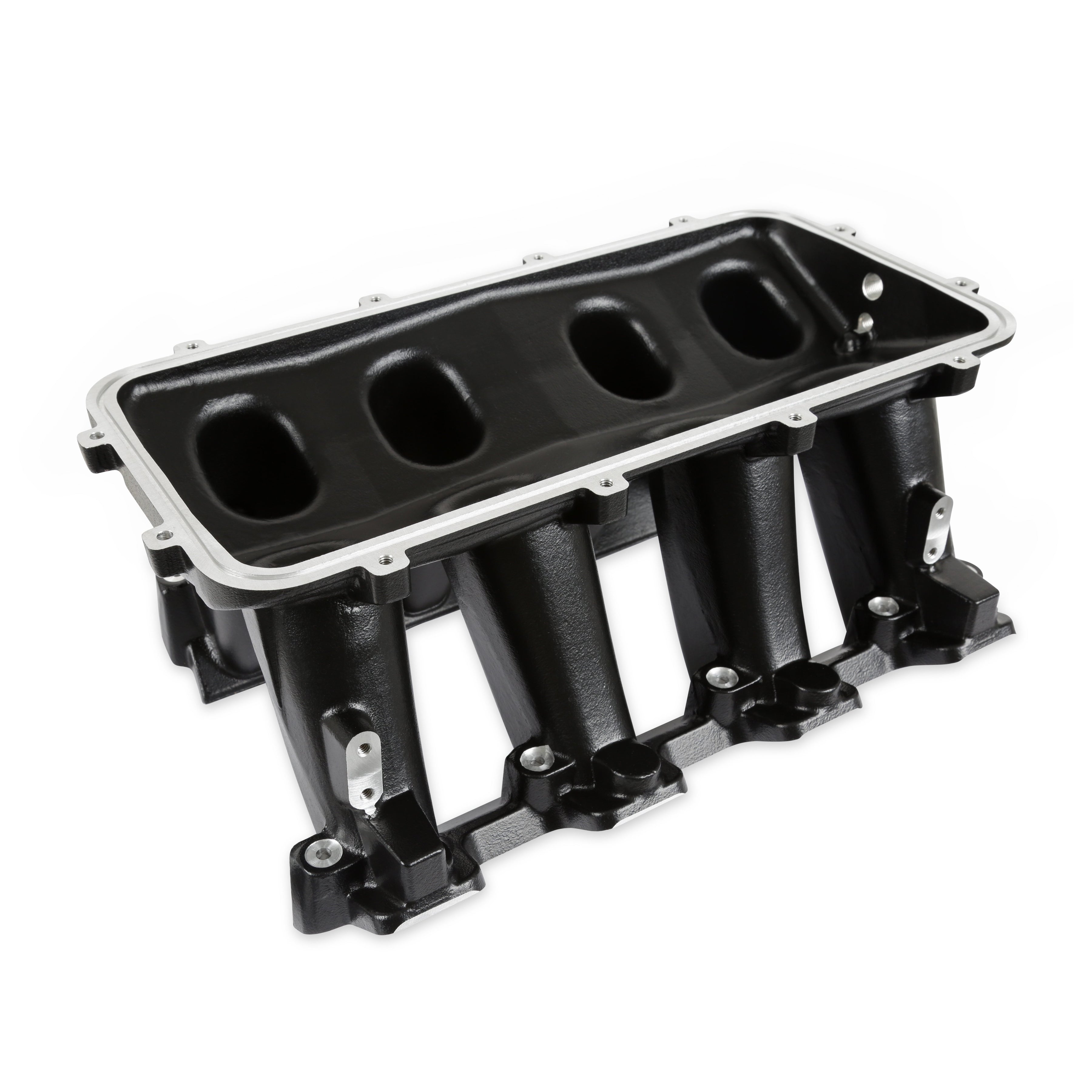

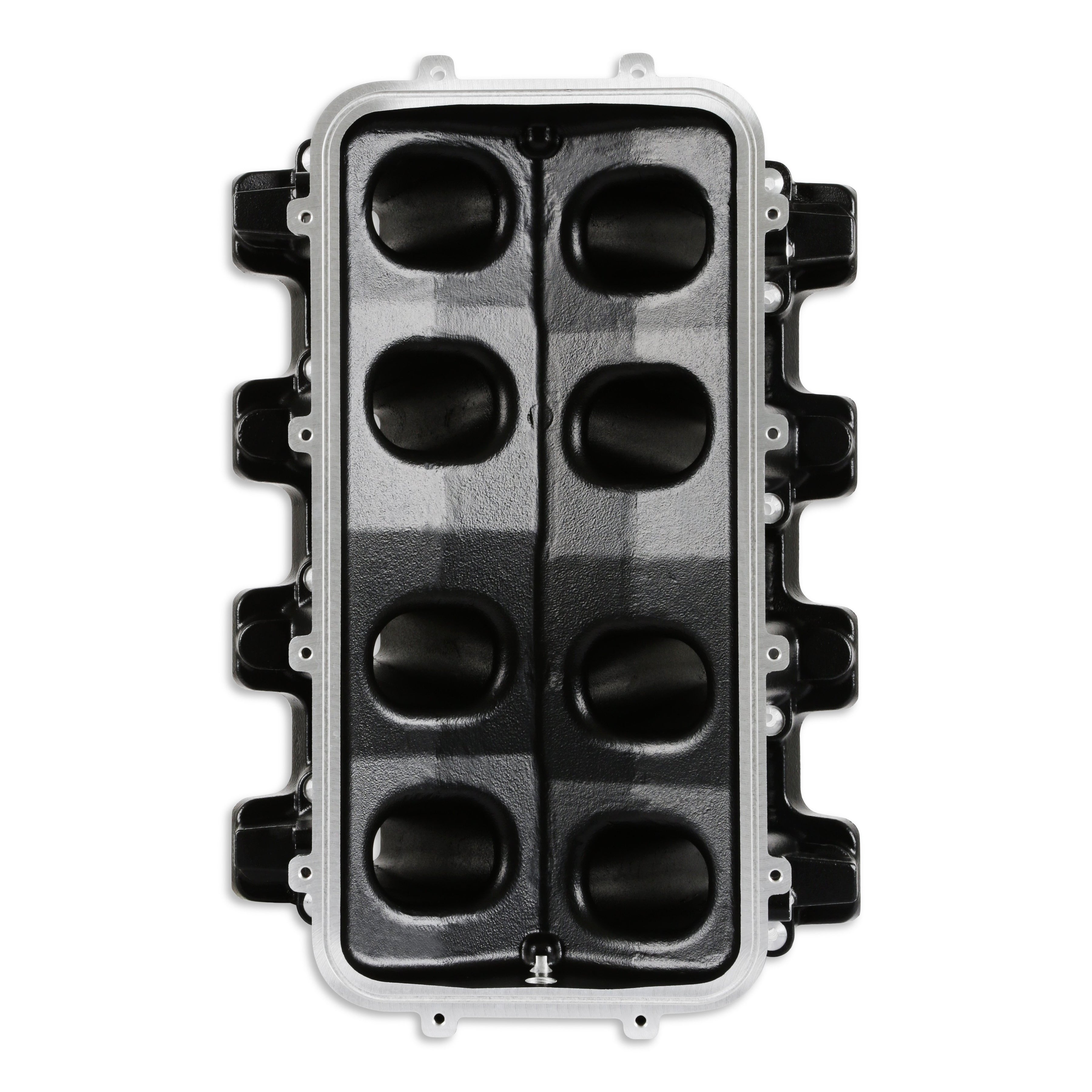

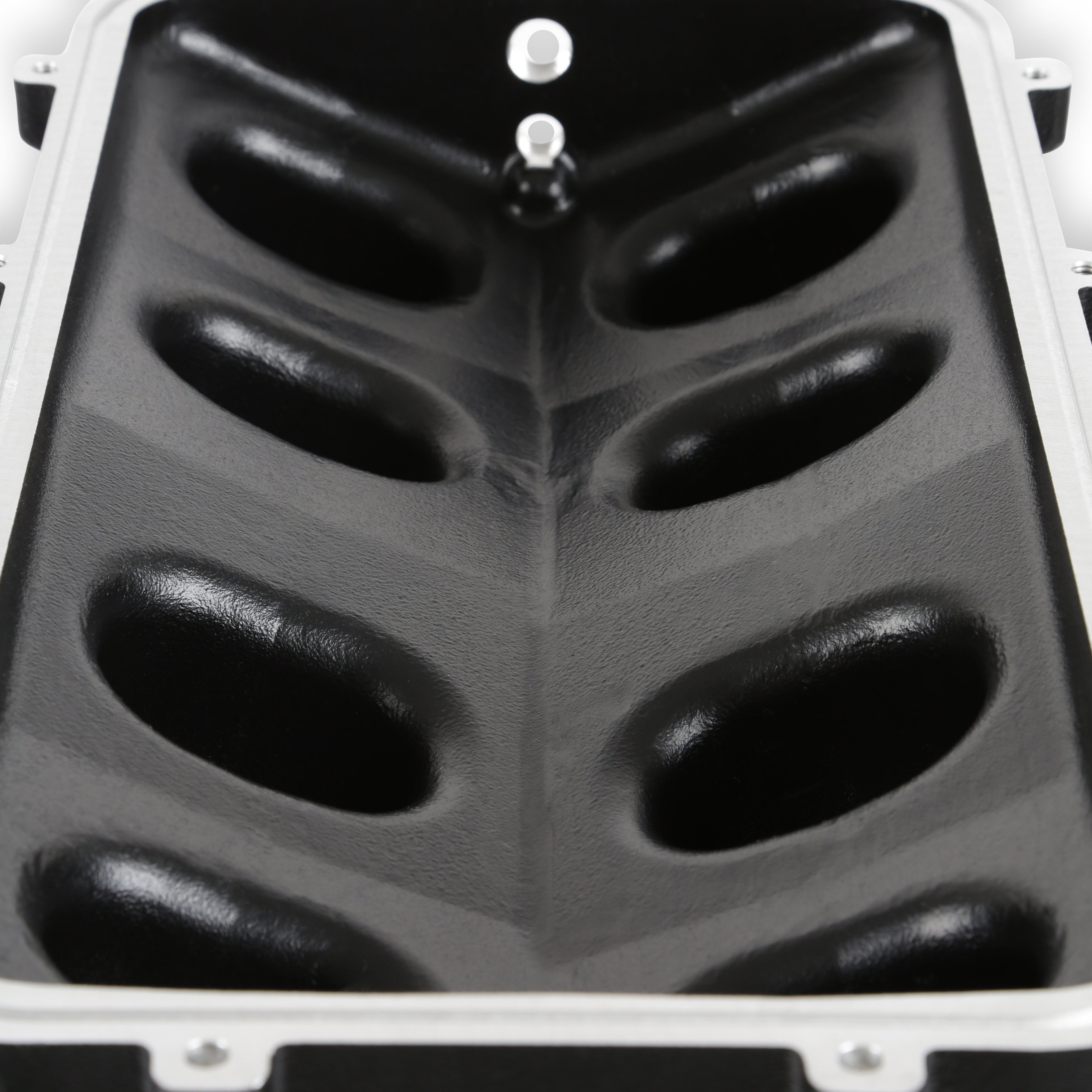

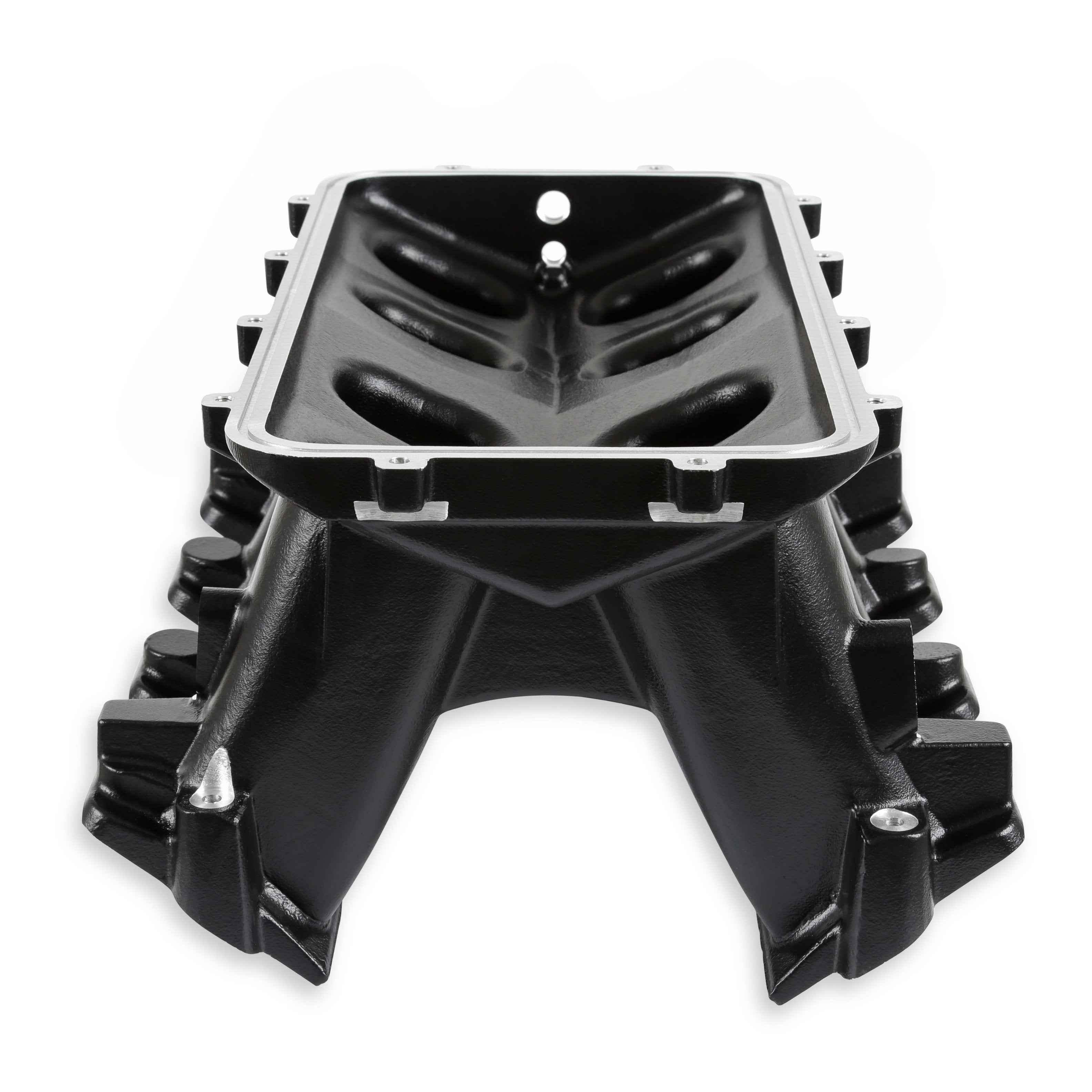

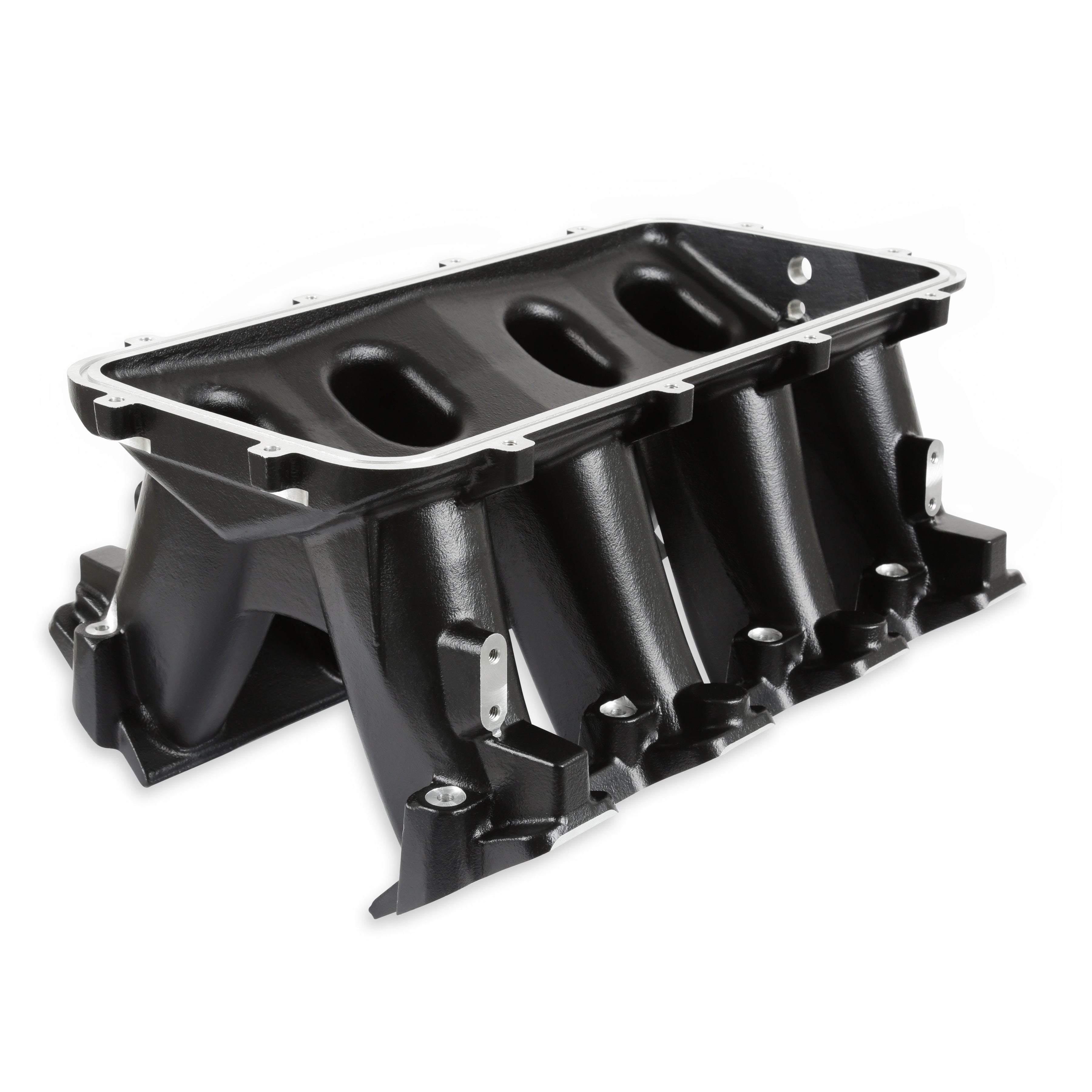

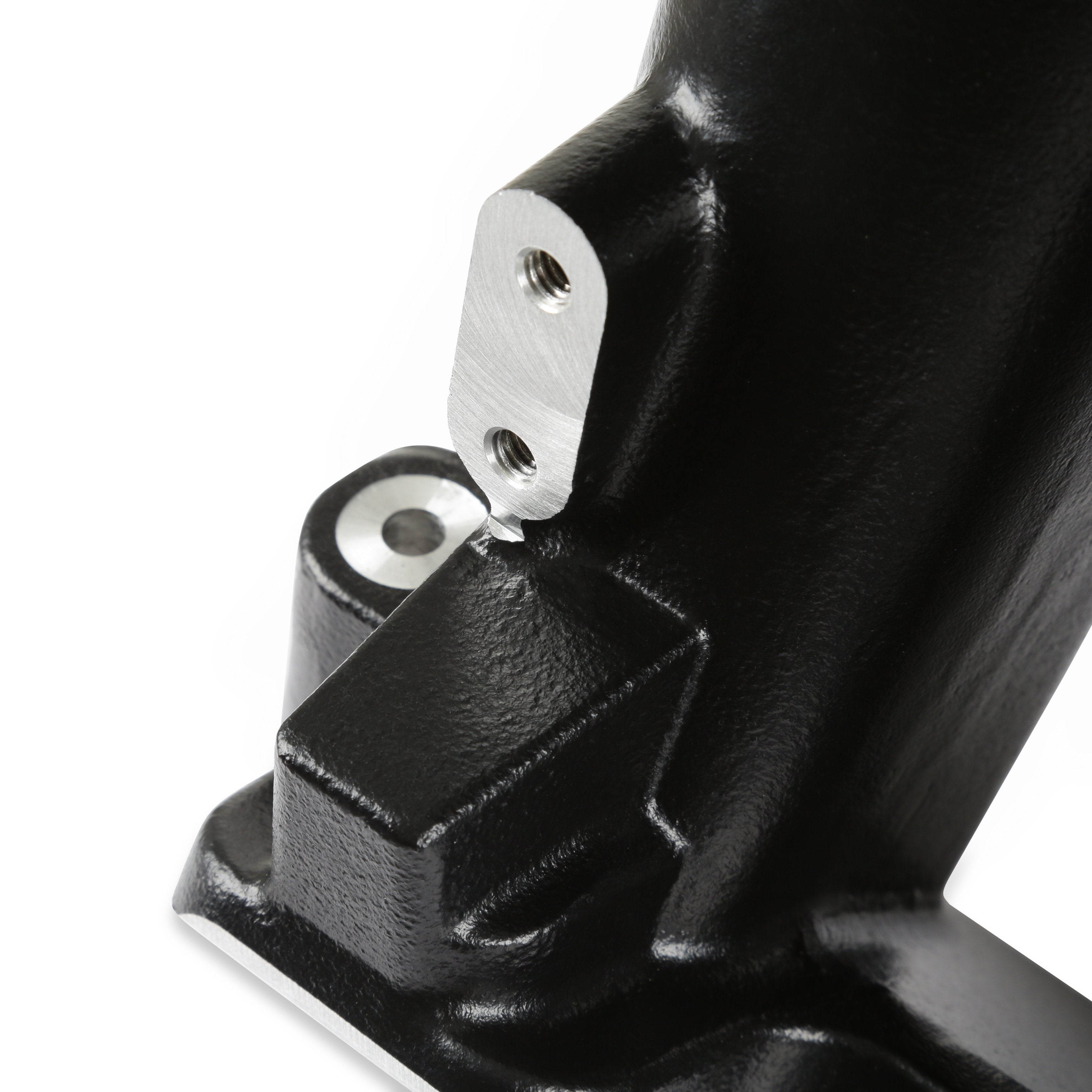

Holley Hi-Ram Lower Manifold - GM LS1/LS2/LS6-Black

Regular price £842.99 GBP inc VAT
Shipping calculated at checkout.
SKU: 300-226bk

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


View details
HolleySKU 300-226bkMade in US

Product Details

Key Features

HOLLEY HI RAM LOWER

• Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM. • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. The Holley GM LS1/LS2/LS6 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS1/LS2/LS6 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • Cast aluminum construction. • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

LS1/LS2/LS6 Cathedral Port Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available)

  • Port Size – 2.49” Height x 1.21” Wide
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Runner Length – 6.58”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.53 in²
📖

About this product

LS1/LS2/LS6 Cathedral Port Carbureted Base Only (Plenum-Top-Mounting Fabrication Flange Available)

📋

Product Specifications

Automotive Item Grade
Performance
Basic Operating RPM Range
3500-8000
Basic Operating RPM Range
3500-8000 R3
Brand
Holley
California Proposition 65 Chemical Name
4
Carburetor Studs Included
No
Category
Engine
CNC Ported
No
Color
Black
Construction
Cast
Cylinder Head Port Shape
Cathedral
Deck Height
9.24
EGR Port
No
Emission Code
4
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
Carb
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Product Type
Intake Manifold Base
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
3500-8000 RPM
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Gasket Included
No
Throttle Body Included
No
Type Of Component
Lower Manifold
Vacuum Ports
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
4
HS Code
8409915085
📐

Dimensions & Shipping

Product Dimensions
20.5 × 14.6 × 9.9 in
Shipping Dimensions
20.5 × 14.6 × 9.9 in
Weight
9752 g (9.75 kg)
