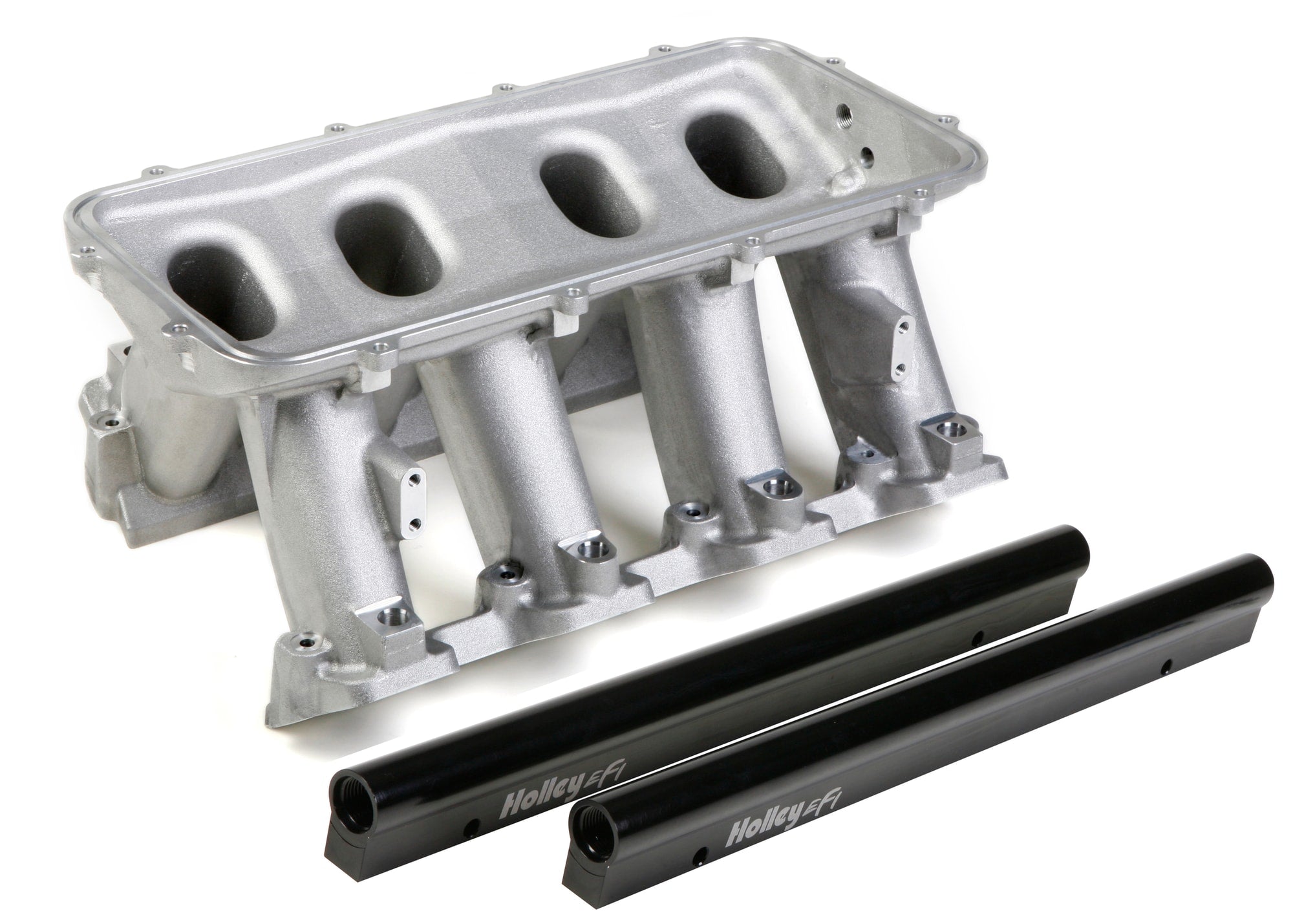

Holley Hi-Ram Lower Manifold - GM LS7 - LS7 EFI Base Only

Regular price £1,151.99 GBP inc VAT
Shipping calculated at checkout.
SKU: 300-229

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


View details
Holley EFIPart 300-229Made in US

Product Details

Key Features

These parts should be used for the following applications: Racing/Performance/Street Rodder where hood restrictions are NOT a consideration.

• Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations | • Cast aluminum construction. | • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM. | • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. | The Holley GM LS7 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS7 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! | • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems.

LS7 EFI Base Only

  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Runner Length – 6.29”, As-Cast Runner Cross-Sectional Area – Tapered 4.67 in² to 2.84 in²
  • Port Size – 2.49” Height x 1.21” Wide
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
📖

About this product

LS7 EFI Base Only

📋

Product Specifications

Automotive Item Grade
Performance
Basic Operating RPM Range
3500-8000
Brand
Holley EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Engine
CNC Ported
No
Color
Natural
Construction
Cast
Cylinder Head Port Shape
Raised Rectangle
Deck Height
9.24
EGR Port
No
Emission Code
4
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Intake Port Gasket(s) Included
No
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Product Type
Intake Manifold Base
Prop 65 Yes/No
Yes
Removable Runners
No
Removable Top/Lid
Yes
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Included
No
Type Of Component
Lower Manifold
Vacuum Ports
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐

Dimensions & Shipping

Product Dimensions
20.1 × 14.5 × 10.3 in
Shipping Dimensions
20.1 × 14.5 × 10.3 in
Weight
12125 g (12.13 kg)
