Holley EFIPart 300-244Made in CN
Product Details
⭐
Key Features
*** This Holley Hi-Ram intake manifold series is designed for Ford 351W engines. This intake manifold is designed for use with aftermarket cylinder heads. OE cylinder heads can also be used, but some modifications may be required. The front and rear heigh
Manifold is designed for a 9.5" deck height. | • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations | The EFI Hi-Ram manifold line has a new addition for the 351W Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! | • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. | Manifold width is 11.32". | • Cast aluminum construction.

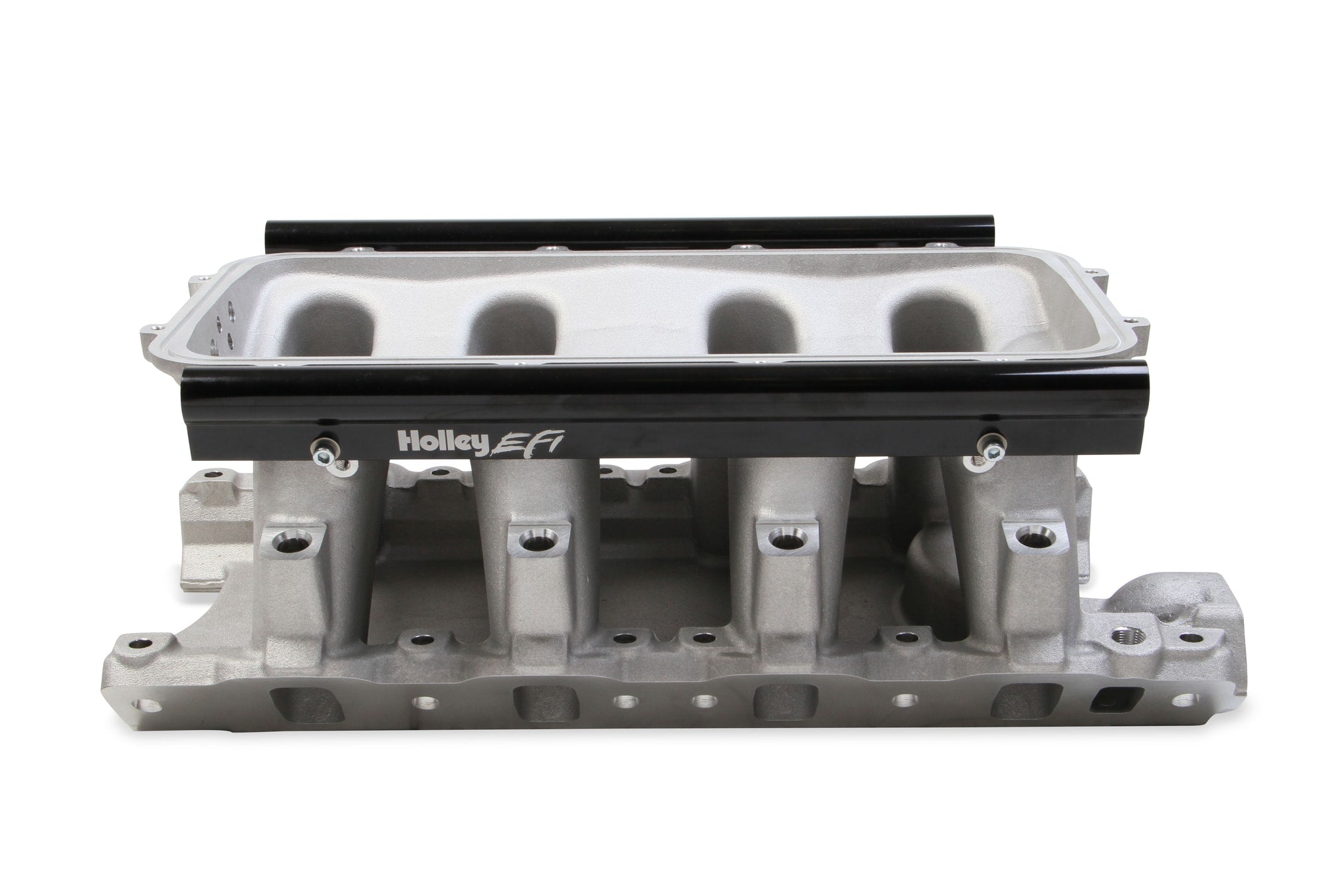

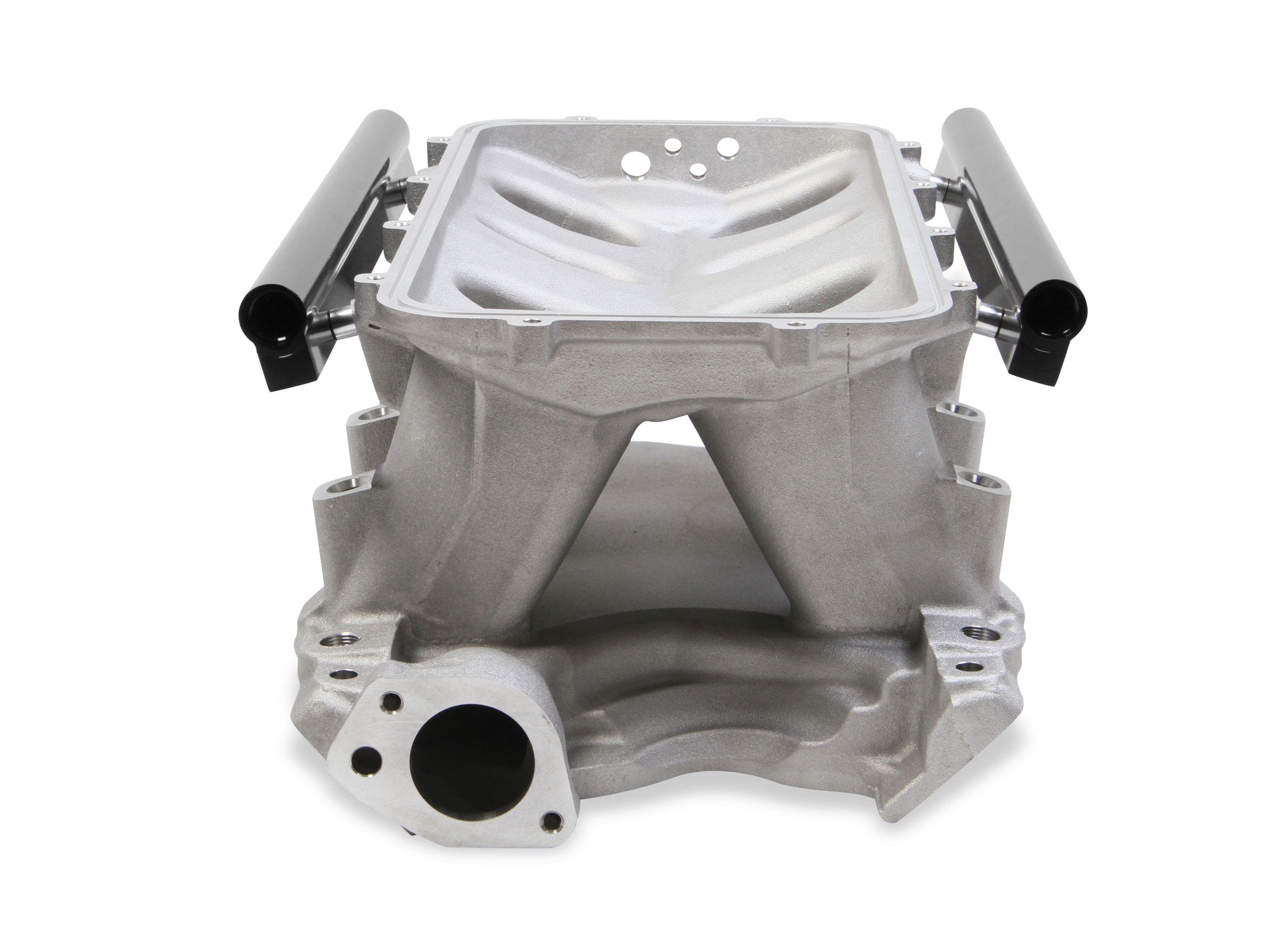

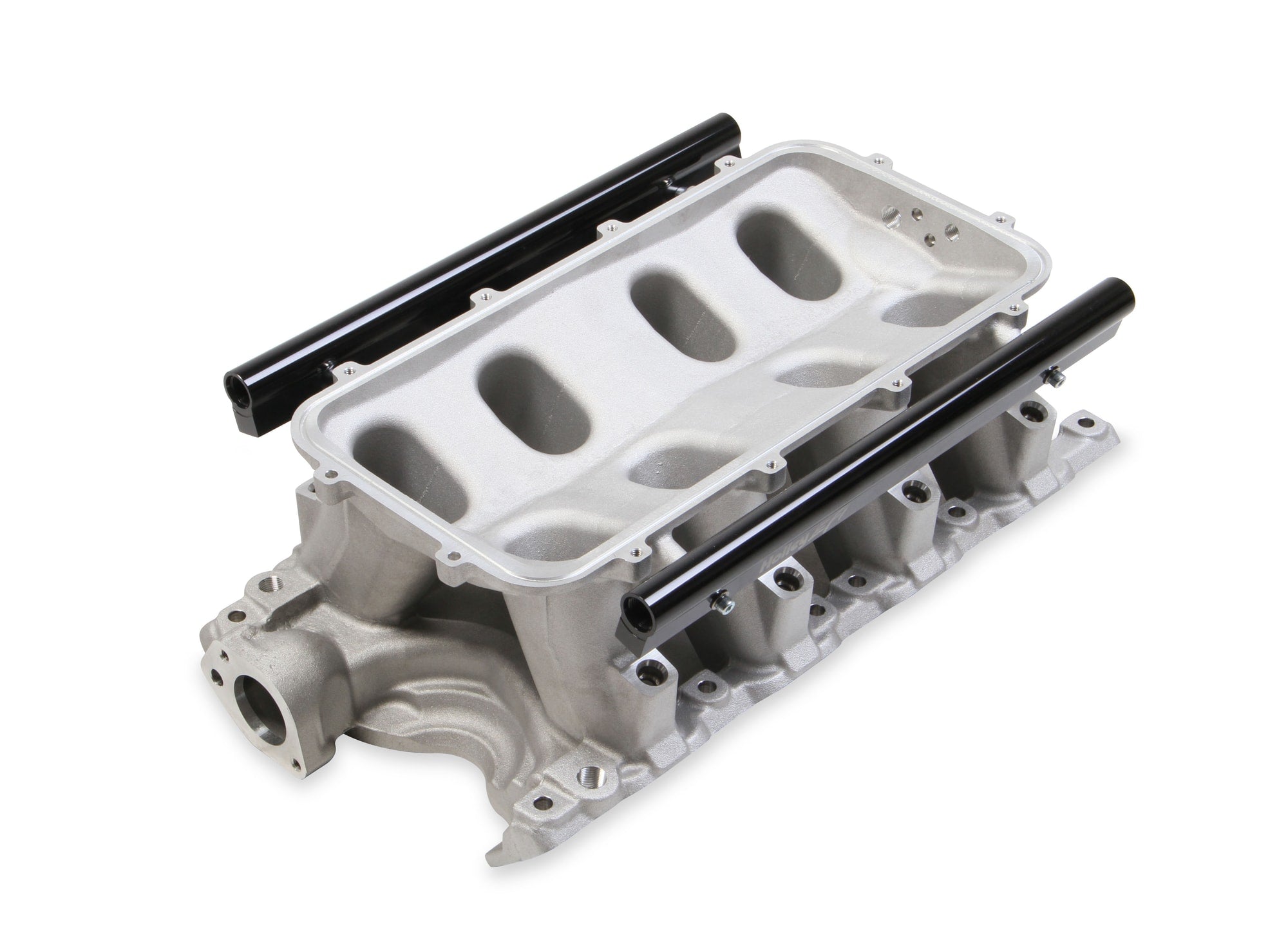

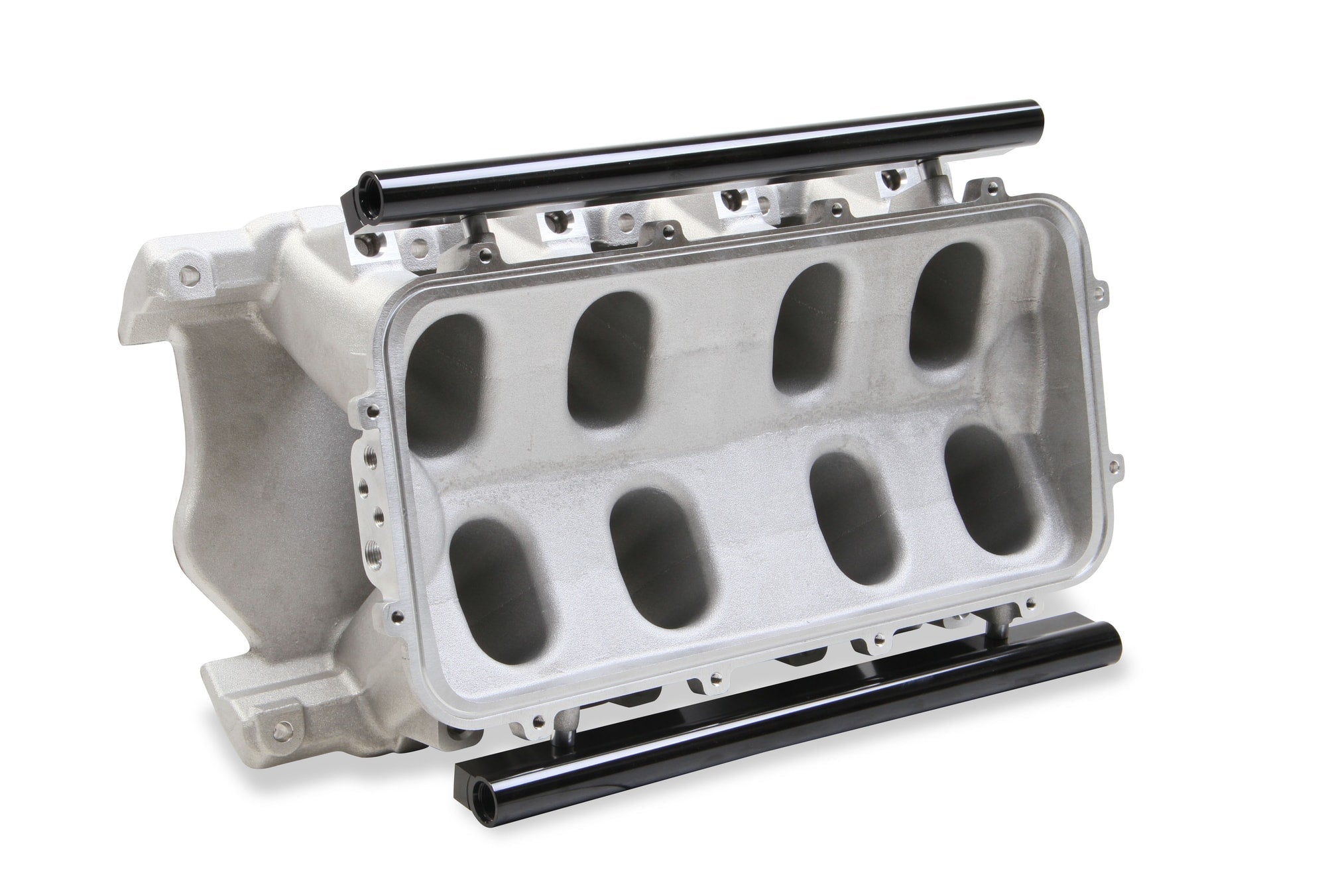

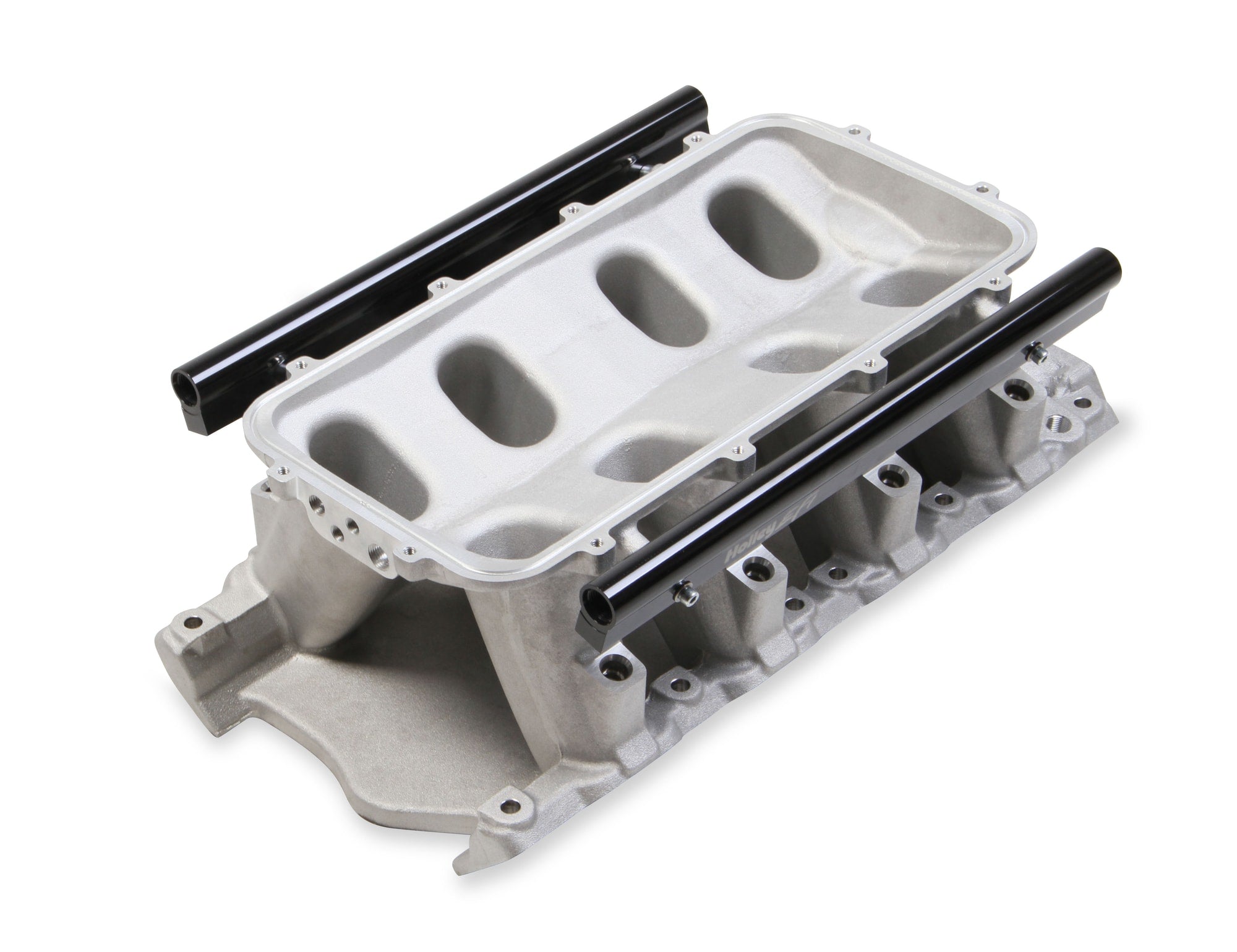

Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold Base
- Manifold is designed for a 9.5" deck height.
- Plenum Top Gasket Type – 3/32” Round O-ring Cord
- Requires the Use of Holley EFI Dual Sync Distributor - 565-111
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- The 351W manifold is available to work with 95MM or 105MM GM LS throttle bodies
📖
About this product
Ford 351W (9.5" Deck) Ford Hi-Ram Intake Manifold Base
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
1500-7000
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Engine
CNC Ported
No
Color
Natural
Construction
Cast
Cylinder Head Port Shape
Rectangle
Deck Height
9.5
EGR Port
No
Emission Code
4
Flange Style
EFI
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
No
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Port Size
2.00" x 1.190"
Product Type
Intake Manifold Base
Removable Runners
No
Removable Top/Lid
Yes
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
24.4 × 17.3 × 10.6 in
Shipping Dimensions
24.4 × 17.3 × 10.6 in
Weight
10954 g (10.95 kg)
