Holley EFIPart 300-272Made in CN
Product Details
⭐
Key Features
*** This Holley Hi-Ram intake manifold series is designed for Ford Windsor engines with an 8.2” deck height. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions. ***
*** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions. | • Cast aluminum construction. | Manifold is designed for a 8.2" deck height. | • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations | The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. This manifold comes with a 95MM LS throttle body flange top. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! | • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.

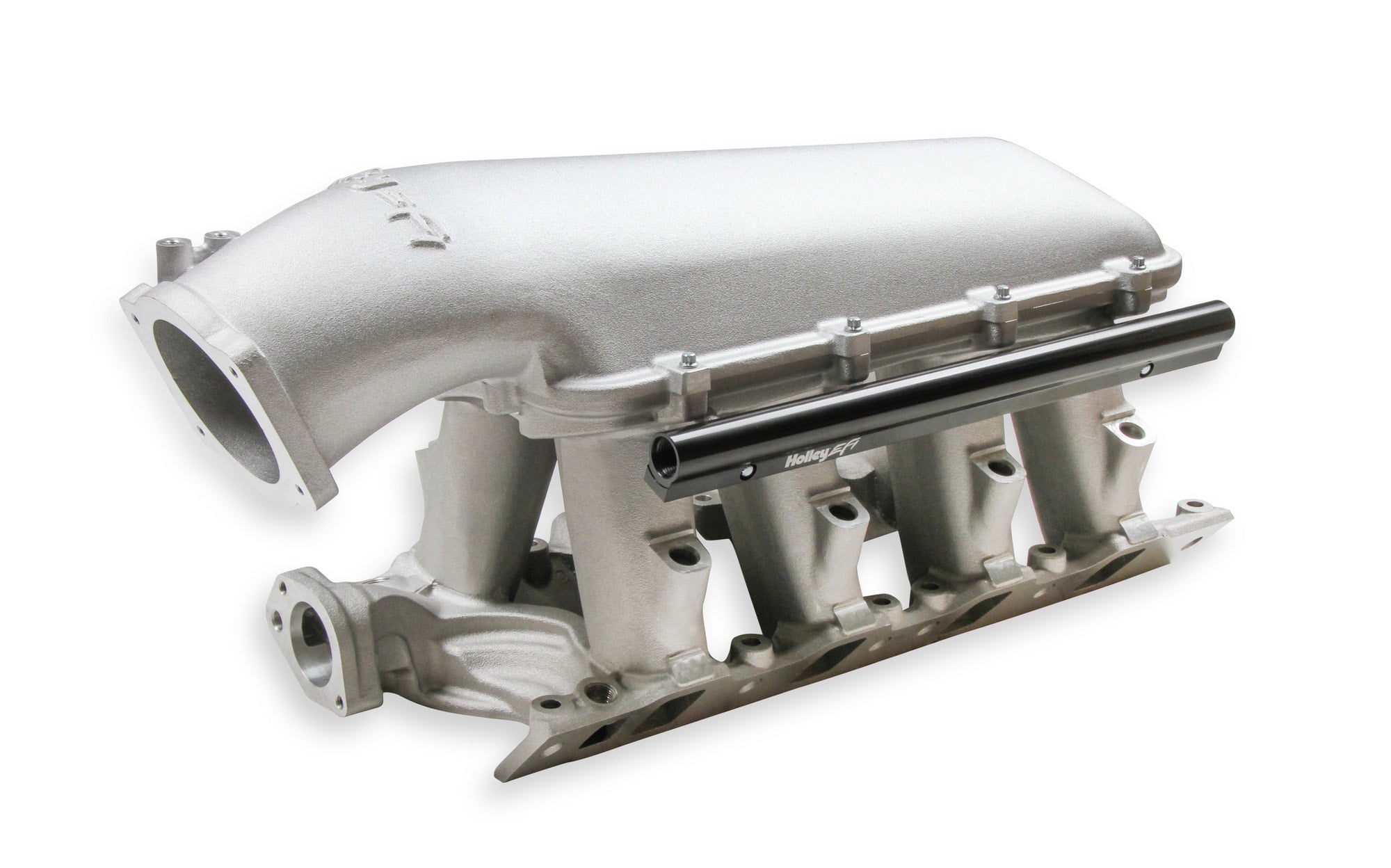

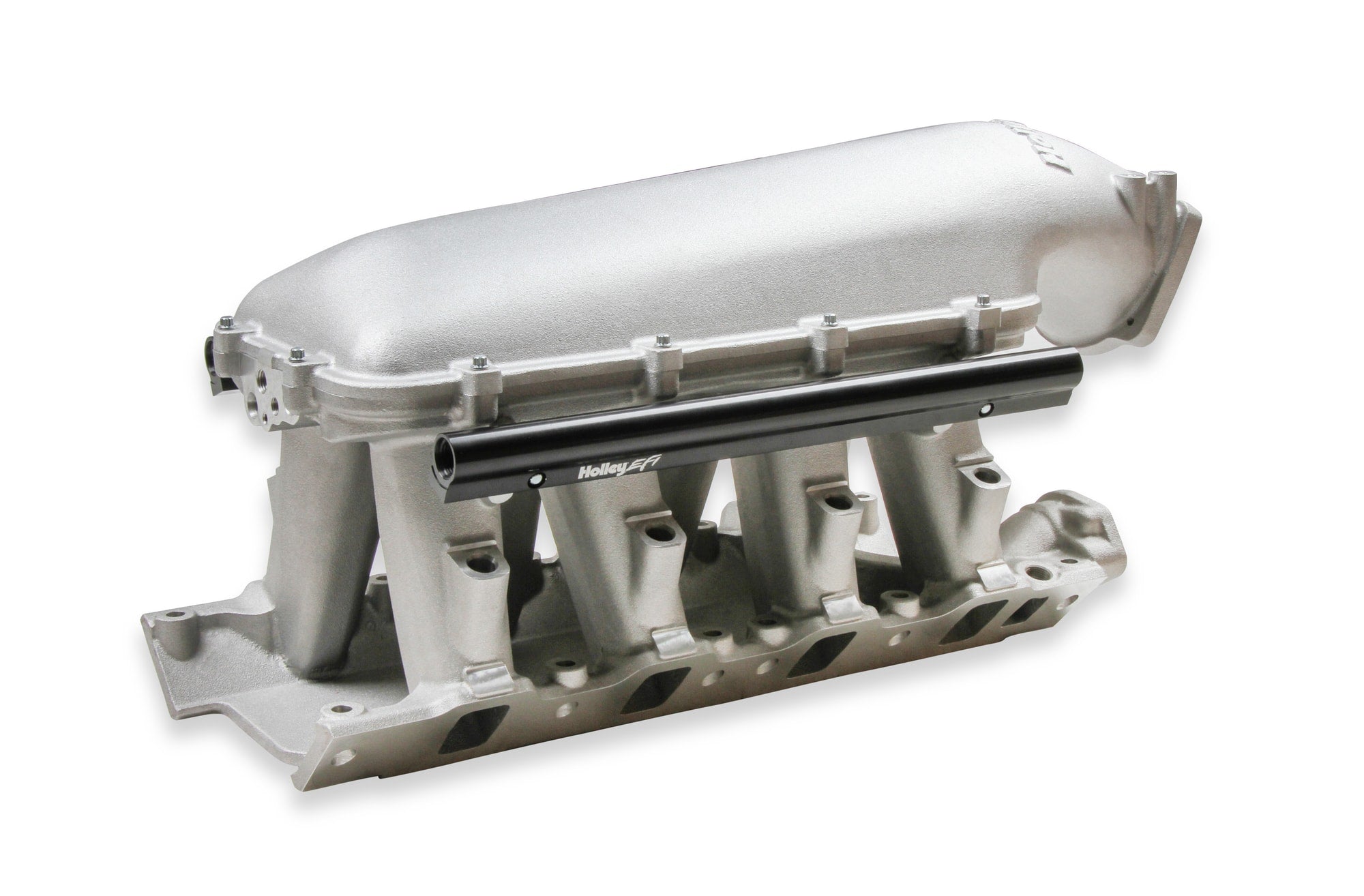

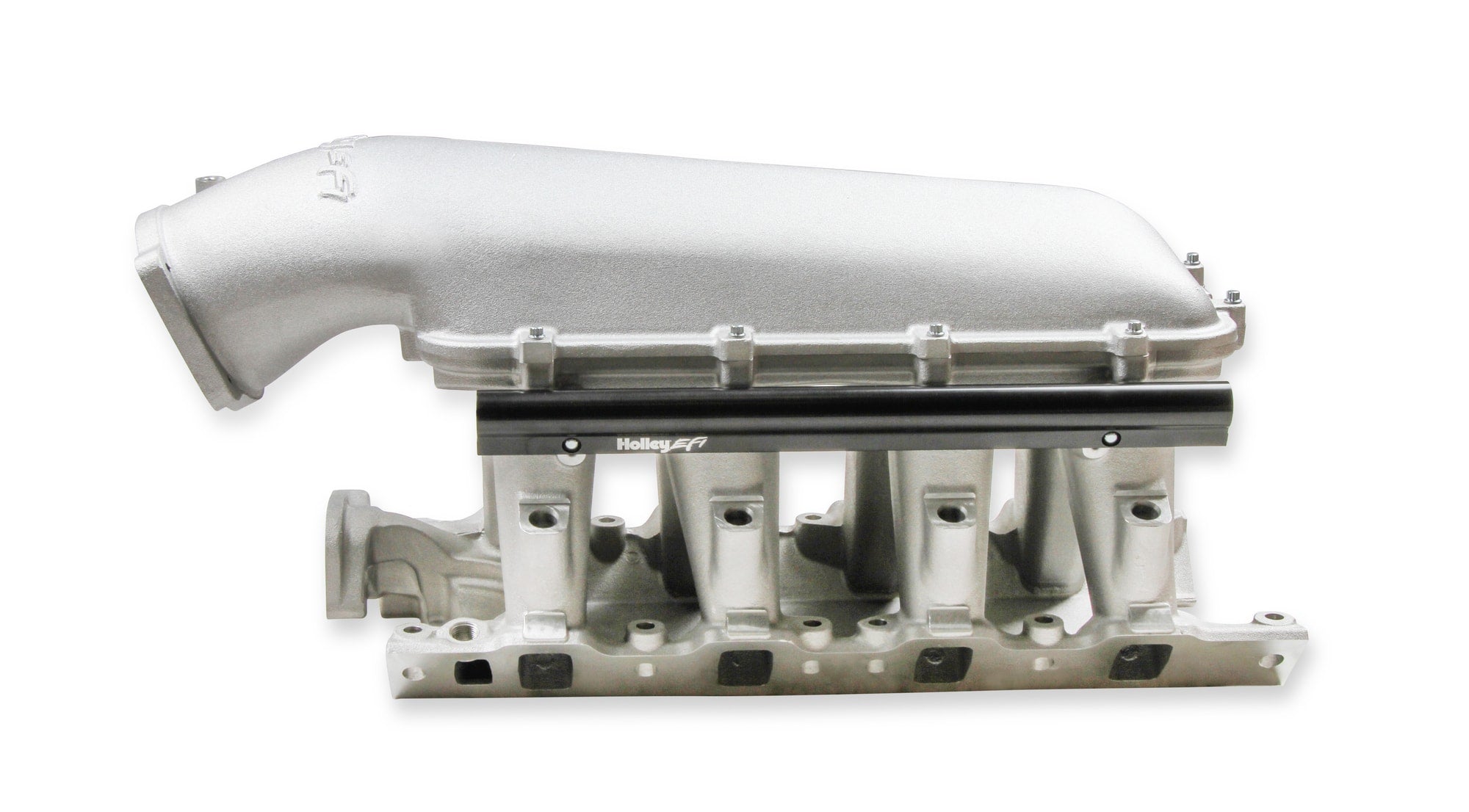

8.2" SBF Ford Hi-Ram Intake Manifold with 95mm LS Throttle Body Flange Top.
- Manifold is designed for a 8.2" SBF deck height.
- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Plenum Top Gasket Type – 3/32” Round O-ring Cord

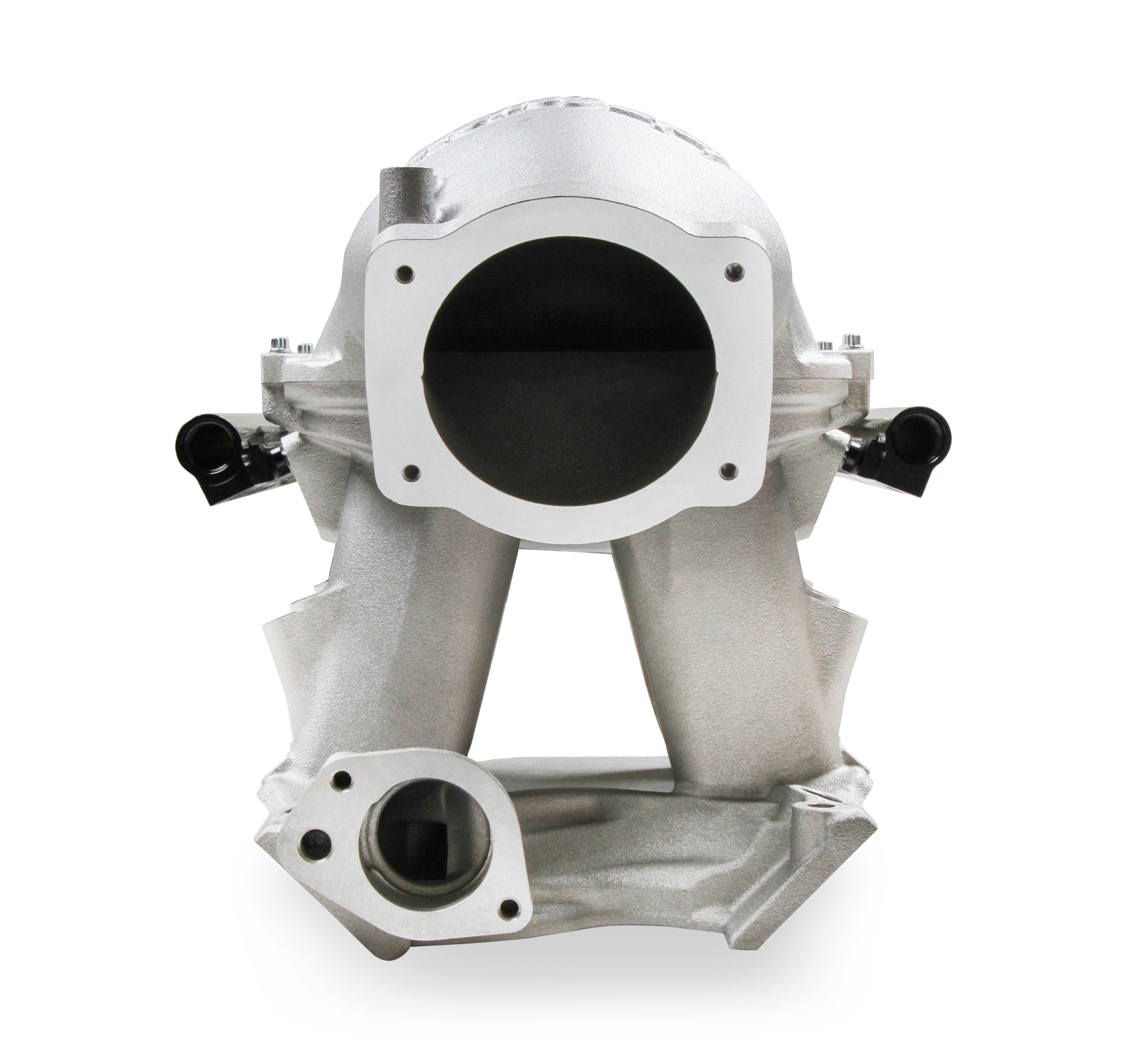

- The 8.2 SBF manifold is available to work with 95MM throttle bodies
📖
About this product
8.2" SBF Ford Hi-Ram Intake Manifold with 95mm LS Throttle Body Flange Top.
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
1500-7000
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Intake Manifolds
CNC Ported
No
Color
Natural
Construction
Cast
Cylinder Head Port Shape
Rectangle
Deck Height
8.2
EGR Port
No
Emission Code
3
Flange Style
EFI
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
Yes
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Natural
Port Size
2.00" x 1.190"
Product Type
Intake Manifold
Removable Runners
No
Removable Top/Lid
Yes
Single Or Dual Plane Type
Single Plane
Throttle Body Bore Diameter
95 MM

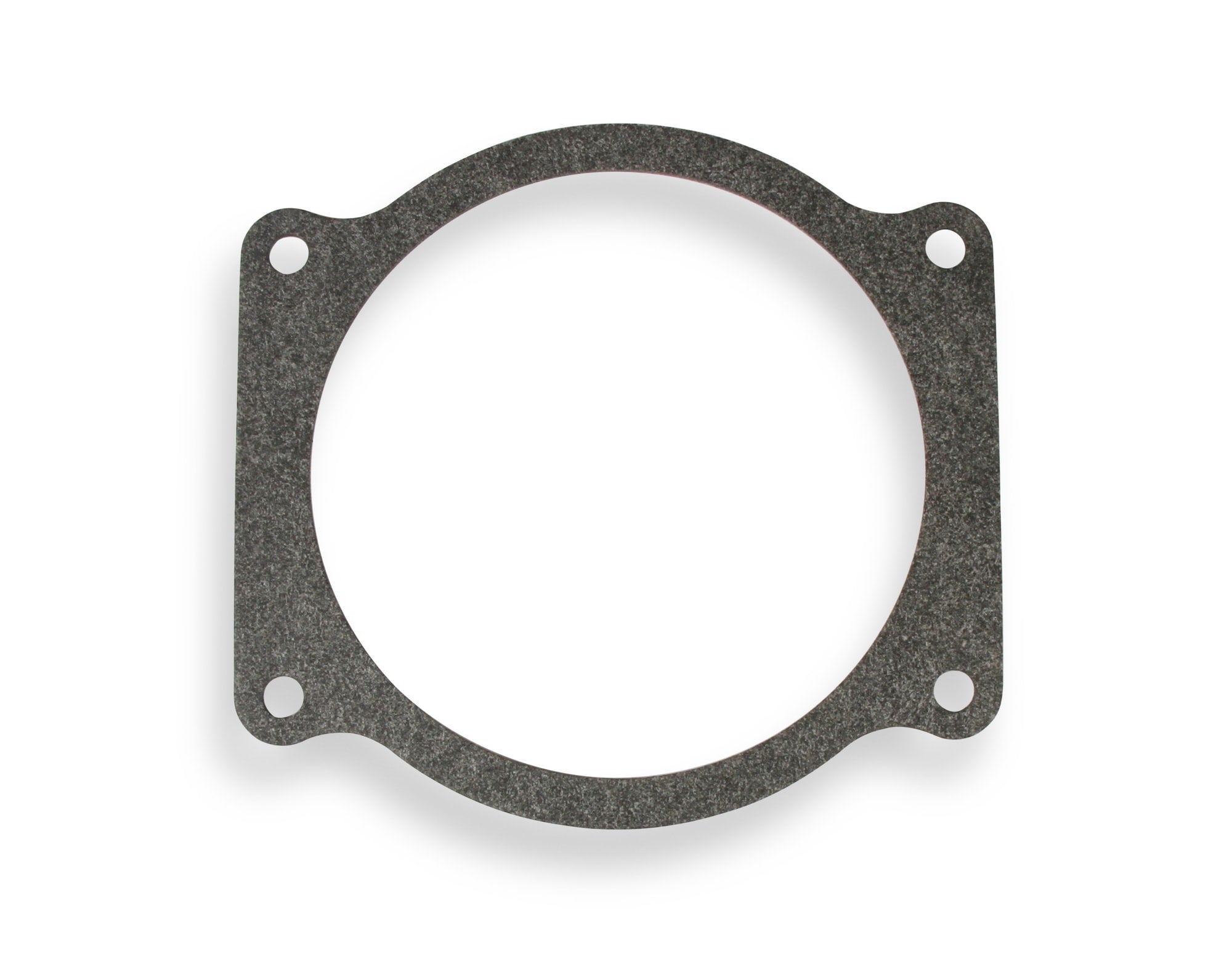

Throttle Body Gasket Included
Yes
Throttle Body Included
No
Throttle Bore
95mm
Vacuum Ports
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
24.1 × 18.4 × 13.5 in
Shipping Dimensions
24.1 × 18.4 × 13.5 in
Weight
13630 g (13.63 kg)
