Product Details
⭐
Overview

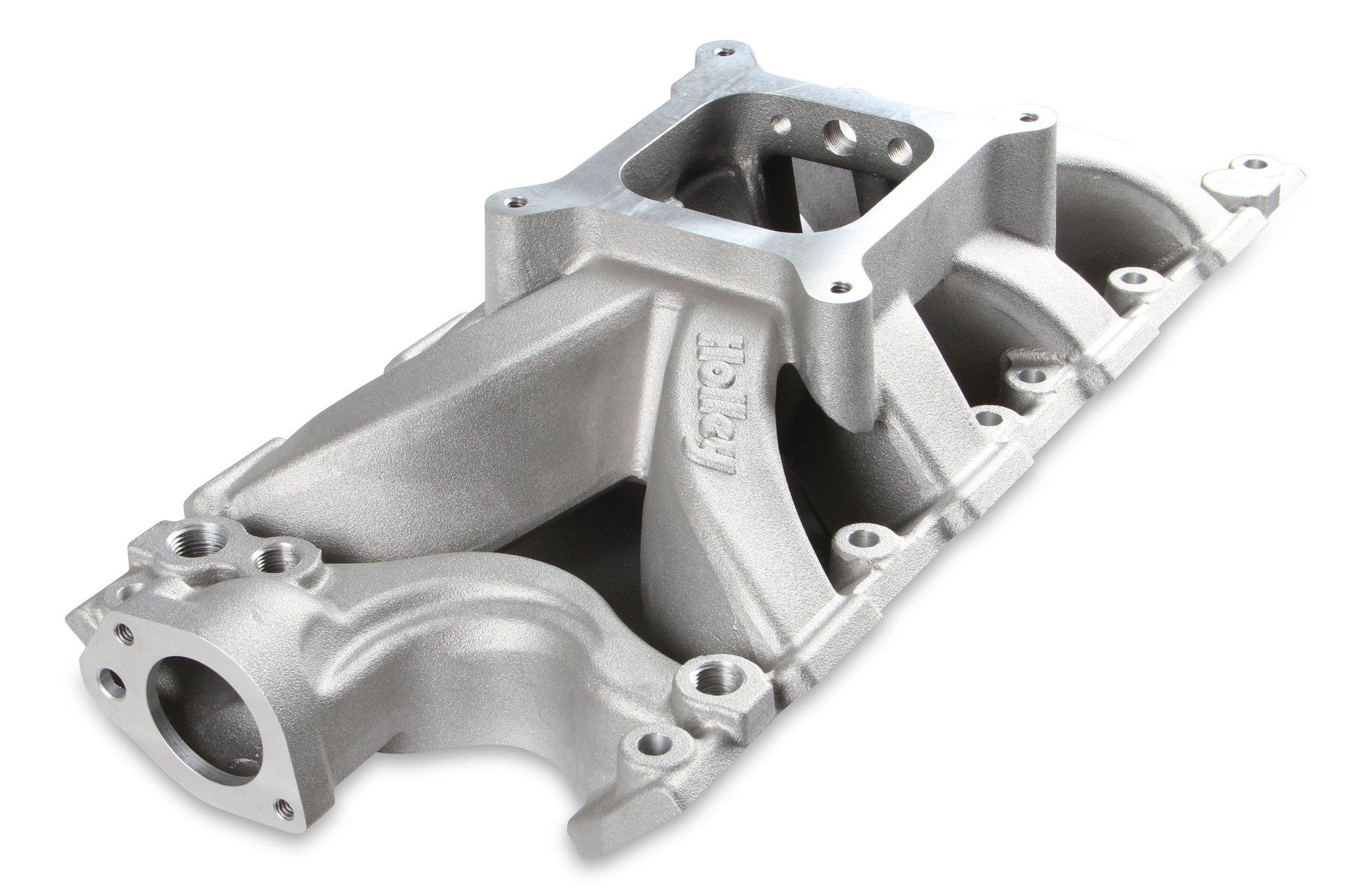

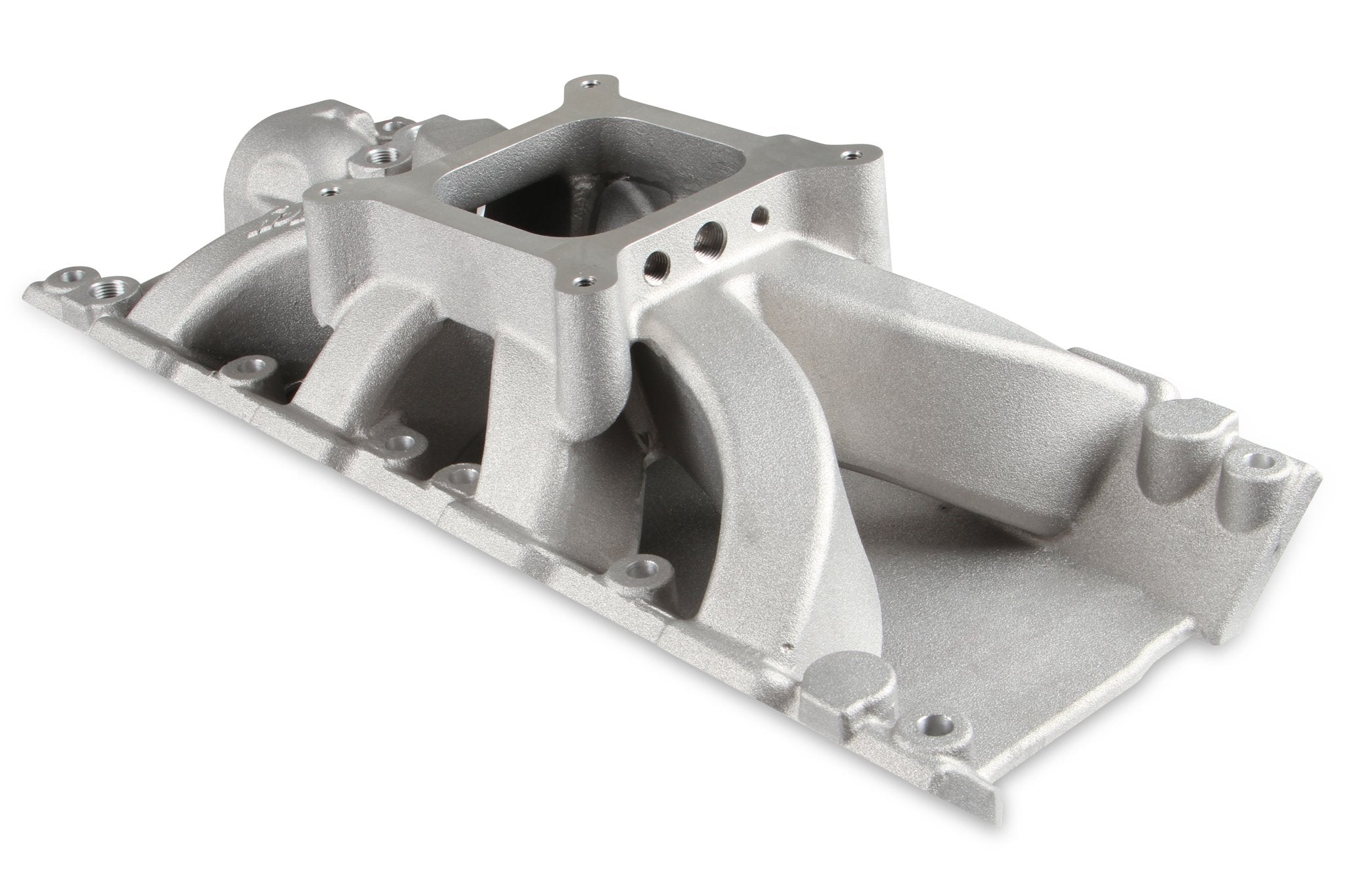

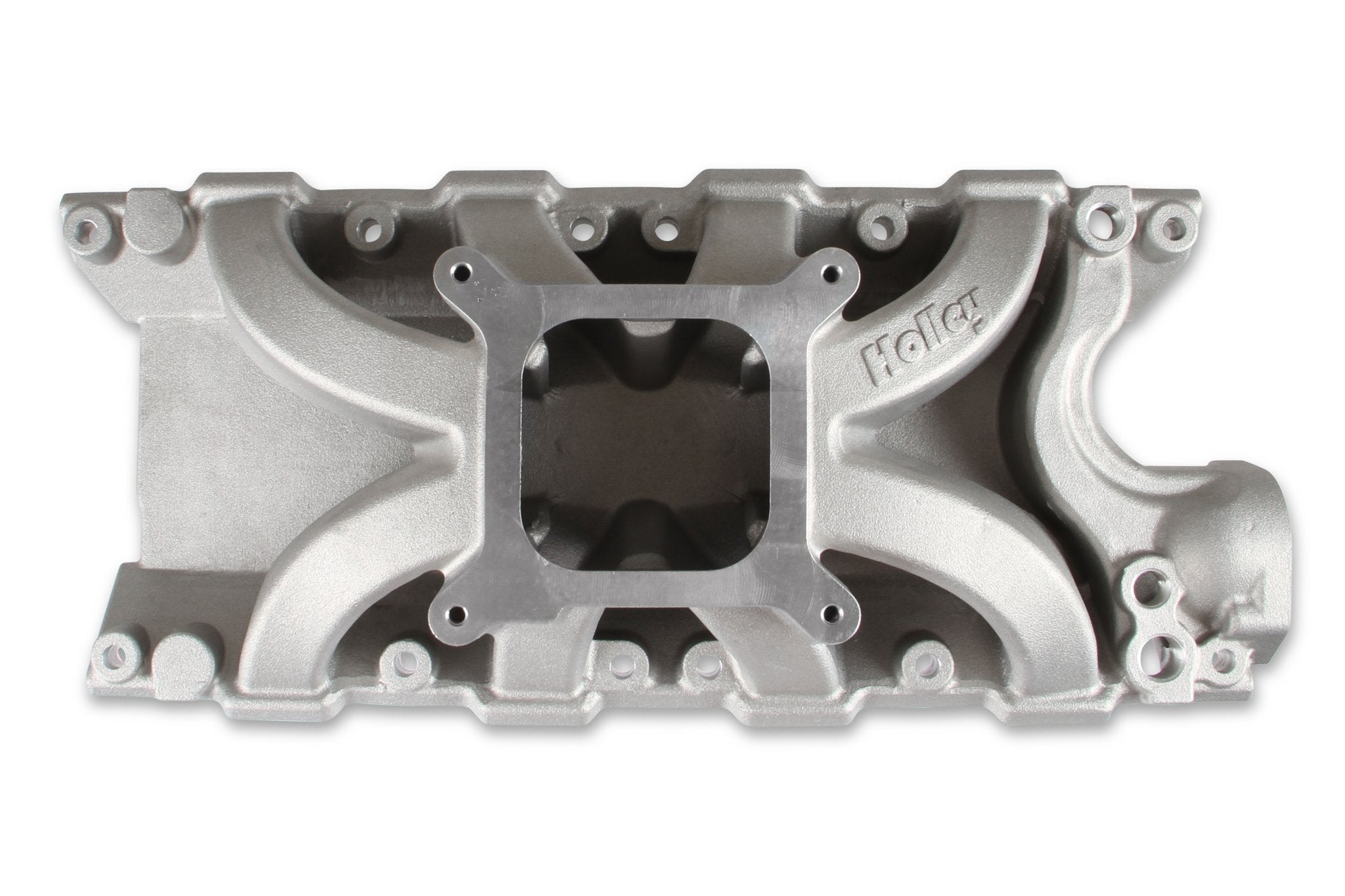

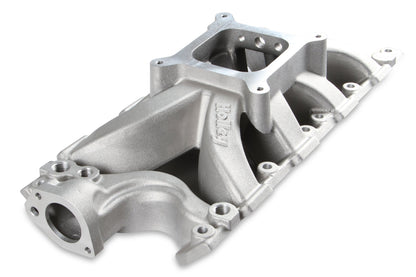

Carbureted Single Plane Intake Manifold Small Block Ford 289-347
- Single plane design with isolated plenum for cooler charge air temperatures
- 4150 square bore mounting flange
- Power band: 2500-7500 RPM
- Height: front 5.58�, rear 6.40�
- Port size: 1.82� height, 1.04� width
- Extra material allows for porting to 2.00� height, 1.20� width

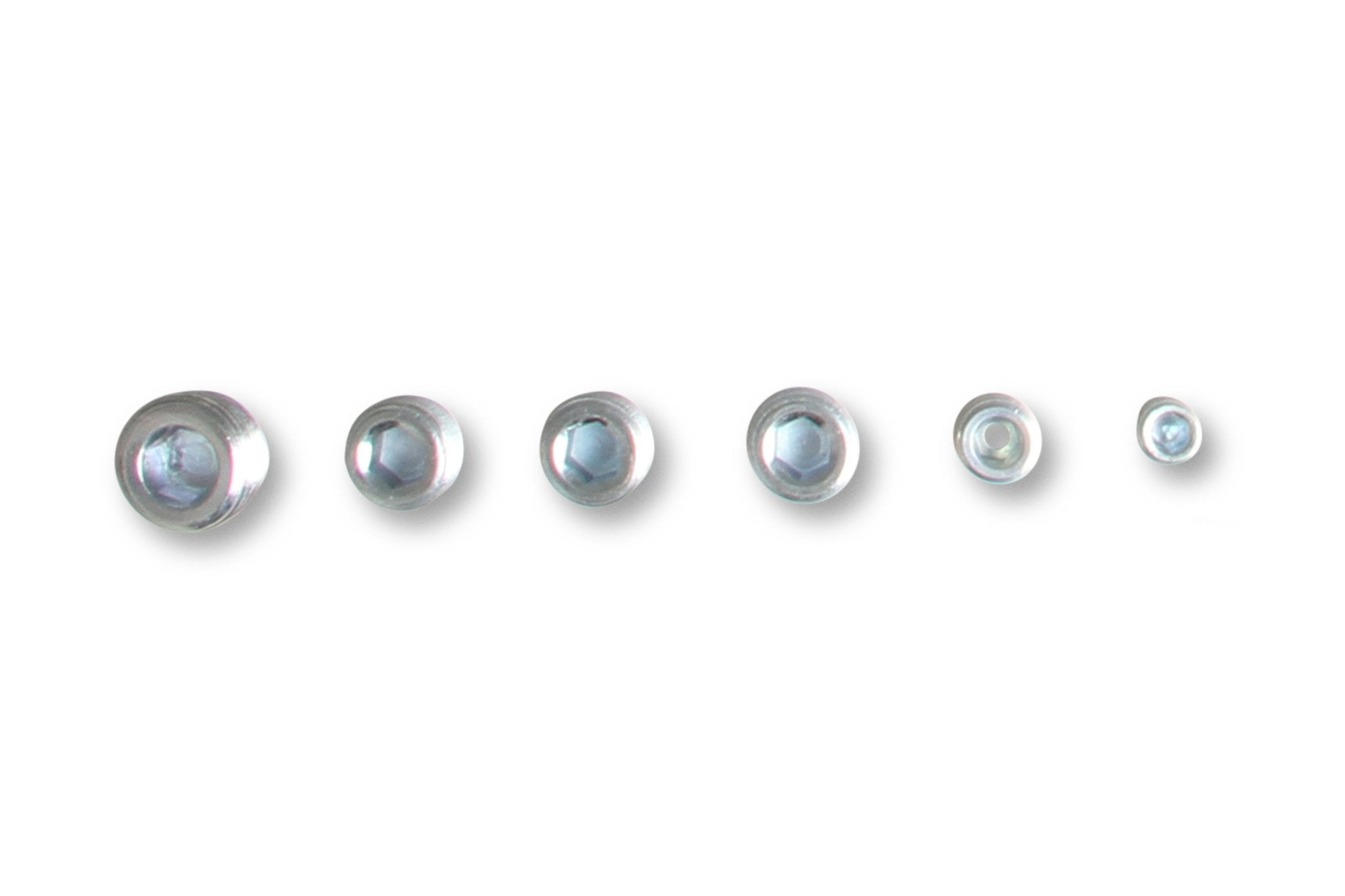

- Accessory ports under the carburetor in 1/8 NPT, 1/4 NPT and 3/8 NPT sizes
📋
Product Specifications
Basic Operating RPM Range
2500-7500 R3
Brand
Holley
Carburetor Studs Included
No
Construction
Cast
EGR Port
No
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
Carbureted
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Single Plane
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Product Type
Intake Manifold
Removable Runners
No
RPM Power Band
2500-7500
Single Or Dual Plane Type
Single Plane
Throttle Body Included
No
