HolleySKU 300-294bkMade in CN
Product Details
⭐
Key Features
SINGLE PLANE EFI

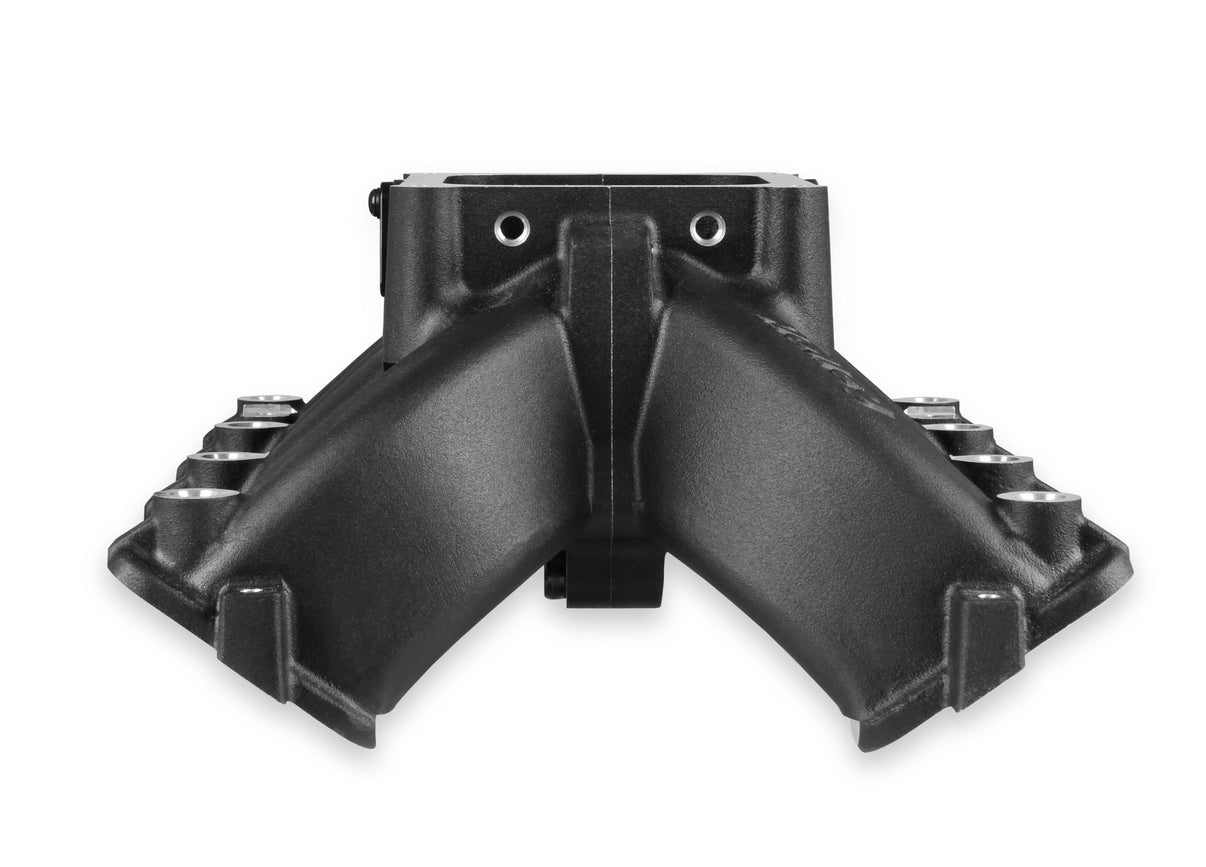

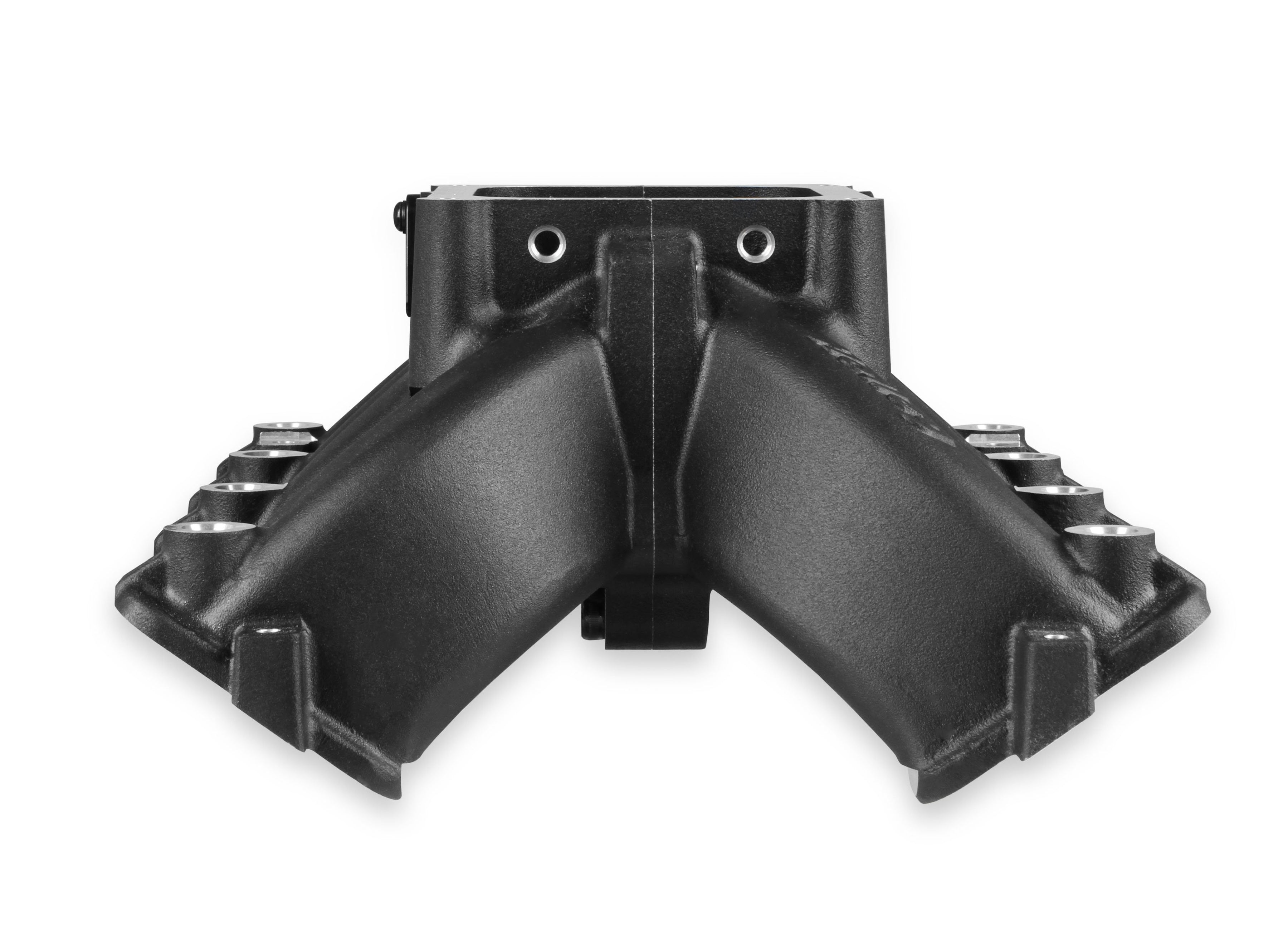

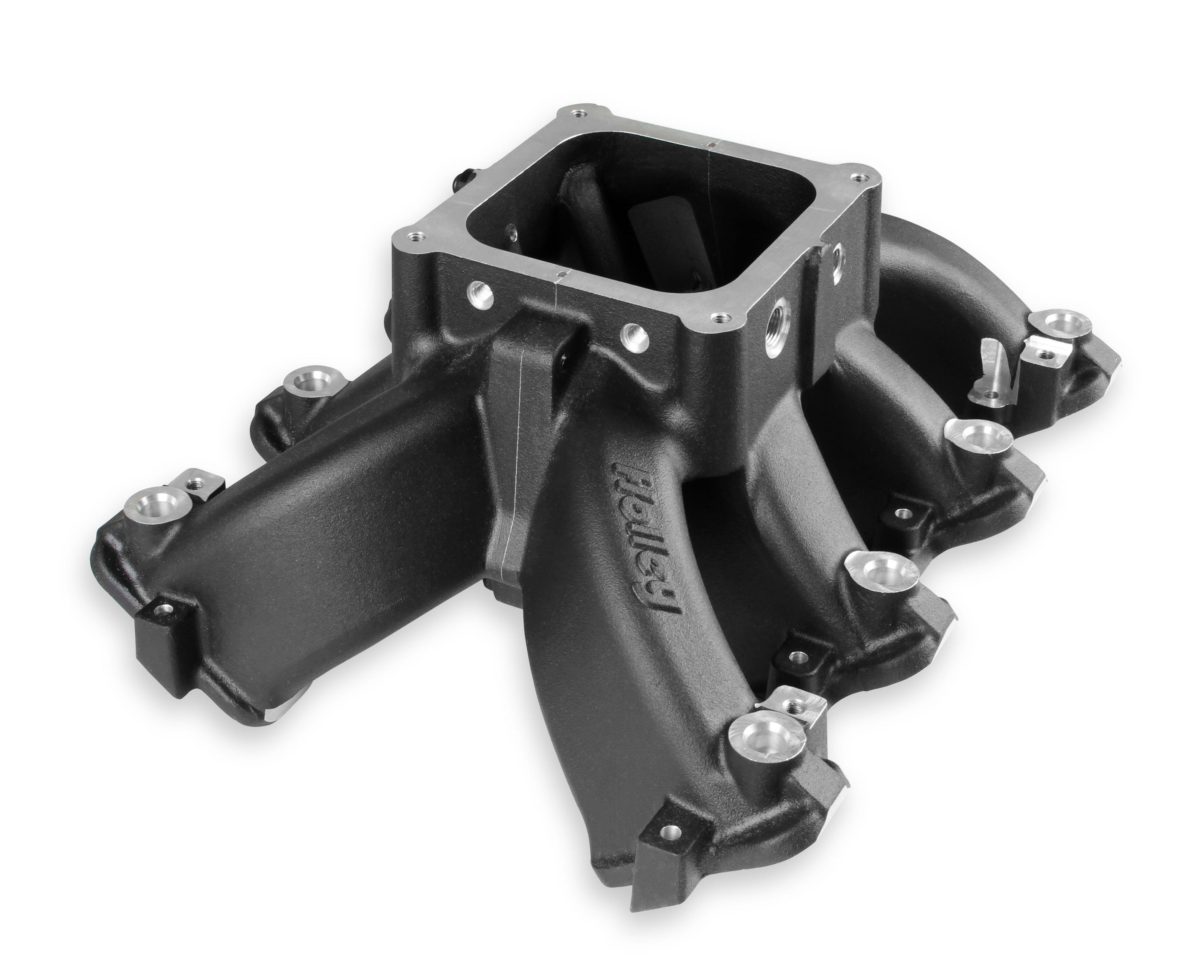

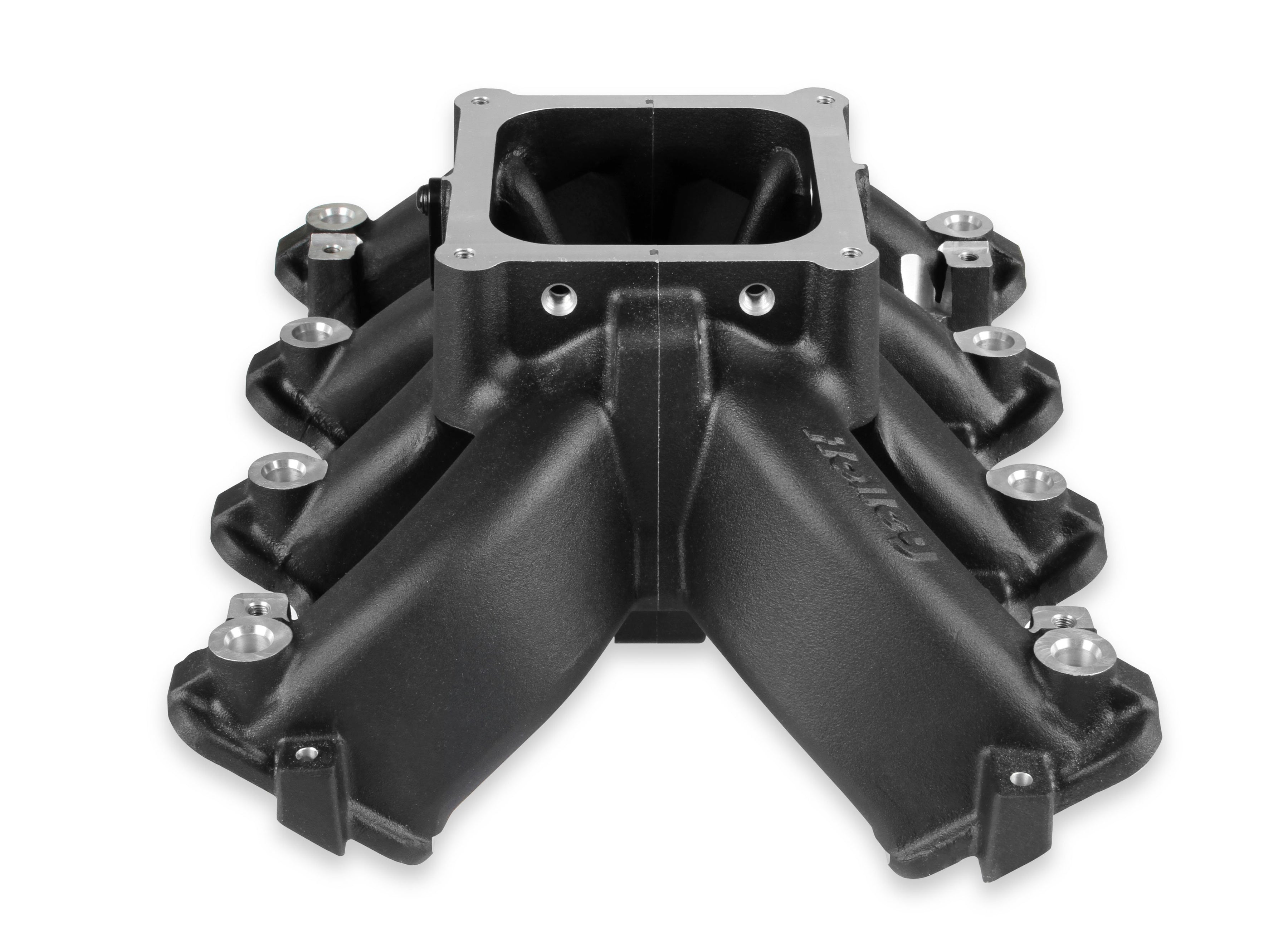

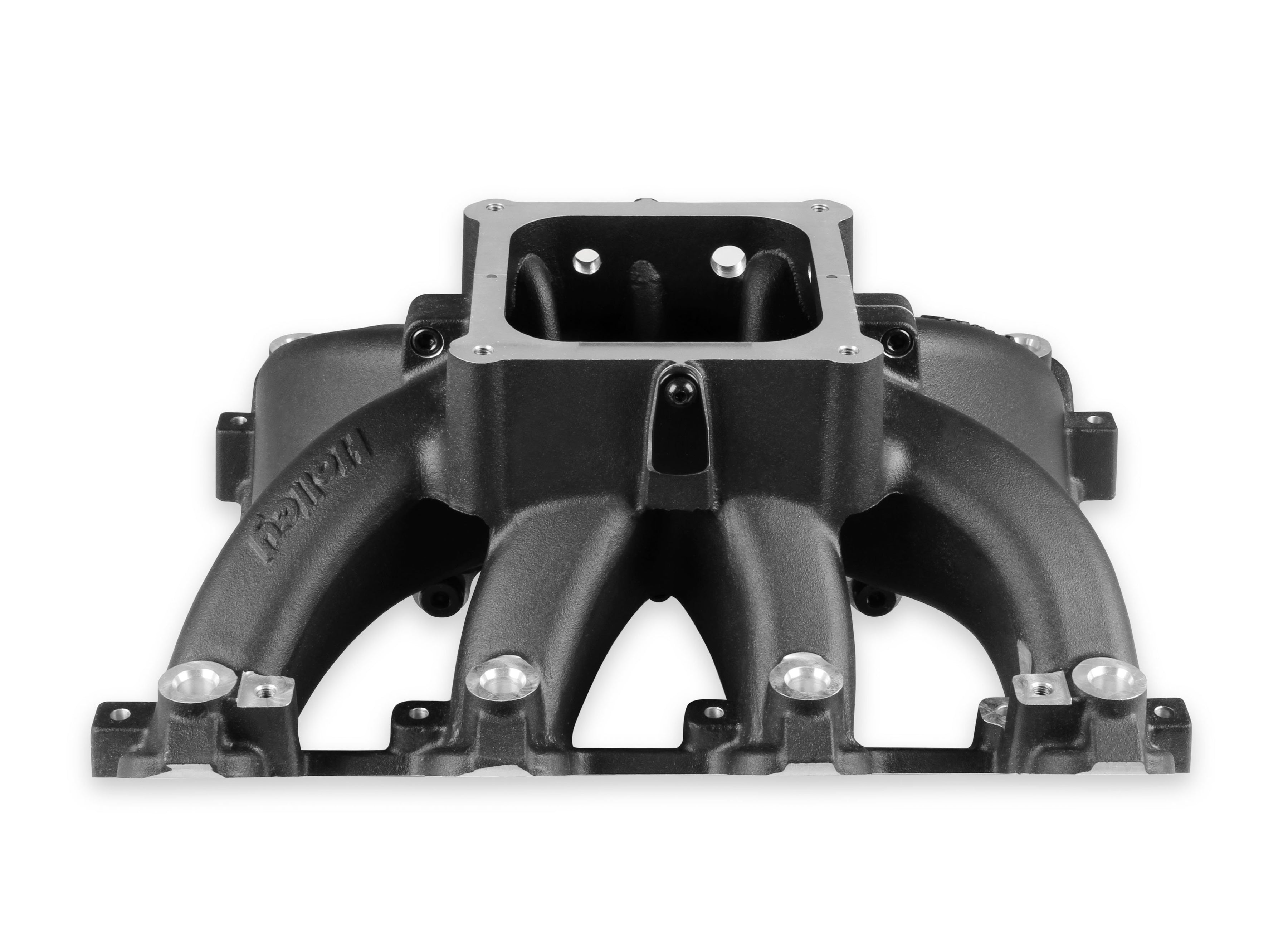

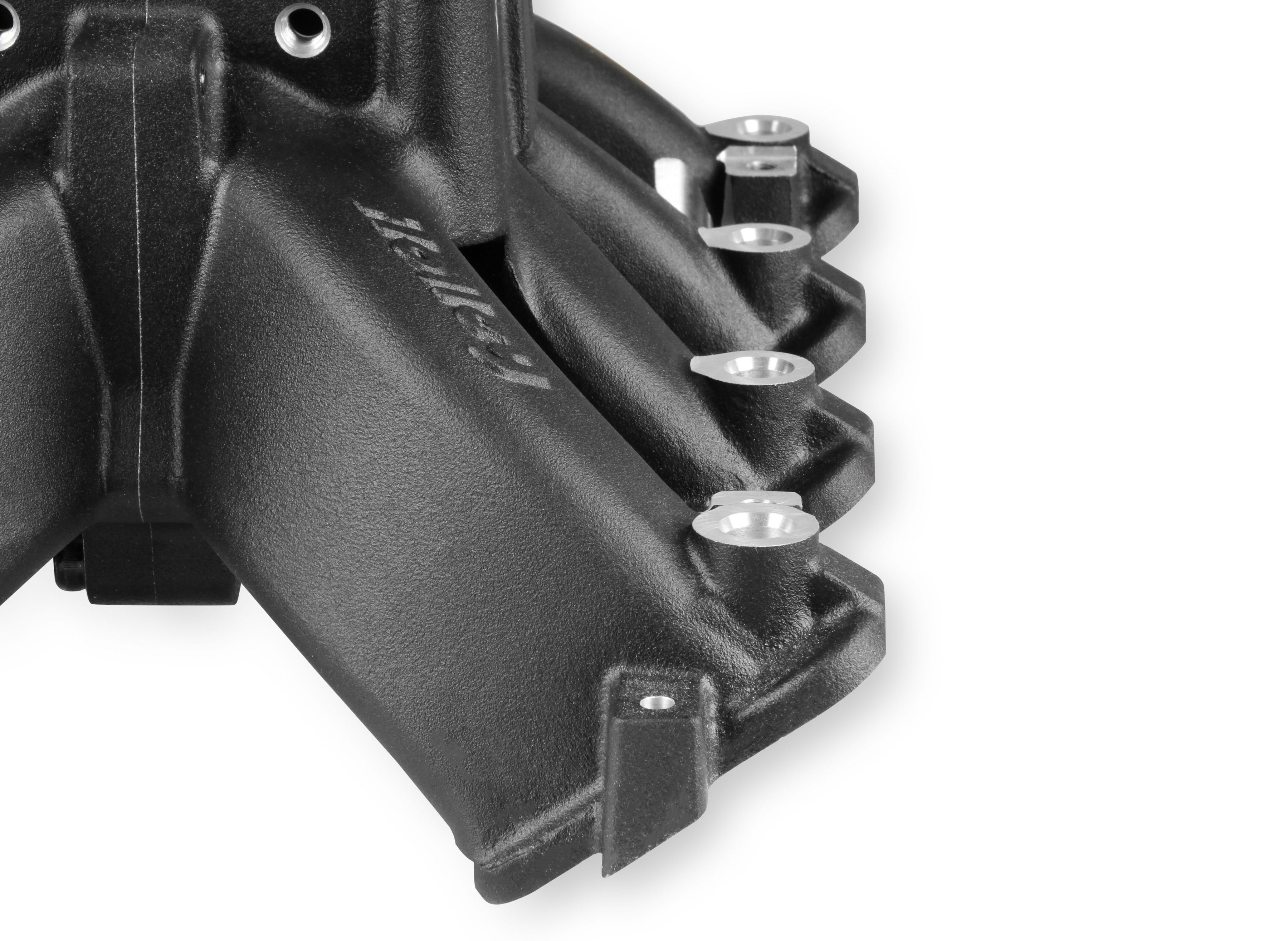

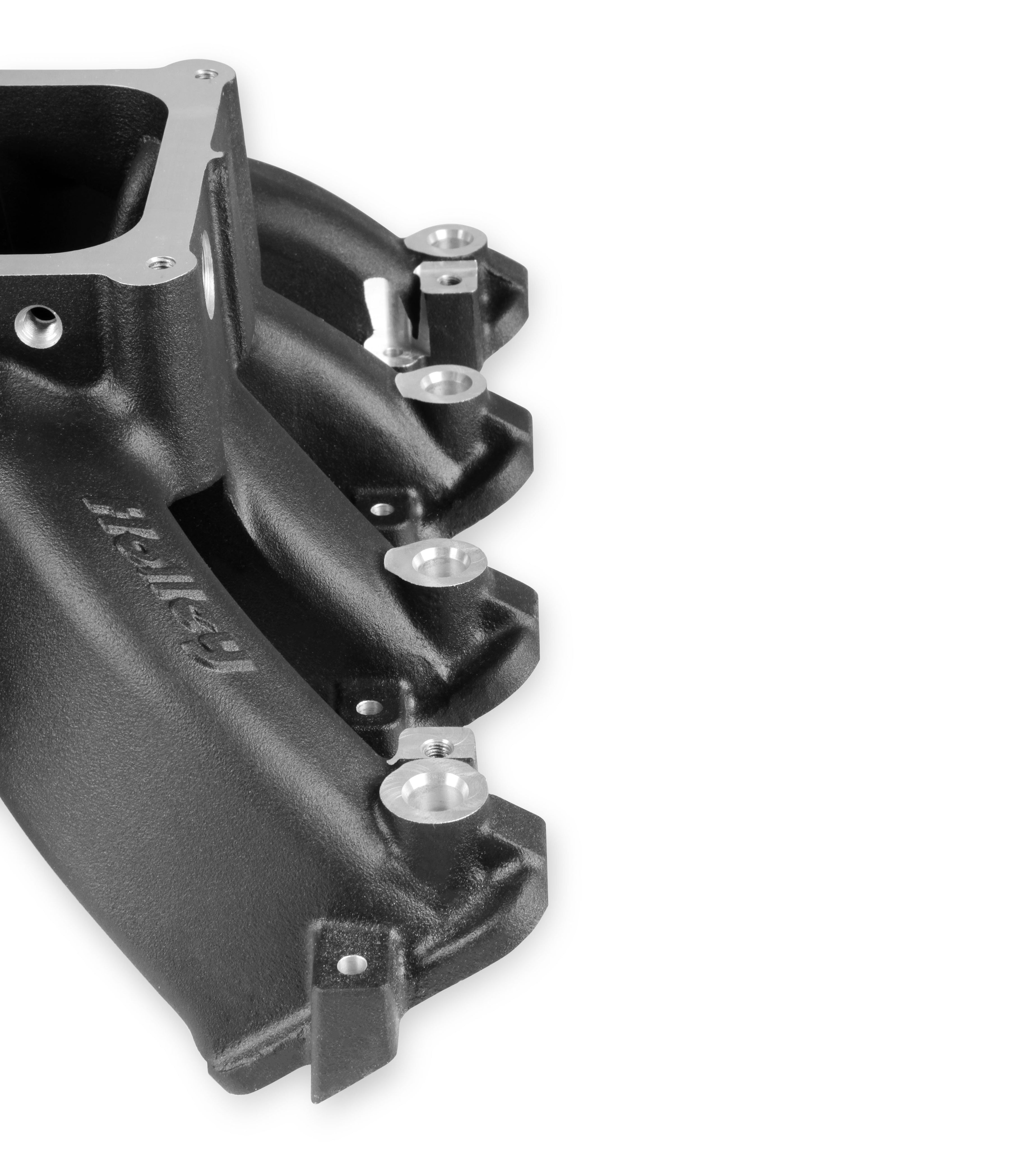

The LS Race single-plane intake manifold is designed for hi-performance/racing engine applications, 5.3 to 6.2+ liter displacements, N/A or with power adders. The large volume 4500 plenum and optimized runners provide airflow potential for Hi-RPM engines with max power at 7500-8000+ RPM. The manifold with AN-8 fuel rails fits GM LS Gen III engines with cathedral port heads and has a 4500 Dominator style carb flange for carburetors, EFI throttle bodies, or EFI throttle body elbows, and is configured with a LS MAP sensor port along with other NPT plenum vacuum or air-temp sensor ports. The new Holley Single-Plane Race intake manifold is designed with maximum performance in mind. Featured is a two-piece split design that provides access for all levels of porting and modification. With shoulder bolt locators and O-ring seal, disassembly & reassembly is simple and precise.

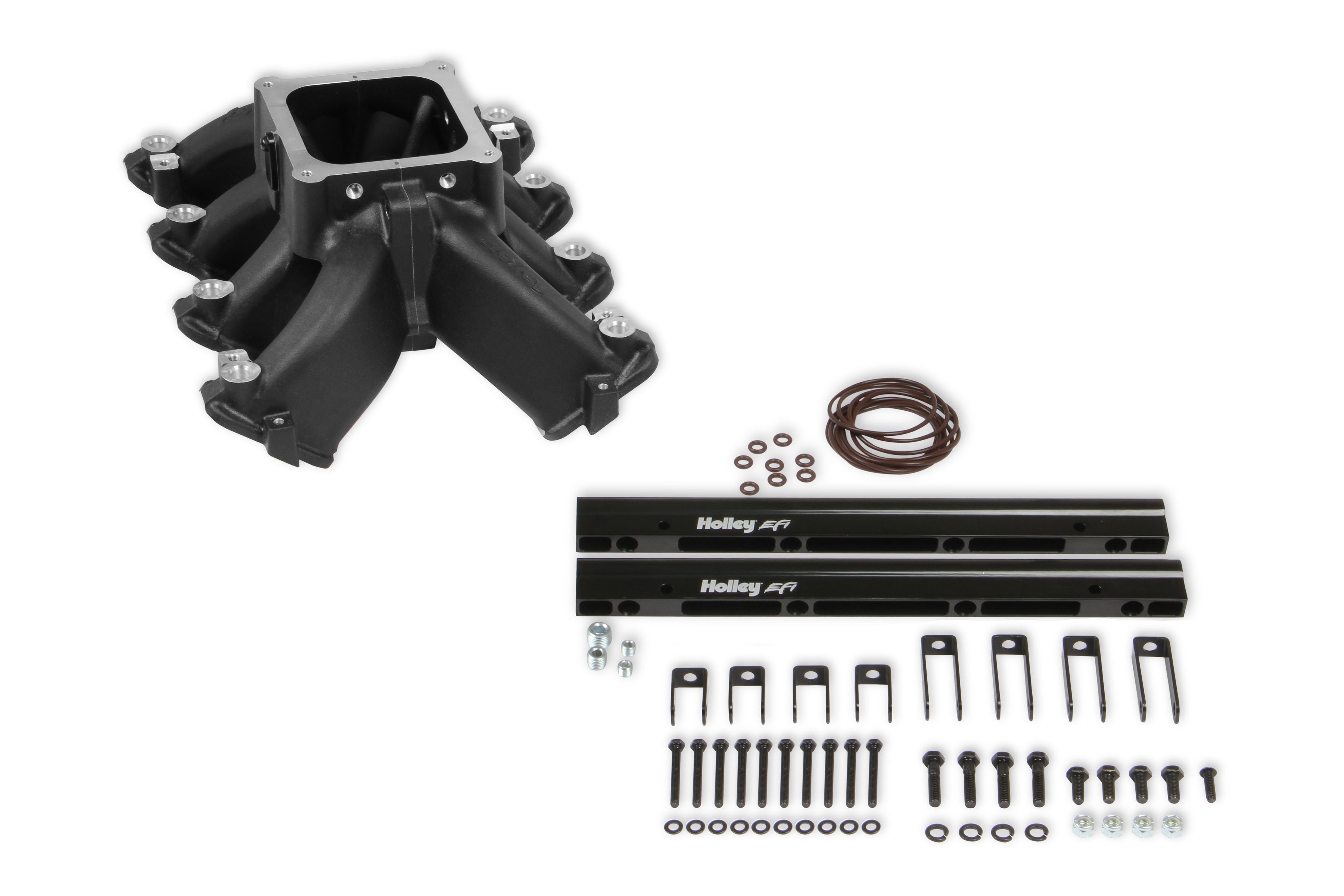

Split-Design Race Intake Manifold- GM LS1/LS2/LS6 Black Finish with Fuel Rails

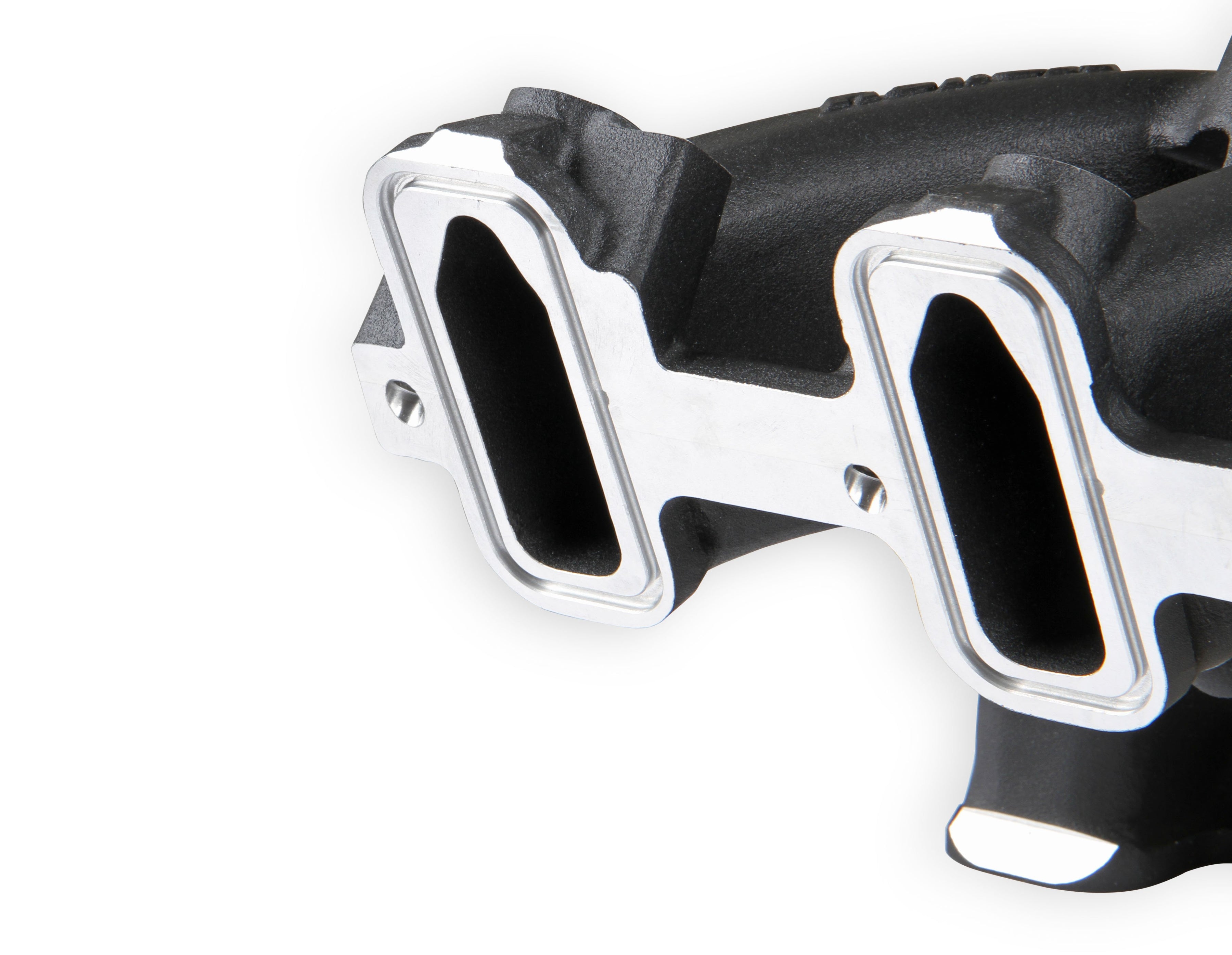

- Captured O-ring seals at head ports and plenum split

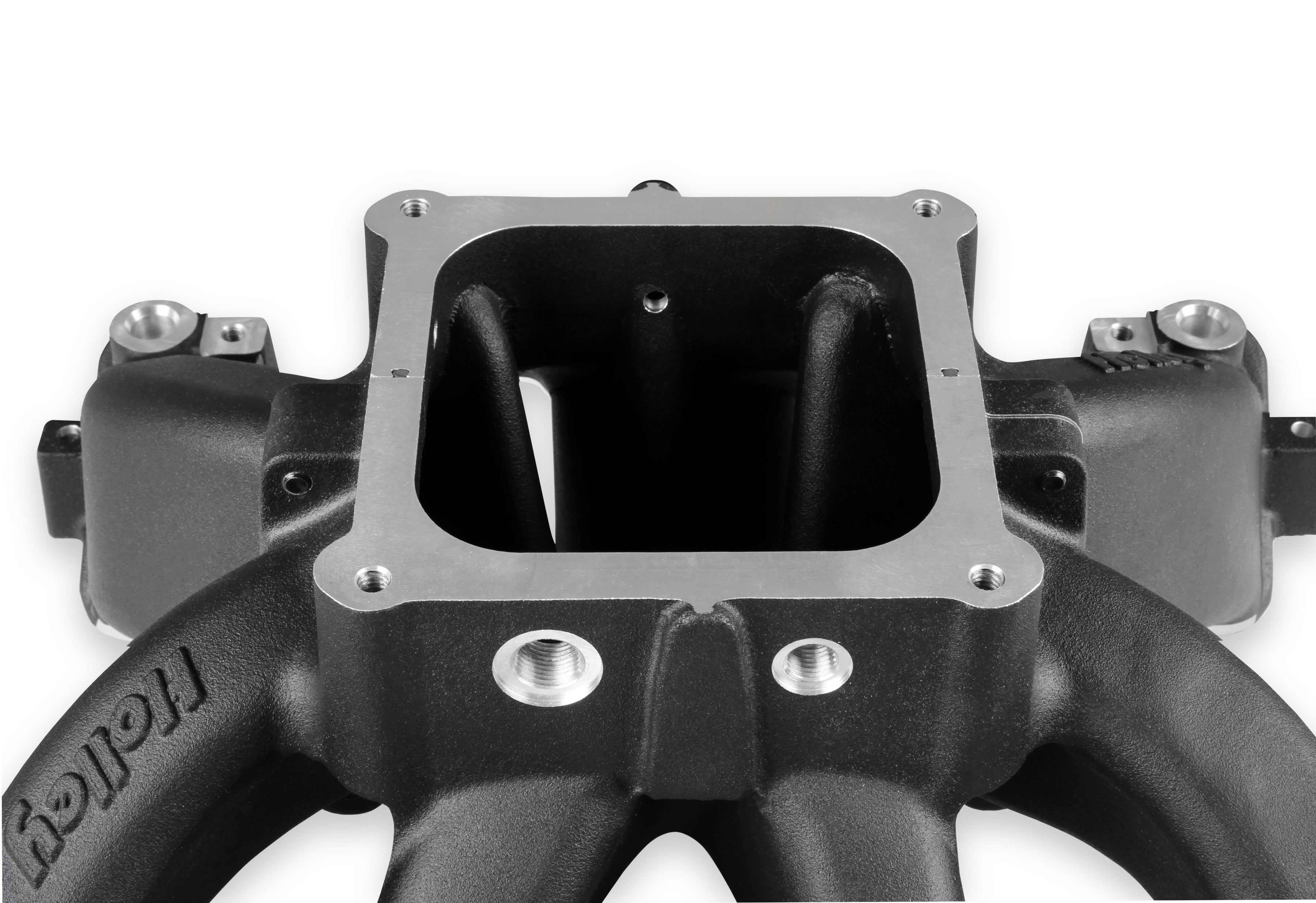

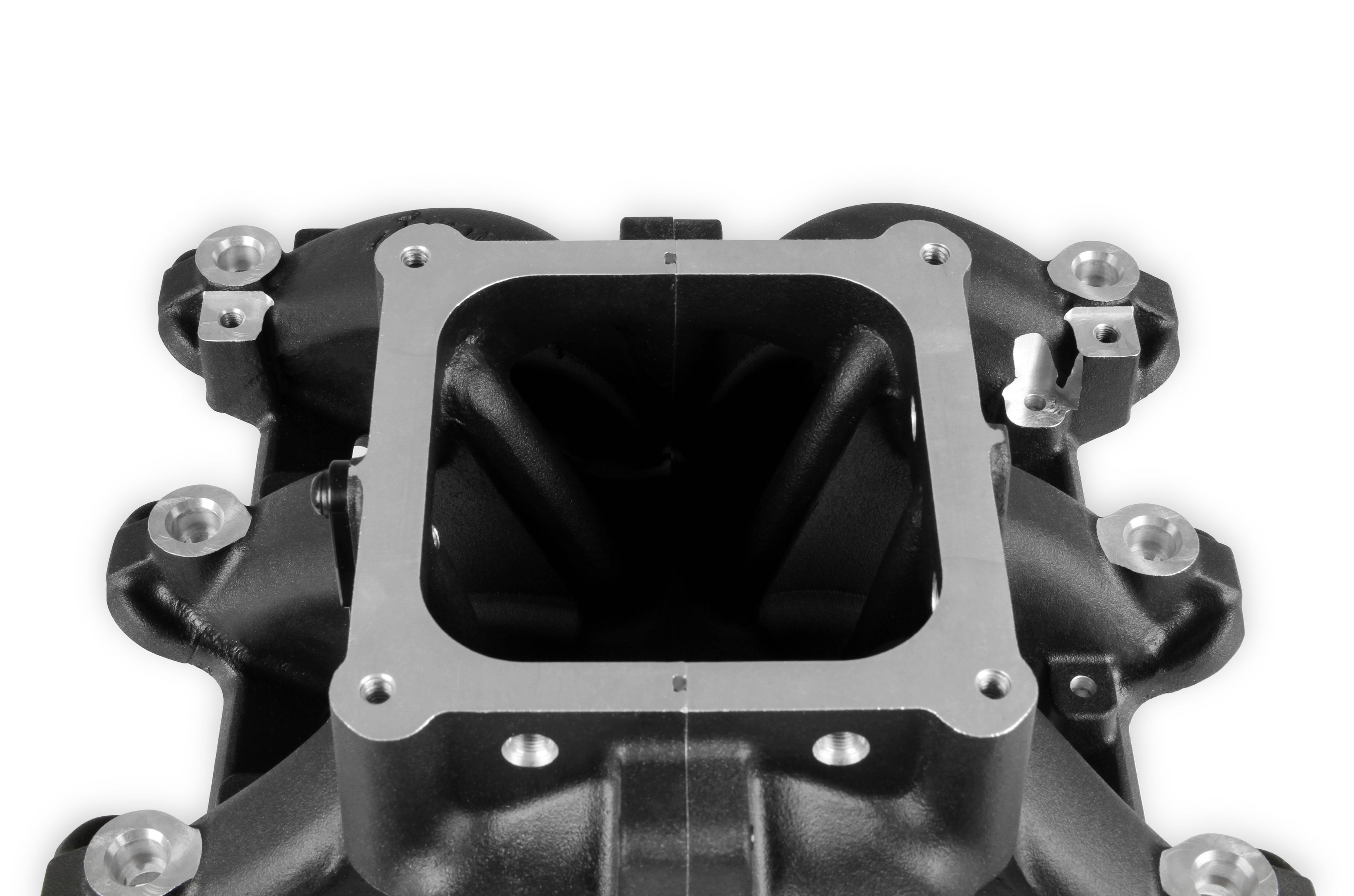

- Maximum performance 4500 Dominator flange race design with hood clearance consideration
- Split feature making porting efforts easy!
- Lighter than other split race intakes

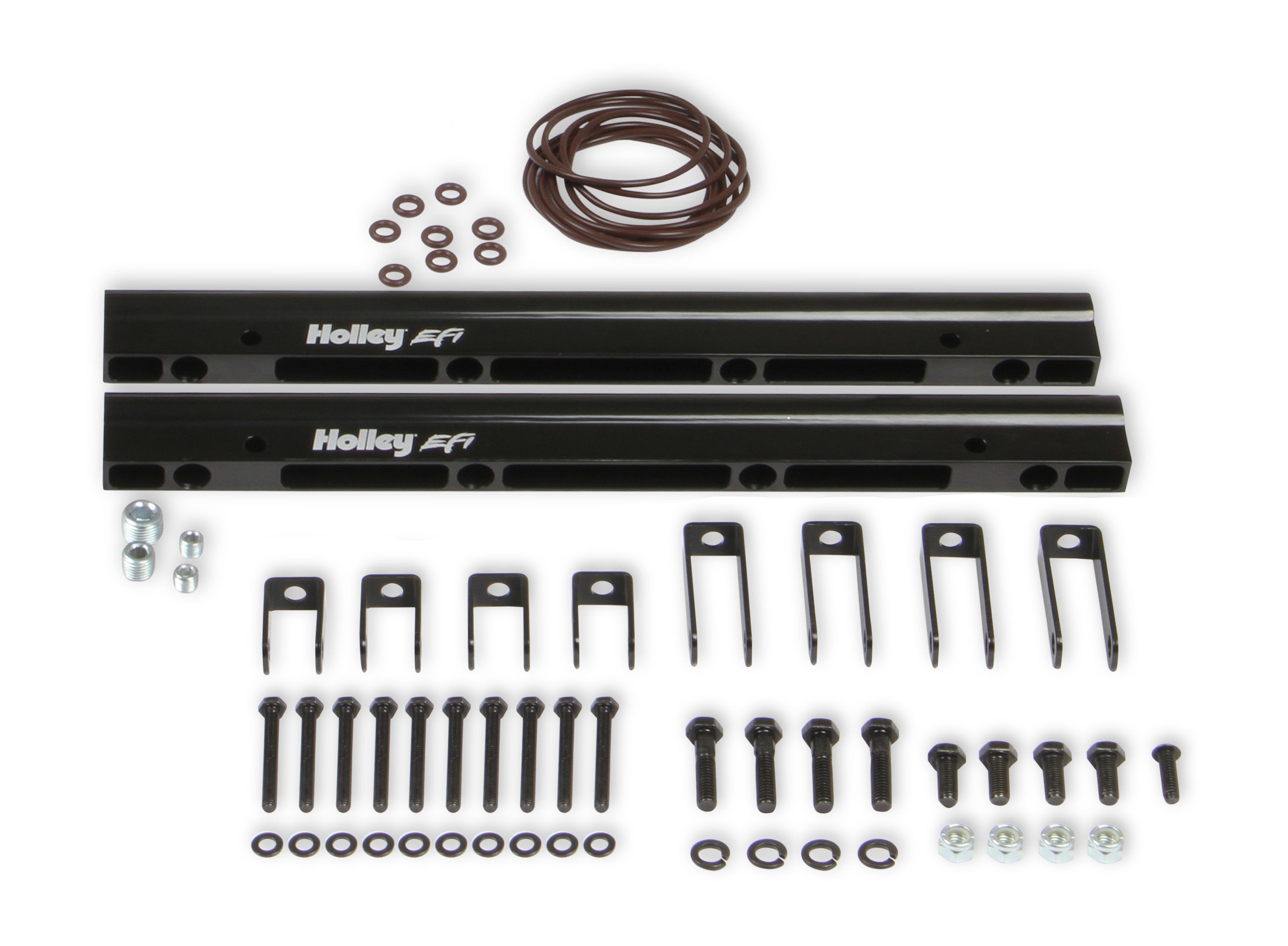

- Two versions available: EFI type - Billet Fuel Rails and rail mounting hardware included, or Carbureted / Sniper EFI 4500 TBI style
- Vacuum Port options include (2) 1/8, (1) 1/4, and (1) 3/8, NPT ports at the carb flange
- 33 to 50% the price of other split race intakes
📖
About this product
Split-Design Race Intake Manifold- GM LS1/LS2/LS6 Black Finish with Fuel Rails
📋
Product Specifications
Automotive Item Grade
Performance
Barrels
4
Basic Operating RPM Range
2500-7500
Basic Operating RPM Range
2500-7500 R3
Brand
Holley
California Proposition 65 Chemical Name
4
Carburetor Flange
Dominator/4500
Carburetor Quantity
1
Carburetor Studs Included
No
Category
Engine
CNC Ported
No
Color
Black
Construction
Cast
Cylinder Head Port Shape
Cathedral
Deck Height
9.24
EGR Port
No
Emission Code
3
Flange Style
4500
Front Maximum Height
7.32
Fuel Injectors Included
No
Fuel Rail(s) Included
No
Fuel System Type
EFI
Gasket Or Seal Included
No
Grade Type
Performance
Intake Port Gasket(s) Included
No
Manifold Type
Split Single Plane
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Product Type
Intake Manifold
Rear Maximum Height
7.32
Removable Runners
No
Removable Top/Lid
No
RPM Power Band
2500-7000
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
5
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
23.1 × 14.5 × 10.2 in
Shipping Dimensions
23.1 × 14.5 × 10.2 in
Weight
9775 g (9.78 kg)
