HolleySKU 302-63bkMade in CN
Product Details
⭐
Key Features
Gen III Hemi Swap
Mopar's popular Gen III Hemi engines are ideal for swapping into many trucks since they are durable, reliable, and make great power. The factory oil pans on these engines usually don't fit and hang too low for your swap. These new cast aluminum oil pans (Patent Pending) fit 1972-1993 Dodge D100/D150/W100/W150, 1987-2004 Dodge Dakota, 1974-1993 Ramcharger, and 1974-1981 Trailduster. The cast aluminum construction & integrated windage tray on the oil pans combined with o-ring sealing provide an attractive leak-free solution for your engine swap. Complete oil pan kit that includes all the parts needed for installation (i.e., oil pan, pickup assembly, o-ring seal, windage tray, baffling & mounting bolts). *Most engines come from the factory with a stud in the block that is reused to mount the oil pickup. If you don't have this stud it can be purchased from Mopar - part number 06513100AA.
Fits Gen III Hemi Hellcat Engines - 2015-Up 6.2L Supercharged Engines - Rear-Sump Design Fits Most Trucks
- Most factory cast aluminum oil pans on Gen-III Hemi engines don't fit or hang too low for engine swaps

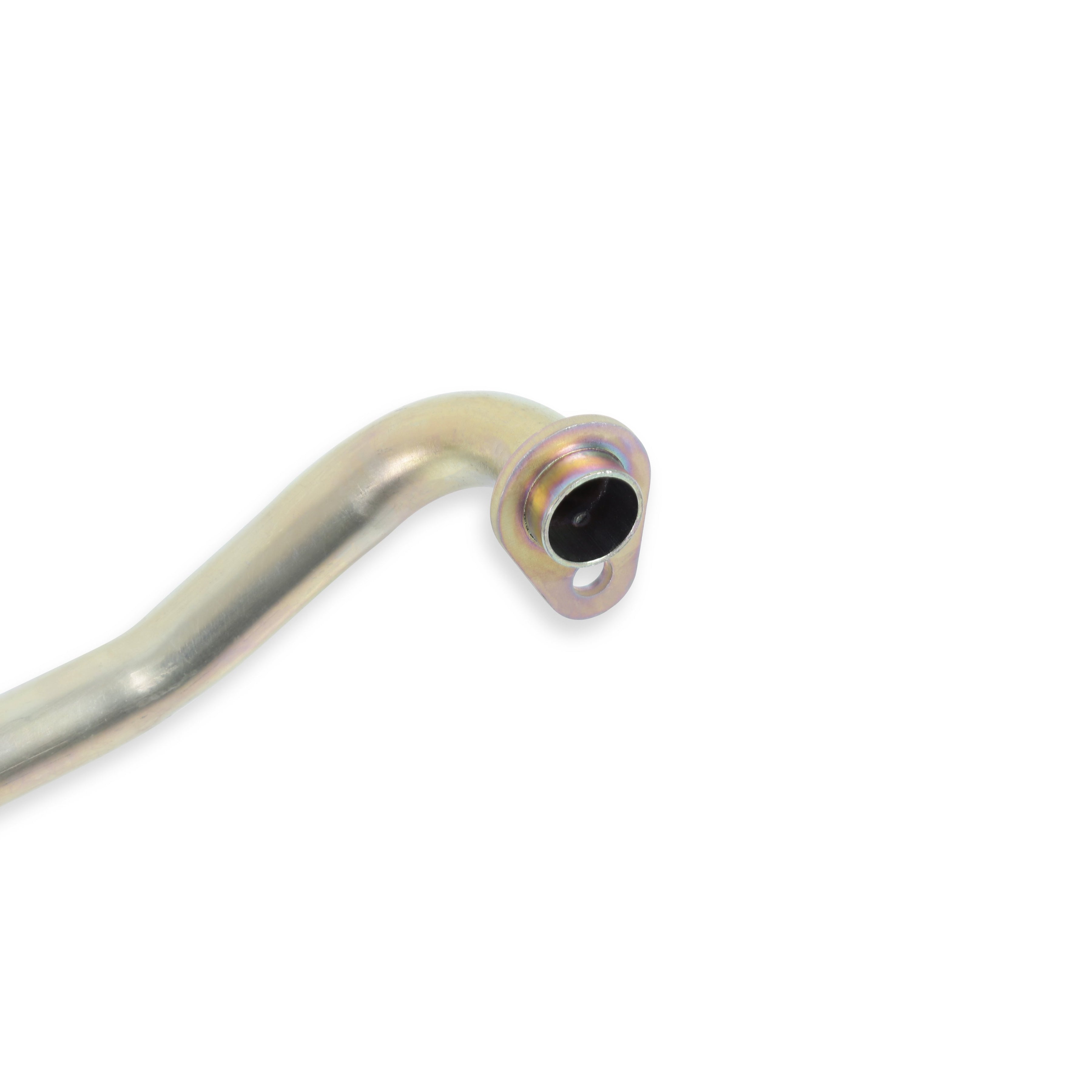

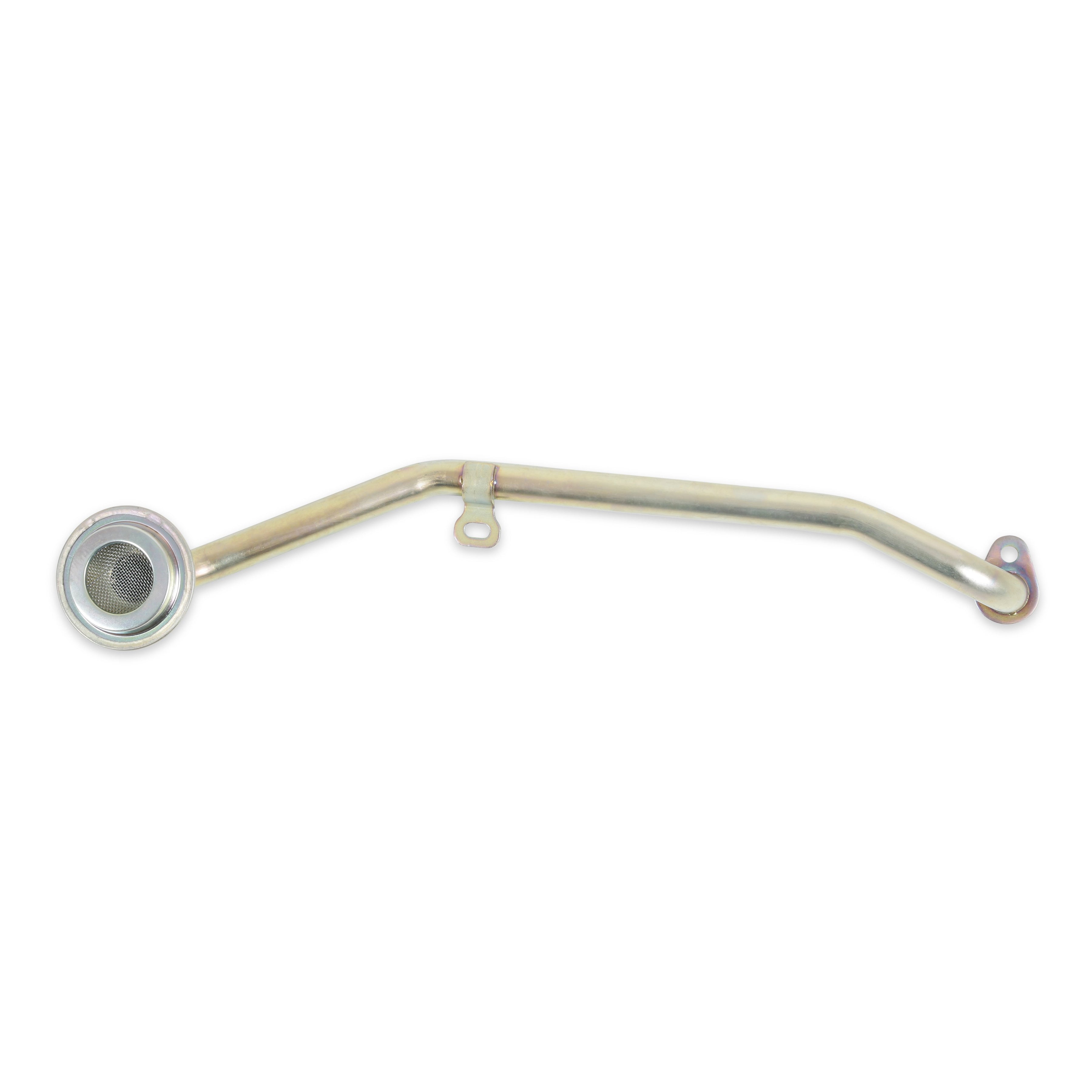

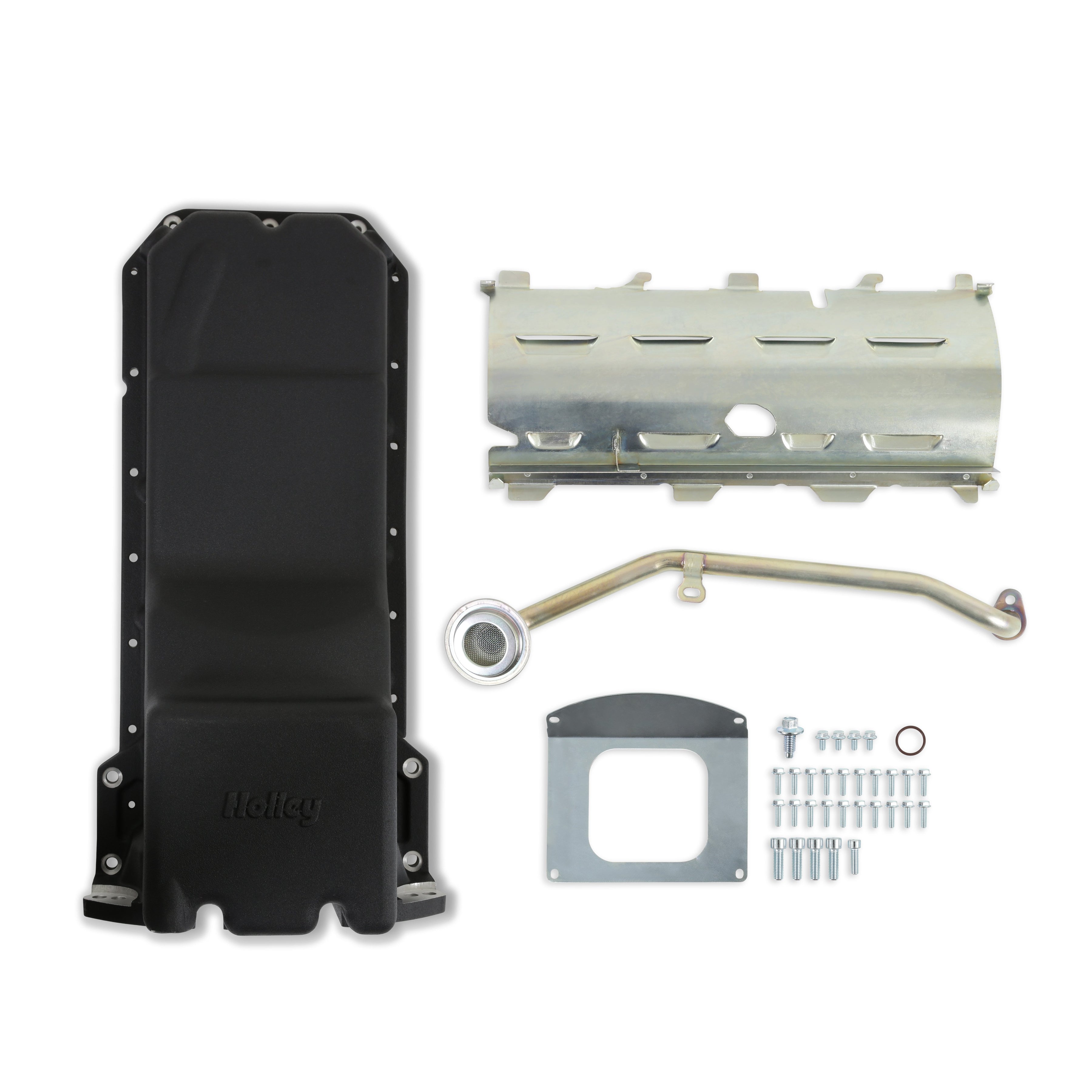

- Complete oil pan kit with includes the oil pan, pickup assembly, O-ring seal, windage tray, baffling & mounting bolts – no extras that must be purchased separately

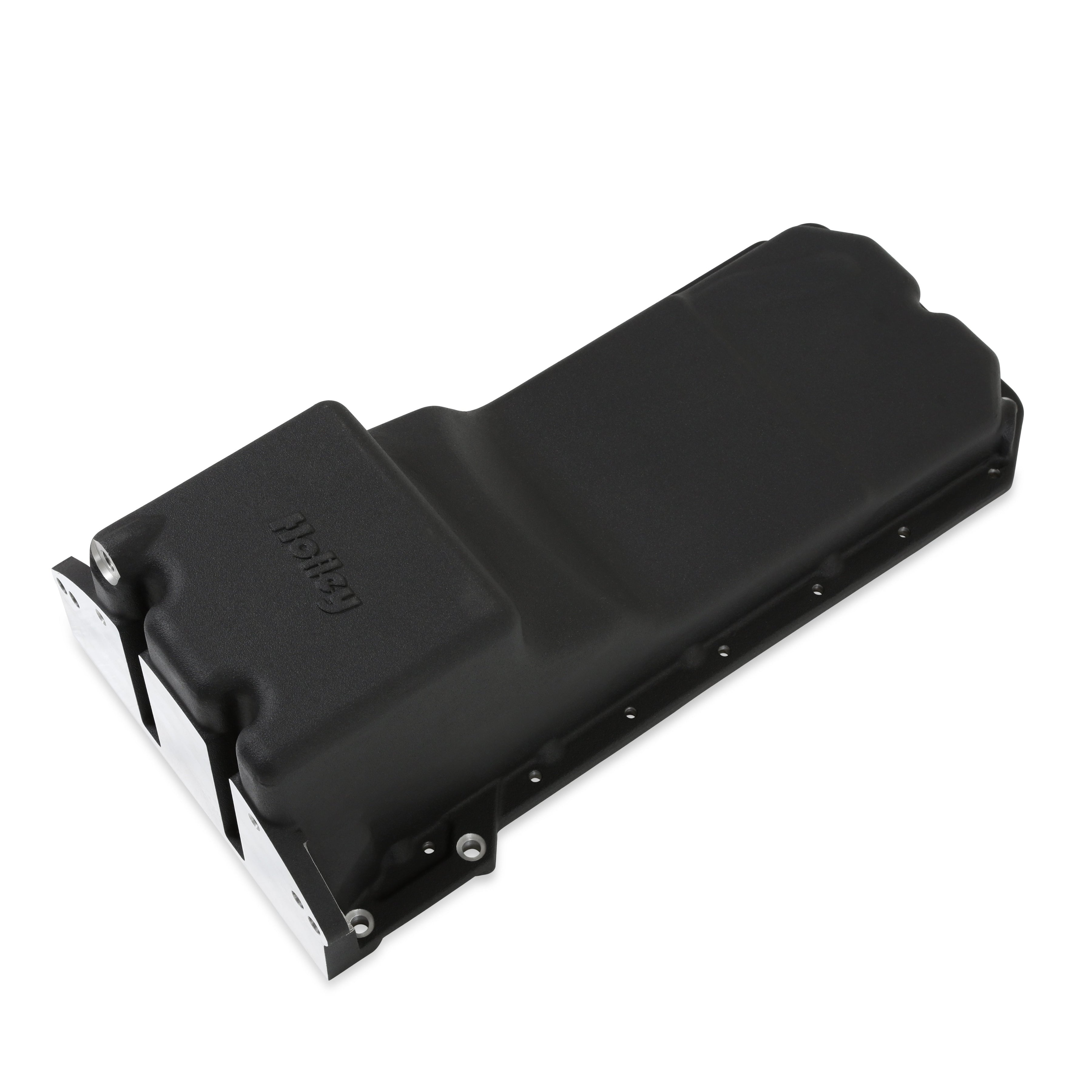

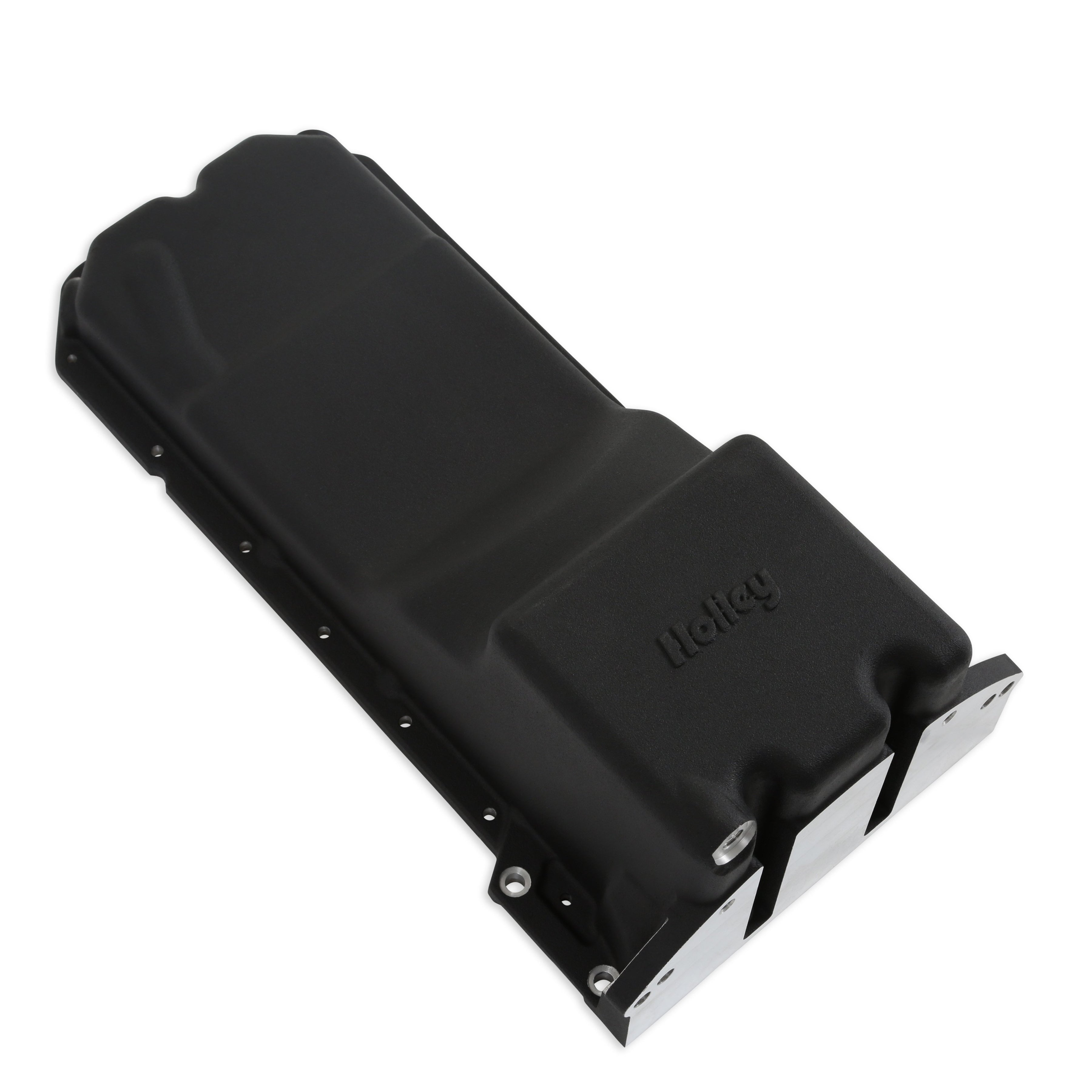

- Cast aluminum rear-sump engine swap oil pan
- Unique O-ring seal to block with captured windage tray (patent pending)
- Carbon Black ceramic finish

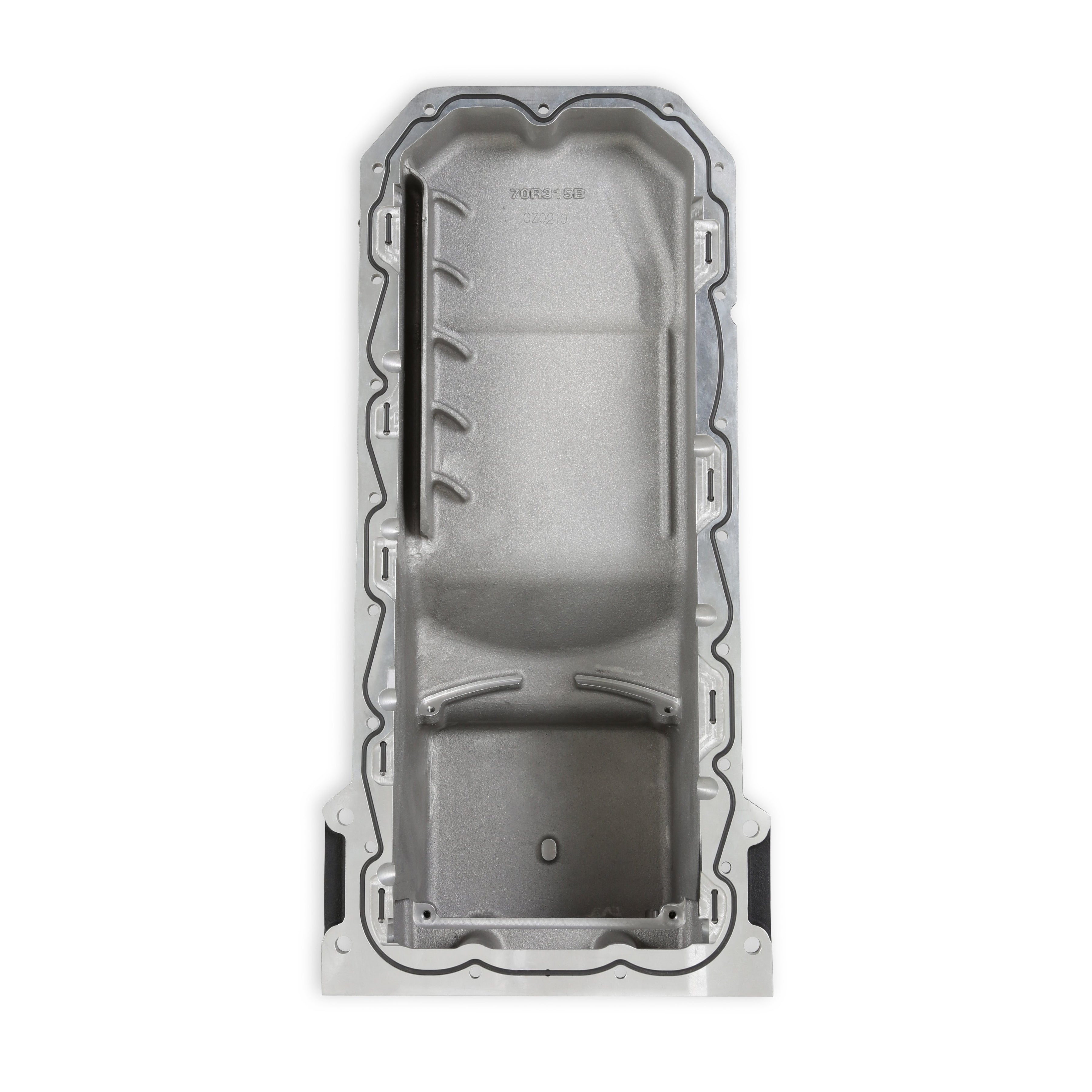

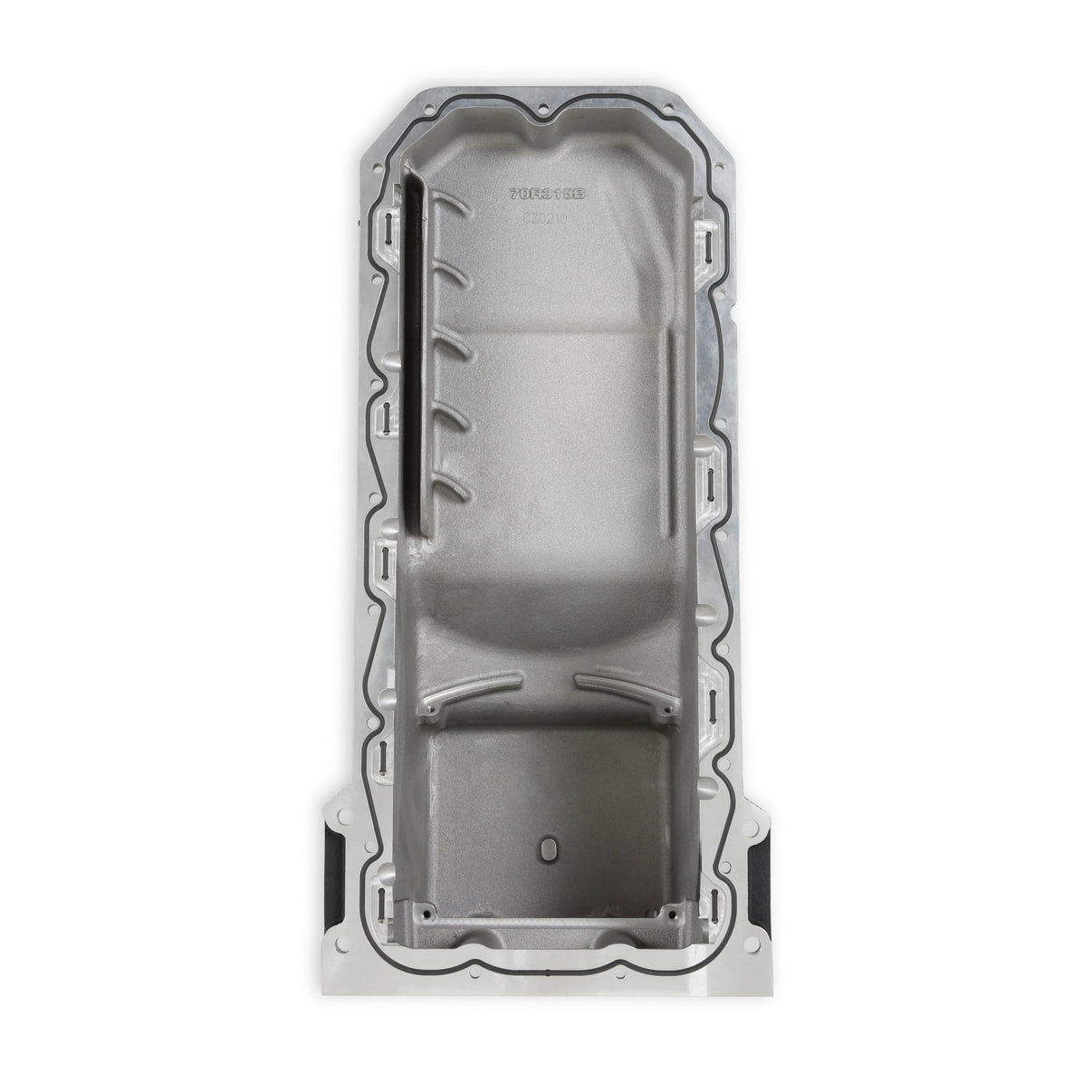

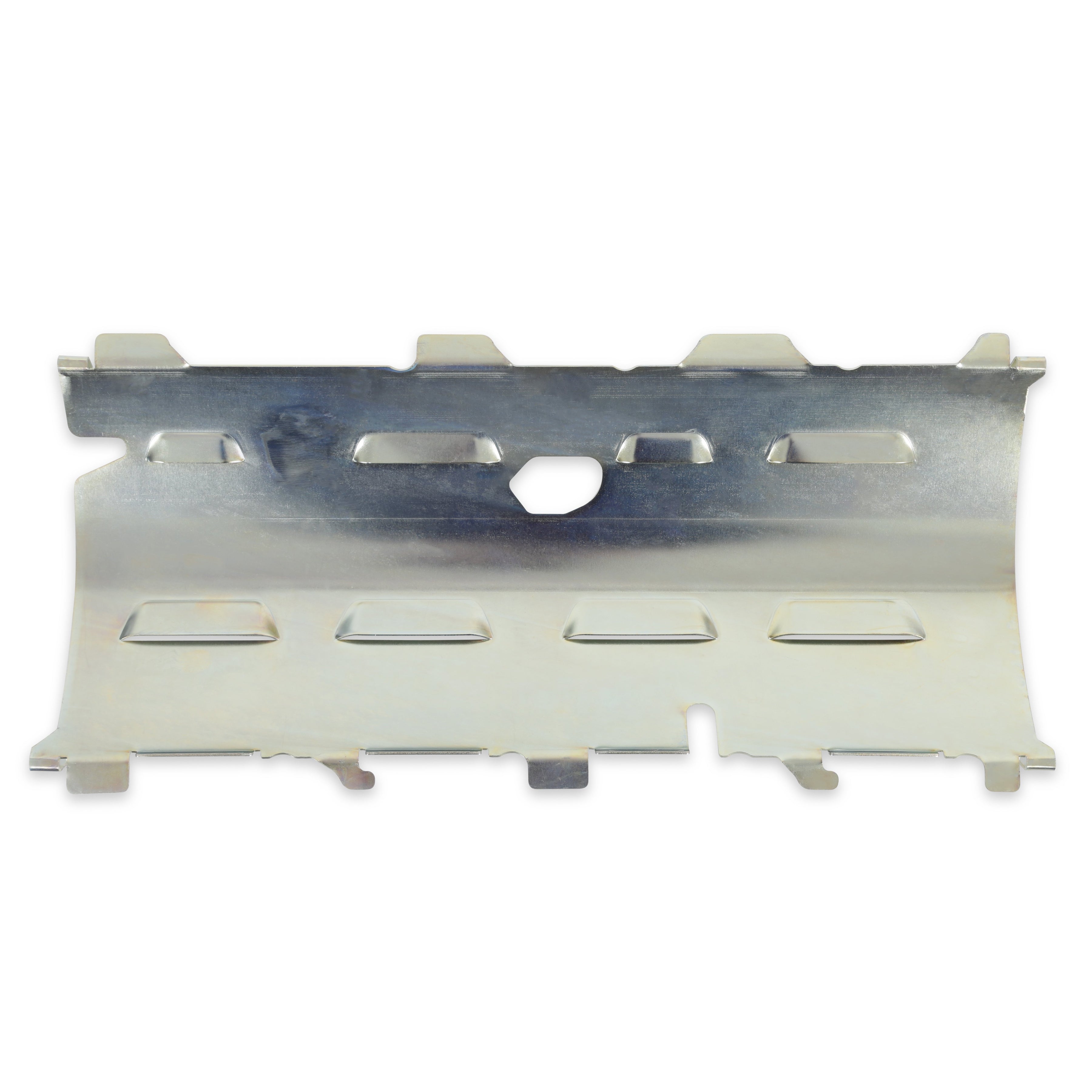

- Integrated windage tray & baffle to control oil (fits up to 4.06-inch stroke)
- Part # 302-63BK fits 2015 & Up Gen III Hemi 6.2L Hellcat engines
- Fits 1972-1993 Dodge D100/D150/W100/W150 trucks, 1987-2004 Dodge Dakota, and 1973-1987 GM C10 Trucks
- Works with most factory & aftermarket dipsticks
- Patent Pending
- Integrated lower support bolts engine block to transmission or bellhousing for additional driveline strength and support while keeping dirt and debris out of driveline components

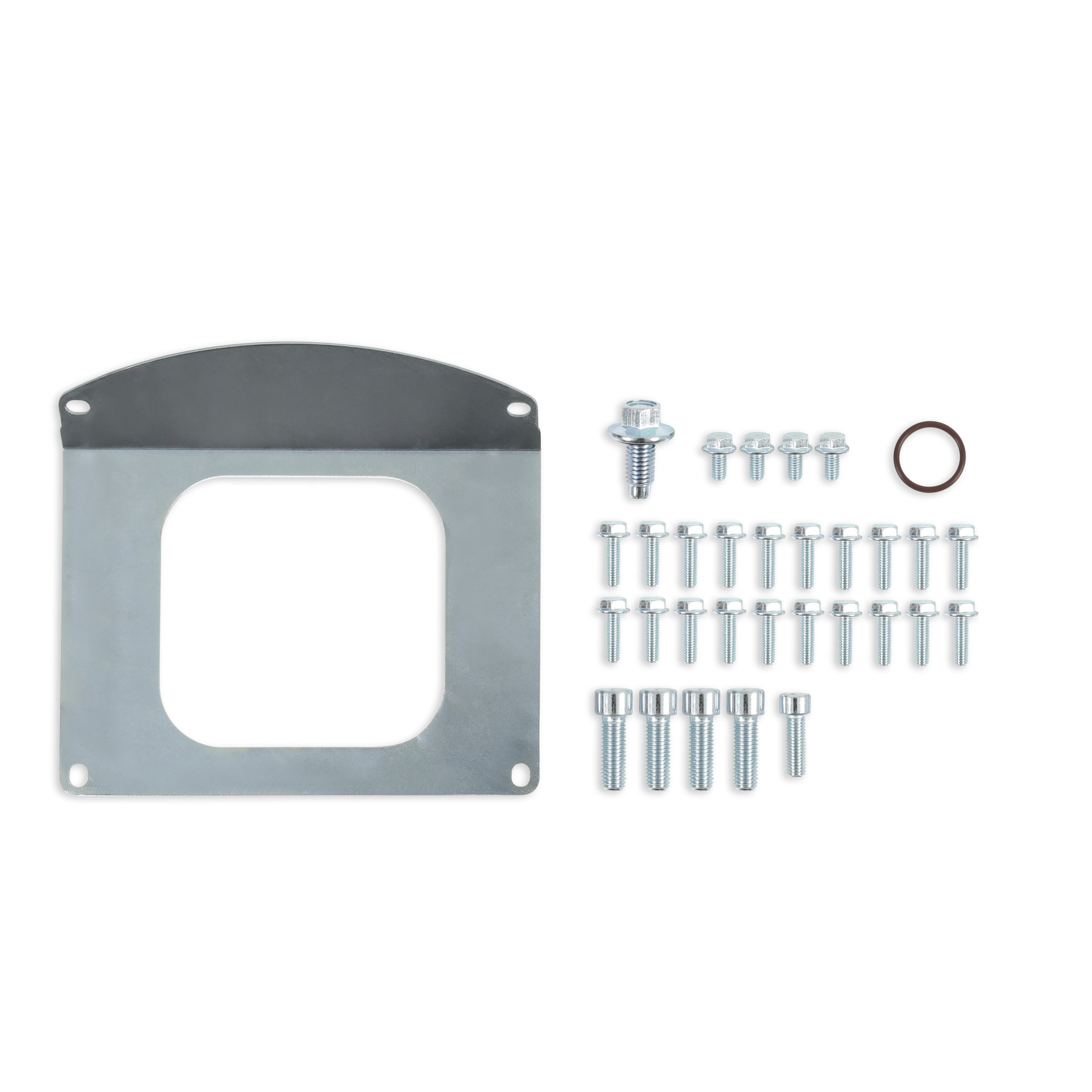

- Covers the lower portion of the bell-housing – to keep dirt out of the bell-housing or transmission
📖
About this product
Fits Gen III Hemi Hellcat Engines - 2015-Up 6.2L Supercharged Engines - Rear-Sump Design Fits Most Trucks
📋
Product Specifications
Application
Gen III Hemi
Automotive Item Grade
Performance
Baffled
Yes
Brand
Holley
California Proposition 65 Chemical Name
4
Cam Style
VVT
Capacity
6.2
Capacity
6.2 QT
Category
Oil Pans
Color
Black
Crank Shaft Wiper Included
No
Dipstick Port
No
Drain Plug Included
Yes
Emission Code
6
Finish
Black
Grade Type
Performance
Material
Aluminum
Maximum Stroke
4.060"
Oil Pan Capacity
6.2 Quarts
Oil Pan Type
Cast
Oil Return Size
Not Machined
Part Type
Engine Oil Pan
Pickup Included
Yes
Product Type
Oil Pan Kit
Sump Location
Rear
Sump Type
Wet
Turbo Oil Drainback
Boss present (needs drilled and tapped)
Vehicle
Dodge C10 2020
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Windage Tray Included
Yes
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
6
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
25.5 × 13.4 × 12.1 in
Shipping Dimensions
25.5 × 13.4 × 12.1 in
Weight
9888 g (9.89 kg)
