Product Details
⭐
Overview
Fits Gen 3 Coyote Engines in 1953-1979 Ford F100, F150, and F250 2WD Trucks
- Maintains oil capacity of stock Mustang Coyote oil pan to ensure adequate oil supply in all street performance and factory-stock type racing applications.
- Oil pan fits 2018-203 Gen 3 Coyote engines
- Installs using stock Coyote engine gasket/baffle assembly to provide factory-like sealing and baffling/windage characteristics.
- Provides compatibility with the stock Gen 1 and 2 Mustang Coyote engine low-oil level sensor

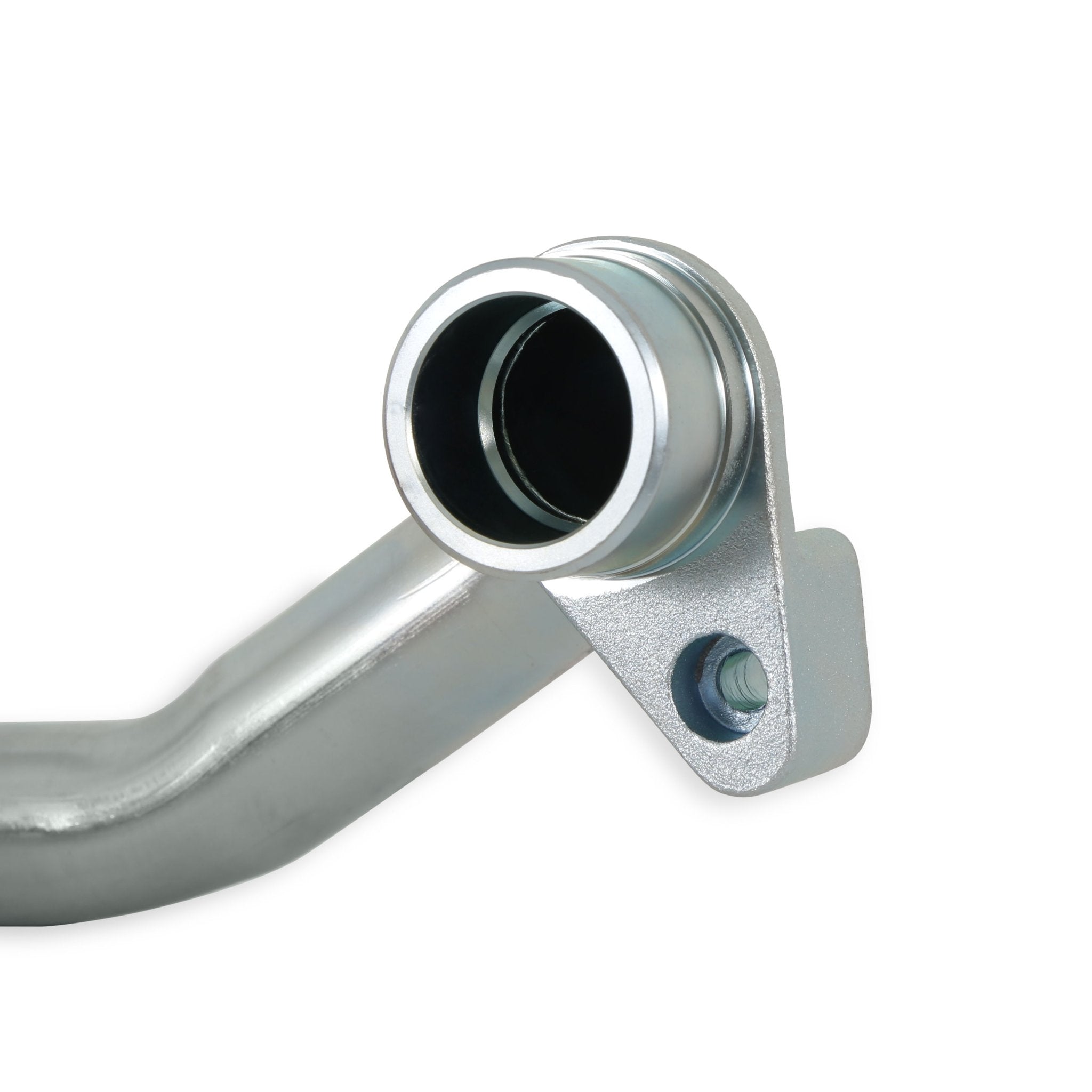

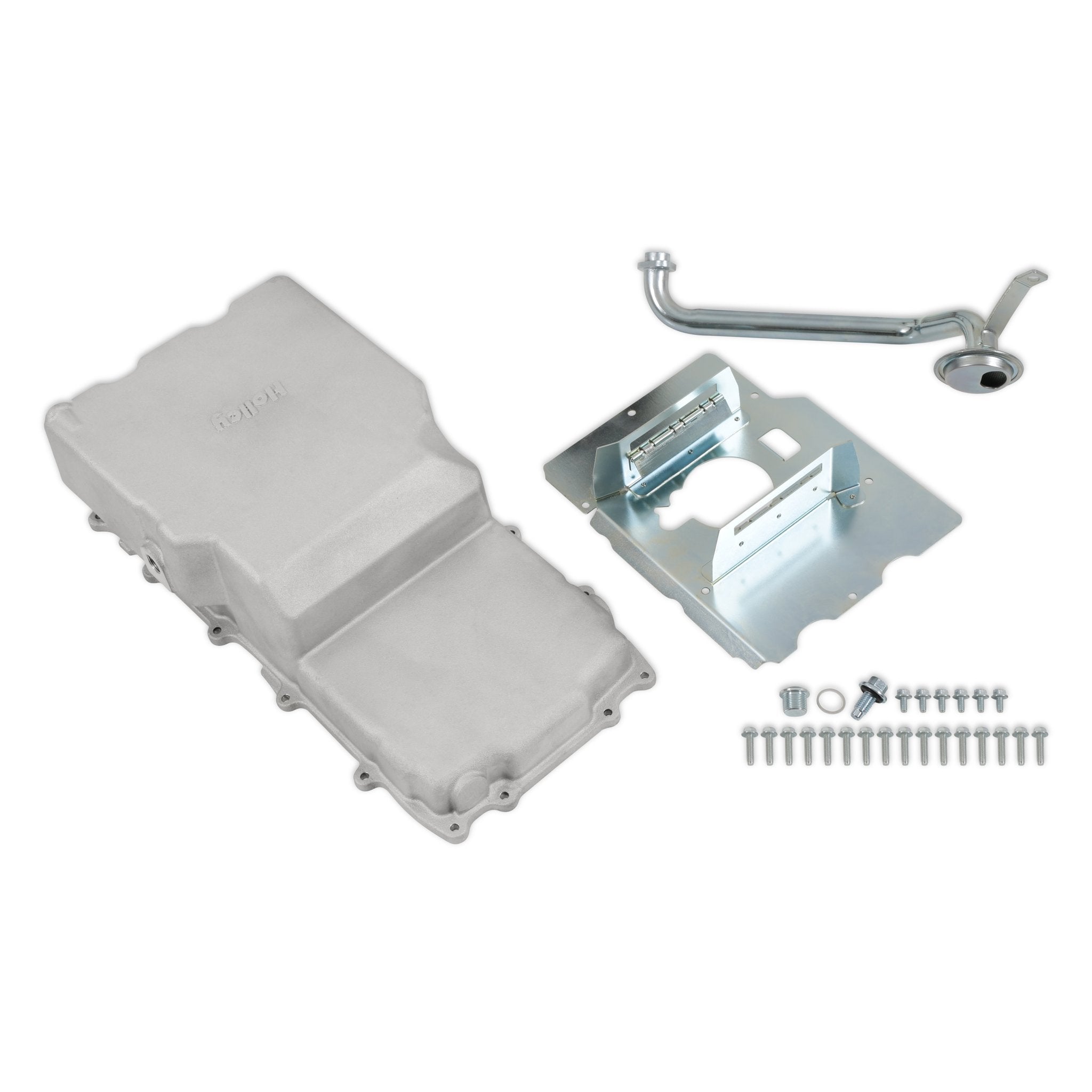

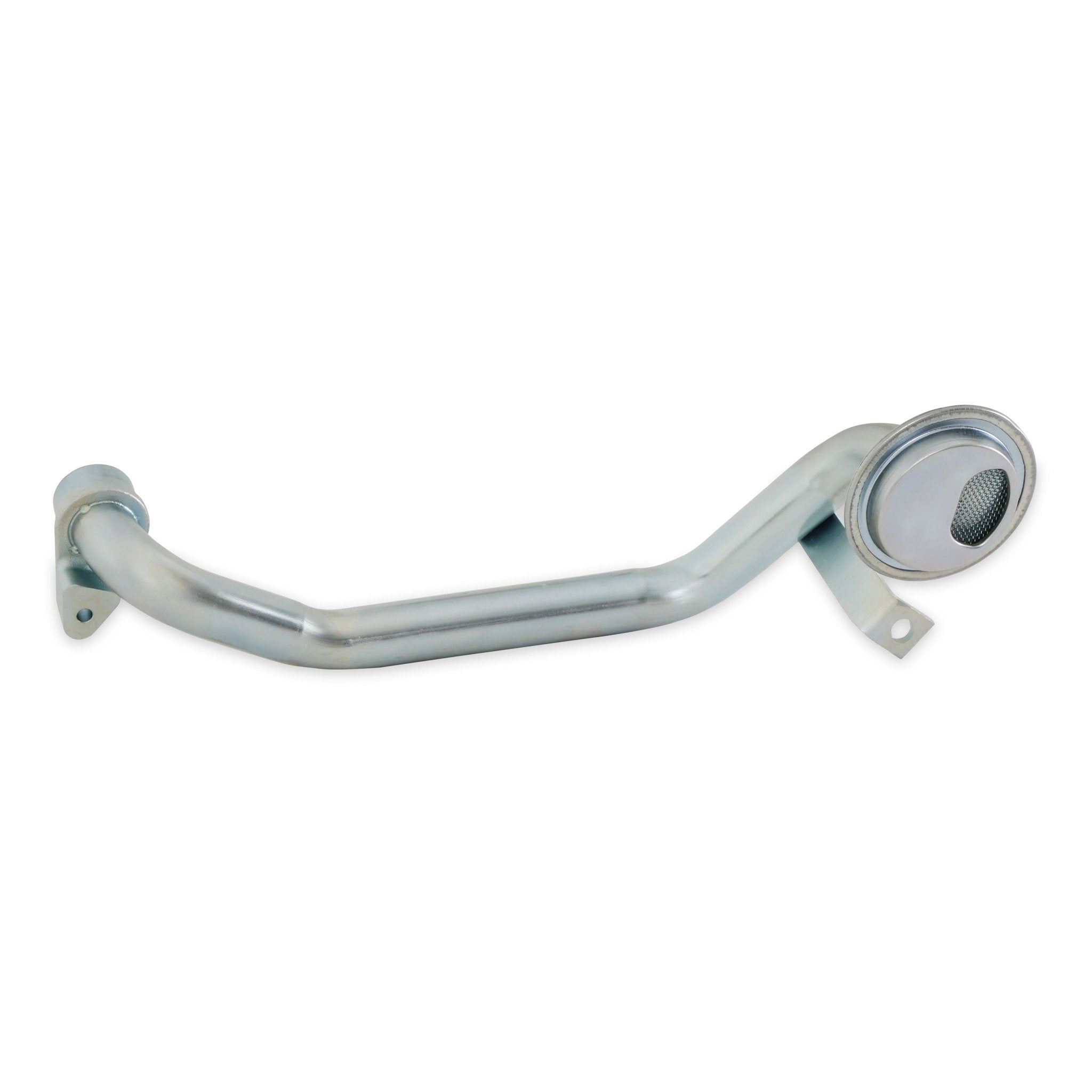

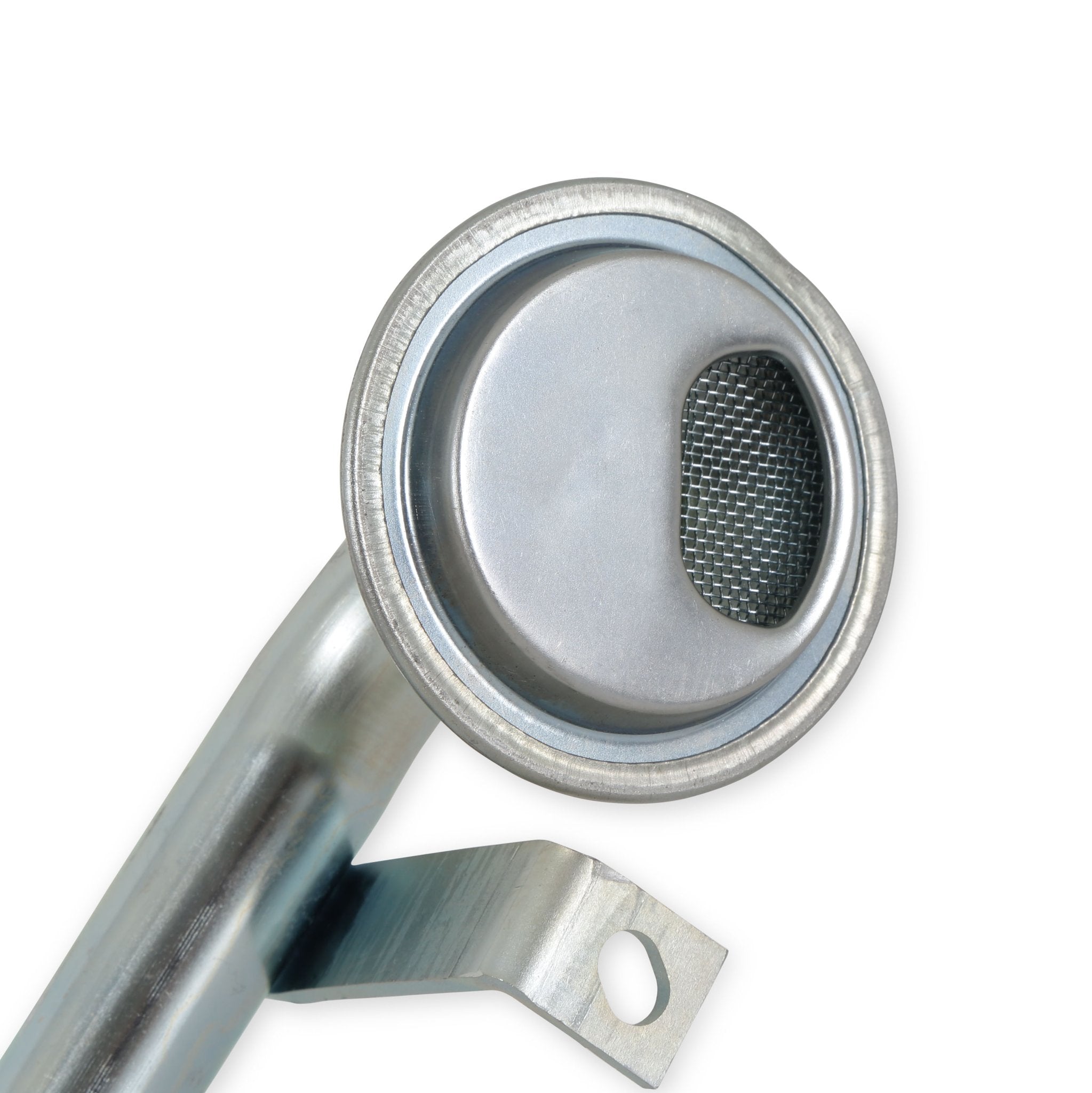

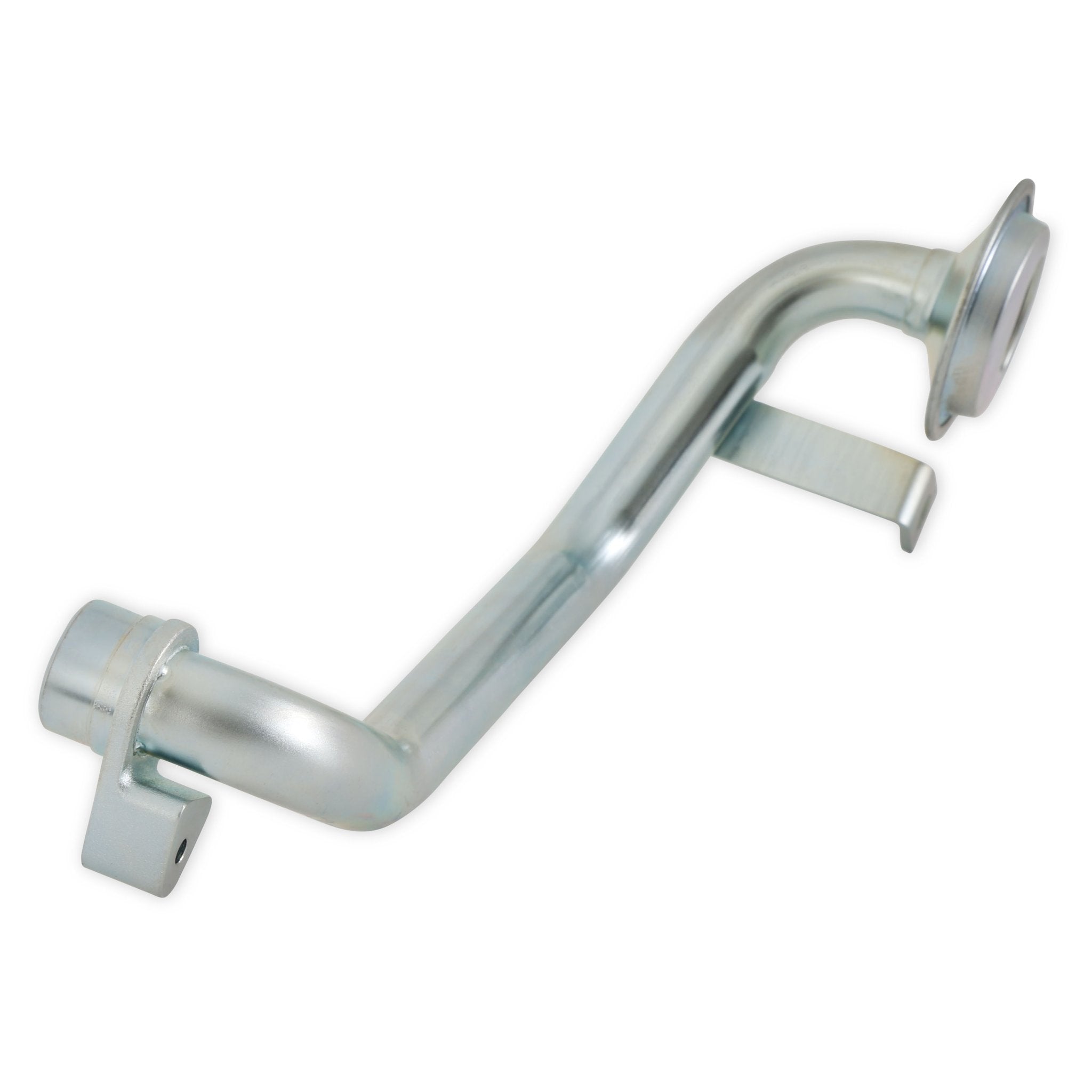

- Proprietary design pick-up tube/O-ring and lower sump baffle plate are included.
- Provides 2 Bosses for drain-back for turbo applications (Unmachined)

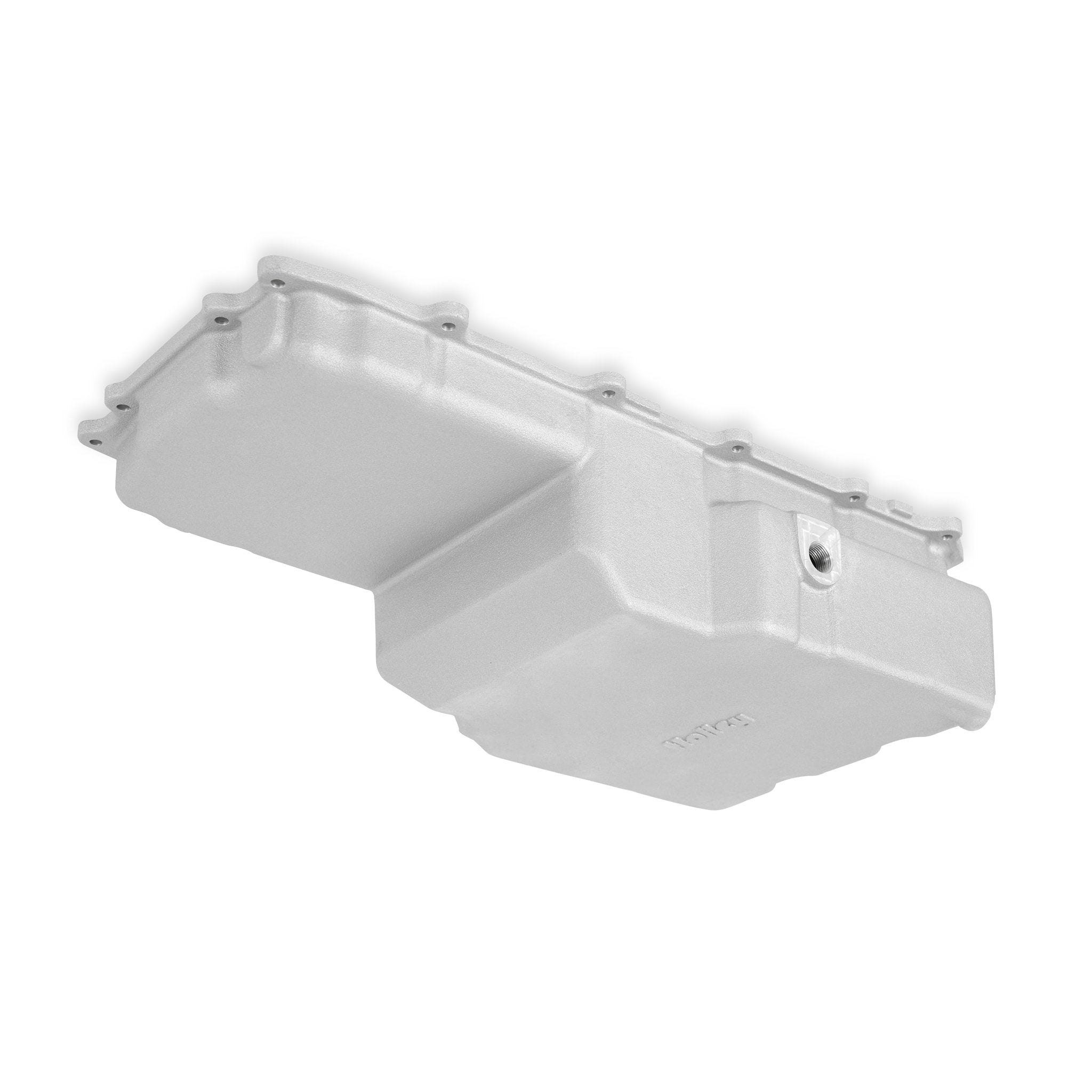

- Traditional high-quality cast aluminum appearance with clean exterior styling
📋
Product Specifications
Application
1953-1979 Ford F100
Application
F150
Application
F250 2WD Trucks
Baffled
No
Brand
Holley
Capacity
7.6 QT
Crank Shaft Wiper Included
No
Dipstick Port
No
Drain Plug Included
Yes
Grade Type
Performance
Oil Pan Capacity
7.6 Quarts
Oil Pan Type
Cast
Oil System Capacity (w/ Filter)
8.1 Quarts
Part Type
Engine Oil Pan
Pickup Included
Yes
Product Type
Oil Pan Kit
Sump Location
Rear
Sump Type
Wet
Turbo Oil Drainback
Boss present (needs drilled and tapped)
Vehicle
Ford MUSTANG 1919
Warranty
Manufacturer's Limited 90 Day Warranty
Windage Tray Included
No
