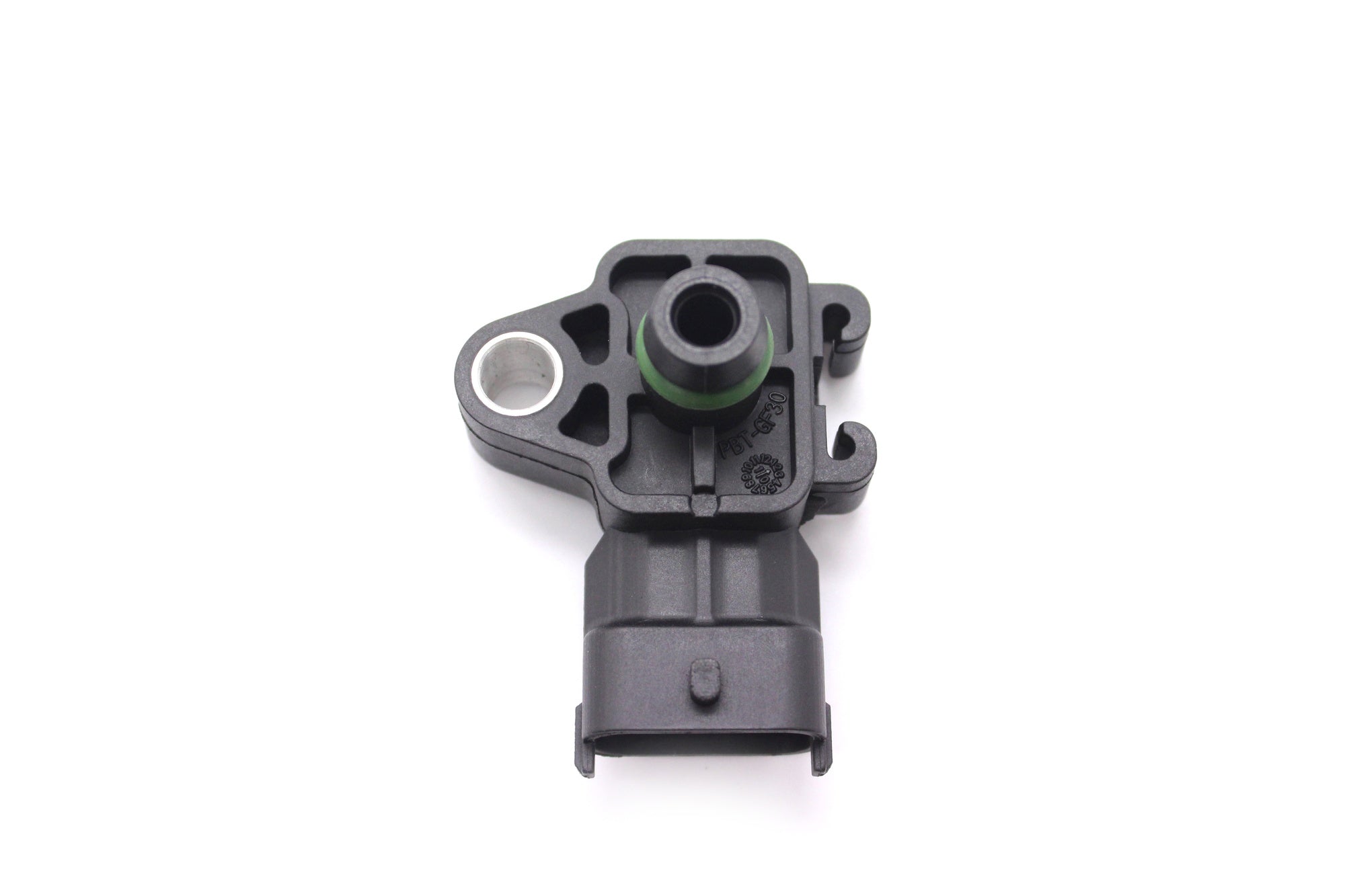

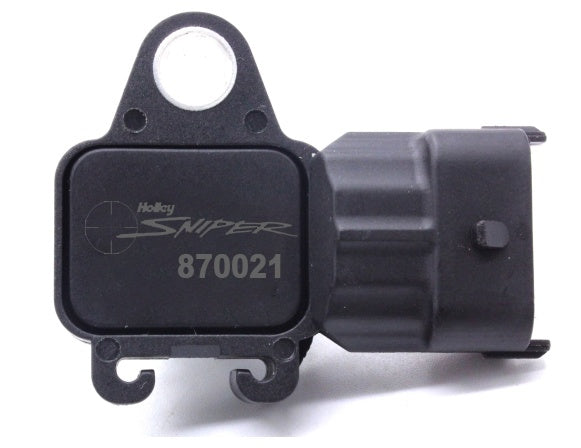

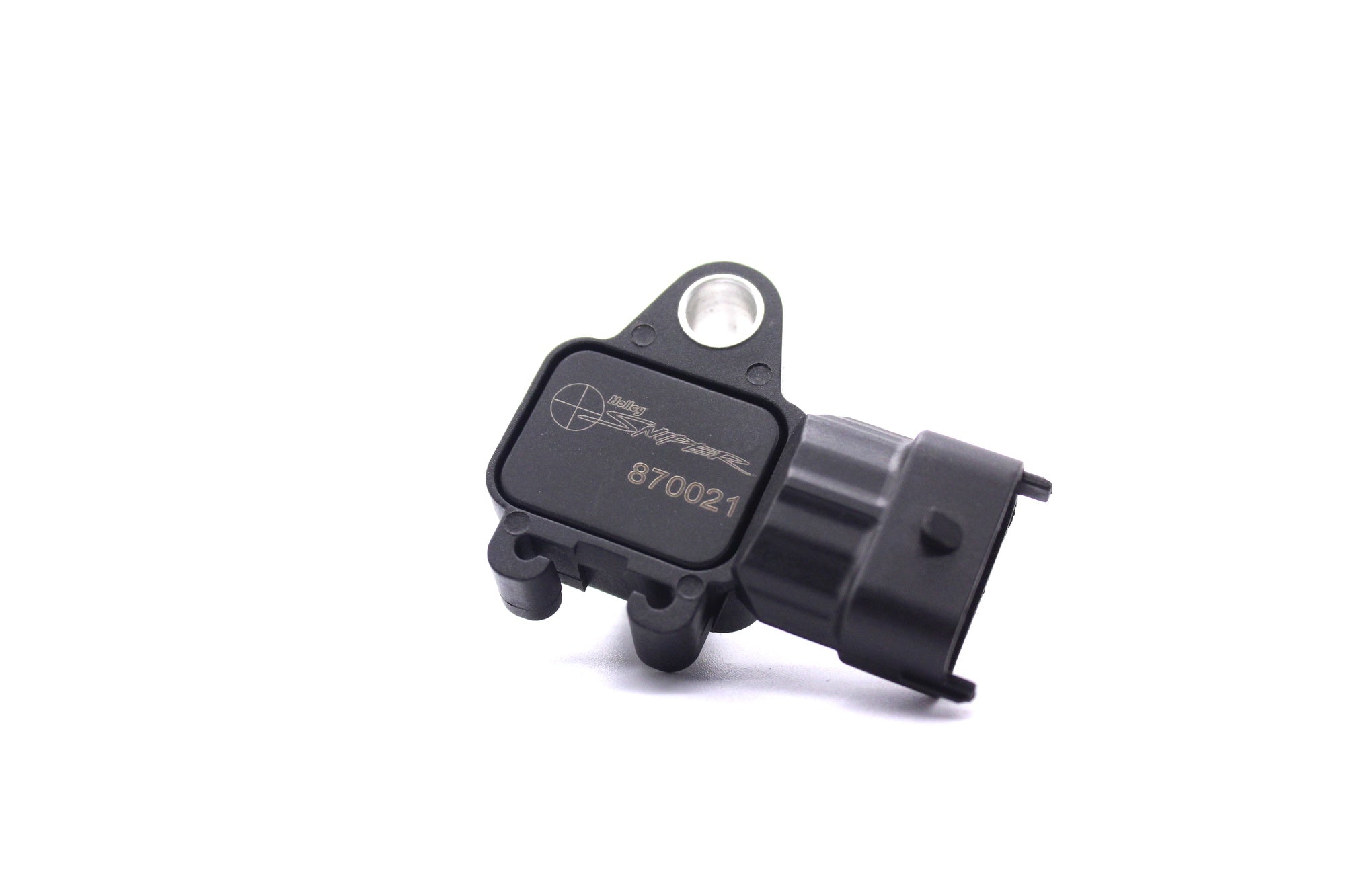

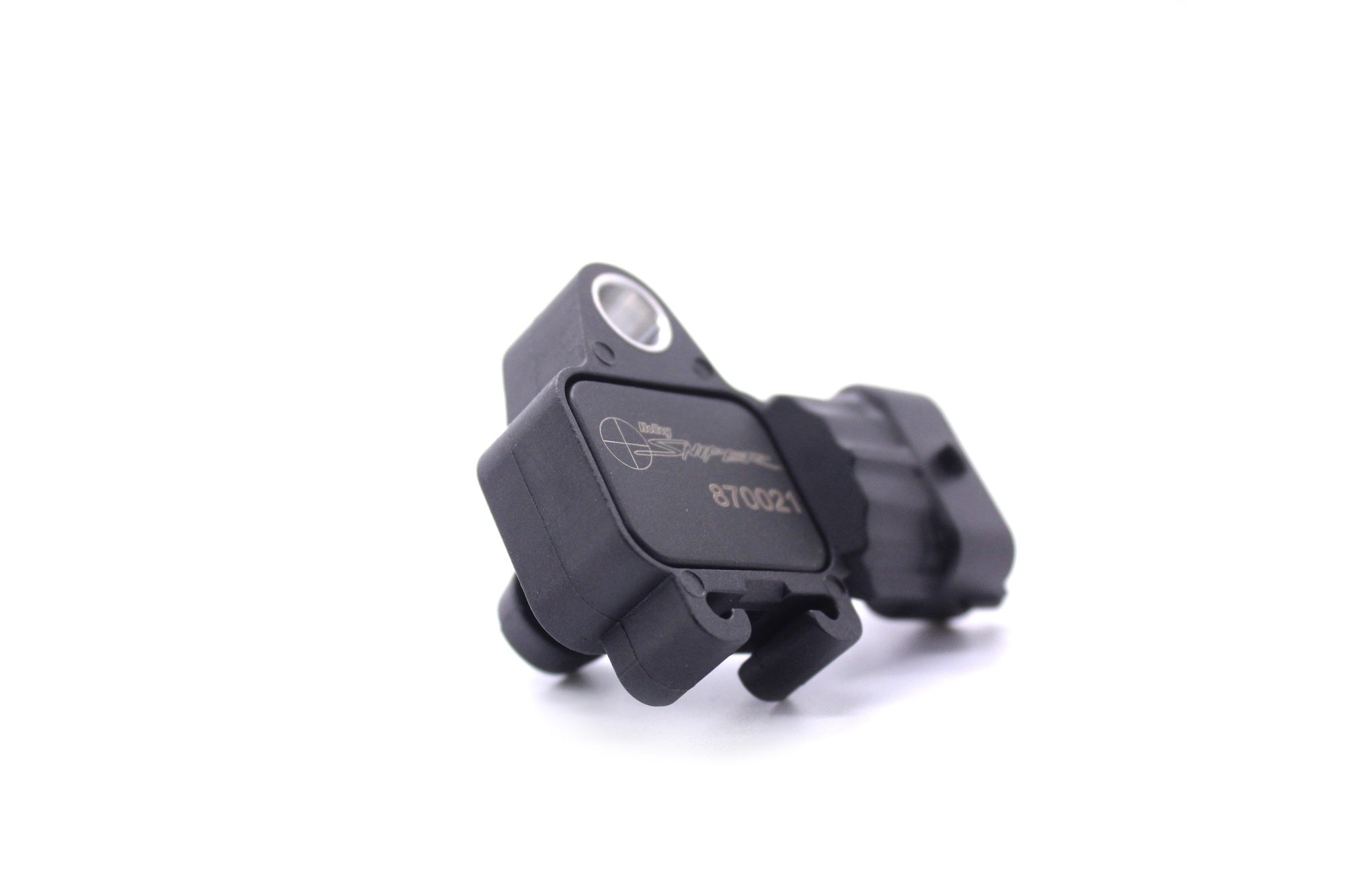

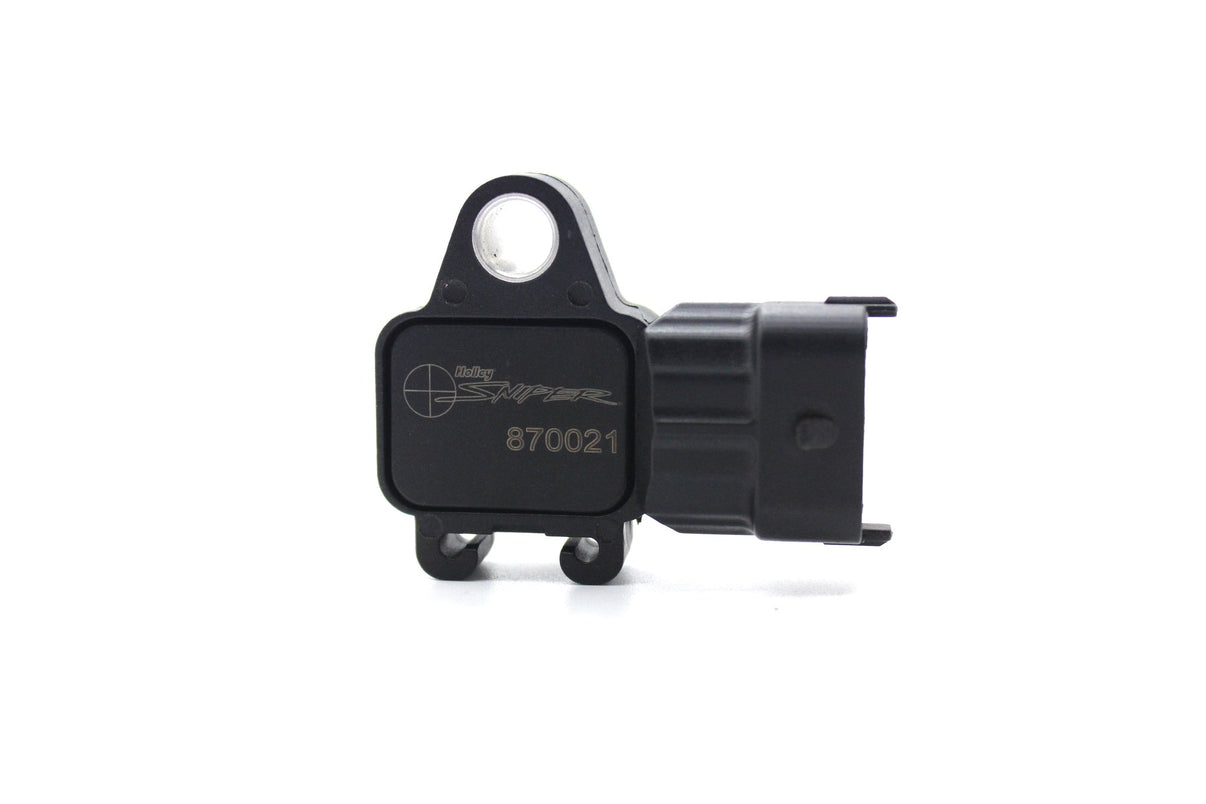

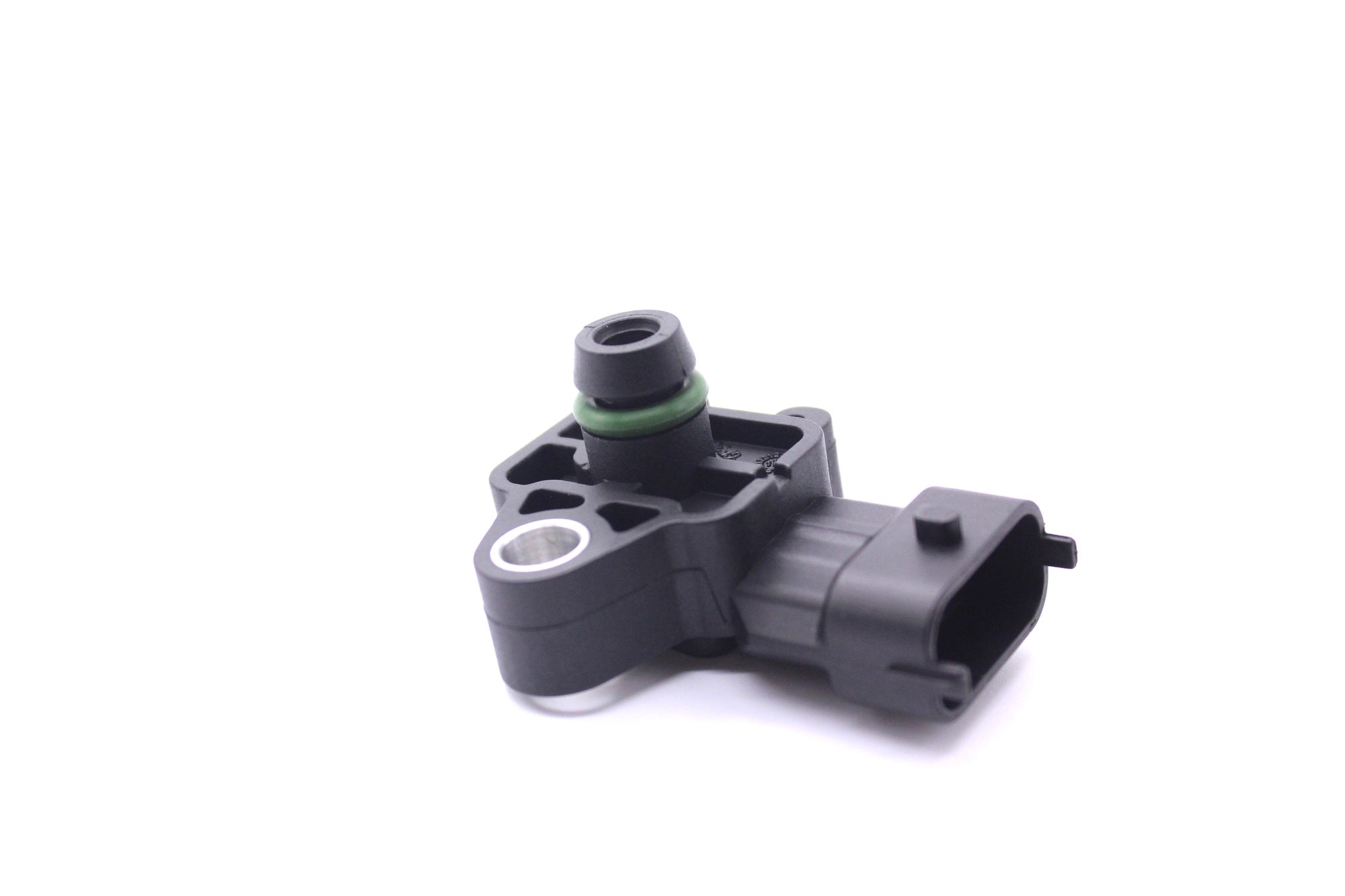

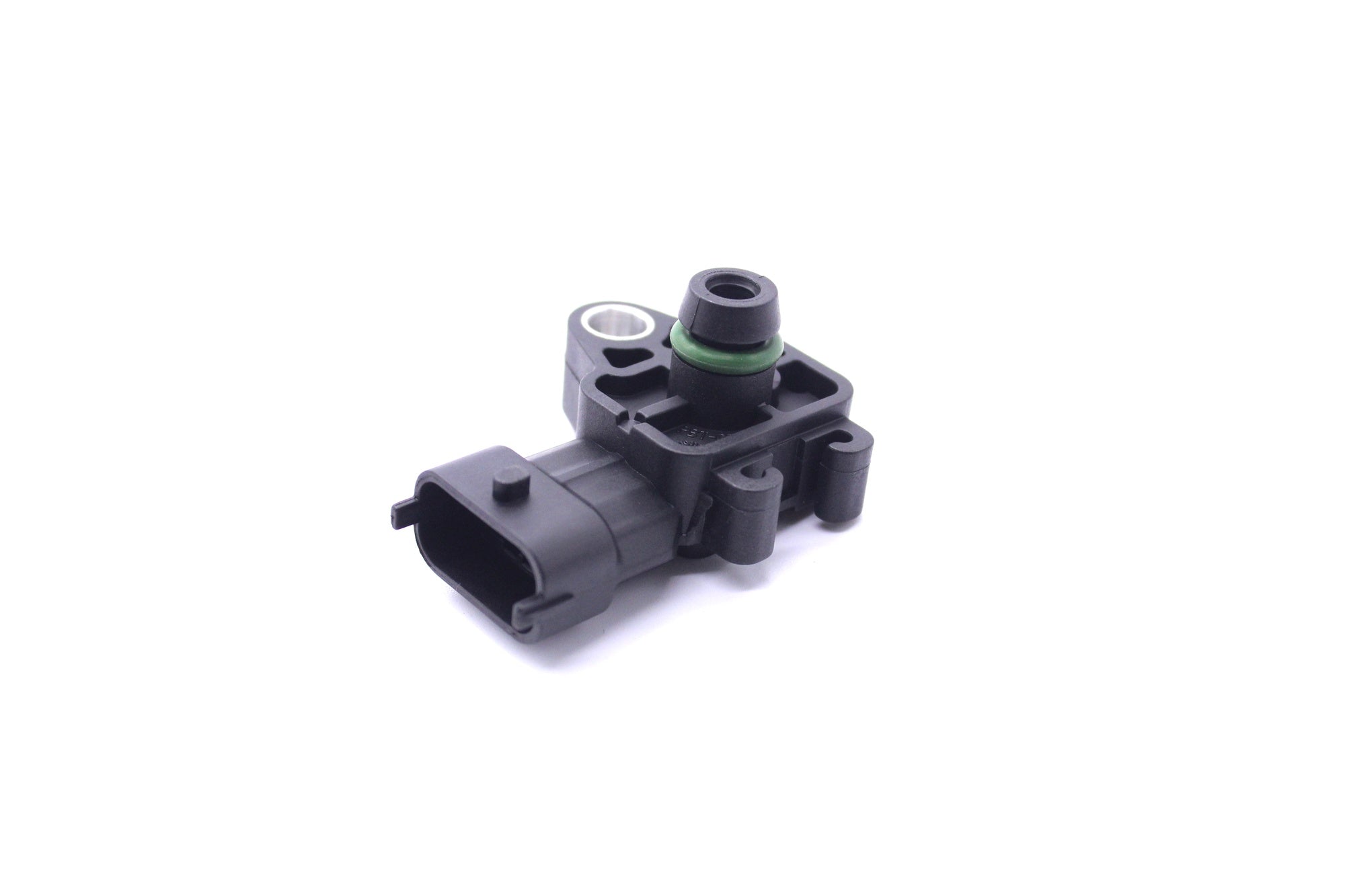

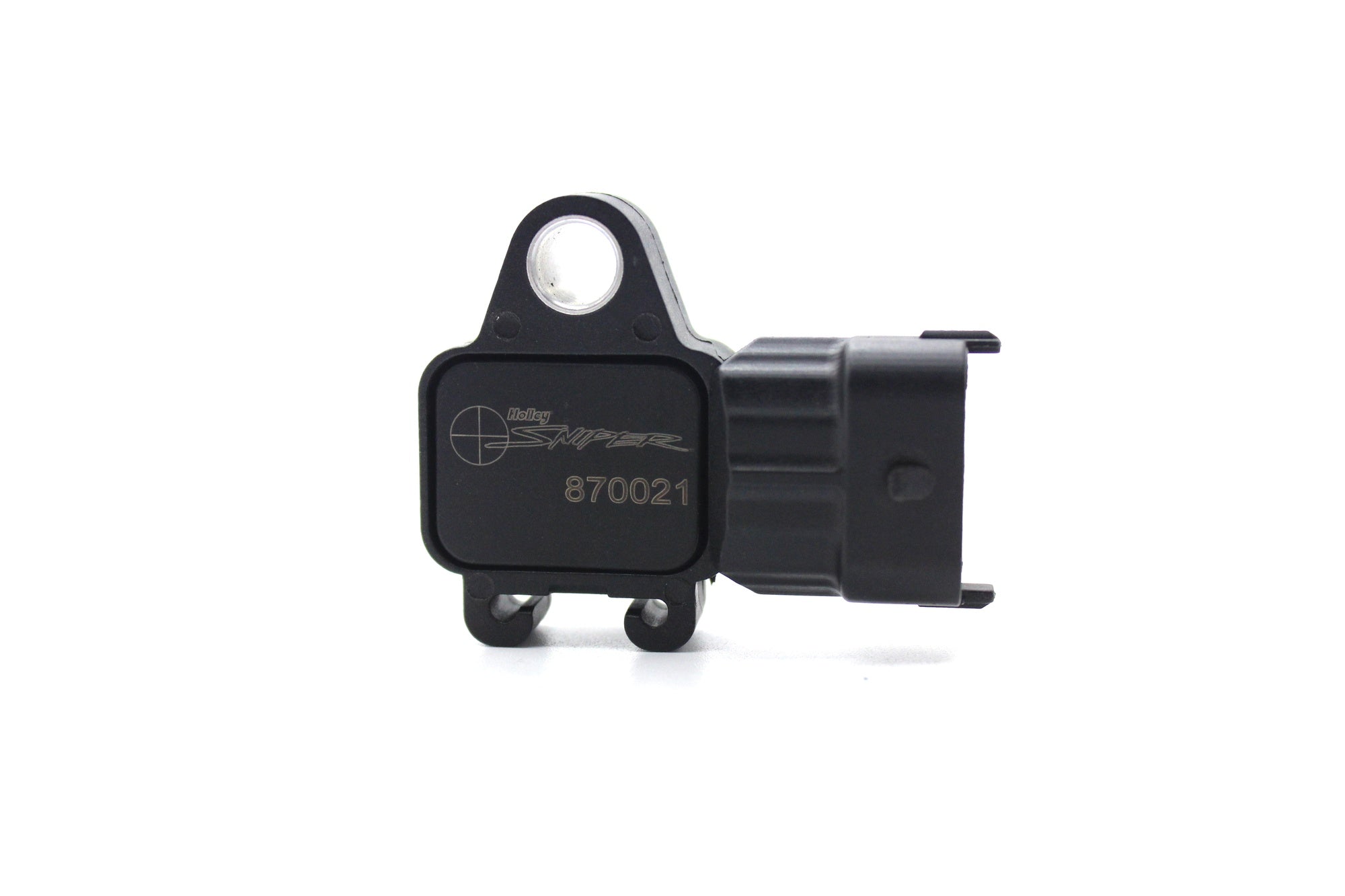

Holley Sniper EFIPart 870021Made in CN
Product Details
⭐
Key Features
Direct replacement for ACDelco Supercharger Pressure Sensor part number 12592525. Required Holley EFI system to use with this sensor.
The pressure inside the intake manifold is an extremely important input to the ECU. This sensor will respond to changes in manifold pressures and relay the information to the ECU in the form of a voltage signal ranging from 1-5 volts. This sensor will handle applications up to 25 lbs. of boost.
For Sniper EFI Fabricated Intake Manifolds
- Utilizes stock attaching points
- Ideal for applications up to 25 lbs. of boost
- Voltage Signal Range 1-5 volts
- Monitors manifold vacuum, varying output voltage to the ECU as a function of load placed on the engine, and providing necessary data to control fuel enrichment
📖
About this product
For Sniper EFI Fabricated Intake Manifolds
📋
Product Specifications
Automotive Item Grade
Performance
Body Material
Plastic
Brand
Holley Sniper EFI
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Sniper EFI Intakes
Connector Gender
Male
Emission Code
4
Grade Type
Performance
Housing Color
Black
Maximum Pressure Reading
2.5
Mount Type
Bolted
Part Type
Manifold Absolute Pressure Sensor
Product Type
MAP Sensor
Prop 65 Yes/No
Yes
Terminal Gender
Male
Warning
California Proposition 65
Wiring Harness Included
No
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
5.0 × 3.1 × 1.1 in
Shipping Dimensions
5.0 × 3.1 × 1.1 in
Weight
45 g (0.05 kg)
