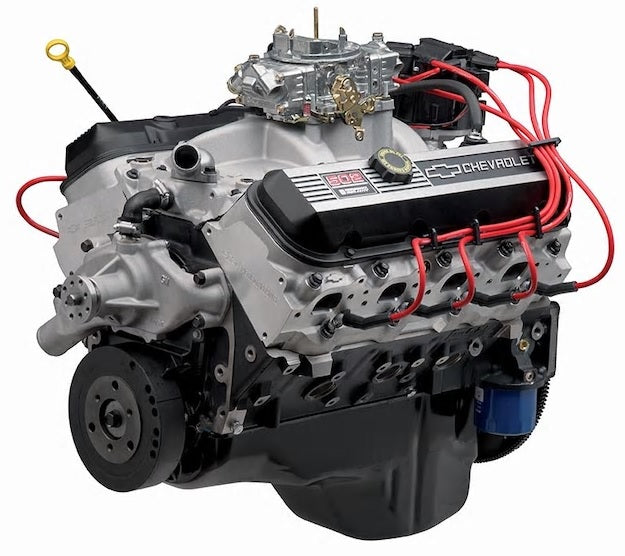

Chevrolet Performance ZZ502 Deluxe Turn Key Crate Motor - 508 HP/580 LB-FT - Industry Benchmark - Street/Strip Ready

Fits Chevrolet Performance ZZ502 Deluxe Turn Key Crate Motor - 508 HP/580 LB-FT - Industry Benchmark - Street/Strip Ready.

Please refer to manufacturer specifications for complete compatibility information.

Industry Benchmark Big-Block - Proven Performance for Street or Strip

Chevrolet Performance's ZZ502/502 is one of the industry's benchmark crate engines, offering excellent value with a proven combination of performance that is suitable for the street or strip. With 508 horsepower and 580 ft/lbs of torque, it demands your full attention and a chassis that is strong enough to harness its frame twisting power.

Key Specifications:

• Part Number: 19433162
• Engine Type: Gen VI Big-Block V-8
• Displacement: 502 cu in (8.2L)
• Bore x Stroke: 4.47" x 4.000"
• Power: 508 horsepower at 5,200 rpm
• Torque: 580 lb-ft at 3,600 rpm
• Compression Ratio: 9.6:1
• Maximum RPM: 5,800 recommended

Benchmark Construction:

• Latest-generation block casting with four-bolt main caps and an all-forged rotating assembly
• Cast iron block with 1-piece rear seal and 4-bolt main caps
• Forged steel crankshaft and forged steel connecting rods
• Forged aluminum pistons

High-Flow Cylinder Heads:

• High-flow aluminum oval-port cylinder heads with 2.25/1.88-inch valves
• Cast aluminum oval port with 110cc combustion chambers
• Optimized for tremendous airflow capability

Torque Monster Performance:

• Hydraulic roller camshaft designed to support low-rpm torque production
• Torque tops the 500 lb.-ft. mark by approximately 2,500 rpm
• Doesn't dip below 500 lb-ft until about 5,000 rpm
• External balance configuration

Deluxe Package Includes:

• Aluminum dual plane intake manifold and Holley 870-cfm carburetor
• HEI distributor and spark plug wires, starter, water pump, balancer
• 6-quart oil pan with windage tray
• 14" externally balanced automatic transmission flexplate

This Product is a USA Special Order, and will take around 6 - 8 weeks to arrive, call to discuss options

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
