Ford Performance
Product Details
🔧
Vehicle Compatibility
Fits Ford Performance Parts 2024 Gen 4 5.0L 480 HP Coyote Long Block Crate Engine.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

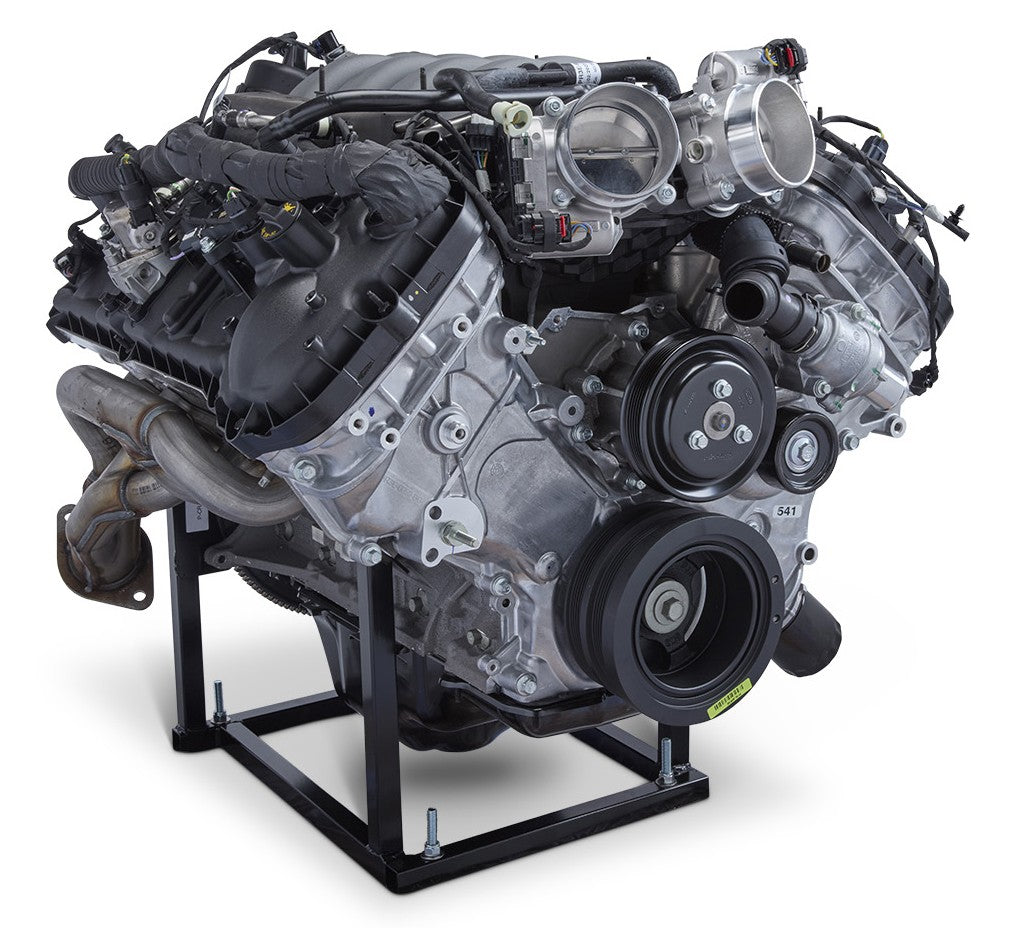

Ford Performance Parts 2024 Gen 4 5.0L 480 HP Coyote Long Block Crate Engines
Ford Performance Parts 2024 Gen 4 5.0L 480 hp Coyote engines are the latest all-aluminum crate engines from the 2024 Mustang GT. These modern 5.0L 32-valve DOHC V8s use advanced features, such as direct and port fuel injection, twin independent variable camshaft timing (Ti-VCT), high-flow cylinder heads, dual throttle bodies, and a heightened compression ratio to deliver 480 hp and 415 lb.-ft. of torque (with premium fuel).
These lightweight plasma-transferred wire-arc spray aluminum cylinder blocks feature cross-bolted main bearing caps and thick main bearing bulkheads for bottom-end strength, and an optimized oil drain back and windage control to improve high-rpm performance. Available with production flexplate (automatic) or dual mass flywheel (manual) and both include engine harness.
Engine specs:
* 480 hp at 7,150 rpm
* 415 lb.-ft. of torque at 4,900 rpm
* 12.0:1 compression ratio
* Bore 93mm x stroke 92.7mm
* Hypereutectic aluminum pistons
* Sintered steel connecting rods as used on BOSS 302 Mustang
* Forged steel crankshaft
* Aluminum block with plasma transferred wire arc spray weld liner coating
* Longer, 12mm head bolts for higher clamp load
* 9.5 qt capacity steel oil pan
* Tuned composite intake manifold provides efficient air delivery and weight savings
* Twin 80mm single bore drive-by-wire, electronic throttle bodies with variable runner control
* High-flow aluminum cylinder heads, dual overhead camshaft (DOHC), four valves per cylinder, variable intake and exhaust camshaft timing
* Engine mount bosses and bellhousing mount pattern common to 5.0L modular engines
* Mustang GT 409 stainless steel tubular exhaust manifold on the RIGHT SIDE ONLY
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Actual Engine Displacement
5.0L/302
Advertised Compression Ratio
12.0:1
Air Cleaner Included
No
Assembled
Yes
Brand
Ford Performance Parts
Cam Style
DOHC
Carburetor Included
No
Computer Included
No
Crate Engine Cylinder Head Material
Aluminum
Crate Engine Family
Ford Modular
Cylinder Heads Included
Yes
Distributor Included
No
Engine Block Material
Aluminum
Engine Type
Ford Engines
Flexplate Included
No
Flywheel Included
Yes
Harmonic Balancer Included
Yes
Intake Manifold Included
Yes
Intake Manifold Style
Fuel Injection
Manufacturer's Part Number
M-6007-M50D
Oil Pan Included
Yes
Part Type
Crate Engines
Product Line
Ford Performance Parts 2024 Gen 4 5.0L 480 HP Coyote Long Block Crate Engines
Remanufactured
No
Spark Plug Wires Included
No
Spark Plugs Included
Yes
Supercharger Included
No
Throttle Body Included
Yes
Timing Cover Included
Yes
UPC
756122019399
Valve Covers Included
Yes
Water Pump Included
Yes
Wiring Harness Included
Yes
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
