Product Details
🔧
Vehicle Compatibility
Fits Ford Performance Parts 363 C.I.D. 500 HP Boss Long Block Crate Engine.
Please refer to manufacturer specifications for complete compatibility information.
⭐
Key Features

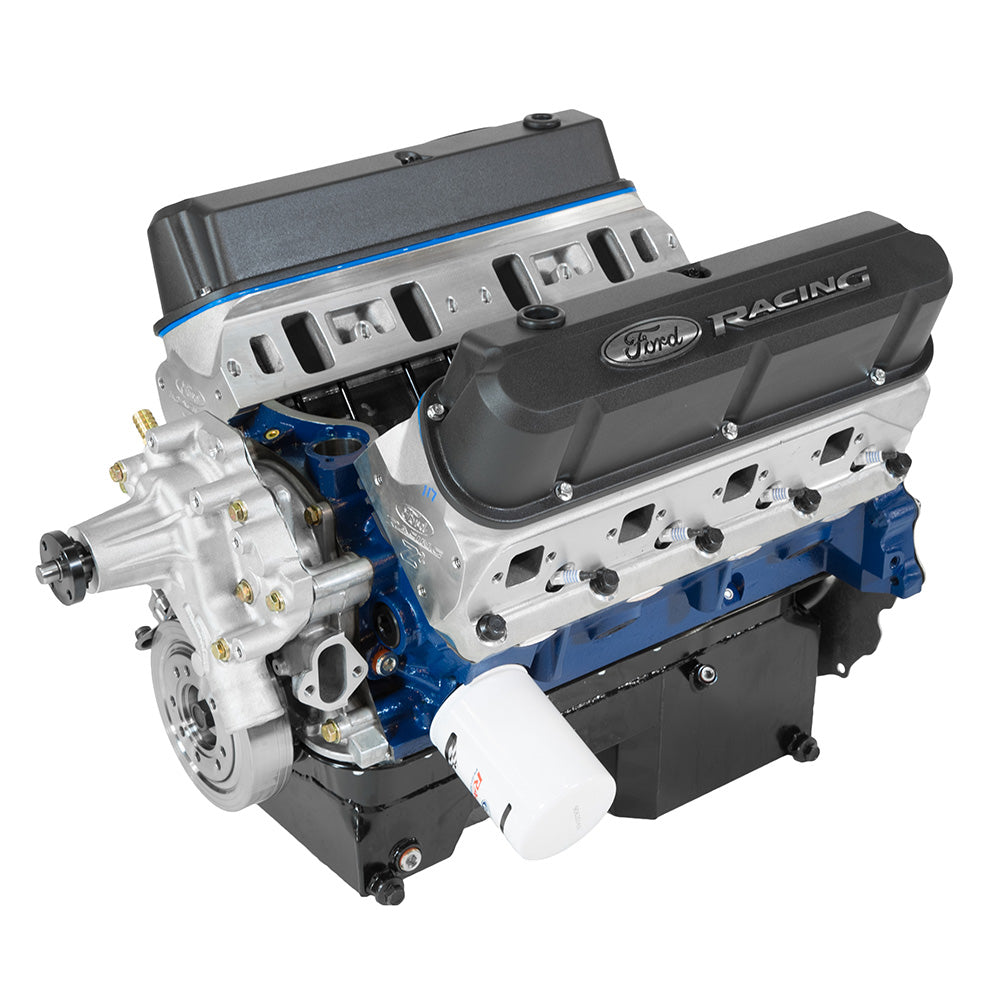

Ford Performance Parts 363 C.I.D. 500 HP Boss Long Block Crate Engine
Ford Performance Parts has taken their popular 302 based stroker engines and built them into these Ford Performance Parts 363 c.i.d. 500 hp Boss long block crate engines. They accomplished this by maxing out 347 stroker engine blocks with a 4.125 in. bore, giving you 363 cubic inches of Ford power! Ford engineers designed these Z363 engines to work both on the street and the strip with a strong torque curve that delivers over 390 lbs.-ft. of torque from 3,500 to the 6,500 rpm redline.
Additional technical specifications:
* 500 hp at 6,500 rpm
* 450 ft.-lbs. at 5,300 rpm
* Boss 302 block with 8.200 in. deck height
* 4.125 in. bore x 3.400 in. stroke
* Forged steel crankshaft
* Forged steel I-beam connecting rods
* 10.1:1 compression ratio
* Forged pistons with floating wrist pins,
* Hydraulic roller camshaft and lifters
* Valve lift (in.): 0.580 intake/0.602 exhaust
* Duration at .050 in. of lift: 232 intake/240 exhaust
* Ford Performance Parts aluminum Z2 cylinder heads
* Exhaust port raised 5/8 in.; may require custom headers
* 2.05 in. intake and 1.60 in. exhaust valves
* Roller rocker arms with 1.65 ratio
* Ford Performance Parts cast aluminum valve covers; fit most non-EFI applications
* SFI-approved harmonic balancer; may require spacer for pulley alignment
* 7-quart high performance oil pan with windage tray and scraper
* Available with front or rear sump oil pan and pickup
* Aluminum high performance water pump
* Internally balanced; use neutral balance flywheel (sold separately)
* Ignition timing recommended, 32 degrees BTDC at 4,000 rpm
* Maximum recommended rpm: 6,500
* Timing cover will work with most standard rotation water pumps
* Fuel pump eccentric installed; allows use of mechanical fuel pump
* Intake manifold not included
* Includes intake gaskets and pilot bearing
* Firing order 1-3-7-2-6-5-4-8 (5.0L HO and 351W firing order)
* Distributor sold separately
* Steel distributor gear required
* Shipping weight approximately 500 lbs.
* Engine power rating based on long tube headers, Edelbrock intake manifold Super Victor with 750 Holley carburetor and 1 in. spacer
* Built with currently available parts; photo and specifications may vary
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Actual Engine Displacement
6.0L/363
Advertised Compression Ratio
10.2:1
Air Cleaner Included
No
Assembled
Yes
Brand
Ford Performance Parts
Cam Style
Hydraulic roller
Carburetor Included
No
Computer Included
No
Crate Engine Cylinder Head Material
Aluminum
Crate Engine Family
Ford Windsor
Cylinder Heads Included
Yes
Distributor Included
No
Engine Balance
Internal
Engine Block Material
Cast iron
Engine Type
Ford Engines
Flexplate Included
No
Flywheel Included
No
Harmonic Balancer Included
Yes
Intake Manifold Included
No
Manufacturer's Part Number
M-6007-Z2363RT
Oil Pan Included
Yes
Part Type
Crate Engines
Product Line
Ford Performance Parts 363 C.I.D. 500 HP Boss Long Block Crate Engines
Rear Main Seal Style
1-piece
Remanufactured
No
Spark Plug Wires Included
No
Spark Plugs Included
No
Supercharger Included
No
Throttle Body Included
No
Timing Cover Included
Yes
UPC
756122006115
Valve Covers Included
Yes
Water Pump Included
Yes
Wiring Harness Included
No
ZNotes
Rear sump
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
