HolleyPart 12-144Made in US
Product Details
⭐
Key Features
Fill cap thread is 1 1/2"-12

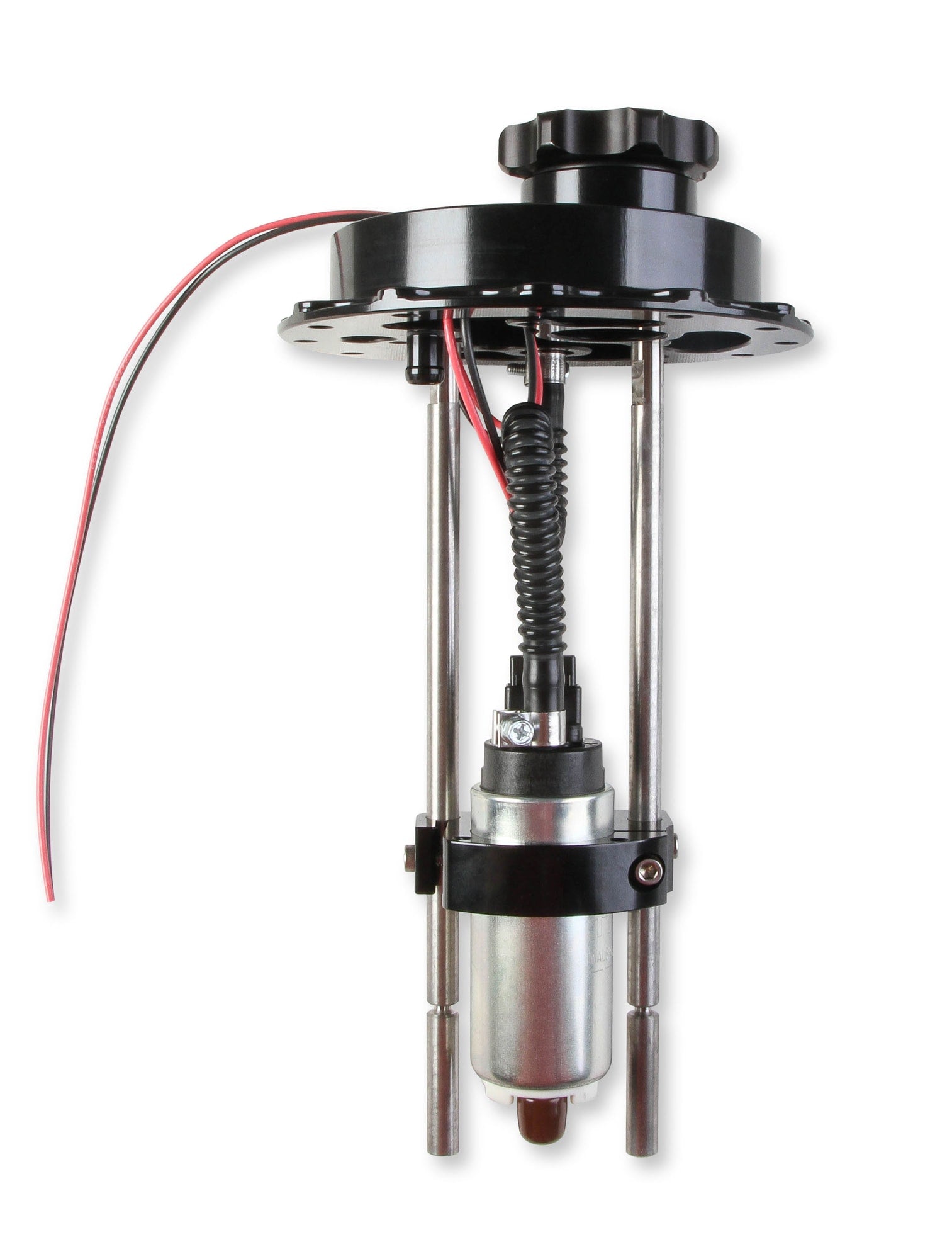

Updating your racing fuel system to EFI is so simple! | Holley is excited to introduce our Holley Fuel Cell EFI Pump Modules. While the name includes EFI, these modules can be used as an upgrade for carbureted systems as well with the proper regulator. The modules were designed to drop in as a direct replacement for your existing 12 bolt flange fuel cell cap assembly. The billet top flange includes an 8AN inlet port, a 10AN outlet port, and a fuel filler cap. The fuel pump depth is fully adjustable from 7.5" to 12" deep. The EFI modules are available with single 255 LPH and 450 LPH fuel pumps. The module kits include all the hardware to install into your existing fuel cell. All that you need to add is your fuel line. | ***Assembly fits common RJS, Jaz, Summit, Jegs, RCI, Speedmaster and Speedway fuel cells. | ***Supports up to 550 EFI or 700 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
12-Bolt Flange 255 LPH Drop-In EFI
- Update your fuel cell to EFI the easy way!
- Designed to drop right into your existing 12 bolt flange fuel cell

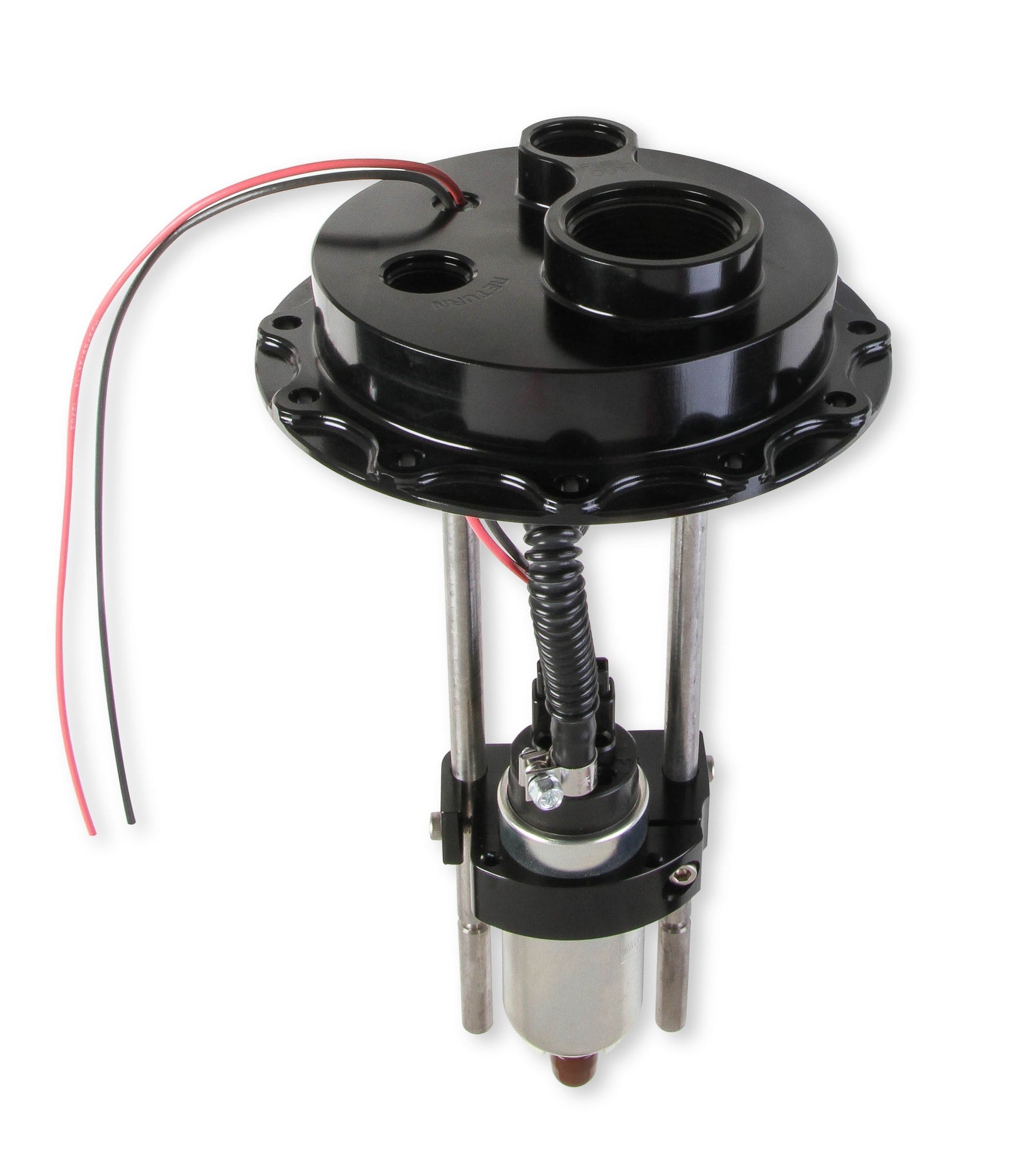

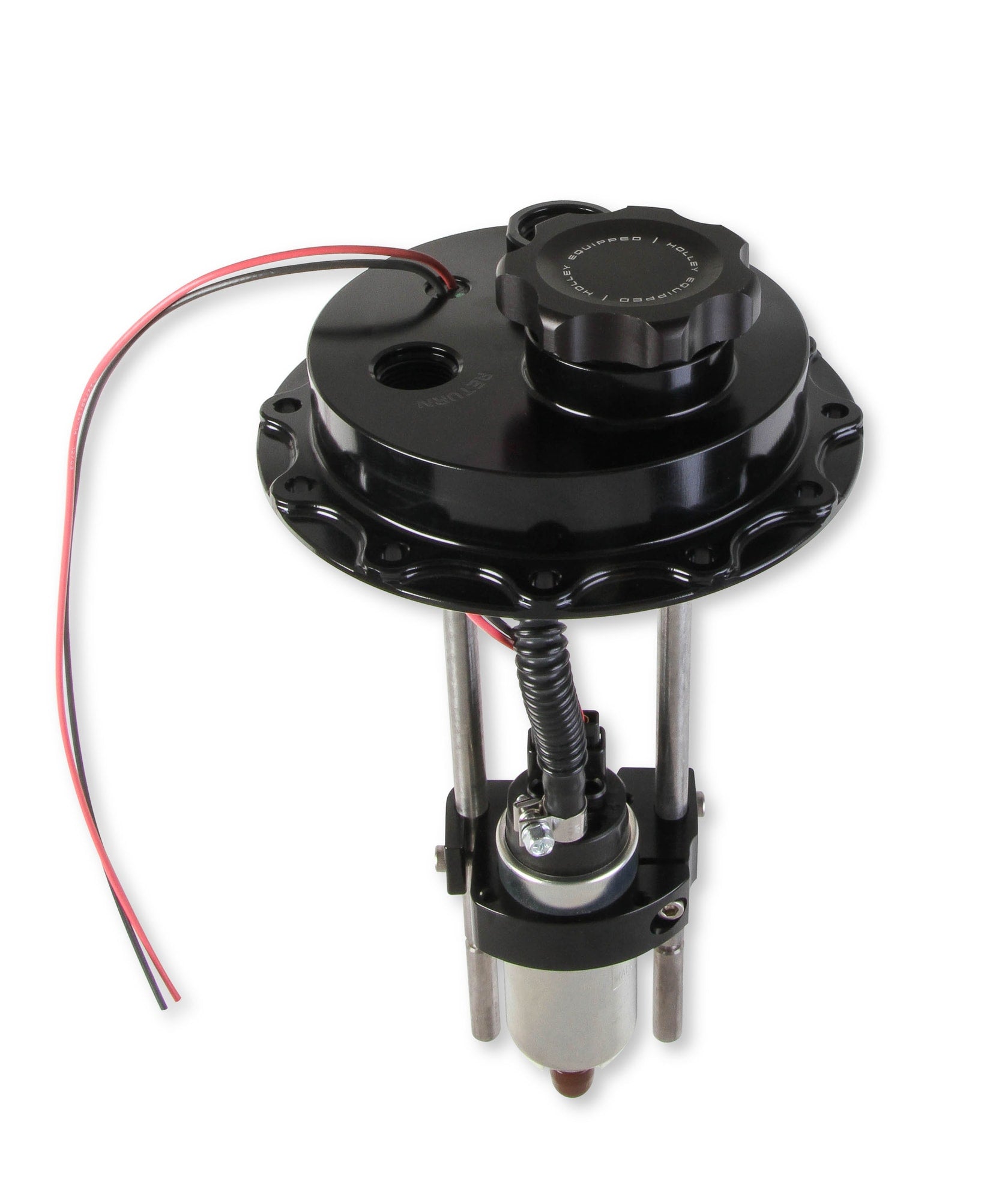

- Billet top flange housing includes an 8AN inlet and 10AN outlet port and a fuel filler cap
- Modules are available with 255 or 450 LPH fuel pumps in single pump configurations
- The pump depth is fully adjustable for fitment in the most popular cell sizes 7.5”-12” deep.
- Supports up to 550 EFI or 700 Carb HP (HP Rating @ 60 PSI at 13.5 Volts / 10.4 AMP Draw)
📖
About this product
12-Bolt Flange 255 LPH Drop-In EFI
📋
Product Specifications
Application
Universal
Automotive Item Grade
Performance
Average Current Draw
10.4
Average Flow Rating
255
Average Flow Rating
255 LPH
Brand
Holley
California Proposition 65 Chemical Name
4
Category
Air and Fuel Delivery
Collection
Air & Fuel Delivery
Collection
Air & Fuel Delivery - Fuel Pumps & Accessories
Emission Code
5
Flange Style
12 Bolt
Free Flow GPH
67
Free Flow LPH
255
Fuel Filter Included
Yes
Fuel Sending Unit Included
No
Fuel Tank Pressure Sensor Included
No
Fuel Type
Gasoline
Gasket Or Seal Included
Yes
Gasket Or Seal Material
Cork
Grade Type
Performance
Height
Adjustable
Housing Material
Aluminum
In Tank Or External
In Tank
Inlet Quantity
One
Inlet Size
8 AN
Inlet Type
8 AN ORB
Internal Or External Strainer
External
Lock Ring Included
Yes
Max PSI
80
Maximum Pressure
60
Maximum Pressure
60 PS
Mounting Hardware Included
Yes
Negative Ground
Yes
Outlet Quantity
One
Outlet Size
10 AN
Outlet Type
10 AN ORB
Part Type
Fuel Pump Module Assembly
Product Type
Fuel Pump
Pump Type
Electric
Regulator Included
No
Returnless
No
Single Or Dual Pump
Single
Universal Or Specific Fit
Universal
Voltage
12
Voltage
12 2H
Warning
California Proposition 65
Warranty
Limited 90 Day
Warranty
Manufacturer's Limited 90 Day Warranty
Wire Harness Included
Yes
Wire Quantity
2
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
16.2 × 8.7 × 8.6 in
Shipping Dimensions
16.2 × 8.7 × 8.6 in
Weight
2454 g (2.45 kg)
