AEM ElectronicsPart 50-1215Made in CN
Product Details
⭐
Key Features
AEM fuel pumps include a universal pre-filter which may not fit certain vehicle applications. Please refer to the OEM recommendations for filter replacement for your vehicle. Your vehicle's factory fuel pump wiring may not be adequate enough to handle the

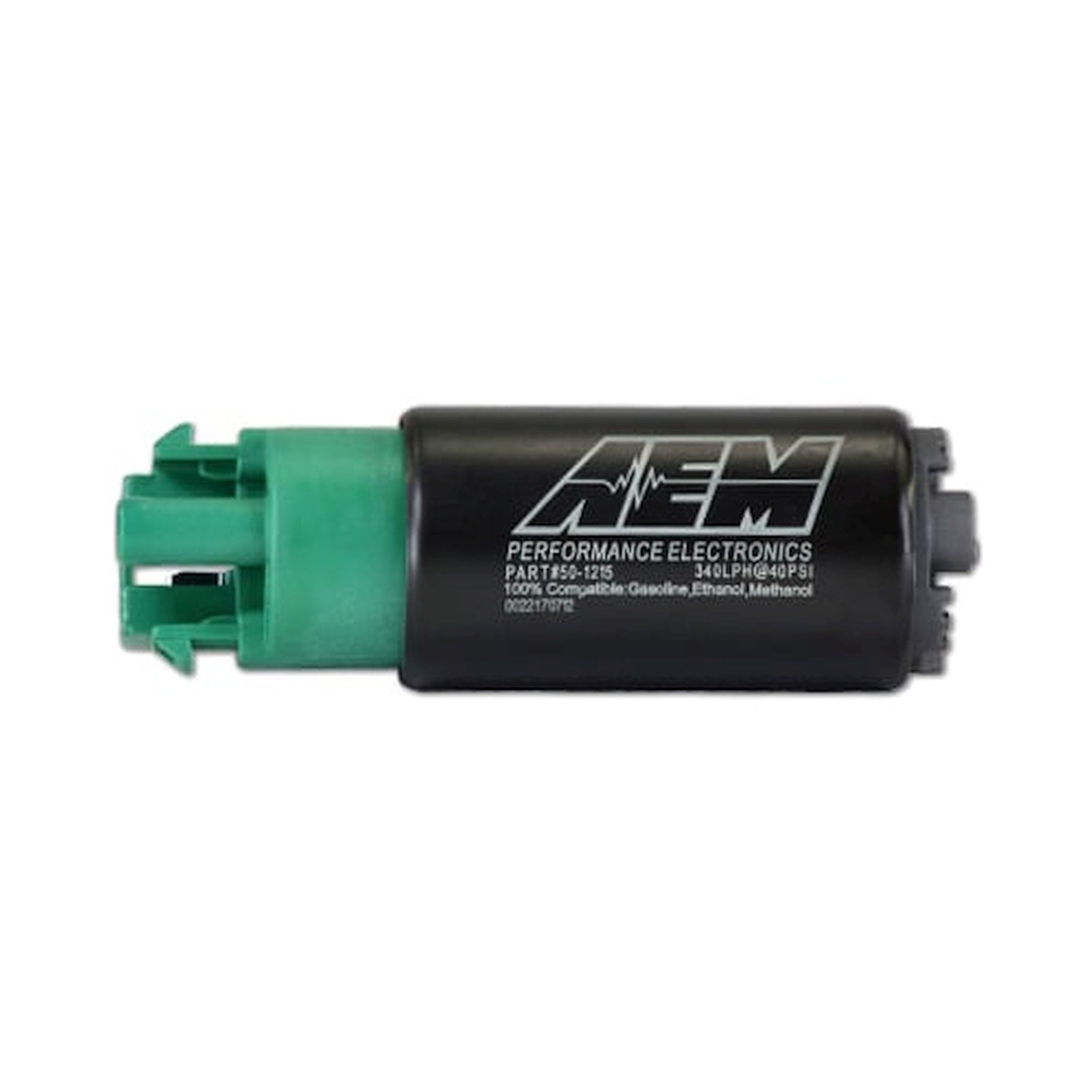

AEM's 340LPH E85-Compatible High Flow In-Tank Fuel Pumps feature robust internal construction that is designed to withstand the low lubricity characteristics of ethanol and methanol fuels, and are tested to work with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline. | The AEM 340LPH E85-Compatible High Flow In-Tank Fuel Pump is designed for in-tank mounting on high performance naturally aspirated and forced induction vehicles. It features a compact 39mm diameter that fits most applications and an offset inlet design that eases installation. | The 340LPH E85-Compatible High Flow In-Tank fuel pump includes a wiring harness, pre filter, end cap and rubber buffer sleeve. Every AEM 340LPH E85-Compatible Fuel Pump is tested to flow 340 lph at 40 PSI before it is packaged for sale. | TECHNICAL SPECS: | Weight: 12.5oz (354grams) | Outside Diameter: 39mm OD | External Materials: Black plated steel with laser etching | Inlet Fitting: 7.7mm ID, 11.0mm OD. Offset Inline | Outlet Fitting: 8 mm hose clamp. Offset | PRV Activation: 80 PSI | Impeller Design: Single Scroll Ceramic Turbine | VOLTAGE SPECS: | Connector Terminal: 6 mm Spade (pos/neg) | Min Voltage Input: 6 volts | Max Voltage Input: 18 volts | Current Draw (40 psi): 12 amps (13.5v) | Current Draw (80 psi): 15 amps (13.5v) | Fuse: 20 amps (13.5v) | * Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of .5. Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities.
65mm Body w/Hooks - Offset Inlet/340LPH@40psi/Not application specific
- Tested and compatible with ethanol fuels up to E100, methanol fuels up to M100 and all types of gasoline
- Designed for high output naturally aspirated and forced induction EFI vehicles
- Tested to flow 340 lph @ 40 PSI

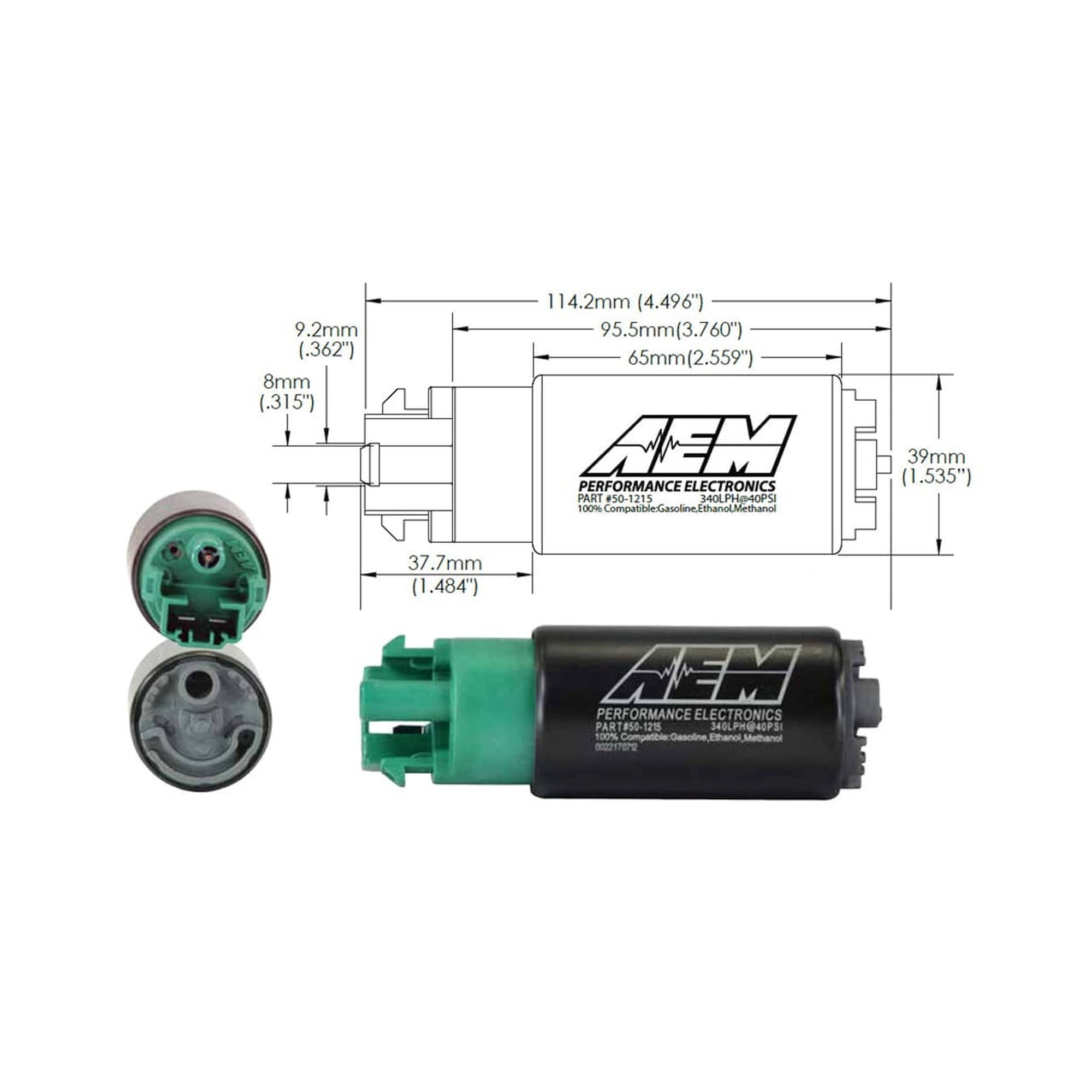

- 39mm diameter fits most applications
- Offset inlet design eases installation
- Each pump individually tested
- Kit includes fuel pump, rubber sleeve and end caps, pre filter and flying lead
- In tank design
📖
About this product
65mm Body w/Hooks - Offset Inlet/340LPH@40psi/Not application specific
📋
Product Specifications
Application
Universal
Brand
AEM
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Country
CN
Emission Code
4
Emission Code
5
Free Flow GPH
90
Free Flow LPH
340
Fuel System
Carbureted
Fuel Type
E85
HTS Code
8504409580
Material
Steel
Part Type
Fuel Pump
Product Type
Fuel Pump
Prop 65 Yes/No
Yes
Pump Body Color
Black
Sub Category
Fuel Pumps and Related Components
Warning
California Proposition 65
Warranty
Manufacturer's 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
12 months · Manufacturer's 1 Year Warranty
Country of Origin
CN
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8504409580
📐
Dimensions & Shipping
Product Dimensions
6.0 × 2.8 × 2.4 in
Shipping Dimensions
6.0 × 2.8 × 2.4 in
Weight
358 g (0.36 kg)
