Earl's Auto-Flex Hose - Size 10 - 3 Ft. Length

Regular price £73.00 GBP inc VAT
Shipping calculated at checkout.
SKU: 303010erl

Limited Stock

Checking stock levels…
🇬🇧 UK warehouse
🇺🇸 US warehouse
Estimated Delivery


View details
Earl's PerformancePart 303010erlMade in US

Product Details

Key Features

Tough Stainless Steel Wire Braid-Protected Synthetic Rubber Hose. Easy to Cut and Assemble. Accepts Swivel-Seal, Auto Fit & Auto-Crimp Hose Ends.

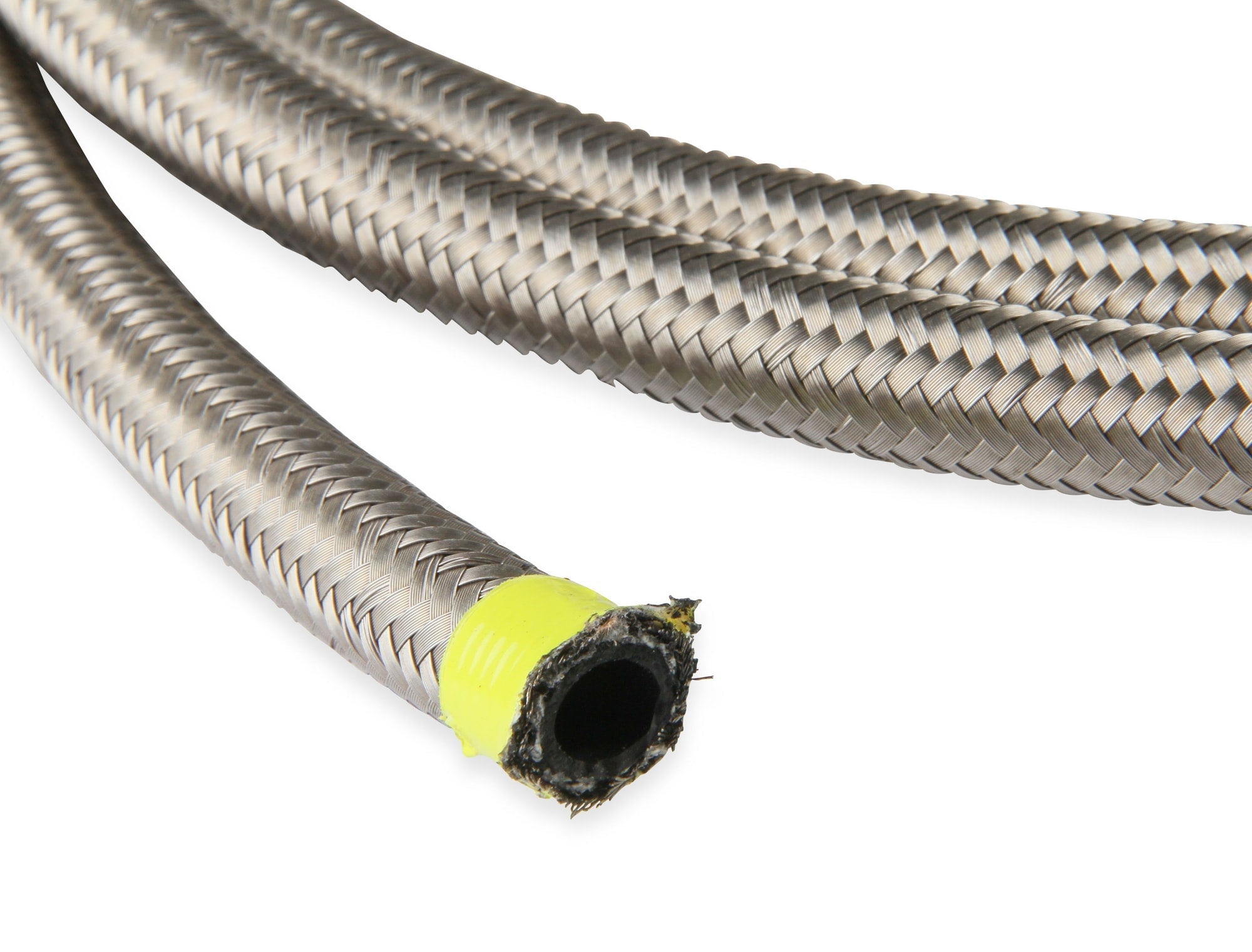

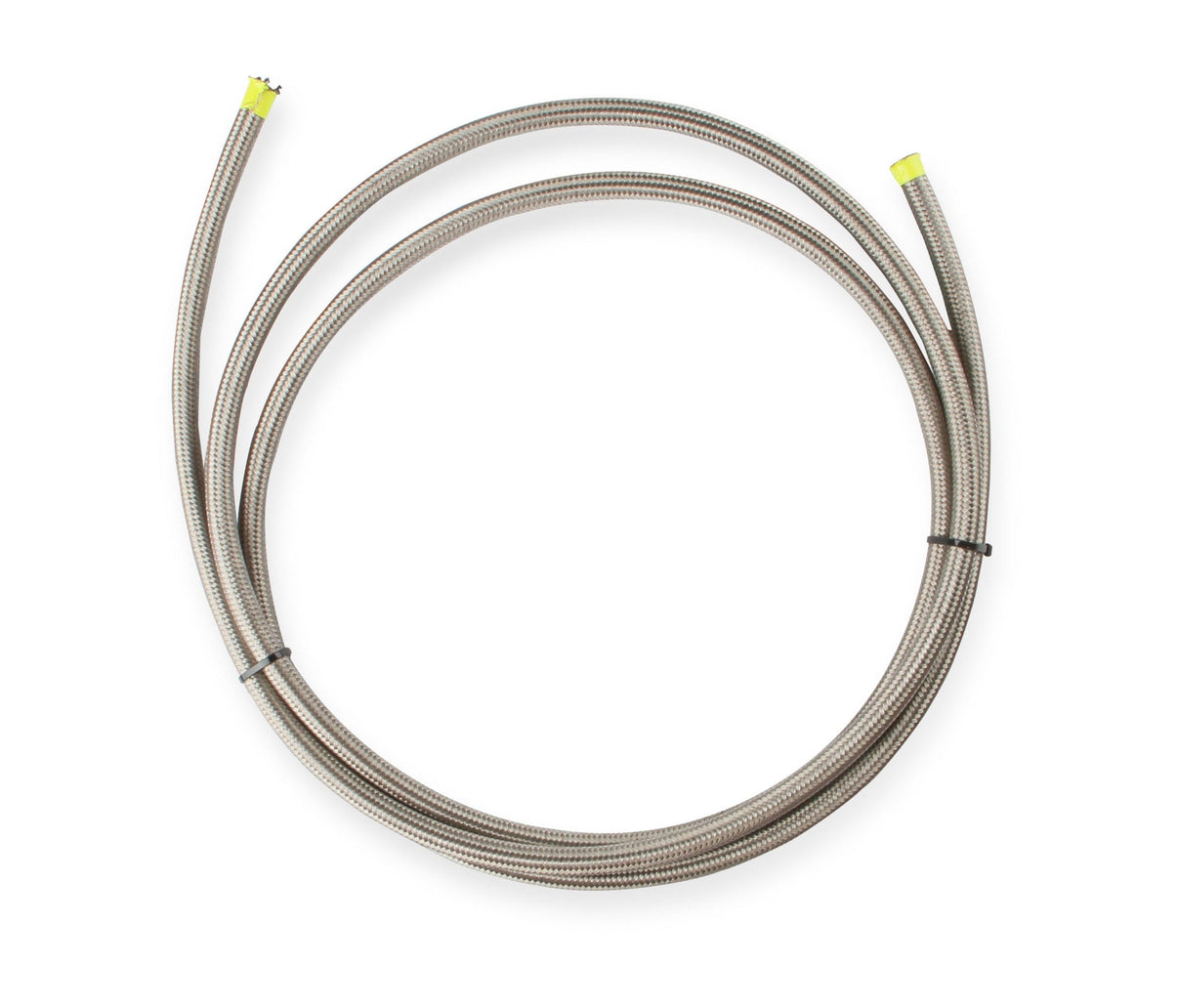

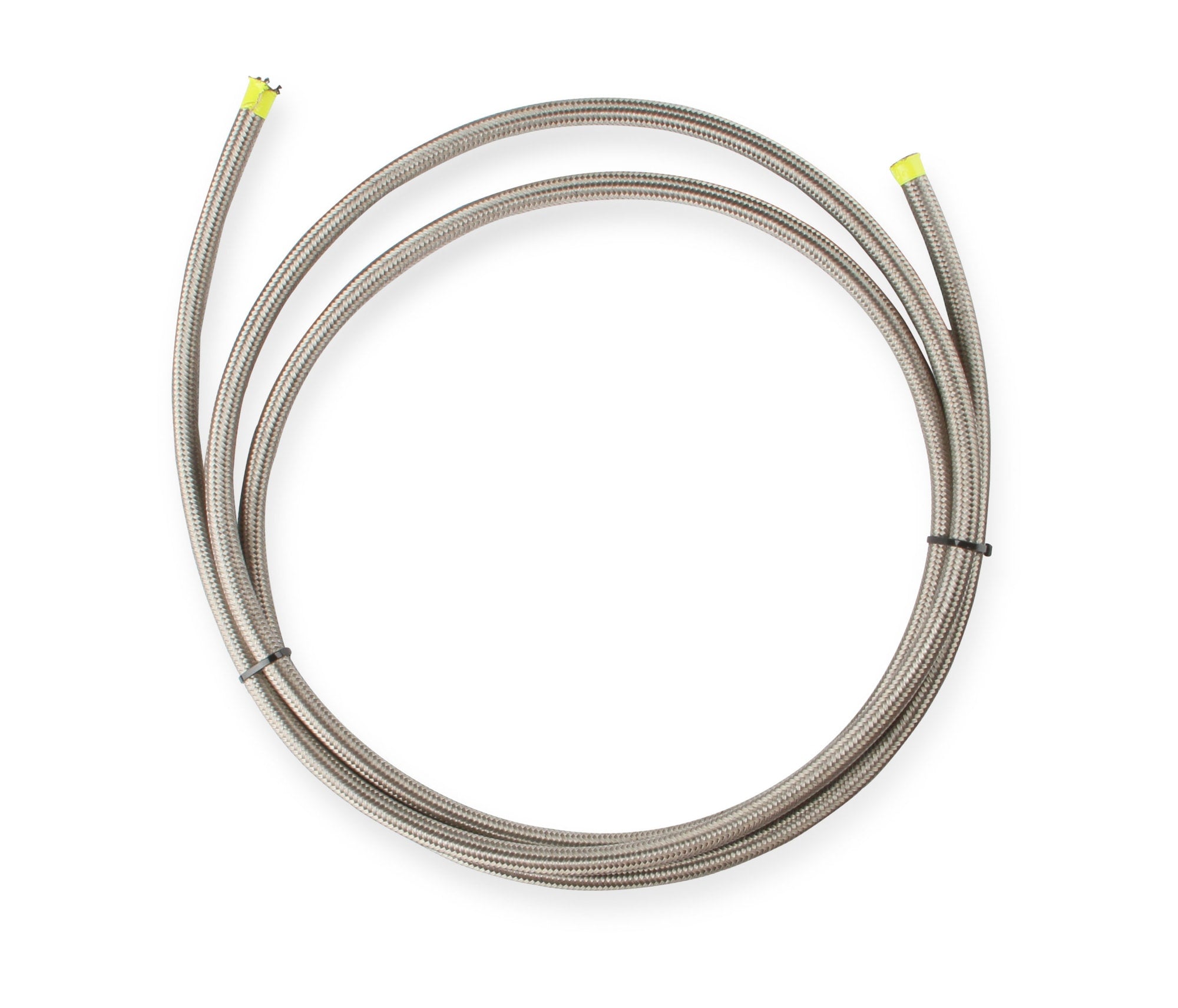

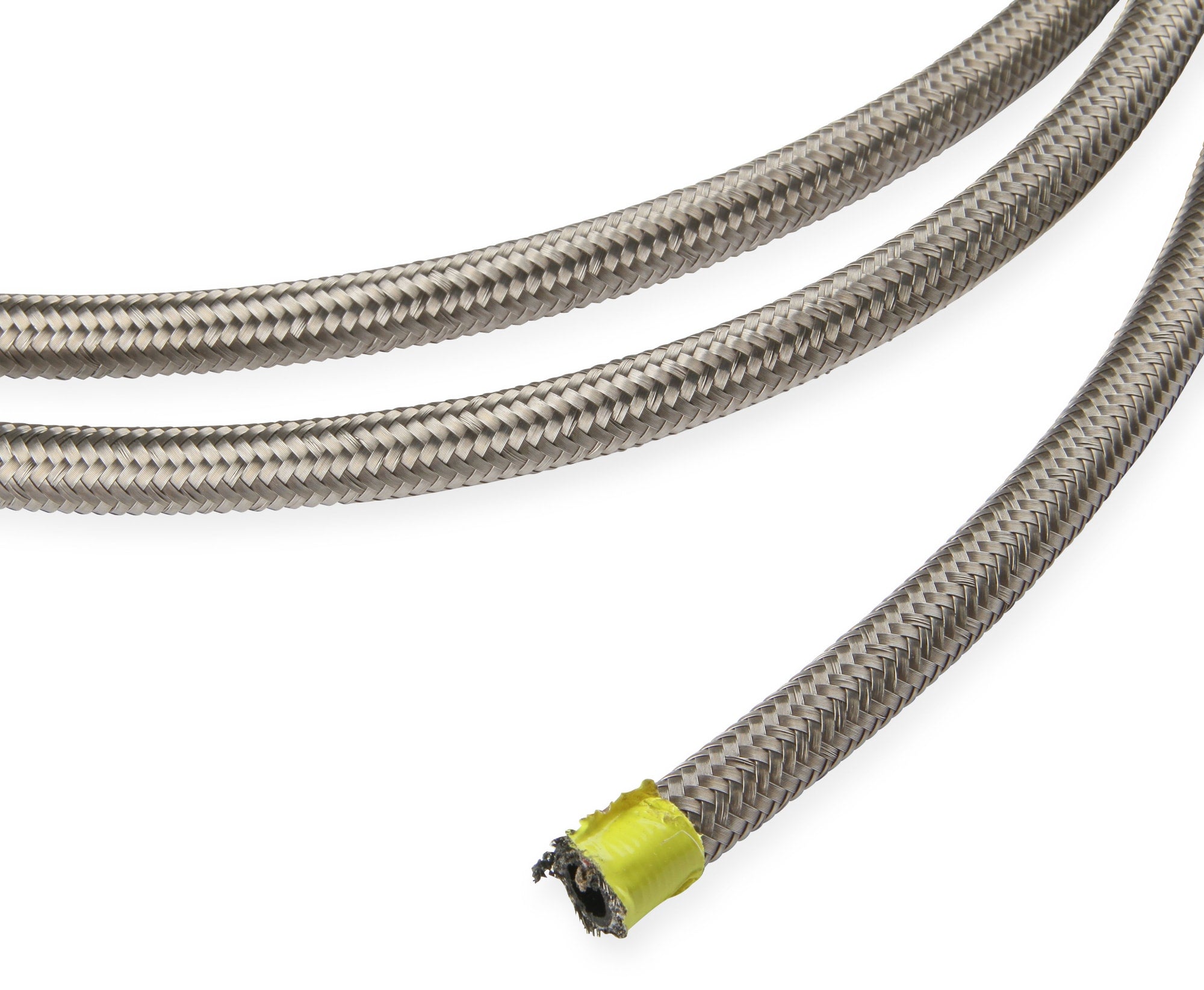

A high quality stainless steel braided hose at a price competitive with the imports. Earl's AUTO-FLEX stainless steel braid-protected synthetic rubber hose is manufactured to our specifications in the U.S.A. Earl's AUTO-FLEX hose features a recommended temperature range and maximum operating pressure equal to our racing premium quality Perform-O-Flex hose...at a much better price. A partial coverage textile inner braid is imbedded in the liner during manufacture. The hose is finished with a full coverage stainless steel braid which is bonded to the reinforced liner. The liner is known as H.T.E ( not to be confused with PTFE ) and it is the highest quality of synthetic neoprene liner on the market. Continuous use temperature rating is - 40 to + 350 degrees F. Auto-Flex hose is intended for use with Swivel-Seal, Auto-Fit and Auto-Crimp hose ends only. No other Earl's hose ends are intended for use with Auto-Flex hose. The use of other manufacturers hose ends is also not recommended with this hose as it does not work with lower quality import fittings. PSI rating is determined by many factors including hose end in use and assembly method.

Tough Stainless Steel Wire Braid-Protected Synthetic Rubber Hose. Easy to Cut and Assemble. Accepts Swivel-Seal, Auto Fit & Auto-Crimp Hose Ends.

  • Textile Braid In Hose Liner
📖

About this product

Tough Stainless Steel Wire Braid-Protected Synthetic Rubber Hose. Easy to Cut and Assemble. Accepts Swivel-Seal, Auto Fit & Auto-Crimp Hose Ends.

🎬

Product Videos

📋

Product Specifications

Brand
Earl's
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Air and Fuel Delivery
Compatible Hose Ends
Auto-Crimp
Compatible Hose Ends
Auto-Fit
Compatible Hose Ends
Econ-O-Fit
Compatible Hose Ends
Swivel-Seal
Emission Code
5
Fluid Type Rating - Automatic Transmission Fluid
5 out of 5 Rating
Fluid Type Rating - Coolant
5 out of 5 Rating
Fluid Type Rating - Diesel
2 out of 5 Rating
Fluid Type Rating - E85
2 out of 5 Rating
Fluid Type Rating - Methanol/Alcohol
1 out of 5 Rating
Fluid Type Rating - Oil
5 out of 5 Rating
Fluid Type Rating - Pump Gas
2 out of 5 Rating
Fluid Type Rating - Race Gas
3 out of 5 Rating
Fluid Type Rating - Vacuum
5 out of 5 Rating
Fluid Type
Automatic Transmission Fluid
Fluid Type
Coolant
Fluid Type
Oil
Fluid Type
Race Gas
Hose Family
Auto-Flex
Hose Length
3 Feet
Hose Outer Material
Stainless Steel
Hose Size
10 AN
I.d. To O.d. Concentricity Range
.020"
Inside Diameter
.539" TO .595"
Max Vacuum
27 in Hg
Max Working PSI
750 PSI
Min. Bend Radius
4"
Outside Diameter
.774" TO .820"
Part Type
Fuel Hose
Product Type
Hose
Prop 65 Yes/No
Yes
Sub Category
Fuel Storage
Submersible In Fuel
No
Temperature Range
-40° to 350° F
Warning
California Proposition 65
🛡️

Warranty & Compliance

Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
8409915085
📐

Dimensions & Shipping

Product Dimensions
14.2 × 14.1 × 1.6 in
Shipping Dimensions
14.2 × 14.1 × 1.6 in
Weight
499 g (0.5 kg)
