AEM ElectronicsPart 30-5702fMade in US
Product Details
⭐
Key Features

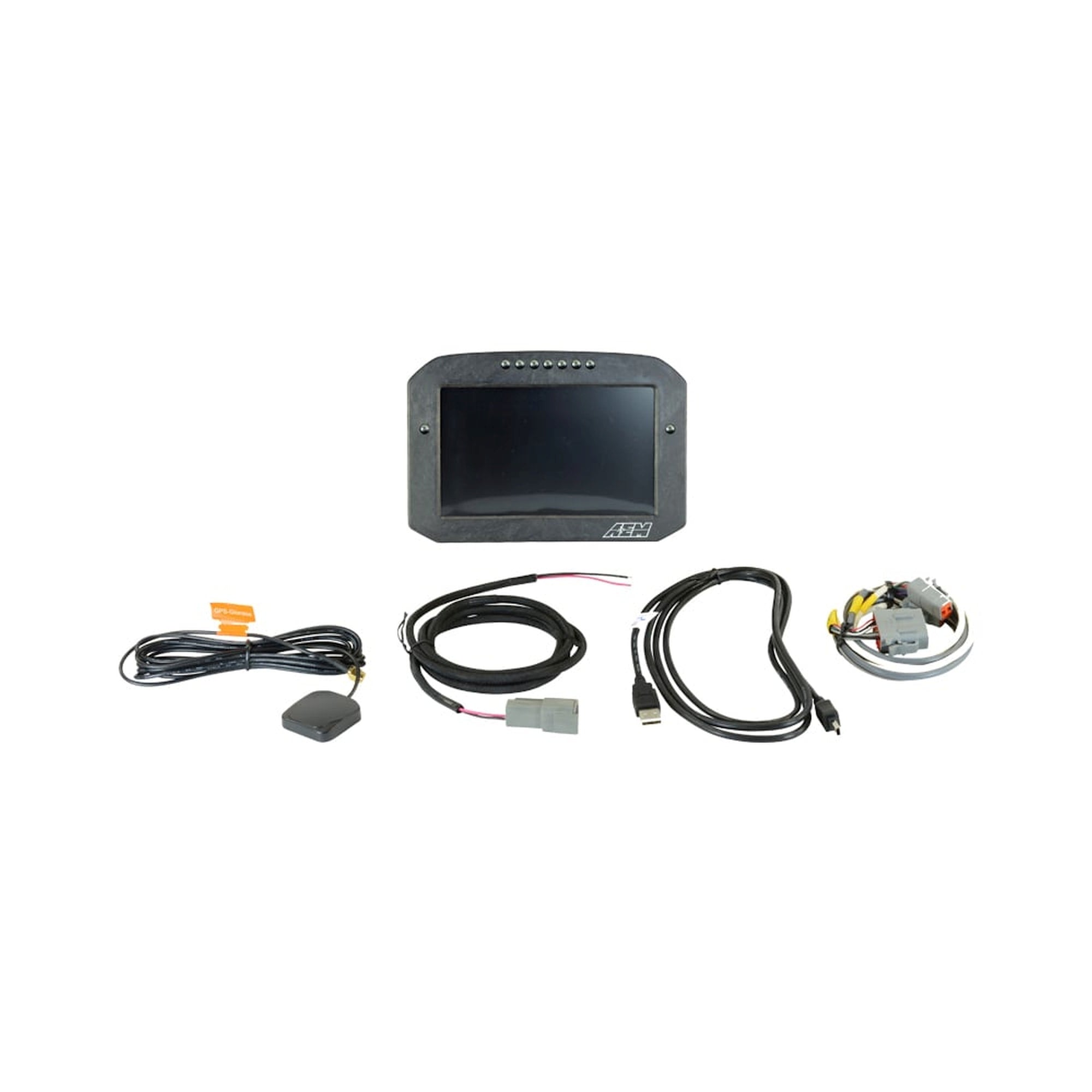

7-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included, Does Not Include Buttons (See PN 30-3610)

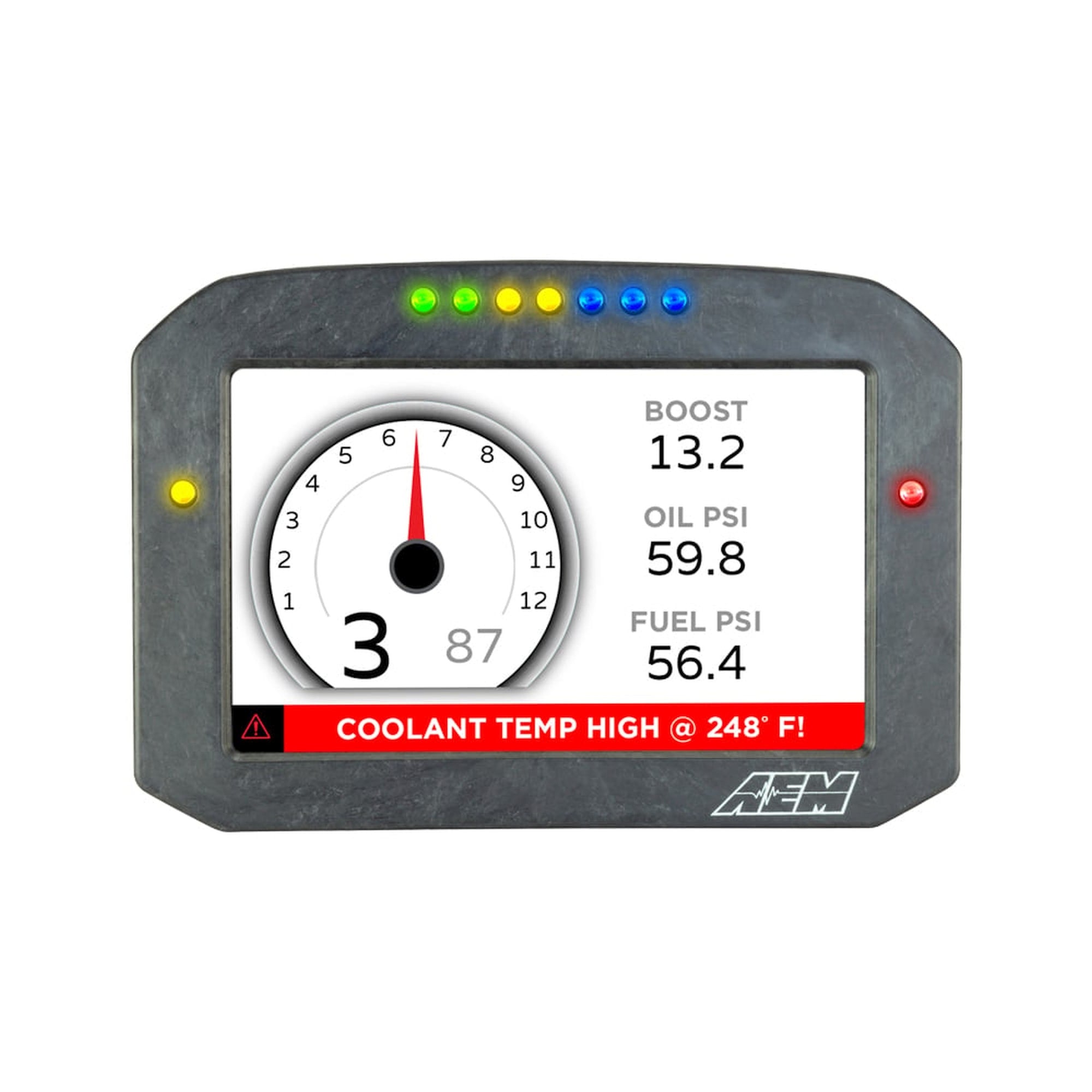

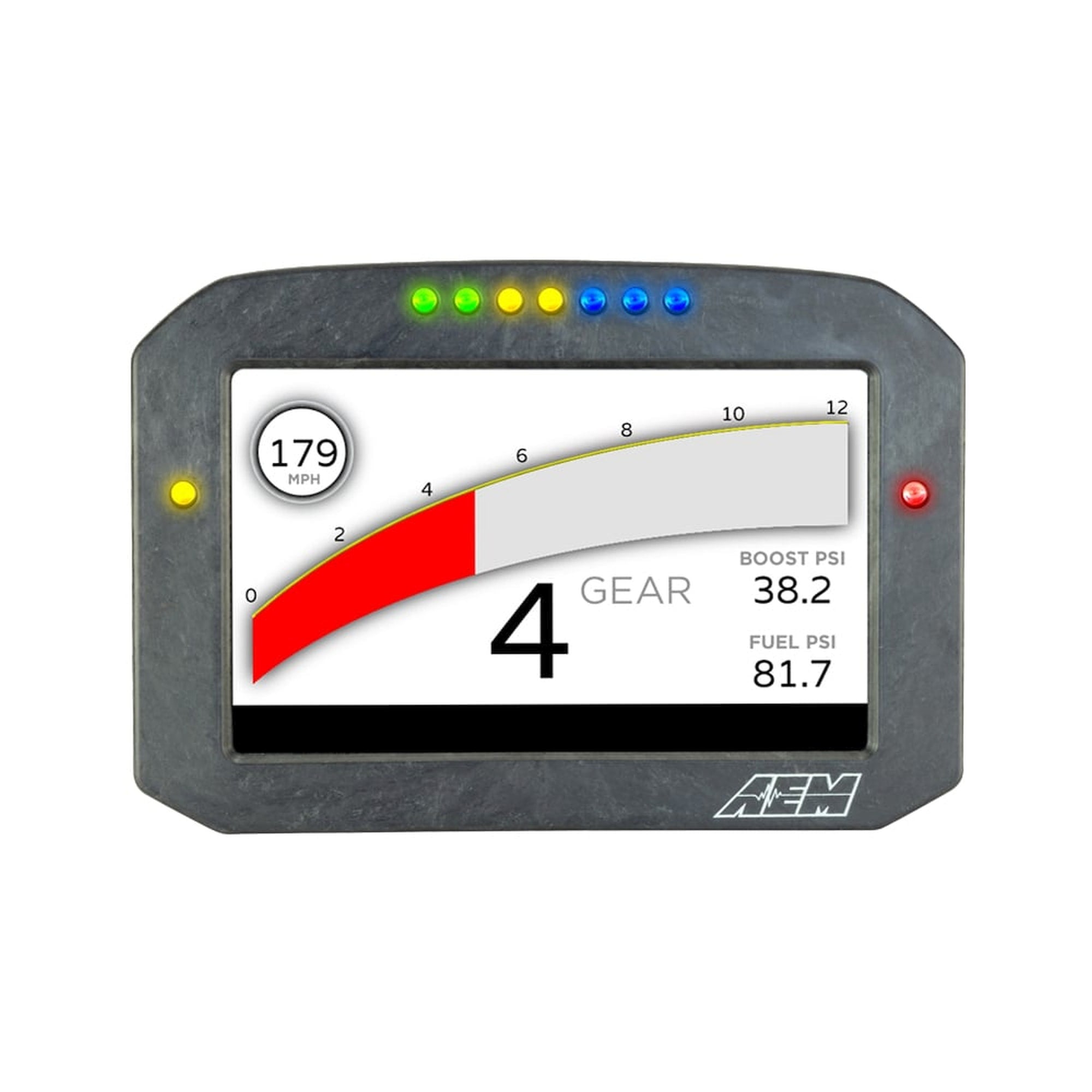

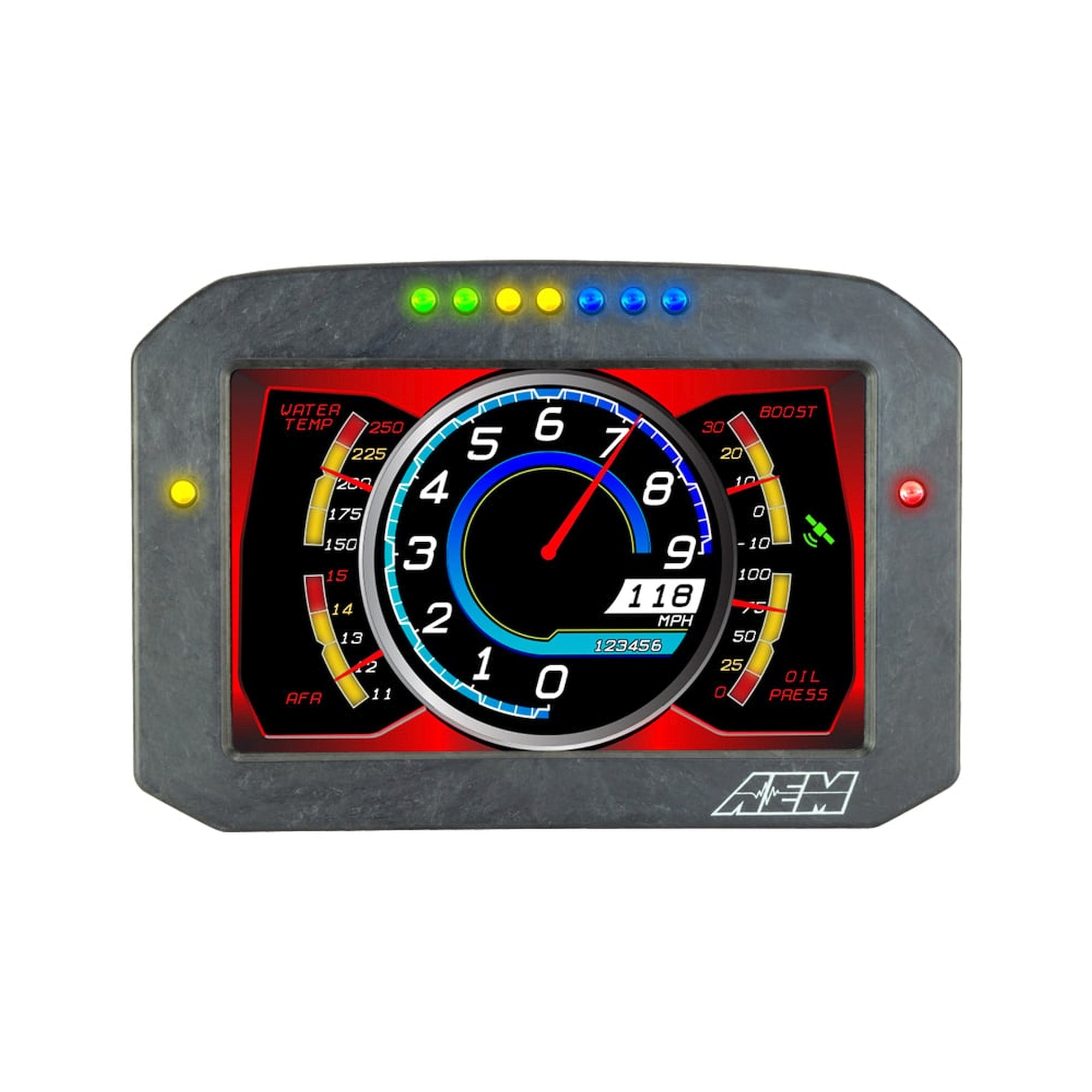

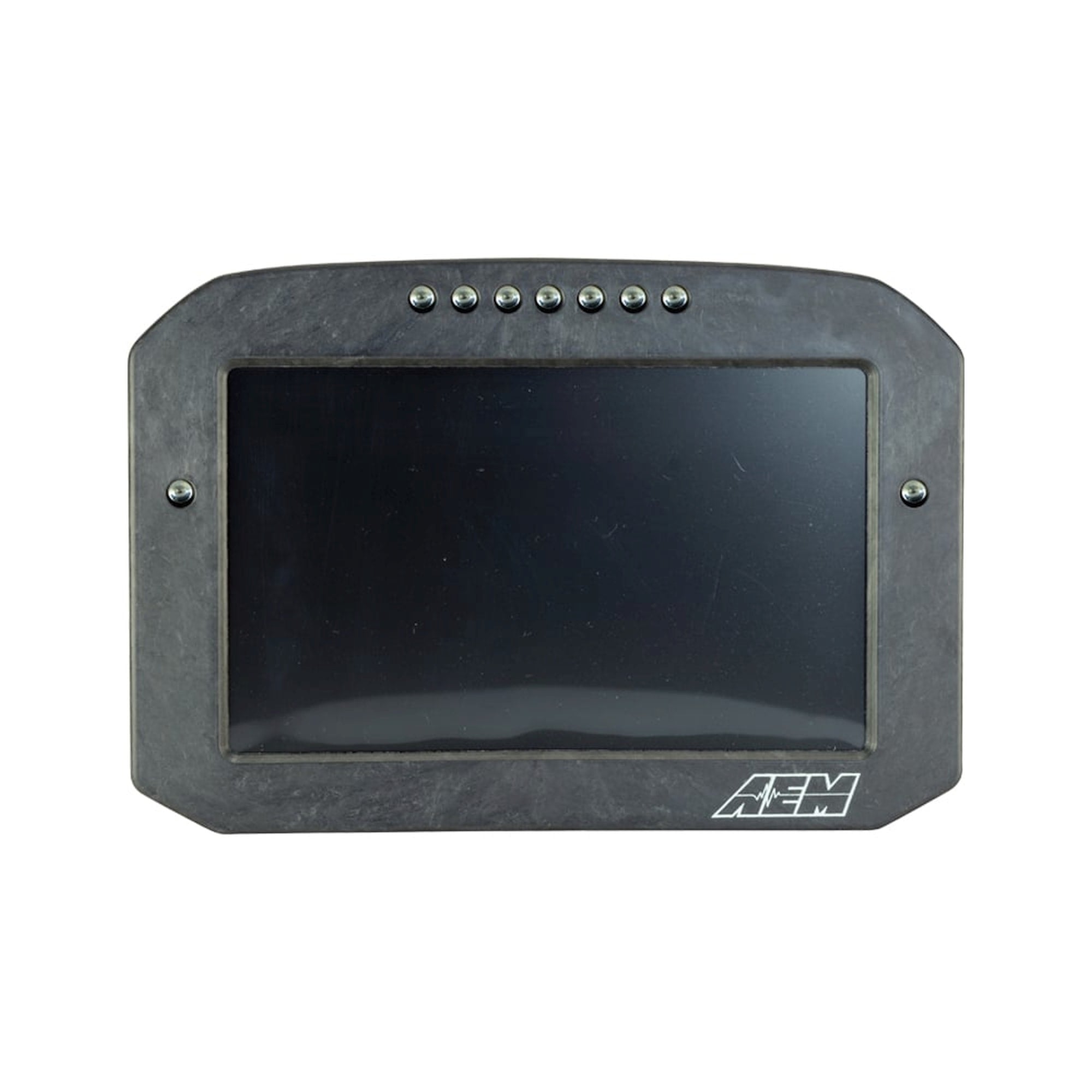

AEM CD7 Carbon Digital Flat Panel Displays feature full-color, daylight readable screens surrounded by a slim, tough, lightweight flow-molded carbon fiber composite housing. Seven ultra-bright LEDs span the top of the display housings for RPM and shift light indication. Users can program them to ascend in specific increments based on RPM range and flash when it is time to shift. Brightness is user programmable on the fixed color LEDs. A remote button kit (PN 30-3610, sold separately) easily wires into the CD Carbon wiring harness and allows users to change pages and clear memory. Two additional programmable LEDs are included in the enclosure and are fully programmable. | AEM CD7 Carbon Digital Flat Panel Displays have a compact enclosure that makes them perfect for flush mount installation or in-dash installations with tight tolerances. They include all of the robust features found in the original CD-7 Carbon Dash, but do not have buttons or an LED shade hood built into the enclosure.
7-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included, Does Not Include Buttons (See PN 30-3610)
- Install 8 additional temp inputs and send them to the CD-7 Carbon with our 8 Channel K-Type EGT CAN Module (PN 30-2224, sold separately)
- Add Vehicle Dynamics Module for GPS, 3-axis gyroscope and 3 axis accelerometer for G-loads, roll, pitch, yaw, track mapping and lap timing (PN 30-2206, sold separately)

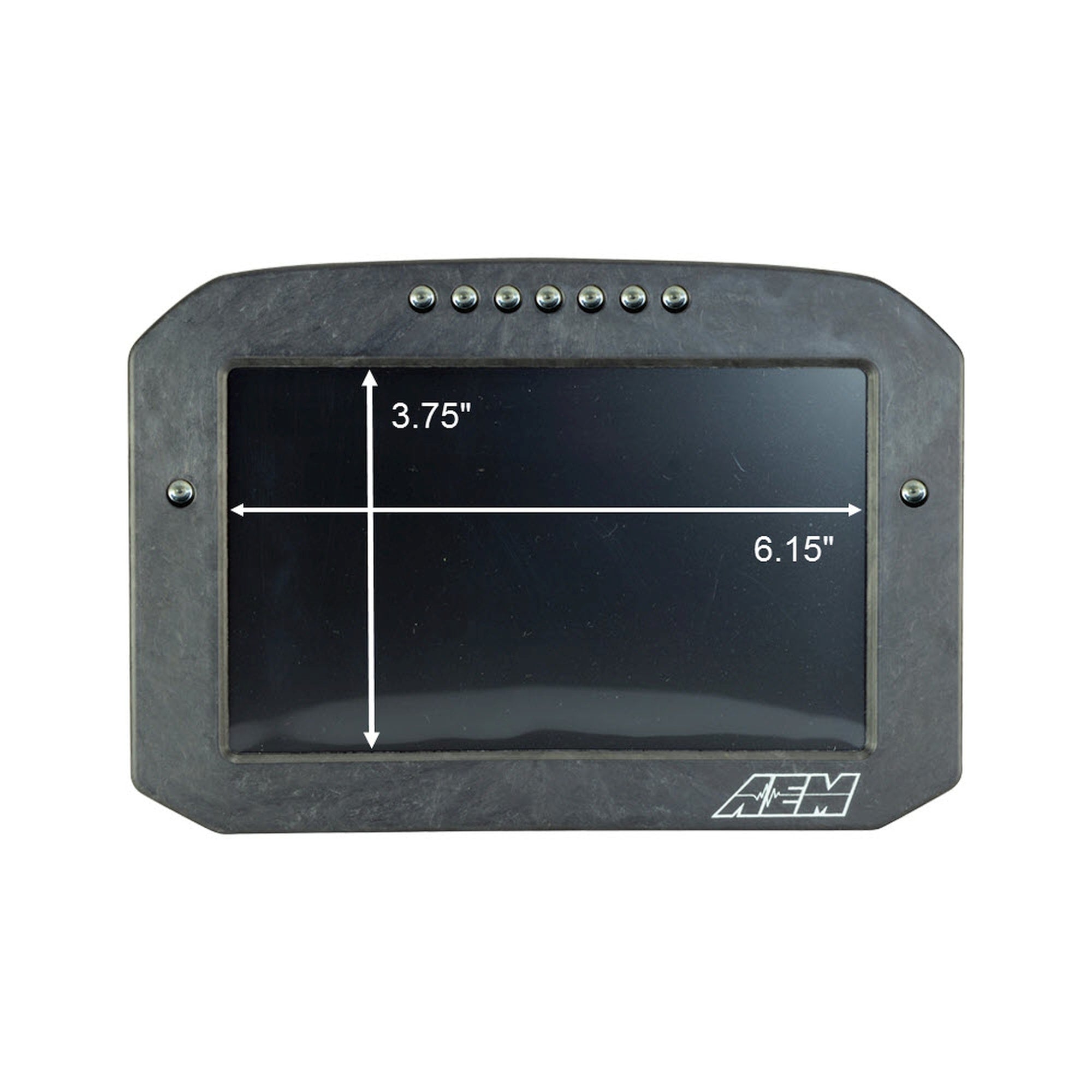

- Full color 7" screen with 800x480 resolution
- Seven LED RPM/shift light indicators on top of the housing (programmable and dimmable)
- User supplied graphics can be changed based on channel values (up to the full screen size)
- Available with or without onboard 20 Hz GPS receiver and antenna
- Direct sunlight readable (1000cd/m2 brightness and anti-glare filter)
- IP66 water resistance - open cockpit safe

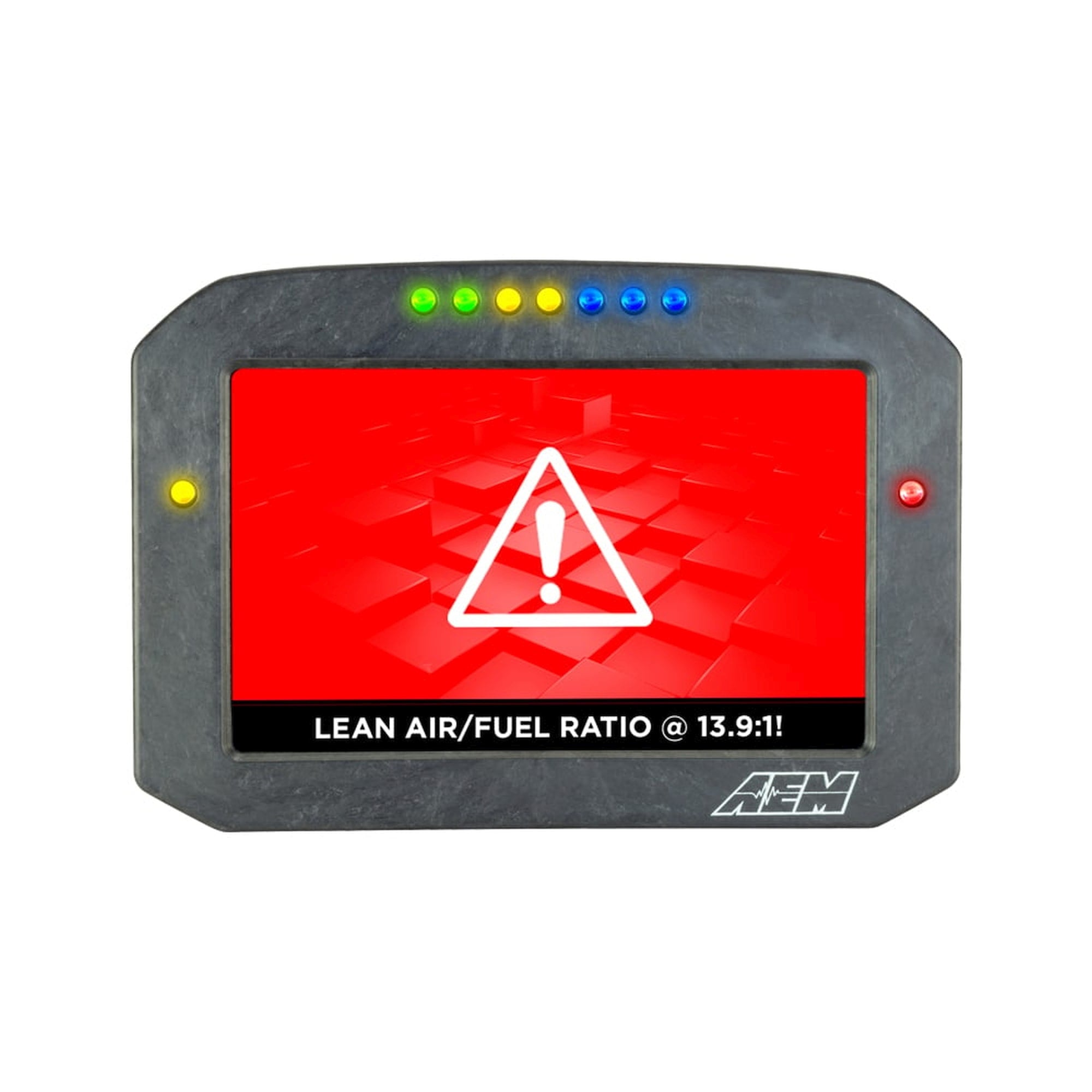

- Dedicated Alarm page quickly identifies problems, programmable in almost any language! (user defined)
- Two programmable LEDs
- Odometer function
- Over 200 supplied fully programmable SAE and custom warning icons, and you can add your own
- Available with or without 200Mb internal logging (up to 1,000Hz/channel)
- Accepts channels from AEMnet CAN-enabled devices and non-AEM CAN bus devices side by side
- Seven programmable pages including four Main pages, Alarm, On-Change and Start-up pages (requires Button Kit PN 30-3610)
- Wiring interface/harnesses are identical between all CD Carbon Dashes
- Rugged, lightweight flow-molded carbon fiber composite enclosure
- Plug & Play Adapter Cables available for Holley, Link, MSD Atomic and Vi-Pec ECUs
- Convert CAN bus channel values to user-defined text
- Accepts channels from 2008-up factory ECUs using Plug & Play OBDII CAN Adapter Cable (PN 30-2217, sold separately)
- Use the included page layouts and input your channels and text, or create your own from scratch
- Free DashDesign Graphics Editor software
- Install on carbureted and pre-2008 stock ECU-equipped vehicles using a 22 Channel CAN Sensor Module (PN 30-2212) or 6 Channel CAN Sensor Module (PN 30-2226)
- Layout files interchangeable between all CD Carbon Dashes
- Unique On-Change page can be used to identify map switching for boost, traction, lap times, etc.
- 'Headlight-in' connection dims the dash and LEDs during night operation
- Two extra switch inputs included for displaying user-triggered events (blinkers, high beams etc.)
📖
About this product
7-inch diagonal screen, carbon fiber enclosure, GPS antenna and wiring harness included, Does Not Include Buttons (See PN 30-3610)
📋
Product Specifications
Analog Or Digital
Digital
Automotive Item Grade
Performance
Automotive Item Grade
Premium
Brand
AEM
Built-In Buttons
No
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
CAN Ready
Yes
Category
Gauges and Gauge Accessories
Color
Black Carbon Composite

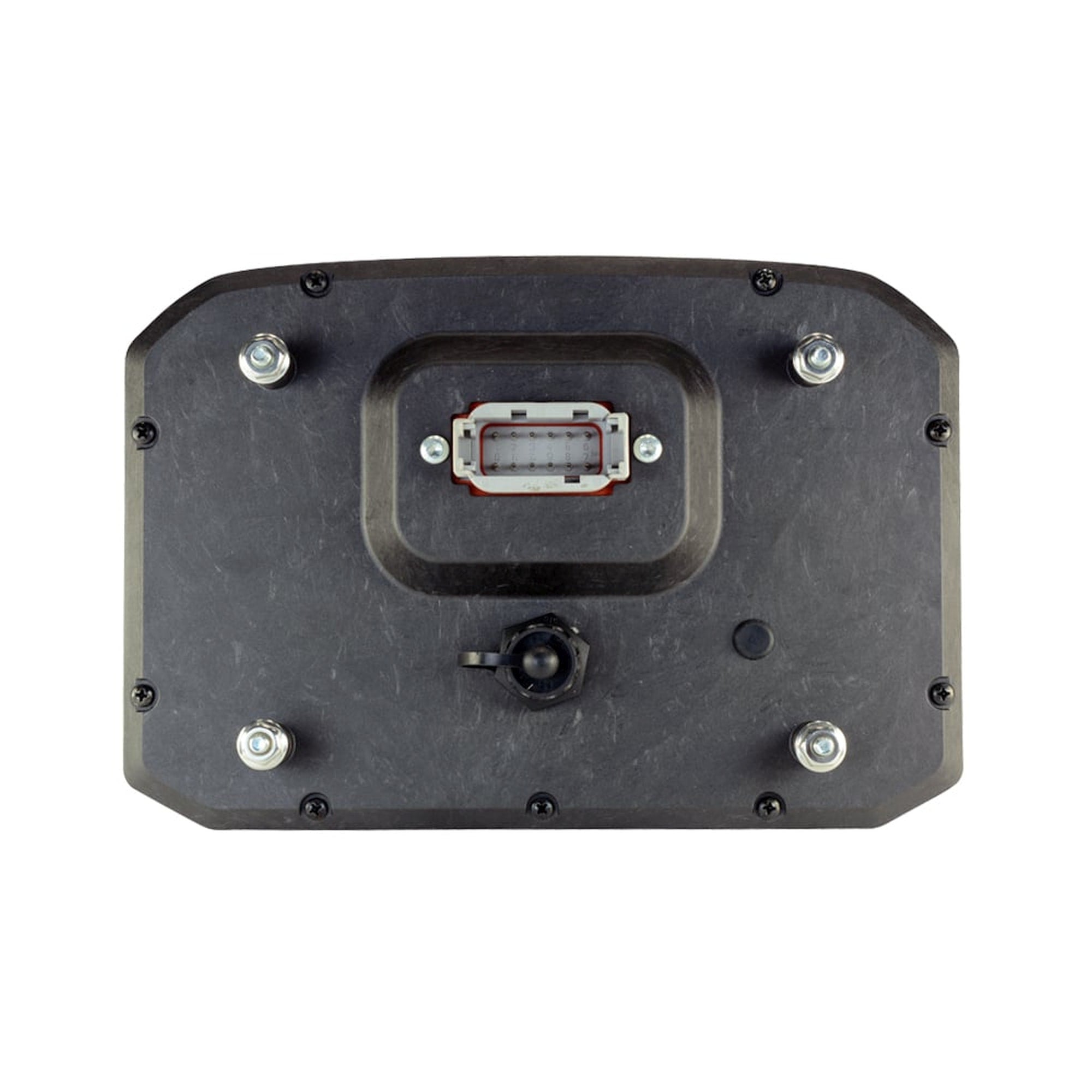

Connector Quantity
2
Country
US
Datalogging
No
Depth
3.1
Emission Code
4
Emission Code
5
Enclosure Material
Carbon Fiber
External Buttons Required
Yes
Gauge Quantity
1
GPS Included
Yes
Gps
Yes
Harness Included
Yes
HTS Code
9029204080
Illuminated
Yes
IP Rating
IP65
Logging
No
Material
Carbon Fiber Composite
OEM Replacement
No
Part Type
Digital Display
Part Type
Instrument Cluster
Product Type
Dash
Prop 65 Yes/No
Yes
Screen Size
7 Inch Diagonal
Sub Category
Instrument Panel
Terminal Quantity
12
Touchscreen
No
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's 1 Year Warranty
Wire Gauge Measurement
20
Wire Quantity
12
Wiring Harness Included
Yes
Wiring Harness Length
48
🛡️
Warranty & Compliance
Warranty
12 months · Manufacturer's 1 Year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
5
HS Code
9029204080
📐
Dimensions & Shipping
Product Dimensions
13.0 × 10.0 × 3.0 in
Shipping Dimensions
13.0 × 10.0 × 3.0 in
Weight
1361 g (1.36 kg)
