Holley EFIPart 553-112Made in US
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
This device will only display and/or communicate with Holley EFI HP/Dominator ECUs with V4 build 110 or later firmware. It will also communicate with Terminator X / Terminator X Max and Sniper ECUs. Not compatible with Sniper 2.

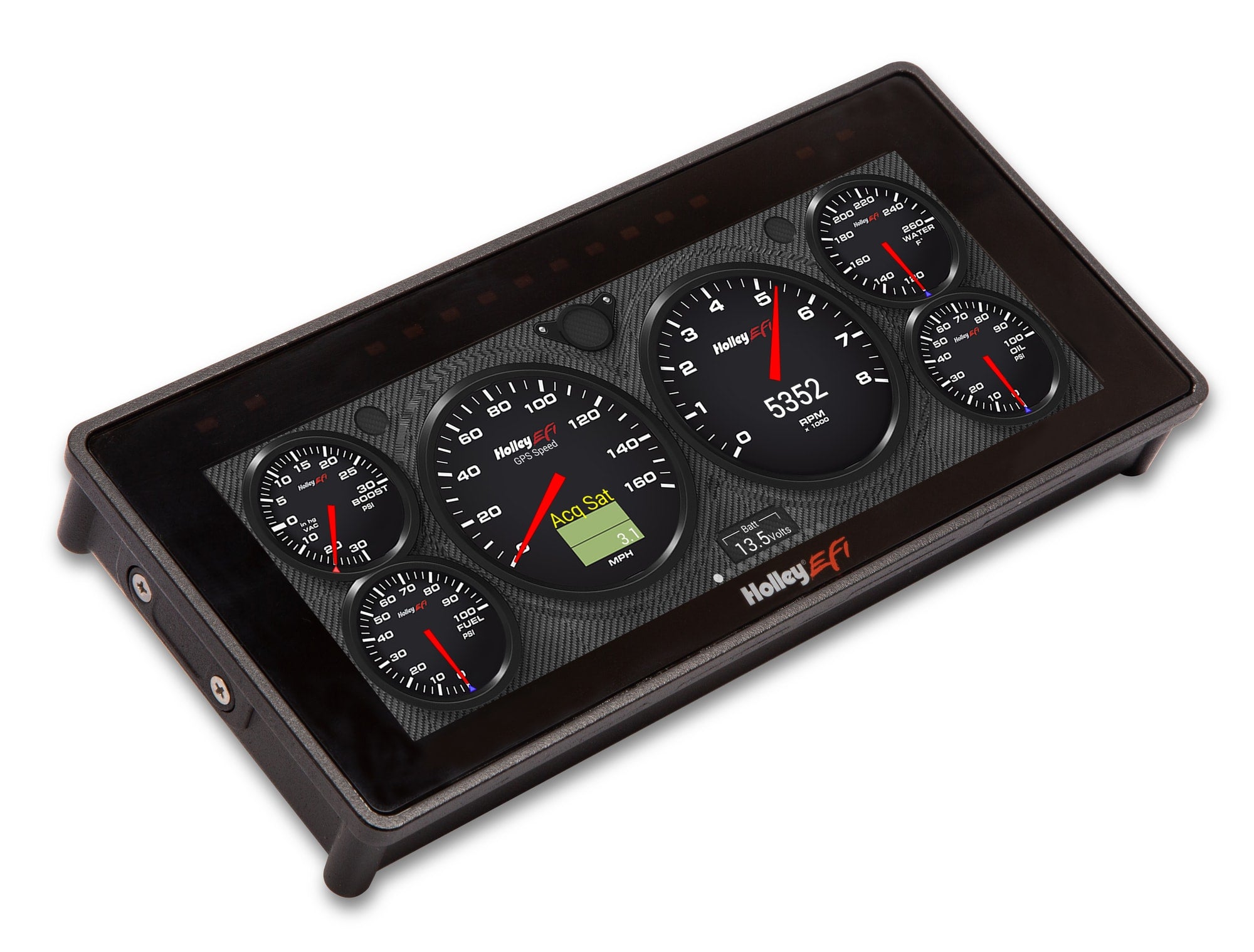

Monitor the power of your Holley EFI system at a glance. Holley's new 6.86" Pro Dash delivers over 200 monitoring channels of reliable real-time data in a more compact, full HD package suitable for nearly any motorsports application. Be assured that the Holley EFI 6.86" Pro Dash will deliver the vitals you need. | The 6.86" Pro Dash is completely customizable for use in a variety of motorsports applications. It features a 6.86" 1280x480 resolution low glare, high brightness, high contrast, full-color capacitive touch screen for easy viewing even in the sun and a plug and play connection to all Holley EFI systems, as well as a weatherproof aluminum housing featuring flexible mounting options. Holley EFI 6.86" Pro Dash includes everything needed for installation. | The Holley EFI 6.86" Pro Dash also features a plethora of inputs and outputs for expanded functionality of your Holley EFI installation. The included 34pin connector has 13 multi-configurable inputs for most Holley EFI sensors such as pressure and temperature. Not using Holley EFI sensors? We still have you covered - these inputs are configurable, allowing you to utilize different sensor scaling calibrations. The Pro Dash also features two dedicated speed inputs for RPM, Driveshaft speed, or any other Hall effect speed input. Need more outputs? The Pro Dash contains 4 ground switched outputs, that can be utilized with the switch panel feature to quickly turn on any of your auxiliary accessories, such as a master nitrous switch or an electric water pump. | We have also integrated a 10-LED Programmable shift light into the bezel of the dash and added 4 optional LEDs that can be programmed for virtually anything, such as fuel pressure, oil pressure warning or target boost indicators - the options are almost endless.
The Holley EFI 6.86" Pro Dash is customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need from a Holley EFI system. | It also includes an integrated10-LED shift light as well as two LEDs on the top left and two on the top right that can be programmed as desired.
- Plug-and-play Display support for Dominator, HP, Terminator X & Sniper EFI (not compatible with Sniper 2)
- Integrated a 10-LED Programmable shiftlight w/ 4-LED warning indicators for other sensor inputs
- Capable of monitoring up to 238 real-time values such as RPM/TPS/Boost
- 10 default background skins pre-loaded with unlimited options for importing custom layouts
- Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual switch panel eliminates the need for external toggle switches
- Manual or auto-brightness features for easy viewing day or night
- Built-in GPS with odometer function (antenna included)
- On-screen datalog playback features allows you to review vital run information
- Expandable storage via USB
- No stylus required, utilizes capacitive touch just like your smart phone
- User definable channel alarms and warnings
- 4x 10-32 mounting holes for surface or flush mounting, with high quality hardware included

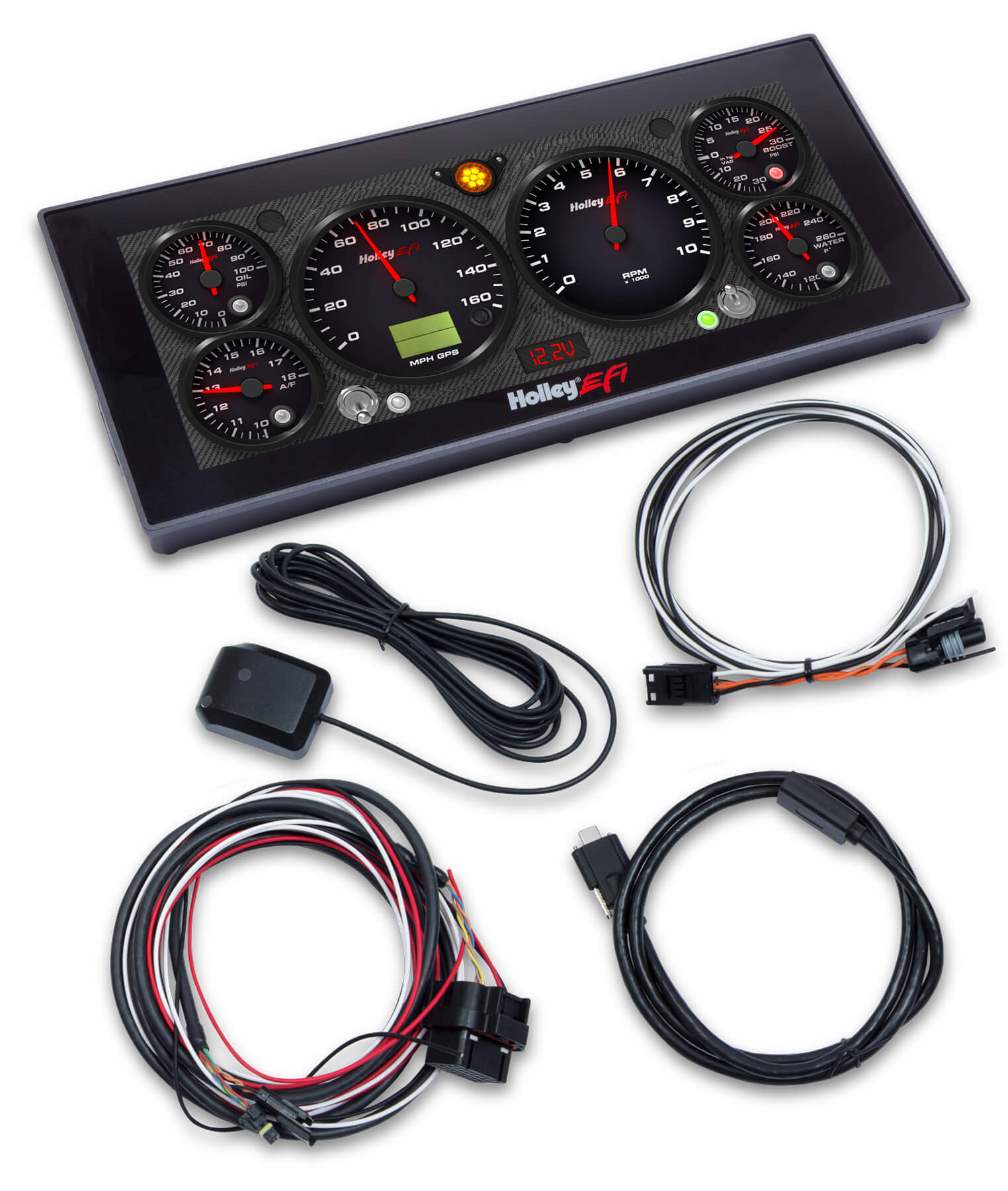

- Includes everything needed for installation
- USB keyboard and mouse functionality makes it quick and easy to setup new layouts

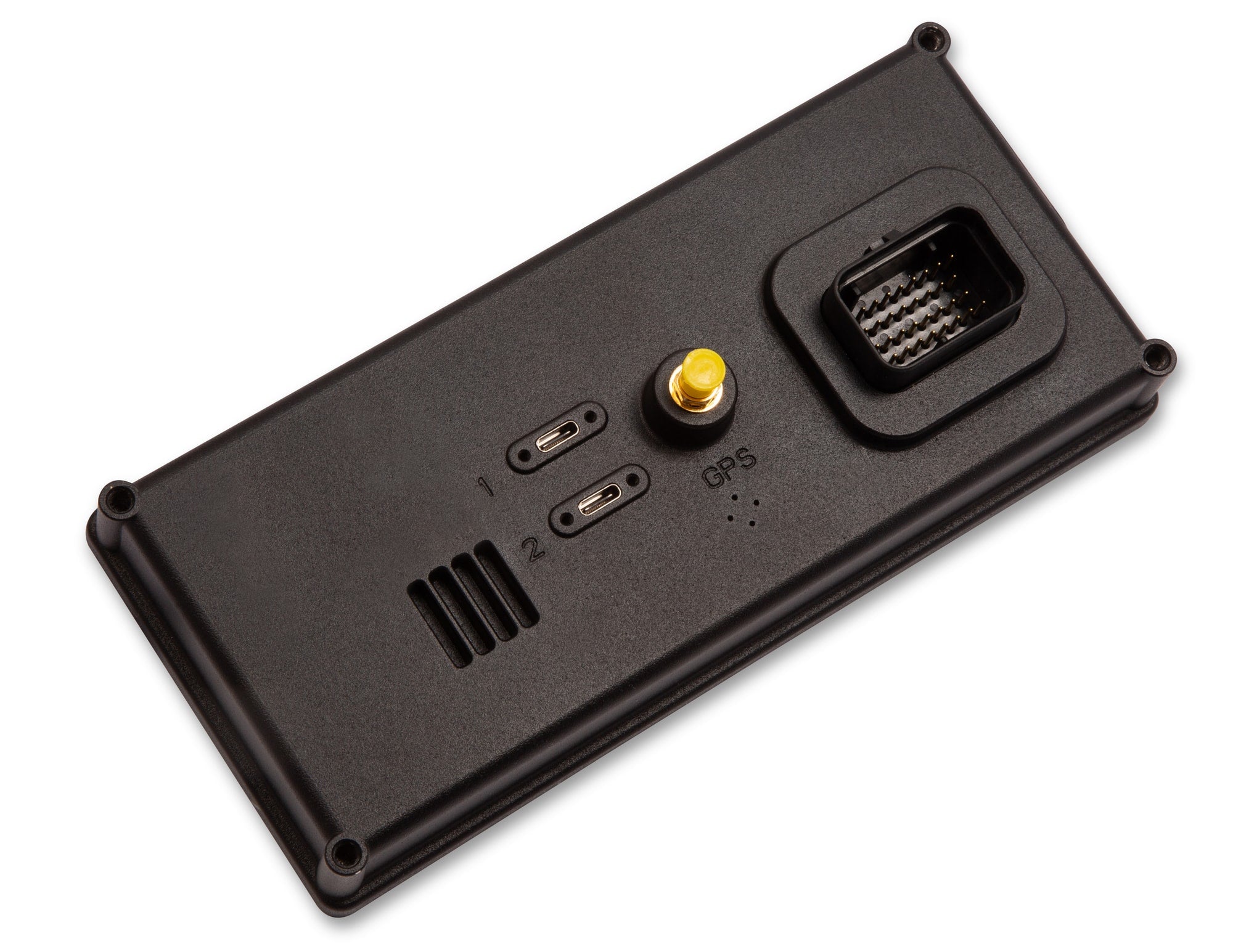

- Includes 34 Pin Wiring Harness contains Power, Ground and CANbus connections
- Input and output functionality for 13 multi-configurable inputs, and 4 ground switched outputs
- User defined alarms for any input
- Upgradable with future software enhancements
- Viewing area is 6.86" on the diagonal
- Dash weight - 1.2 Lbs
- Real-time ECU tuning - HP/Dominator ECUs only
📖
About this product
The Holley EFI 6.86" Pro Dash is customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need from a Holley EFI system. | It also includes an integrated10-LED shift light as well as two LEDs on the top left and two on the top right that can be programmed as desired.
📋
Product Specifications
Analog Or Digital
Digital
Application
Terminator X/HP/Dominator/Sniper 1 Mizu CAN
Automotive Item Grade
Performance
Bezel Color
Black
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Gauges and Gauge Accessories
Country
US
Depth
1.25"
Emission Code
4
Emission Code
5
Face Color
Programmable
Font Color
Programmable
Grade Type
Performance
Height
3.4375
HTS Code
8409915085
Illuminated
Yes
Maximum Gauge Diameter
Programmable
Minimum Gauge Diameter
Programmable
Part Type
Instrument Cluster
Pointer Color
Programmable
Product Type
6.86" Digital Dash
Prop 65 Yes/No
No
Screen Size
6.86"
Screen Type
Capacitive Touch Screen
Terminal Gender
Female
Universal Or Specific Fit
Universal
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Width
7.5625
Wiring Harness Included
Yes
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
5
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
11.2 × 10.3 × 4.2 in
Shipping Dimensions
11.2 × 10.3 × 4.2 in
Weight
1089 g (1.09 kg)
