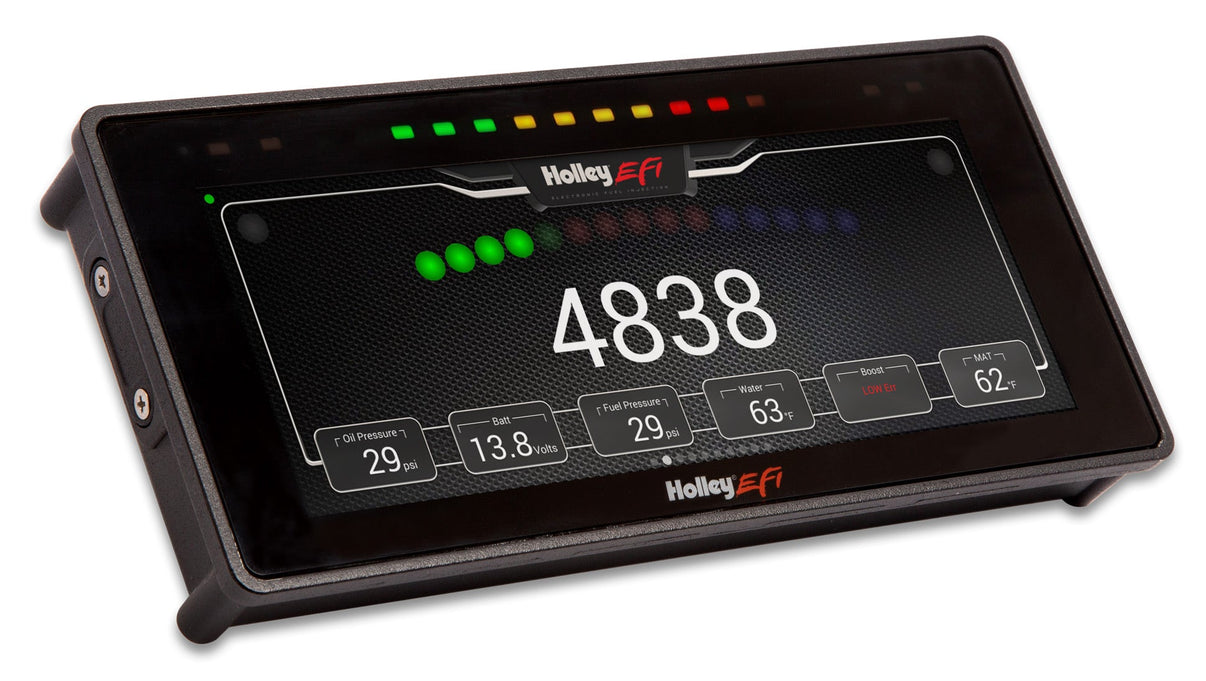

Holley EFI 6.86" Standalone Pro Dash

Fits Holley EFI 6.86" Standalone Pro Dash.

Please refer to manufacturer specifications for complete compatibility information.

• Standalone digital dashes for installation in most any vehicle no ECU or fuel injection required. As easy to install as traditional gauges!
• Two models available:
• 6.86� version is big on features, but small on size for installation almost anywhere!
• 12.3� version is for the hard-core enthusiast who wants the ultimate display device!
• High resolution, state-of-the-art, multi-gauge touch-screen display with fully configurable layouts:
• Full color, capacitive touch screen with auto dimming offers crystal clear data at your fingertips day or night no stylus needed
• Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
• Virtual switch panel eliminates the need for external toggle switches
• 16 default backgrounds skins pre-loaded with unlimited options for importing custom layouts
• Built-in GPS with speed, odometer and trip odometer function (external antenna included)
• Integrated 10-LED programmable shift light w/ 4-LED warning indicators for other sensor inputs. (6.86� dash only)
• Rendered analog (dials / needles) and digital gauge styles available
• Integrated datalogger
• Rugged, water resistant case is constructed of cast aluminum for long life and durability
• Plug and play features are pre-configured in the harness and include dash layouts / screens for::
• Oil and fuel pressure, coolant and air temp (utilizes plug and play Holley sensors, not included)
• Turn signals
• High beam
• Fuel level
• Engine vacuum / boost
• Additional input and output functionality:
• 13 multi-configurable inputs
• 4 ground switched outputs
• Four speed channels (two dedicated) for RPM, driveshaft speed, or any other Hall effect speed input
• User definable channel alarms and warnings
• Communications / Harness:
• 4 Pin Wiring Harness contains Power, Ground and CANbus connections
• Holley EFI CANbus connection for expanded capability with Holley EFI systems
• Expandable storage via USB
• Integrated Datalogger:
• Internal Log Memory 1 GB (expandable up to 32GB with addition of micro-SD card)
• External Logging to USB Flash Drive is also available for easy file management
• On-screen datalog playback allows you to review vital run information right on the dash
• Full analysis via laptop is available. Simply download the file to a USB drive and view with the free datalog viewer at Holley.com
• Flexible mounting options: Surface or flush mounting, with high quality hardware included
• Simple setup and programming: USB Keyboard and Mouse functionality makes it quick and easy to setup new layouts
• Fully Upgradeable:
• Upgradable with future software enhancements
• Can easily be converted for use with Holley EFI to monitor up to 238 real-time values such as RPM/TPS/Boost

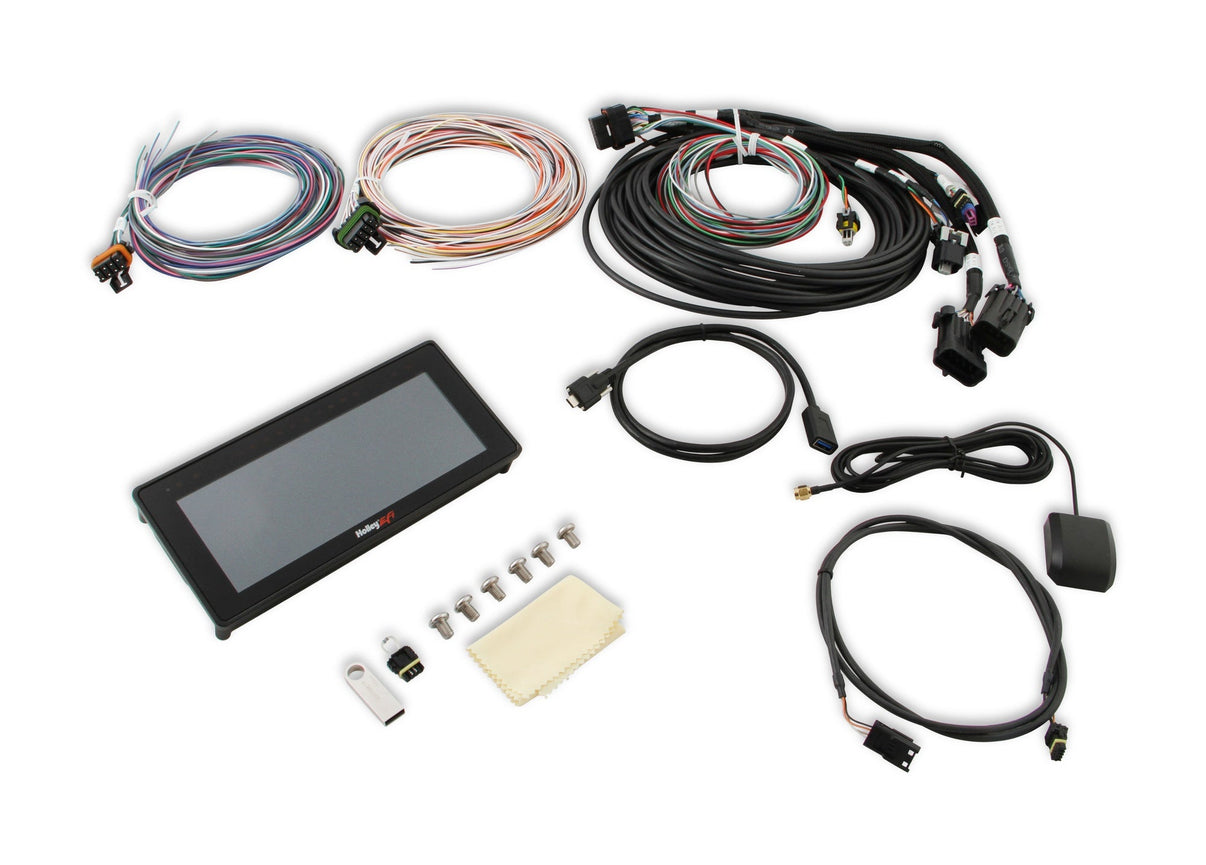

• Whats Included:
• Both dash versions include harness / cables, mounting hardware, USB memory stick and CAN terminator
• GPS Antenna
• Sensors not included

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
