Holley EFIPart 300-274bkMade in CN
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
*** This Holley Hi-Ram intake manifold series is designed for Ford Windsor engines with an 8.2” deck height. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions. ***
***EFI Base Manifold only-Manifold tops available seperately. | The EFI Hi-Ram manifold line has a new addition for the 8.2" SBF Ford application. The runner length and tapered cross section design will perform well for a wide range of engine combinations. The engineering team also redesigned the water crossover passage to allow room for distributor phasing. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! | *** A low profile distributor will be needed when using this manifold. We have a Sniper Hyperspark version #565-322 and a Holley EFI Dual Sync #565-211 available. This intake manifold is designed for use with aftermarket cylinder heads. Please see the diagrams in the product images for other dimensions. | • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations | • EFI fuel rails are machined for -8AN O-ring Fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. | Manifold is designed for a 8.2" deck height. | • Cast aluminum construction.

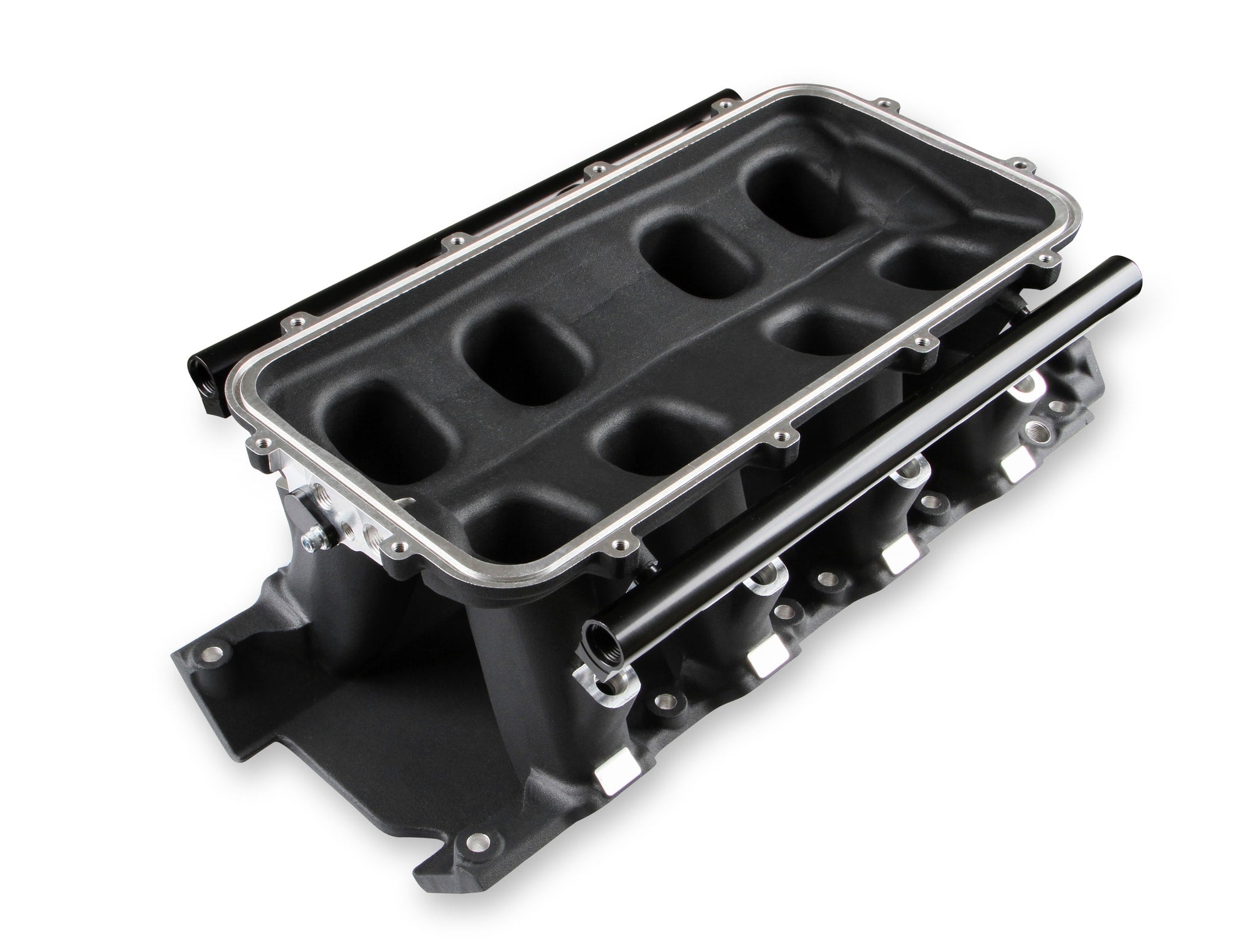

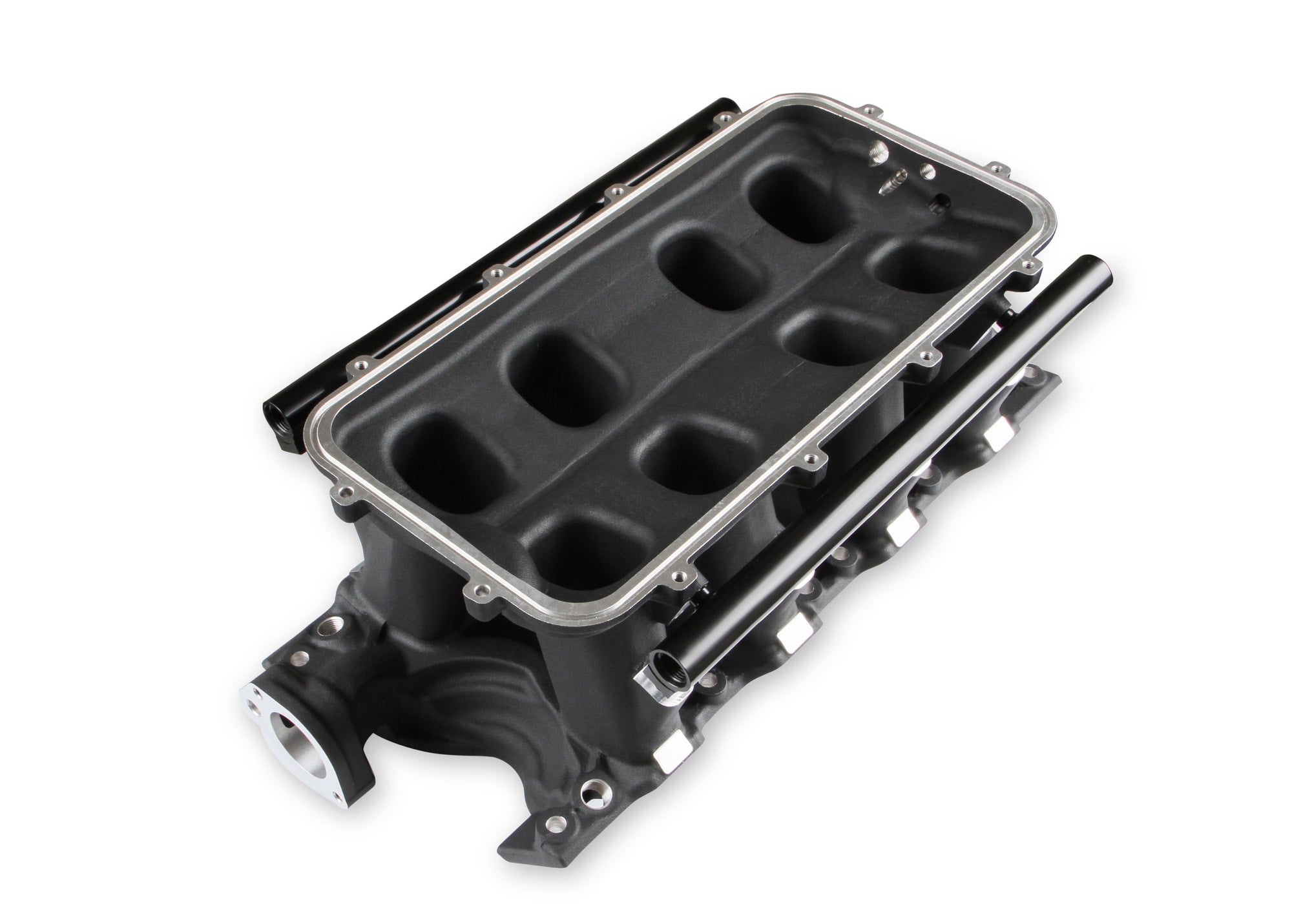

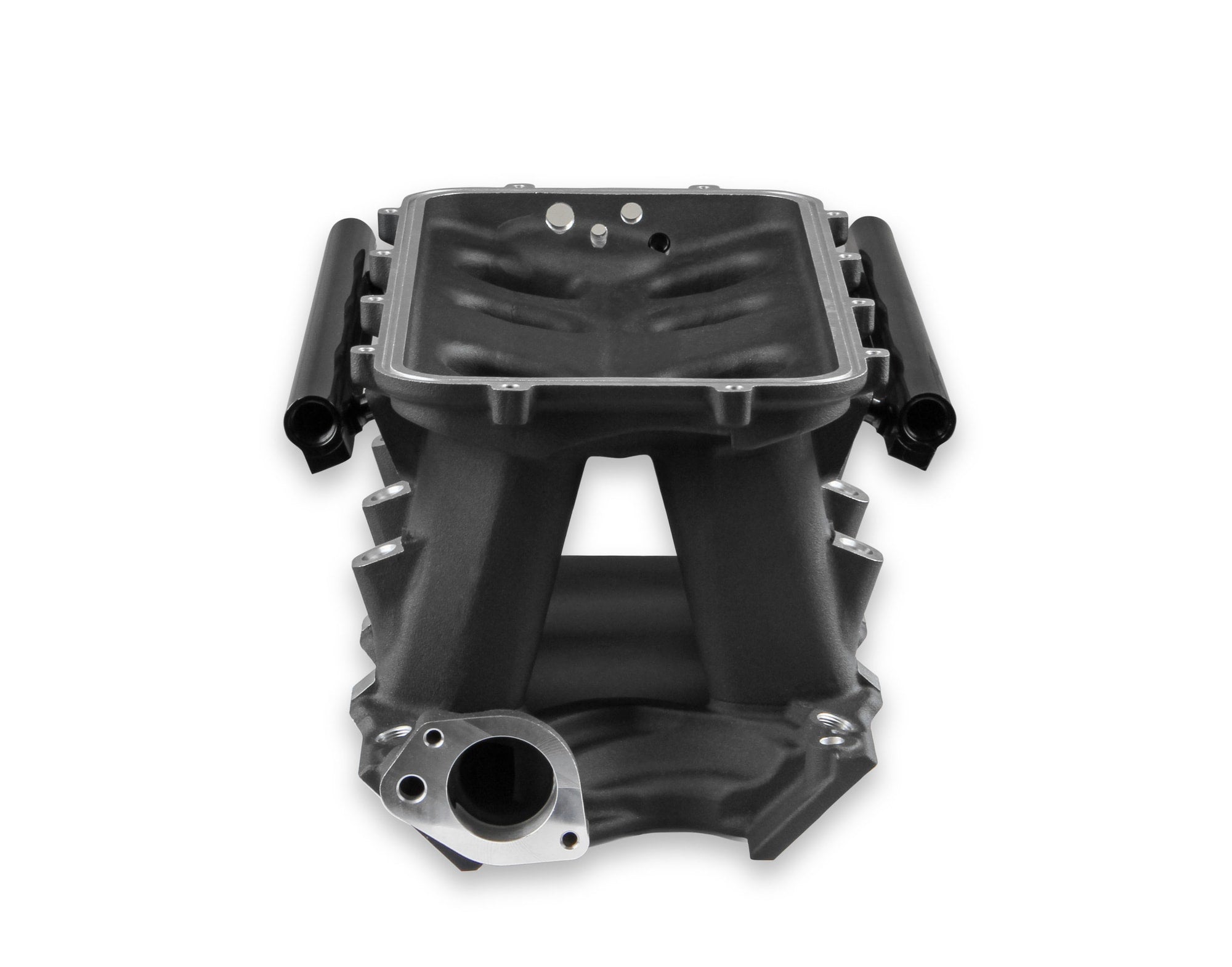

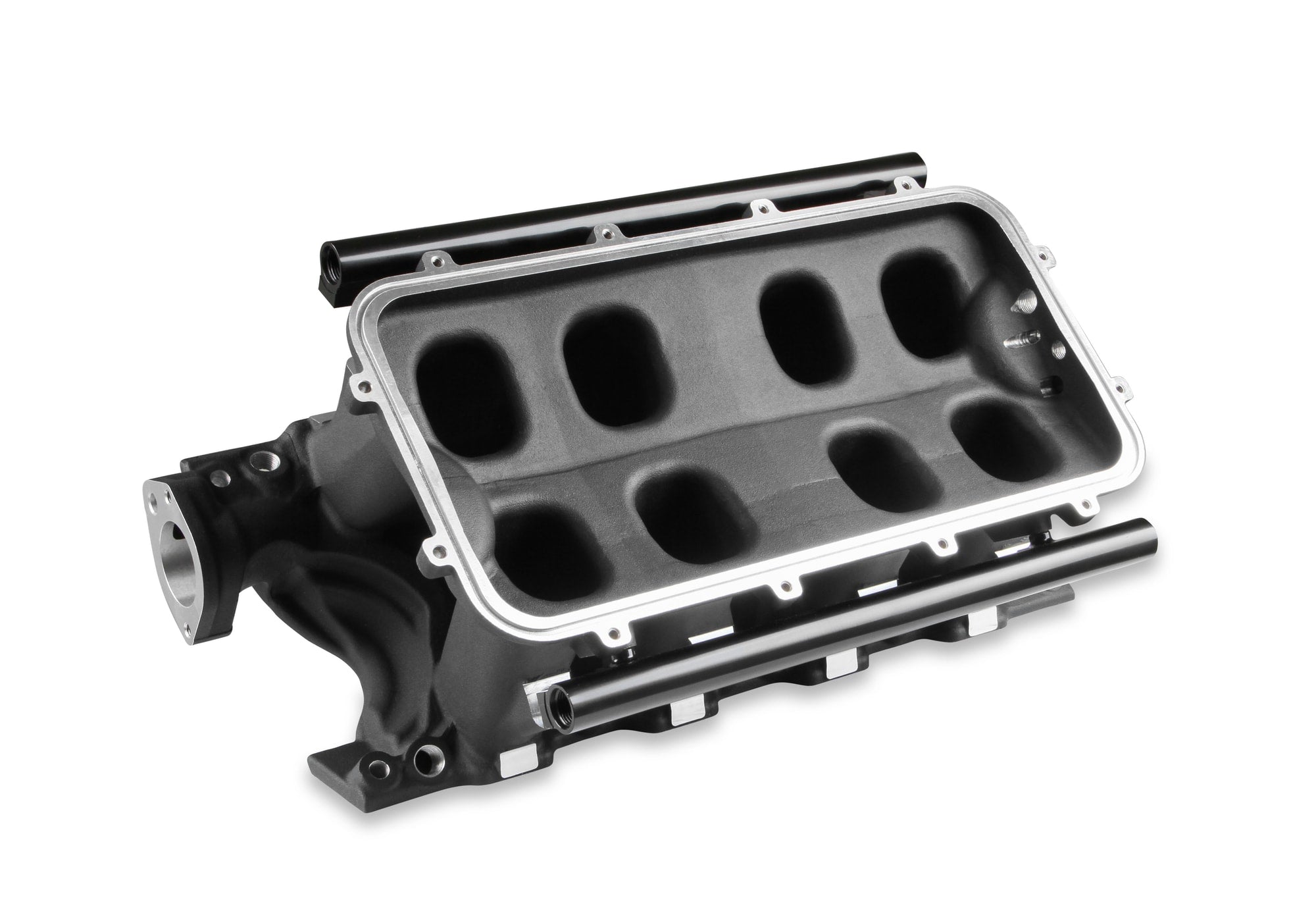

8.2" SBF Ford Hi-Ram Intake Manifold Base-B;ack
- EFI Base Manifold only. Black
- Plenum Top Gasket Type – 3/32” Round O-ring Cord

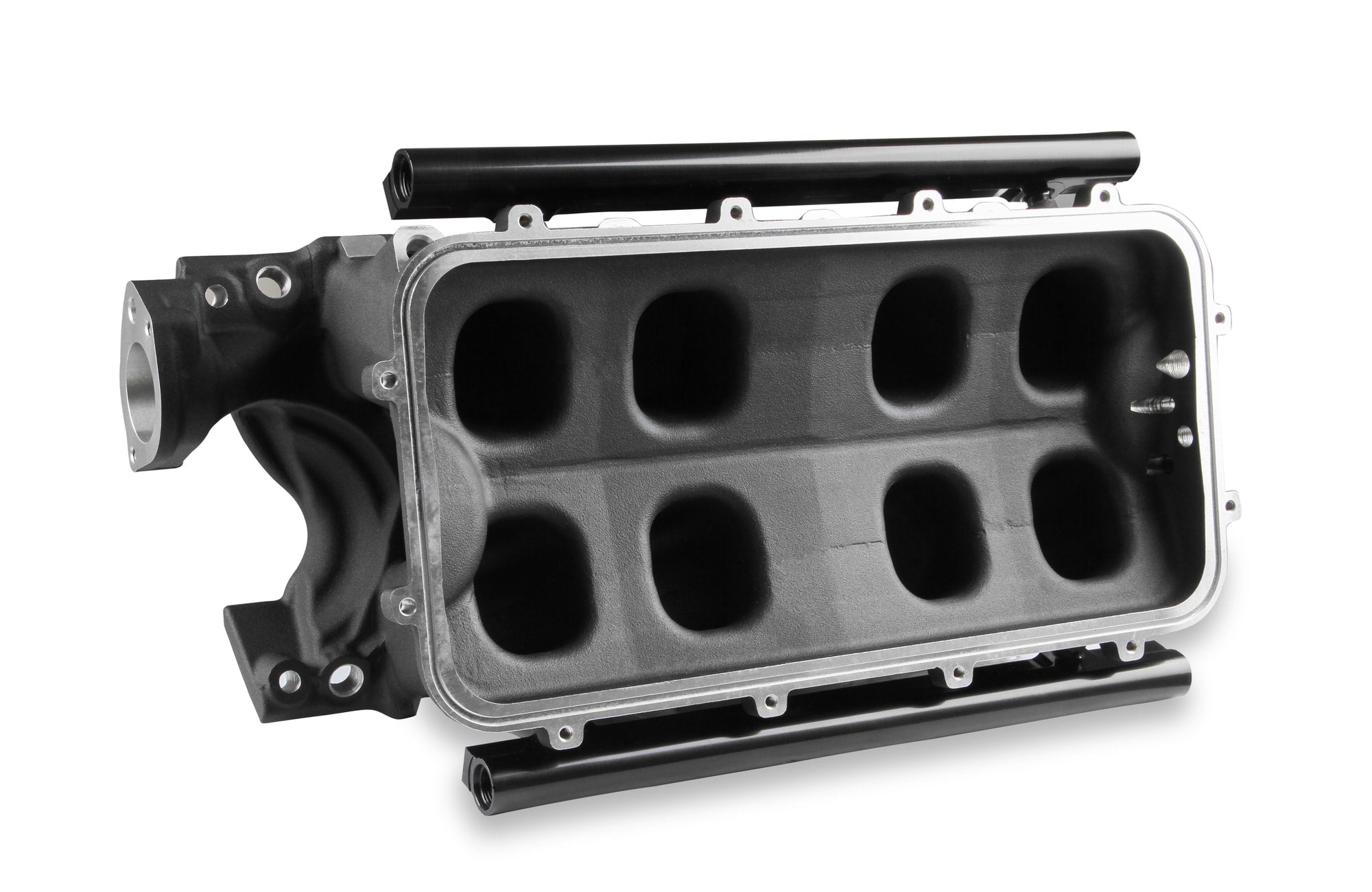

- EFI fuel rails are machined for -8AN o-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits.
- Manifold is designed for a 8.2" SBF deck height.
📖
About this product
8.2" SBF Ford Hi-Ram Intake Manifold Base-B;ack
📋
Product Specifications
Automotive Item Grade
Performance
Basic Operating RPM Range
1500-7000
Basic Operating RPM Range
1500-7000 RPM
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Carburetor Flange
N/A
Carburetor Quantity
N/A
Carburetor Studs Included
N/A
Category
Engine
CNC Ported
No
Color
Black
Construction
Cast
Country
CN
Cylinder Head Port Shape
Rectangle
Deck Height
8.2
EGR Port
No
Emission Code
3
Flange Style
EFI
Fuel Injectors Included
No
Fuel Rail(s) Included
Yes
Fuel System Type
EFI
Gasket Or Seal Included
No
Grade Type
Performance
HTS Code
8409915085
Intake Port Gasket(s) Included
No
Manifold Type
Hi-Ram
Material
Aluminum
Nitrous Bung(s) Included
No
Part Type
Engine Intake Manifold
Plenum Finish
Black
Port Size
2.00" x 1.190"
Product Type
Intake Manifold
Product Type
Intake Manifold Base
Prop 65 Yes/No
No
Removable Runners
No
Removable Top/Lid
Yes
RPM Power Band
1500-7000
Single Or Dual Plane Type
Single Plane
Sub Category
Cylinder Block Components
Throttle Body Bore Diameter
N/A
Throttle Body Gasket Included
No
Throttle Body Included
No
Vacuum Ports
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
CN
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
22.8 × 13.0 × 9.5 in
Shipping Dimensions
22.8 × 13.0 × 9.5 in
Weight
11215 g (11.22 kg)
