Holley EFI Terminator X Max Stealth 4150 - GM LS Engines - Shiny

£2,739.91 GBP inc VAT £3,807.54 GBP
Shipping calculated at checkout.
SKU: 550-1063

Stock Levels:

Checking stock levels…
🇬🇧 UK warehouse —
🇺🇸 US warehouse —
Estimated Delivery


Build check

Is this right for your build?

Unsure if this is the right choice for your car or project? The Billy's team can check fitment, supporting parts and make recommendations before you purchase.

This message will include the product details and SKU you are currently viewing so we can talk about the exact parts in front of you.

Email my build details

We regularly support complex conversions and high value engine and driveline packages. If anything in your plan looks like it wont fit or incomplete, we will highlight it and suggest alternatives.

View details
1 / 1
Press & drag to view

Product Details

⭐

Key Features

Overview

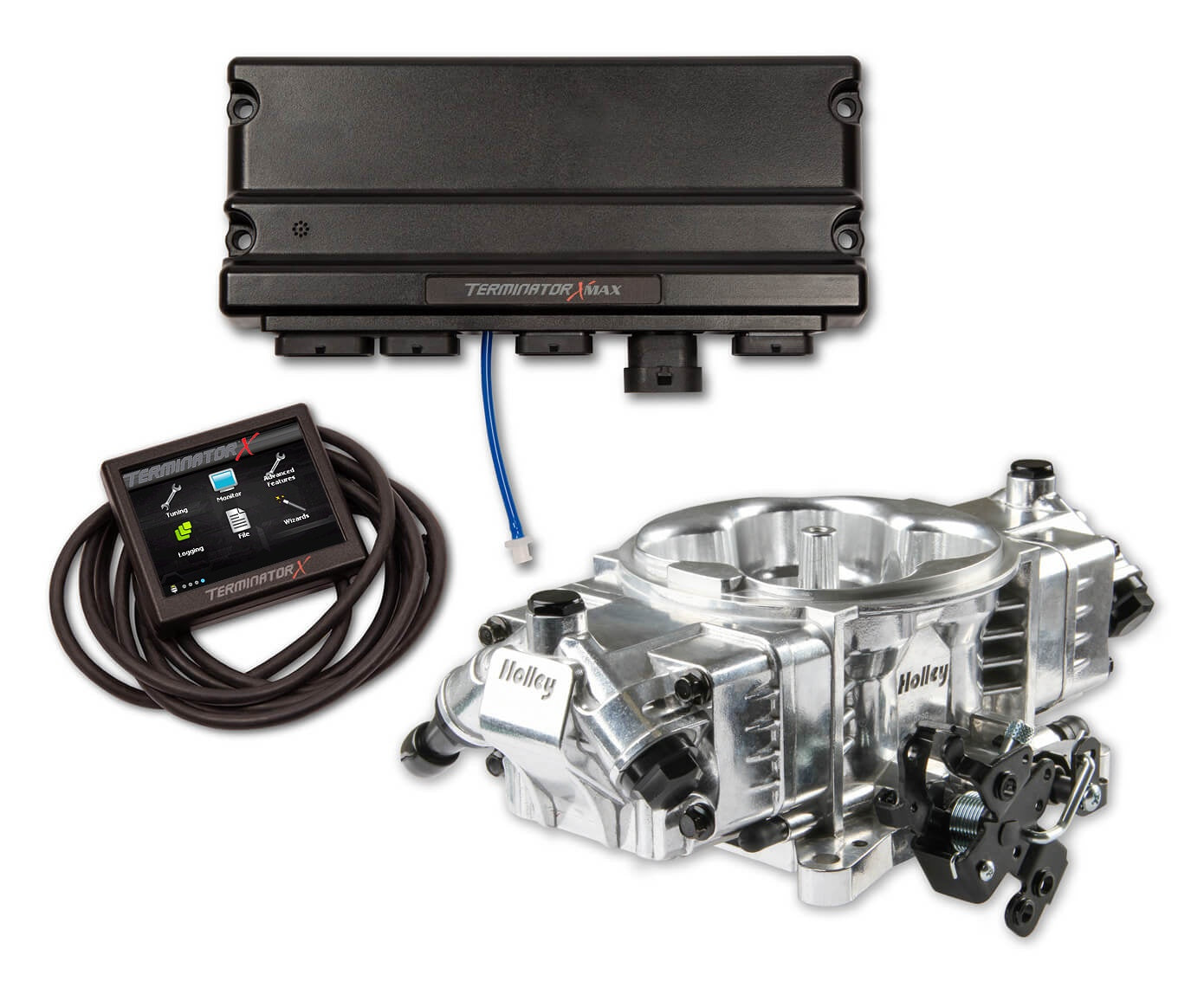

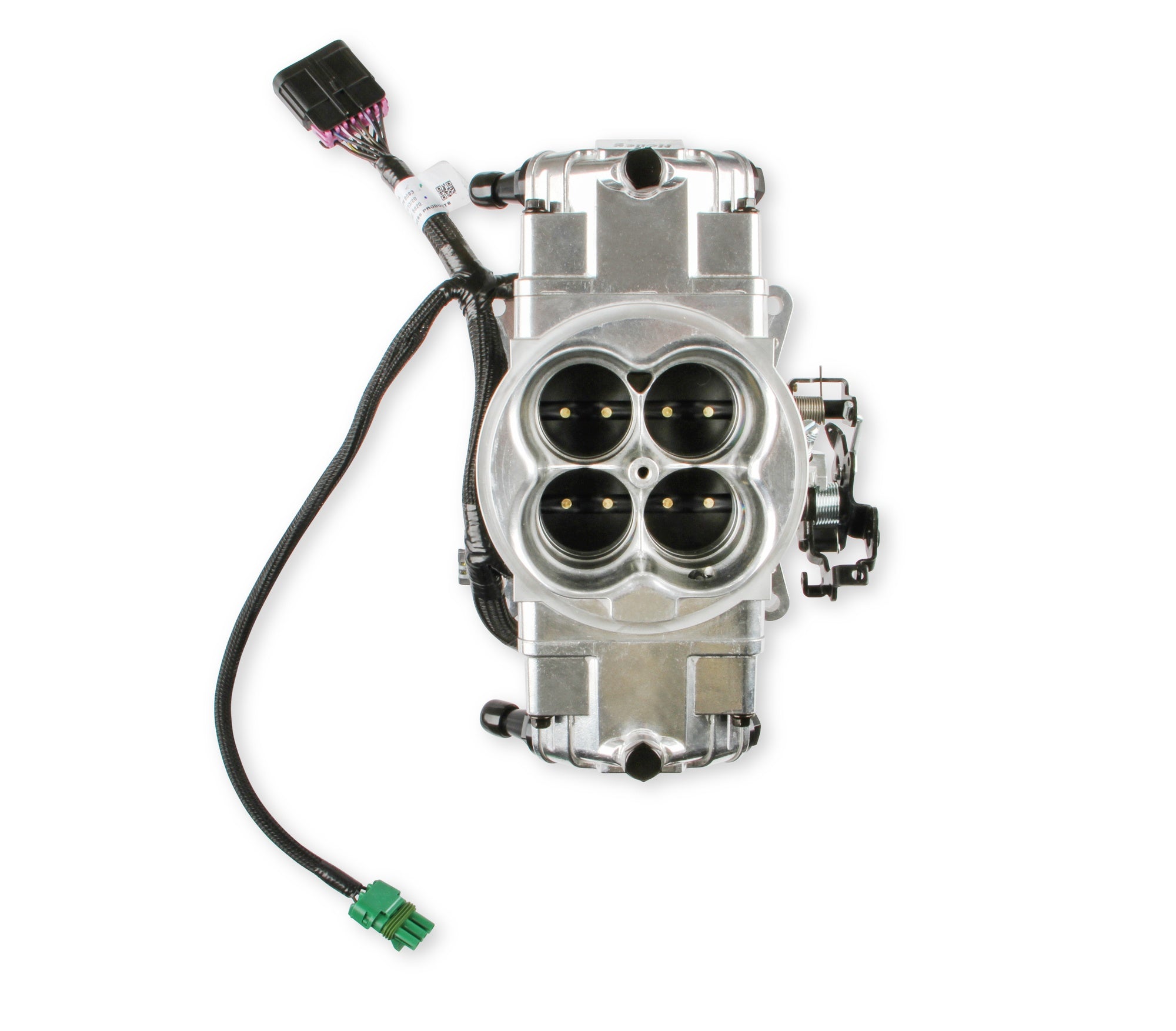

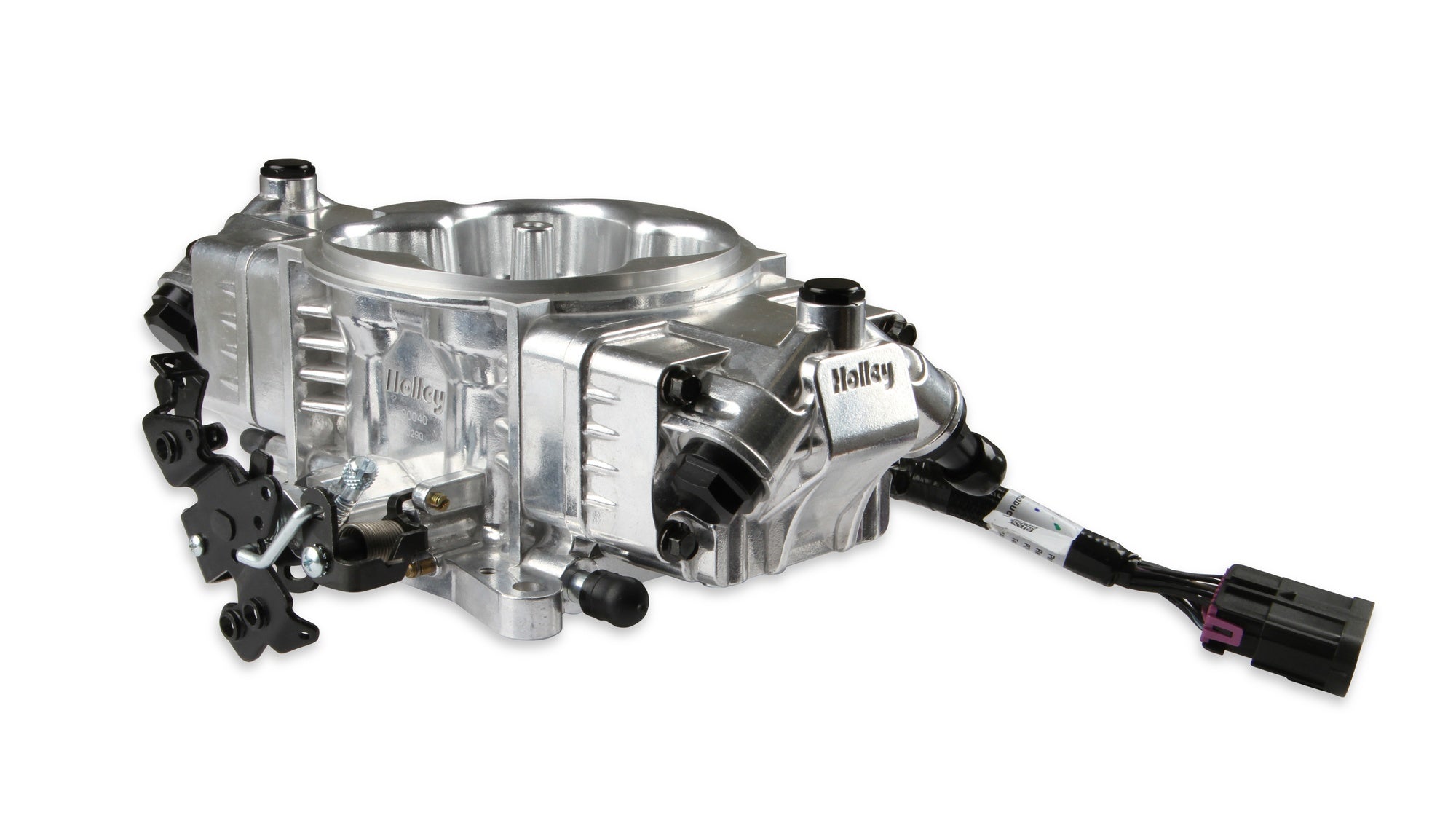

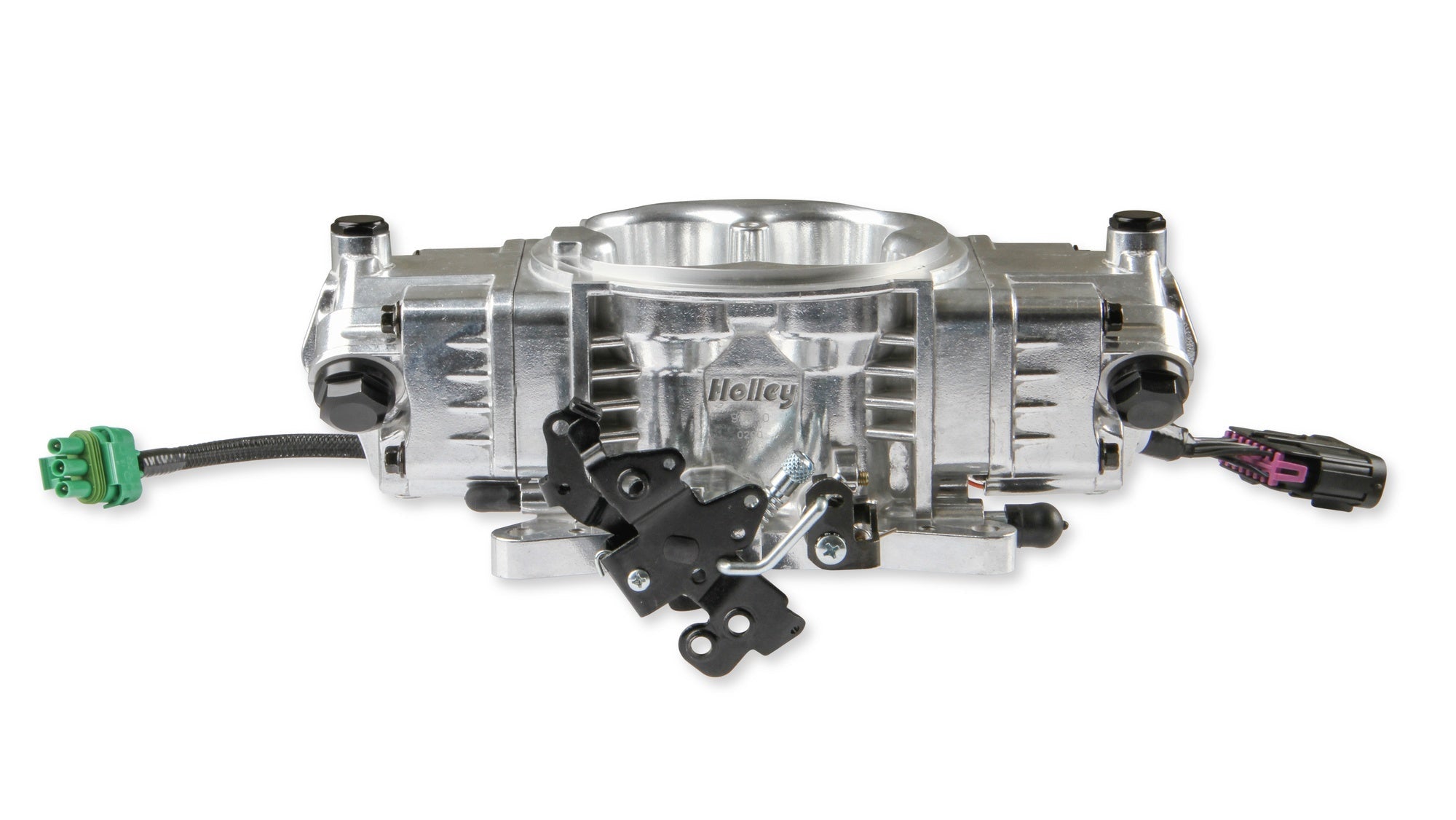

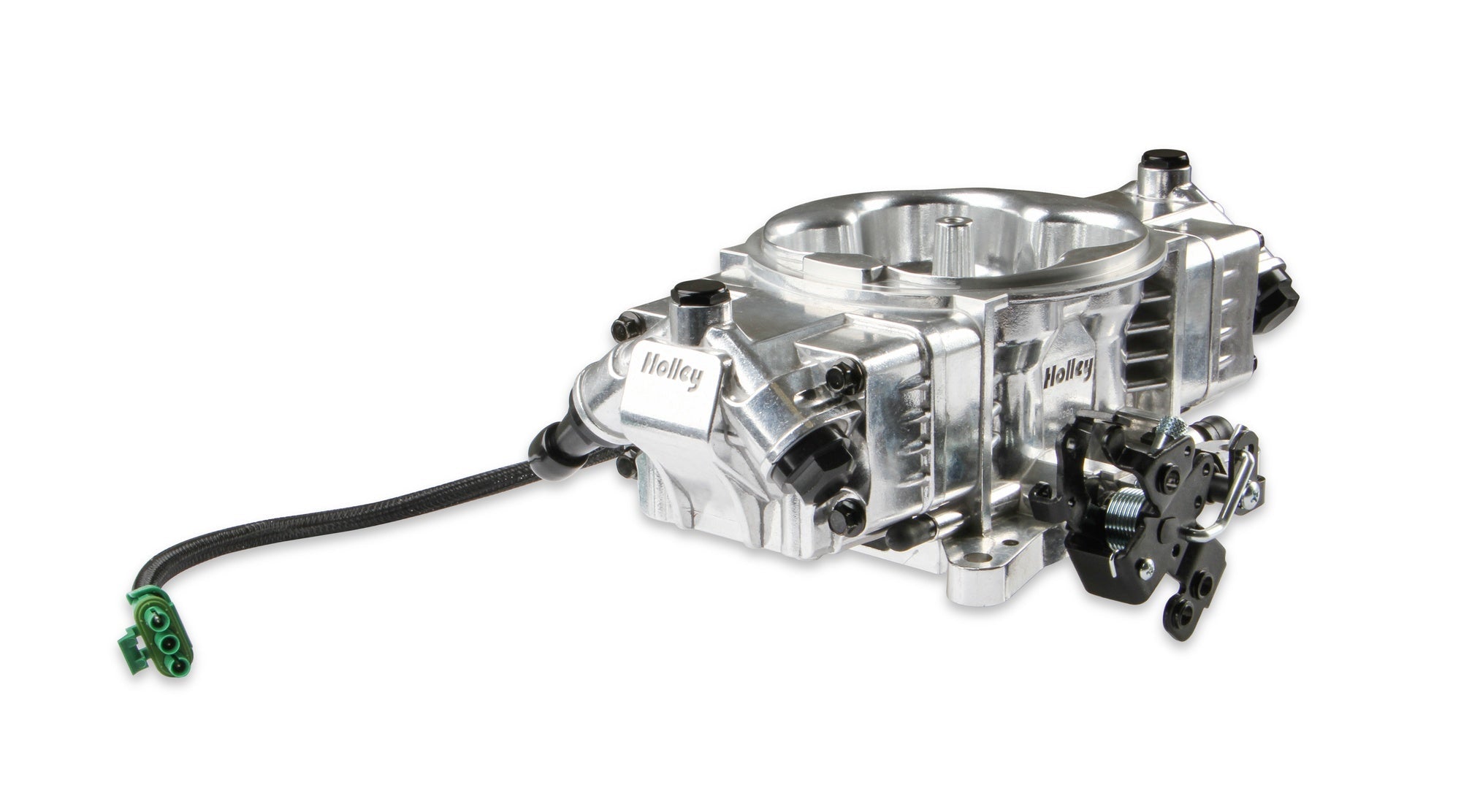

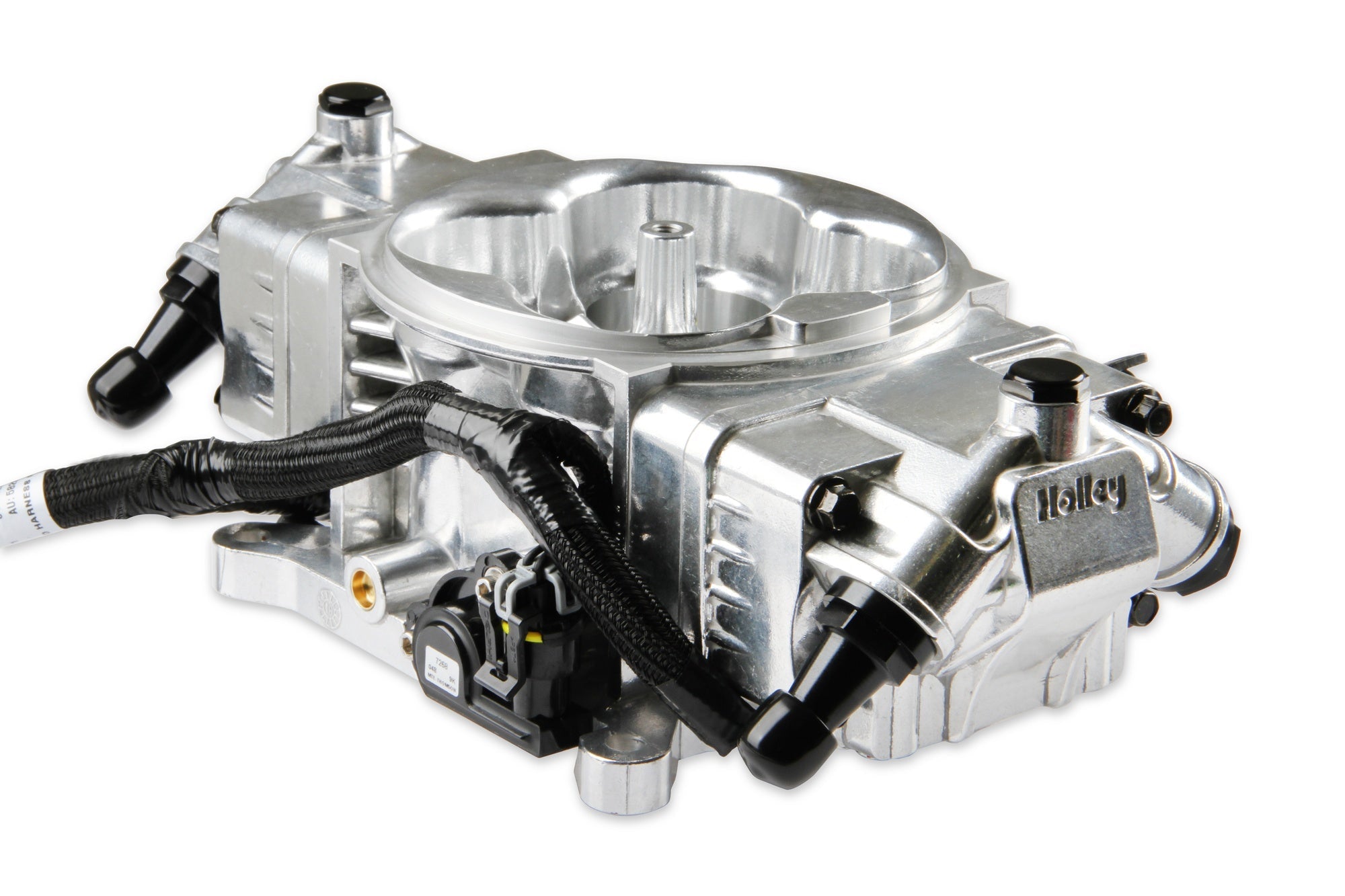

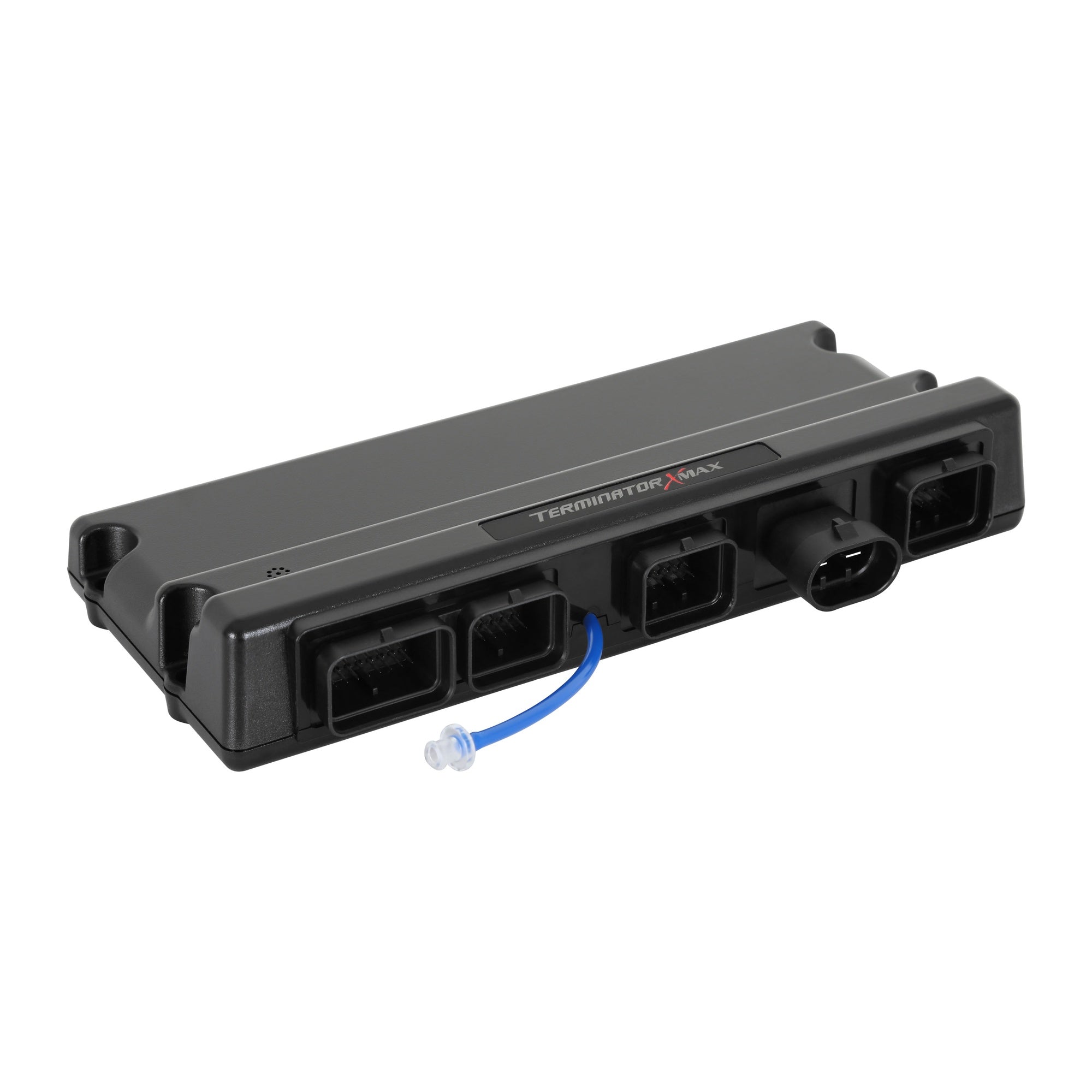

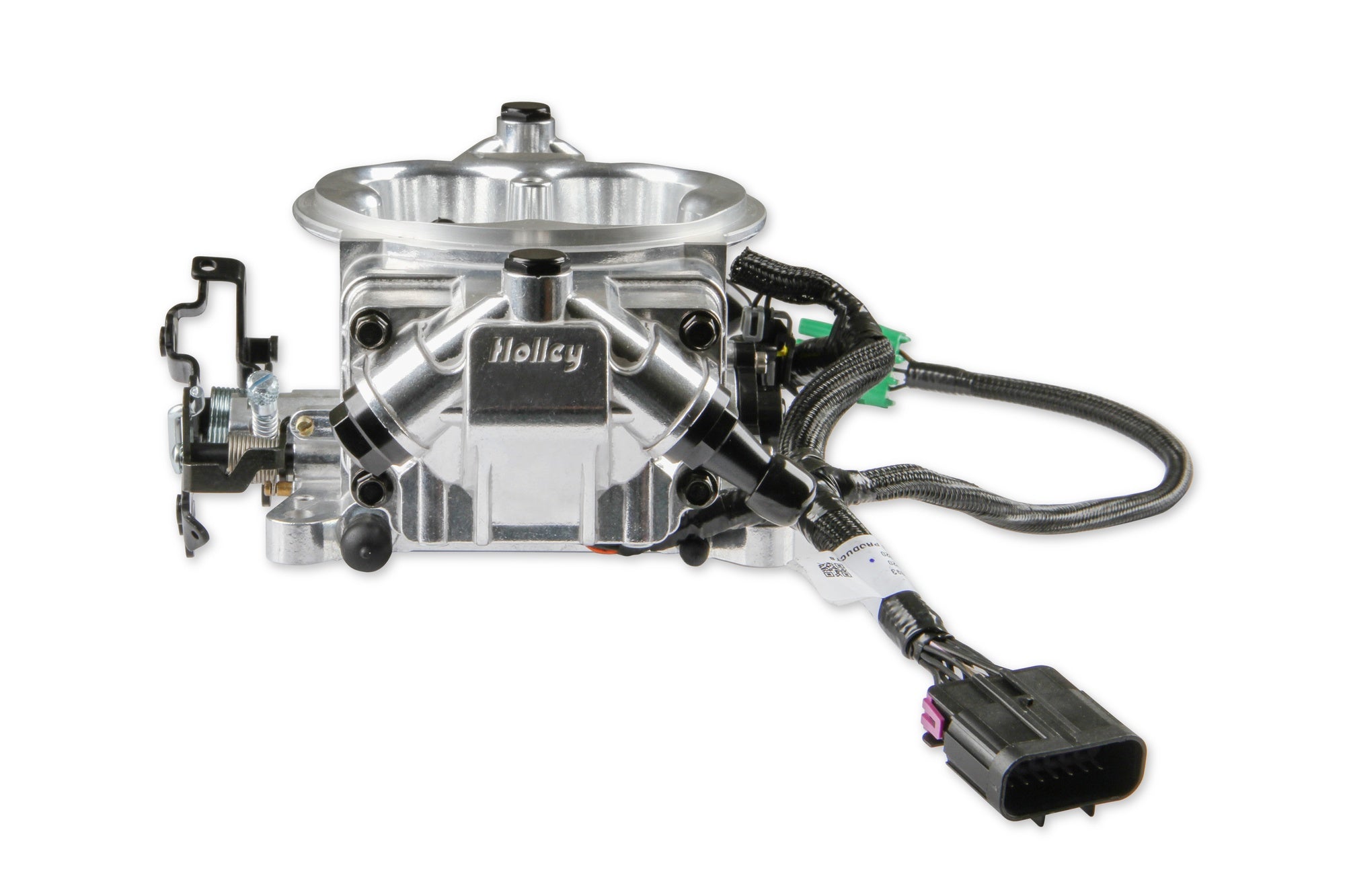

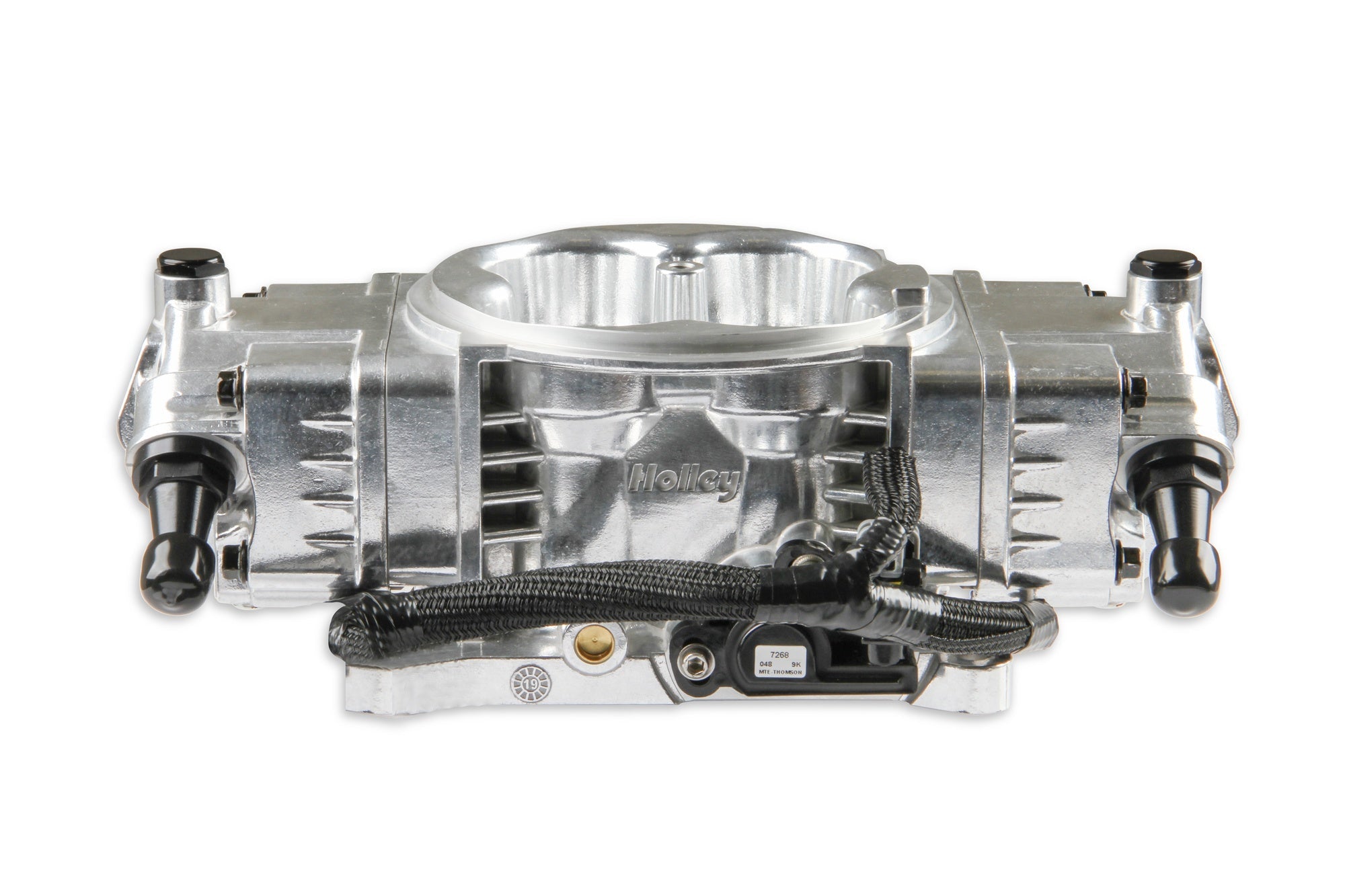

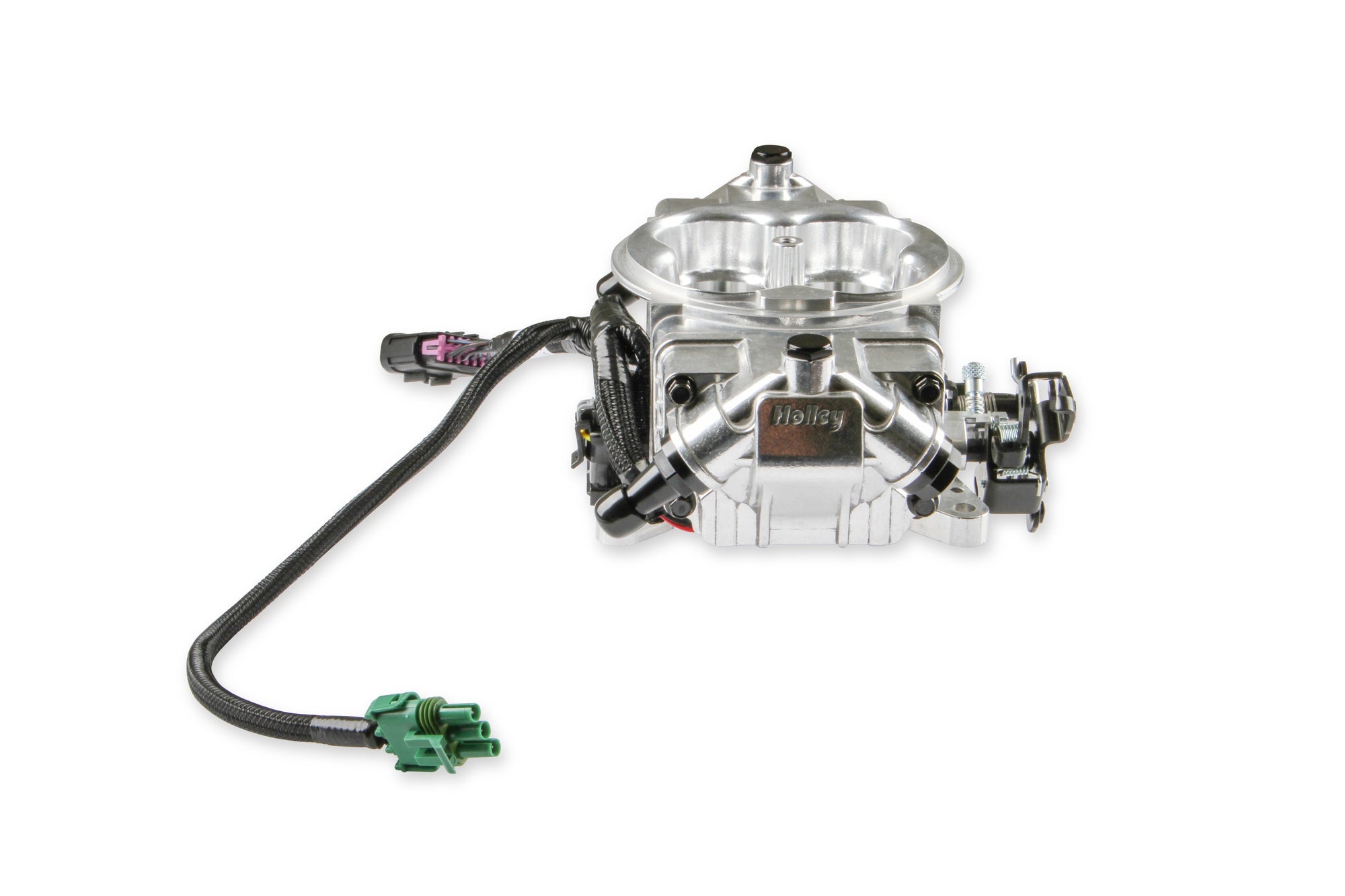

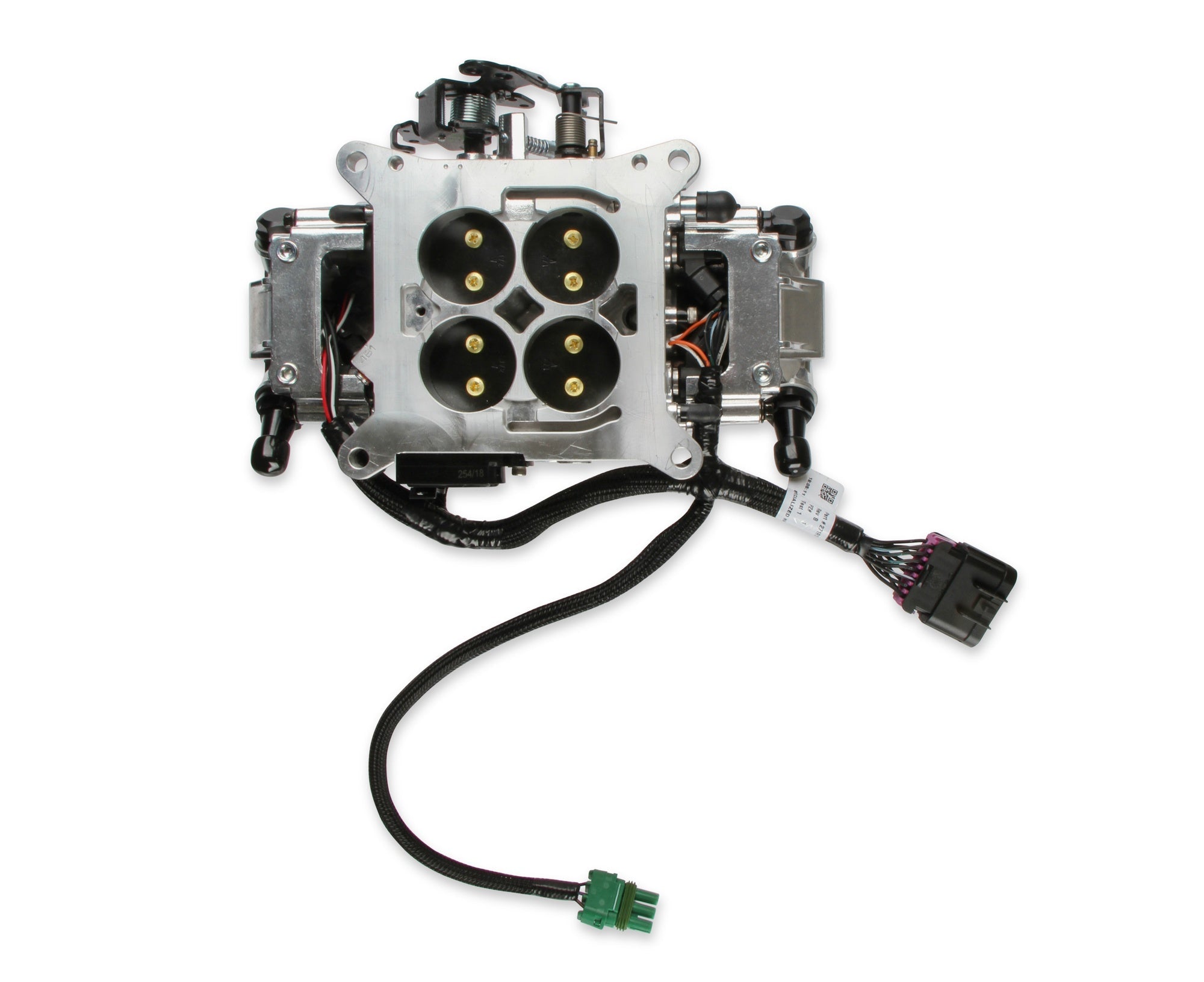

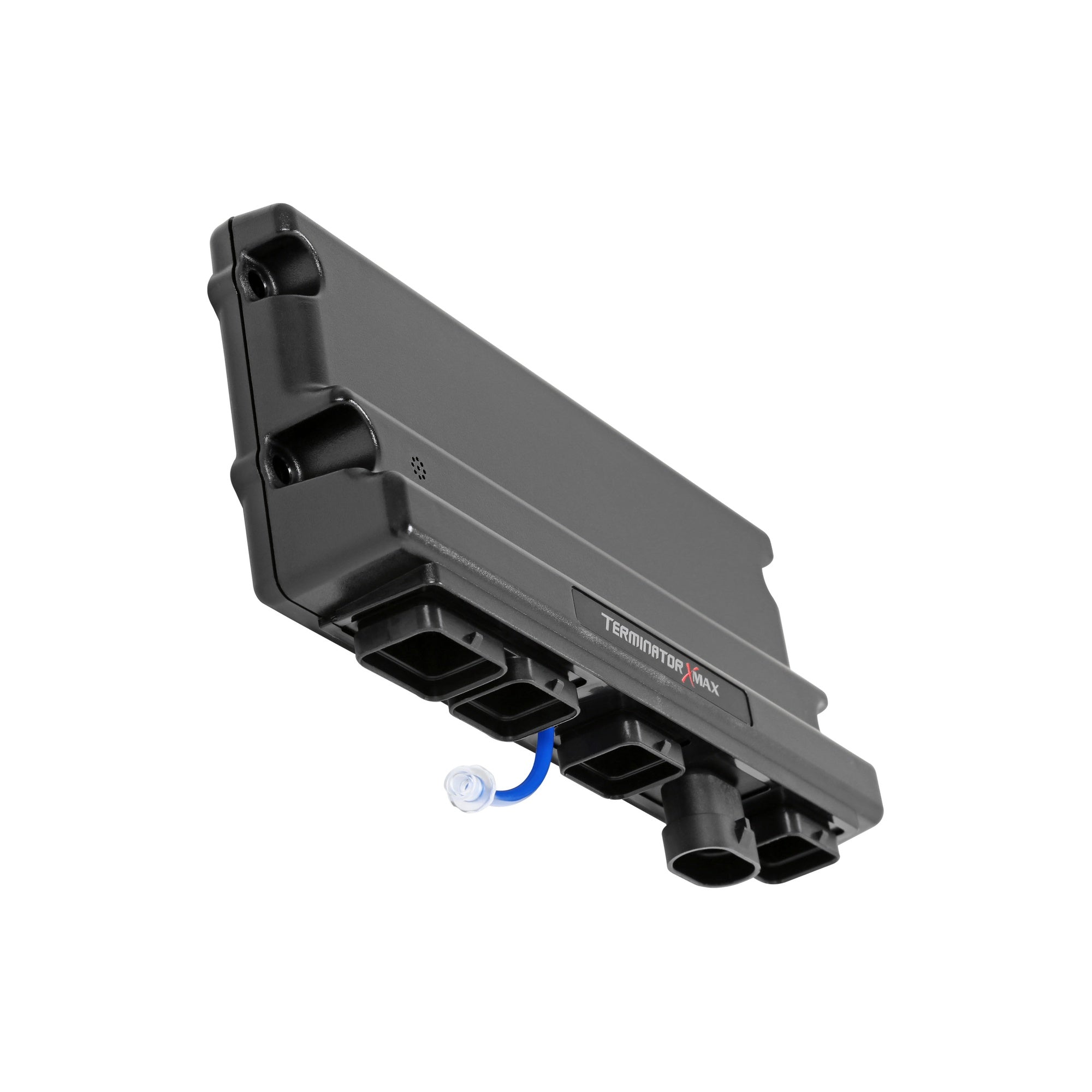

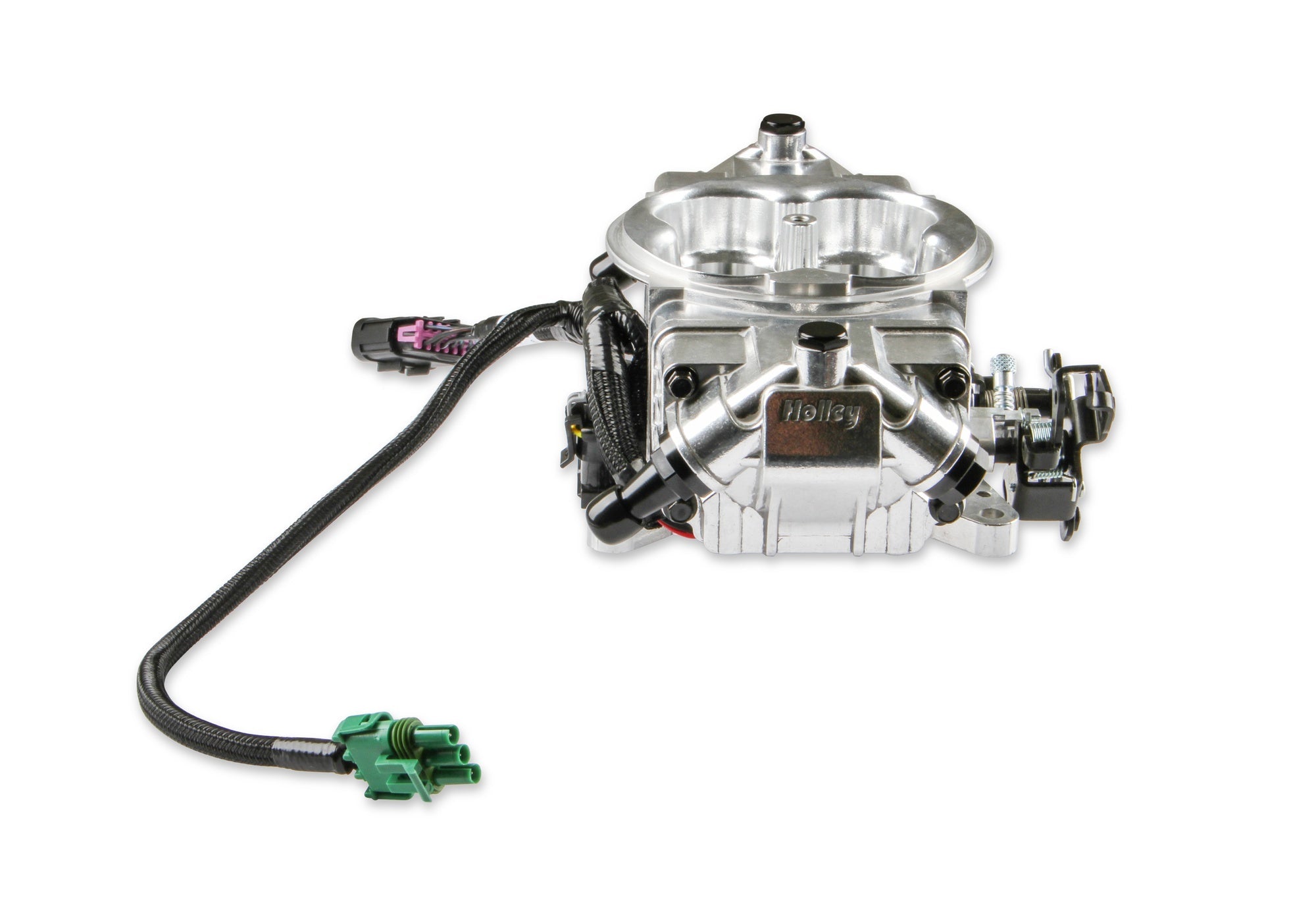

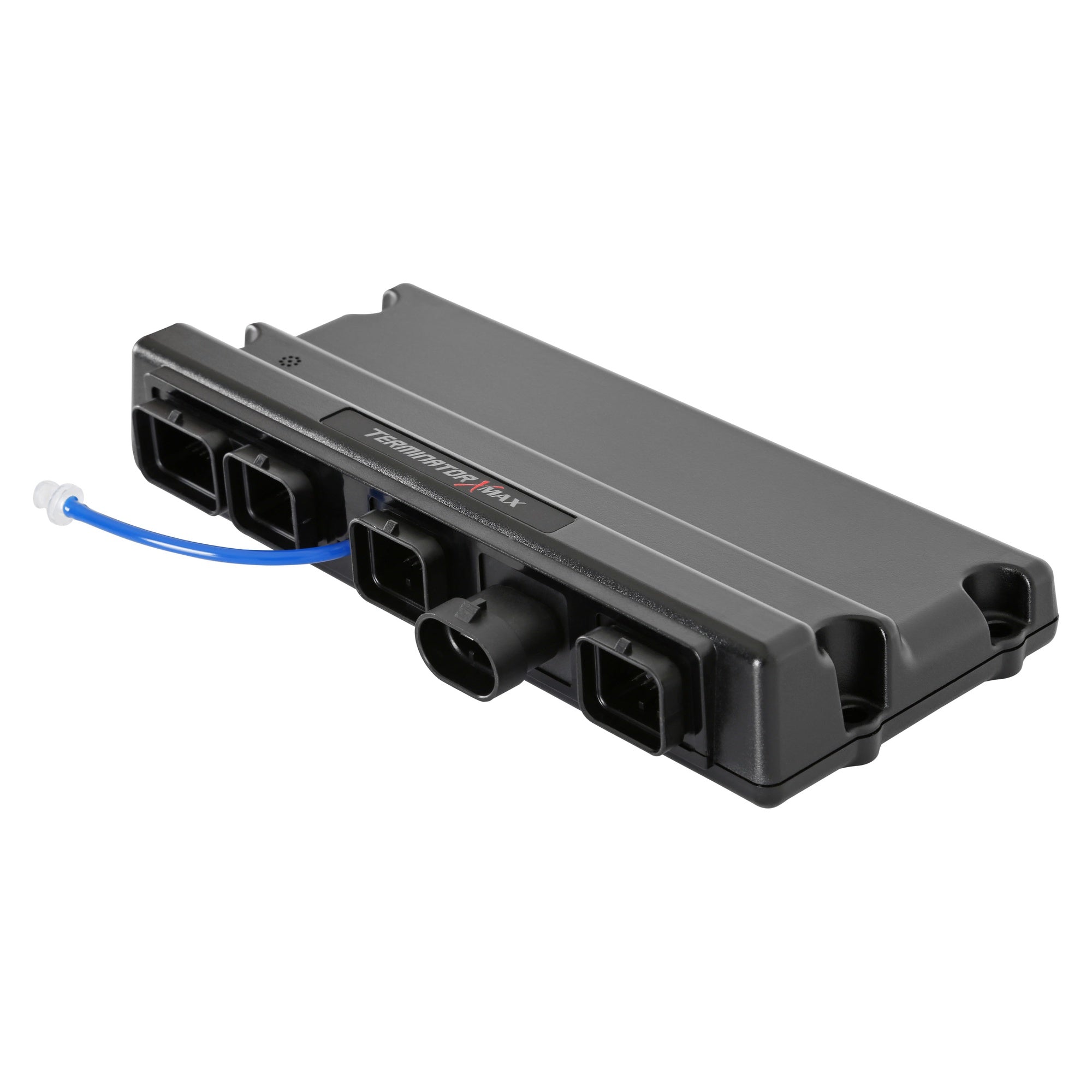

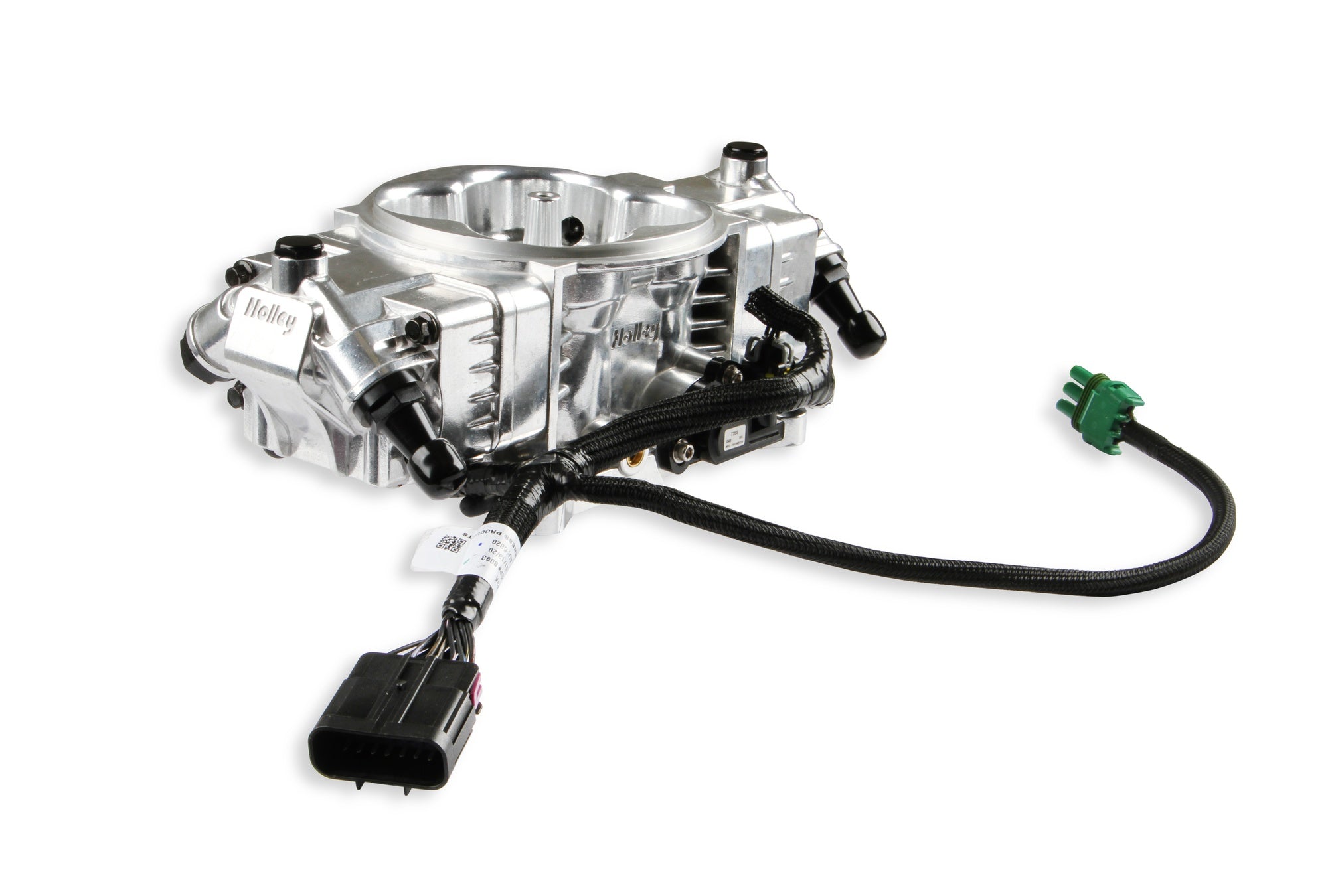

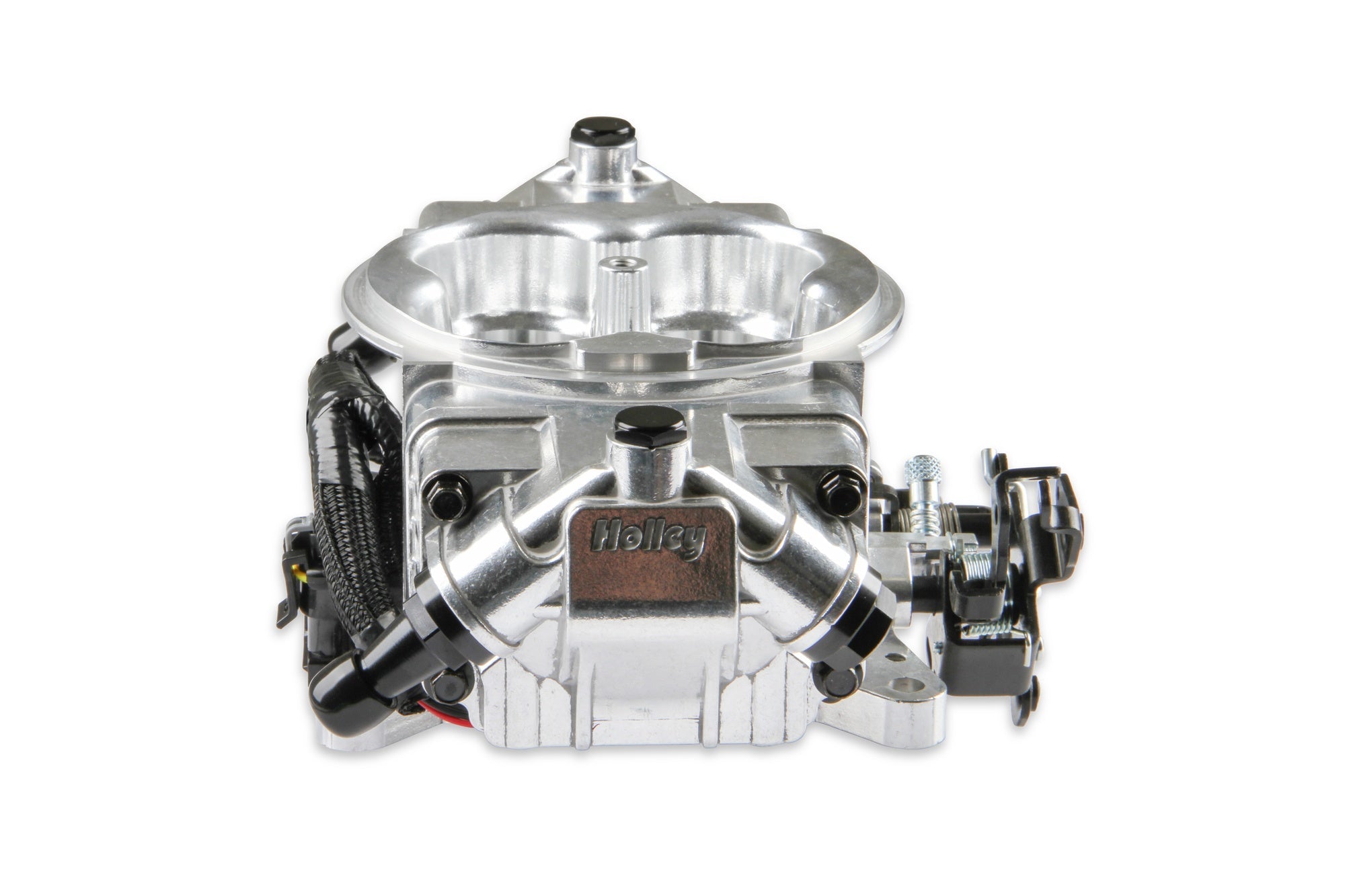

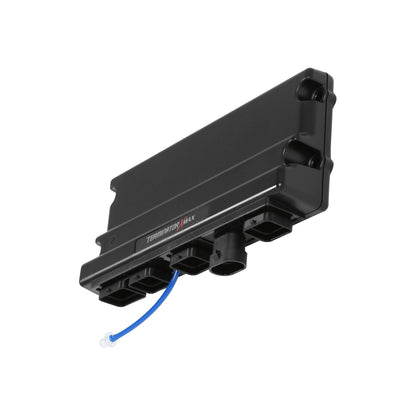

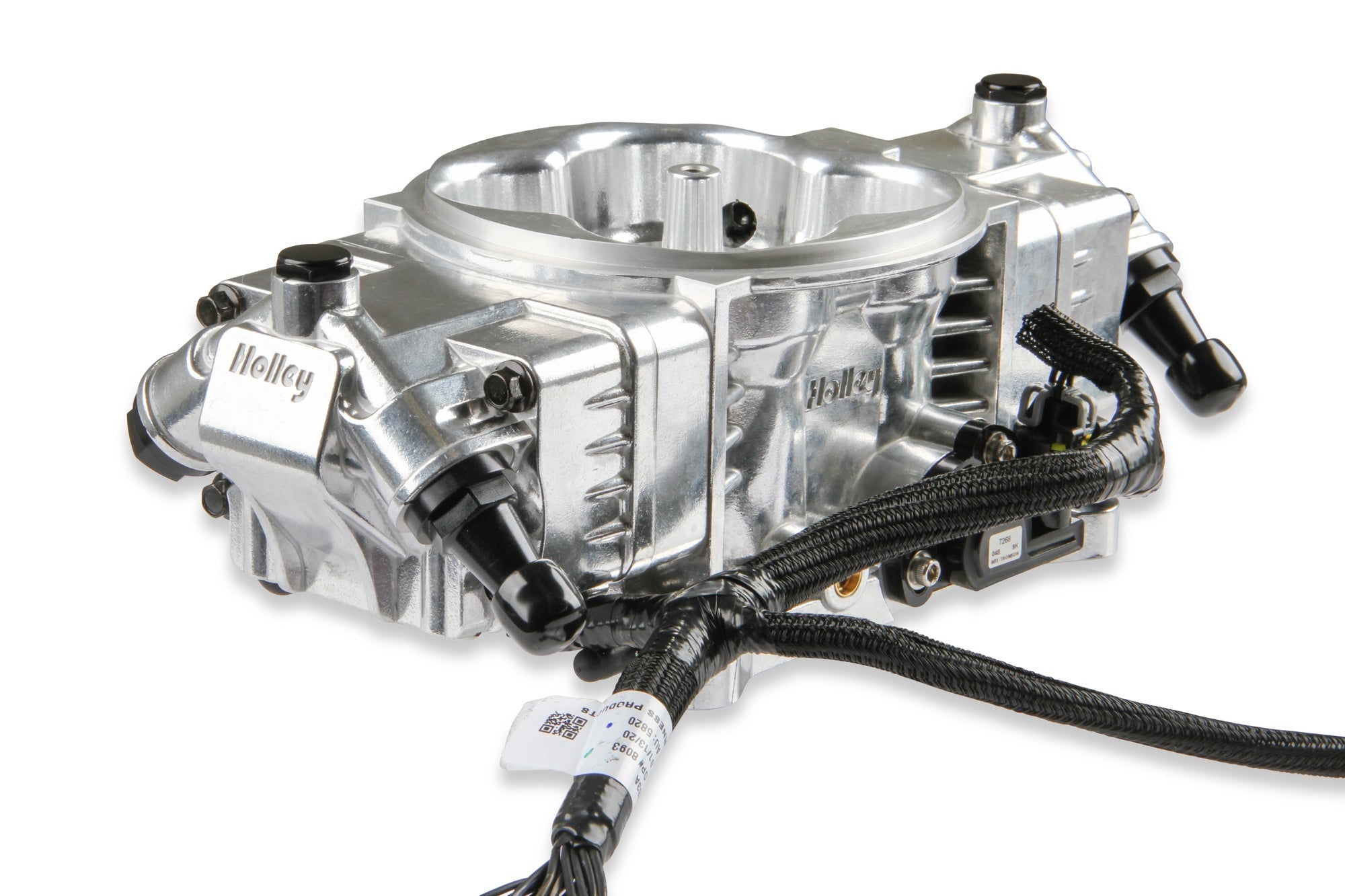

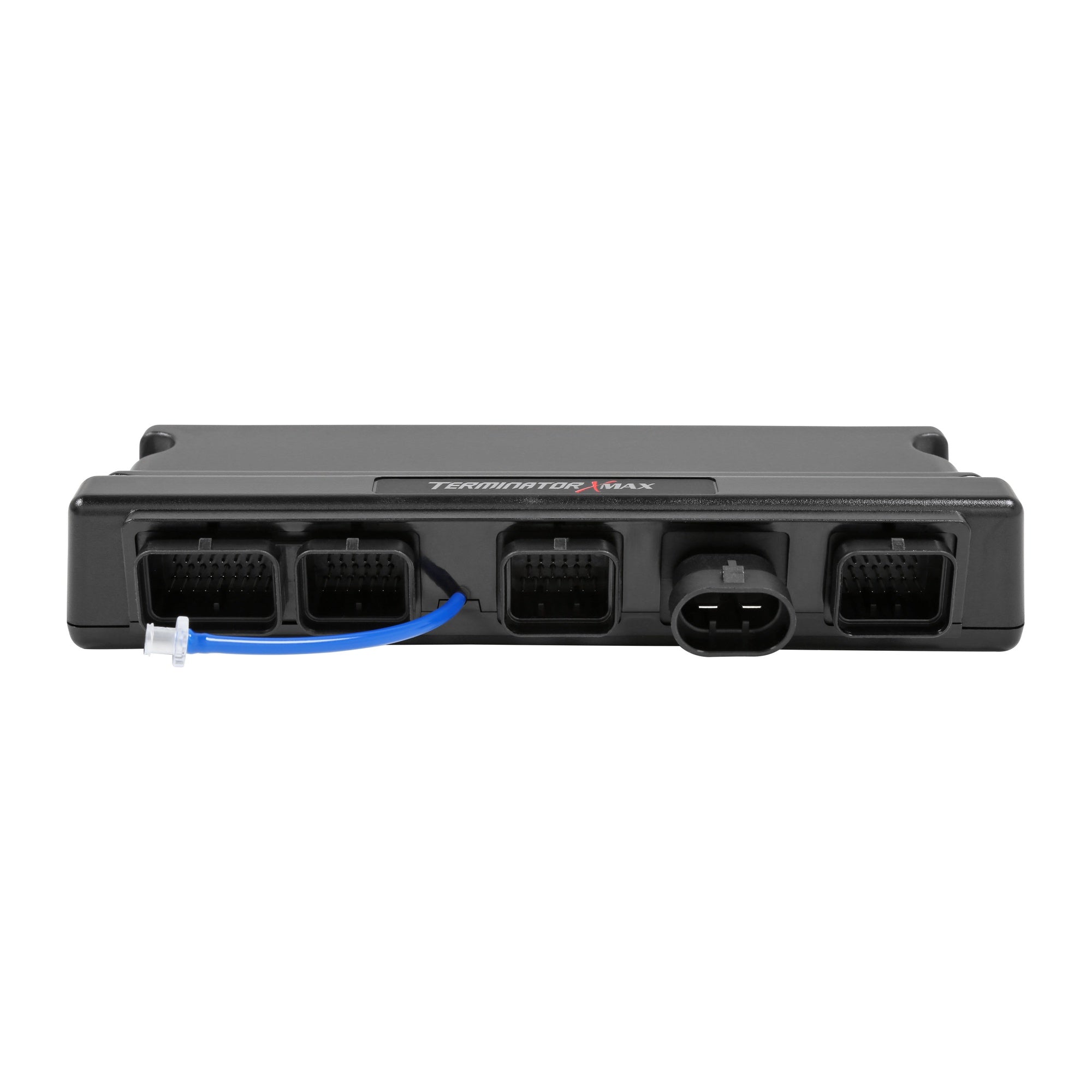

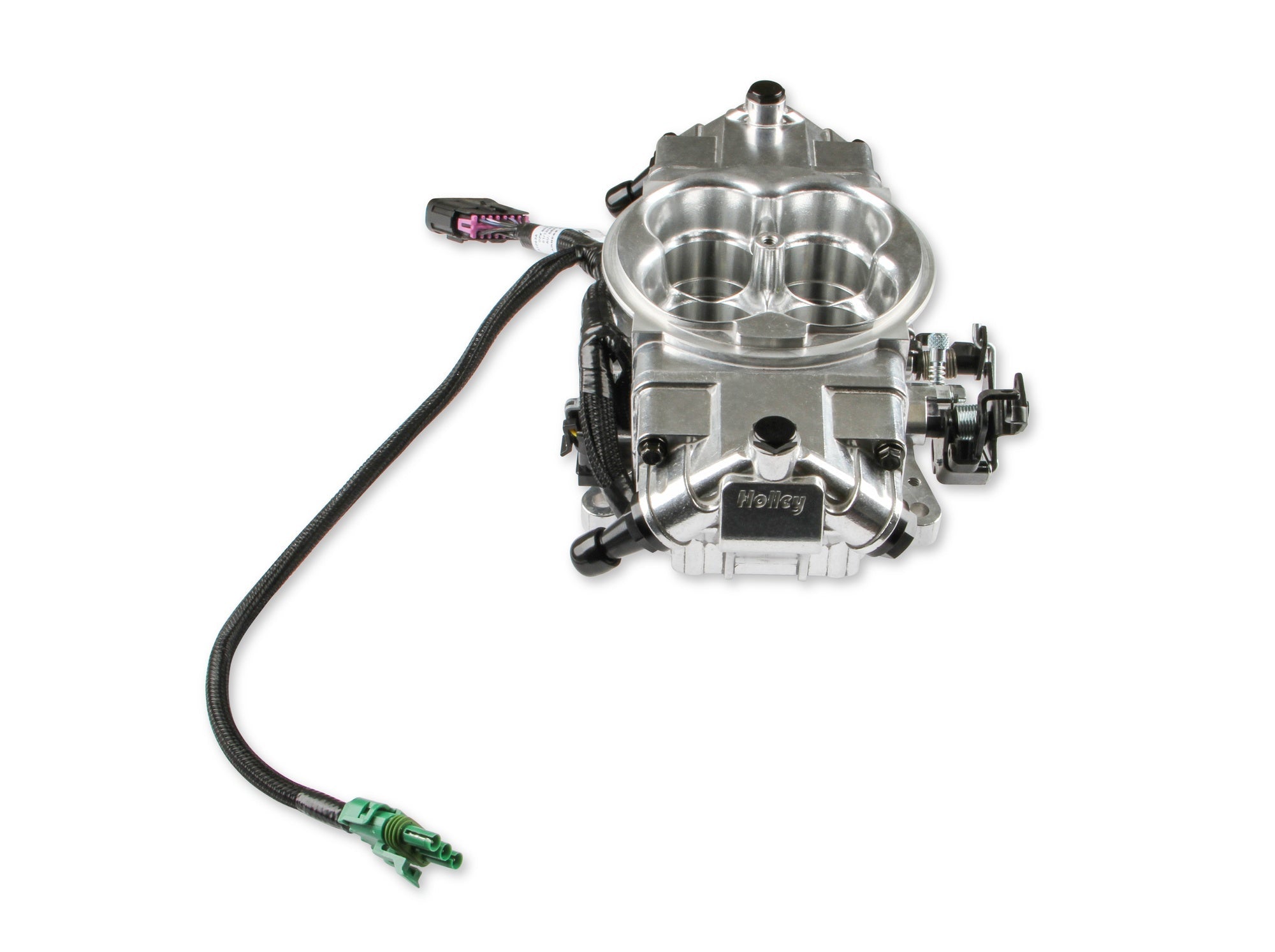

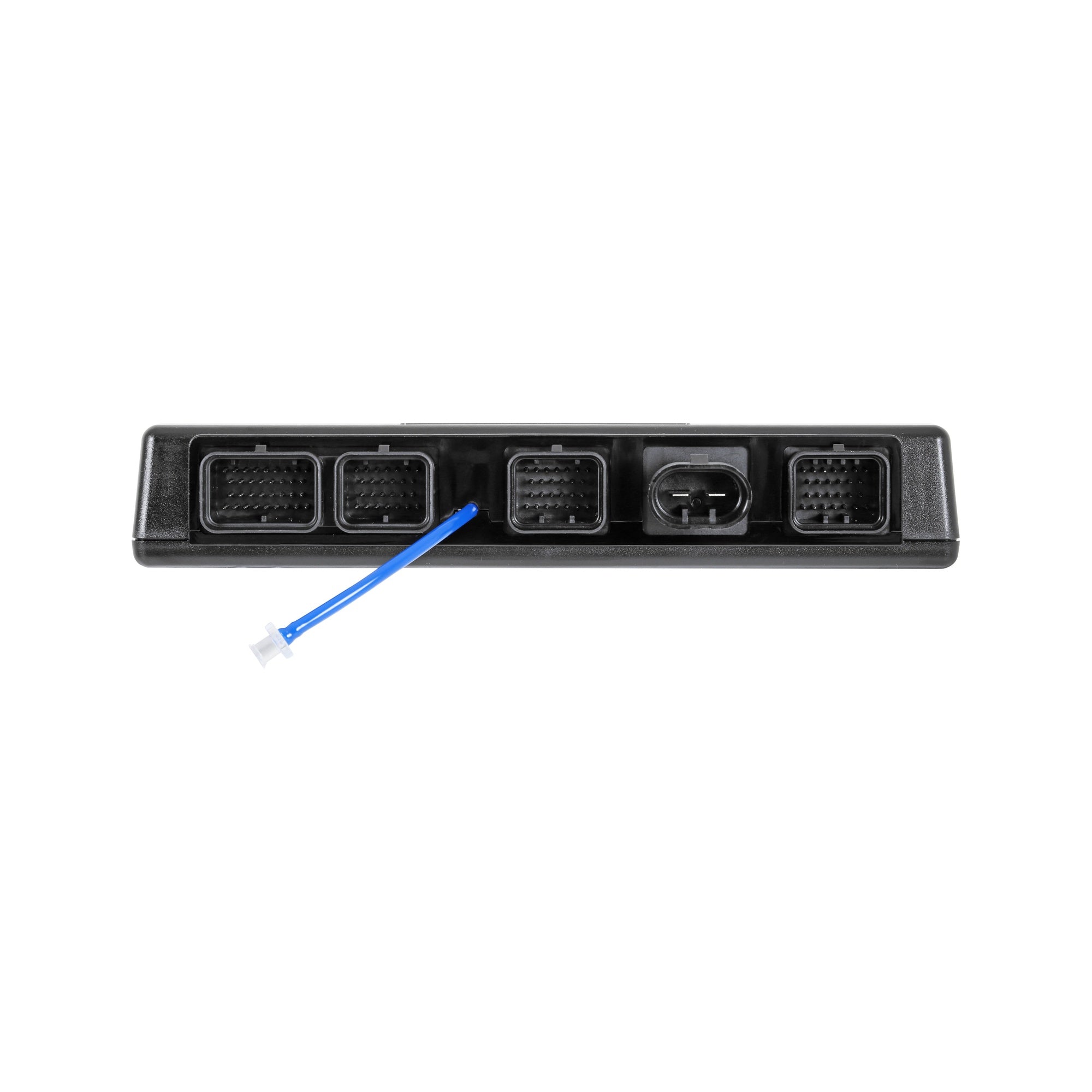

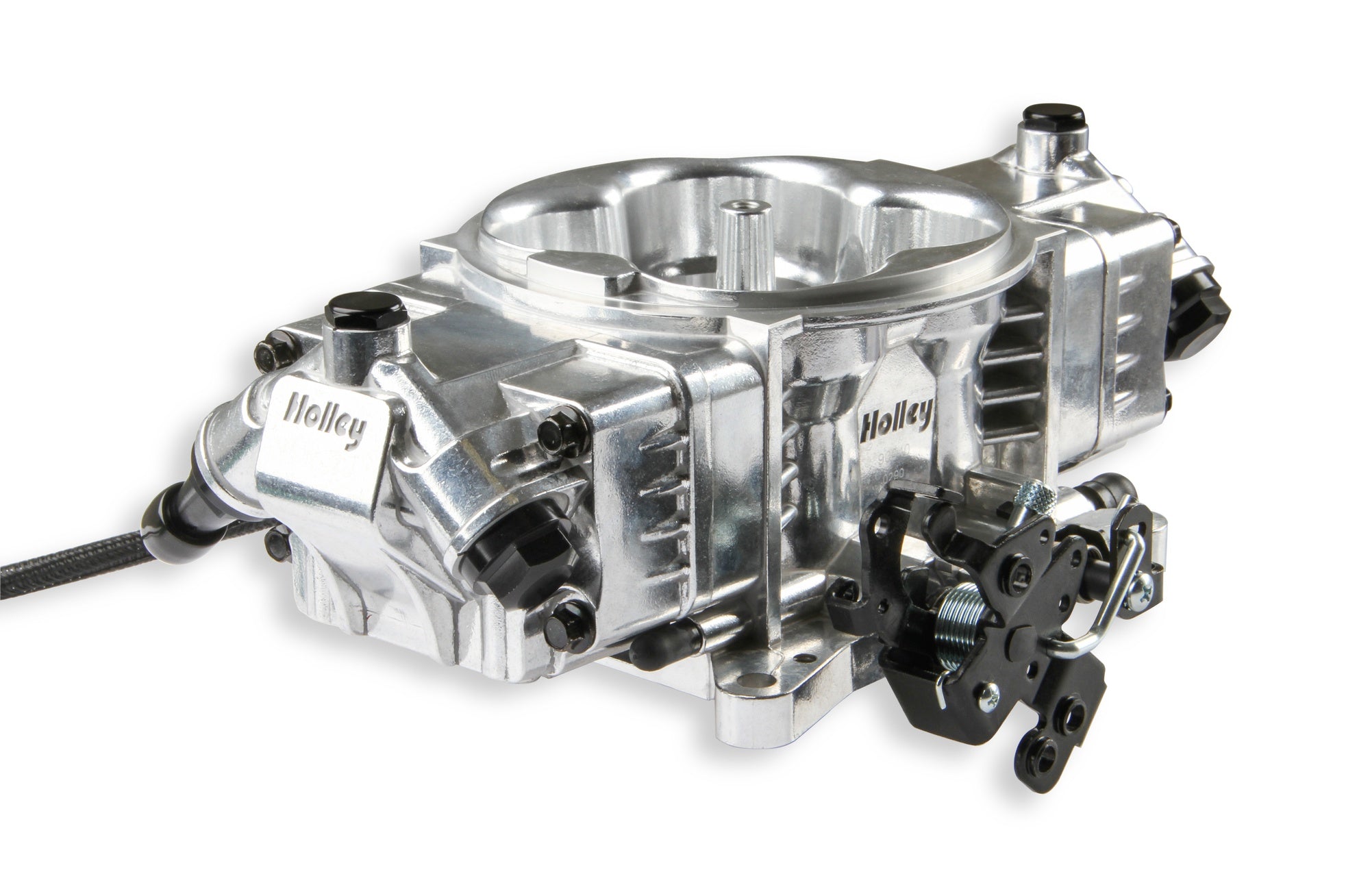

The Terminator X Stealth 4150 system features (4) 100 lb./hr. fuel injectors capable of supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications. Taking the Stealth name, all of the wiring exits below the rear fuel injector cover for a clean installation. The timed spark port for vacuum advanced distributors is located under the front fuel bowl, giving greater access to the distributor. Air entry is machined to fit most stock air cleaners with air cleaner locator provisions. The ECU features fuel maps that self-learn and integrated ignition timing control, yielding improved idle stability, drivability, and horsepower at wide-open throttle (WOT). The Stealth 4150 also includes transmission kick down provisions for GM TH350/400, 200R4/700R4, and Ford C4/C6 applications for making installation more convenient. These kits provide plug and play transmission control for GM 4L60 and 4L80 transmissions.

Shiny - 58X Crank - Trans Control - 3.5 in. Touchscreen

Features

  • (4) 100 lb./hr. fuel injectors supporting up to 650 HP naturally aspirated or 600 HP on forced induction applications
  • 3.5” LCD handheld touchscreen for setup, tuning, gauge displays, and other viewing parameters
  • Initial handheld calibration wizard creates a base tune with no laptop needed
  • Advanced annular discharge rings for more fuel flow and better fuel atomization, nearly elimating the fuel delay issues found on other designs
  • Bosch LSU 4.9 Wideband Oxygen (O2) Sensor for maximum performance on real time fuel map learning
  • OEM style TPS/IAC robust design for longevity
  • Internal 1 Bar MAP sensor built into the ECU
  • Bolt on 4150 flange carburetor replacement fits many factory intake manifolds
  • Air entry is machined to fit many stock style air cleaners with air cleaner locator provisions
  • Plug and play transmission control for GM transmissions
  • Integrated ignition timing control improves idle stability, fuel economy, and wide open throttle (WOT)

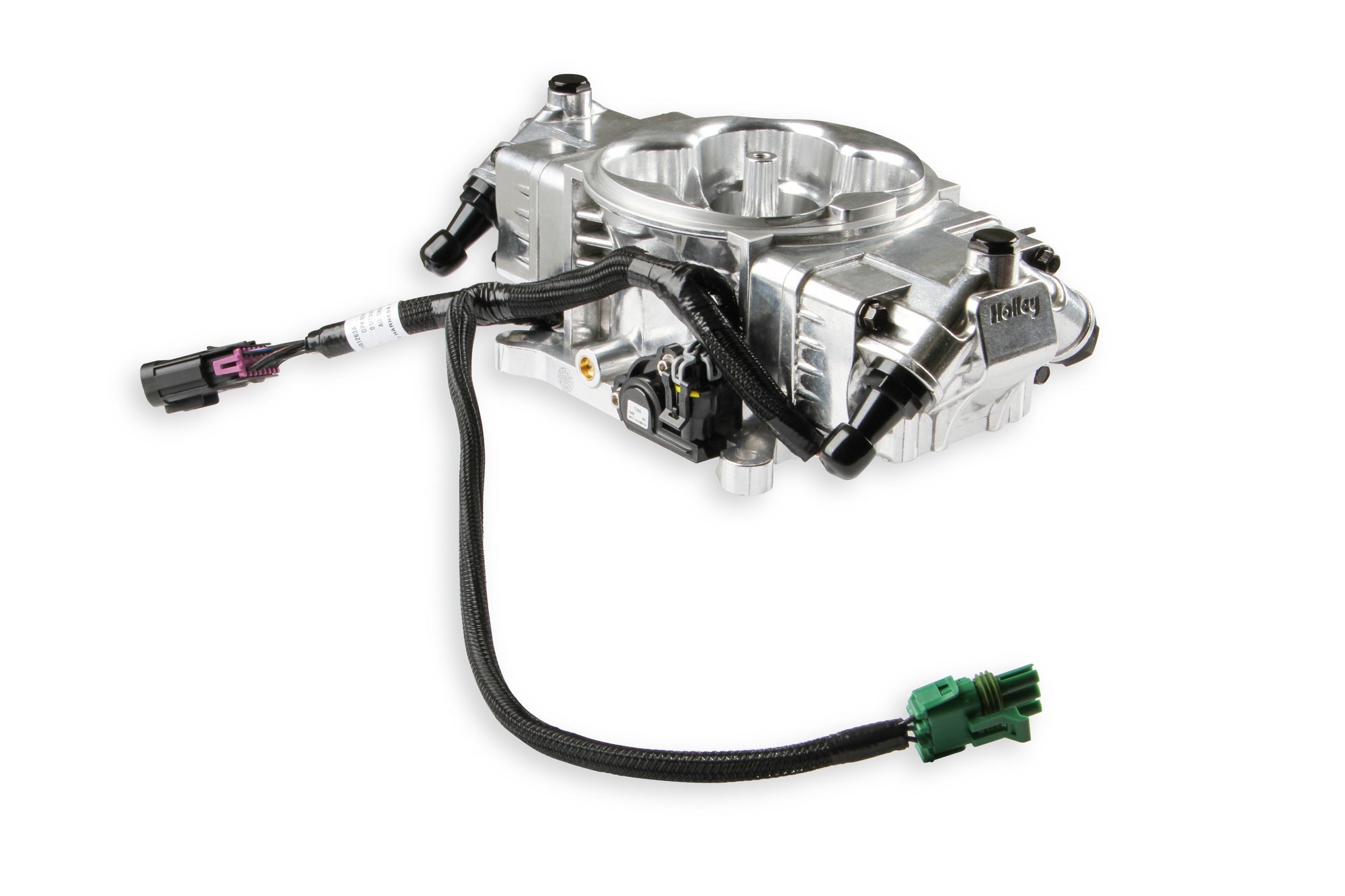

  • All wiring exits below the rear fuel injector cover for a stealth installation
  • For 24x or 58x GM LS engines
  • Four inputs include 12V, ground, 5V, and frequency, for pressure sensors, activation triggers, trans brake, etc.
  • Fuel and Oil Pressure inputs are pre-terminated
  • Four outputs include ground, PWN-, for fans, boost and nitrous control, IAC, etc.
  • Requires an external fuel pressure regulator with base pressure set to 58.5 PSI (Holley P/N 12-886 or equivalent)
🎬

Product Videos

YouTube video thumbnail
▶
Watch Video
📋

Product Specifications

Accelerometer Support
Yes
Boost Control
Yes
Brand
Holley EFI
California Proposition 65
Yes
CAN-BUS Support
Yes
Category
Air and Fuel Delivery
Category
Fuel Injection - EFI
CFM
950
Coil Per Cylinder Ignition Support
Yes
Color
Shiny
Country
US
Crank Reluctor
58x
Datalogging Support
Yes
Distributor Included
No
Dry Nitrous Control
Yes
e85 Support
No
EGT Support
Yes
Emission Code
3
Finish
Shiny
Flange Size
4150
Flange Style
Squarebore
Forced Induction Support
Yes
Fuel Filter Included
No
Fuel Hose Included
No
Fuel Injectors Included
Yes
Fuel Pressure Regulator Included
No
Fuel Pressure
58.5 PSI
Fuel Pump Included
No
Grade Type
Performance
Handheld Included
Yes
HTS Code
8409915085
Idle Air Control Motor Included
No
Ignition Timing Control
Yes
Ignition Type
GM LS 58x
Individual Cylinder Fuel Corrections
No
Injector Size
100 lb/hr @ 58.5 PSI
Inlet / Outlet Size
6AN
Intake Manifold Included
No
Knock Retard Support
Yes
MAP Sensor
1
Max Horsepower Rating
650
Mounting Hardware Included
No
Multi-Stage Nitrous Control
Yes
part type
Fuel Injection System
Product Type
EFI System
Progressive Nitrous Control
Yes
Prop 65 Yes/No
No
Self-Tuning
Yes
Sub Category
Fuel Injection System and Related Components
Terminator LS Options
Fuel
Throttle Bore
1.75 in.
Throttle Position Sensor Included
Yes
Transmission
4L60E/4L80E
Universal Or Specific Fit
Universal
User-Tuneable
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
📦

Package Contents

Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
