Holley EFIPart 550-606Made in US
Product Details
⭐
Key Features
If utilizing FORD OEM TPS and IAC sensor, must wire in Ford connector (not supplied) ECU is certified to ISO 8846, SAE J1171 & United States Coast Guard Requirements for Ignition Protection & Fire Resistance. Holley HP EFI systems are equipped with 4

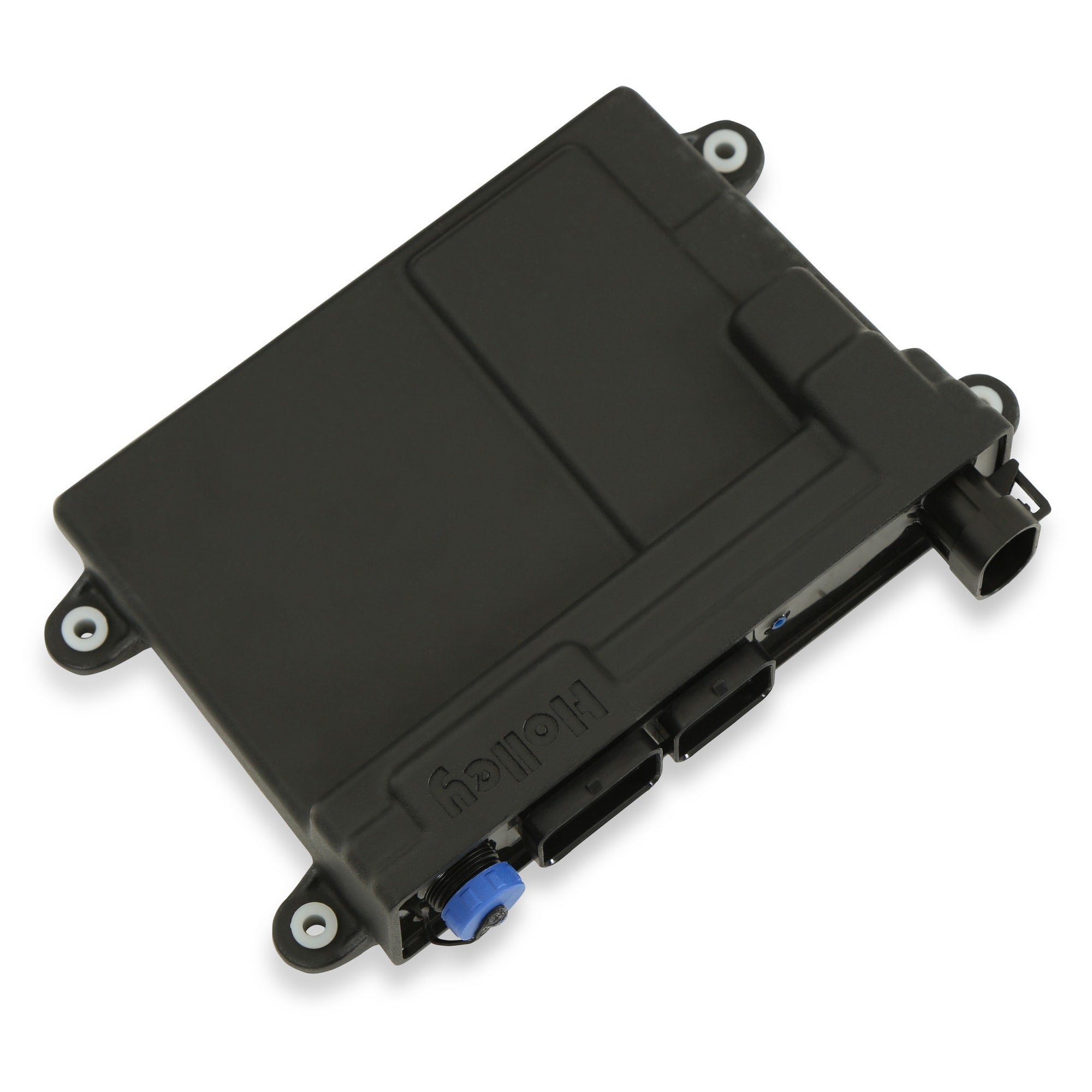

Looking for a alternative for your stock or built late model factory FORD EFI engine? How about a replacement ECU for your older Holley C950? Holley has you covered. HP EFI ECU and harness kits are designed to be used with popular factory EFI engines as an alternative to the factory ECU and harness or as a replacement for your C950 ECU. The HP allows you to accurately control the fuel and ignition of your engine along with additional controls for nitrous, boost or water meth.

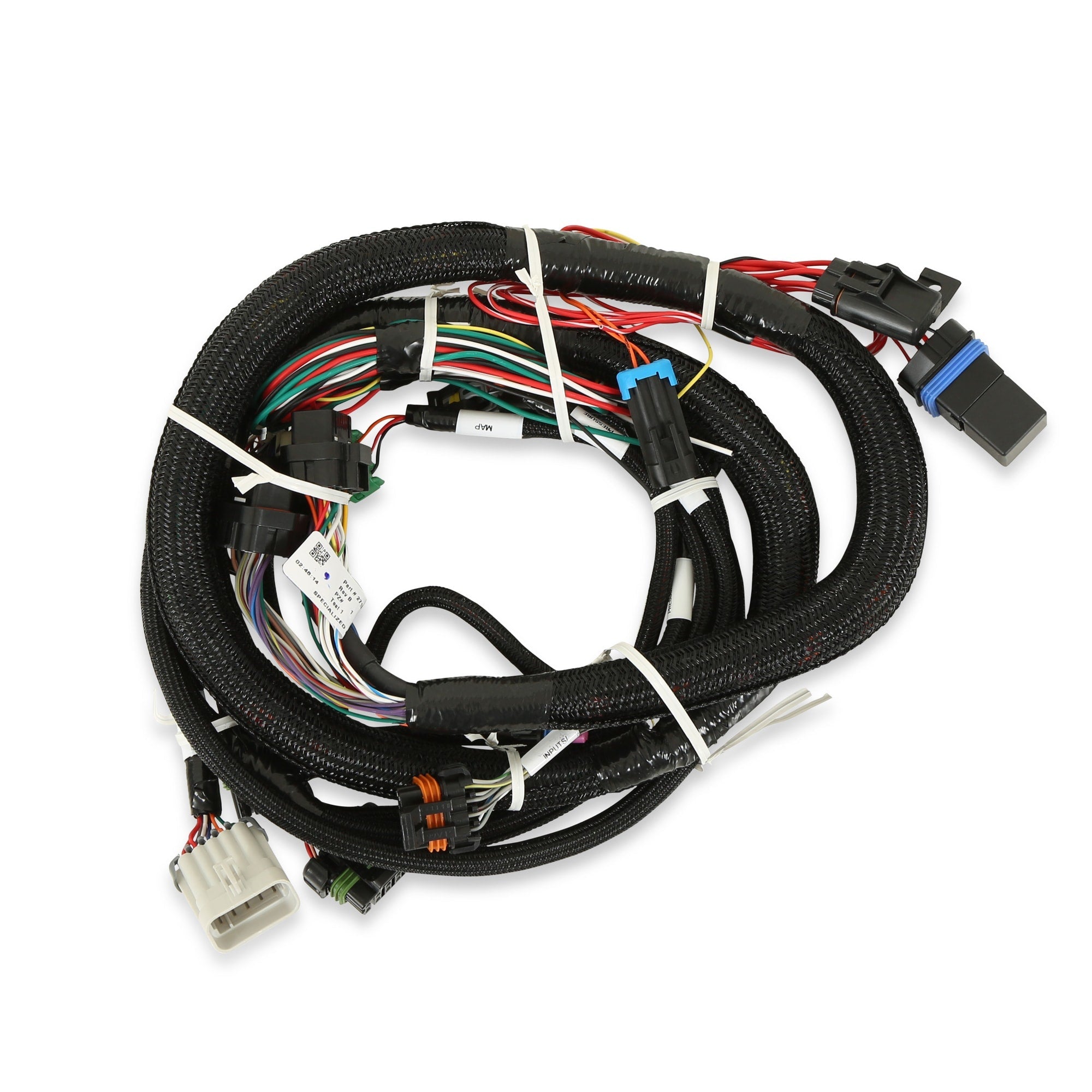

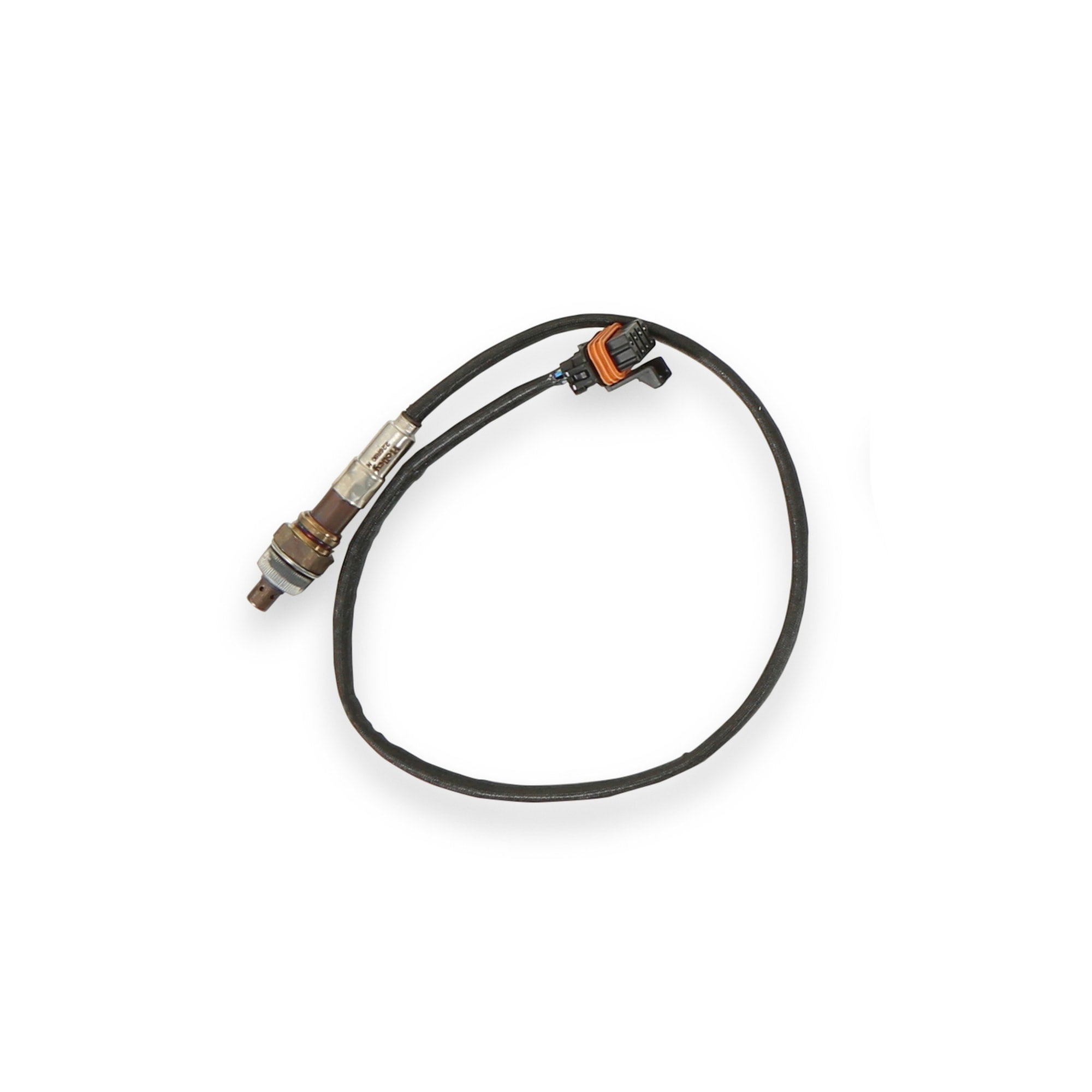

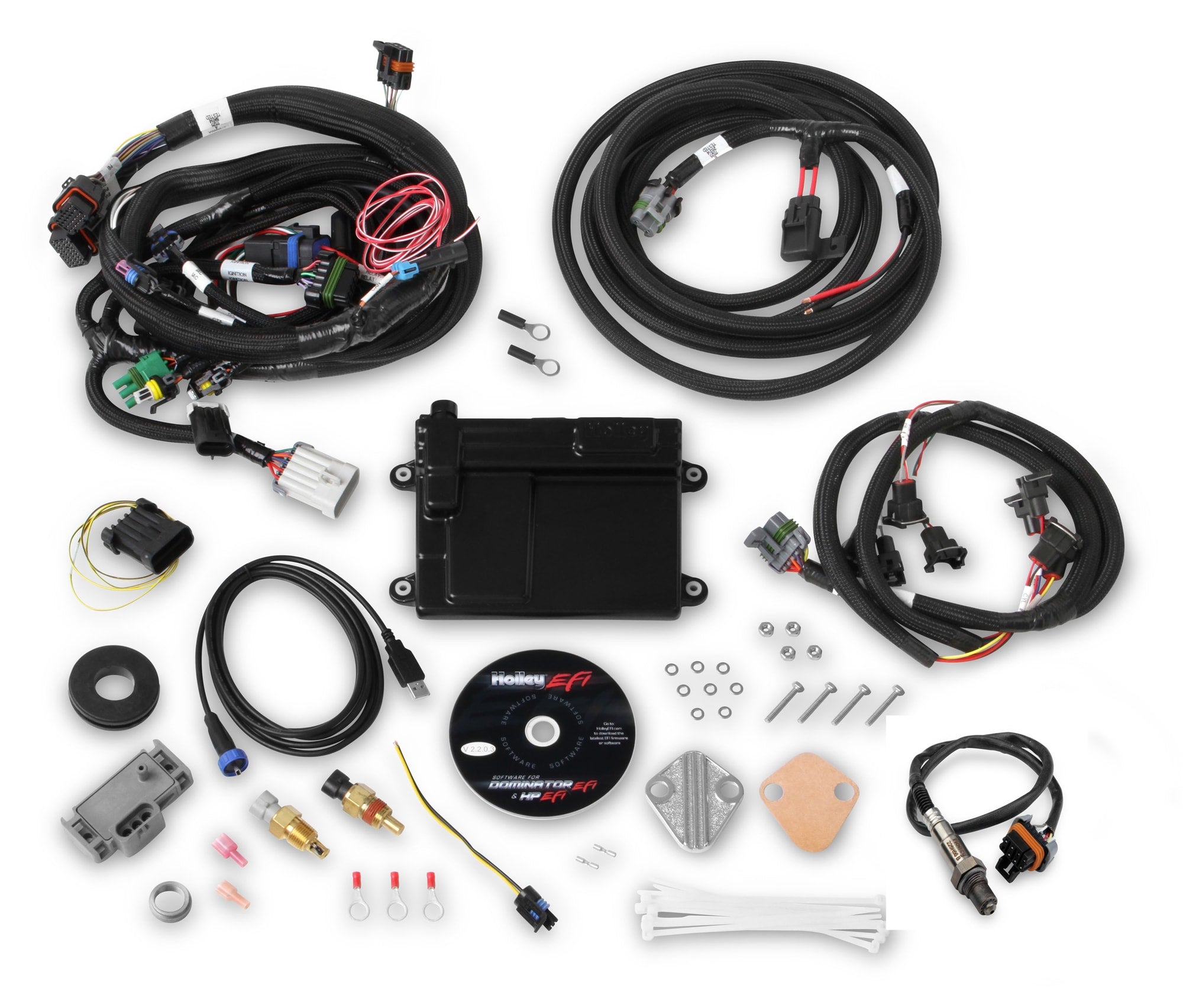

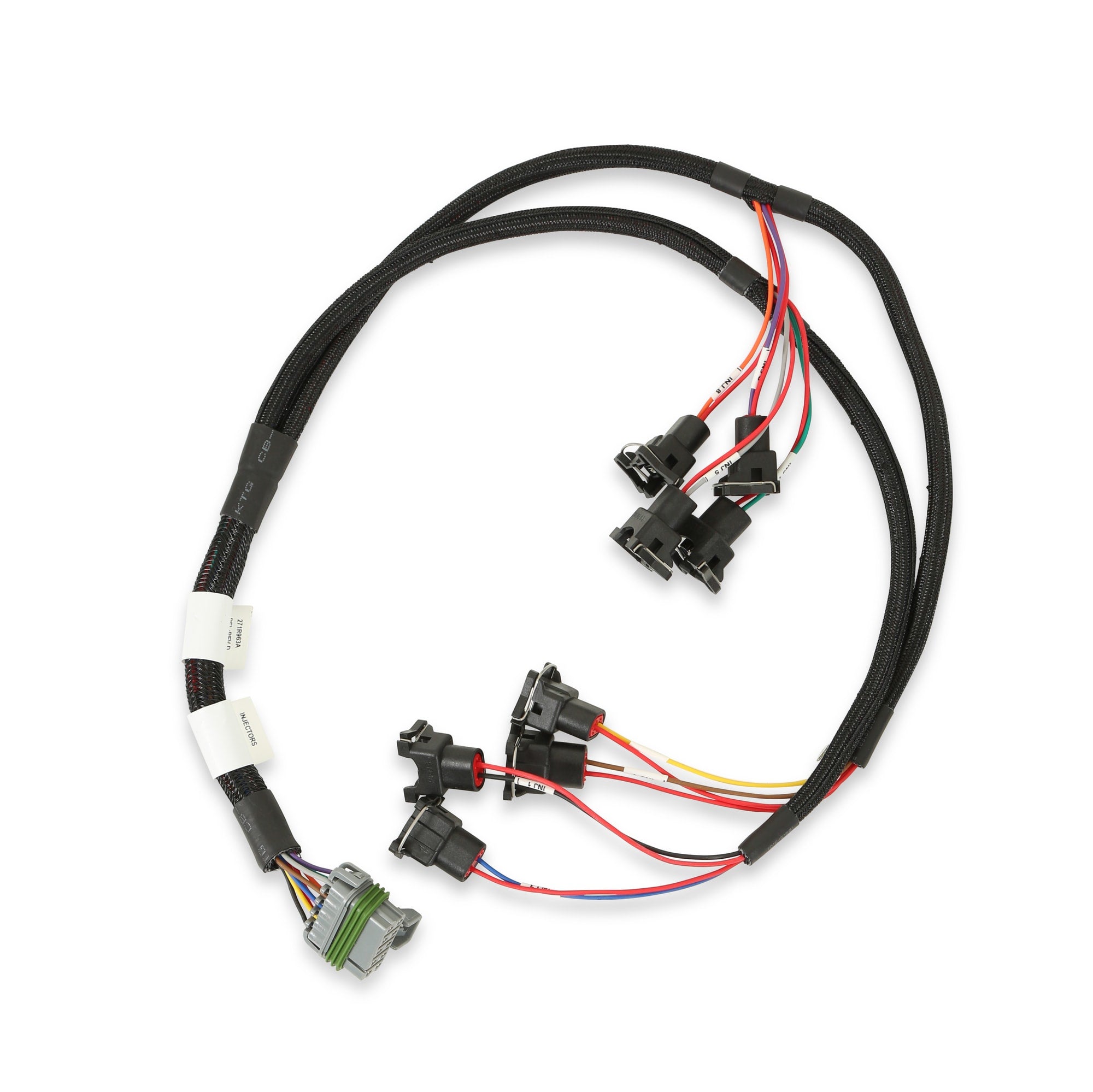

Universal FORD V8 Multi-Point Fuel Injection, Includes Bosch Oxygen Sensor, and Ford V8 Injector Harness.
- Eight sequentially driven 8:2 peak and hold injector drivers, capable of driving up to 16 low or high impedance injectors as a standard feature. Multiple staged injector strategies
- Custom settings can be configured to allow many other applications
- Plug and Play control of factory GM 24x and 58x LSx engines
- Controls both stepper and PWM Idle Air Control (IAC) motors
- Individual cylinder fuel and spark control allows you to unlock your engine’s potential
- Internal data-logging standard with a huge 2GB of memory
- 4 Stage nitrous oxide control
- Dedicated fuel and oil pressure inputs
- Progressive control based on time, RPM, or boost, requires part # 554-111
- Fully featured nitrous control eliminates the need for a separate nitrous controller device
- Two channel knock control sensor Inputs for both one or two wire knock sensors
- Full timing retard/control configurability per stage based on RPM or time
- Ignition Plug and Play with GM 24x and 58x LSx engines, GM HEI, Ford TFI, magnetic and hall effect trigger, and other ignition systems. New Plug and Play applications in process.
- Eight channel Distributorless Ignition (DIS)outputs capable of directly driving “Smart” ignition coils or Holley DIS coils. Will drive 2 wire coils with the addition of PN 554-112 high current coil driver module
- Optional 5.7” full-color touchscreen LCD allows easy on-the-fly tuning,data-logging or can be used as an easy to see graphical gauge panel
- 4 Stage progressive nitrous control
- Unique lb/hr based fueling strategy greatly simplifies and commonizes tuning
- Allows for use of common OEM sensors as well as customer sensor calibration input
- Lean or rich safety cutoff
- Sealed automotive and marine grade connectors
- Can be configured “Wet” or “Dry” with closed loop feedback
- ECU is fully potted and can be mounted in the engine compartment or interior
- 4 Programmable high or low Pulse Width Modulated (PWM) outputs and 4 fully configurable inputs can be configured for use
- Turbo boost control
- Uses Holley Water/Meth solenoids specially designed and calibrated for use with this EFI system to allow the user to enter Water/Meth flow as a percentage of fuel injector flow for Water/Meth tu
- Integrated single channel wide band oxygen sensor control. Works with NTK or Bosch sensors
- Integrated Water/Methanol injection control
- Works with 4, 6, 8 cylinder engines
- Speed density, Alpha-N, or combination fueling strategies
- Advanced idle, closed loop, and enrichment strategies allow for very stable operation
- 1-5 Bar MAP sensor capability
- Self-tuning fuel table strategy greatly simplifies tuning process
📖
About this product
Universal FORD V8 Multi-Point Fuel Injection, Includes Bosch Oxygen Sensor, and Ford V8 Injector Harness.
📋
Product Specifications
Accelerometer Support
Yes
Automotive Item Grade
Performance
Boost Control
Yes
Brand
Holley EFI
California Proposition 65 Chemical Name
20
CAN-BUS Support
Yes
Category
Air and Fuel Delivery
Coil Per Cylinder Ignition Support
Yes
Country
US
Datalogging Support
Yes
Dry Nitrous Control
Yes
E85 Support
Yes
EGT Support
Yes
Emission Code
3
Forced Induction Support
Yes
Fuel Filter Included
No
Fuel Hose Included
No
Fuel Injectors Included
No
Fuel Pressure Regulator Included
No
Fuel Pump Included
No
Grade Type
Performance
HTS Code
8409915085
Ignition Timing Control
Yes
Ignition Type
Coil - (No Timing Control)
Individual Cylinder Fuel Corrections
Yes
Injector Connector
Jetronic / Minitimer (Bosch)
Intake Manifold Included
No
Knock Retard Support
Yes
Multi-Stage Nitrous Control
Yes
Part Type
Fuel Injection Conversion Kit
Product Type
HP EFI Kit
Progressive Nitrous Control
Yes
Prop 65 Yes/No
No
Self-Tuning
Yes
Sub Category
Service Kits
Throttle Position Sensor Included
No
Traction Control Support
Yes
User-Tuneable
Yes
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
Wet Nitrous Control
Yes
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
12.5 × 12.3 × 8.5 in
Shipping Dimensions
12.5 × 12.3 × 8.5 in
Weight
4785 g (4.79 kg)
