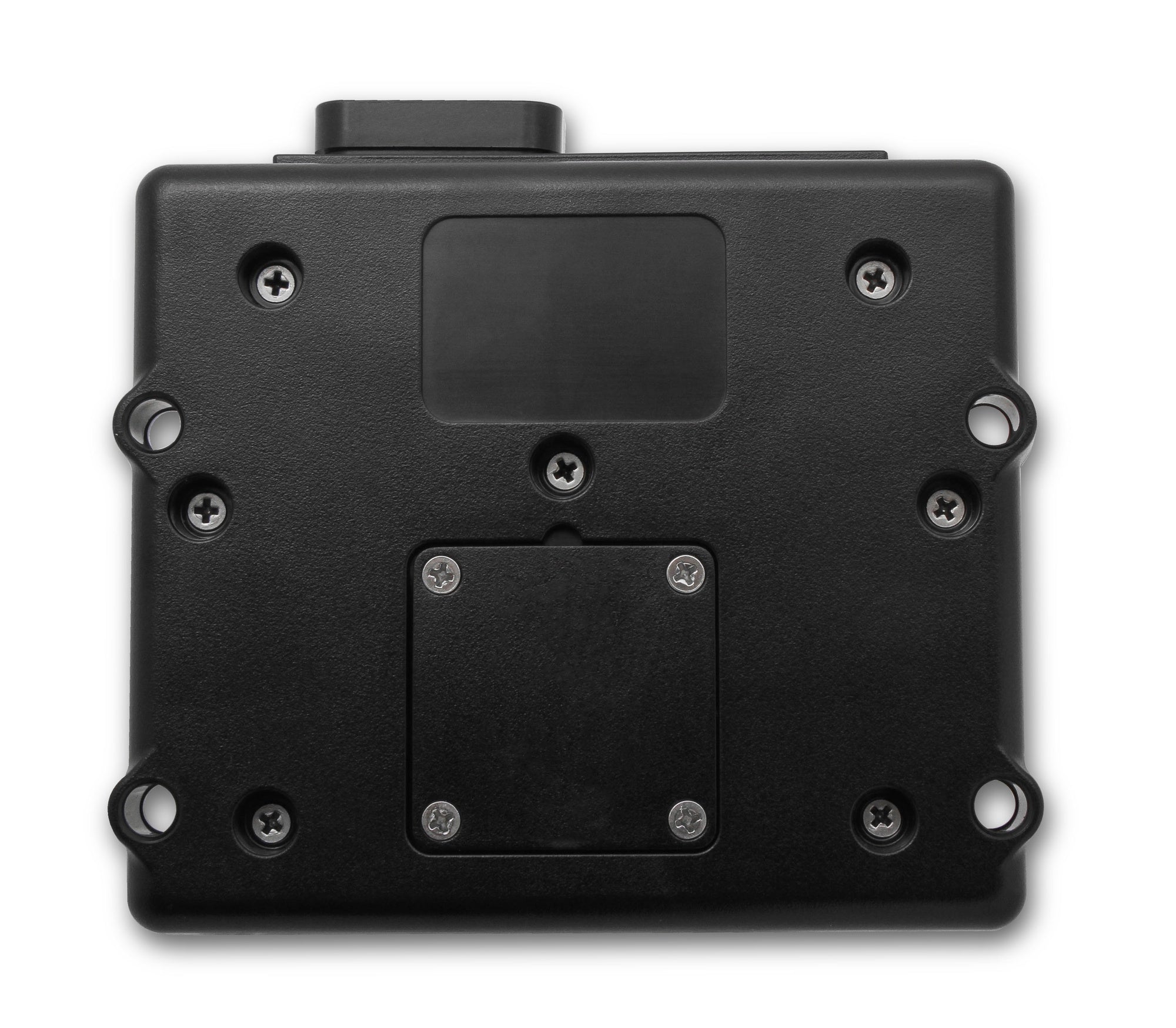

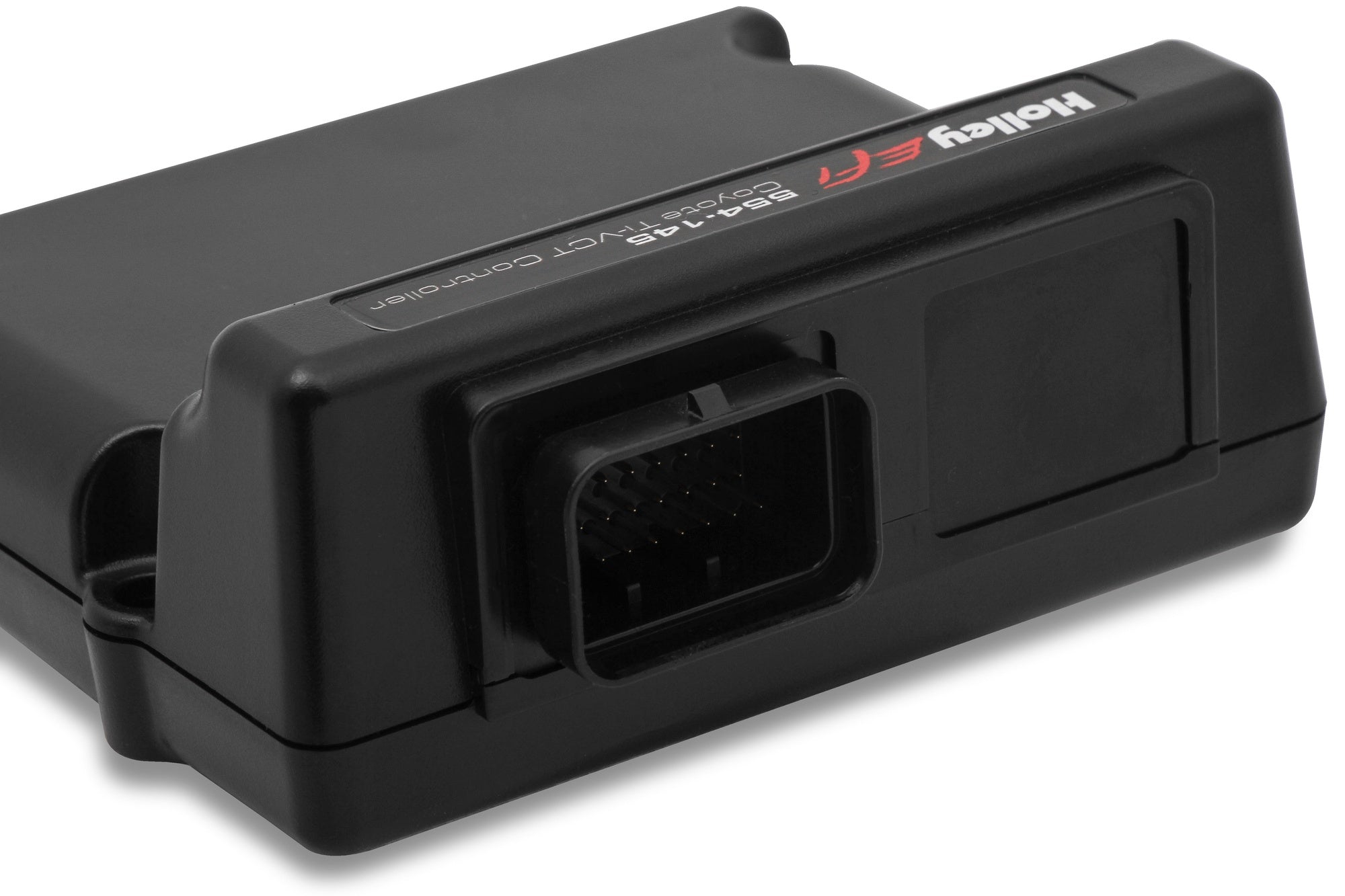

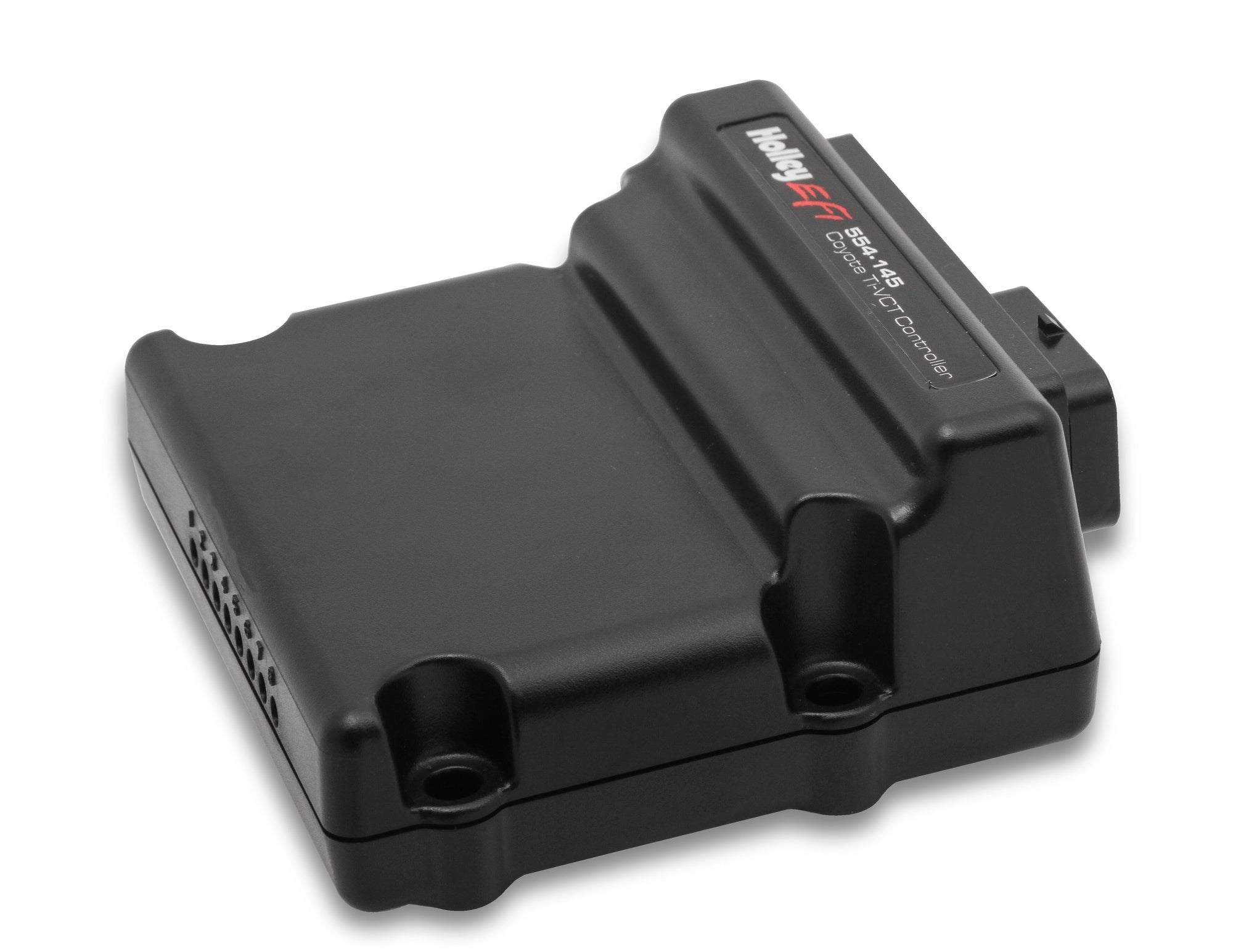

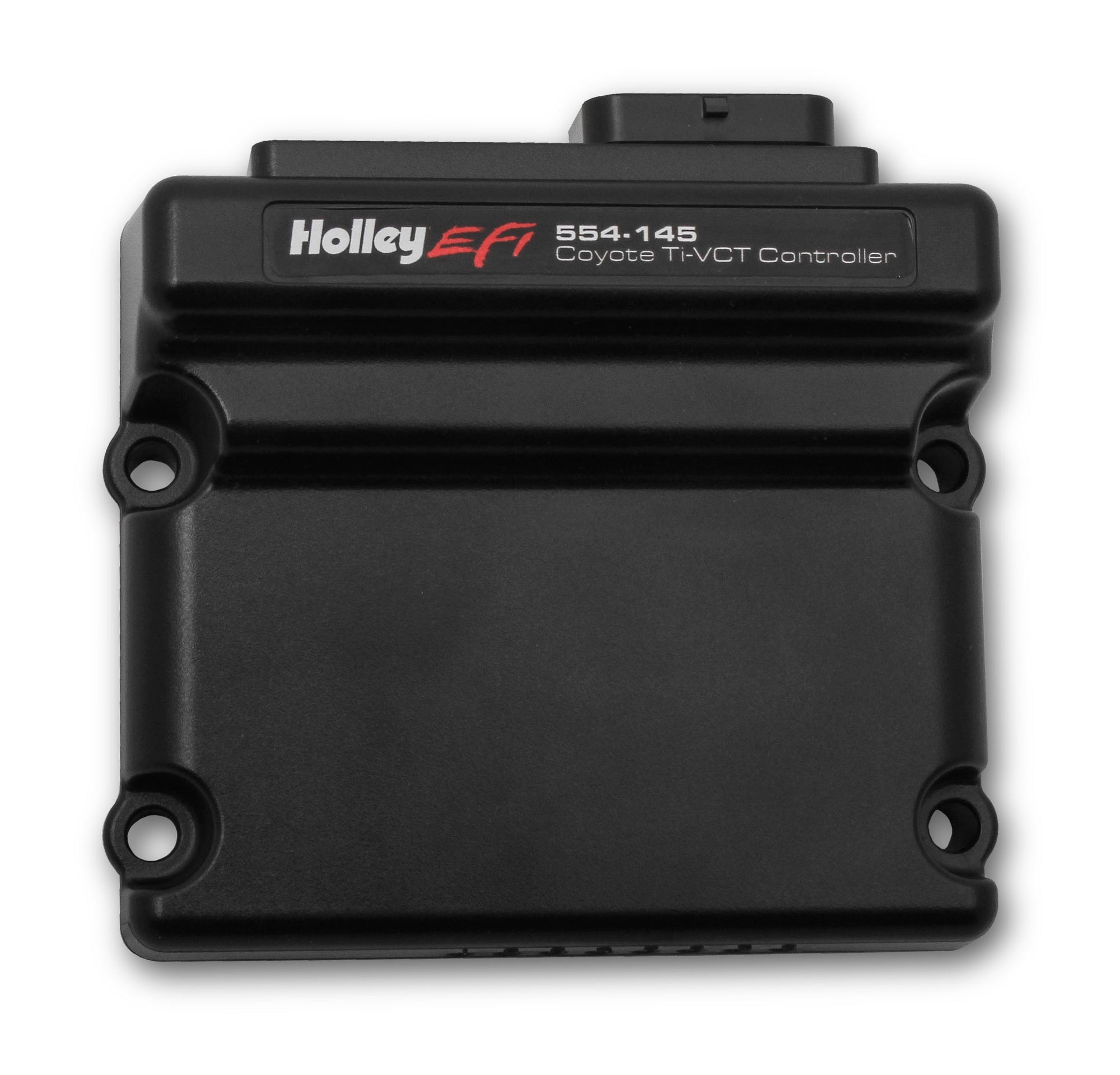

Holley EFIPart 554-145Made in US
Product Details
⚙️
Vehicle Fitment & Compatibility
View all 0 vehicle applications
Years
Make / Model
Submodel
Engine
1900
No applications match your search.
⭐
Key Features
Requires the use of Main Power Harness (558-319) Requires one of the follow Main Engine Harnesses: 558-110 or 558-122 Requires one of the following Ti-VCT Sub Harnesses: 558-124 or 558-125
Introducing Coyote Twin Independent Variable Cam Timing Control from Holley EFI! Do you have a coyote crate engine going in your dream car? Is your weekend road race warrior powered by a coyote junkyard engine with locked cams? Unlock the full potential of your high revving power plant with the Holley EFI Plug and Play Coyote Ti-VCT Control Module.
2011-2017 Coyote Ti-VCT Control Module
- Compatible with HP, Dominator EFI, and Terminator X or X MAX.
- Ti-VCT Cam control down to 400 RPM
- User programmable tables enable the end user to fine tune aftermarket Ti-VCT compatible camshafts
- Commanded Timing matched within 1 degree
- 4 Built in Diagnostic LEDS make diagnostics easy in the event of a cam or crank sensor failure
- Integrated Stock Cam Position Tables – eliminate tuning guess work, optimal drive-ability and power right out of the box
- Main Harnesses come terminated with Ford TPS and IAC Connectors, making it easy to convert from a DBW Throttle Body to a Manual Throttle Body, if desired
- Installation of an external MAP sensor is required, we recommend part number 538-13 for N/A applications
- Main Harnesses includes a Power Tap Connector, as a convenient source for power and grounds when adding additional sensors or actuators
- CANBus communication between Coyote Ti-VCT and Holley EFI ECU for high speed data transfer and diagnostics
- Pre-calibrated Ford sensor drop downs in the Holley EFI Software
- Plug and Play Main Harness for 2011-2017 Coyote engines w/ Stock Camshafts using Stock Coils (558-110)
- Plug and Play Main Harness for 2011-2017 Coyote engines w/ Stock Camshafts using Holley EFI Smart Coils (558-122)
- Terminator X kits cover a wide variety of engine combinations from 2011 to 2017.
📖
About this product
2011-2017 Coyote Ti-VCT Control Module
📋
Product Specifications
Brand
Holley EFI
California Proposition 65 Chemical Name
20
Category
Engine
Connector Color
Black
Country
US
Emission Code
3
Emission Code
4
Housing Material
Composite
HTS Code
8409915085
Part Type
Engine Variable Valve Lift Control Module
Product Type
ECU Assembly
Prop 65 Yes/No
No
Sub Category
Control Modules
Warning
California Proposition 65
Warranty
Manufacturer's Limited 90 Day Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 90 Day Warranty
Country of Origin
US
Emissions Code
4
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
10.0 × 8.0 × 3.5 in
Shipping Dimensions
10.0 × 8.0 × 3.5 in
Weight
907 g (0.91 kg)
