MalloryPart 29440Made in CN
Product Details
⭐
Key Features
Mounting bracket included CARB E.O. # D-70-22
The Mallory Promaster Classic series ignition coil is designed to meet today's specialized ignition requirements. This coil features a faster rise time and increased spark duration (compared to stock) to increase performance. It has a glass-filled polyester case and oil-filled construction to ensure a long life and no energy loss from arcing. This coil also offers excellent wire retention with a spark plug type secondary post, and brass contact terminals.
A powerful, reliable coil from Mallory Ignition with classic good looks
- Classic good looks
- High current / voltage output
- Spark plug style terminal for excellent coil wire retention
- Brass contact terminals

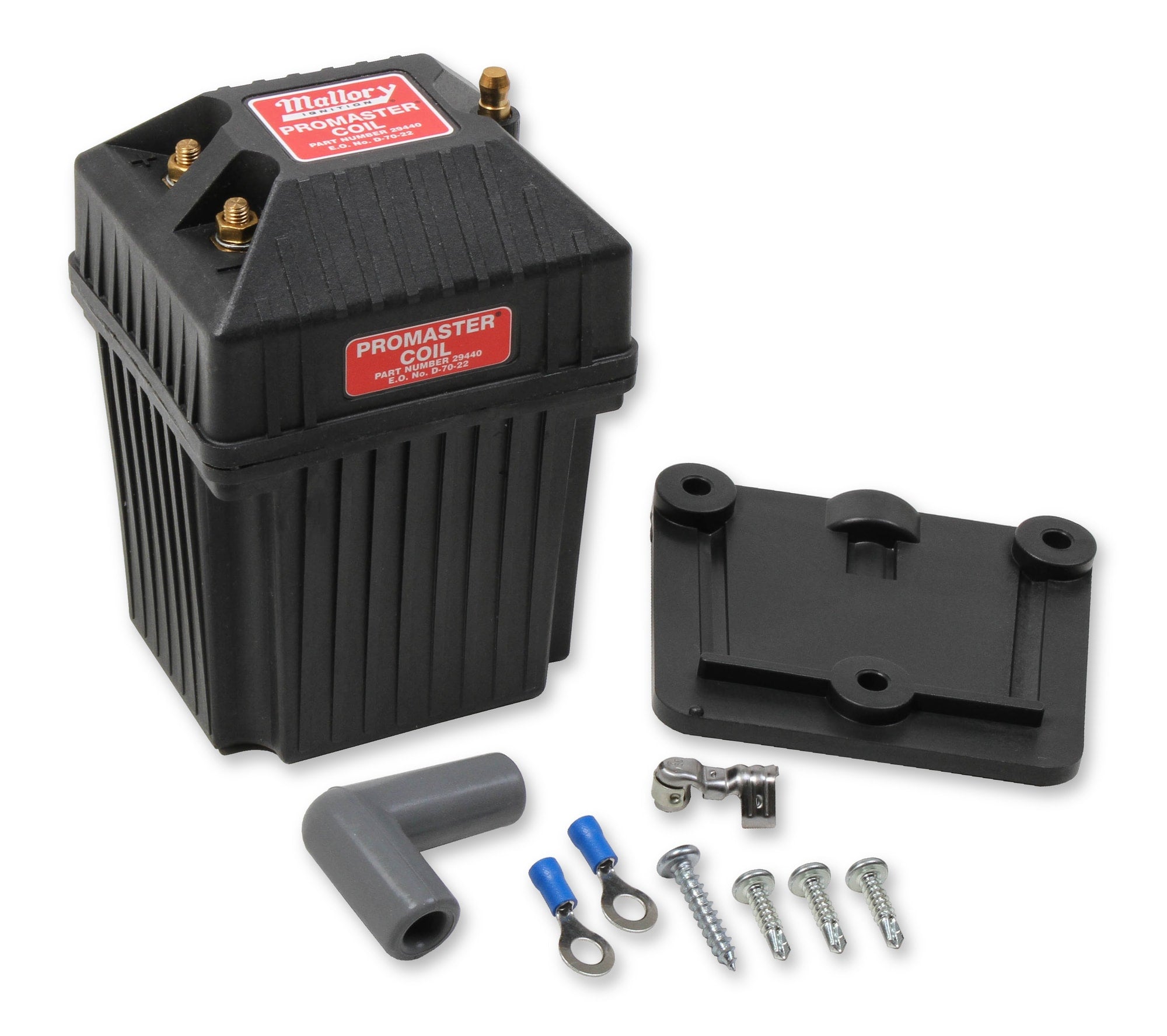

- Mounting bracket included
- Can be used on inductive and CD ignitions
📖
About this product
A powerful, reliable coil from Mallory Ignition with classic good looks
📋
Product Specifications
Brand
Mallory
C.a.r.b. Eo #
D-70-22
California Proposition 65 Chemical Name
6
Category
Ignition
Emission Code
1
Inductance
7.5 mH
Maximum Voltage
49
Part Type
Ignition Coil
Peak Current
66 mA
Primary Resistance
.6 ohms
Product Type
Coil
Secondary Resistance
11.3K OHMS
Spark Duration
3
Sub Category
Ignition Coil
Turns Ratio
94:1
Warning
California Proposition 65
🛡️
Warranty & Compliance
Country of Origin
CN
Emissions Code
1
HS Code
8511300080
📐
Dimensions & Shipping
Product Dimensions
7.0 × 4.6 × 4.1 in
Shipping Dimensions
7.0 × 4.6 × 4.1 in
Weight
1202 g (1.2 kg)
