MSDPart 8201Made in CN
Product Details
⭐
Key Features
Use with MSD 7 and 8 Series Ignitions ONLY - Short-Duration Applications
This Coil is designed for use with an MSD 7AL-2 (#7220), 7AL-2 Plus (#7222), 7AL-3 (#7230), and MSD 8 (7805) Ignitions only. | The special windings of the Pro Power Coil have extremely low resistance to produce the highest voltage possible with plenty of spark energy when used with an MSD 7 or 8 Series Ignition Control. The MSD Pro Power Coil is a great choice for short-duration applications such as drag racing. | Sold Individually.
Use with MSD 7 and 8 Series Ignitions ONLY - Short-Duration Applications
- For MSD 7 and 8 ignitions only, not for use on street vehicles
- Extremely low primary resistance

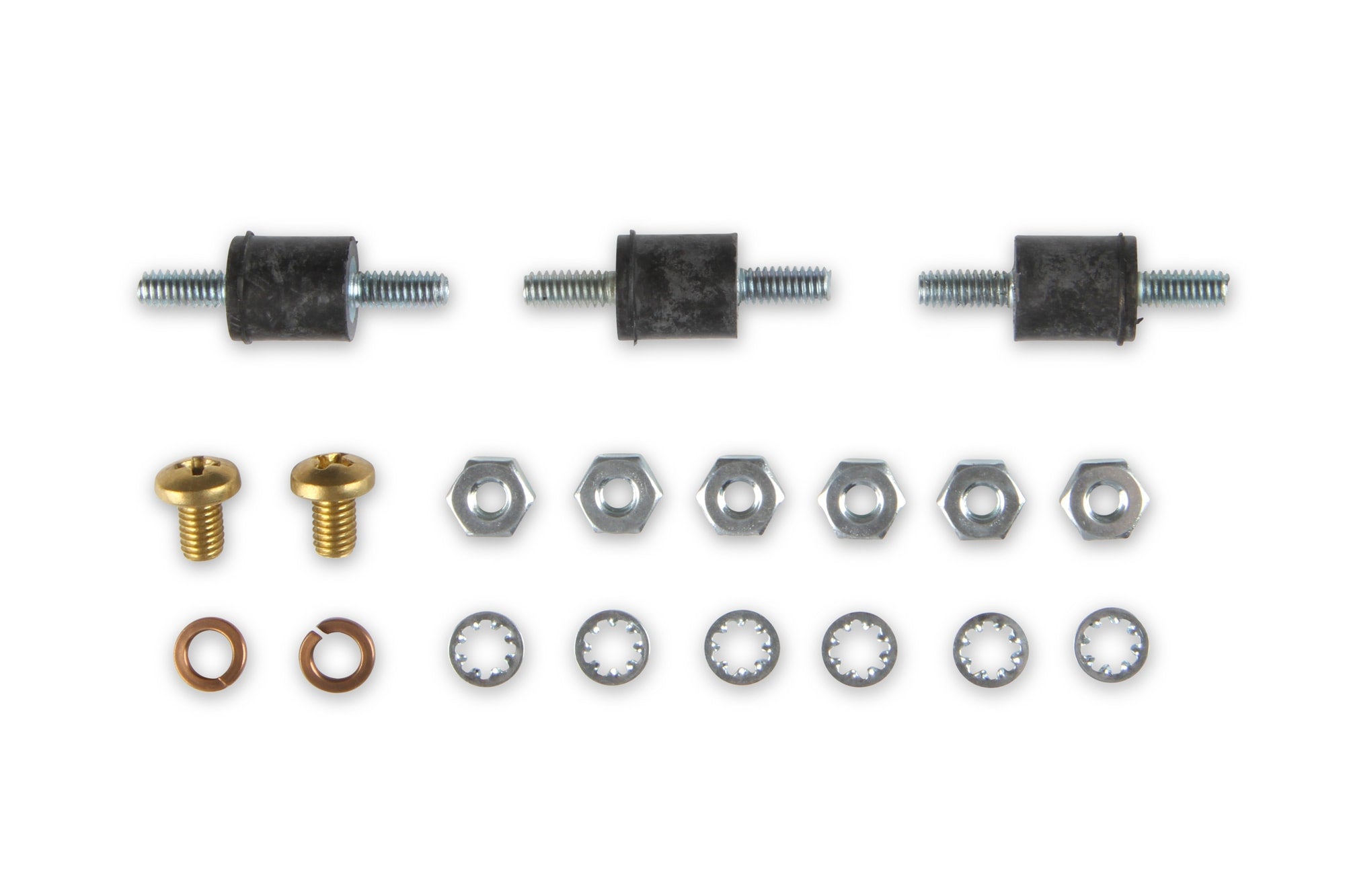

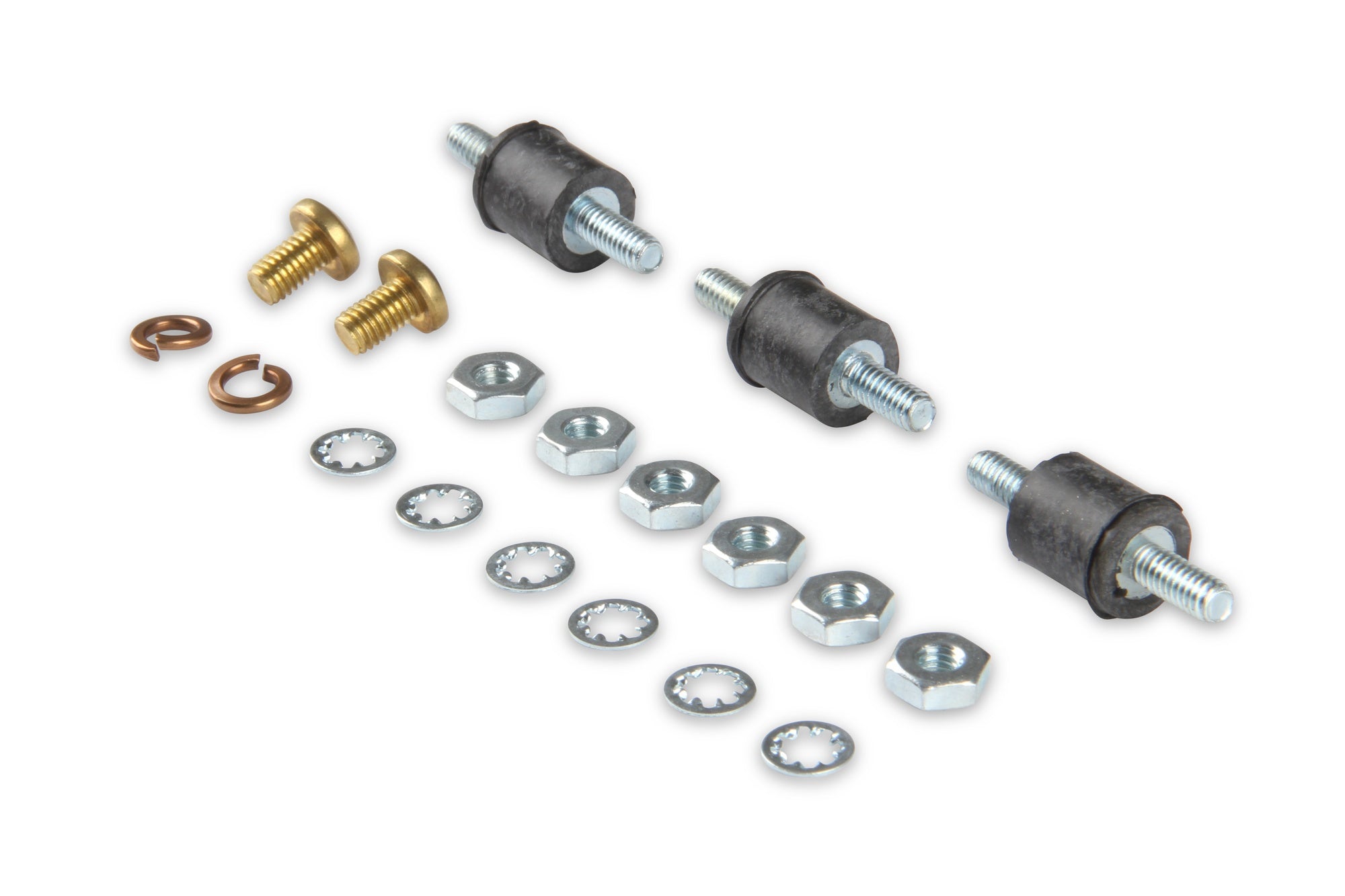

- Supplied with rubber shock mounts
- Housing is molded from a durable and high dielectric polyester
- High voltage coil designed for short duration applications only
- Primary and secondary windings are encased in Ciba polyurethane for vibration protection
📖
About this product
Use with MSD 7 and 8 Series Ignitions ONLY - Short-Duration Applications
📋
Product Specifications
Brand
MSD
California Proposition 65 Chemical Name
32
Category
Ignition
Color
Red
Emission Code
4
Inductance (mH)
1
Inductance
1 mH
Maximum Voltage
43
Part Type
Ignition Coil
Peak Current
800
Primary Resistance
.03 OHMs
Primary Resistance
0.03
Product Type
Ignition Coil
Secondary Resistance
240
Spark Duration
0.18
Spark Duration
180 uS
Sub Category
Ignition Coil
Turns Ratio
4.167361111111111
Turns Ratio
4.17
Type
Drag Race / Short Duration Use
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
CN
Emissions Code
4
HS Code
8511300080
📐
Dimensions & Shipping
Product Dimensions
4.7 × 4.1 × 3.4 in
Shipping Dimensions
4.7 × 4.1 × 3.4 in
Weight
567 g (0.57 kg)
