MSDPart 86415Made in CN
Product Details
⭐
Key Features
Coil output specs obtained when used with the MSD 6EFI ignition box part number 6415.

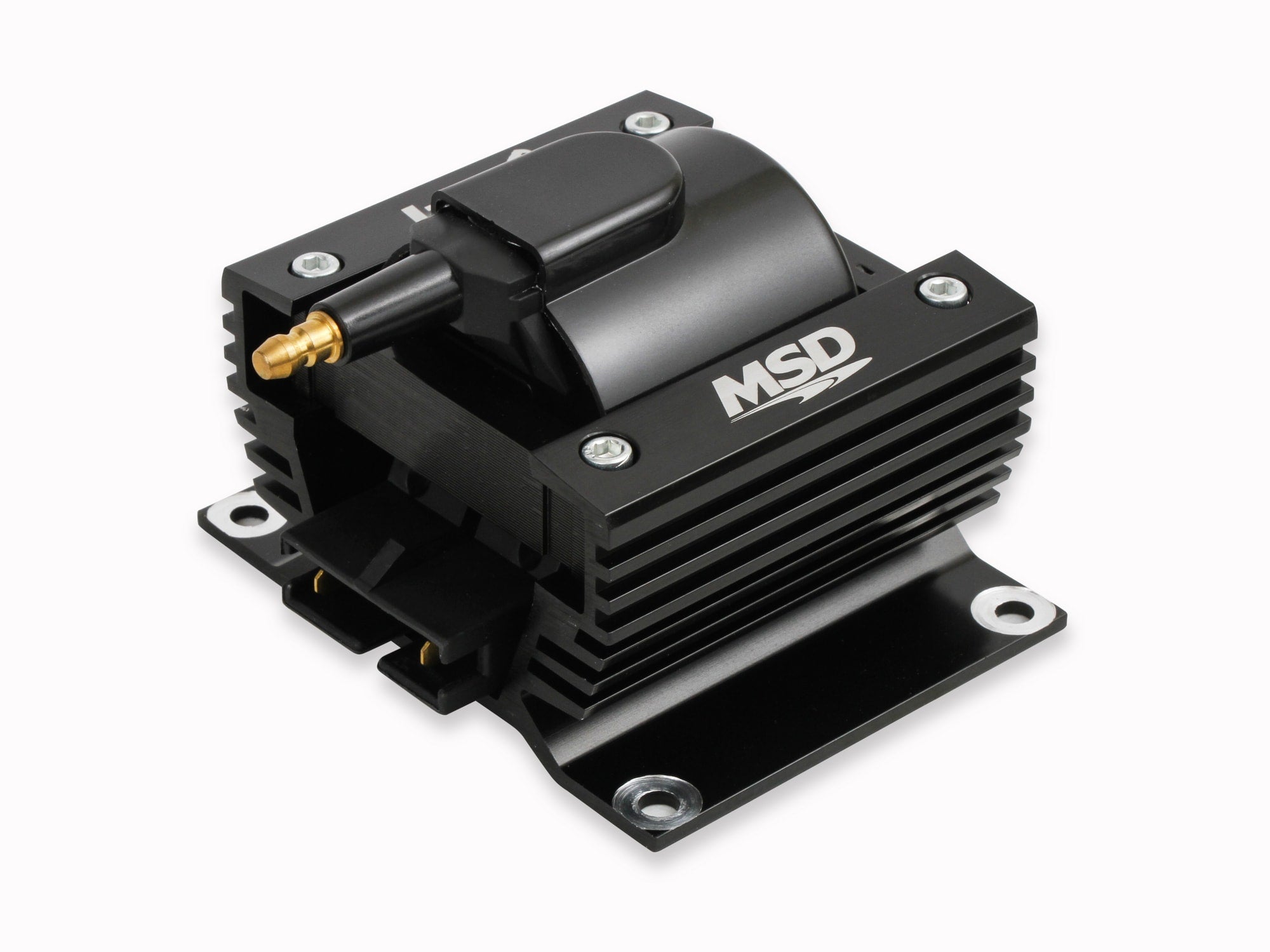

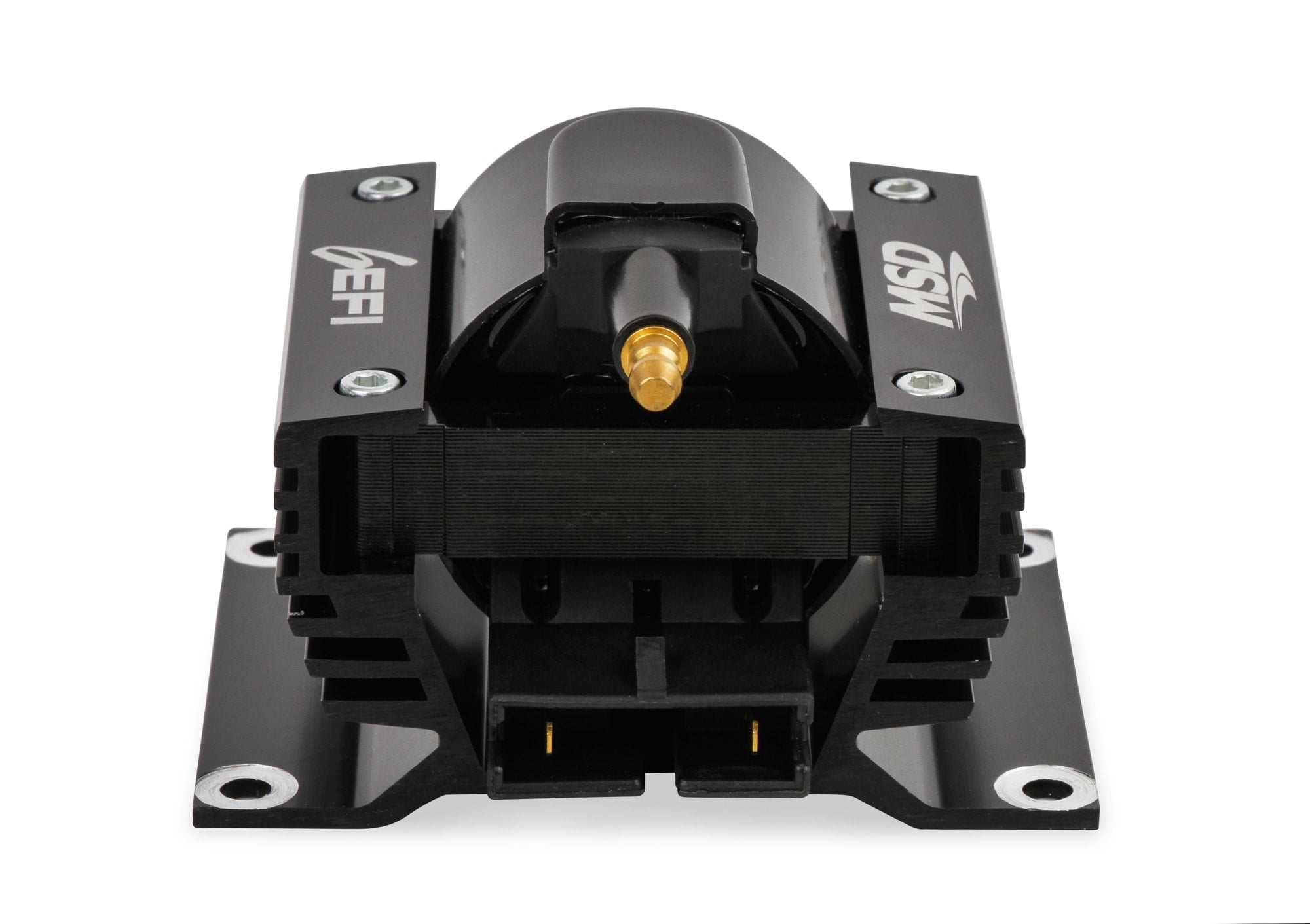

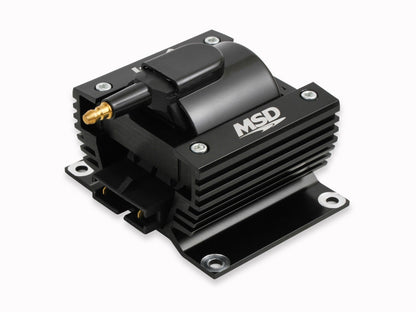

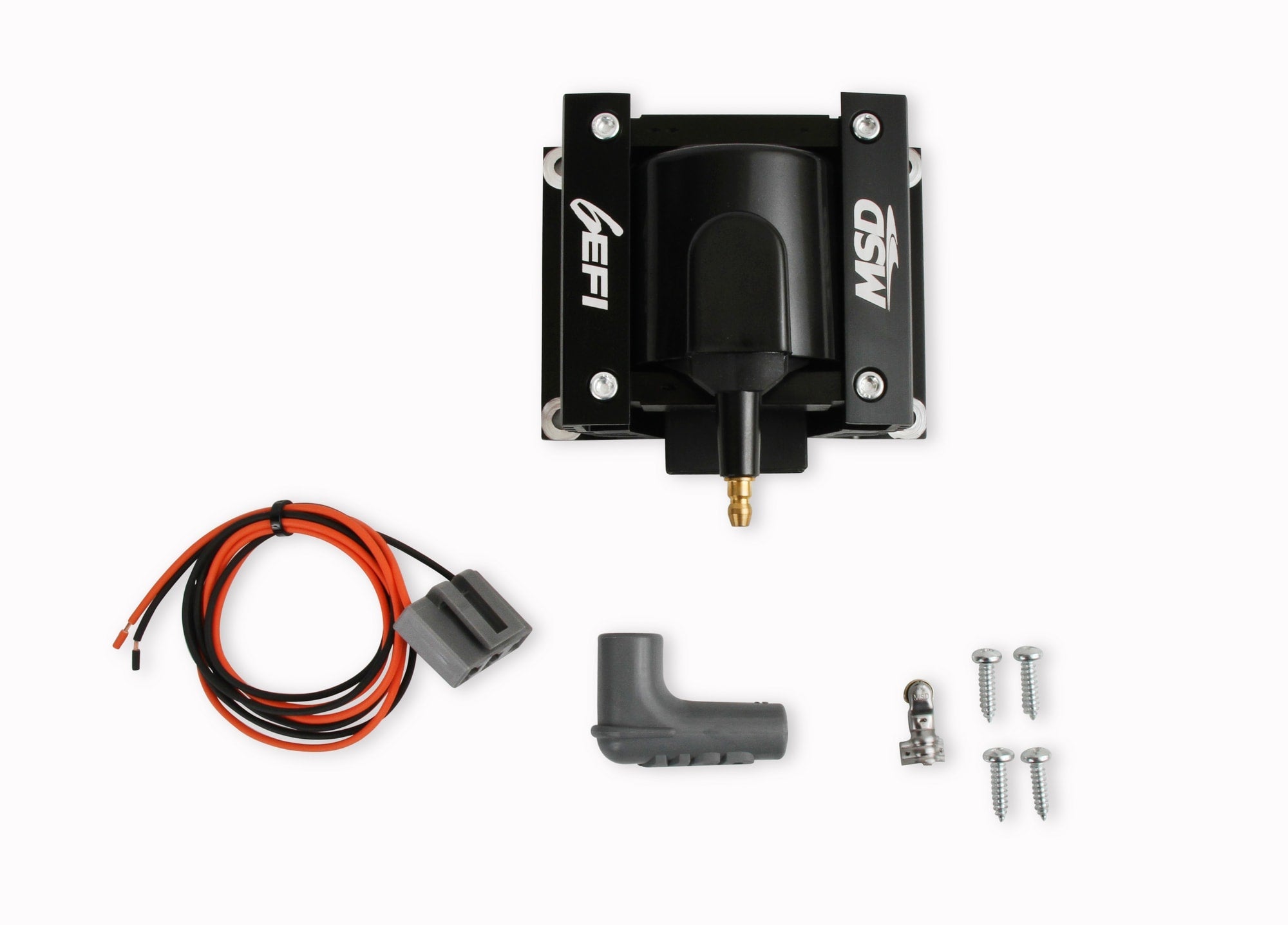

When running an MSD Atomic EFI or similar throttle body fuel injection system with a 6EFI ignition box, the 6EFI ignition coil is made for you. Designed to match the 6EFI ignition, the 6EFI coil has a clean black appearance with logos laser-etched on its black anodized aluminum mounting bracket. It is supplied with four, self-tapping mounting screws and a plug-in harness with color-coded wires for easy installation. The 6EFI coil produces high voltage and current that translate to powerful spark improving engine starting, throttle response, and power throughout the RPM range.
Designed To Be Used With The 6EFI Ignition Box Part Number 6415
- Designed to work with the MSD 6EFI Ignition part number 6415 and can also be used with other MSD 6-series ignition boxes such as a 6AL part number 6425

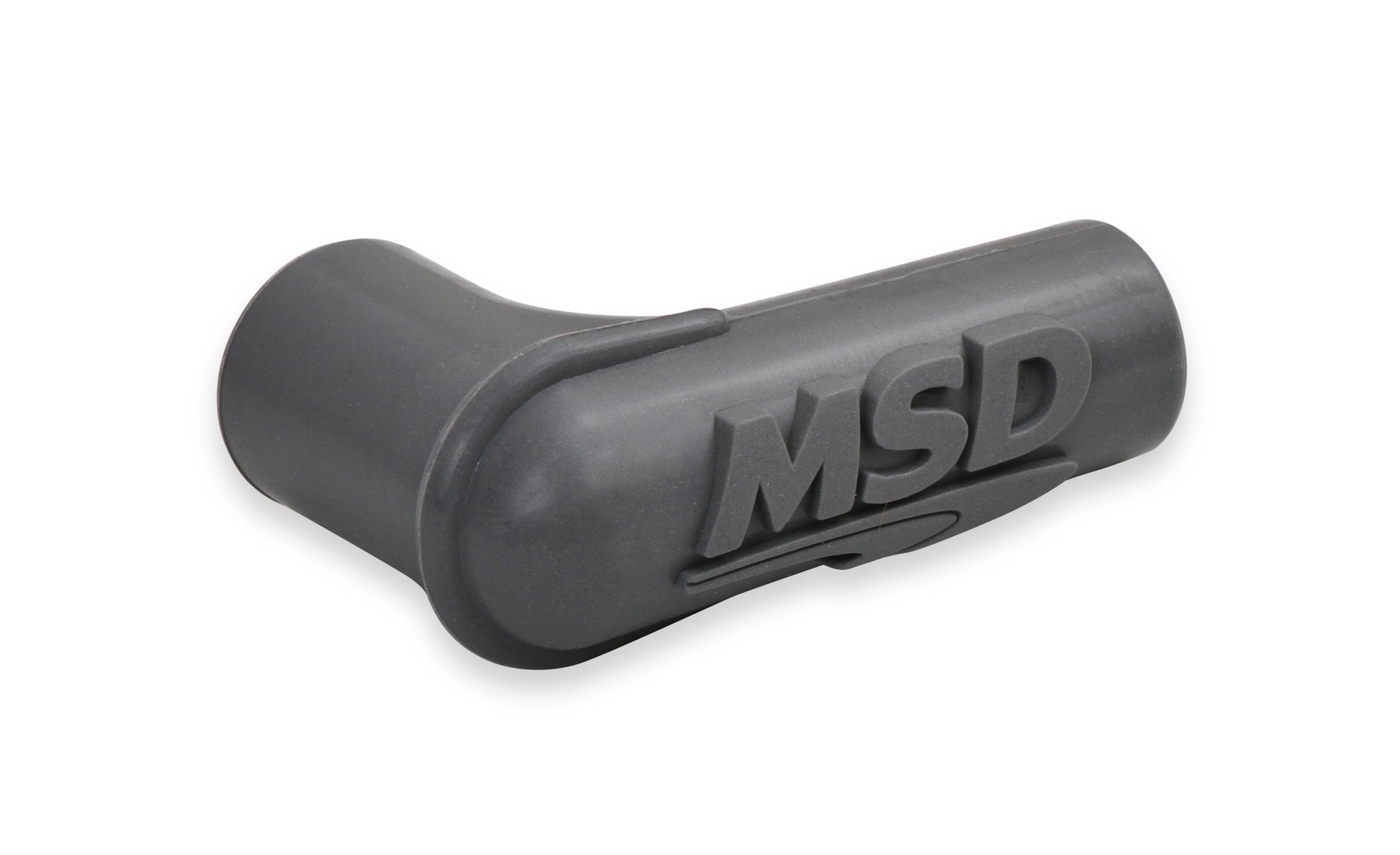

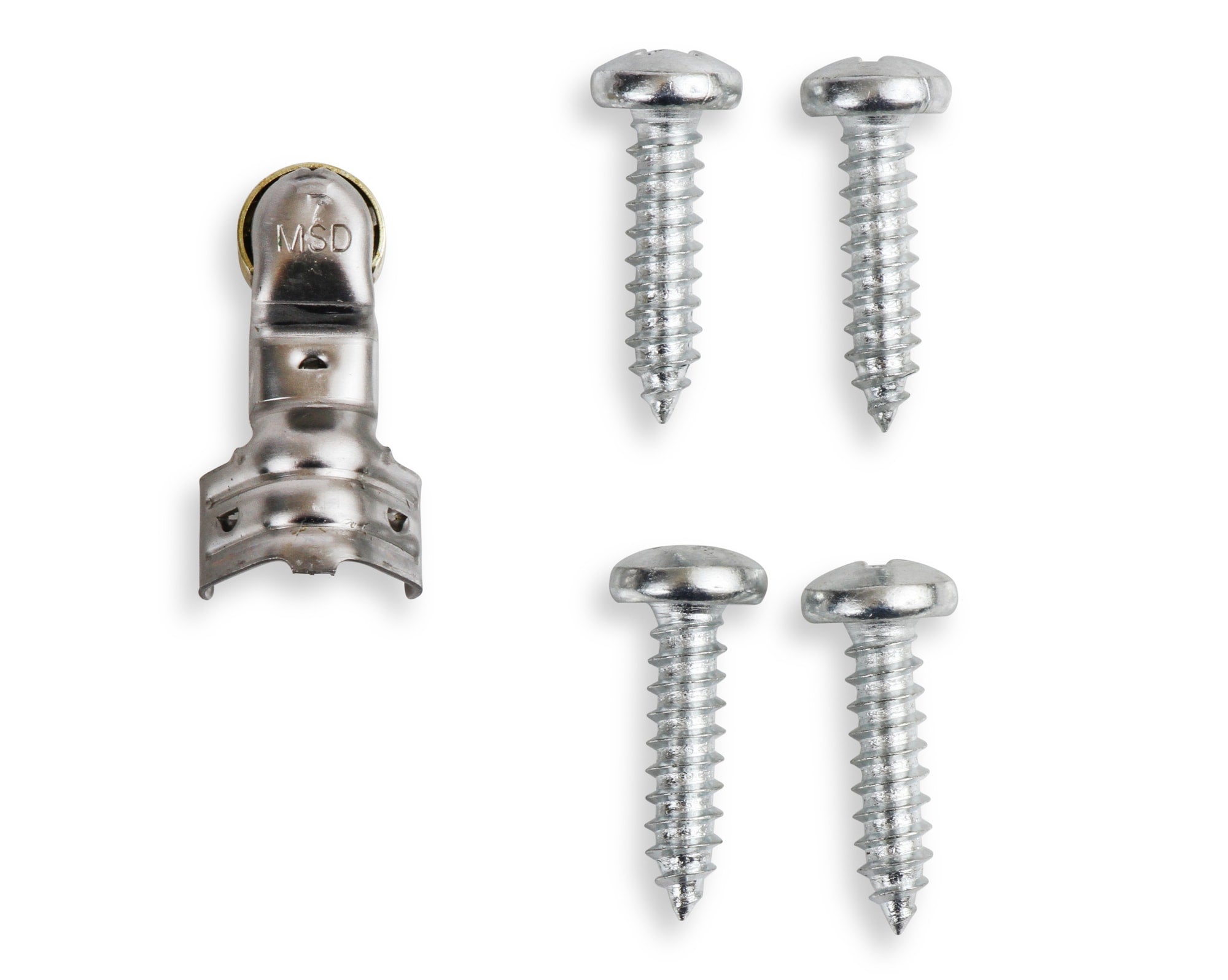

- An MSD spark plug wire boot and terminal come in the kit to convert your existing coil wire from a female, socket connection to a male high energy ignition (H.E.I.) connection if needed
- The black housing and laser-etched black anodized mounting bracket add great looks and a solid mounting point
- Produces high spark energy to ensure the air and fuel in your engine get burned completely to improve starting, throttle response, and supply powerful spark throughout the RPM range

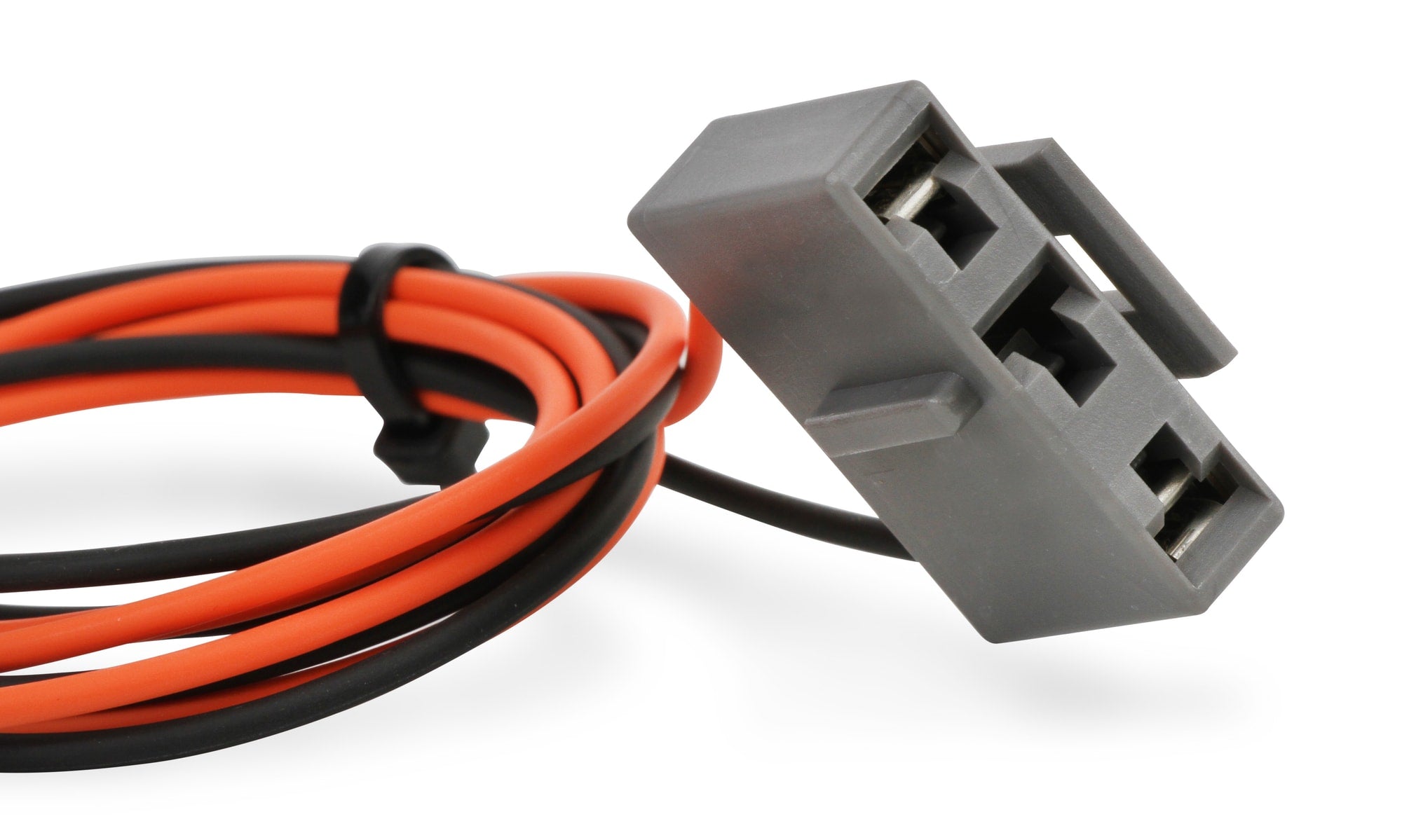

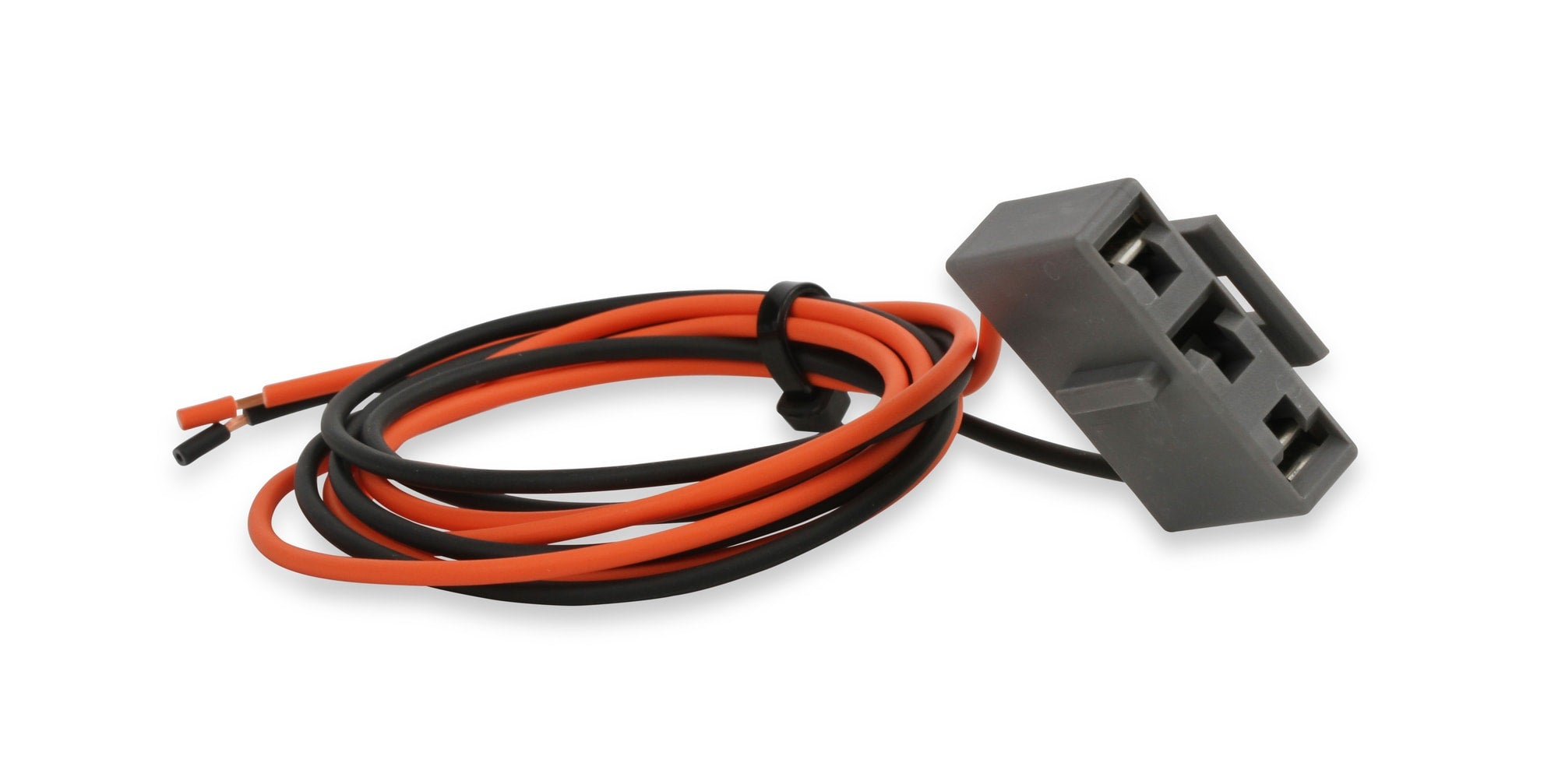

- Provided with a plug-in wiring harness with wire colors that match the 6EFI ignition for an easy installation

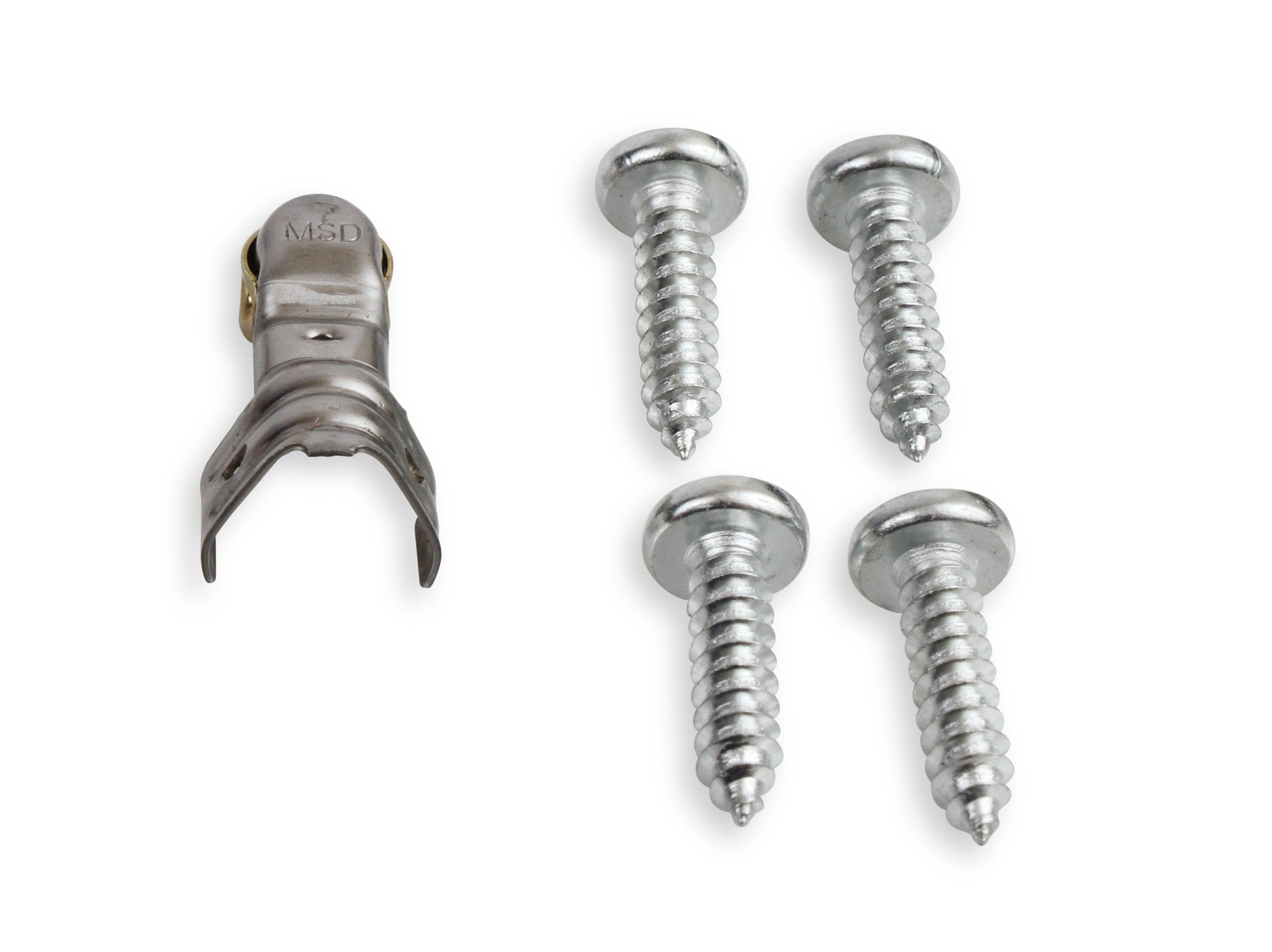

- Four, self-tapping screws are supplied for mounting the coil
📖
About this product
Designed To Be Used With The 6EFI Ignition Box Part Number 6415
📋
Product Specifications
Brand
MSD
California Proposition 65 Chemical Name
4
Category
Ignition
Color
Black
Emission Code
2
Inductance (mH)
4.34
Inductance
4.34 mH
Maximum Voltage
45
Part Type
Ignition Coil
Peak Current
300
Primary Resistance
0.43
Primary Resistance
0.43 Ohms
Product Type
Ignition Coil
Secondary Resistance
4.6K
Secondary Resistance
4.6K Ohms
Spark Duration
0.3
Spark Duration
300 uS
Sub Category
Ignition Coil
Turns Ratio
3.33
Turns Ratio
3.3340277777777776
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
CN
Emissions Code
2
HS Code
8511300080
📐
Dimensions & Shipping
Product Dimensions
7.0 × 4.9 × 4.2 in
Shipping Dimensions
7.0 × 4.9 × 4.2 in
Weight
1021 g (1.02 kg)
