Key Features

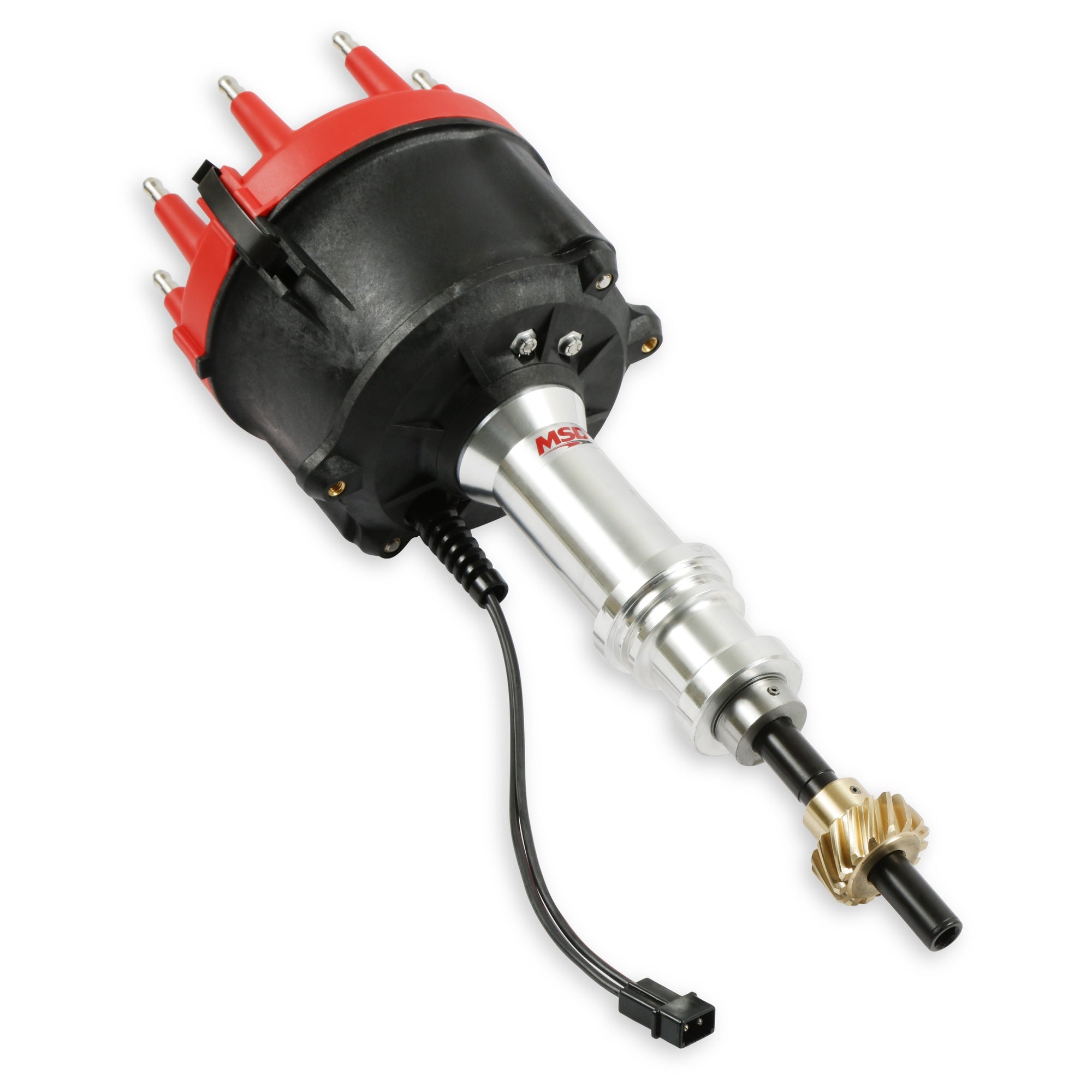

Small Block Ford - 289/302 - SBF - Must Be Used With an MSD 6, 7, or 8-Series Ignition
- Made of a bronze/aluminum/nickel alloy (AMPCO 45) | Must be used with MSD ignition. | - Softer material will not damage the camshaft | The 85827 Distributor comes with Bronze Gear 8583 already installed and is designed for camshafts requiring a bronze distributor gear: | - Used with billet steel cams | - Should be changed more frequently than other gear materials | The steel shaft that spins the advance and reluctor receives a friction-reducing coating and is guided by a sealed ball bearing and long sintered bushing. This combination provides stable timing signals and spark delivery at any rpm. Triggering chores are handled by MSD's race-proven, maintenance-free magnetic pick-up. MSD premium distributors come complete with a race rotor and alkyd cap. | For Ford enthusiasts that are serious about performance! Just under the brass terminals of the MSD cap and rotor is an easy-to-adjust mechanical advance assembly. The assembly is fine blanked from Chromoly Steel, TIG-welded for strength plus receives a QPQ coating. The precision weights glide on nylon bushings for smooth advancement and different springs and stop bushings are supplied so a variety of advance curves can be tuned. The adjustable mechanical advance assembly allows you to accurately and easily modify the advance curve to match your specific application.
Small Block Ford - 289/302 - SBF - Must Be Used With an MSD 6, 7, or 8-Series Ignition
- Must be used with an MSD Ignition Control
- Easy-to-adjust mechanical advance with supplied springs and stop bushings

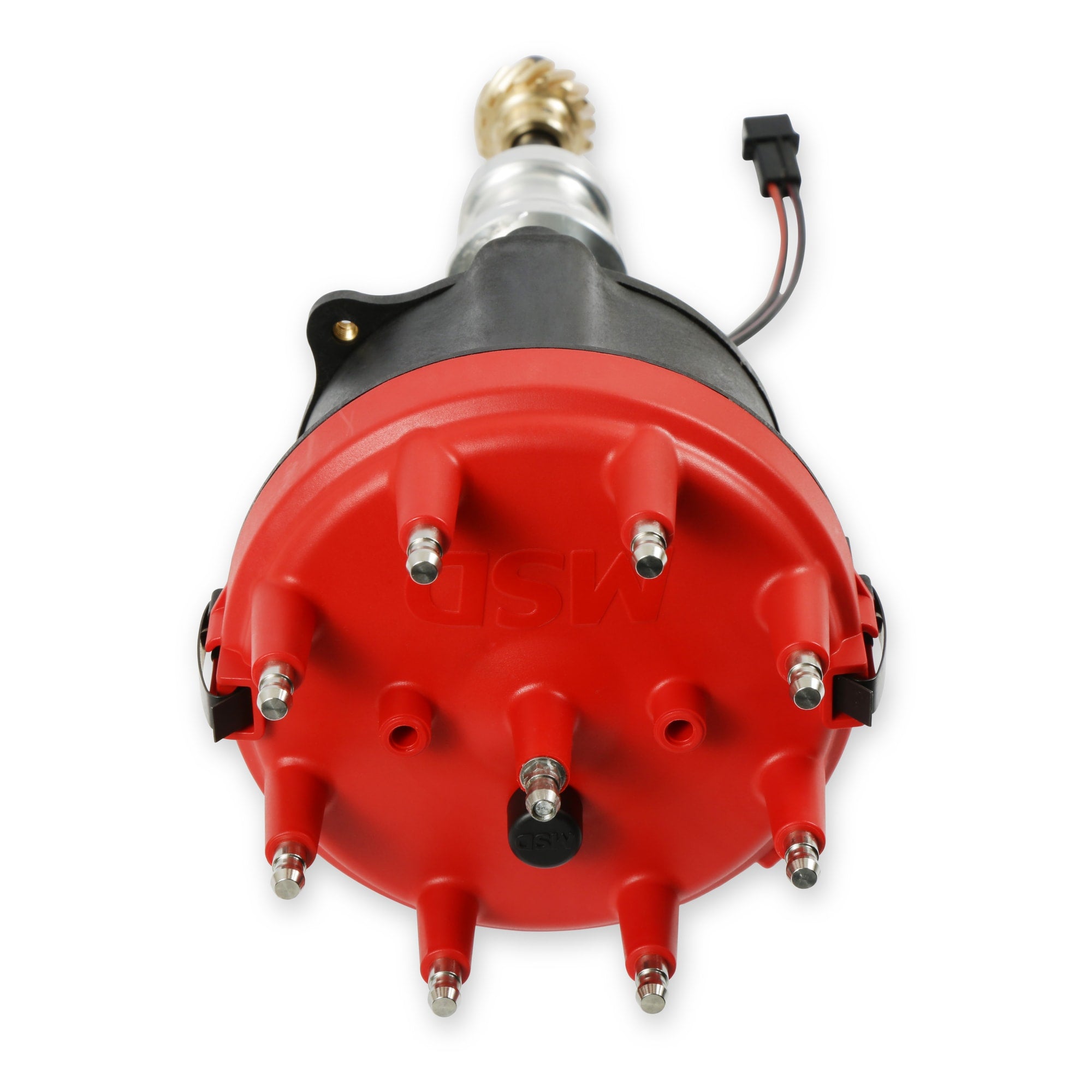

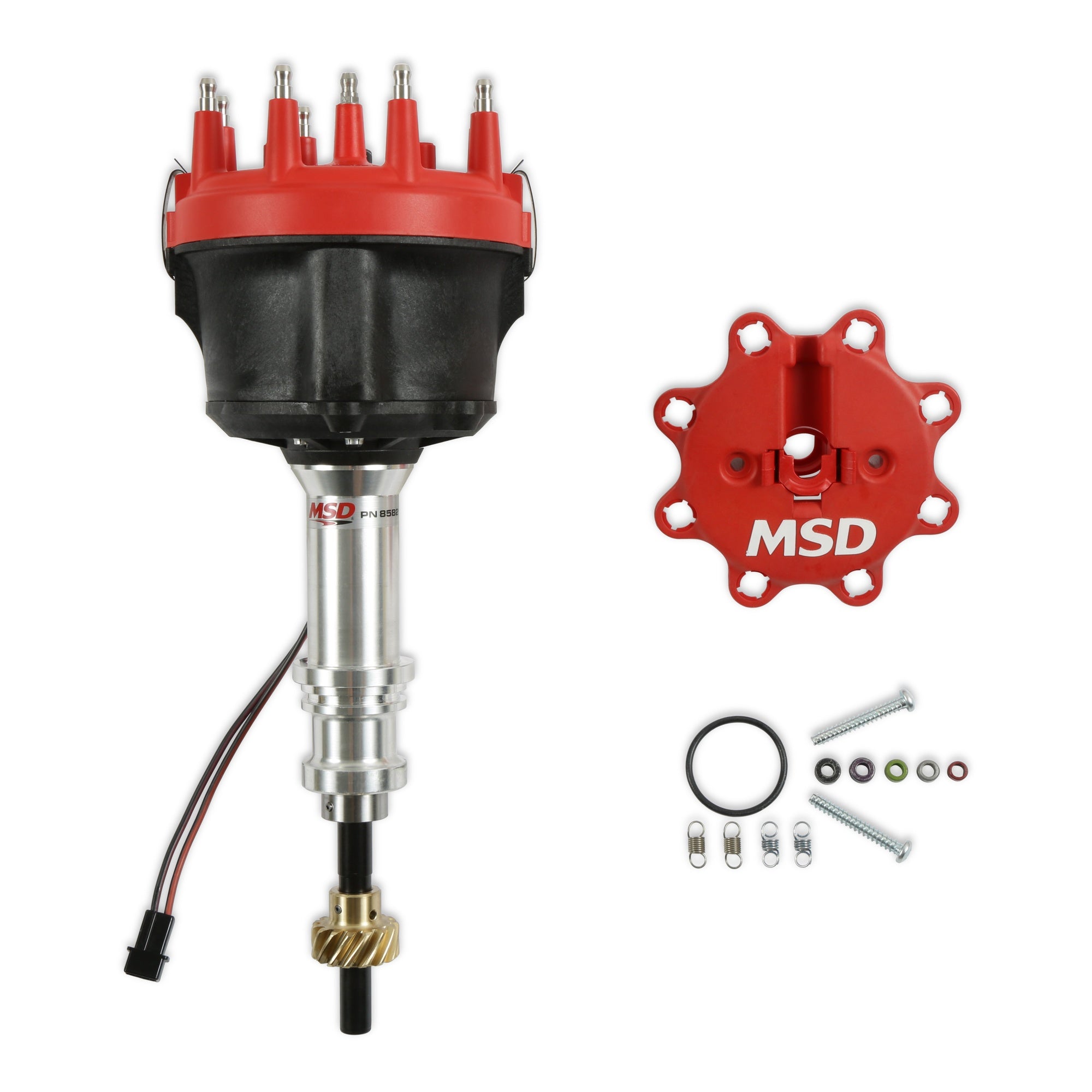

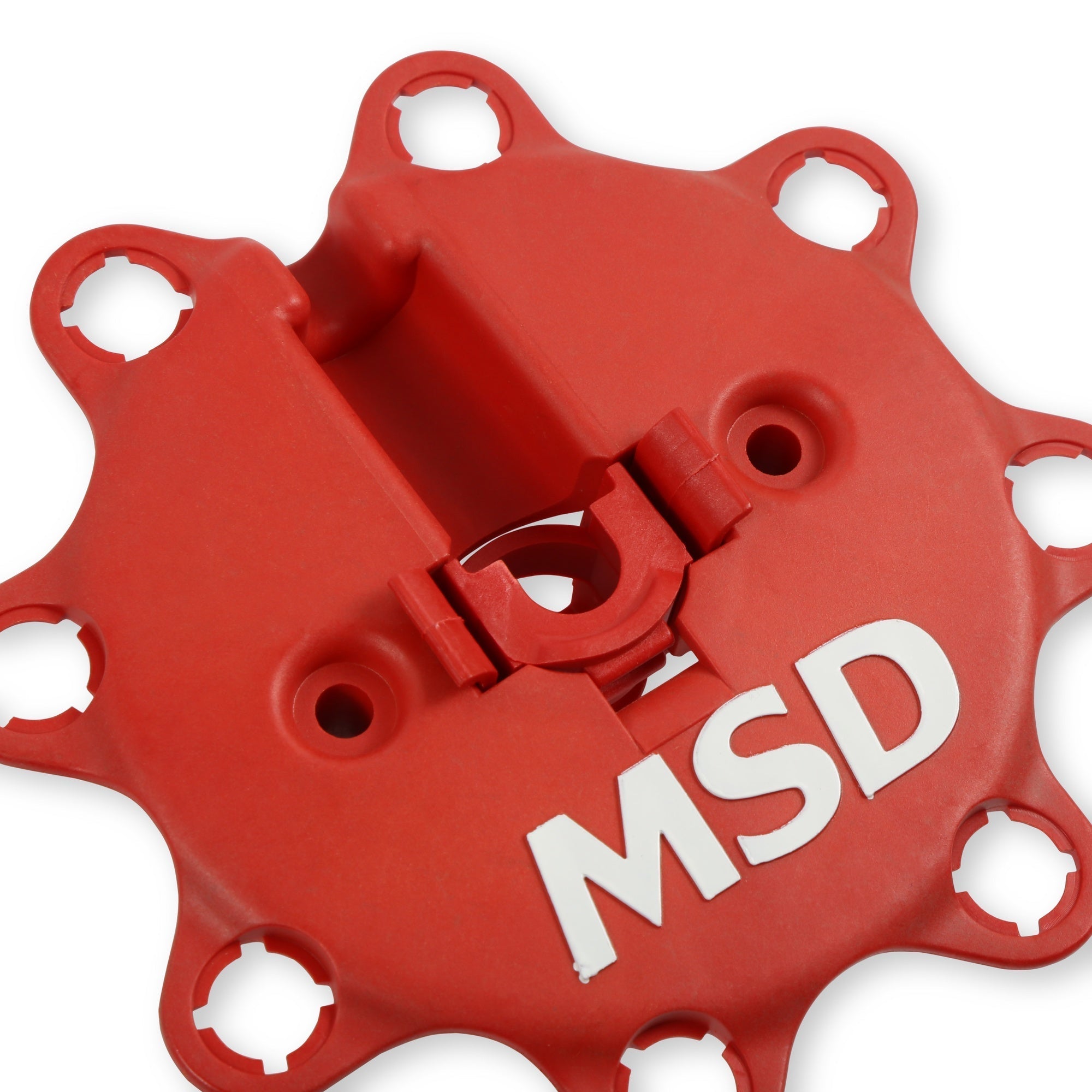

- Supplied with Cap-A-Dapt and rotor (accepts MSD socket style caps)
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Gear machined from AMPCO 45 aluminum bronze containing 5% Nickel
- CNC machined billet 6061-T6 aluminum housing
- Nylon pads ensure smooth operation of the advance weights

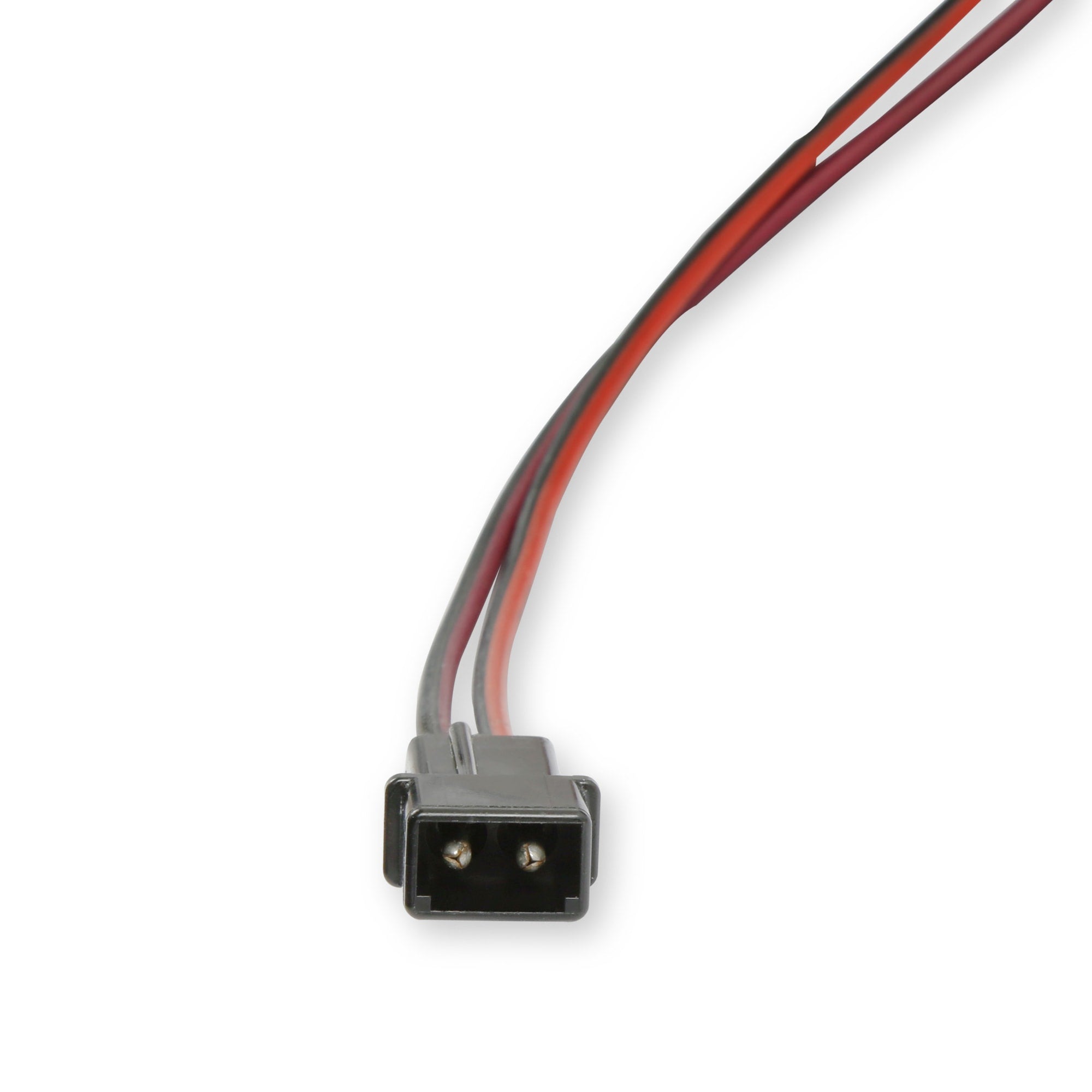

- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing

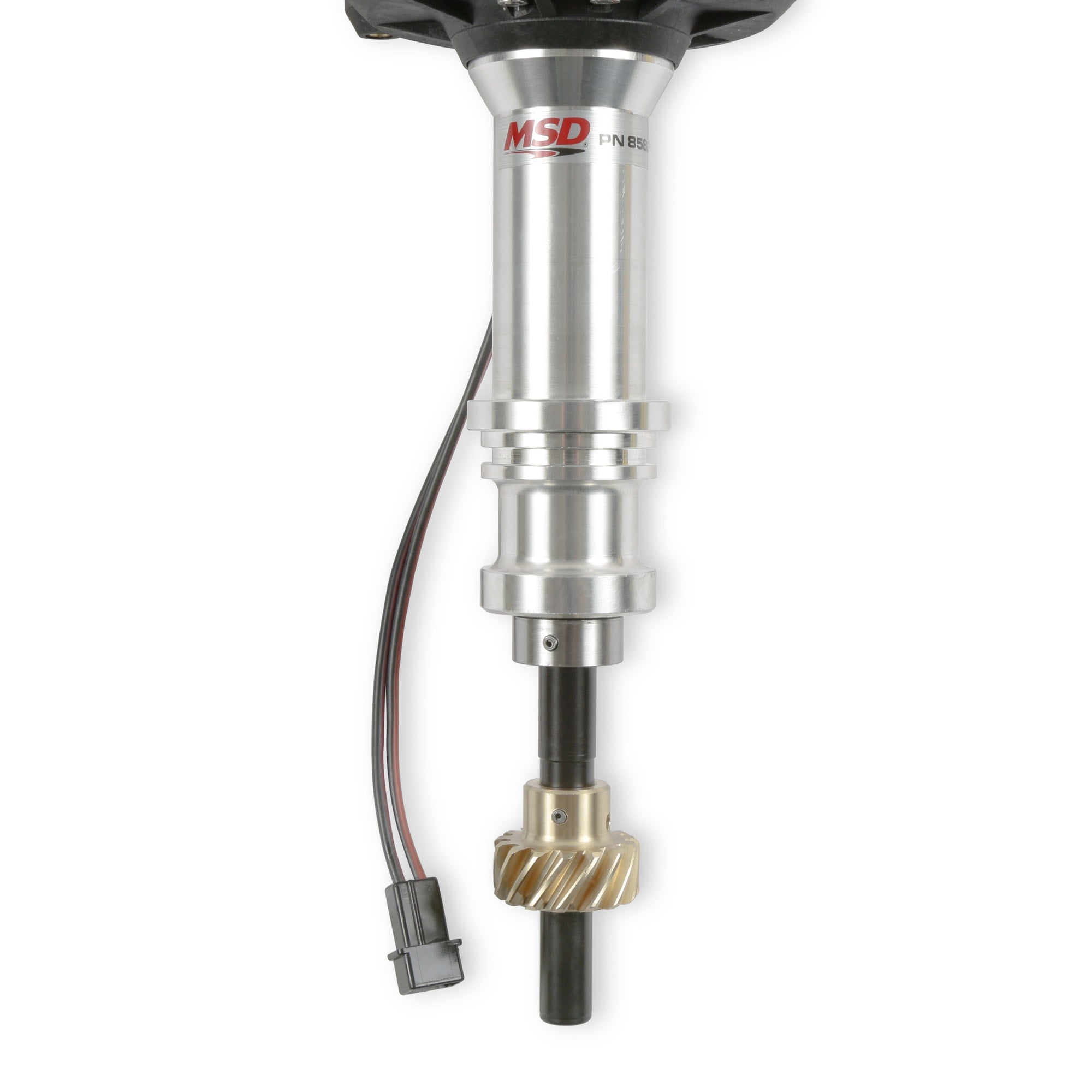

- Pre-installed Bronze Gear for aftermarket billet roller camshafts
- Advance weight pins are staked and TIG welded to the plate
- Mechanical advance assembly can be locked out for crank trigger systems
📖
About this product
Small Block Ford - 289/302 - SBF - Must Be Used With an MSD 6, 7, or 8-Series Ignition
📋
Product Specifications
Automotive Item Grade
Performance
Brand
MSD
California Proposition 65 Chemical Name
1
California Proposition 65 Required
Yes
Category
Ignition
Color
Red and Black
Distributor Cap Included
Yes
Distributor Type
Magnetic Pickup
Emission Code
3
Engine Make
Ford
Gear Material
Bronze
Gear
Bronze
Grade Type
Performance
Height
8.4375
Ignition Box Required
Yes
Ignition Coil Included
No
Ignition Rotor Included
Yes
Part Type
Distributor
Product Type
Distributor
Prop 65 Yes/No
Yes
Quantity
1
Sub Category
Distributor and Magneto
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
US
⚠ Prop 65 Warning
Yes
1
Emissions Code
3
HS Code
8511300040
📐
Dimensions & Shipping
Product Dimensions
18.5 × 7.0 × 6.9 in
Shipping Dimensions
18.5 × 7.0 × 6.9 in
Weight
2259 g (2.26 kg)
