MSDPart 8589Made in US
Product Details
⭐
Key Features
This is our most Australian popular performance distributor! Must be used with an MSD 6, 7 or 8-series ignition.
The housing is machined from a billet of 6061-T6 aluminum on a state-of-the-art CNC machine producing exact tolerances. For high rpm stability, a .500" steel shaft is supported by a sealed ball bearing and a long sintered bushing. This shaft also receives a QPQ coating for friction reduction and resistance to corrosion. A precision machined reluctor is attached to the shaft which triggers the magnetic pick-up mounted in the housing. This high output magnetic pick-up is the most accurate way to trigger your ignition. Plus, with no moving parts to wear or adjust, the pick-up is maintenancefree! Just above the pick-up is MSD's adjustable mechanical advance assembly. | Different springs and stop bushings are supplied so you can tune an advance curve to match your application. | Must be used with an MSD 6, 7 or 8-series ignition.
This is our most Australian popular performance distributor! Must be used with an MSD 6, 7 or 8-series ignition.
- Nylon pads ensure smooth operation of the advance weights
- CNC machined billet aluminum housing and billet aluminum base
- Must be used with an MSD Ignition Control
- Special oil tract improves lubrication to the distributor and cam gear

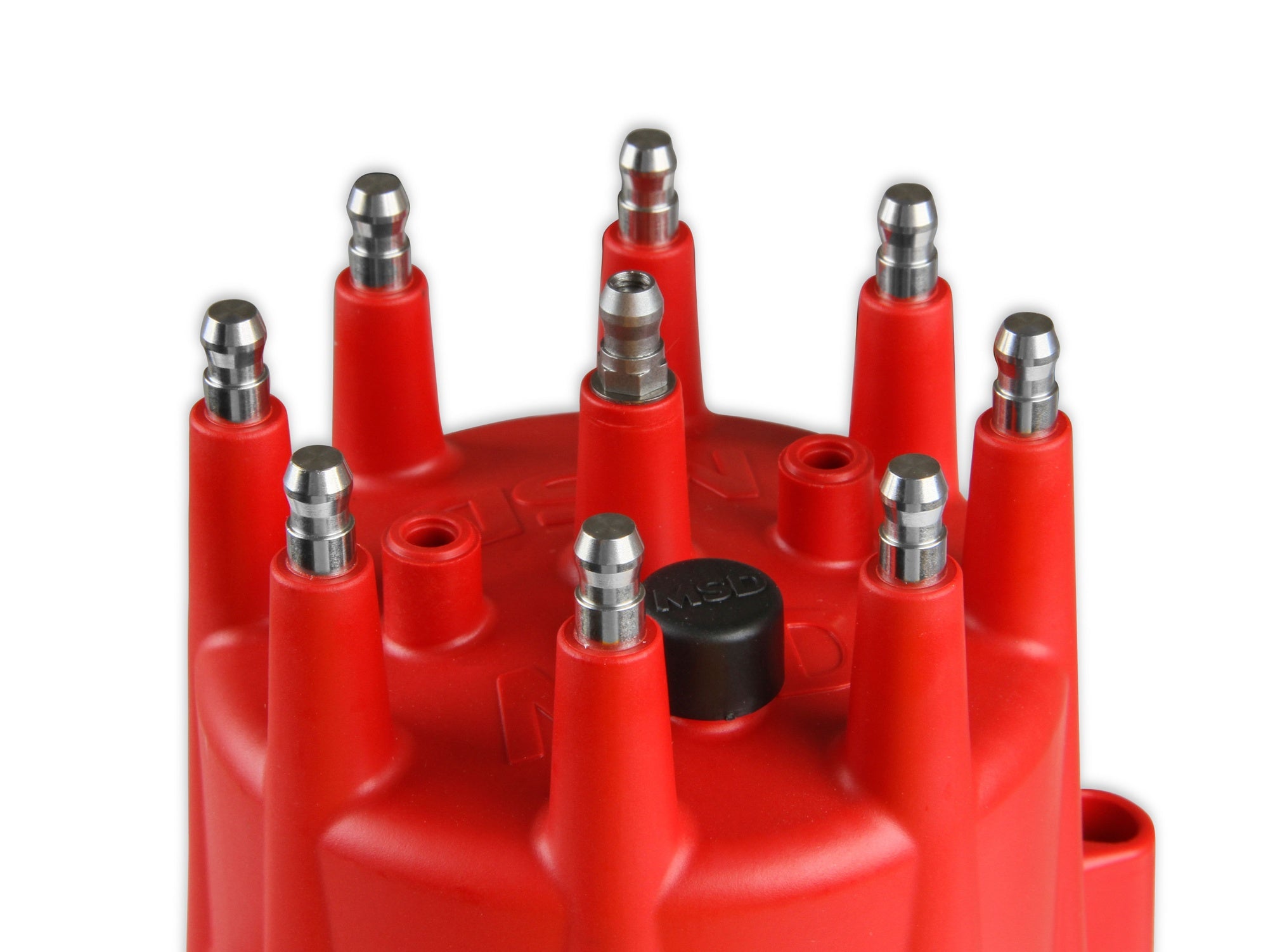

- Supplied with an HEI style distributor cap and rotor (accepts Cap-A-Dapts)
- Will not accept a vacuum advance canister
- Advance weight pins are staked and tig welded to the plate
- Advance plate and weights are fine blanked from chrome moly steel and QPQ coated for friction reduction
- Maintenance-free magnetic pickup and precision reluctor create stable trigger signals throughout the rpm range
- O-ring seals can be added to modified blocks to improve oil pressure control
- Easy-to-adjust mechanical advance with supplied springs and stop bushings
- Mechanical advance assembly can be locked out for crank trigger systems
- Polished steel shaft is QPQ coated and guided by a sealed ball bearing and extra long sintered bushing
📖
About this product
This is our most Australian popular performance distributor! Must be used with an MSD 6, 7 or 8-series ignition.
📋
Product Specifications
Automotive Item Grade
Performance
Brand
MSD
California Proposition 65 Chemical Name
20
Category
Ignition
Color
Red
Distributor Cap Included
Yes
Distributor Type
Magnetic Pickup
Emission Code
3
Gear Material
Cast Iron Melonized QPQ Coated
Grade Type
Performance
Ignition Box Required
Yes
Ignition Coil Included
No
Ignition Rotor Included
Yes
Part Type
Distributor
Product Type
Distributor
Sub Category
Distributor and Magneto
Warning
California Proposition 65
Warranty
Manufacturer's Limited 1 Year Warranty
🛡️
Warranty & Compliance
Warranty
Manufacturer's Limited 1 Year Warranty
Country of Origin
US
Emissions Code
3
HS Code
8409915085
📐
Dimensions & Shipping
Product Dimensions
18.8 × 7.0 × 6.8 in
Shipping Dimensions
18.8 × 7.0 × 6.8 in
Weight
1905 g (1.91 kg)
