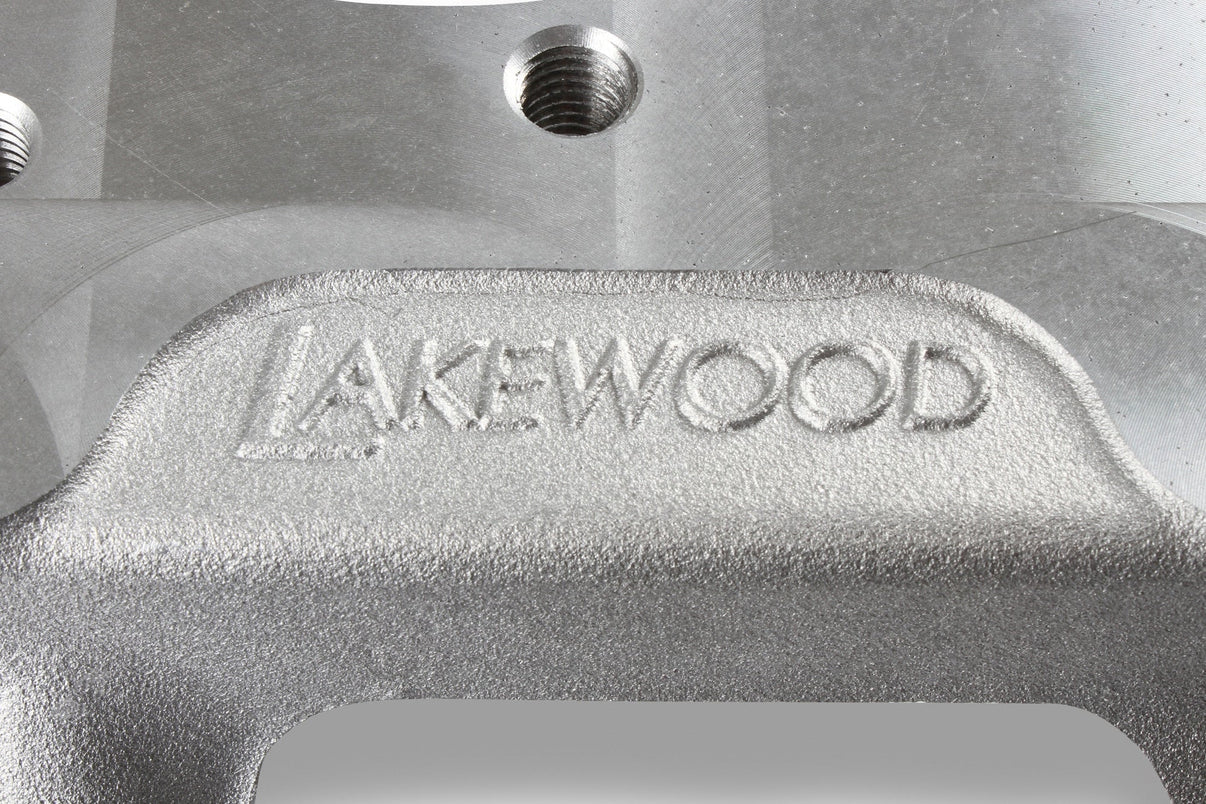

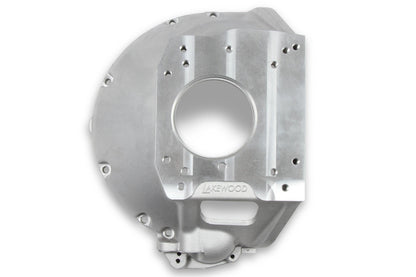

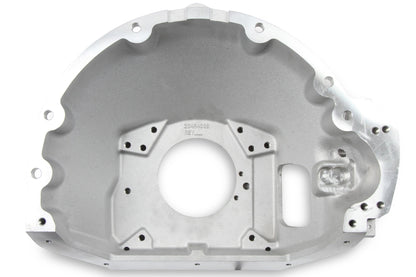

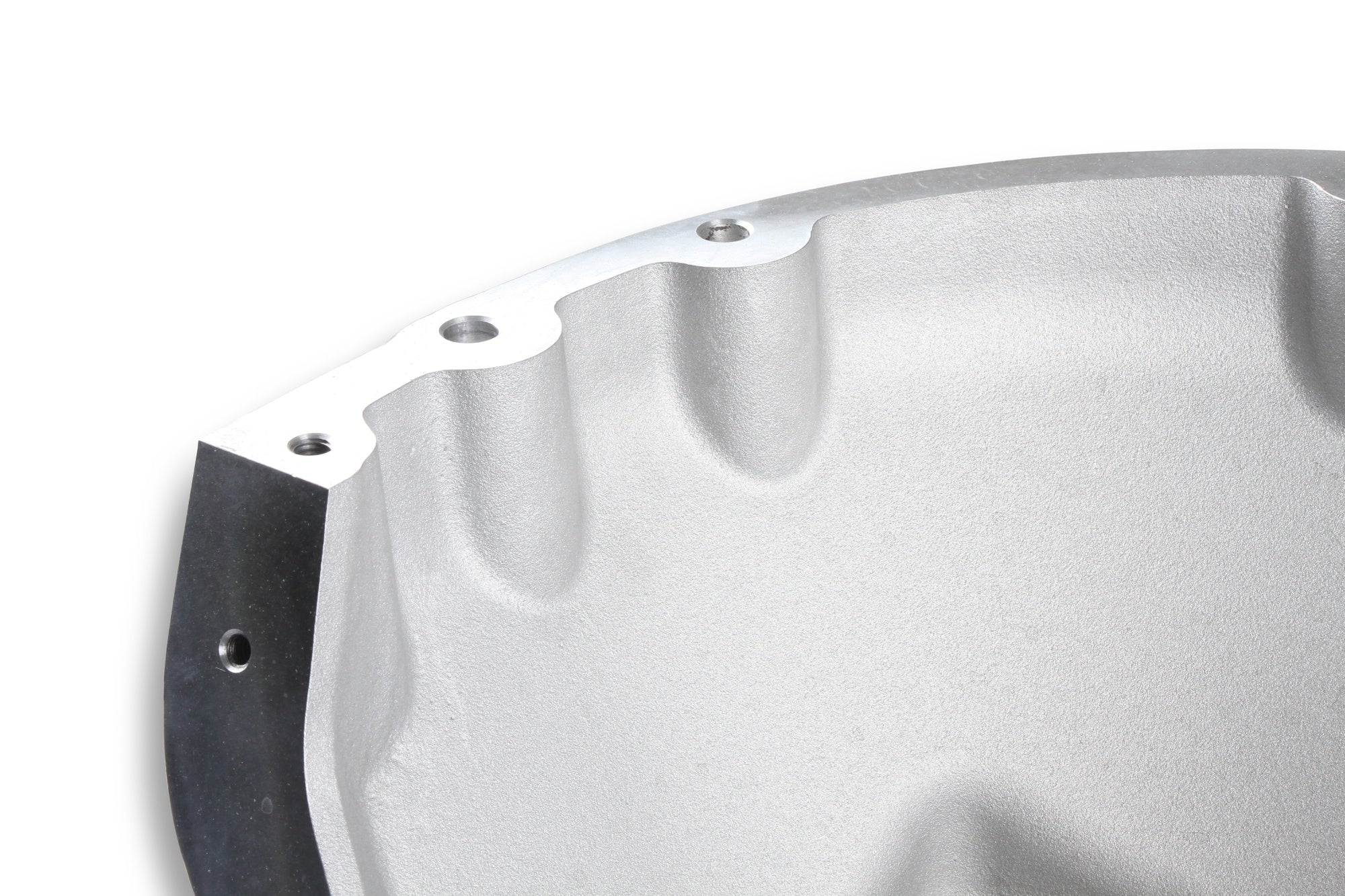

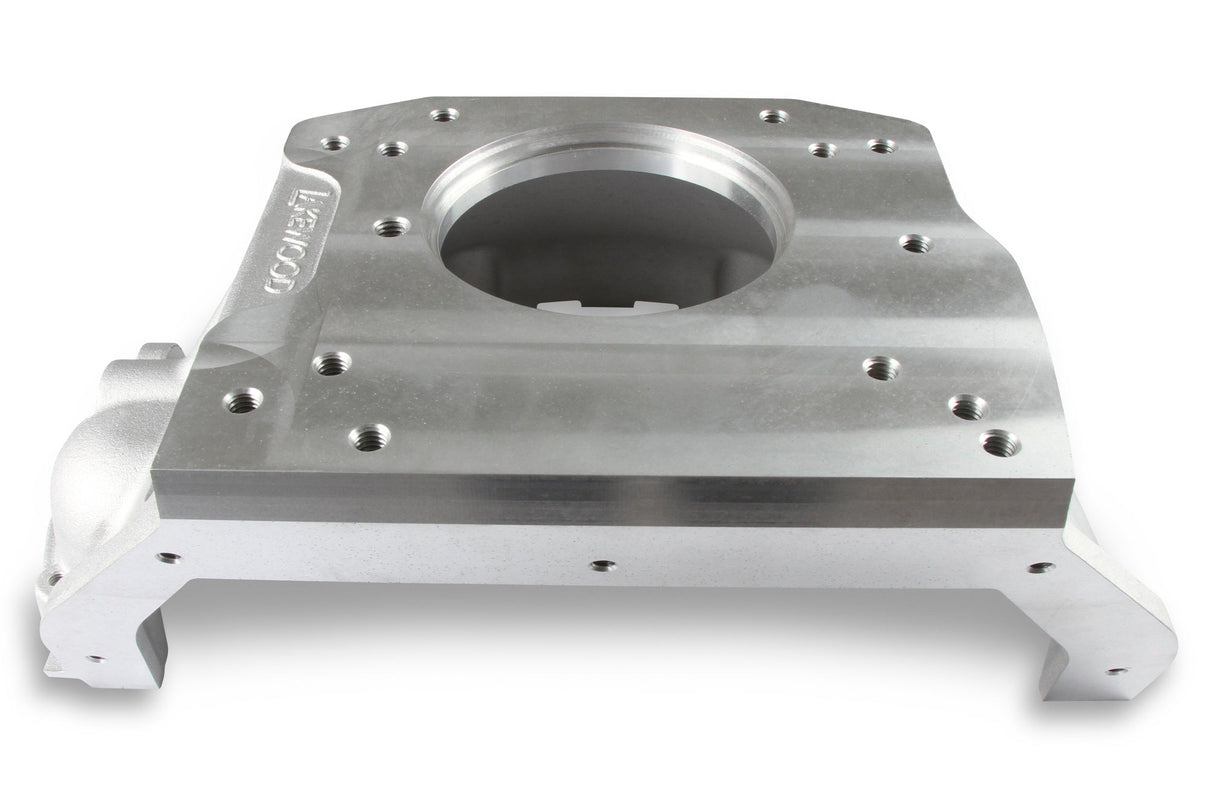

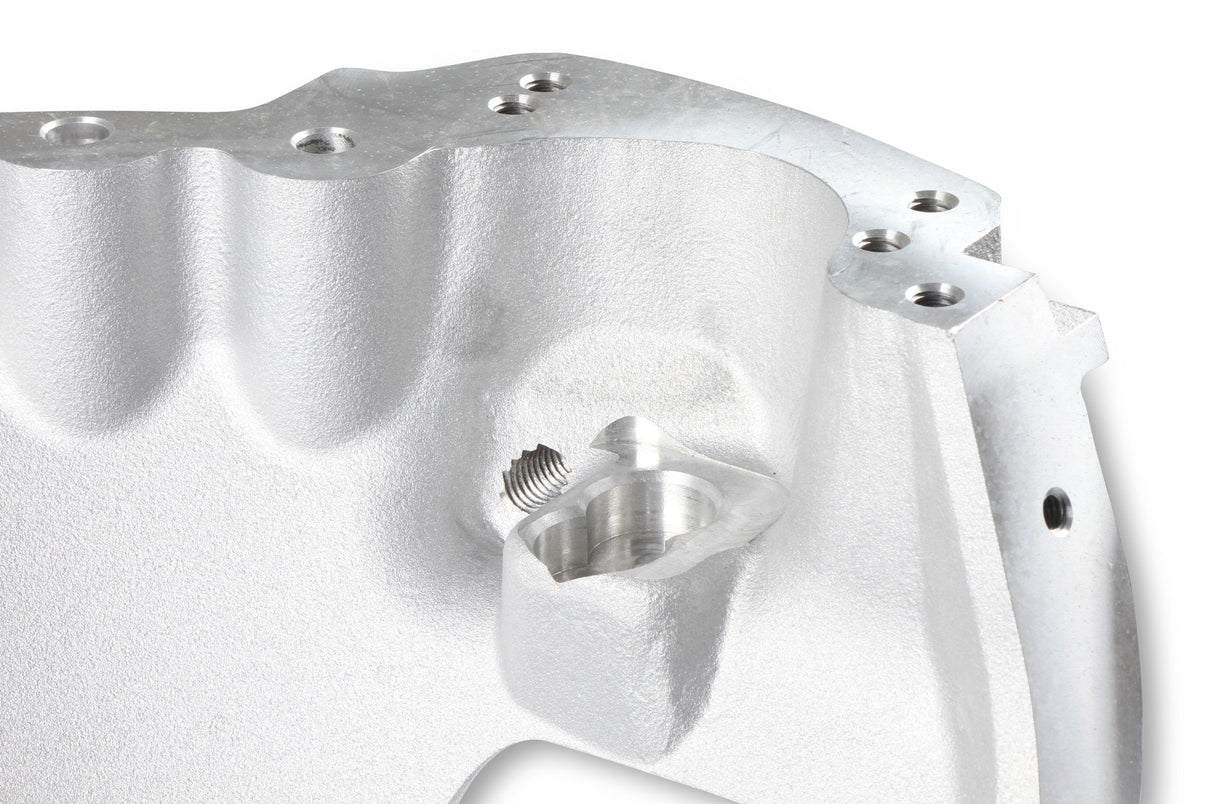

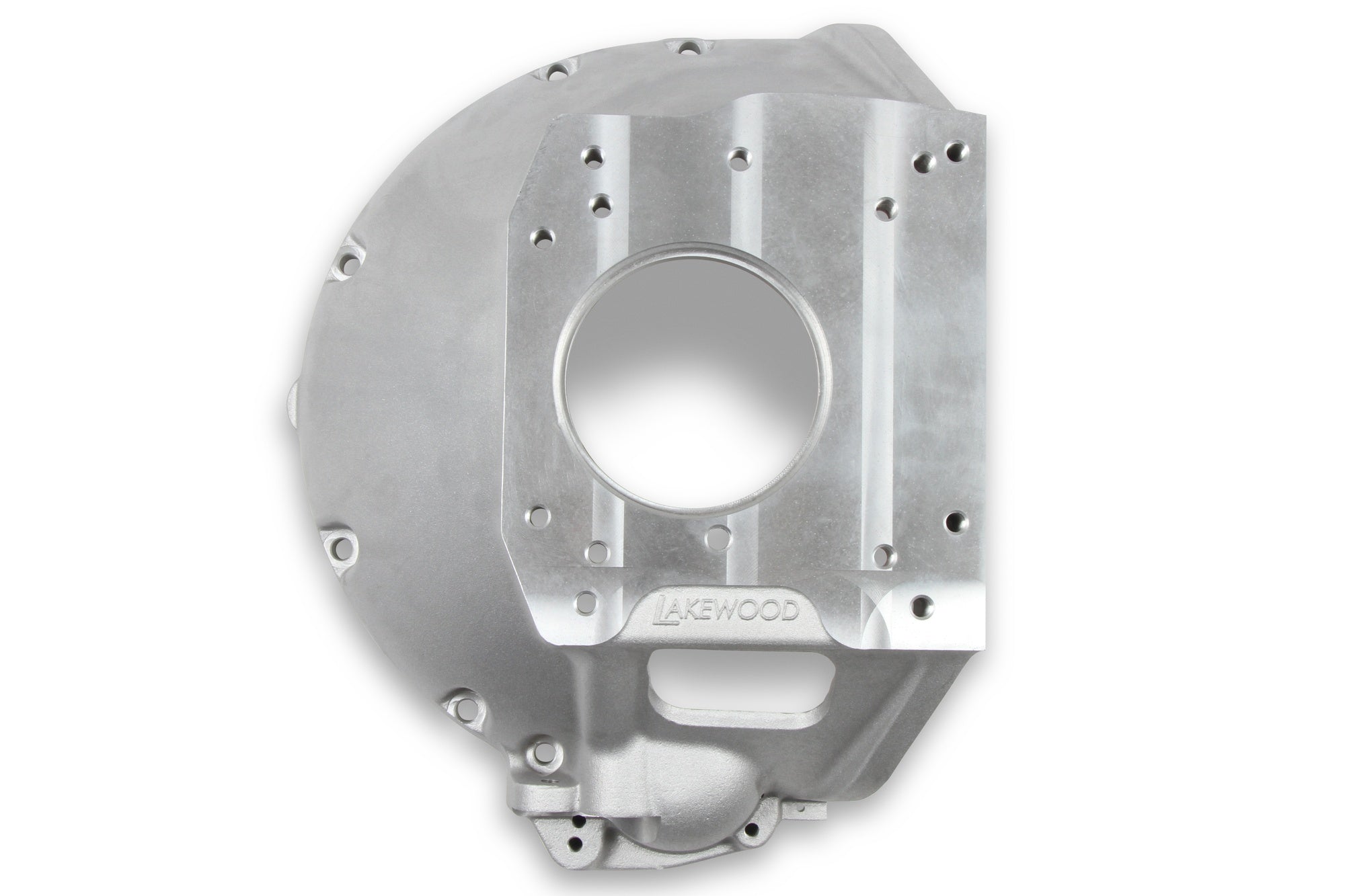

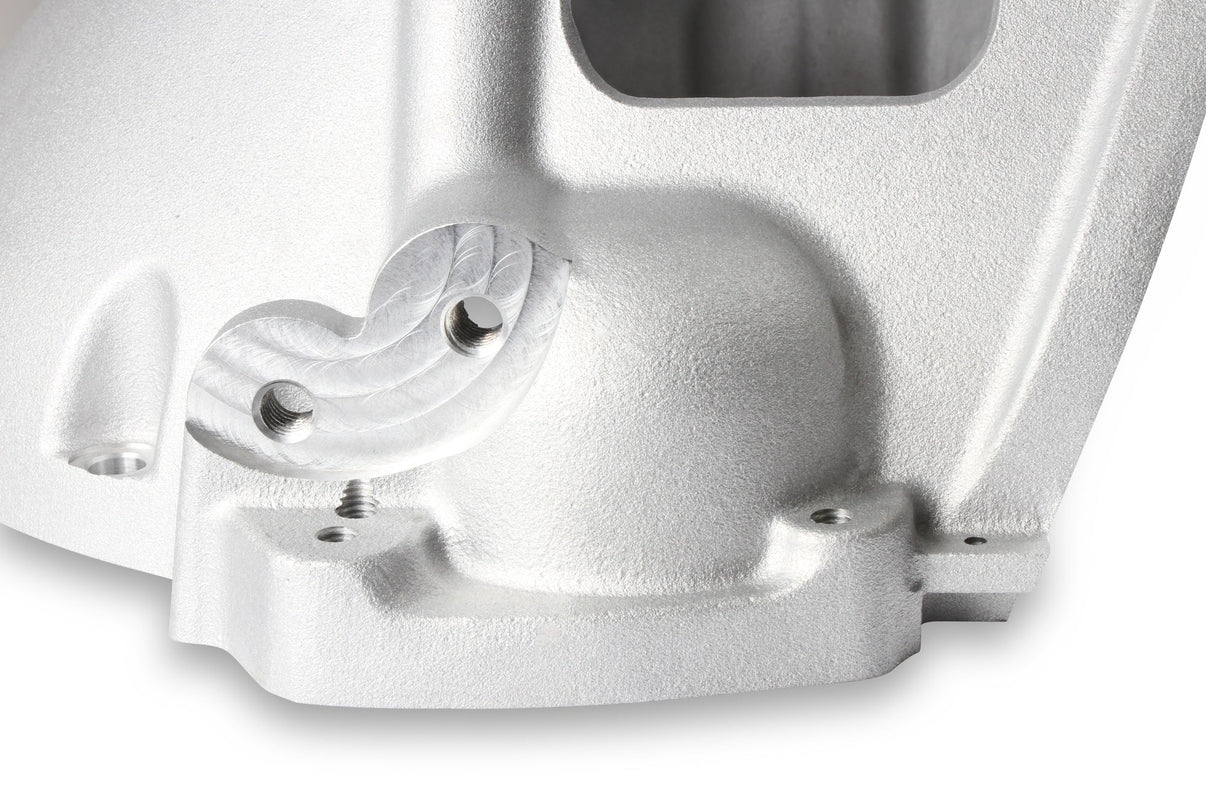

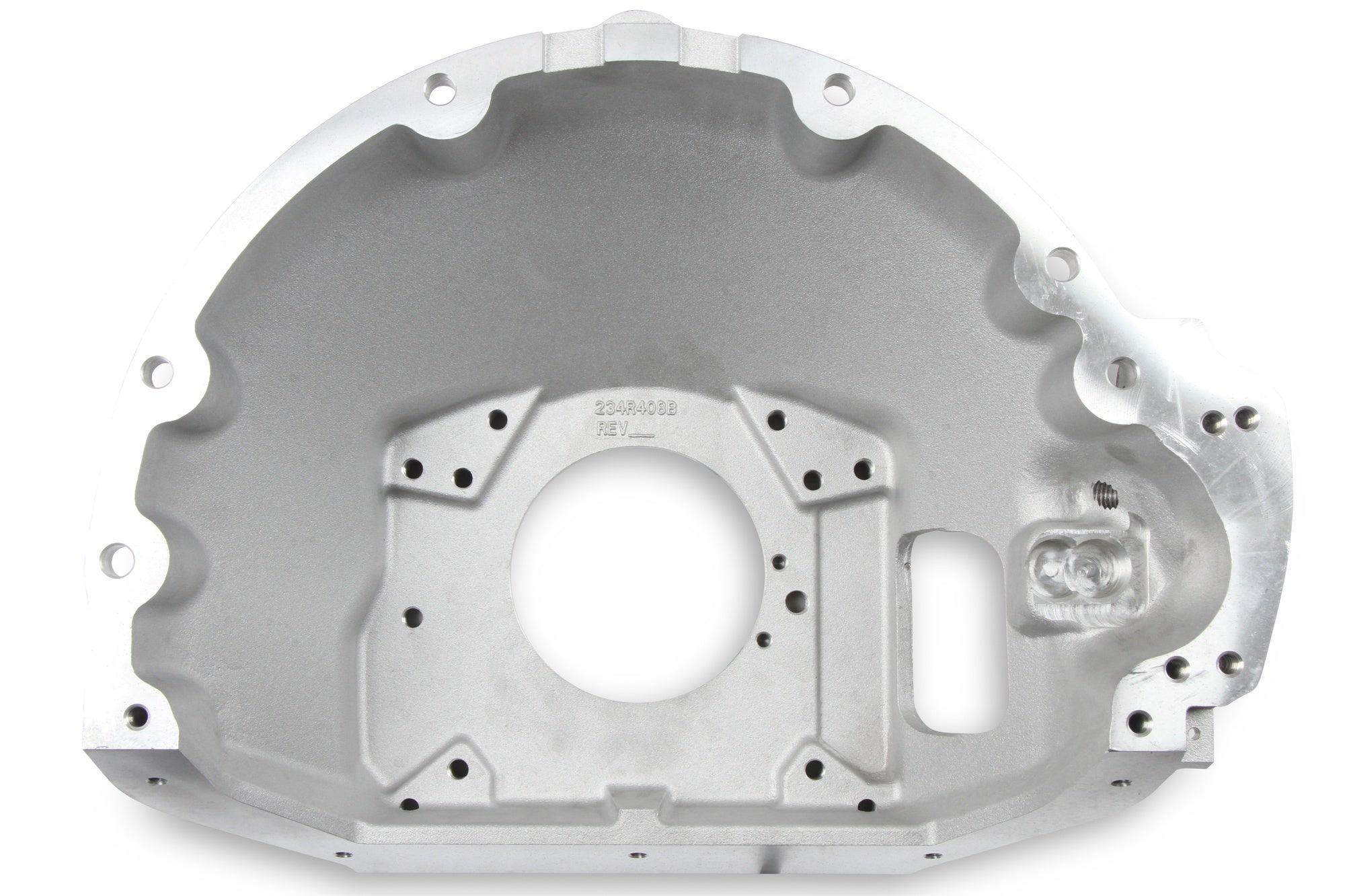

Lakewood Bellhousing Kit - Big Block Mopar
This Lakewood cast aluminum bellhousing kit connects Big Block Mopar engines to Mopar 3-Speed and 4-Speed Transmissions (A-833, A-903, A-250, and A-230) or Ford-style TKX and TKO transmissions. Designed as a compact, lightweight option for transmission swaps or upgrade. It can use either a 130 or 143-tooth flywheel and a 10.5 or 11-inch clutch. It is suited for factory-style mechanical or hydraulic clutch actuation and has dual starter positions to provide ultimate combination options and fitment.
Tested with O.E. (original equipment) style single disc 11-inch clutch.

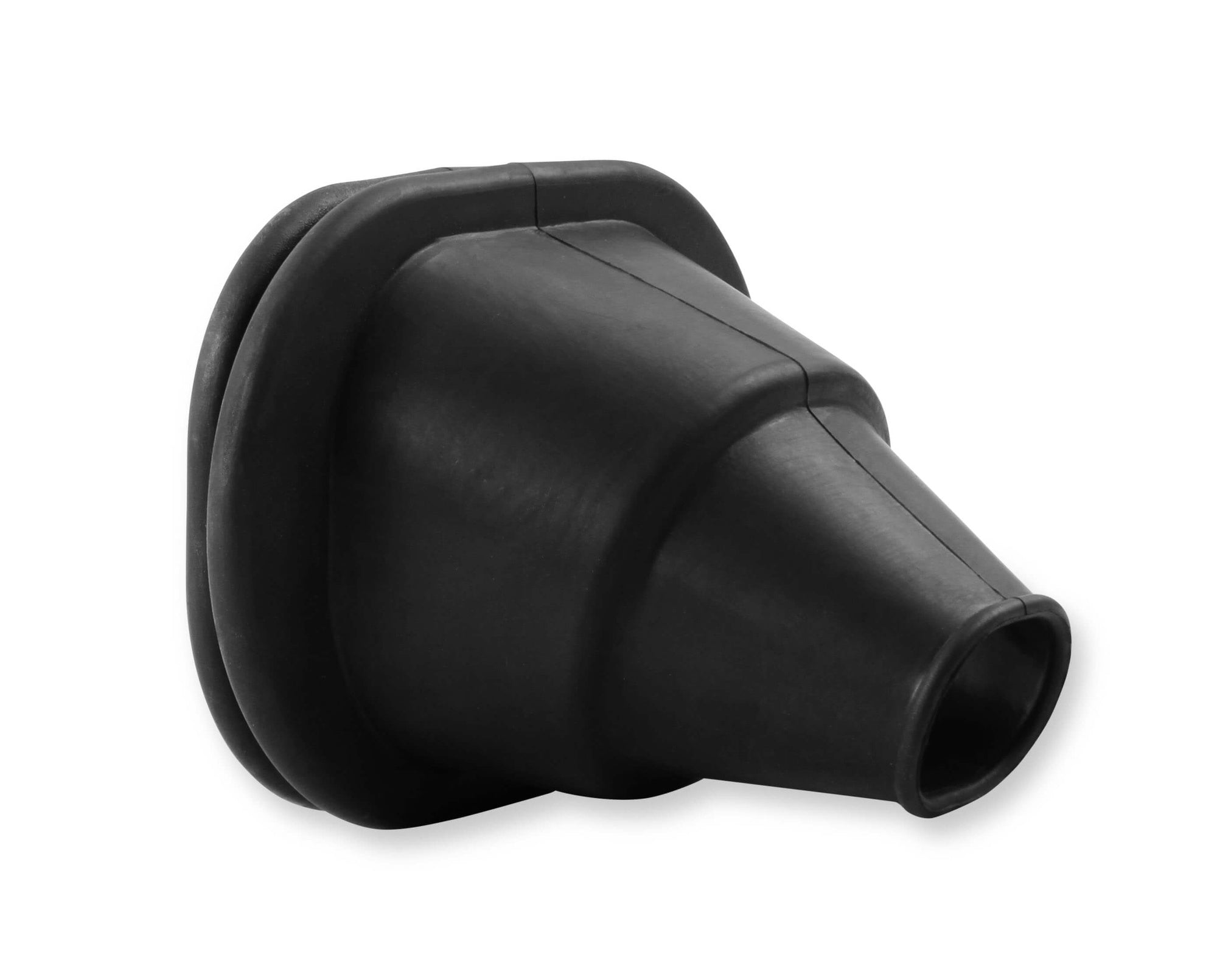

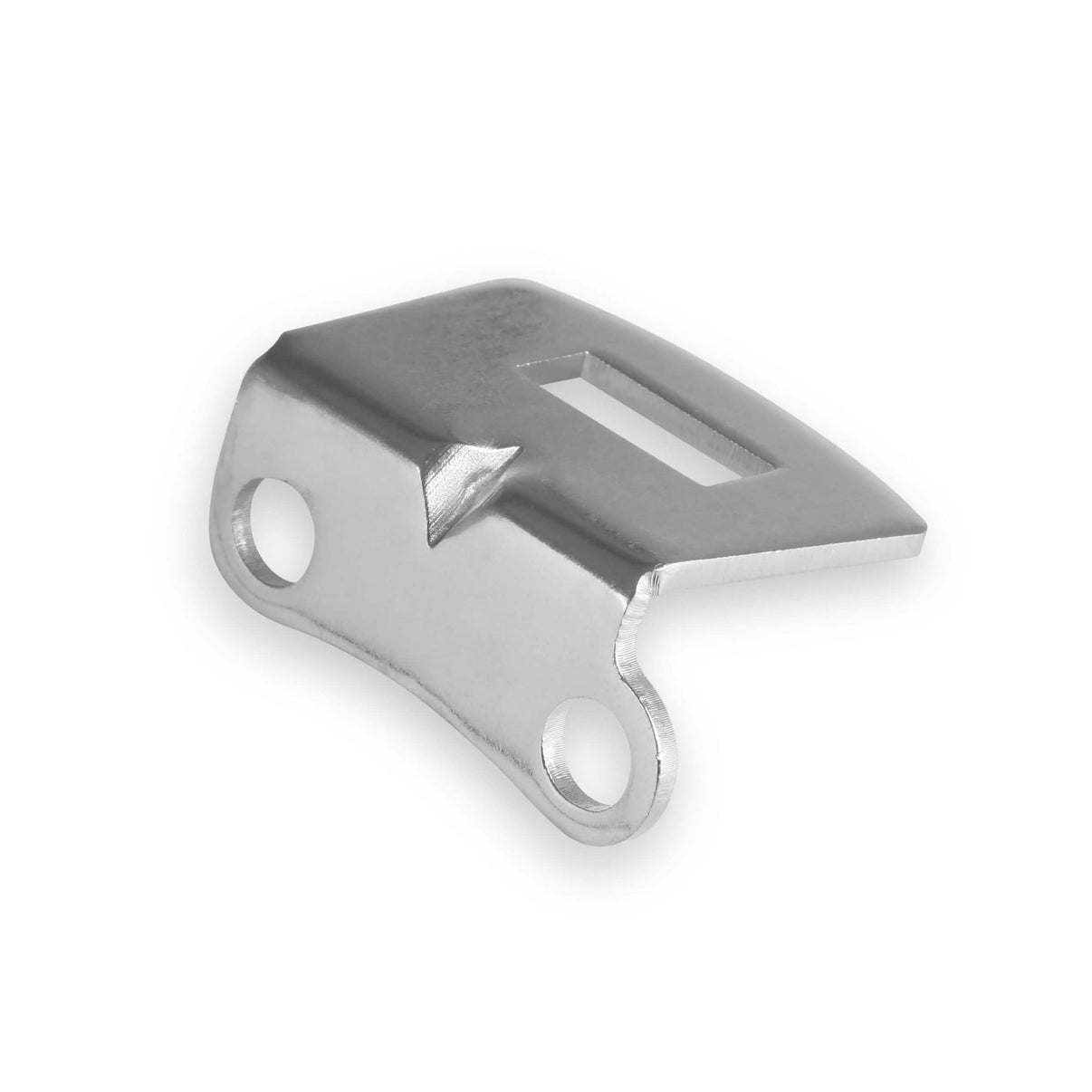

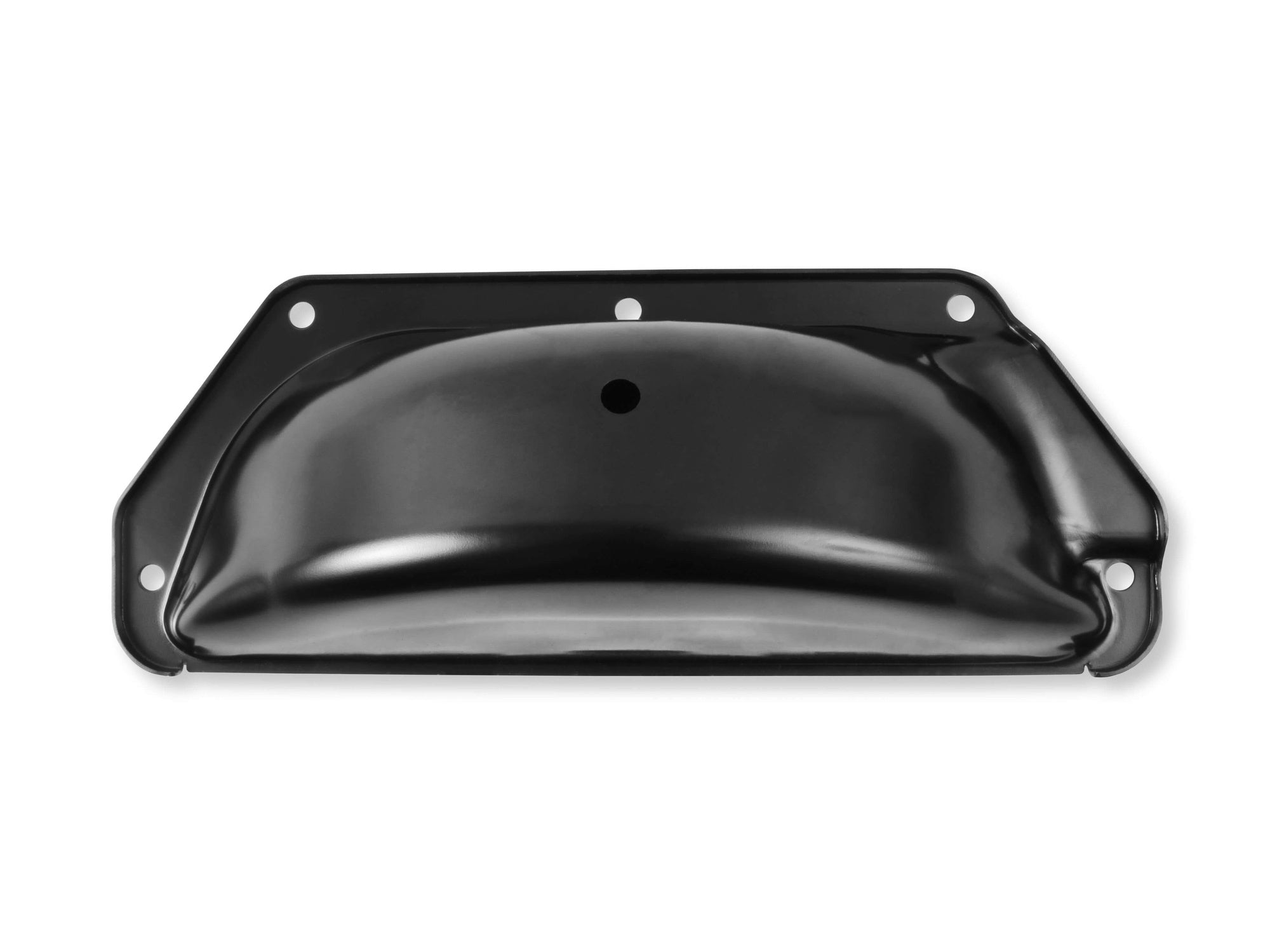

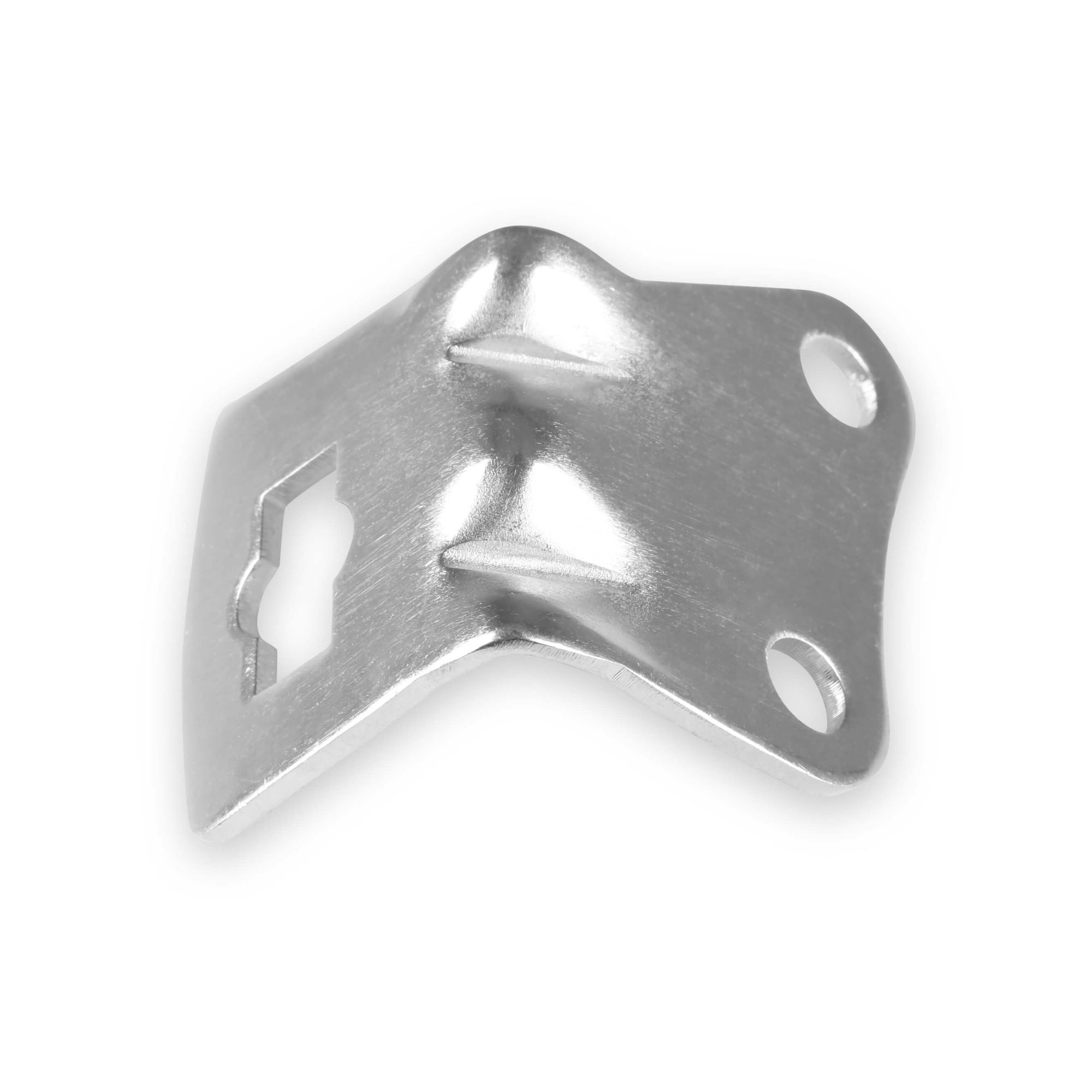

Included alignment ring sizes are 4.345 inch, 4.807 inch, and 4.850 inch I.D. (inside dimension). Also included in the kit: Clutch fork brackets, clutch fork boot, inspection dust cover, and all hardware.
This Lakewood cast aluminum bellhousing kit connects Big Block Mopar engines to Mopar 3-Speed and 4-Speed Transmissions (A-833, A-903, A-250, and A-230) or Ford-style TKX and TKO transmissions. Designed as a compact, lightweight option for transmission swaps or upgrade. It can use either a 130 or 143-tooth flywheel and a 10.5 or 11-inch clutch. It is suited for factory-style mechanical or hydraulic clutch actuation and has dual starter positions to provide ultimate combination options and fitment.
Tested with O.E. (original equipment) style single disc 11-inch clutch.
Included alignment ring sizes are 4.345 inch, 4.807 inch, and 4.850 inch I.D. (inside dimension). Also included in the kit: Clutch fork brackets, clutch fork boot, inspection dust cover, and all hardware.
🎬
Product Videos
No videos available for this product.
📋
Product Specifications
Brand
Lakewood
Category
Transmission and Drivetrain
Clutch
10.5 inch
Clutch
11 inch
Emission Code
6
Engine Make
Mopar
Engine
Chrysler Hemi (Gen II)
Flywheel
130 Tooth
Flywheel
143 Tooth
Material
Cast Aluminum
Product Type
Bellhousing
SFI Approved
No
Transmission Type
Manual
Transmission
Mopar 3 Speeds A230 & A250
Transmission
Mopar 4 Speeds A833 & A903
Transmission
TKO 500/600 Ford
Transmission
TKO Ford
Transmission
TKX Ford
📦
Package Contents
Kit includes all necessary components. Please refer to manufacturer specifications for detailed package contents.
