GT101 Style High Frequency Hall Effect Sensor Size: 18mm Diameter

Overview

The Haltech GT101 Style High Frequency Hall Effect Sensor delivers precision RPM and position sensing for high-performance applications where reliability at extreme speeds is non-negotiable. This 18mm diameter sensor provides accurate triggering up to incredibly high RPM limits, making it the go-to choice for drag racing builds, circuit cars, and any application where engine speeds regularly exceed standard sensor capabilities.

Technical Specifications

• Part Number: HT-010609
• Diameter: 18mm
• Sensor Type: Hall Effect
• Frequency Response: High frequency design
• Operating Temperature: -40°C to +150°C
• Supply Voltage: 5-24V DC

Why You Need This

Standard inductive sensors start failing as RPM climbs - signal quality degrades, timing becomes erratic, and eventually you get complete signal dropout just when your engine needs precise timing most. Hall effect sensors solve this fundamental problem by providing clean digital signals regardless of RPM. The GT101 style sensor is specifically designed for extreme applications where engines regularly see 8,000+ RPM, whether that's a built LS spinning to 7,500 on the limiter, a screaming SR20 reaching 9,000 RPM, or a race-prepped Honda hitting stratospheric speeds.

The 18mm diameter makes this sensor perfect for aftermarket trigger wheels and custom crank sensor installations. We've fitted these to everything from drag-spec RB30 builds where the stock sensor simply couldn't keep up, to circuit-prepared BMW M engines running aggressive cam timing that demands rock-solid crank position accuracy. The robust hall effect design also handles vibration and electromagnetic interference far better than conventional sensors - crucial when you've got high-output ignition systems and alternators running nearby.

ECU & System Compatibility

Compatible with the full Haltech Elite and Nexus range, including Elite 550, 750, 1000, 1500, 2000, and 2500 models, plus Nexus R3 and R5 systems. The sensor provides clean digital output that interfaces perfectly with Haltech's advanced trigger decoding algorithms. Contact our team to confirm optimal wiring and setup for your specific ECU and trigger wheel combination.

What's in the Box

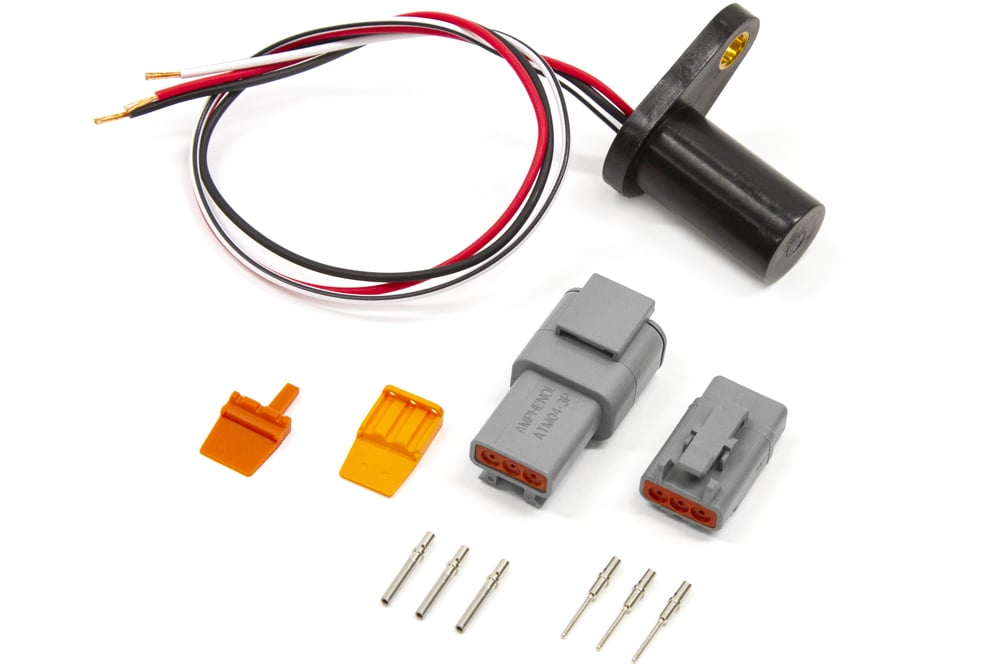

• GT101 Style Hall Effect Sensor (18mm diameter)
• Connector and pigtail
• Mounting hardware

Complete Your Build

Most customers fitting this high-frequency sensor are building serious performance engines that demand supporting modifications. Consider pairing with a custom trigger wheel for optimal performance, plus Haltech's wiring looms for clean, interference-free connections. Our technical team can recommend the complete sensor and triggering package for your specific build - we stock the full Haltech range and can typically despatch same-day from our UK facility.
