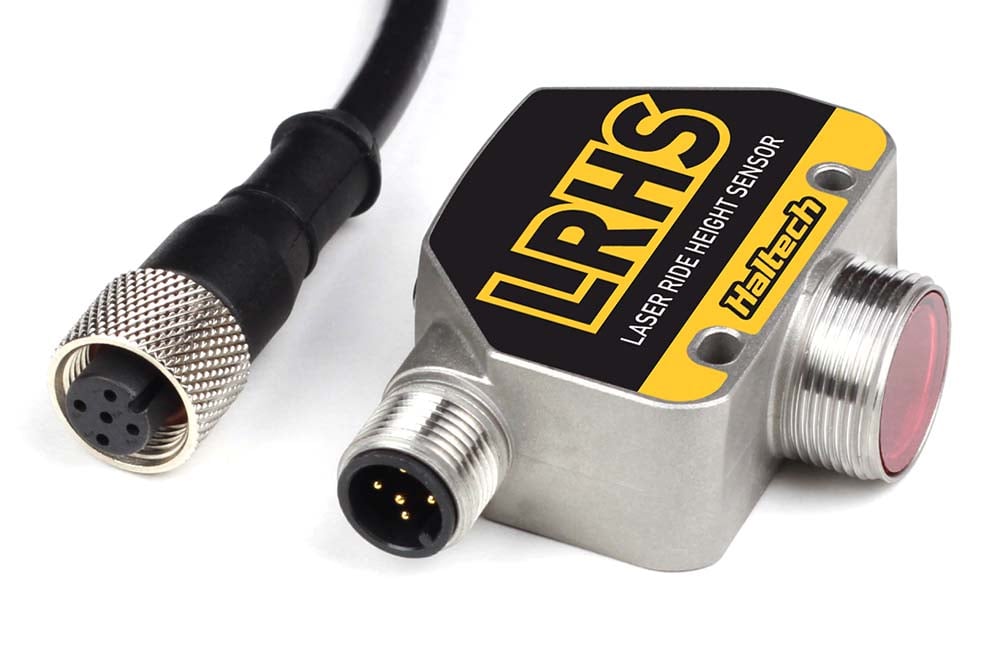

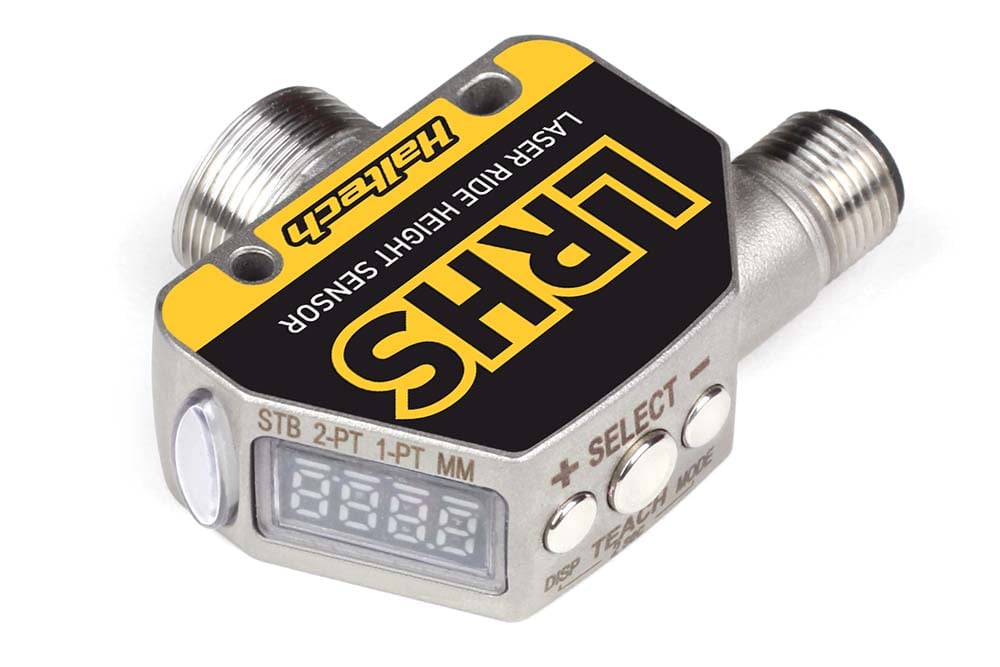

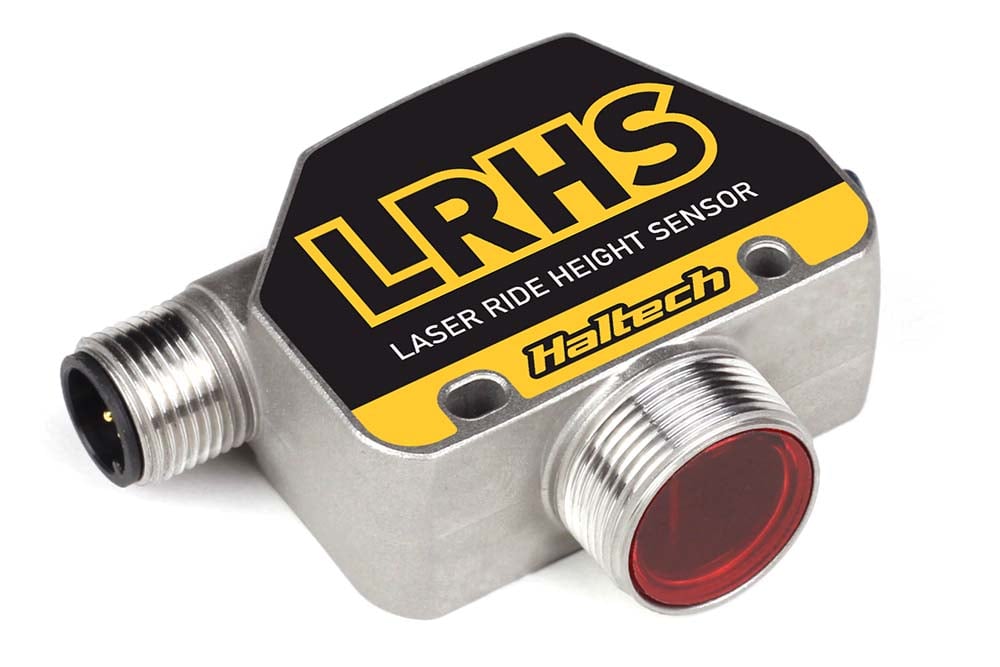

Laser Ride Height Sensor Length: 25mm (1") to 500mm (19.5") Range

Overview

The Haltech Laser Ride Height Sensor delivers precision suspension monitoring for advanced motorsport applications, measuring ride height changes from 25mm to 500mm with laser accuracy. Essential for active suspension systems, aerodynamic package optimisation, and data logging in serious race builds where suspension geometry directly impacts lap times.

Technical Specifications

• Part Number: HT-011200
• Measurement Range: 25mm (1") to 500mm (19.5")
• Sensor Type: Laser-based distance measurement
• Accuracy: High-precision laser technology
• Mounting: Compact form factor suitable for chassis mounting
• Output: Direct ECU integration via Haltech CAN network

Why You Need This

Professional motorsport builds require precise suspension data that traditional potentiometer-based sensors simply cannot deliver. The laser ride height sensor eliminates the mechanical wear, friction, and calibration drift that plagues pot-based systems. In time attack cars, hill climb specials, and circuit racers running active aero, knowing exact ride height changes under braking, cornering, and acceleration loads is critical for optimising downforce balance and suspension geometry.

We see this sensor particularly valuable in GT3-style builds, touring car applications, and serious track day cars where aerodynamic packages create significant downforce loads. The 500mm range handles everything from low-slung prototype racers to rally cars with extended suspension travel. Unlike contact sensors that can bind or wear, the laser system provides consistent, repeatable data session after session. Essential for builds running active suspension control, where the ECU needs real-time ride height feedback to adjust damping or anti-roll bar settings mid-corner.

ECU & System Compatibility

Compatible with Elite 1500, Elite 2000, Elite 2500, and Nexus R5 ECUs equipped with CAN expansion capabilities. Integrates seamlessly with Haltech's advanced logging and control strategies. Contact our team to confirm compatibility with your specific ECU configuration and discuss mounting requirements for your chassis application.

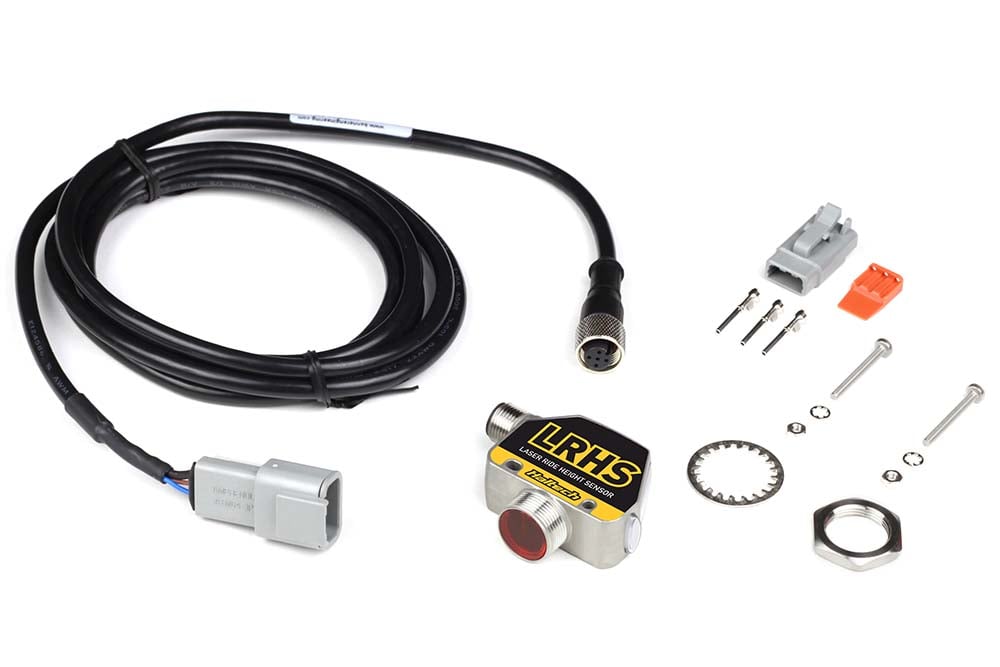

What's in the Box

• Haltech Laser Ride Height Sensor (25-500mm range)
• Mounting hardware and brackets
• CAN communication harness
• Calibration and setup documentation

Complete Your Build

Most customers installing laser ride height sensors also add complementary data acquisition sensors for complete chassis monitoring. Our technical team can recommend the ideal sensor package for your specific motorsport application, whether that's time attack aero optimization or rally suspension development. With UK stock and expert pre-sales advice, we'll ensure your laser sensor integrates perfectly with your existing Haltech system and mounting points.
