Linear Position Sensor - 1" - 200mm Travel Length: Between Mounting Holes (Closed) 327mm

Overview

Transform your race data analysis with precision linear position sensing for suspension travel, steering geometry, and gearbox positioning. This 200mm travel sensor delivers accurate positional feedback directly to your Haltech ECU, enabling advanced traction control strategies, suspension mapping, and performance optimisation that separates winners from also-rans.

Technical Specifications

• Part Number: HT-011213
• Travel Length: 200mm (1")
• Mounting Length (Closed): 327mm
• Protection Rating: IP65 (dust-tight, water resistant)
• Output: Linear voltage signal
• Construction: Motorsport-grade housing

Why You Need This

Serious motorsport demands precise data, and guesswork kills lap times. This linear position sensor eliminates the blindness that plagues most race builds — whether you're running a time attack GT-R with complex suspension geometry, a hillclimb Evo tracking front splitter efficiency, or a circuit BMW monitoring differential behaviour. Without positional feedback, your ECU is making critical traction and stability decisions based on assumptions rather than reality.

The applications are extensive: suspension travel monitoring for damper tuning and anti-squat analysis, steering angle input for advanced traction control maps, throttle position verification on ITB setups, or gearbox selector position on sequential 'boxes. On our recent SR20DET track build, suspension travel data revealed the rear was hitting bump stops 40mm earlier than expected — information that transformed the setup and found two seconds per lap. The IP65 rating means it survives the punishment of wheel wells, engine bays, and exposed chassis mounting points where lesser sensors fail.

ECU & System Compatibility

Direct integration with the complete Haltech Elite range (Elite 550, 750, 1000, 1500, 2000, 2500) and Nexus platform (R3, R5). The sensor connects to available analogue inputs and can be configured through NSP software for custom scaling, filtering, and alarm functions. Compatible with Platinum series ECUs where analogue inputs are available.

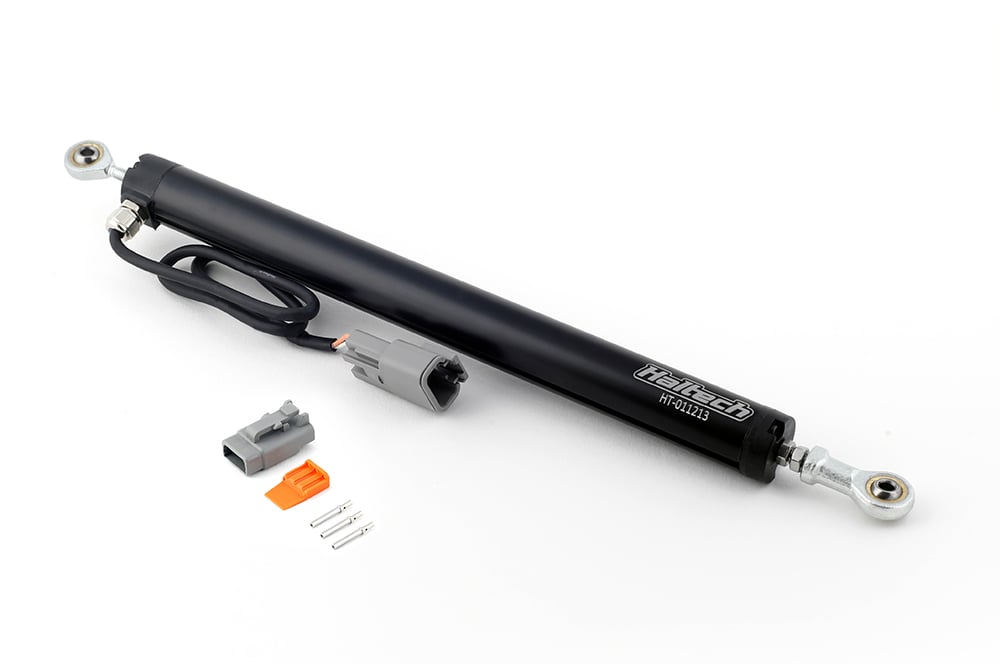

What's in the Box

• Haltech Linear Position Sensor with 200mm travel
• Motorsport-grade mounting hardware
• Weather-sealed connector and pre-wired pigtail
• Installation and wiring documentation

Complete Your Build

Most customers installing position sensors also require additional wiring components and potentially CAN expansion modules for complex multi-sensor setups. Our technical team can specify the exact loom modifications and ECU configuration required for your application — whether that's a single suspension travel sensor or a comprehensive data acquisition system. With UK stock and rapid despatch, we'll have your sensor integration sorted without delaying your build schedule. Contact our team for application-specific advice and companion parts selection.
